TOYOTA GR86 2022 Owners Manual (in English)

39
3
3-2. Other settings
Settings
The setting procedure is the same
as Engine oil setting, but select the
“Oil Filter” item in step 1.
The setting procedure is the same
as Engine oil setting, but select the
“Tyres” item in step 1.
The setting procedure is the same
as Engine oil setting, but select the
“Maintenance Schedule” item in
step 1.
●Select “Reset” to reset each setting.
●Select “Update” to revert to the default
value.
Oil Filter setting
Tyres setting
Maintenance Schedule set-
ting

403-2. Other settings

4

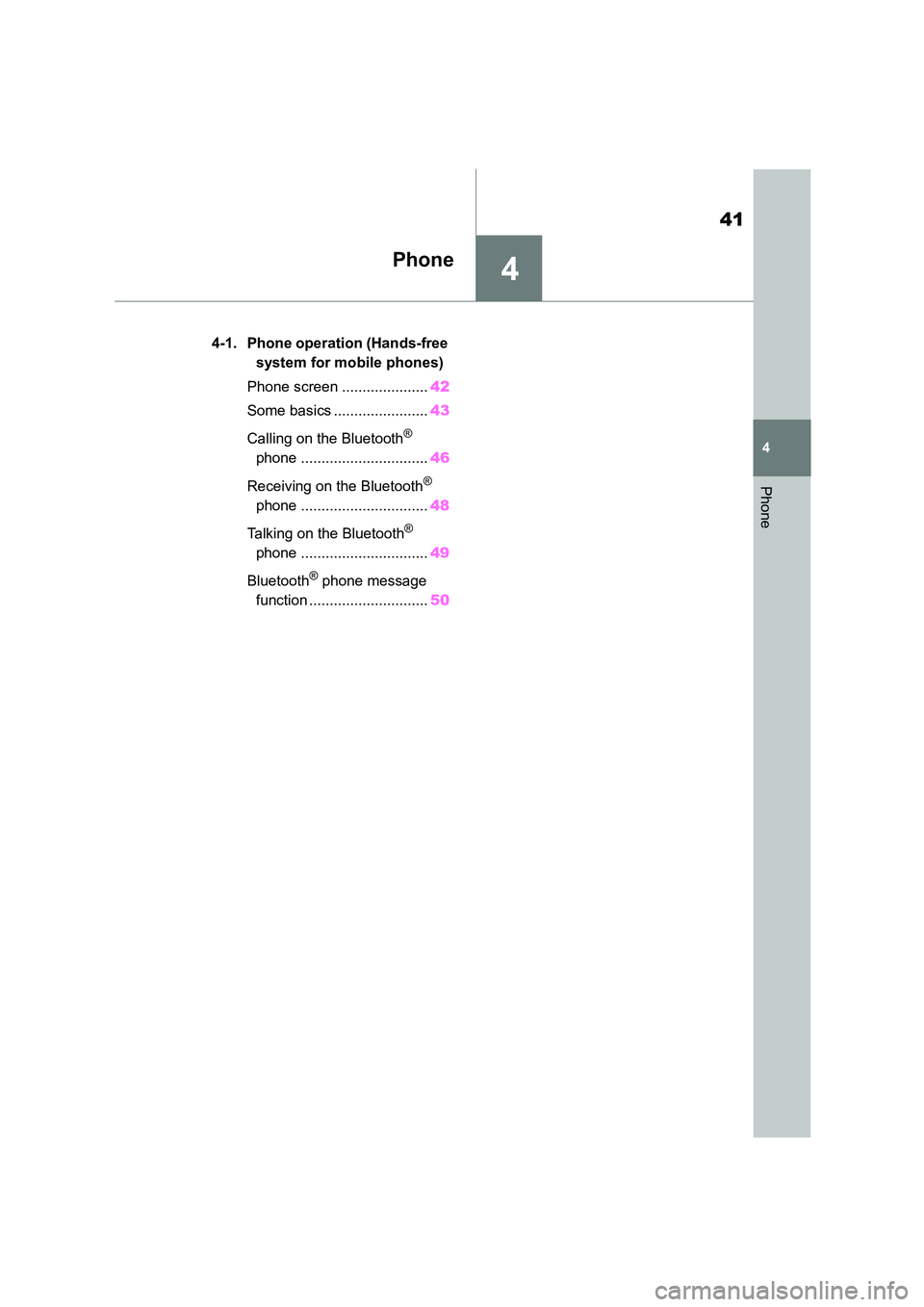

41
4
Phone
Phone
.4-1. Phone operation (Hands-free
system for mobile phones)
Phone screen ..................... 42
Some basics ....................... 43
Calling on the Bluetooth®
phone ............................... 46
Receiving on the Bluetooth®
phone ............................... 48
Talking on the Bluetooth®
phone ............................... 49
Bluetooth® phone message
function ............................. 50

424-1. Phone operation (Hands-free system for mobile phones)
4-1.Phone operation (Hands-free system for mobile phones)
The phone screen can be accessed
with the following methods:
 Press the button, and then
select “Phone”.
 Press the button.
The following functions can be
used on phone operation:
 Registering a Bluetooth®
phone/device: P. 1 9
 Calling on the Bluetooth® phone:
 P. 4 6
 Receiving on the Bluetooth®
phone: P. 4 8
 Talking on the Bluetooth® phone:
 P. 4 9
The following function can be used
on message function:
 Using the Bluetooth® phone
message function: P. 5 0
The following function can be made
in the system:
 Setting the Bluetooth®
phone/device: P. 2 4
Phone screen
Phone screen operation
Phone operation
Message function
Setting up a phone

43
4
4-1. Phone operation (Hands-free system for mobile phones)
Phone
●If your mobile phone does not support
Bluetooth®, this system cannot func-
tion. Certain functions may not be available depending on the type of
mobile phone.
●In the following conditions, the system
may not function:
• The mobile phone is turned off. • The current position is outside the
communication area.
• The mobile phone is not connected. • The mobile phone has a low battery.
●When using the hands-free function
and other Bluetooth® functions at the same time, the following problems
may occur:
• The Bluetooth® connection may be cut.
• Noise may be heard when playing
back voice with the Bluetooth® func- tion.
●The other party’s voice will be heard from the front speakers. The
audio/visual system will be muted dur-
ing phone calls or when hands-free voice commands are used.
●Talk alternately with the other party on
the phone. If both parties speak at the
same time, the other party may not hear what has been said. (This is not
a malfunction.)
●Keep call volume down. Otherwise,
the other party’s voice may be audible
outside the vehicle and voice echo may increase. When talking on the
phone, speak clearly towards the
microphone.
●The other party may not hear you
clearly when: • Driving on an unpaved road. (Making
excessive traffic noise.)
• Driving at high speeds. • Driving with a window open.
• When air from the ventilator blows
directly toward the microphone. • The sound of the air conditioning fan
is loud.
• There is a negative effect on sound quality due to the phone and/or net-
work being used.
Some basics
The hands-free system ena-
bles calls to be made and
received without having to take
your hands off the steering
wheel.
This system supports
Bluetooth®. Bluetooth® is a
wireless data system that ena-
bles mobile phones to be used
without being connected by a
cable or placed in a cradle.
The operating procedure of the
phone is explained here.
WA R N I N G
●While driving, do not use a mobile
phone or connect the Bluetooth®
phone.
●This system is fi tted with Bluetooth®
antennas. People with implantable
cardiac pacemakers , cardiac resyn-
chronisation therapy-pacemakers or implantable cardioverter
defibrillators should maintain a rea-
sonable distance between them-
selves and the Bluetooth®
antennas. The radio waves may
affect the operation of such devices.

444-1. Phone operation (Hands-free system for mobile phones)
To use the hands-free system for
mobile phones, it is necessary to
register a mobile phone with the
system. ( P.19)
■Bluetooth® phone condition
display
The condition of the Bluetooth®
phone appears on the upper right
side of the screen. ( P. 1 0 )
■Steering switch
By pressing the phone switch, a call
can be received or ended without
taking your hands off the steering
wheel.
Volume control switch
• Press the side to increase the
volume.
• Press the side to decrease the
volume.
Off hook switch
On hook switch
■Microphone
The microphone is used when talk-
ing on the phone.
Press this switch to operate the
voice recognition system.
WA R N I N G
●Before using Bluetooth® phones,
users of any electrical medical
device other than implantable car- diac pacemakers, cardiac resyn-
chronisation therapy-pacemakers
or implantable cardioverter defibrillators should consult the
manufacturer of the device for infor-
mation about its operation under the influence of radio waves. Radio
waves could have unexpected
effects on the operation of such medical devices.
NOTICE
●Do not leave your mobile phone in
the vehicle. In particular, high tem-
peratures inside the vehicle may damage the mobile phone.
Registering/Connecting a
Bluetooth® phone
Using the phone
switch/microphone
NOTICE
●Do not touch and put a sharp object
to the microphone. It may cause failure.
Voice recognition system
A
B
C

45
4
4-1. Phone operation (Hands-free system for mobile phones)
Phone
 The voice recognition system
and its list of commands can be
operated. ( P. 9 0 )
 The following data is stored for
every registered phone. When
another phone is connected, the
following registered data cannot
be read:
• Contact data
• Call history data
• Favourites data
• All phone settings
●When a phone’s registration is deleted, the above-mentioned data is
also deleted.
A lot of personal data is registered
when the hands-free system is
used. When selling or disposing of
the vehicle, reset all setup items.
( P. 2 9 )
 The following data in the system
can be reset:
• Contact data
• Call history data
• Favourites data
• All phone settings
●Once reset, the data and settings will be erased. Pay close attention when
resetting the data.
About the contacts in the
contact list
When selling or disposing of
the vehicle

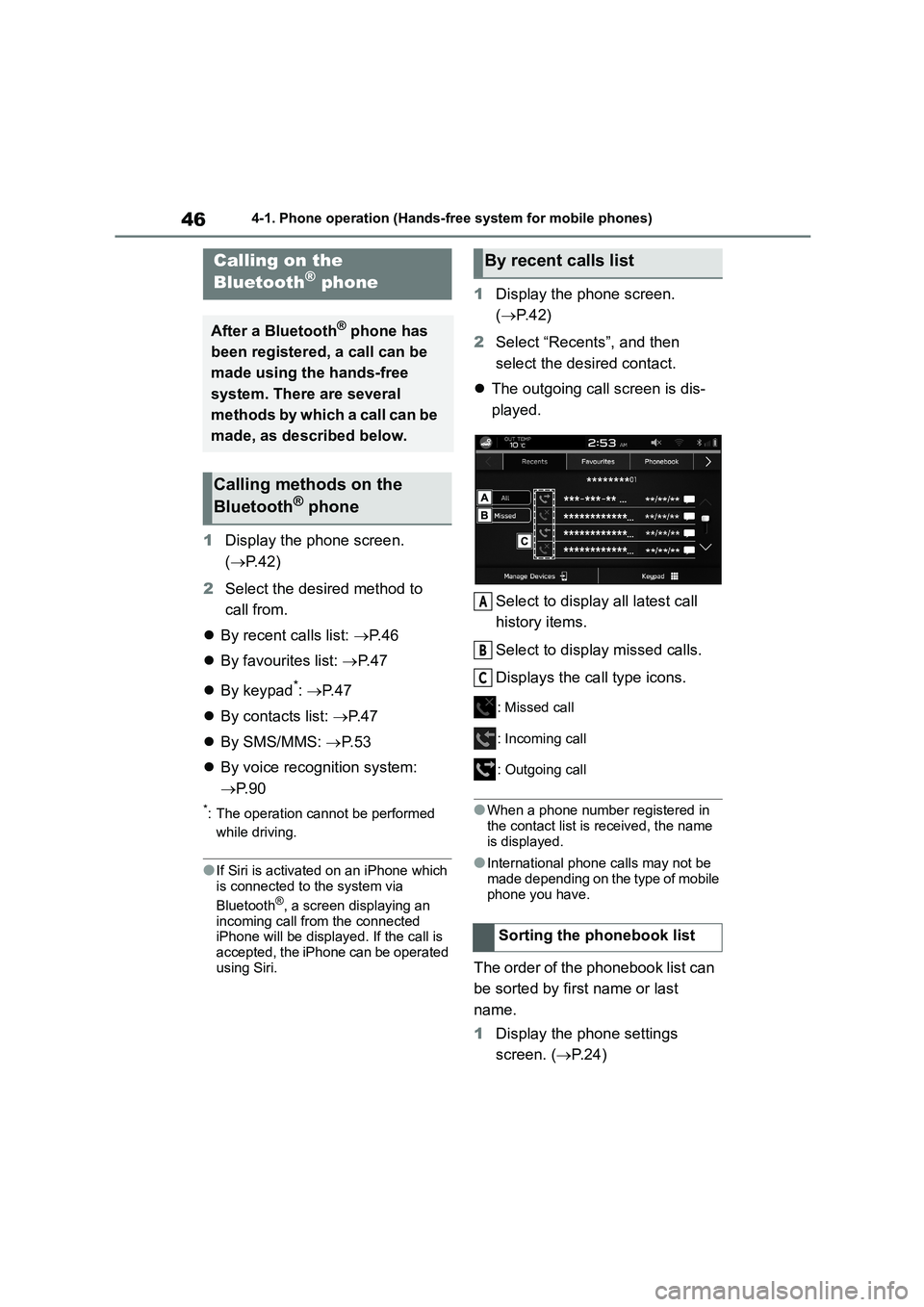

464-1. Phone operation (Hands-free system for mobile phones)
1Display the phone screen.
( P.42)
2 Select the desired method to
call from.
 By recent calls list: P. 4 6
 By favourites list: P. 4 7
 By keypad*: P. 4 7
 By contacts list: P. 4 7
 By SMS/MMS: P. 5 3
 By voice recognition system:
 P. 9 0
*: The operation cannot be performed
while driving.
●If Siri is activated on an iPhone which
is connected to the system via
Bluetooth®, a screen displaying an
incoming call from the connected iPhone will be displayed. If the call is
accepted, the iPhone can be operated
using Siri.
1 Display the phone screen.
( P. 4 2 )
2 Select “Recents”, and then
select the desired contact.
 The outgoing call screen is dis-
played.
Select to displa y all latest call
history items.
Select to display missed calls.
Displays the ca ll type icons.
: Missed call
: Incoming call
: Outgoing call
●When a phone number registered in
the contact list is received, the name
is displayed.
●International phone calls may not be
made depending on the type of mobile
phone you have.
The order of the phonebook list can
be sorted by first name or last
name.
1 Display the phone settings
screen. ( P. 2 4 )
Calling on the
Bluetooth® phone
After a Bluetooth® phone has
been registered, a call can be
made using the hands-free
system. There are several
methods by which a call can be
made, as described below.
Calling methods on the
Bluetooth® phone
By recent calls list
Sorting the phonebook list
A
B
C

47
4
4-1. Phone operation (Hands-free system for mobile phones)
Phone
2 Select “Phonebook/Recent
Calls”.
3 Select “Sort Order”.
4 Select the desired sorting crite-
ria.
Calls can be made using registered
contacts which can be selected
from a contact list.
For details on registering con-
tacts: P. 4 7
Up to 15 contact lists can be regis-
tered in the favourites list.
1 Display the phone screen.
( P.42)
2 Select “Favourites”, and then
select the desired contact.
3 Select next to the desired
number.
 The outgoing call screen is dis-
played.
●This system’s favourites list and that
of your Bluetooth® phone are not syn-
chronised. This system does not cur-
rently support transfer of favourites list
data from the Bluetooth® phone. To
add the Bluetooth® phone’s favourites
list to the system’s favourites list, you need to register it through the system
phonebook contacts list. ( P. 4 7 )
1Display the phone settings
screen. ( P. 2 4 )
2 Select “Phonebook/Recent
Calls”.
3 Select “Remove All Favourites”.
4 Select “OK”.
1 Display the phone screen.
( P. 4 2 )
2 Select “Keypad”.
3 Enter the phone number.
4 Select “Call”.
 The outgoing call screen is dis-
played.
●Depending on the type of Bluetooth®
phone being connected, it may be
necessary to perform additional steps on the phone.
Calls can be made by using contact
data which is transferred from a
registered mobile phone.
1 Display the phone screen.
( P. 4 2 )
2 Select “Phonebook”, and then
select the desired contact.
 When is selected,
changes to (yellow).
• The number is registered in the
favourites list. ( P. 4 7 )
By favourites list
Deleting all favourites list
By keypad
By contacts list

484-1. Phone operation (Hands-free system for mobile phones)
Each time the symbol is
selected, the symbol changes
between and (yellow).
3 Select next to the desired
number.
 Numbers may include Home,
Work, Mobile and Other as cate-
gories depending on the
phonebook data of the con-
nected mobile phone.
 The outgoing call screen is dis-
played.
●When “Automatically Download Phonebook/Recent Calls” is set to on,
contacts is transferred automatically.
( P. 2 7 )
1Select “Accept” or press the
switch on the steering
wheel to talk on the phone.
To refuse to receive the call:
Select “Decline” or press the
switch on the steering wheel.
To adjust the volume of a
received call: Turn the “VOLUME”
knob, or use the volume control
switch on the steering wheel.
●During international phone calls, the other party’s name or number may not
be displayed correctly depending on
the type of mobile phone you have.
●The ringtone volume can also be set
from the sound settings screen. ( P. 3 6 )
Receiving on the
Bluetooth® phone
When a call is received, the
incoming call screen pops up
with sound.
Incoming calls
