TOYOTA GT86 2018 Accessories, Audio & Navigation (in English)

91
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM

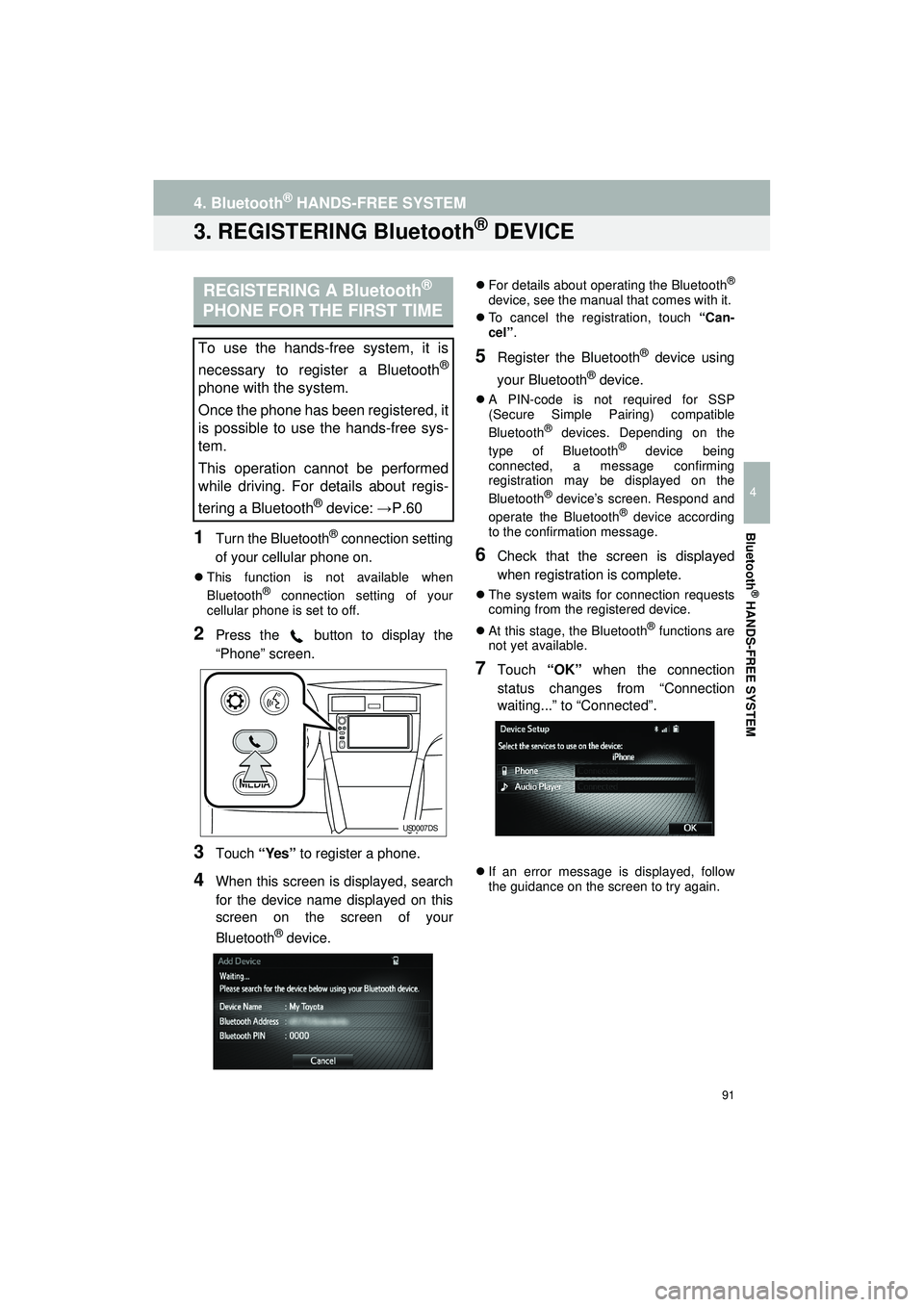

3. REGISTERING Bluetooth® DEVICE
1Turn the Bluetooth® connection setting
of your cellular phone on.
 This function is not available when
Bluetooth® connection setting of your
cellular phone is set to off.
2Press the button to display the
“Phone” screen.
3Touch “Yes” to register a phone.
4When this screen is displayed, search
for the device name displayed on this
screen on the screen of your
Bluetooth
® device.
For details about operating the Bluetooth®
device, see the manual that comes with it.
 To cancel the registration, touch “Can-
cel”.
5Register the Bluetooth® device using
your Bluetooth
® device.
 A PIN-code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on the
type of Bluetooth® device being
connected, a message confirming
registration may be displayed on the
Bluetooth
® device’s screen. Respond and
operate the Bluetooth® device according
to the confirmation message.
6Check that the screen is displayed
when registration is complete.
 The system waits for connection requests
coming from the registered device.
 At this stage, the Bluetooth
® functions are
not yet available.
7Touch “OK” when the connection
status changes from “Connection
waiting...” to “Connected”.
 If an error message is displayed, follow
the guidance on the screen to try again.
REGISTERING A Bluetooth®
PHONE FOR THE FIRST TIME
To use the hands-free system, it is
necessary to register a Bluetooth
®
phone with the system.
Once the phone has been registered, it
is possible to use the hands-free sys-
tem.
This operation cannot be performed
while driving. For details about regis-
tering a Bluetooth
® device: → P.60
US0007DS

92
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Toyota Motor Corpor ation is under license. Other trademarks and trade
names are those of their respective owners.

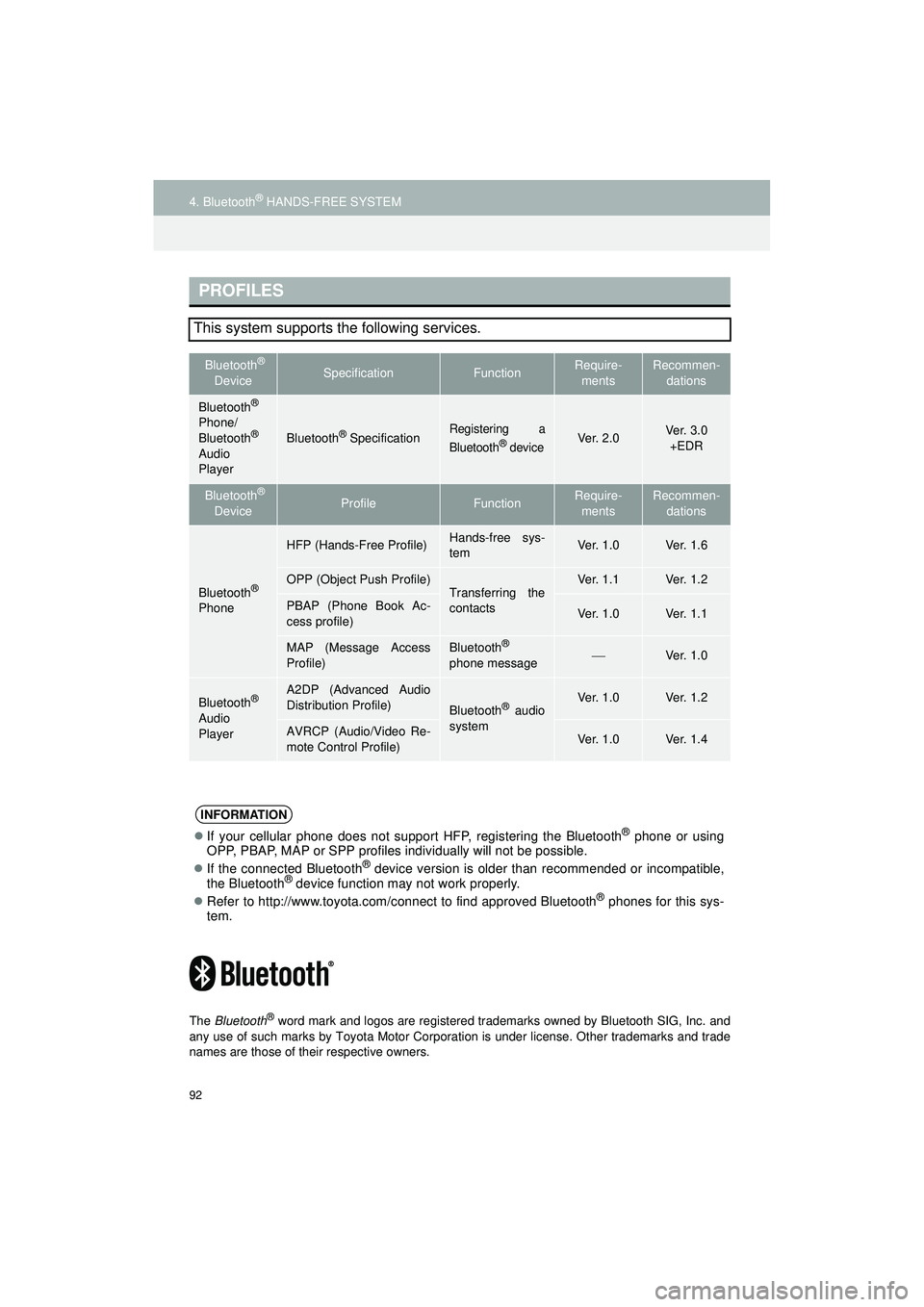

PROFILES
This system supports the following services.
Bluetooth®
DeviceSpecificationFunctionRequire- mentsRecommen- dations
Bluetooth®
Phone/
Bluetooth®
Audio
Player
Bluetooth® SpecificationRegistering a
Bluetooth® deviceVe r. 2 . 0Ve r. 3 . 0 +EDR
Bluetooth®
DeviceProfileFunctionRequire- mentsRecommen- dations
Bluetooth®
Phone
HFP (Hands-Free Profile)Hands-free sys-
temVe r. 1 . 0Ve r. 1 . 6
OPP (Object Push Profile)Transferring the
contactsVe r. 1 . 1Ve r. 1 . 2
PBAP (Phone Book Ac-
cess profile)Ve r. 1 . 0Ve r. 1 . 1
MAP (Message Access
Profile)Bluetooth®
phone messageVe r. 1 . 0
Bluetooth®
Audio
Player
A2DP (Advanced Audio
Distribution Profile)
Bluetooth® audio
system Ve r. 1 . 0Ve r. 1 . 2
AVRCP (Audio/Video Re-
mote Control Profile)Ve r. 1 . 0Ve r. 1 . 4
INFORMATION
 If your cellular phone does not support HFP, registering the Bluetooth® phone or using
OPP, PBAP, MAP or SPP profiles in dividually will not be possible.
 If the connected Bluetooth
® device version is older than recommended or incompatible,
the Bluetooth® device function may not work properly.
 Refer to http://www.toyota.com/connect to find approved Bluetooth® phones for this sys-
tem.

93
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
U.S.A. 
Canada

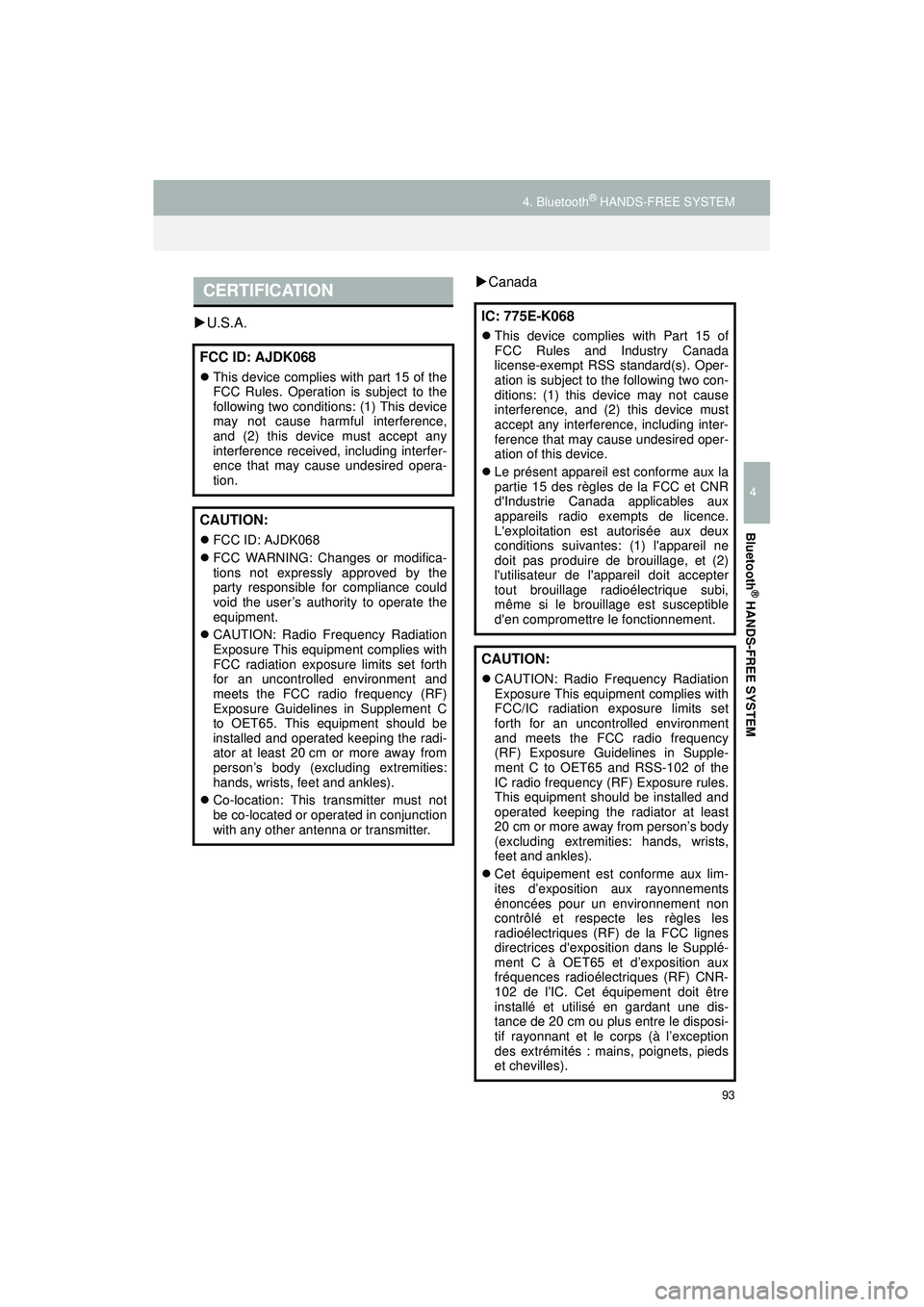

CERTIFICATION
FCC ID: AJDK068
 This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired opera-
tion.
CAUTION:
FCC ID: AJDK068
 FCC WARNING: Changes or modifica-
tions not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
 CAUTION: Radio Frequency Radiation
Exposure This equipment complies with
FCC radiation exposure limits set forth
for an uncontrolled environment and
meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C
to OET65. This equipment should be
installed and operated keeping the radi-
ator at least 20 cm or more away from
person’s body (excluding extremities:
hands, wrists, feet and ankles).
 Co-location: This transmitter must not
be co-located or operated in conjunction
with any other antenna or transmitter.
IC: 775E-K068
 This device complies with Part 15 of
FCC Rules and Industry Canada
license-exempt RSS standard(s). Oper-
ation is subject to the following two con-
ditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including inter-
ference that may cause undesired oper-
ation of this device.
 Le présent appareil est conforme aux la
partie 15 des règles de la FCC et CNR
d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne
doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible
d'en compromettre le fonctionnement.
CAUTION:
CAUTION: Radio Frequency Radiation
Exposure This equipment complies with
FCC/IC radiation exposure limits set
forth for an uncontrolled environment
and meets the FCC radio frequency
(RF) Exposure Guidelines in Supple-
ment C to OET65 and RSS-102 of the
IC radio frequency (RF) Exposure rules.
This equipment should be installed and
operated keeping the radiator at least
20 cm or more away from person’s body
(excluding extremities: hands, wrists,
feet and ankles).
 Cet équipement est conforme aux lim-
ites d’exposition aux rayonnements
énoncées pour un environnement non
contrôlé et respecte les règles les
radioélectriques (RF) de la FCC lignes
directrices d'exposition dans le Supplé-
ment C à OET65 et d’exposition aux
fréquences radioélectriques (RF) CNR-
102 de l’IC. Cet équipement doit être
installé et utilisé en gardant une dis-
tance de 20 cm ou plus entre le disposi-
tif rayonnant et le corps (à l’exception
des extrémités : mains, poignets, pieds
et chevilles).

94
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS

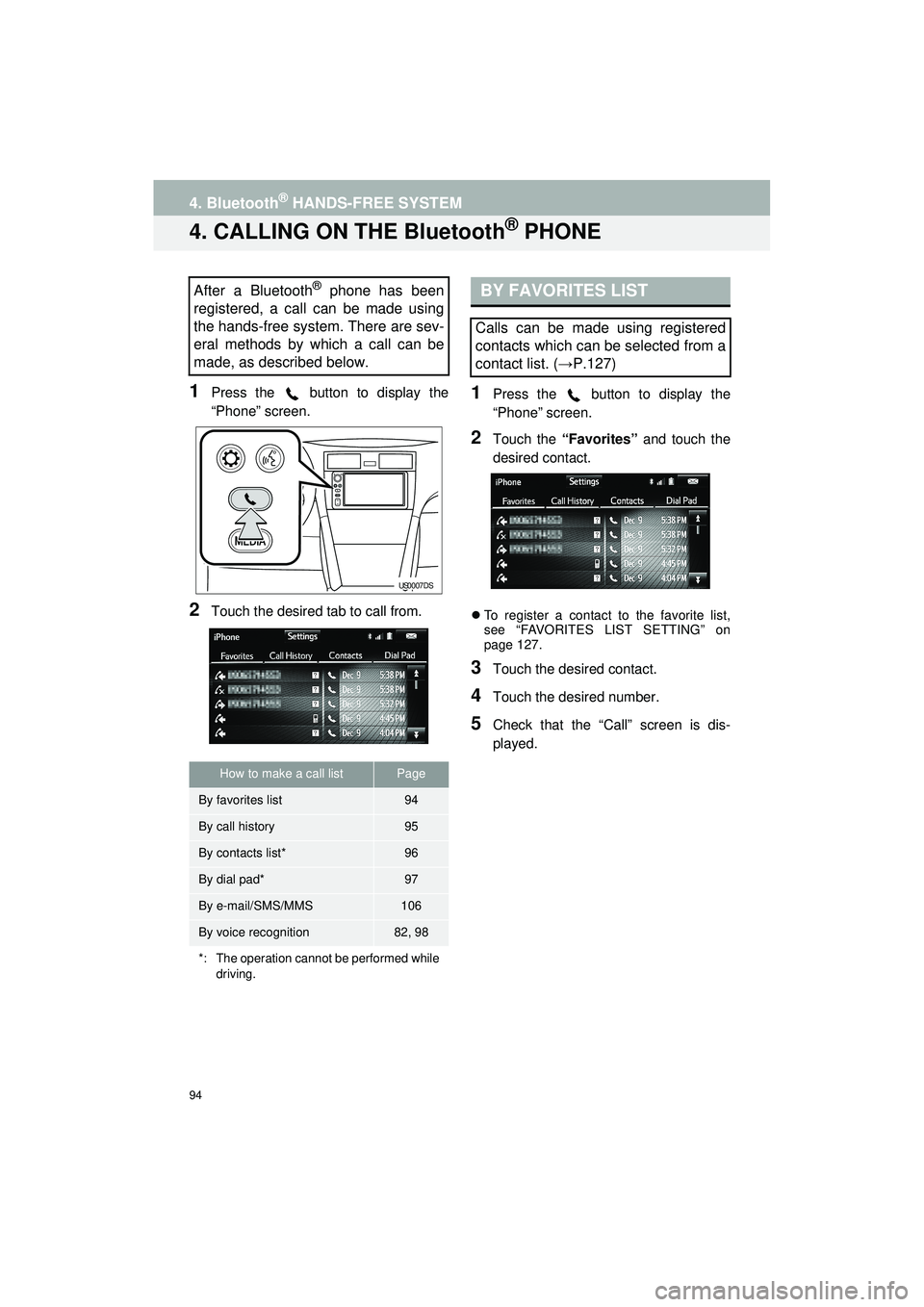

4. CALLING ON THE Bluetooth® PHONE
1Press the button to display the
“Phone” screen.
2Touch the desired tab to call from.
1Press the button to display the
“Phone” screen.
2Touch the “Favorites” and touch the
desired contact.
 To register a contact to the favorite list,
see “FAVORITES LI ST SETTING” on
page 127.
3Touch the desired contact.
4Touch the desired number.
5Check that the “Call” screen is dis-
played.
After a Bluetooth® phone has been
registered, a call can be made using
the hands-free system. There are sev-
eral methods by which a call can be
made, as described below.
How to make a call listPage
By favorites list94
By call history95
By contacts list*96
By dial pad*97
By e-mail/SMS/MMS106
By voice recognition82, 98
*: The operation cannot be performed while driving.
US0007DS
BY FAVORITES LIST
Calls can be made using registered
contacts which can be selected from a
contact list. ( →P.127)

95
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM
1Press the button to display the
“Phone” screen.
2Touch the “Call History” tab and
touch or the desired contact.
 The icons of call type are displayed.
: Missed call
: Incoming call
: Outgoing call
 When is selected
3Check that the “Call” screen is dis-
played.
 When the desired contact is selected
3Touch the desired number.
4Check that the “Call” screen is dis-
played.

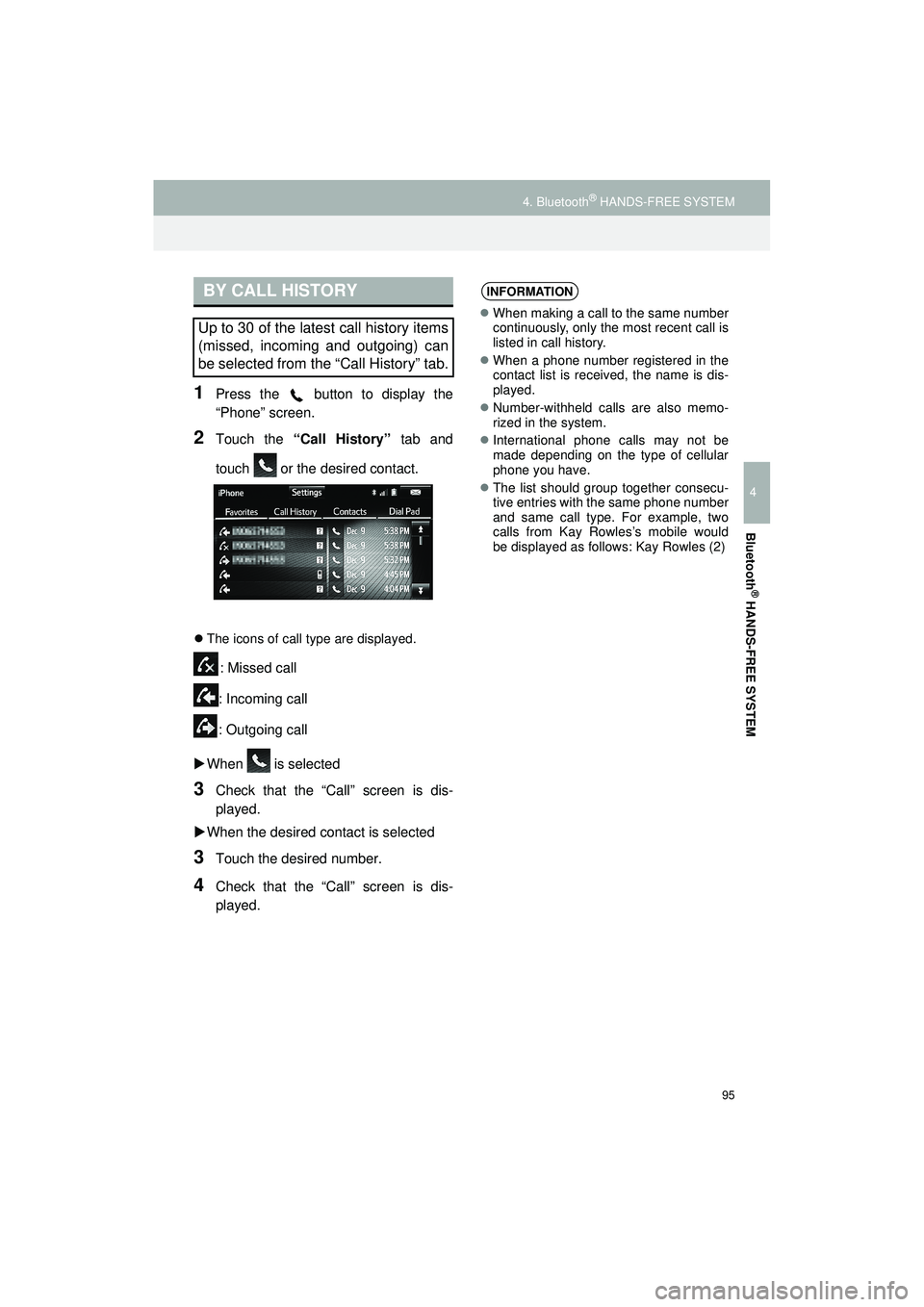

BY CALL HISTORY
Up to 30 of the latest call history items
(missed, incoming and outgoing) can
be selected from the “Call History” tab.
INFORMATION
 When making a call to the same number
continuously, only the most recent call is
listed in call history.
 When a phone number registered in the
contact list is received, the name is dis-
played.
 Number-withheld calls are also memo-
rized in the system.
 International phone calls may not be
made depending on the type of cellular
phone you have.
 The list should group together consecu-
tive entries with the same phone number
and same call type. For example, two
calls from Kay Rowles’s mobile would
be displayed as follows: Kay Rowles (2)

96
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
1Press the button to display the
“Phone” screen.
2Touch the “Contacts” and touch the
desired contact.
3Touch the desired number.
4Check that the “Call” screen is dis-
played.
FOR PBAP COMPATIBLE Bluetooth®
PHONES
 When “Automatic Transfer” is set to on
(→P.122)
 Contacts are transferred automatically.
When “Automatic Transfer” is set to off
(→P.122)
1Touch the desired item.

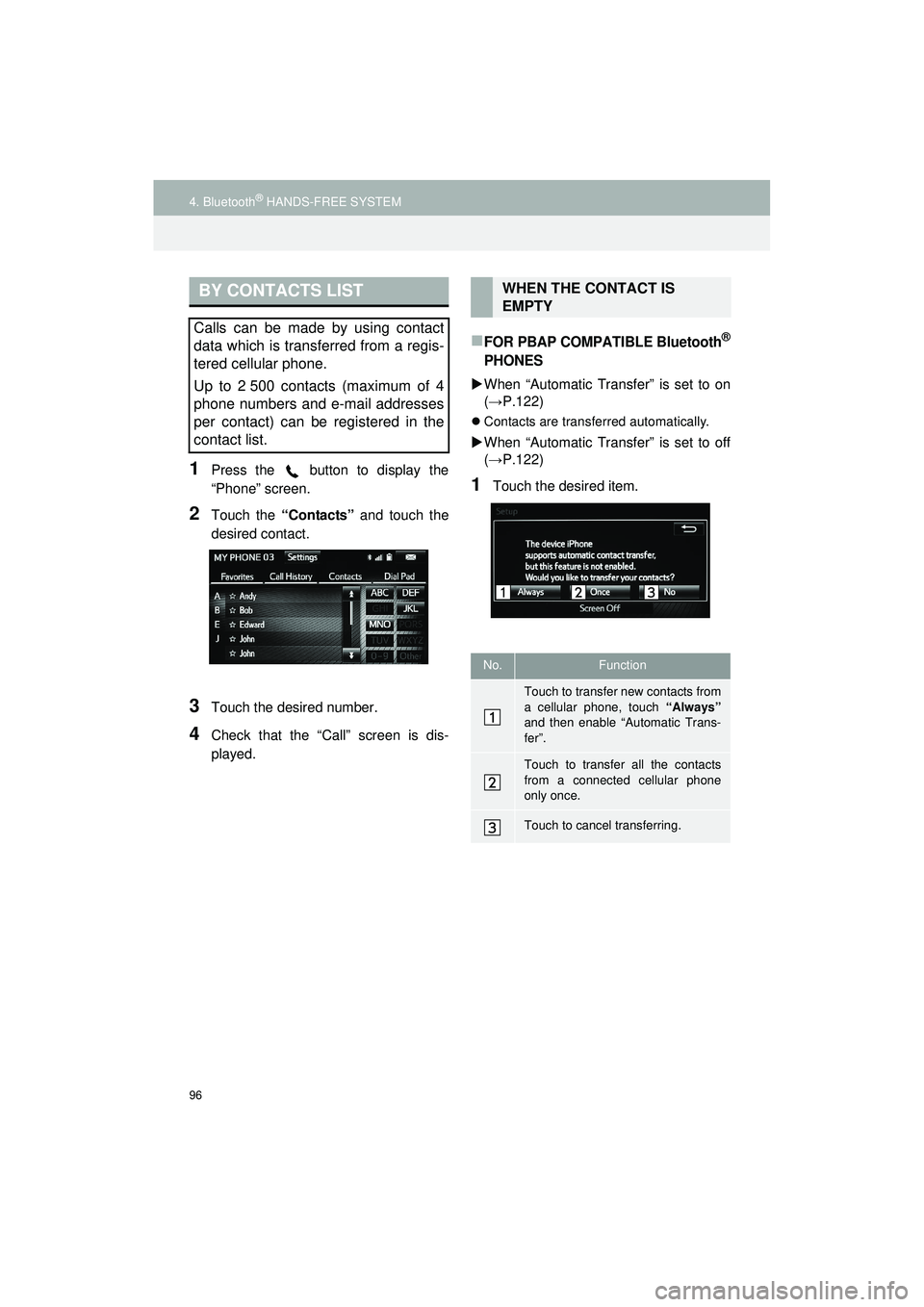

BY CONTACTS LIST
Calls can be made by using contact
data which is transferred from a regis-
tered cellular phone.
Up to 2 500 contacts (maximum of 4
phone numbers and e-mail addresses
per contact) can be registered in the
contact list.
WHEN THE CONTACT IS
EMPTY
No.Function
Touch to transfer new contacts from
a cellular phone, touch “Always”
and then enable “Automatic Trans-
fer”.
Touch to transfer all the contacts
from a connected cellular phone
only once.
Touch to cancel transferring.

97
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM

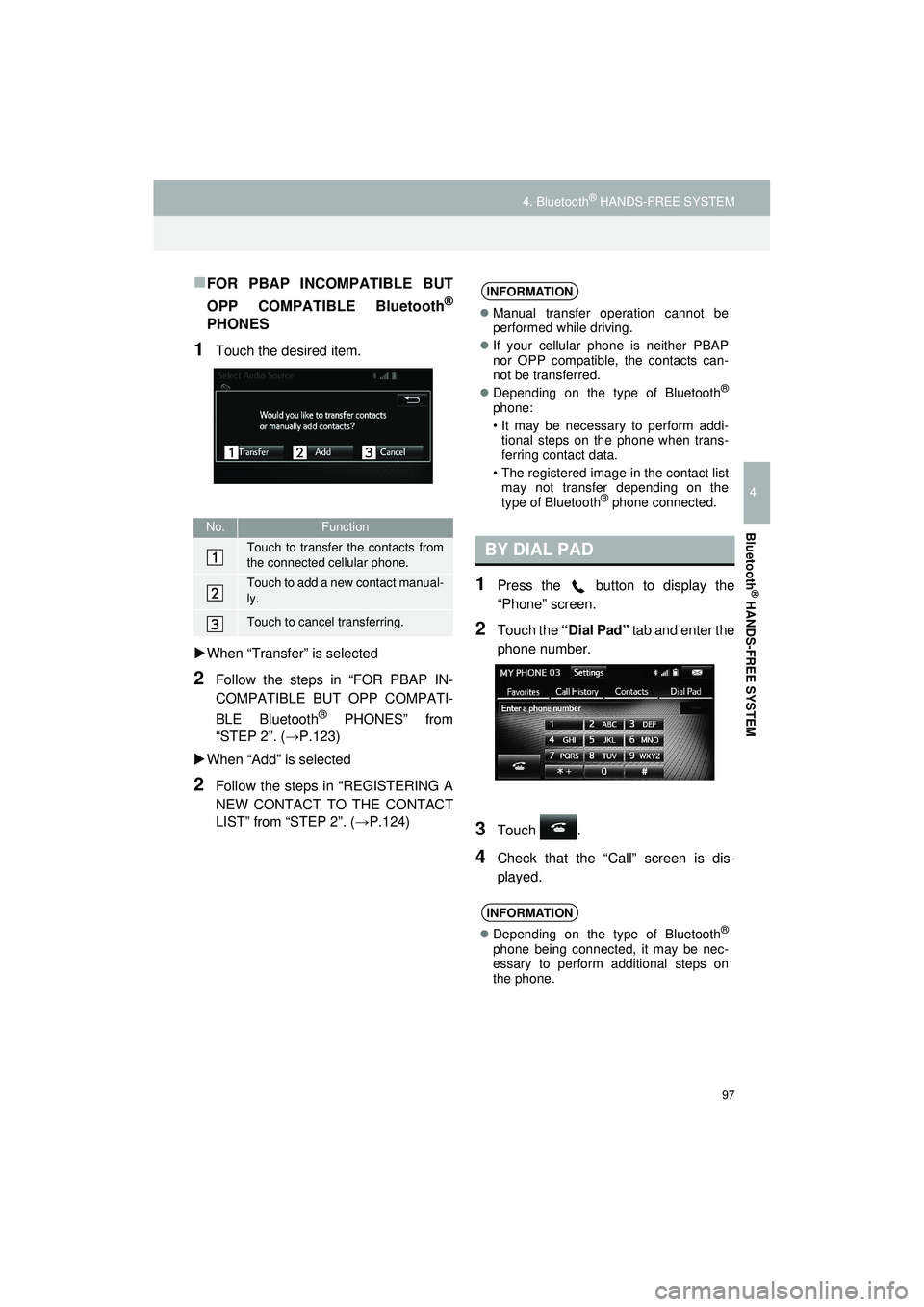

FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Touch the desired item.
 When “Transfer” is selected
2Follow the steps in “FOR PBAP IN-
COMPATIBLE BUT OPP COMPATI-
BLE Bluetooth
® PHONES” from
“STEP 2”. ( →P.123)
 When “Add” is selected
2Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. ( →P.124)
1Press the button to display the
“Phone” screen.
2Touch the “Dial Pad” tab and enter the
phone number.
3Touch .
4Check that the “Call” screen is dis-
played.
No.Function
Touch to transfer the contacts from
the connected cellular phone.
Touch to add a new contact manual-
ly.
Touch to cancel transferring.
INFORMATION
 Manual transfer operation cannot be
performed while driving.
 If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
 Depending on the type of Bluetooth
®
phone:
• It may be necessary to perform addi-
tional steps on the phone when trans-
ferring contact data.
• The registered image in the contact list may not transfer depending on the
type of Bluetooth
® phone connected.
BY DIAL PAD
INFORMATION
 Depending on the type of Bluetooth®
phone being connected, it may be nec-
essary to perform additional steps on
the phone.

98
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS

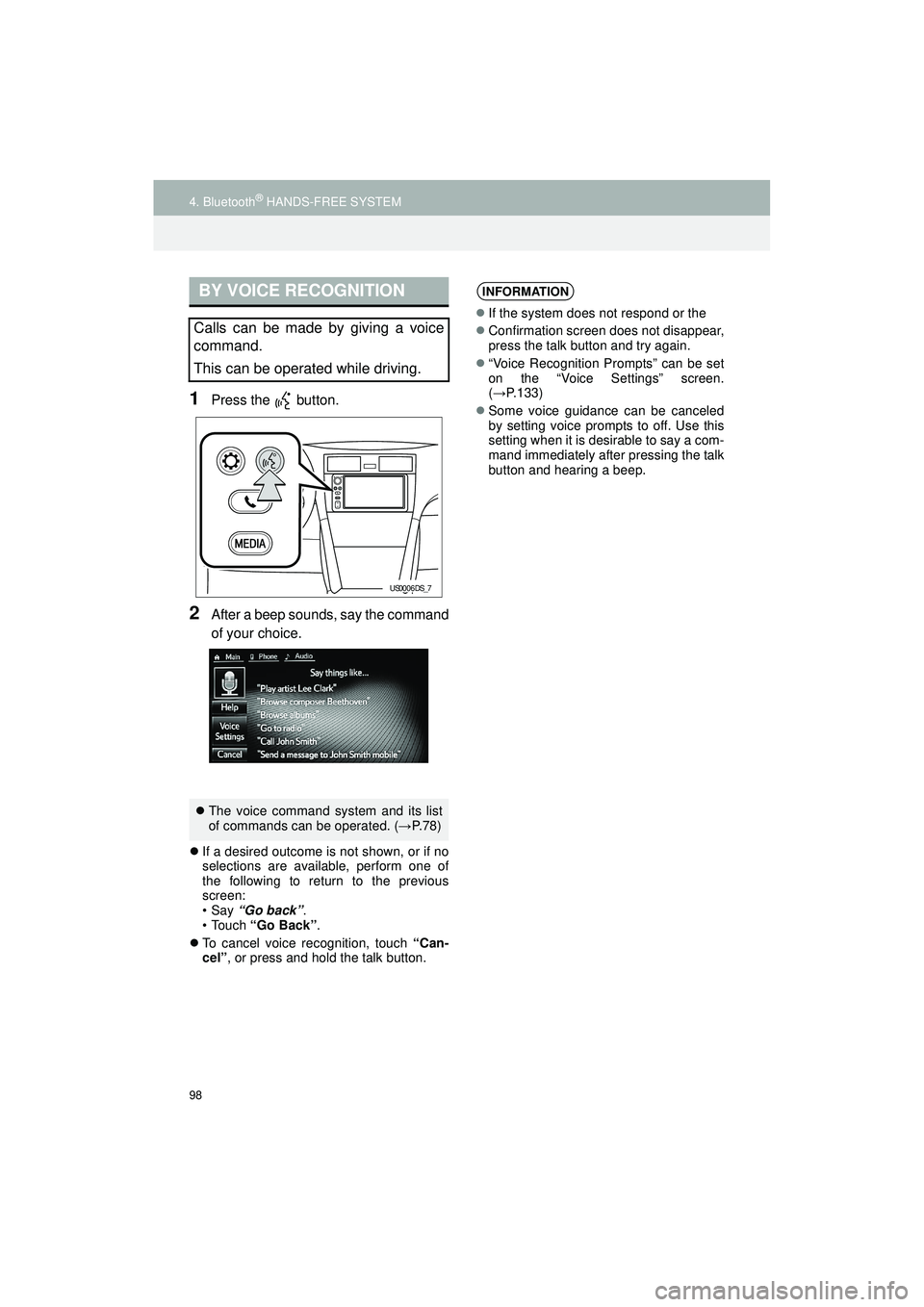

1Press the button.
2After a beep sounds, say the command
of your choice.
If a desired outcome is not shown, or if no
selections are available, perform one of
the following to return to the previous
screen:
•Say “Go back” .
•Touch “Go Back” .
 To cancel voice recognition, touch “Can-
cel”, or press and hold the talk button.
BY VOICE RECOGNITION
Calls can be made by giving a voice
command.
This can be operated while driving.
 The voice command system and its list
of commands can be operated. ( →P. 7 8 )
US0006DS_7
INFORMATION
If the system does not respond or the
 Confirmation screen does not disappear,
press the talk button and try again.
 “Voice Recognition Prompts” can be set
on the “Voice Settings” screen.
(→P.133)
 Some voice guidance can be canceled
by setting voice prompts to off. Use this
setting when it is desirable to say a com-
mand immediately after pressing the talk
button and hearing a beep.

99
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS
4
Bluetooth
® HANDS-FREE SYSTEM

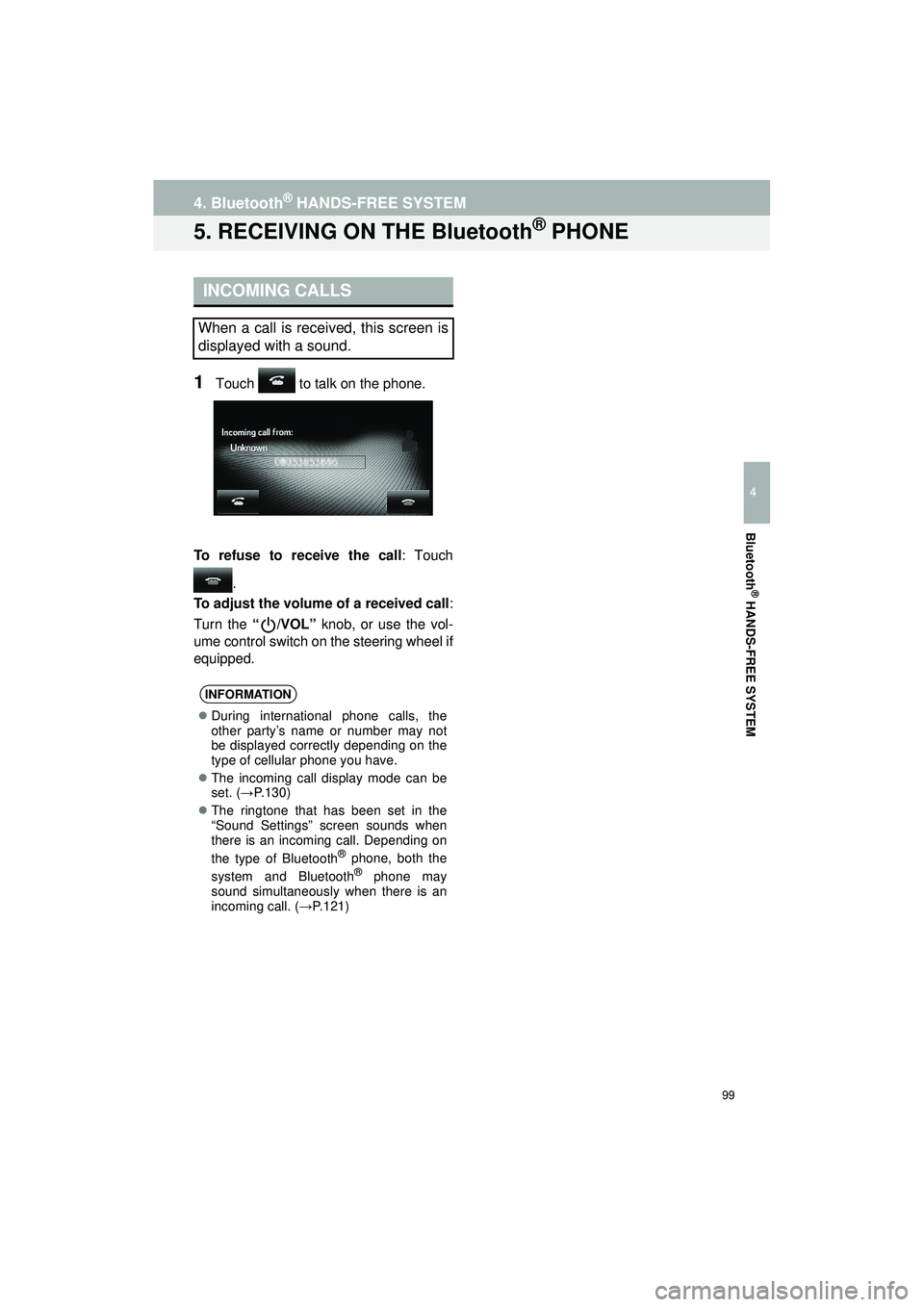

5. RECEIVING ON THE Bluetooth® PHONE
1Touch to talk on the phone.
To refuse to receive the call : Touch
.
To adjust the volume of a received call :
Turn the “/VOL” knob, or use the vol-
ume control switch on the steering wheel if
equipped.
INCOMING CALLS
When a call is received, this screen is
displayed with a sound.
INFORMATION
 During international phone calls, the
other party’s name or number may not
be displayed correctly depending on the
type of cellular phone you have.
 The incoming call display mode can be
set. ( →P.130)
 The ringtone that has been set in the
“Sound Settings” screen sounds when
there is an incoming call. Depending on
the type of Bluetooth
® phone, both the
system and Bluetooth® phone may
sound simultaneously when there is an
incoming call. ( →P.121)

100
4. Bluetooth® HANDS-FREE SYSTEM
Highlander_Navi_MXS

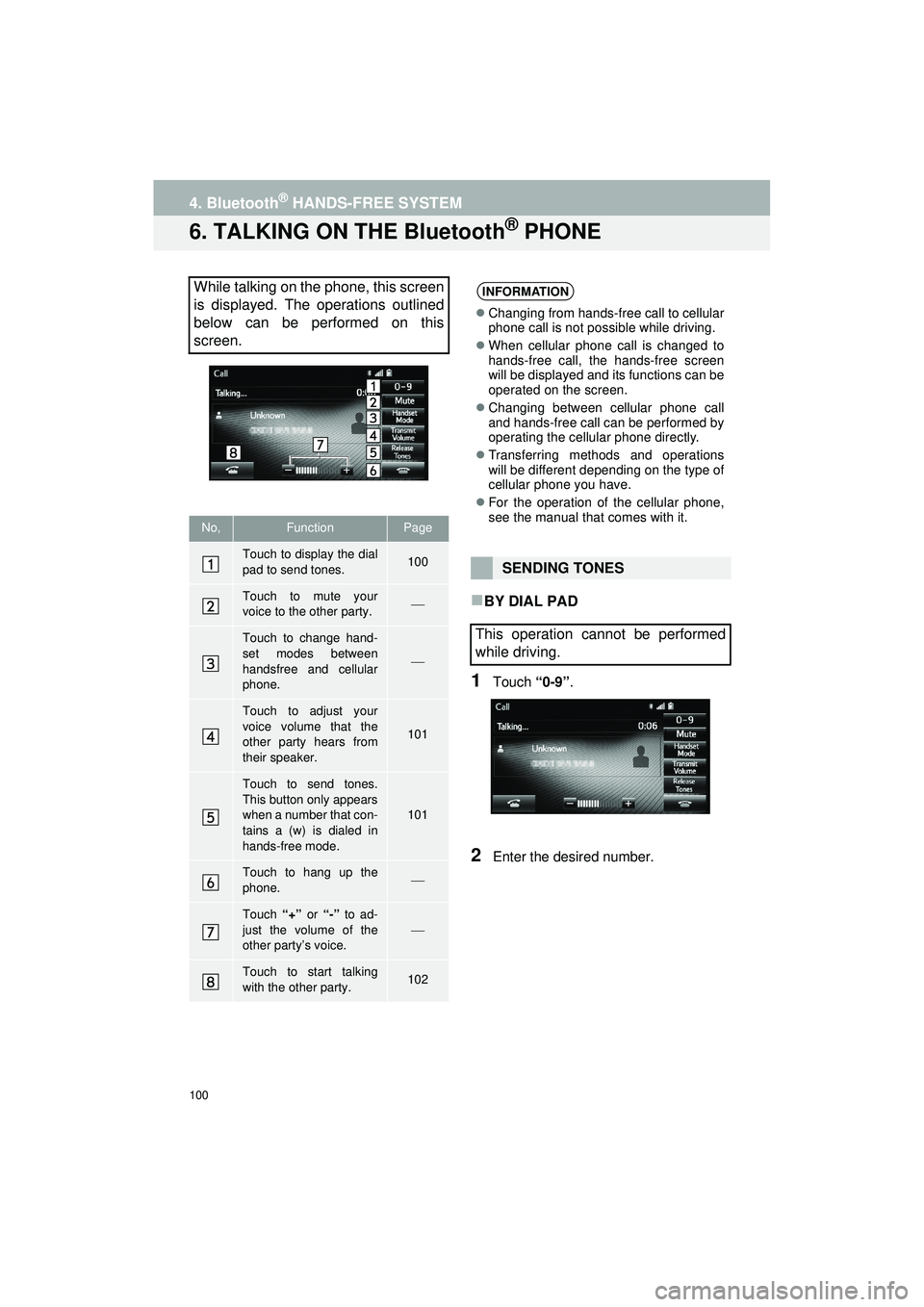

6. TALKING ON THE Bluetooth® PHONE
BY DIAL PAD
1Touch “0-9”.
2Enter the desired number.
While talking on the phone, this screen
is displayed. The operations outlined
below can be performed on this
screen.
No,FunctionPage
Touch to display the dial
pad to send tones.100
Touch to mute your
voice to the other party.
Touch to change hand-
set modes between
handsfree and cellular
phone.

Touch to adjust your
voice volume that the
other party hears from
their speaker.
101
Touch to send tones.
This button only appears
when a number that con-
tains a (w) is dialed in
hands-free mode.
101
Touch to hang up the
phone.
Touch “+” or “-” to ad-
just the volume of the
other party’s voice.

Touch to start talking
with the other party.102
INFORMATION
 Changing from hands-free call to cellular
phone call is not possible while driving.
 When cellular phone call is changed to
hands-free call, the hands-free screen
will be displayed and its functions can be
operated on the screen.
 Changing between cellular phone call
and hands-free call can be performed by
operating the cellular phone directly.
 Transferring methods and operations
will be different depending on the type of
cellular phone you have.
 For the operation of the cellular phone,
see the manual that comes with it.
SENDING TONES
This operation cannot be performed
while driving.
