TOYOTA GT86 2018 Accessories, Audio & Navigation (in English)

121
5. SETUP
Highlander_Navi_MXS
5
SETUP

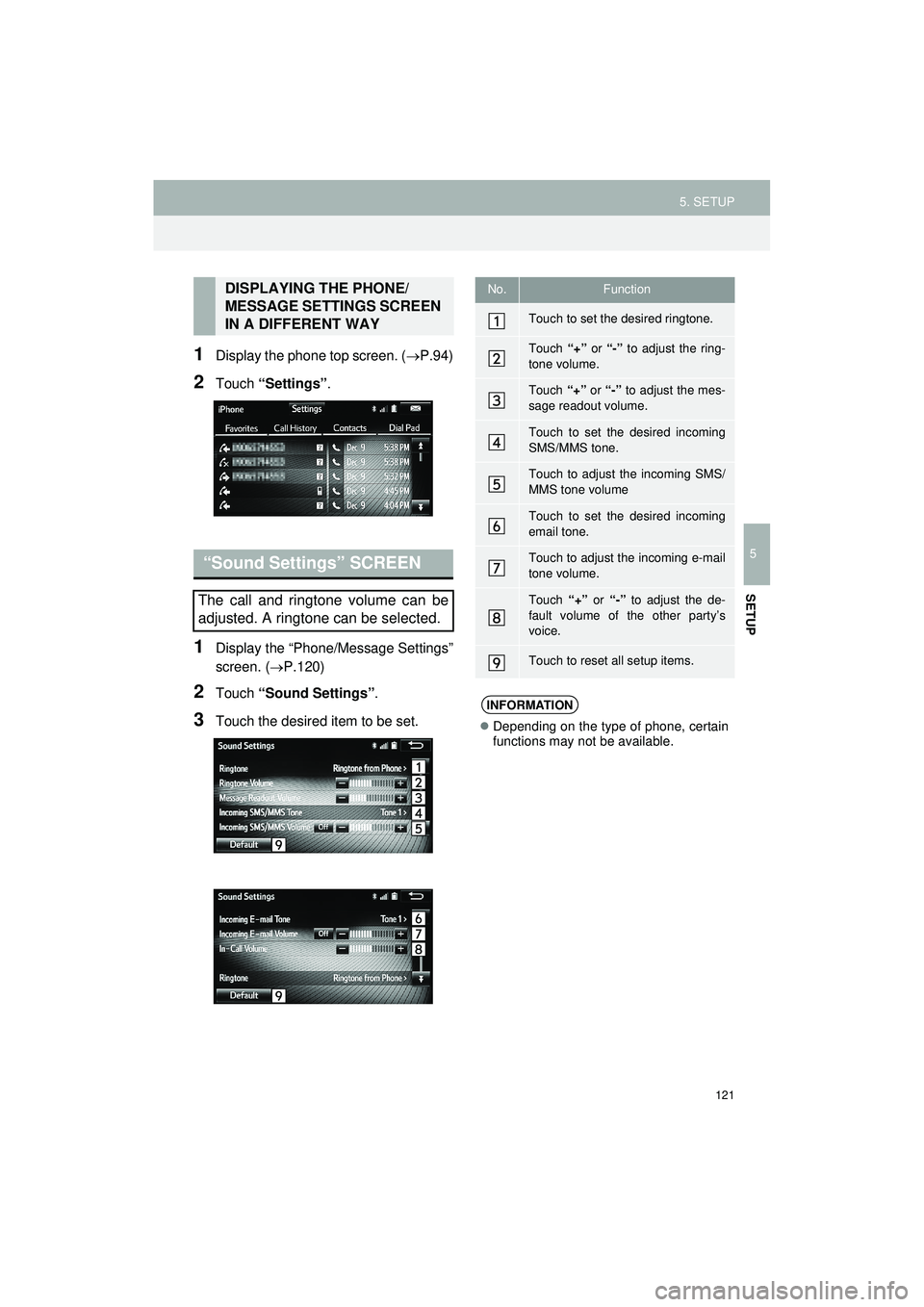

1Display the phone top screen. (P.94)
2Touch “Settings” .
1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Sound Settings” .
3Touch the desired item to be set.
DISPLAYING THE PHONE/
MESSAGE SETTINGS SCREEN
IN A DIFFERENT WAY
“Sound Settings” SCREEN
The call and ringtone volume can be
adjusted. A ringtone can be selected.
No.Function
Touch to set the desired ringtone.
Touch “+” or “-” to adjust the ring-
tone volume.
Touch “+” or “-” to adjust the mes-
sage readout volume.
Touch to set the desired incoming
SMS/MMS tone.
Touch to adjust the incoming SMS/
MMS tone volume
Touch to set the desired incoming
email tone.
Touch to adjust the incoming e-mail
tone volume.
Touch “+” or “-” to adjust the de-
fault volume of the other party’s
voice.
Touch to reset all setup items.
INFORMATION
 Depending on the type of phone, certain
functions may not be available.

122
5. SETUP
Highlander_Navi_MXS

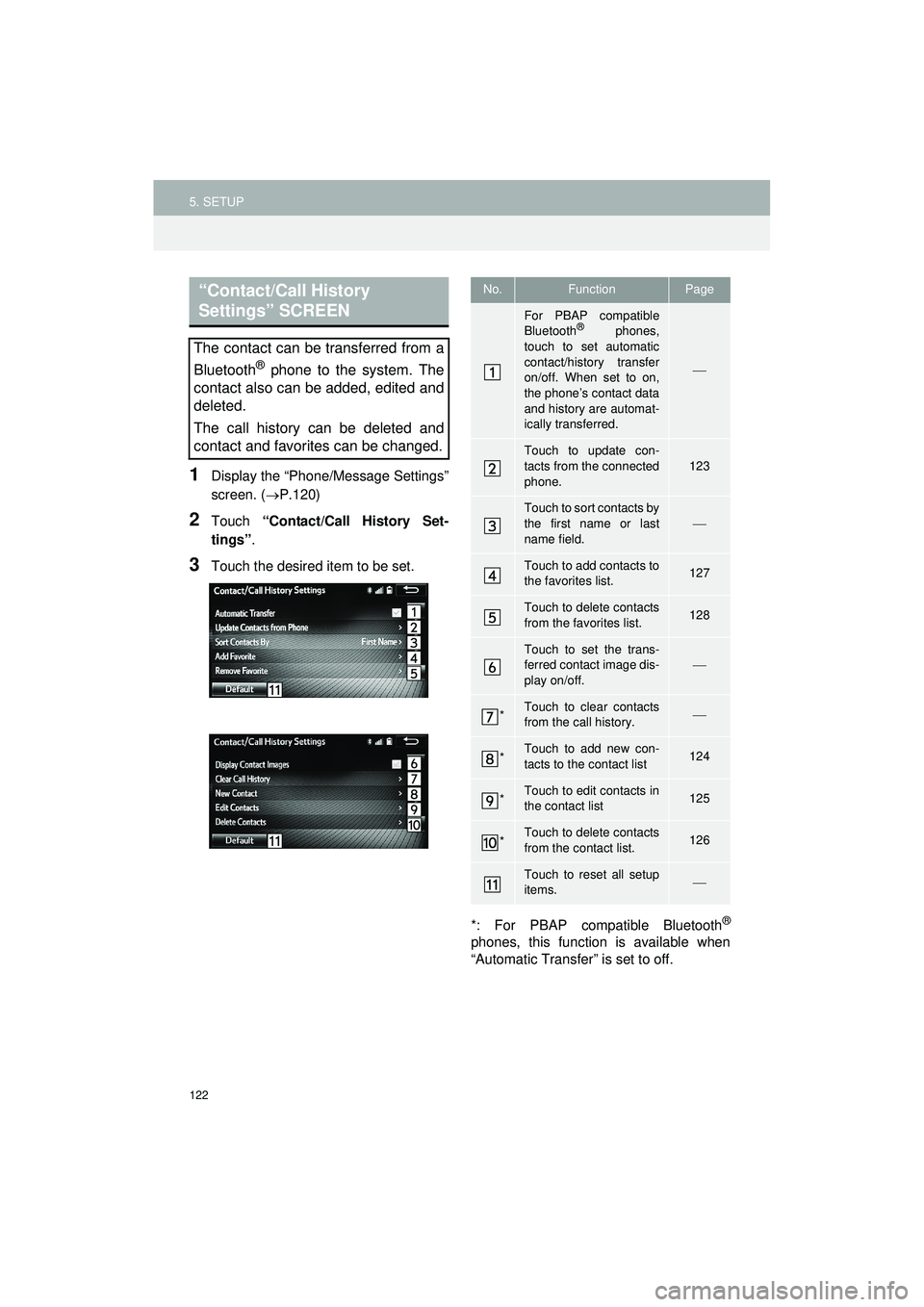

1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Contact/Call History Set-
tings” .
3Touch the desired item to be set.
*: For PBAP compatible Bluetooth
®
phones, this function is available when
“Automatic Transfer” is set to off.
“Contact/Call History
Settings” SCREEN
The contact can be transferred from a
Bluetooth
® phone to the system. The
contact also can be added, edited and
deleted.
The call history can be deleted and
contact and favorites can be changed.
No.FunctionPage
For PBAP compatible
Bluetooth® phones,
touch to set automatic
contact/history transfer
on/off. When set to on,
the phone’s contact data
and history are automat-
ically transferred.

Touch to update con-
tacts from the connected
phone.123
Touch to sort contacts by
the first name or last
name field.

Touch to add contacts to
the favorites list.127
Touch to delete contacts
from the favorites list.128
Touch to set the trans-
ferred contact image dis-
play on/off.

*Touch to clear contacts
from the call history.
*Touch to add new con-
tacts to the contact list124
*Touch to edit contacts in
the contact list125
*Touch to delete contacts
from the contact list.126
Touch to reset all setup
items.

123
5. SETUP
Highlander_Navi_MXS
5
SETUP

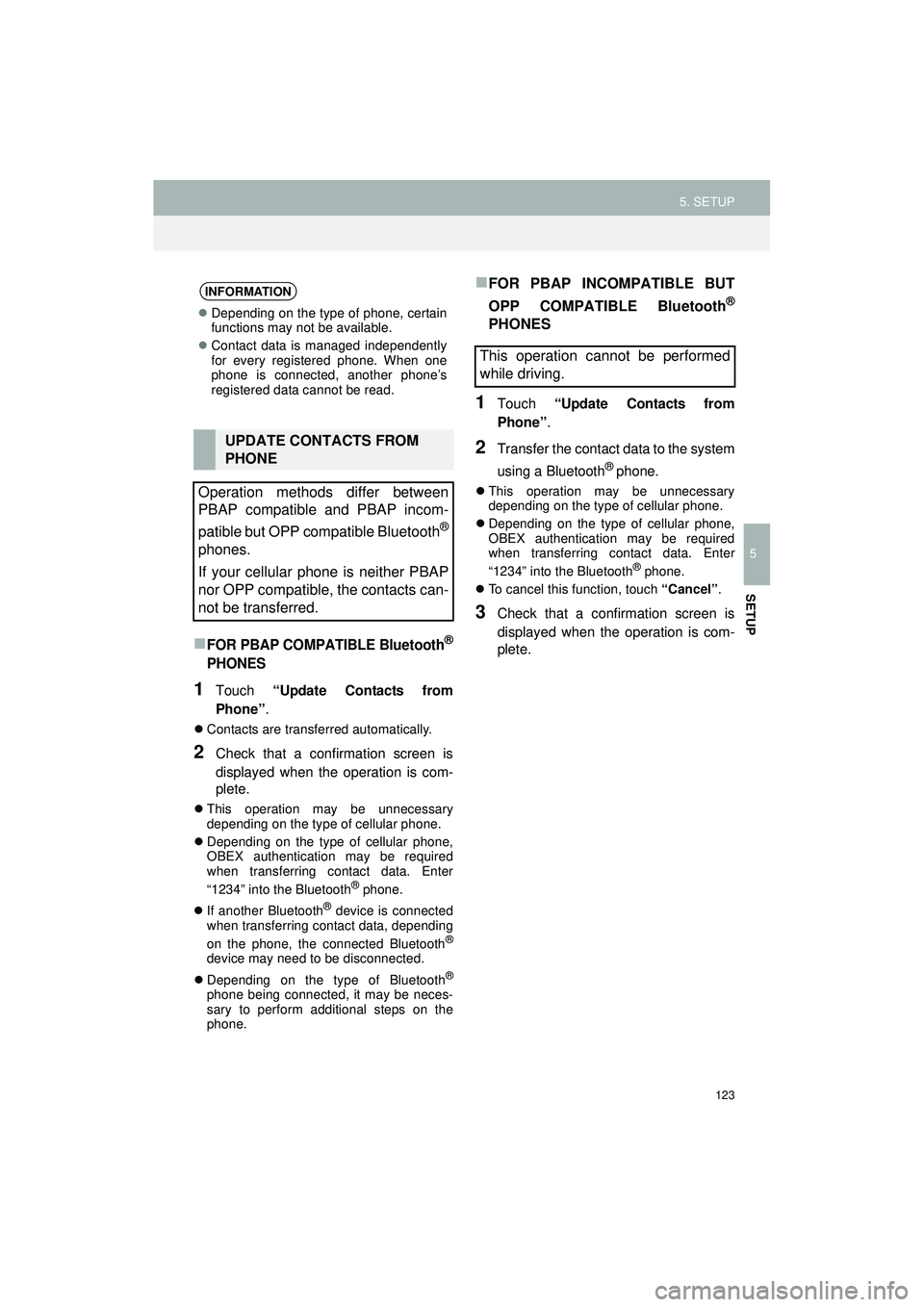

FOR PBAP COMPATIBLE Bluetooth®
PHONES
1Touch “Update Contacts from
Phone” .
Contacts are transferred automatically.
2Check that a confirmation screen is
displayed when the operation is com-
plete.
This operation may be unnecessary
depending on the type of cellular phone.
 Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth
® phone.
 If another Bluetooth
® device is connected
when transferring contact data, depending
on the phone, the connected Bluetooth
®
device may need to be disconnected.
 Depending on the type of Bluetooth
®
phone being connected, it may be neces-
sary to perform additional steps on the
phone.
FOR PBAP INCOMPATIBLE BUT
OPP COMPATIBLE Bluetooth
®
PHONES
1Touch “Update Contacts from
Phone” .
2Transfer the contact data to the system
using a Bluetooth
® phone.
This operation may be unnecessary
depending on the type of cellular phone.
 Depending on the type of cellular phone,
OBEX authentication may be required
when transferring contact data. Enter
“1234” into the Bluetooth
® phone.
 To cancel this function, touch “Cancel”.
3Check that a confirmation screen is
displayed when the operation is com-
plete.
INFORMATION
Depending on the type of phone, certain
functions may not be available.
 Contact data is managed independently
for every registered phone. When one
phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM
PHONE
Operation methods differ between
PBAP compatible and PBAP incom-
patible but OPP compatible Bluetooth
®
phones.
If your cellular phone is neither PBAP
nor OPP compatible, the contacts can-
not be transferred.
This operation cannot be performed
while driving.

124
5. SETUP
Highlander_Navi_MXS

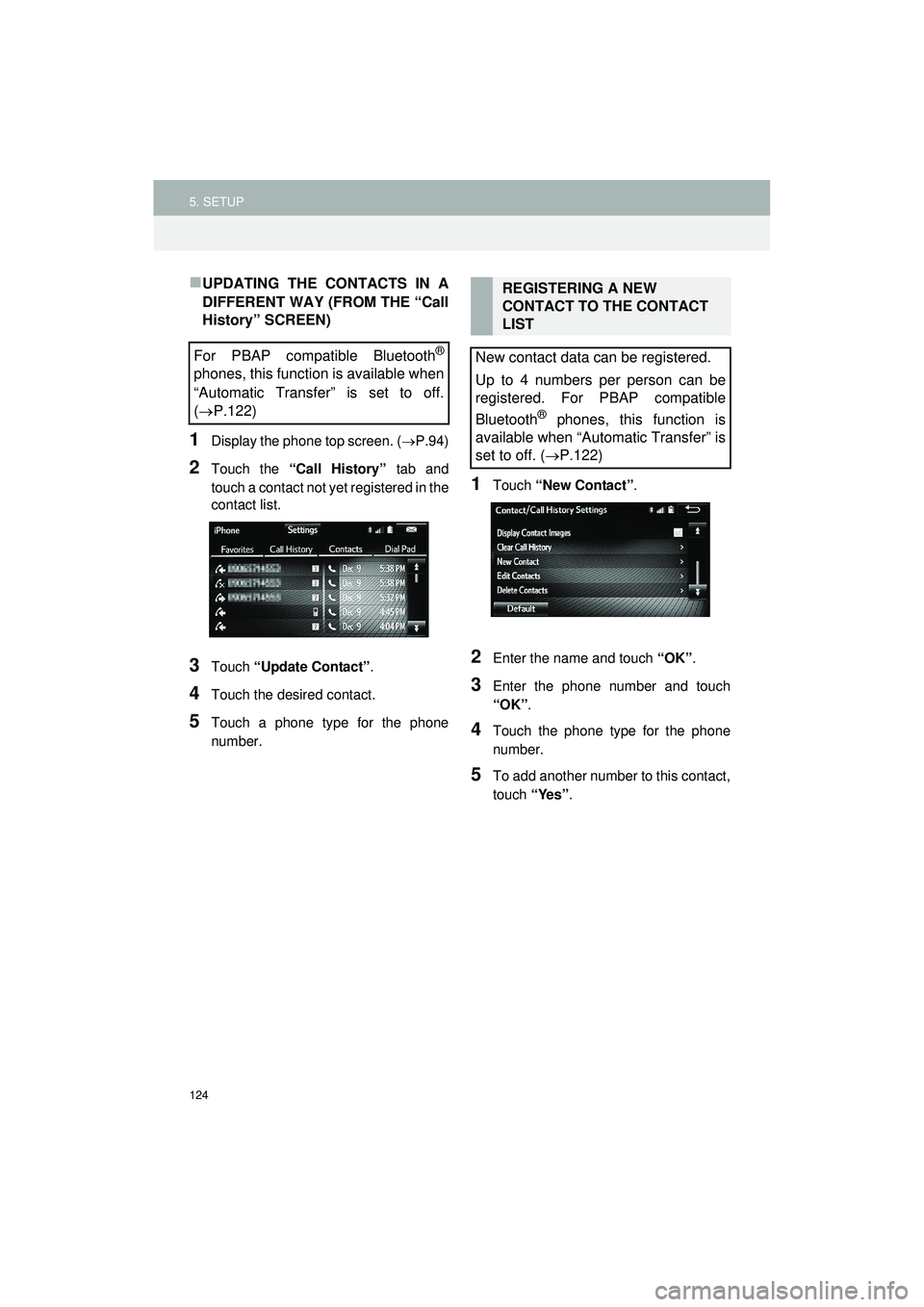

UPDATING THE CONTACTS IN A
DIFFERENT WAY (FROM THE “Call
History” SCREEN)
1Display the phone top screen. (P.94)
2Touch the “Call History” tab and
touch a contact not ye t registered in the
contact list.
3Touch “Update Contact” .
4Touch the desired contact.
5Touch a phone type for the phone
number.
1Touch “New Contact” .
2Enter the name and touch “OK”.
3Enter the phone number and touch
“OK”.
4Touch the phone type for the phone
number.
5To add another number to this contact,
touch “Yes”.
For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic Transfer” is set to off.
( P.122)
REGISTERING A NEW
CONTACT TO THE CONTACT
LIST
New contact data can be registered.
Up to 4 numbers per person can be
registered. For PBAP compatible
Bluetooth
® phones, this function is
available when “Automatic Transfer” is
set to off. ( P.122)

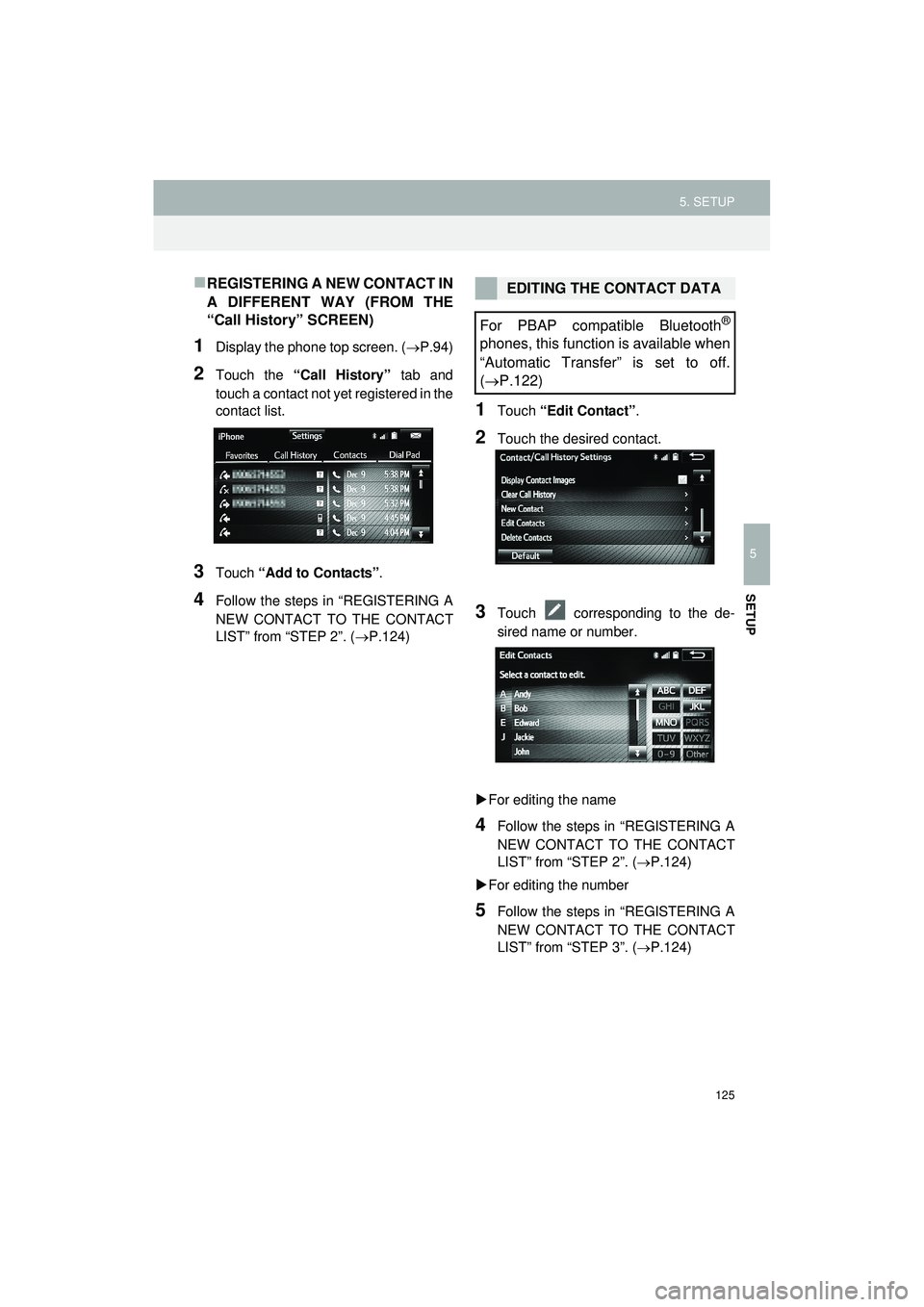

125
5. SETUP
Highlander_Navi_MXS
5
SETUP
REGISTERING A NEW CONTACT IN
A DIFFERENT WAY (FROM THE
“Call History” SCREEN)
1Display the phone top screen. (P.94)
2Touch the “Call History” tab and
touch a contact not yet registered in the
contact list.
3Touch “Add to Contacts” .
4Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. ( P.124)
1Touch “Edit Contact” .
2Touch the desired contact.
3Touch corresponding to the de-
sired name or number.
 For editing the name
4Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 2”. ( P.124)
 For editing the number
5Follow the steps in “REGISTERING A
NEW CONTACT TO THE CONTACT
LIST” from “STEP 3”. ( P.124)
EDITING THE CONTACT DATA
For PBAP compatible Bluetooth
®
phones, this function is available when
“Automatic Transfer” is set to off.
(  P.122)

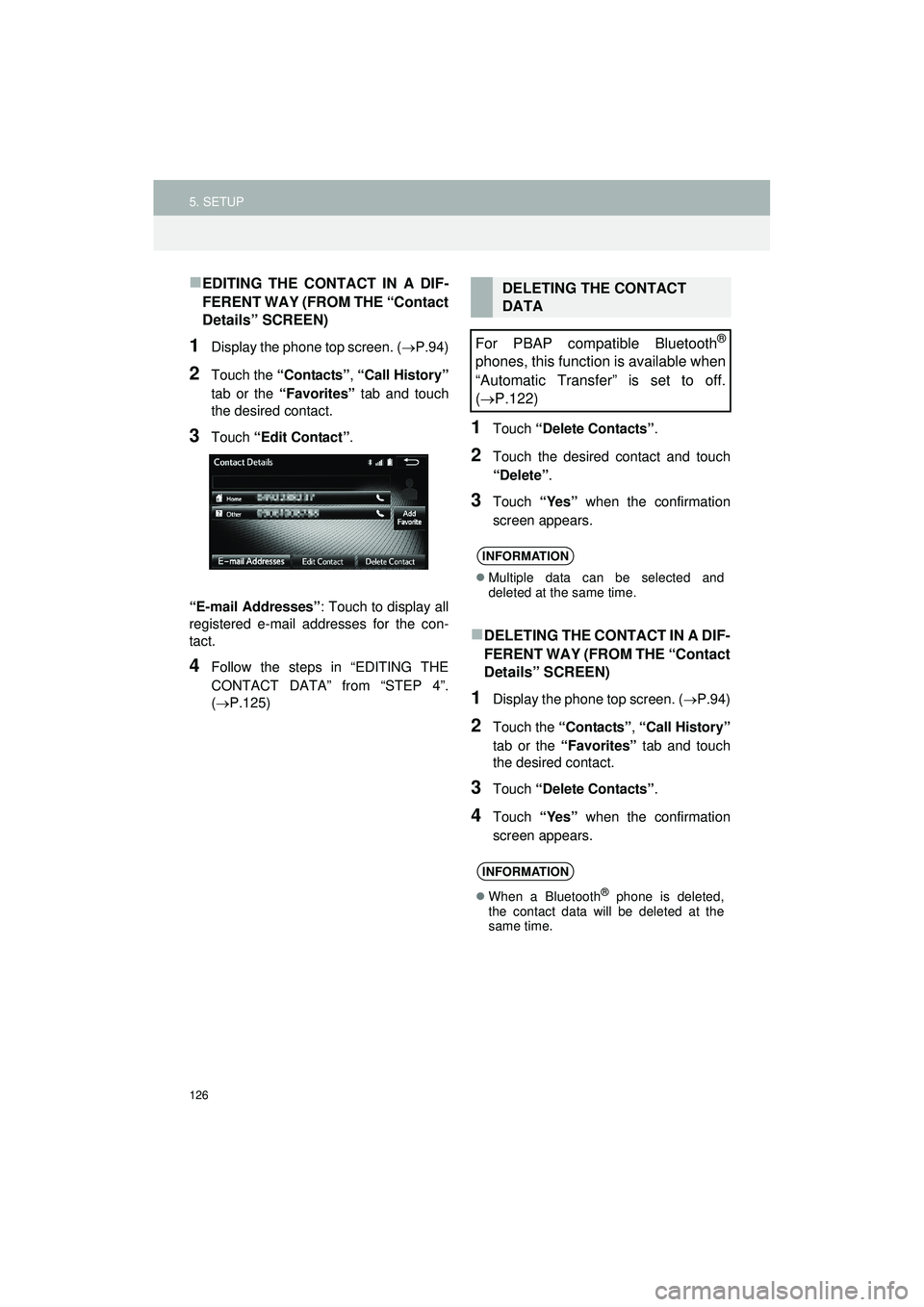

126
5. SETUP
Highlander_Navi_MXS
EDITING THE CONTACT IN A DIF-
FERENT WAY (FROM THE “Contact
Details” SCREEN)
1Display the phone top screen. (P.94)
2Touch the “Contacts” , “Call History”
tab or the “Favorites” tab and touch
the desired contact.
3Touch “Edit Contact” .
“E-mail Addresses” : Touch to display all
registered e-mail addresses for the con-
tact.
4Follow the steps in “EDITING THE
CONTACT DATA” from “STEP 4”.
(P.125)
1Touch “Delete Contacts” .
2Touch the desired contact and touch
“Delete”.
3Touch “Yes” when the confirmation
screen appears.
DELETING THE CONTACT IN A DIF-
FERENT WAY (FROM THE “Contact
Details” SCREEN)
1Display the phone top screen. ( P.94)
2Touch the “Contacts” , “Call History”
tab or the “Favorites” tab and touch
the desired contact.
3Touch “Delete Contacts” .
4Touch “Yes” when the confirmation
screen appears.
DELETING THE CONTACT
DATA
For PBAP compatible Bluetooth
®
phones, this function is available when
“Automatic Transfer” is set to off.
( P.122)
INFORMATION
 Multiple data can be selected and
deleted at the same time.
INFORMATION
When a Bluetooth® phone is deleted,
the contact data will be deleted at the
same time.

127
5. SETUP
Highlander_Navi_MXS
5
SETUP

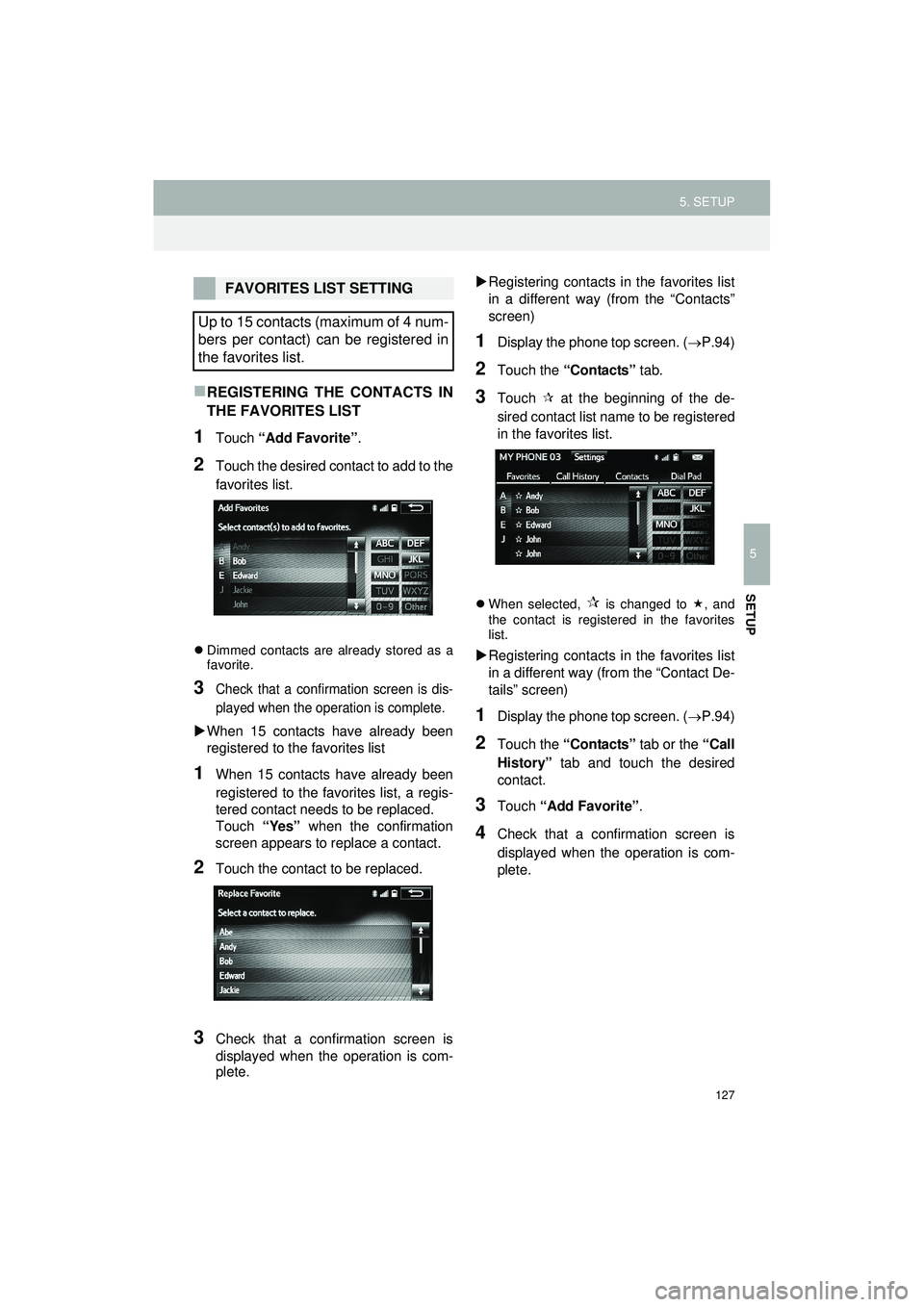

REGISTERING THE CONTACTS IN
THE FAVORITES LIST
1Touch “Add Favorite” .
2Touch the desired contact to add to the
favorites list.
Dimmed contacts are already stored as a
favorite.
3Check that a confirmation screen is dis-
played when the operation is complete.
When 15 contacts have already been
registered to the favorites list
1When 15 contacts have already been
registered to the favorites list, a regis-
tered contact needs to be replaced.
Touch “Yes” when the confirmation
screen appears to replace a contact.
2Touch the contact to be replaced.
3Check that a confirmation screen is
displayed when the operation is com-
plete. 
Registering contacts in the favorites list
in a different way (from the “Contacts”
screen)
1Display the phone top screen. ( P.94)
2Touch the “Contacts” tab.
3Touch  at the beginning of the de-
sired contact list name to be registered
in the favorites list.
 When selected,  is changed to , and
the contact is registered in the favorites
list.
 Registering contacts in the favorites list
in a different way (from the “Contact De-
tails” screen)
1Display the phone top screen. ( P.94)
2Touch the “Contacts” tab or the “Call
History” tab and touch the desired
contact.
3Touch “Add Favorite” .
4Check that a confirmation screen is
displayed when the operation is com-
plete.
FAVORITES LIST SETTING
Up to 15 contacts (maximum of 4 num-
bers per contact) can be registered in
the favorites list.

128
5. SETUP
Highlander_Navi_MXS

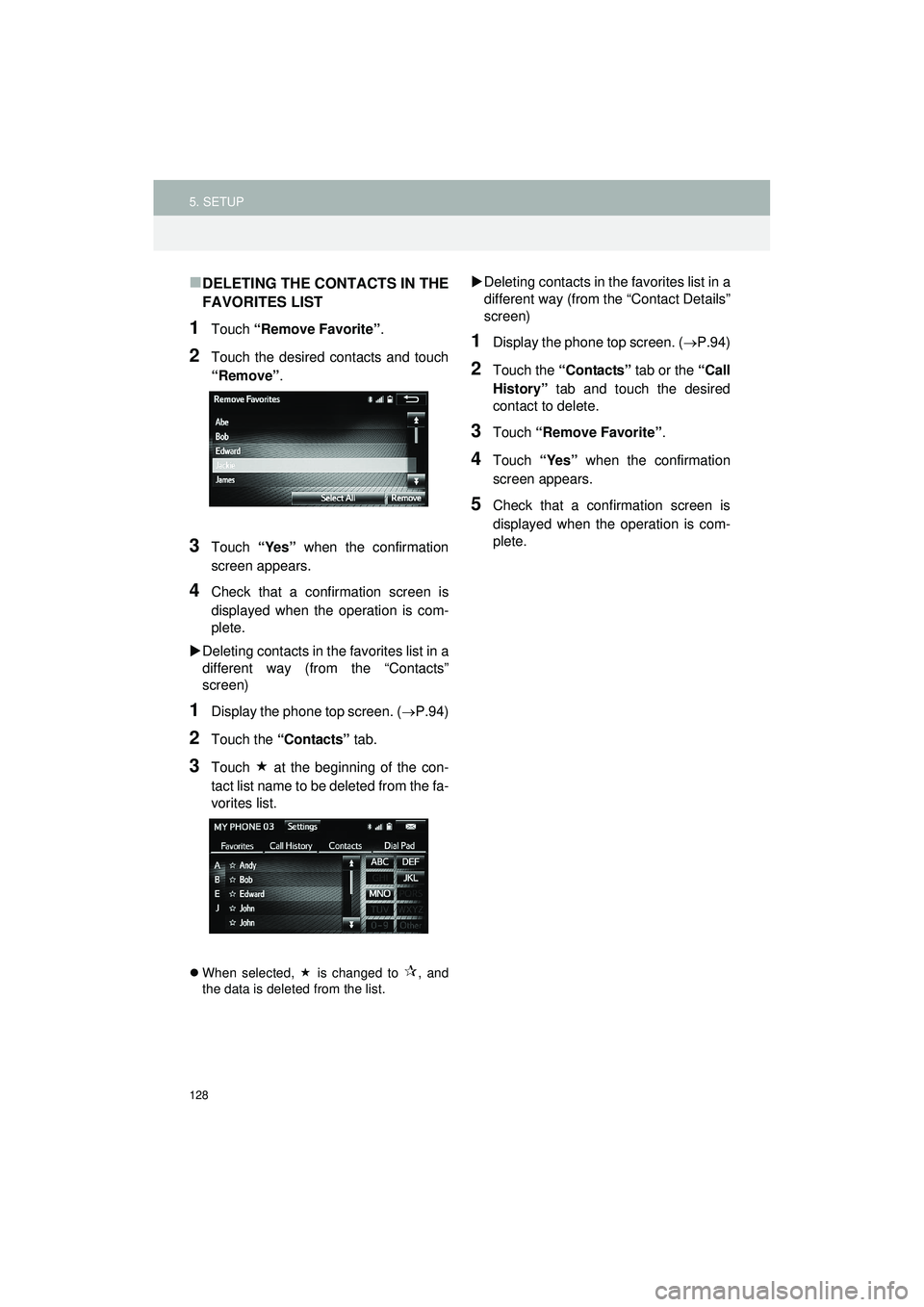

DELETING THE CONTACTS IN THE
FAVORITES LIST
1Touch “Remove Favorite” .
2Touch the desired contacts and touch
“Remove”.
3Touch “Yes” when the confirmation
screen appears.
4Check that a confirmation screen is
displayed when the operation is com-
plete.
 Deleting contacts in the favorites list in a
different way (from the “Contacts”
screen)
1Display the phone top screen. ( P.94)
2Touch the “Contacts” tab.
3Touch  at the beginning of the con-
tact list name to be deleted from the fa-
vorites list.
 When selected,  is changed to , and
the data is deleted from the list.
 Deleting contacts in th e favorites list in a
different way (from the “Contact Details”
screen)
1Display the phone top screen. ( P.94)
2Touch the “Contacts” tab or the “Call
History” tab and touch the desired
contact to delete.
3Touch “Remove Favorite” .
4Touch “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is
displayed when the operation is com-
plete.

129
5. SETUP
Highlander_Navi_MXS
5
SETUP

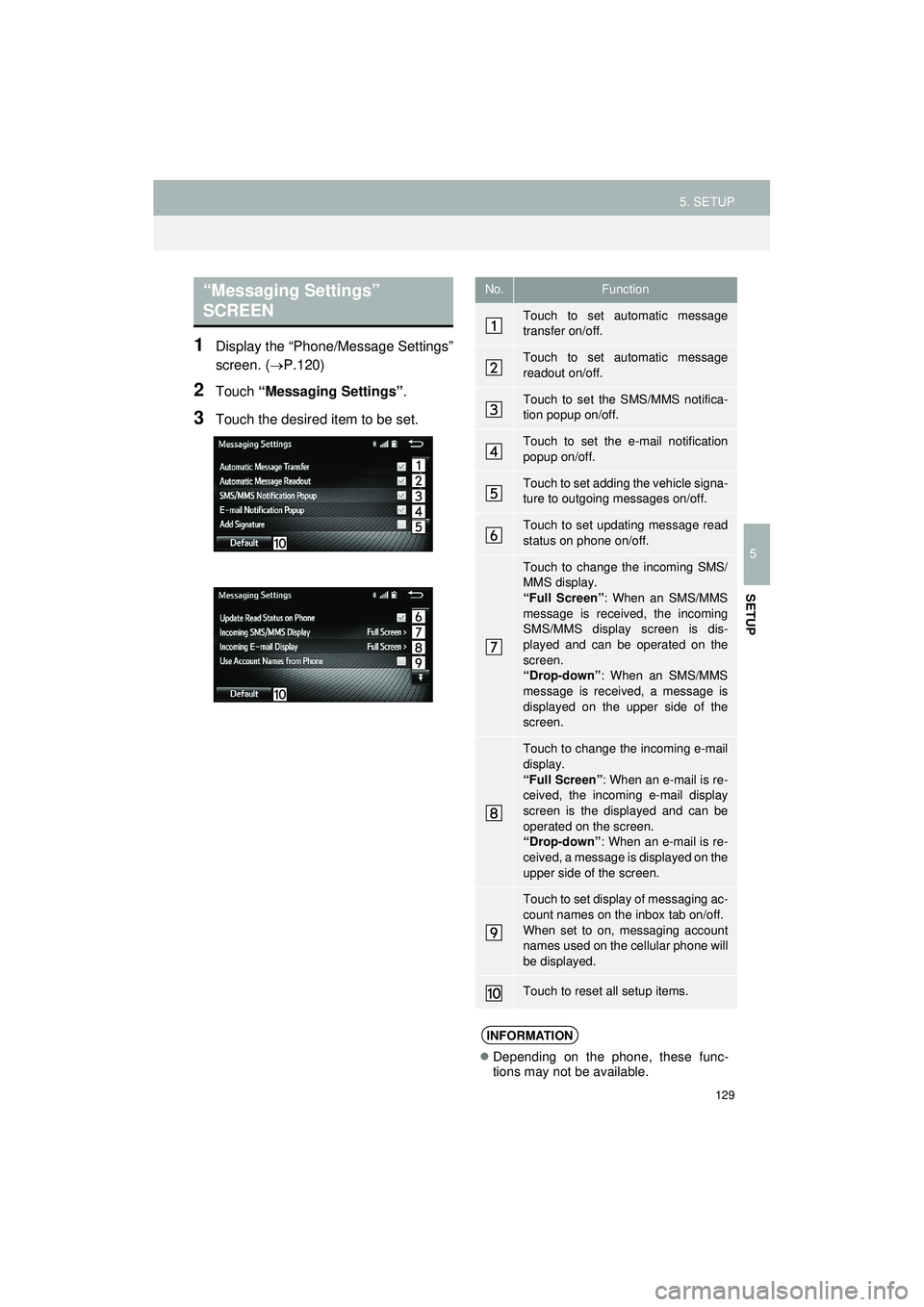

1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Messaging Settings” .
3Touch the desired item to be set.
“Messaging Settings”
SCREENNo.Function
Touch to set automatic message
transfer on/off.
Touch to set automatic message
readout on/off.
Touch to set the SMS/MMS notifica-
tion popup on/off.
Touch to set the e-mail notification
popup on/off.
Touch to set adding the vehicle signa-
ture to outgoing messages on/off.
Touch to set updating message read
status on phone on/off.
Touch to change the incoming SMS/
MMS display.
“Full Screen”: When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-down” : When an SMS/MMS
message is received, a message is
displayed on the upper side of the
screen.
Touch to change the incoming e-mail
display.
“Full Screen” : When an e-mail is re-
ceived, the incoming e-mail display
screen is the displayed and can be
operated on the screen.
“Drop-down” : When an e-mail is re-
ceived, a message is displayed on the
upper side of the screen.
Touch to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Touch to reset all setup items.
INFORMATION
 Depending on the phone, these func-
tions may not be available.

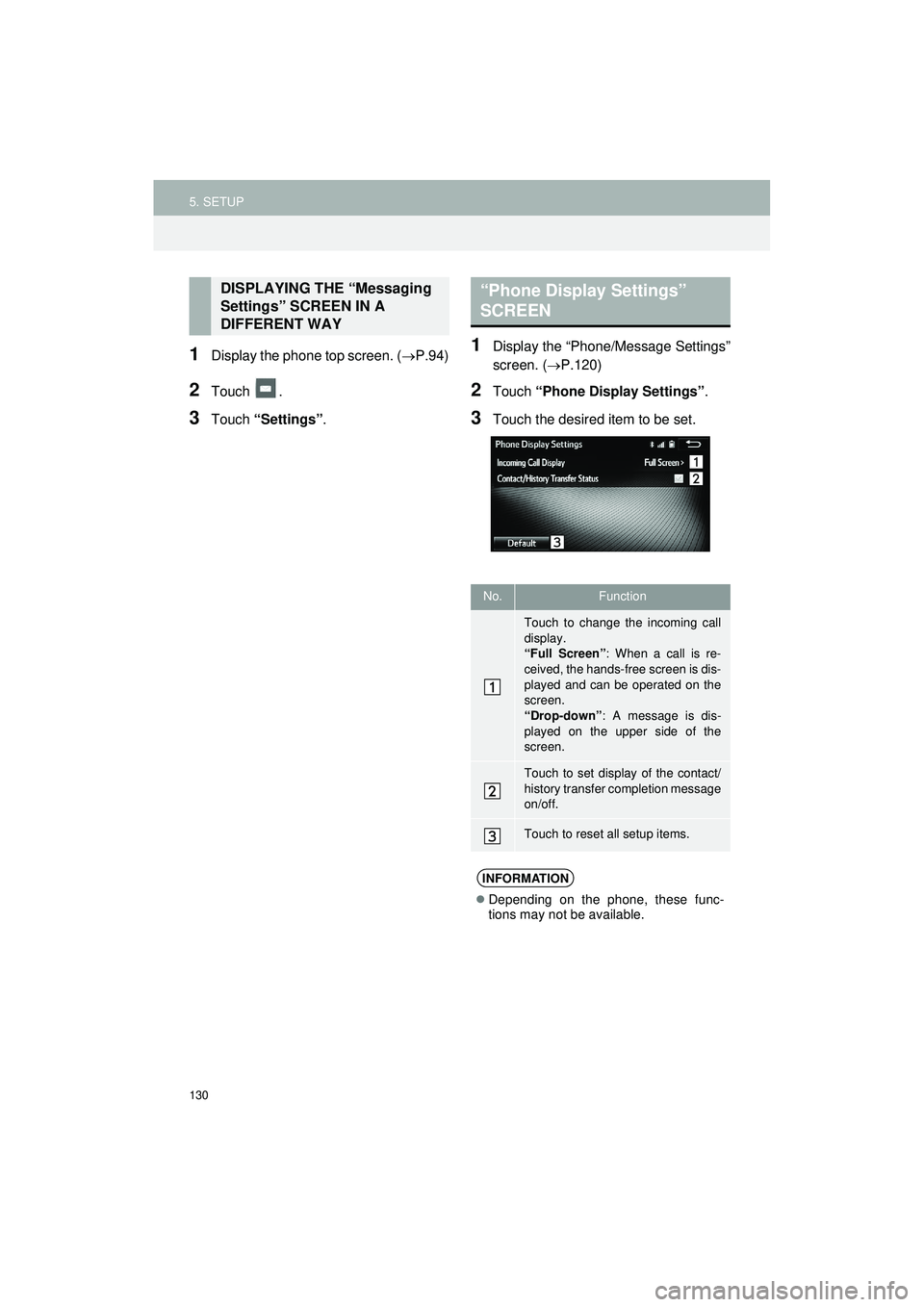

130
5. SETUP
Highlander_Navi_MXS
1Display the phone top screen. (P.94)
2Touch .
3Touch “Settings” .
1Display the “Phone/Message Settings”
screen. (P.120)
2Touch “Phone Display Settings” .
3Touch the desired item to be set.
DISPLAYING THE “Messaging
Settings” SCREEN IN A
DIFFERENT WAY“Phone Display Settings”
SCREEN
No.Function
Touch to change the incoming call
display.
“Full Screen”: When a call is re-
ceived, the hands-free screen is dis-
played and can be operated on the
screen.
“Drop-down”: A message is dis-
played on the upper side of the
screen.
Touch to set display of the contact/
history transfer completion message
on/off.
Touch to reset all setup items.
INFORMATION
 Depending on the phone, these func-
tions may not be available.
