Page 1000 of 2572
H01019H43108H01019H43108H43135
P/T Squib RHAirbag
Sensor
Assy
Center
PR- PR+
Floor Wire
A
B C
D
P14
05-1300
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1490 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

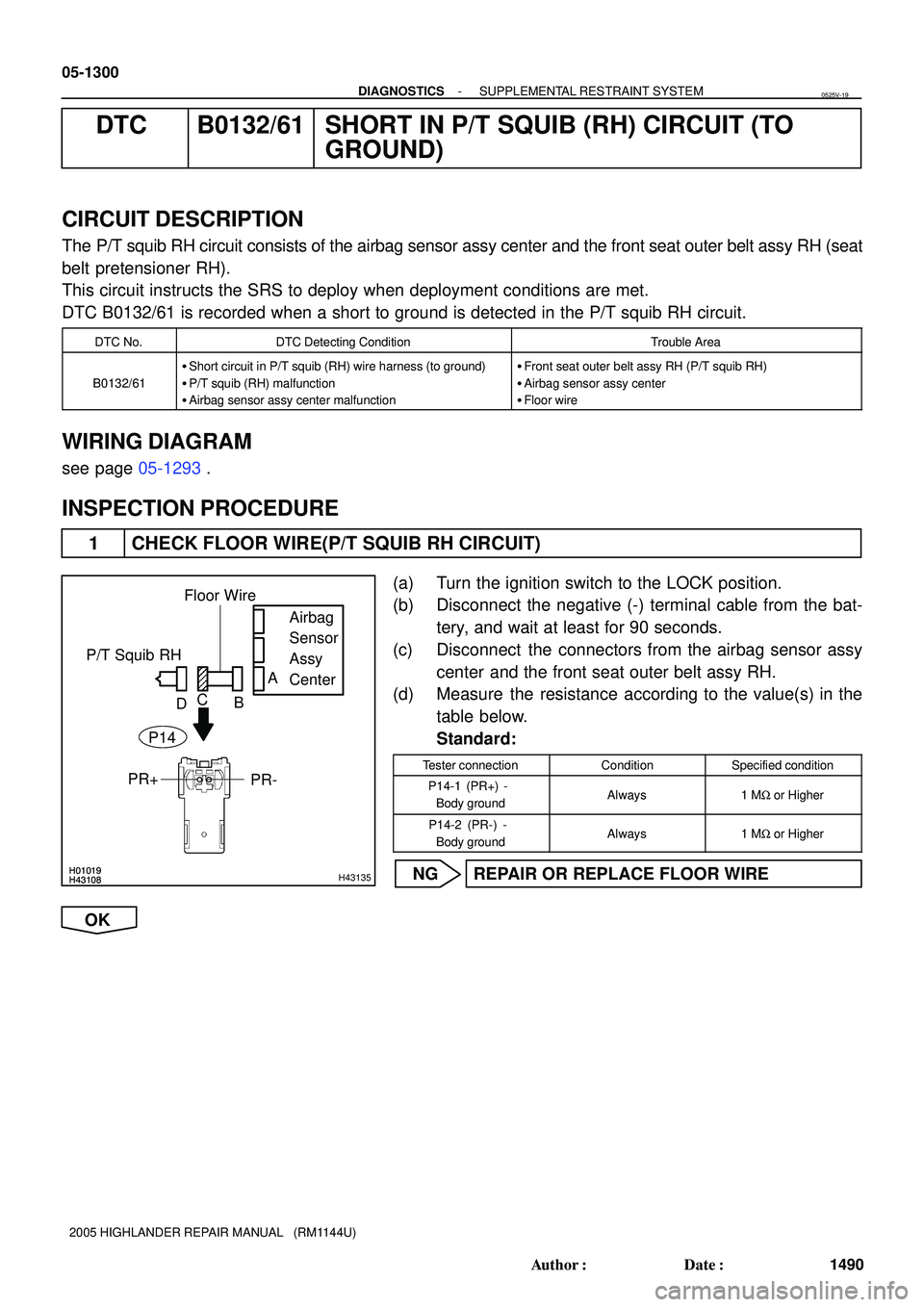

DTC B0132/61 SHORT IN P/T SQUIB (RH) CIRCUIT (TO
GROUND)
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0132/61 is recorded when a short to ground is detected in the P/T squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0132/61
Short circuit in P/T squib (RH) wire harness (to ground)
P/T squib (RH) malfunction
Airbag sensor assy center malfunctionFront seat outer belt assy RH (P/T squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1293.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the front seat outer belt assy RH.
(d) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
P14-1 (PR+) -
Body groundAlways1 MW or Higher
P14-2 (PR-) -
Body groundAlways1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525V-19
Page 1001 of 2572
H01020
H10600 H01079H43107H01020
H10600 H01079H43107H43137
P/T Squib RH
DLC3DTC B0132/61
TC CG
Airbag
Sensor
Assy
Center
PR- PR+
Floor Wire
Service Wire
DC
P14
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1301
1491 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

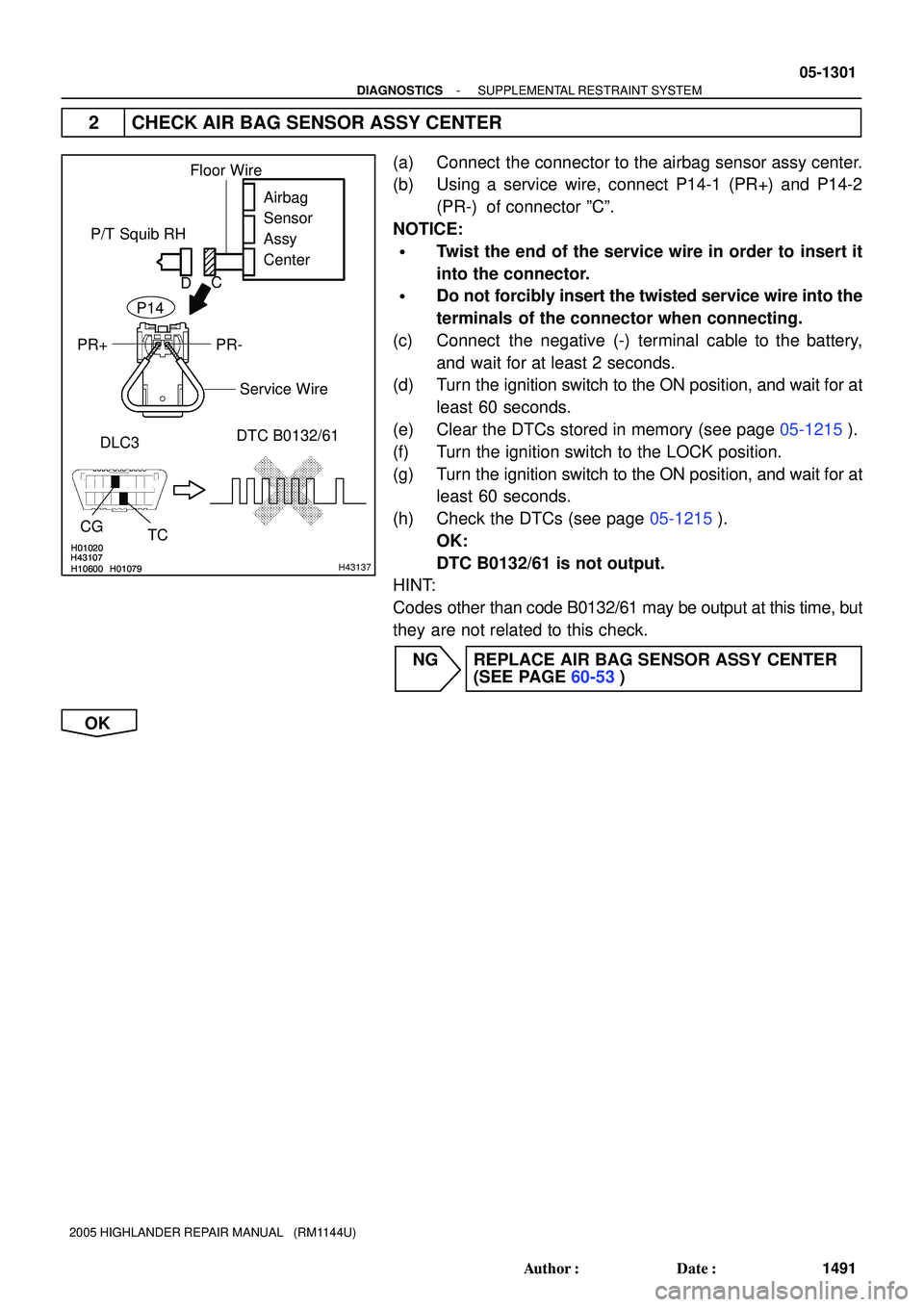

2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect P14-1 (PR+) and P14-2
(PR-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminals of the connector when connecting.
(c) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(d) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(e) Clear the DTCs stored in memory (see page 05-1215).
(f) Turn the ignition switch to the LOCK position.
(g) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(h) Check the DTCs (see page 05-1215).
OK:
DTC B0132/61 is not output.
HINT:
Codes other than code B0132/61 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 1002 of 2572
H10600H01021H01079H10600H01021H01079H40053
Airbag
Sensor
Assy
Center P/T Squib RH
DLC3DTC B0132/61
TC CG
DC
05-1302
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1492 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the front seat outer belt assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0132/61 is not output.
HINT:
Codes other than code B0132/61 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
(SEE PAGE 61-4)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 1003 of 2572
H01019H43108H01019H43108H43135
P/T Squib RH
PR-Airbag
Sensor
Assy
Center
Floor Wire
A
B C D
PR+P14
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1303
1493 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

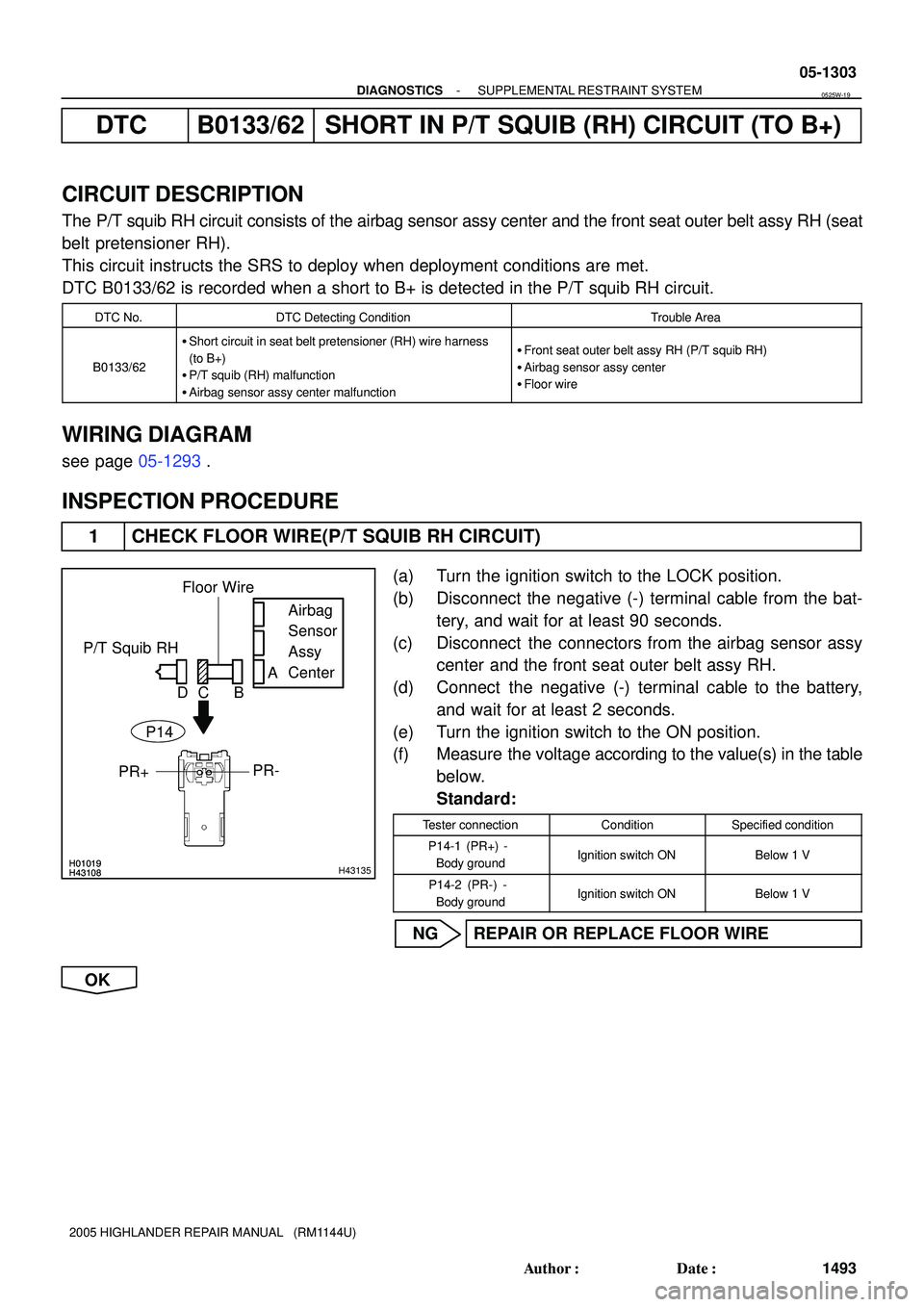

DTC B0133/62 SHORT IN P/T SQUIB (RH) CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The P/T squib RH circuit consists of the airbag sensor assy center and the front seat outer belt assy RH (seat
belt pretensioner RH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0133/62 is recorded when a short to B+ is detected in the P/T squib RH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0133/62
Short circuit in seat belt pretensioner (RH) wire harness
(to B+)
P/T squib (RH) malfunction
Airbag sensor assy center malfunctionFront seat outer belt assy RH (P/T squib RH)
Airbag sensor assy center
Floor wire
WIRING DIAGRAM
see page 05-1293.
INSPECTION PROCEDURE
1 CHECK FLOOR WIRE(P/T SQUIB RH CIRCUIT)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the connectors from the airbag sensor assy
center and the front seat outer belt assy RH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position.
(f) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
P14-1 (PR+) -
Body groundIgnition switch ONBelow 1 V
P14-2 (PR-) -
Body groundIgnition switch ONBelow 1 V
NG REPAIR OR REPLACE FLOOR WIRE
OK
0525W-19
Page 1004 of 2572
H01020
H10600 H01081H43107H01020
H10600 H01081H43107H43138
P/T Squib RH
DLC3 DTC B0133/62
TC CG
Airbag
Sensor
Assy
Center
PR- PR+
Floor Wire
Service Wire
C
D
P14

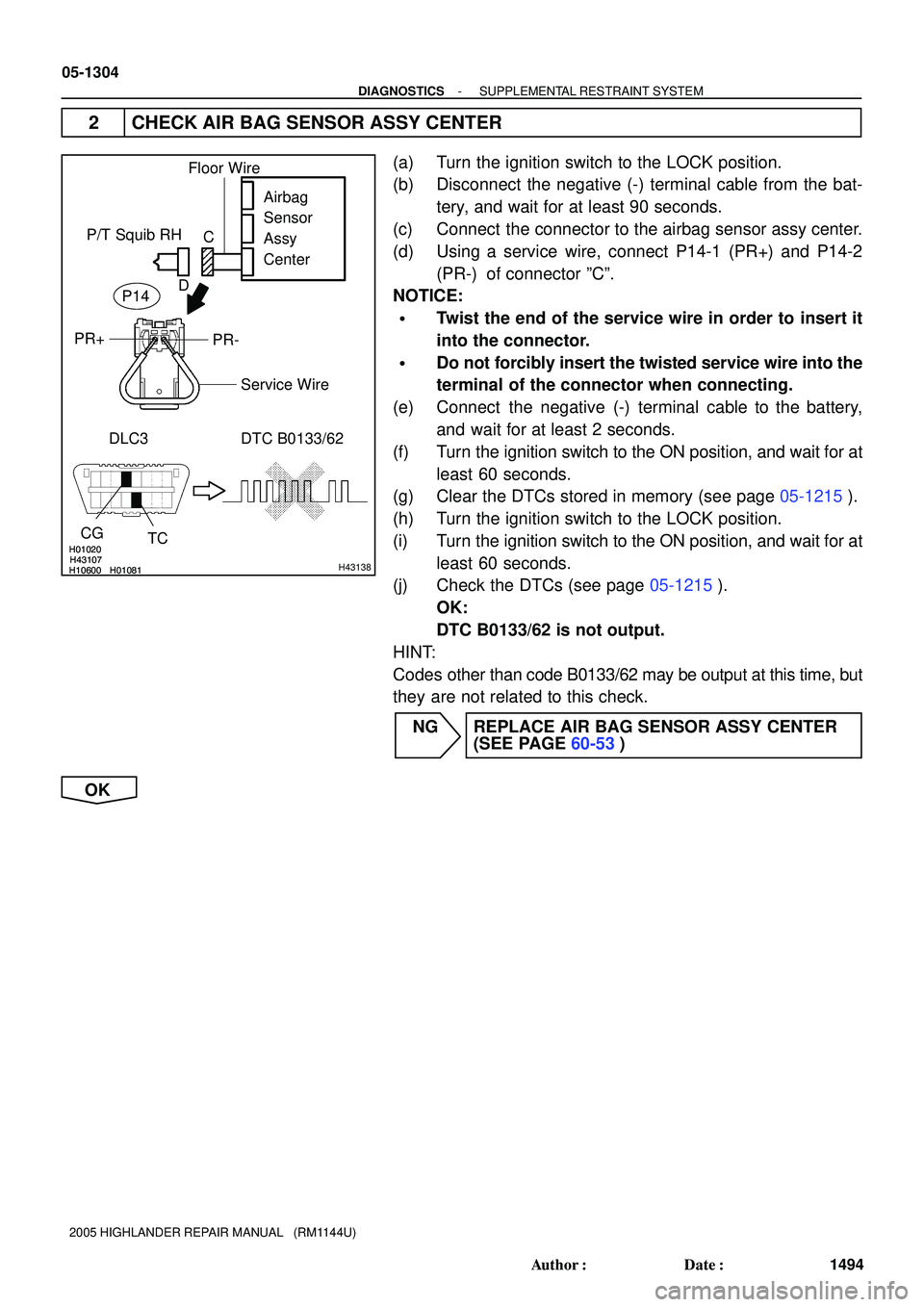

05-1304
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1494 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2 CHECK AIR BAG SENSOR ASSY CENTER
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the airbag sensor assy center.
(d) Using a service wire, connect P14-1 (PR+) and P14-2
(PR-) of connector ºCº.
NOTICE:
Twist the end of the service wire in order to insert it
into the connector.
Do not forcibly insert the twisted service wire into the
terminal of the connector when connecting.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0133/62 is not output.
HINT:
Codes other than code B0133/62 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK
Page 1005 of 2572
H10600 H01021H01081H10600
H01021H01081H40055
P/T Squib RH
DLC3
DTC B0133/62
TC
CG
Airbag
Sensor
Assy
Center
C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1305
1495 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

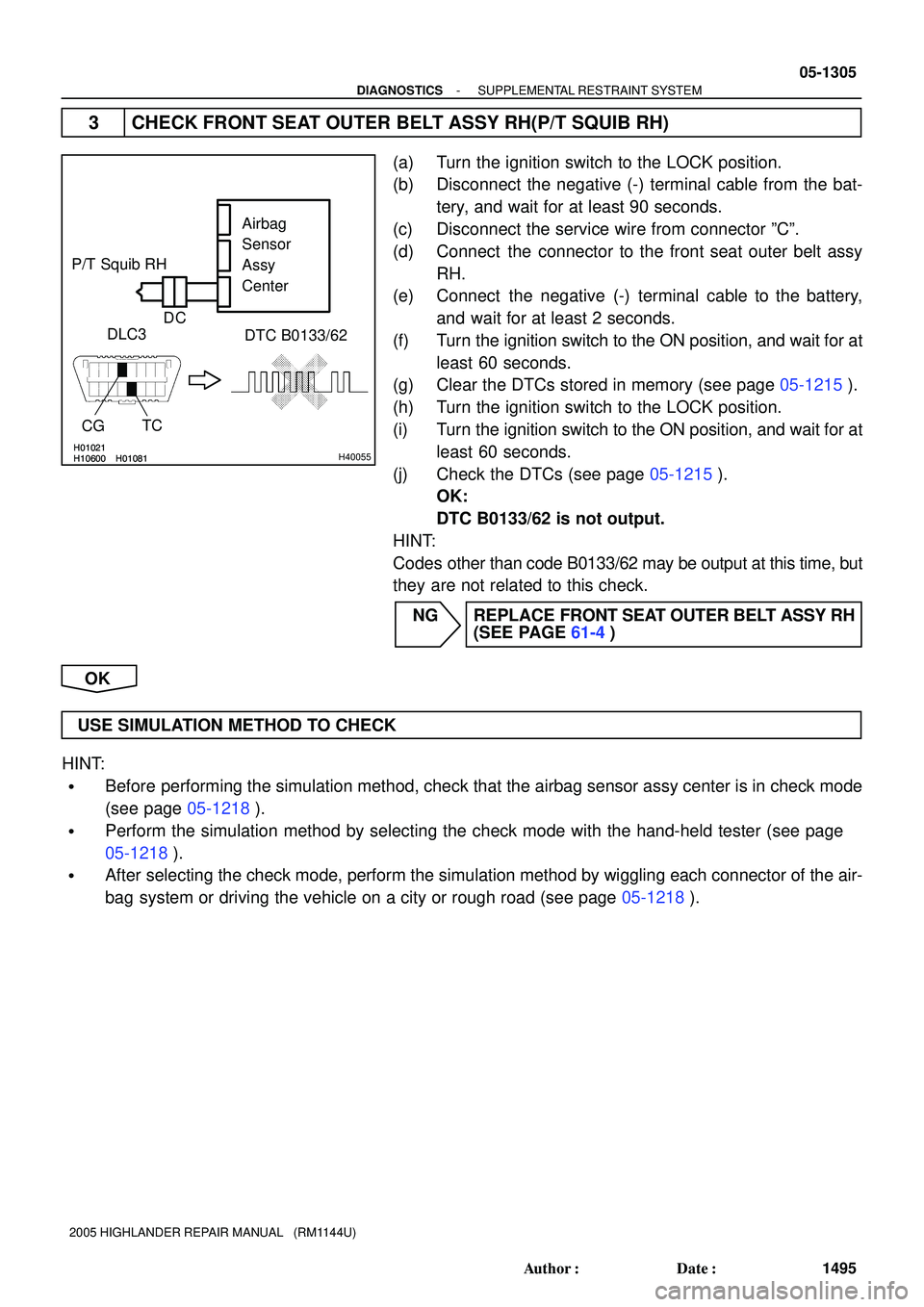

3 CHECK FRONT SEAT OUTER BELT ASSY RH(P/T SQUIB RH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Disconnect the service wire from connector ºCº.
(d) Connect the connector to the front seat outer belt assy
RH.
(e) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Clear the DTCs stored in memory (see page 05-1215).
(h) Turn the ignition switch to the LOCK position.
(i) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(j) Check the DTCs (see page 05-1215).
OK:
DTC B0133/62 is not output.
HINT:
Codes other than code B0133/62 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY RH
(SEE PAGE 61-4)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
Page 1006 of 2572
H01454H44104
Airbag Sensor Assy Center
P13
P/T Squib (LH)
2
A16
PL+ Y-B
1
A16PL- Y 1
28
7
A16
*1: w/ Curtain Shield Airbag
*2: w/o Curtain Shield Airbag(*2)
(*2) (*1)(*1) A16 05-1306
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1496 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

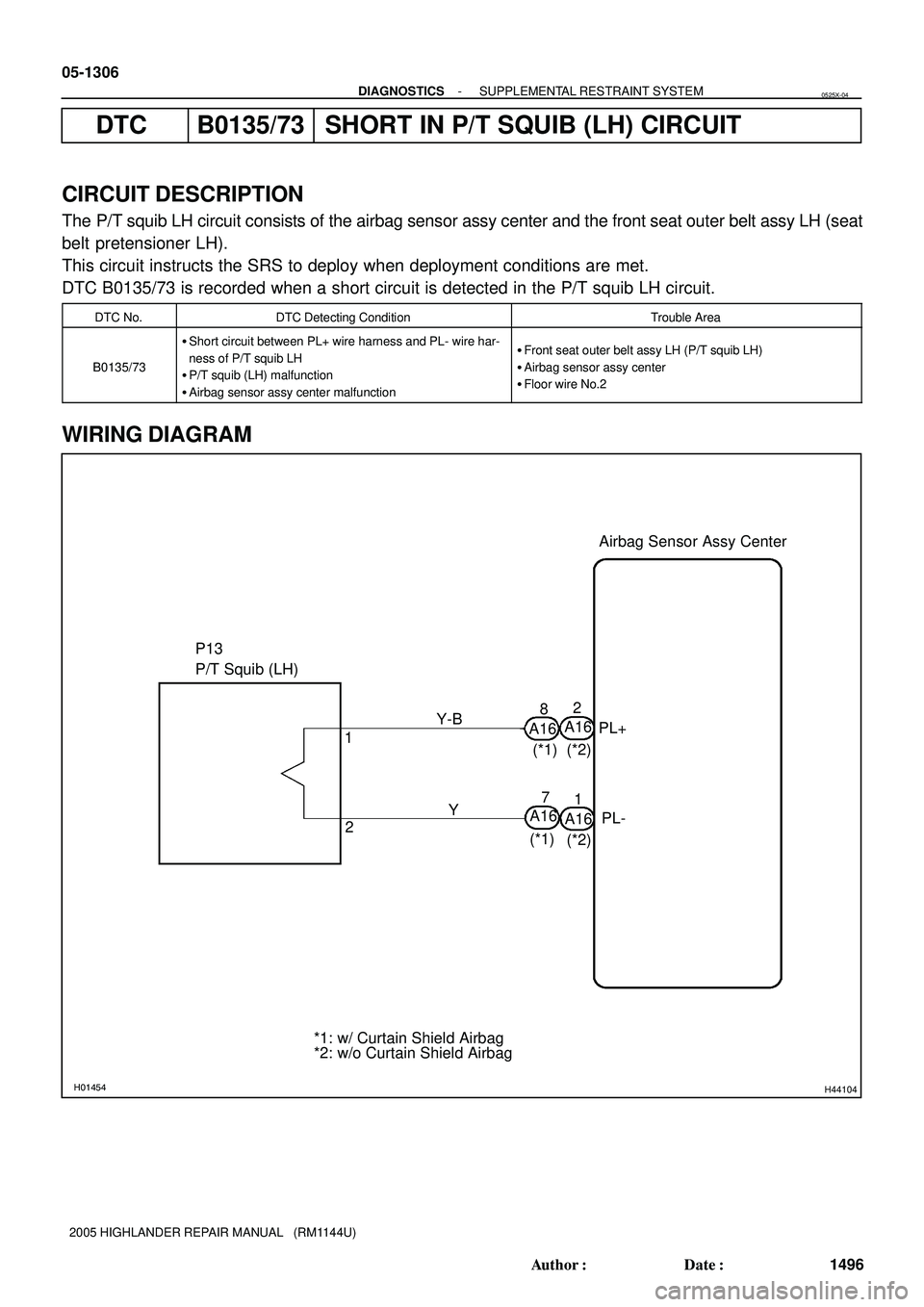

DTC B0135/73 SHORT IN P/T SQUIB (LH) CIRCUIT
CIRCUIT DESCRIPTION
The P/T squib LH circuit consists of the airbag sensor assy center and the front seat outer belt assy LH (seat
belt pretensioner LH).
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0135/73 is recorded when a short circuit is detected in the P/T squib LH circuit.
DTC No.DTC Detecting ConditionTrouble Area
B0135/73
Short circuit between PL+ wire harness and PL- wire har-
ness of P/T squib LH
P/T squib (LH) malfunction
Airbag sensor assy center malfunctionFront seat outer belt assy LH (P/T squib LH)
Airbag sensor assy center
Floor wire No.2
WIRING DIAGRAM
0525X-04
Page 1007 of 2572
H01016H43108H43139
P/T Squib (LH)
PL- PL+Airbag
Sensor
Assy
Center
P13
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1307
1497 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

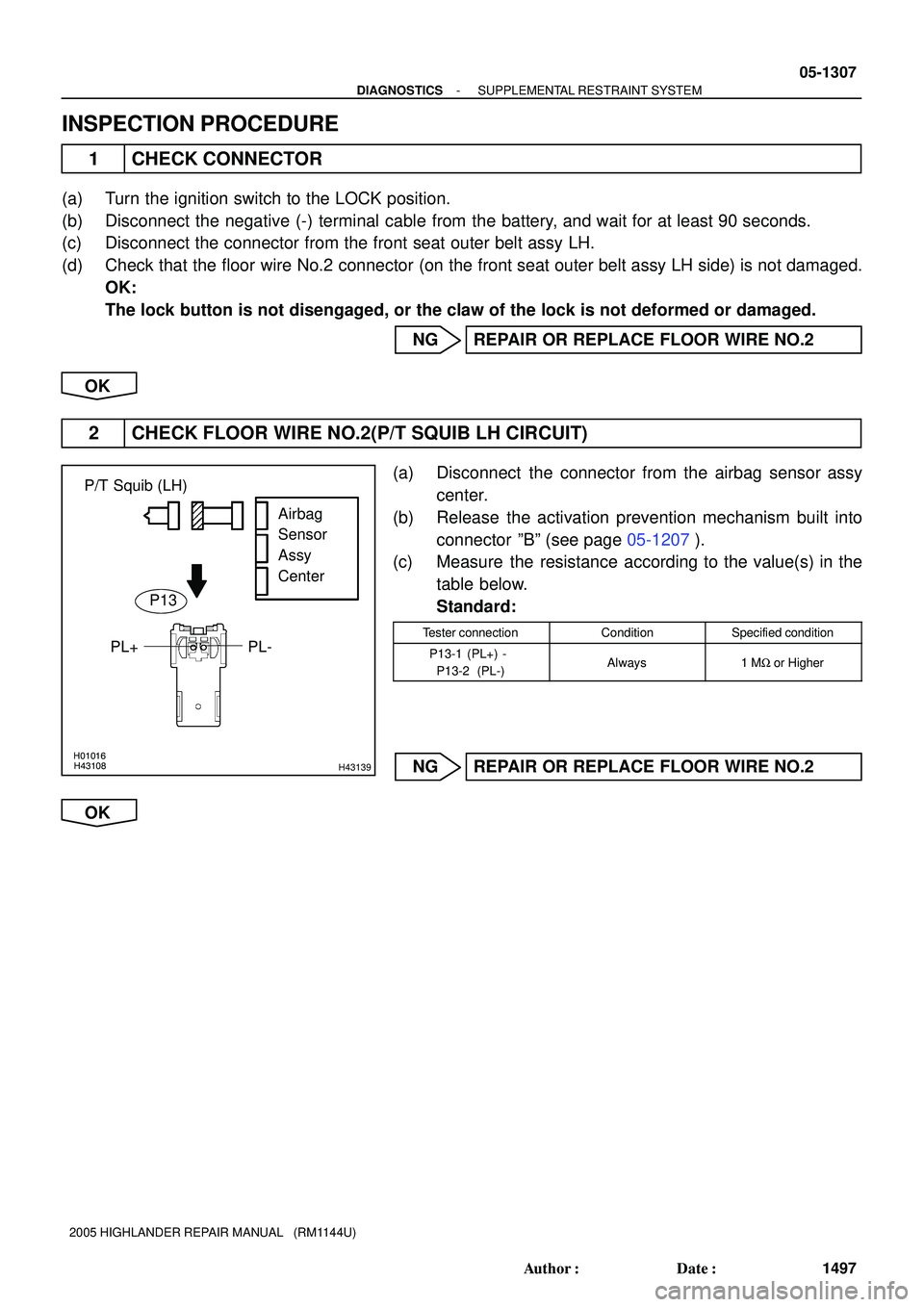

INSPECTION PROCEDURE
1 CHECK CONNECTOR
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Disconnect the connector from the front seat outer belt assy LH.
(d) Check that the floor wire No.2 connector (on the front seat outer belt assy LH side) is not damaged.
OK:
The lock button is not disengaged, or the claw of the lock is not deformed or damaged.
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK
2 CHECK FLOOR WIRE NO.2(P/T SQUIB LH CIRCUIT)
(a) Disconnect the connector from the airbag sensor assy
center.
(b) Release the activation prevention mechanism built into
connector ºBº (see page 05-1207).
(c) Measure the resistance according to the value(s) in the
table below.
Standard:
Tester connectionConditionSpecified condition
P13-1 (PL+) -
P13-2 (PL-)Always1 MW or Higher
NG REPAIR OR REPLACE FLOOR WIRE NO.2
OK

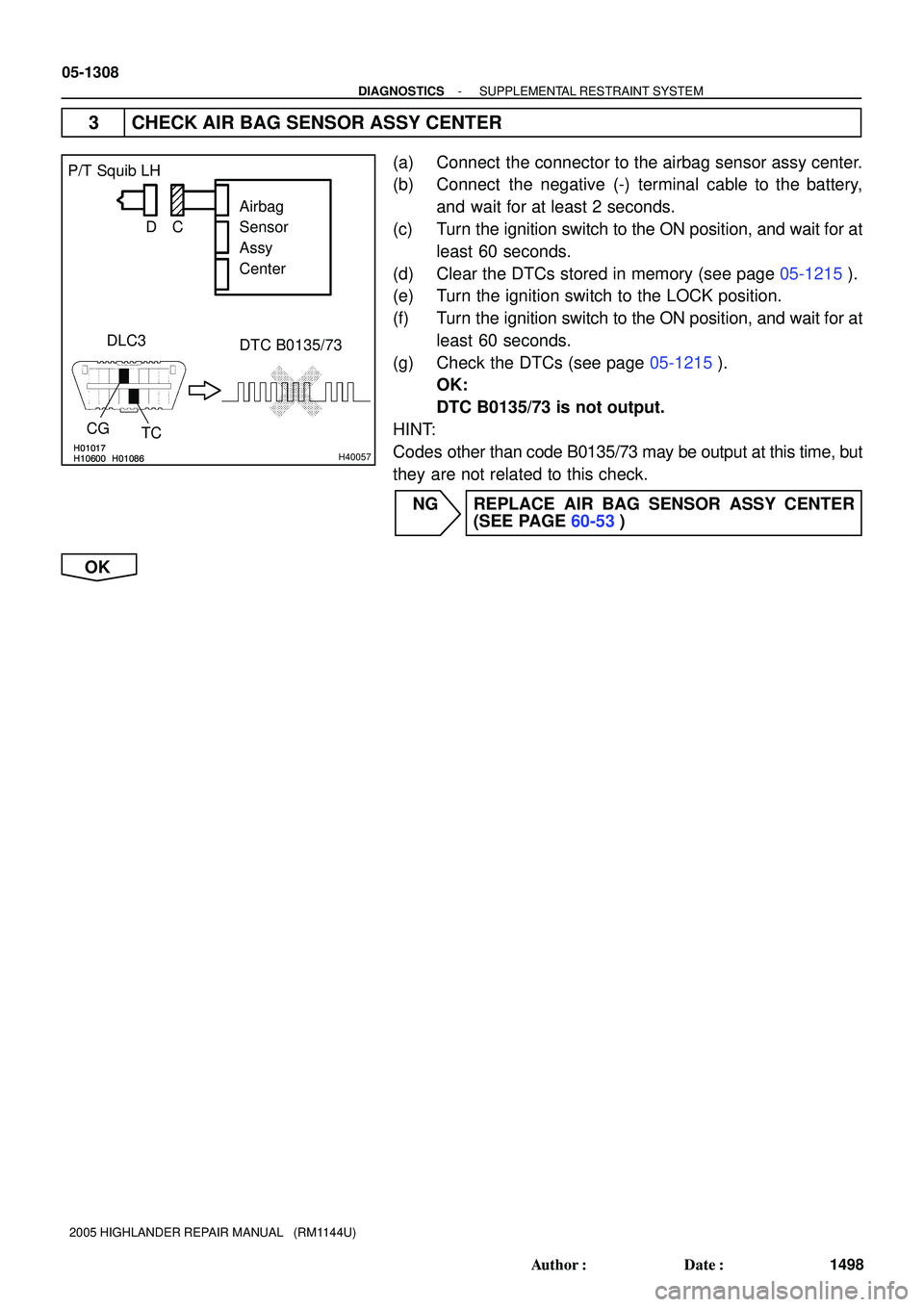

Page 1008 of 2572
H10600H01017H01086H10600H01017H01086H40057
P/T Squib LH
DLC3
TC CG
DTC B0135/73 Airbag
Sensor
Assy
Center C D
05-1308
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
1498 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
3 CHECK AIR BAG SENSOR ASSY CENTER
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(c) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(d) Clear the DTCs stored in memory (see page 05-1215).
(e) Turn the ignition switch to the LOCK position.
(f) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(g) Check the DTCs (see page 05-1215).
OK:
DTC B0135/73 is not output.
HINT:
Codes other than code B0135/73 may be output at this time, but
they are not related to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
(SEE PAGE 60-53)
OK

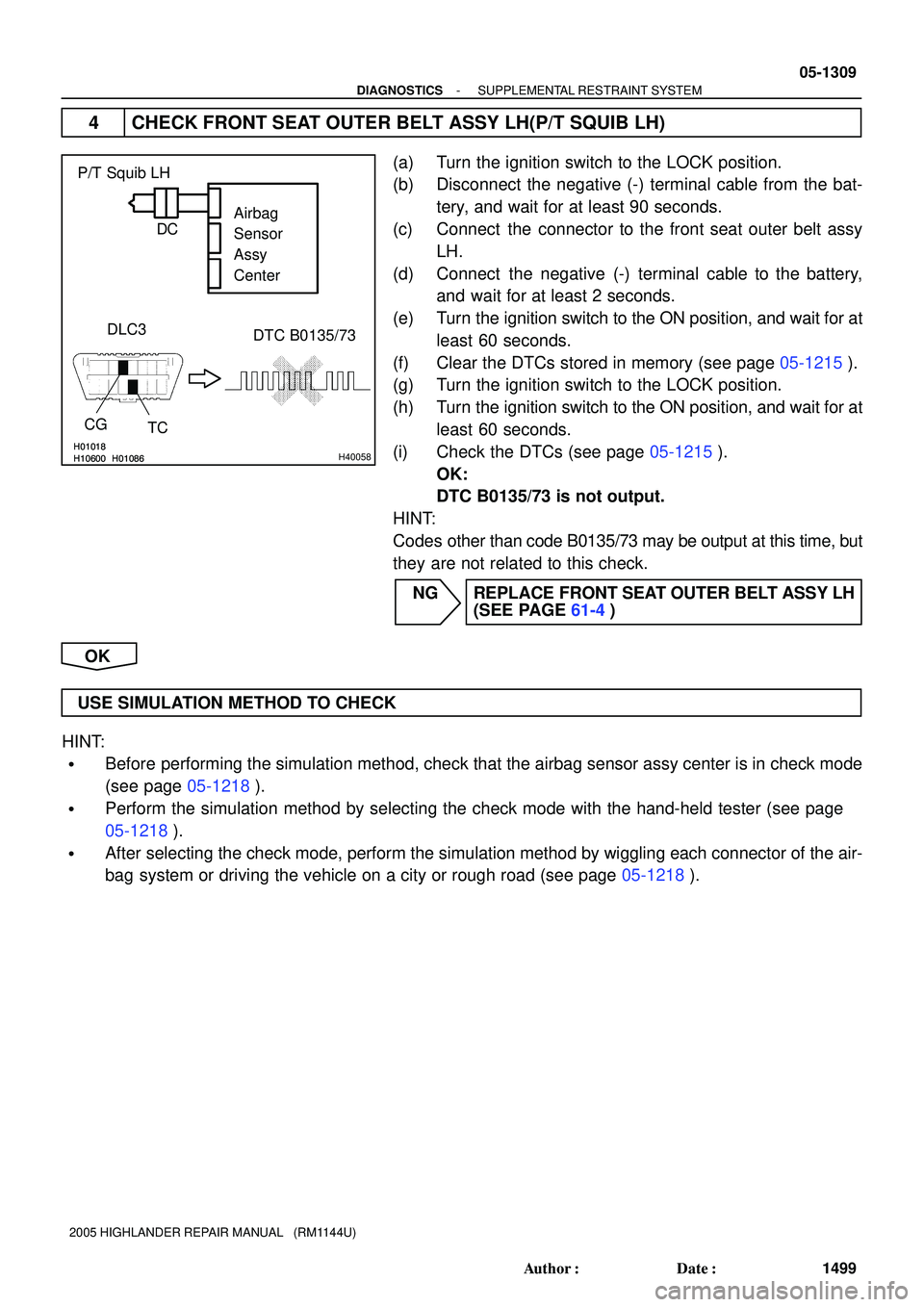

Page 1009 of 2572
H10600H01086H01018H10600H01086H01018H40058
Airbag
Sensor
Assy
Center P/T Squib LH
DLC3
TC CG
DTC B0135/73 C D
- DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
05-1309
1499 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
4 CHECK FRONT SEAT OUTER BELT ASSY LH(P/T SQUIB LH)
(a) Turn the ignition switch to the LOCK position.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait for at least 90 seconds.
(c) Connect the connector to the front seat outer belt assy
LH.
(d) Connect the negative (-) terminal cable to the battery,
and wait for at least 2 seconds.
(e) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(f) Clear the DTCs stored in memory (see page 05-1215).
(g) Turn the ignition switch to the LOCK position.
(h) Turn the ignition switch to the ON position, and wait for at
least 60 seconds.
(i) Check the DTCs (see page 05-1215).
OK:
DTC B0135/73 is not output.
HINT:
Codes other than code B0135/73 may be output at this time, but
they are not related to this check.
NG REPLACE FRONT SEAT OUTER BELT ASSY LH
(SEE PAGE 61-4)
OK
USE SIMULATION METHOD TO CHECK
HINT:
Before performing the simulation method, check that the airbag sensor assy center is in check mode
(see page 05-1218).
Perform the simulation method by selecting the check mode with the hand-held tester (see page
05-1218).
After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page 05-1218).
