BASIC FUNCTIONS
11

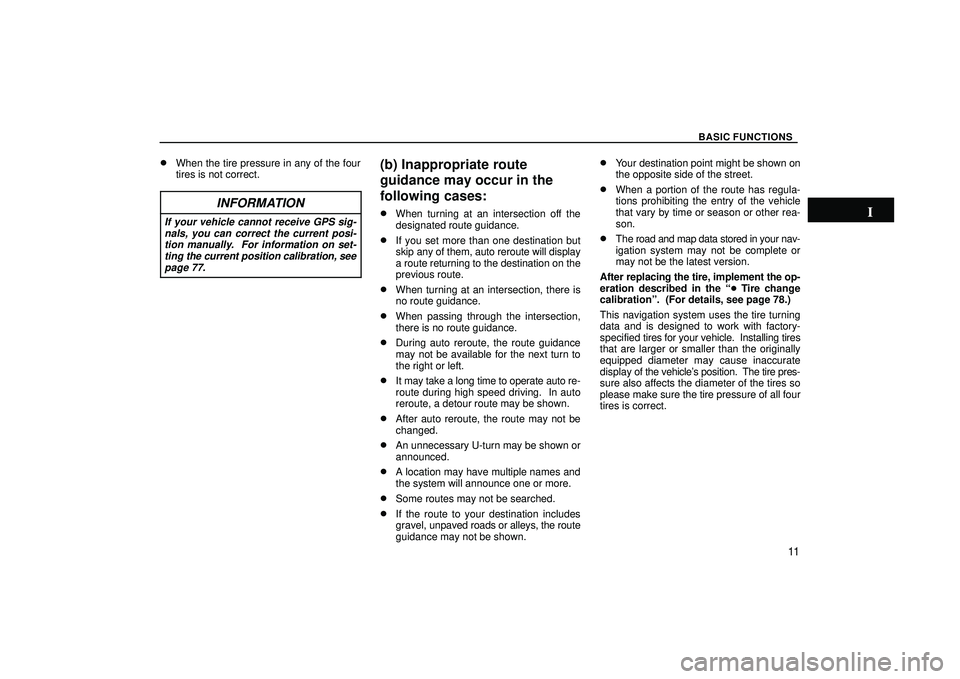

When the tire pressure in any of the four
tires is not correct.
INFORMATION
If your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion manually. For information on set-
ting the current position calibration, see
page 77.
(b) Inappropriate route
guidance may occur in the
following cases:

When turning at an intersection off the
designated route guidance.

If you set more than one destination but
skip any of them, auto reroute will display
a route returning to the destination on the
previous route.

When turning at an intersection, there is
no route guidance.

When passing through the intersection,
there is no route guidance.

During auto reroute, the route guidance
may not be available for the next turn to
the right or left.

It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.

After auto reroute, the route may not be
changed.

An unnecessary U-turn may be shown or
announced.

A location may have multiple names and
the system will announce one or more.

Some routes may not be searched.

If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.

Your destination point might be shown on
the opposite side of the street.

When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
son.

The road and map data stored in your nav-
igation system may not be complete or
may not be the latest version.
After replacing the tire, implement the op-
eration described in the
Tire change
calibrationº. (For details, see page 78.)
This navigation system uses the tire turning
data and is designed to work with factory-
specified tires for your vehicle. Installing tires
that are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle's position. The tire pres-
sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.

BASIC FUNCTIONS
12

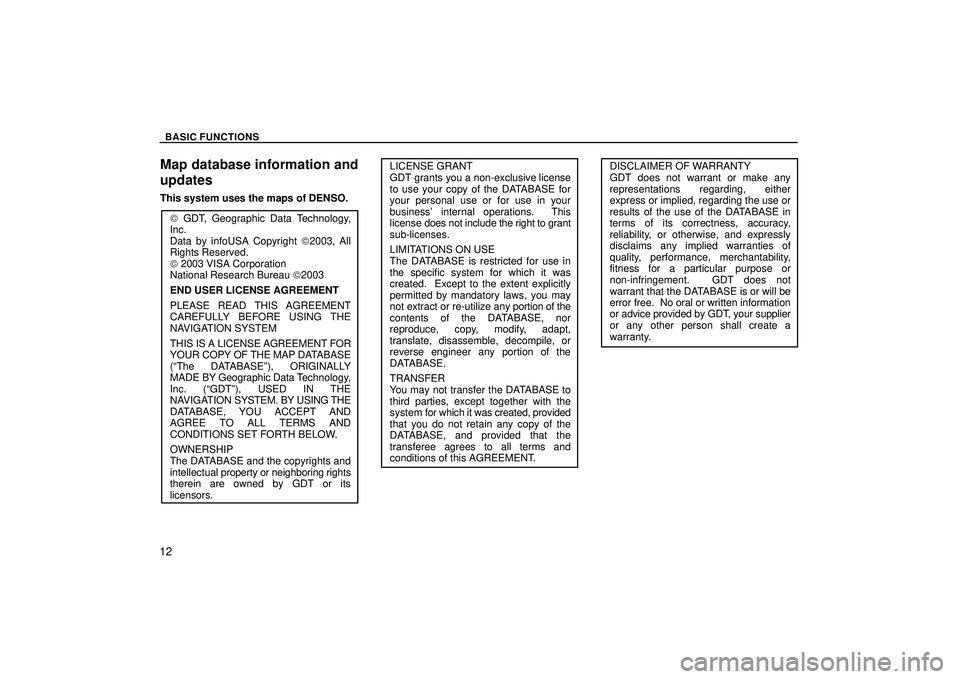

Map database information and
updates
This system uses the maps of DENSO.
W GDT, Geographic Data Technology,
Inc.
Data by infoUSA Copyright W2003, All
Rights Reserved.
W 2003 VISA Corporation
National Research Bureau W2003
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE MAP DATABASE
(The DATABASEº), ORIGINALLY
MADE BY Geographic Data Technology,
Inc. (GDTº), USED IN THE
NAVIGATION SYSTEM. BY USING THE
DATABASE, YOU ACCEPT AND
AGREE TO ALL TERMS AND
CONDITIONS SET FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its
licensors.
LICENSE GRANT
GDT grants you a non-exclusive license
to use your copy of the DATABASE for
your personal use or for use in your
business' internal operations. This
license does not include the right to grant
sub-licenses.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or re-utilize any portion of the
contents of the DATABASE, nor
reproduce, copy, modify, adapt,
translate, disassemble, decompile, or
reverse engineer any portion of the
DATABASE.
TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the
DATABASE, and provided that the
transferee agrees to all terms and
conditions of this AGREEMENT.DISCLAIMER OF WARRANTY
GDT does not warrant or make any
representations regarding, either
express or implied, regarding the use or
results of the use of the DATABASE in
terms of its correctness, accuracy,
reliability, or otherwise, and expressly
disclaims any implied warranties of
quality, performance, merchantability,
fitness for a particular purpose or
non-infringement. GDT does not
warrant that the DATABASE is or will be
error free. No oral or written information
or advice provided by GDT, your supplier
or any other person shall create a
warranty.

BASIC FUNCTIONS
13

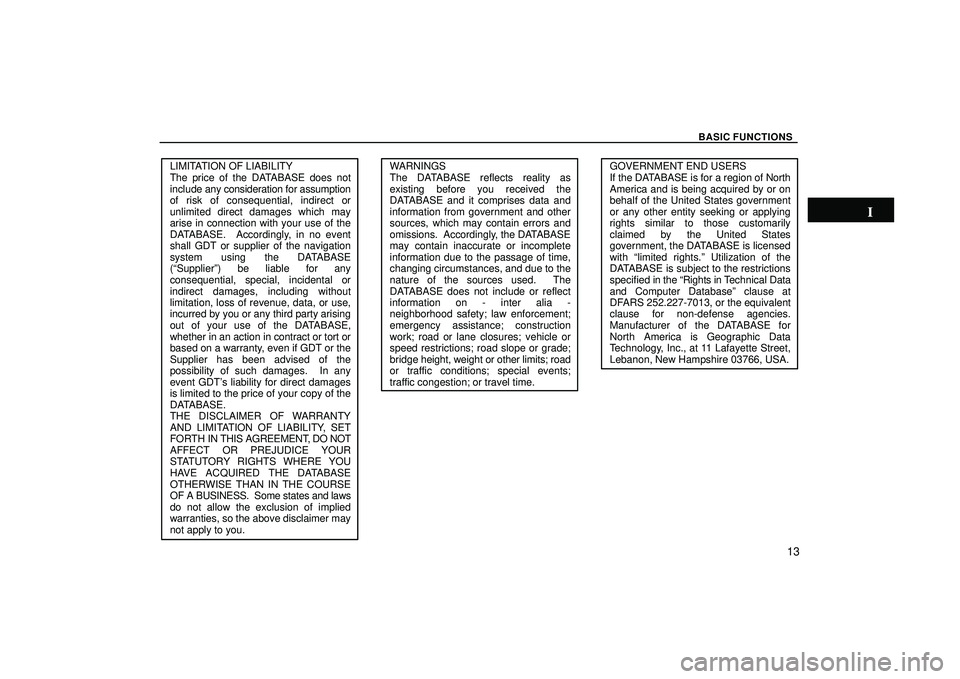

LIMITATION OF LIABILITY
The price of the DATABASE does not
include any consideration for assumption
of risk of consequential, indirect or
unlimited direct damages which may
arise in connection with your use of the
DATABASE. Accordingly, in no event
shall GDT or supplier of the navigation
system using the DATABASE
(Supplierº) be liable for any
consequential, special, incidental or
indirect damages, including without
limitation, loss of revenue, data, or use,
incurred by you or any third party arising
out of your use of the DATABASE,
whether in an action in contract or tort or
based on a warranty, even if GDT or the
Supplier has been advised of the
possibility of such damages. In any
event GDT's liability for direct damages
is limited to the price of your copy of the
DATABASE.
THE DISCLAIMER OF WARRANTY
AND LIMITATION OF LIABILITY, SET
FORTH IN THIS AGREEMENT, DO NOT
AFFECT OR PREJUDICE YOUR
STATUTORY RIGHTS WHERE YOU
HAVE ACQUIRED THE DATABASE
OTHERWISE THAN IN THE COURSE
OF A BUSINESS. Some states and laws
do not allow the exclusion of implied
warranties, so the above disclaimer may
not apply to you.WARNINGS
The DATABASE reflects reality as
existing before you received the
DATABASE and it comprises data and
information from government and other
sources, which may contain errors and
omissions. Accordingly, the DATABASE
may contain inaccurate or incomplete
information due to the passage of time,
changing circumstances, and due to the
nature of the sources used. The
DATABASE does not include or reflect
information on - inter alia -
neighborhood safety; law enforcement;
emergency assistance; construction
work; road or lane closures; vehicle or
speed restrictions; road slope or grade;
bridge height, weight or other limits; road
or traffic conditions; special events;
traffic congestion; or travel time.GOVERNMENT END USERS
If the DATABASE is for a region of North
America and is being acquired by or on
behalf of the United States government
or any other entity seeking or applying
rights similar to those customarily
claimed by the United States
government, the DATABASE is licensed
with limited rights.º Utilization of the
DATABASE is subject to the restrictions
specified in the Rights in Technical Data
and Computer Databaseº clause at
DFARS 252.227-7013, or the equivalent
clause for non-defense agencies.
Manufacturer of the DATABASE for
North America is Geographic Data
Technology, Inc., at 11 Lafayette Street,
Lebanon, New Hampshire 03766, USA.

BASIC FUNCTIONS
14

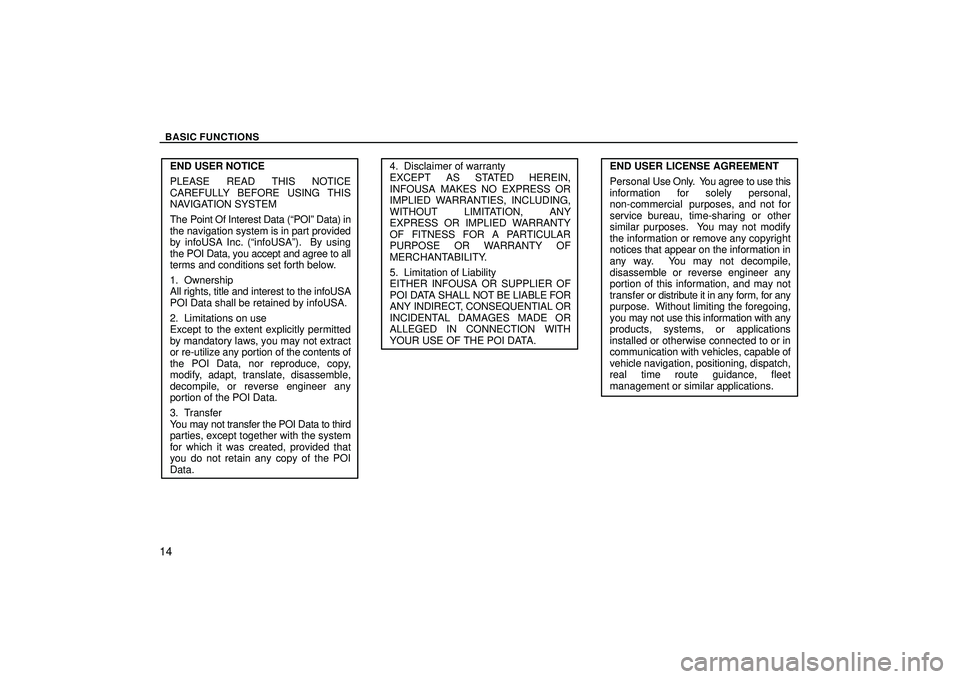

END USER NOTICE
PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM
The Point Of Interest Data (POIº Data) in
the navigation system is in part provided
by infoUSA Inc. (infoUSAº). By using
the POI Data, you accept and agree to all
terms and conditions set forth below.
1. Ownership
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.
2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or re-utilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the POI Data.
3. Transfer
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR WARRANTY OF
MERCHANTABILITY.
5. Limitation of Liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR
ALLEGED IN CONNECTION WITH
YOUR USE OF THE POI DATA.END USER LICENSE AGREEMENT
Personal Use Only. You agree to use this
information for solely personal,
non-commercial purposes, and not for
service bureau, time-sharing or other
similar purposes. You may not modify
the information or remove any copyright
notices that appear on the information in
any way. You may not decompile,
disassemble or reverse engineer any
portion of this information, and may not
transfer or distribute it in any form, for any
purpose. Without limiting the foregoing,
you may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet
management or similar applications.

BASIC FUNCTIONS
15

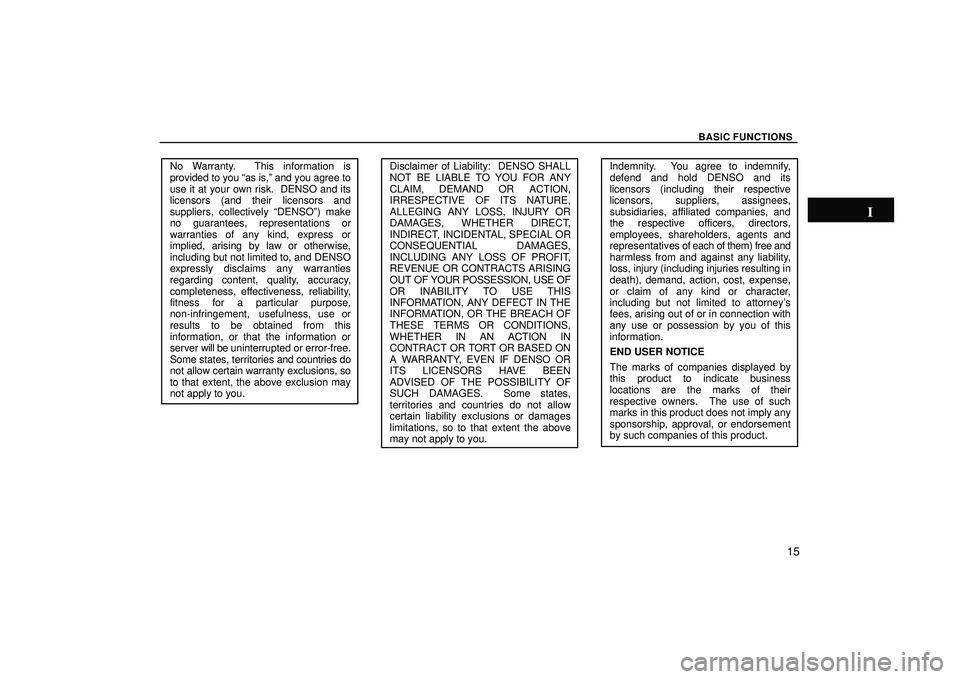

No Warranty. This information is
provided to you as is,º and you agree to
use it at your own risk. DENSO and its
licensors (and their licensors and
suppliers, collectively DENSOº) make
no guarantees, representations or
warranties of any kind, express or
implied, arising by law or otherwise,
including but not limited to, and DENSO
expressly disclaims any warranties
regarding content, quality, accuracy,
completeness, effectiveness, reliability,
fitness for a particular purpose,
non-infringement, usefulness, use or
results to be obtained from this
information, or that the information or
server will be uninterrupted or error-free.
Some states, territories and countries do
not allow certain warranty exclusions, so
to that extent, the above exclusion may
not apply to you.Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF ITS NATURE,
ALLEGING ANY LOSS, INJURY OR
DAMAGES, WHETHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES,
INCLUDING ANY LOSS OF PROFIT,
REVENUE OR CONTRACTS ARISING
OUT OF YOUR POSSESSION, USE OF
OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. Some states,
territories and countries do not allow
certain liability exclusions or damages
limitations, so to that extent the above
may not apply to you.Indemnity. You agree to indemnify,
defend and hold DENSO and its
licensors (including their respective
licensors, suppliers, assignees,
subsidiaries, affiliated companies, and
the respective officers, directors,
employees, shareholders, agents and
representatives of each of them) free and
harmless from and against any liability,
loss, injury (including injuries resulting in
death), demand, action, cost, expense,
or claim of any kind or character,
including but not limited to attorney's
fees, arising out of or in connection with
any use or possession by you of this
information.
END USER NOTICE
The marks of companies displayed by
this product to indicate business
locations are the marks of their
respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement
by such companies of this product.

BASIC FUNCTIONS
16
There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, one-way traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as road repairs and
doing site investigation. However, the names
of roads, streets, facilities, and their locations
are often changed. In some places, construc-
tion on roads may be in progress. For that
reason, information on some areas in this
system might be different from the actual
location.
The map database is normally updated once
a year. Contact your dealer for information
about the availability and pricing of an
update.

To confirm the database version and
disc coverage area
1. Push the
MENUº button.
2. Touch the Map DVDº switch.
Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.)

BASIC FUNCTIONS
17
To display the disc coverage area, touch theCovered Areaº switch. Confirm the
covered area on the screen.
Contact your dealer to find out if there is a
more recent update released.

BASIC FUNCTIONS
18

'05 HIGHLANDER_U (L/O 0409)
289
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Information before driving your Toyota
Off- road vehicle precautions290 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Break- in period291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel291 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system293 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three- way catalytic converters294 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions295 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption296 . . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium- tipped spark plugs297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system297 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota's identification301 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis303 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information304 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle load limits312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo and luggage313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2

'05 HIGHLANDER_U (L/O 0409)
290
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
This vehicle belongs to the utility ve-
hicle class, which has higher ground
clearance and narrower tread in relation
to the height of its center of gravity to
make it capable of performing in a wide
variety of off- road applications. Specific
design characteristics give it a higher
center of gravity than ordinary passen-
ger cars. This vehicle design feature
causes this type of vehicle to be more
likely to rollover. And, utility vehicles
have a significantly higher rollover rate
than other types of vehicles. An advan-
tage of the higher ground clearance is
a better view of the road allowing you
to anticipate problems. It is not de-
signed for cornering at the same
speeds as ordinary passenger cars any
more than low- slung sports cars de-
signed to perform satisfactorily under
off- road conditions. Therefore, sharp
turns at excessive speeds may cause
rollover.CAUTION
Always observe the following precau-
tions to minimize the risk of serious
personal injury or damage to your ve-
hicle:

In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.

Avoid sharp turns or abrupt maneu-
vers, if at all possible. Failure to
operate this vehicle correctly may
result in loss of control or vehicle
rollover causing death or serious
injury.

Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
Off- road vehicle precautions
