6819-1. Specifications
9
Vehicle specifications
HIGHLANDER_U

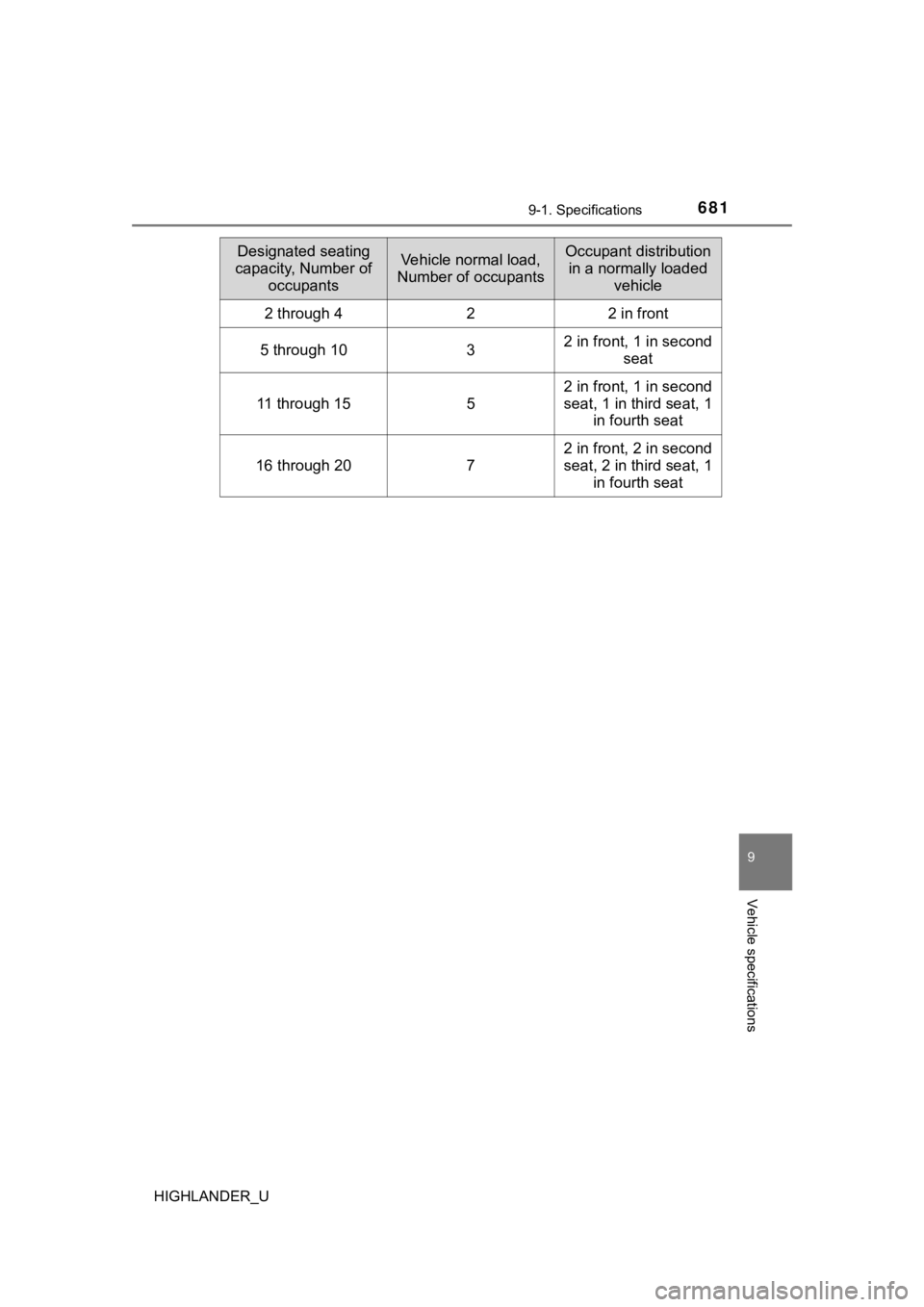

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

682
HIGHLANDER_U
9-2. Customization
■Changing by Entune AudioPress the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Select the desired item.
■Changing by Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “Setup” on the “Apps” s creen and select “Vehicle”.
Select the desired item.
Various setting can be changed. Refer to the list of settings t hat can
be changed for details.
■Changing by the meter control switches
 P. 1 0 2
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed by the meter control switches, on the audio sys-
tem screen or at your Toyota dealer.
Customizing vehicle features (audio system screen)
Customizing vehicle featur es (meter control switches)
1
2
1
2

6839-2. Customization
9
Vehicle specifications
HIGHLANDER_U
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.

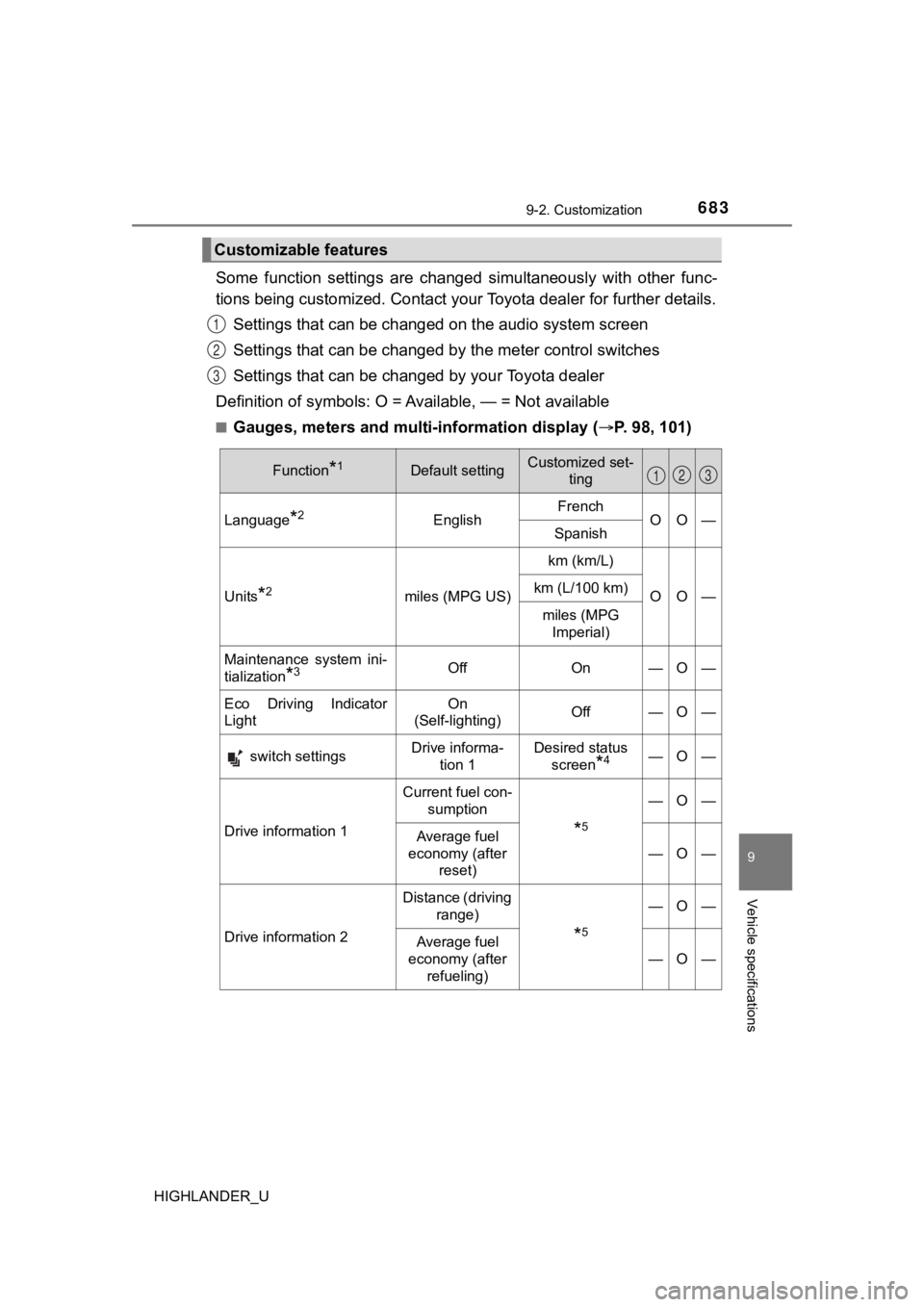

Settings that can be changed on the audio system screen
Settings that can be changed b y the meter control switches
Settings that can be chan ged by your Toyota dealer
Definition of symbols: O = A vailable, — = Not available
■Gauges, meters and multi-information display ( P. 98, 101)
Customizable features
1
2
3
Function*1Default settingCustomized set-
ting
Language*2EnglishFrenchOO—Spanish
Units*2miles (MPG US)
km (km/L)
OO—km (L/100 km)
miles (MPG
Imperial)
Maintenance system ini-
tialization
*3OffOn—O—
Eco Driving Indicator
LightOn
(Self-lighting)Off—O—
switch settingsDrive informa- tion 1Desired status screen
*4—O—
Drive information 1
Current fuel con- sumption
*5
—O—
Average fuel
economy (after reset)
—O—
Drive information 2
Distance (driving range)
*5
—O—
Average fuel
economy (after
refueling)
—O—
123

6849-2. Customization
HIGHLANDER_U
*1: For details about each function: P. 105
*2: The default setting varies according to country.
*3: U.S.A. only
*4: Some status screens cannot be registered (indicated on the mul ti-informa-
tion display).
*5: 6 of the following items: current fuel consumption, average fuel economy (after reset), average fuel economy (after refuel), average fue l economy
(after start), average vehicle speed (after reset), average veh icle speed
(after start), distance (driving range), elapsed time (after re set), elapsed
time (after start), distance (after start), driving distance (after reset), blank.
*6: Speed limit display may not be available for some regions.

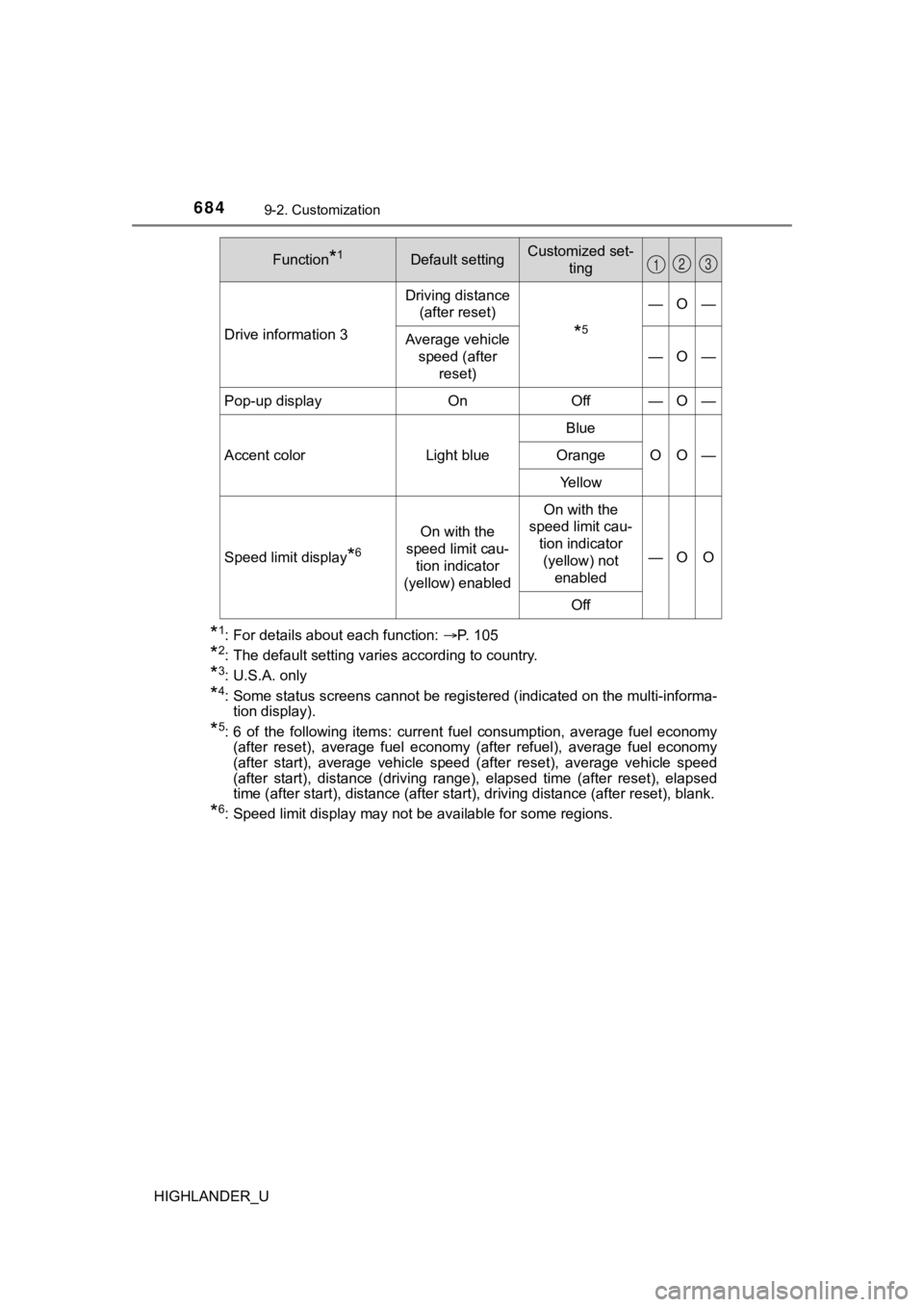

Drive information 3
Driving distance
(after reset)
*5
—O—
Average vehicle speed (after
reset)
—O—
Pop-up displayOnOff—O—
Accent colorLight blue
Blue
OO—Orange
Yellow
Speed limit display*6
On with the
speed limit cau- tion indicator
(yellow) enabled
On with the
speed limit cau-
tion indicator (yellow) not enabled
—OO
Off
Function*1Default settingCustomized set- ting123

6859-2. Customization
9
Vehicle specifications
HIGHLANDER_U■
LDA (Lane Departure Alert
with steering control) (P. 2 8 1 )
■PCS (Pre-Collision System) ( P. 267)
FunctionDefault settingCustomized set-
ting
Steering AssistOnOff—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning
sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized set-ting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Alert timing
(Middle)
(Far)—O—
(Near)
123

6869-2. Customization
HIGHLANDER_U■

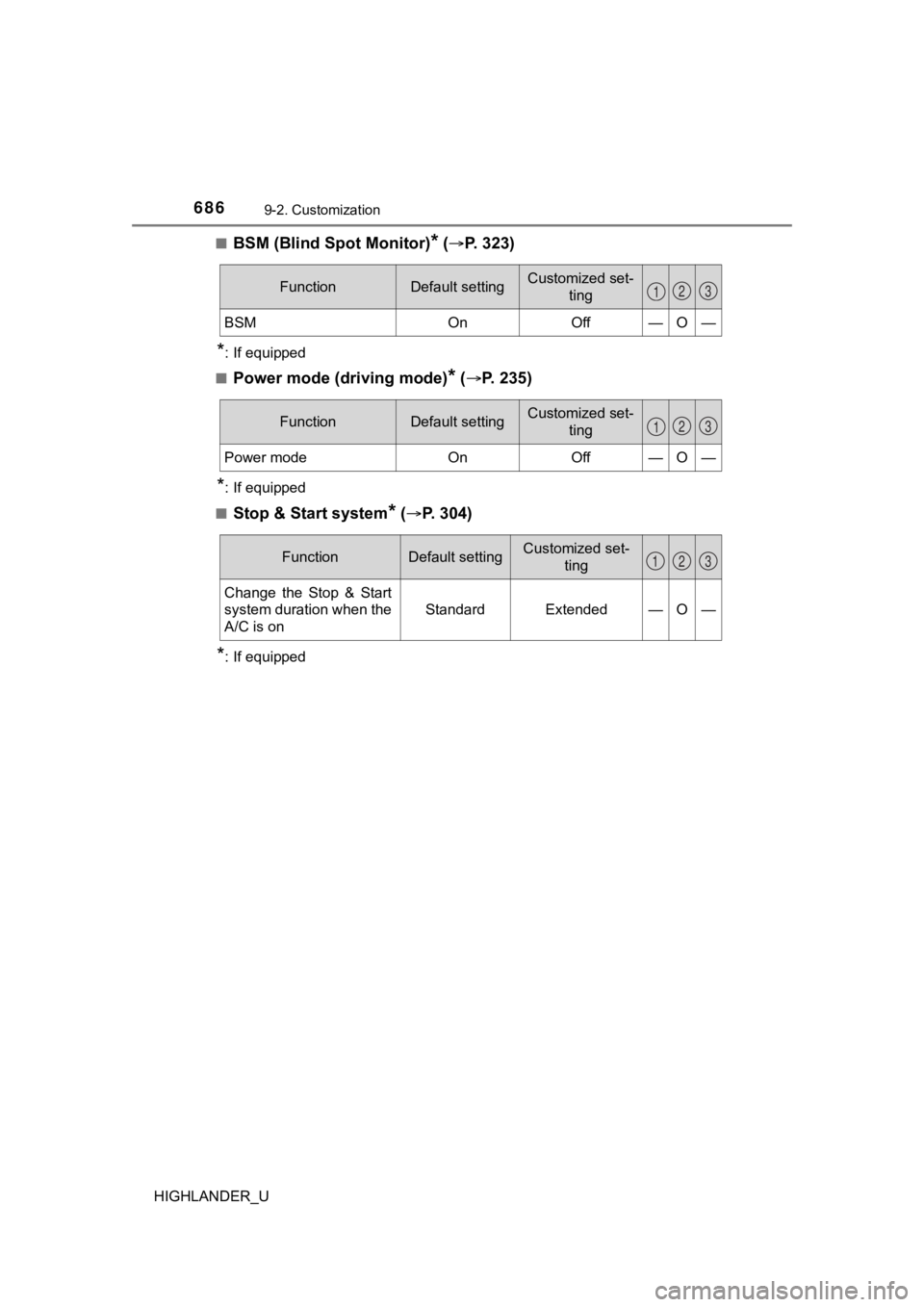

BSM (Blind Spot Monitor)* (
 P. 323)
*: If equipped
■
Power mode (driving mode)* (  P. 235)
*: If equipped
■
Stop & Start system* (  P. 3 0 4 )
*: If equipped
FunctionDefault settingCustomized set-
ting
BSMOnOff—O—
123
FunctionDefault settingCustomized set-ting
Power modeOnOff—O—
123
FunctionDefault settingCustomized set-ting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
123

6879-2. Customization
9
Vehicle specifications
HIGHLANDER_U■

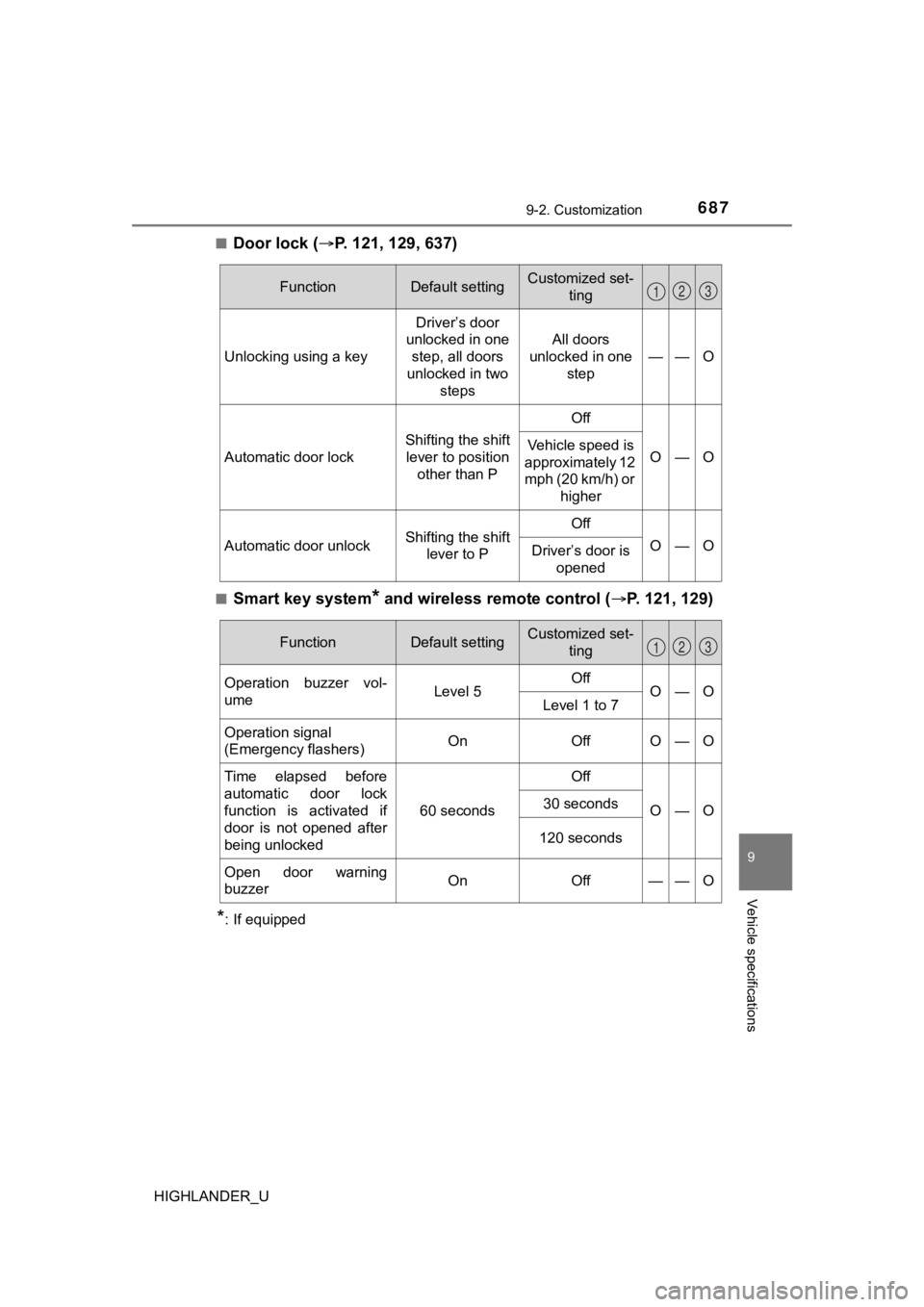

Door lock (
P. 121, 129, 637)
■Smart key system* and wireless remote control ( P. 121, 129)
*: If equipped
FunctionDefault settingCustomized set-
ting
Unlocking using a key
Driver’s door
unlocked in one step, all doors
unlocked in two steps
All doors
unlocked in one
step
——O
Automatic door lock
Shifting the shift lever to position other than P
Off
O—OVehicle speed is
approximately 12
mph (20 km/h) or higher
Automatic door unlockShifting the shift lever to POff
O—ODriver’s door is opened
123
FunctionDefault settingCustomized set-
ting
Operation buzzer vol-
umeLevel 5OffO—OLevel 1 to 7
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning
buzzerOnOff——O
123

6889-2. Customization
HIGHLANDER_U■

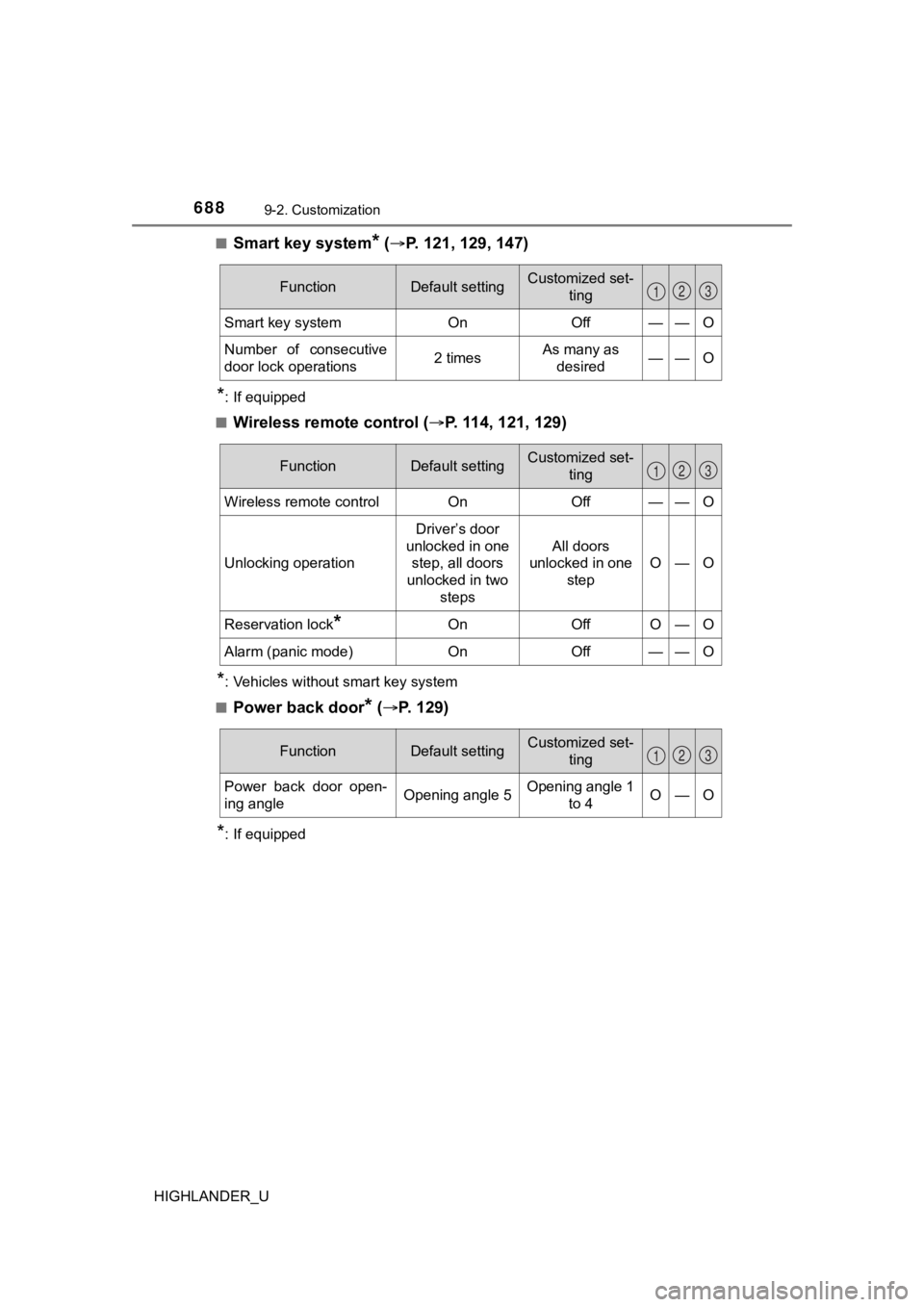

Smart key system* (
 P. 121, 129, 147)
*: If equipped
■
Wireless remote control ( P. 114, 121, 129)
*: Vehicles without smart key system
■
Power back door* (  P. 129)
*: If equipped
FunctionDefault settingCustomized set-
ting
Smart key systemOnOff——O
Number of consecutive
door lock operations2 timesAs many as
desired——O
123
FunctionDefault settingCustomized set- ting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors
unlocked in one step
O—O
Reservation lock*OnOffO—O
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized set-
ting
Power back door open-
ing angleOpening angle 5Opening angle 1 to 4O—O
123

6899-2. Customization
9
Vehicle specifications
HIGHLANDER_U■

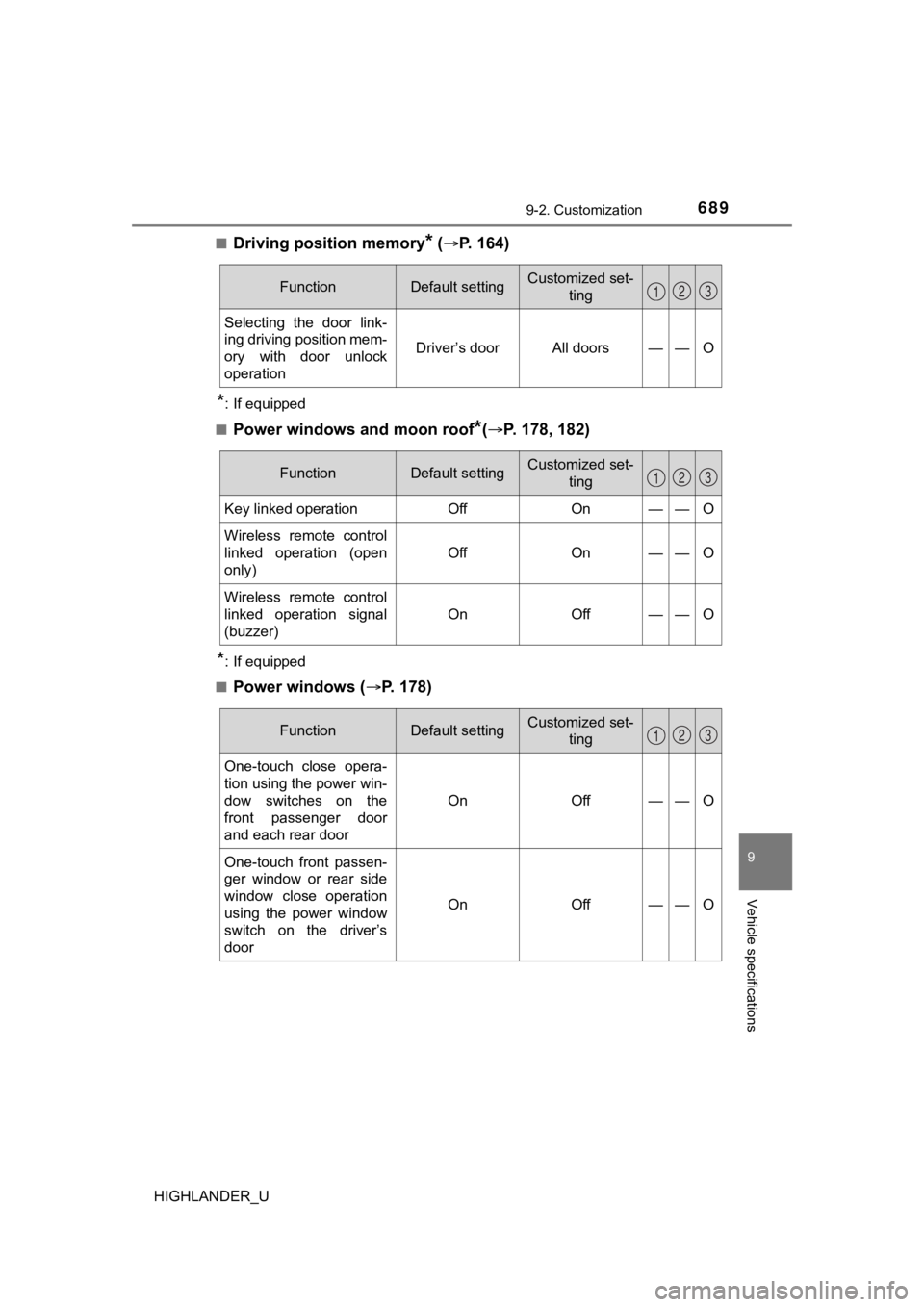

Driving position memory* (
 P. 164)
*: If equipped
■
Power windows and moon roof*(  P. 178, 182)
*: If equipped
■
Power windows ( P. 178)
FunctionDefault settingCustomized set-
ting
Selecting the door link-
ing driving position mem-
ory with door unlock
operation
Driver’s doorAll doors——O
123
FunctionDefault settingCustomized set-ting
Key linked operationOffOn——O
Wireless remote control
linked operation (open
only)
OffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized set-ting
One-touch close opera-
tion using the power win-
dow switches on the
front passenger door
and each rear door
OnOff——O
One-touch front passen-
ger window or rear side
window close operation
using the power window
switch on the driver’s
door
OnOff——O
123

6909-2. Customization
HIGHLANDER_U■

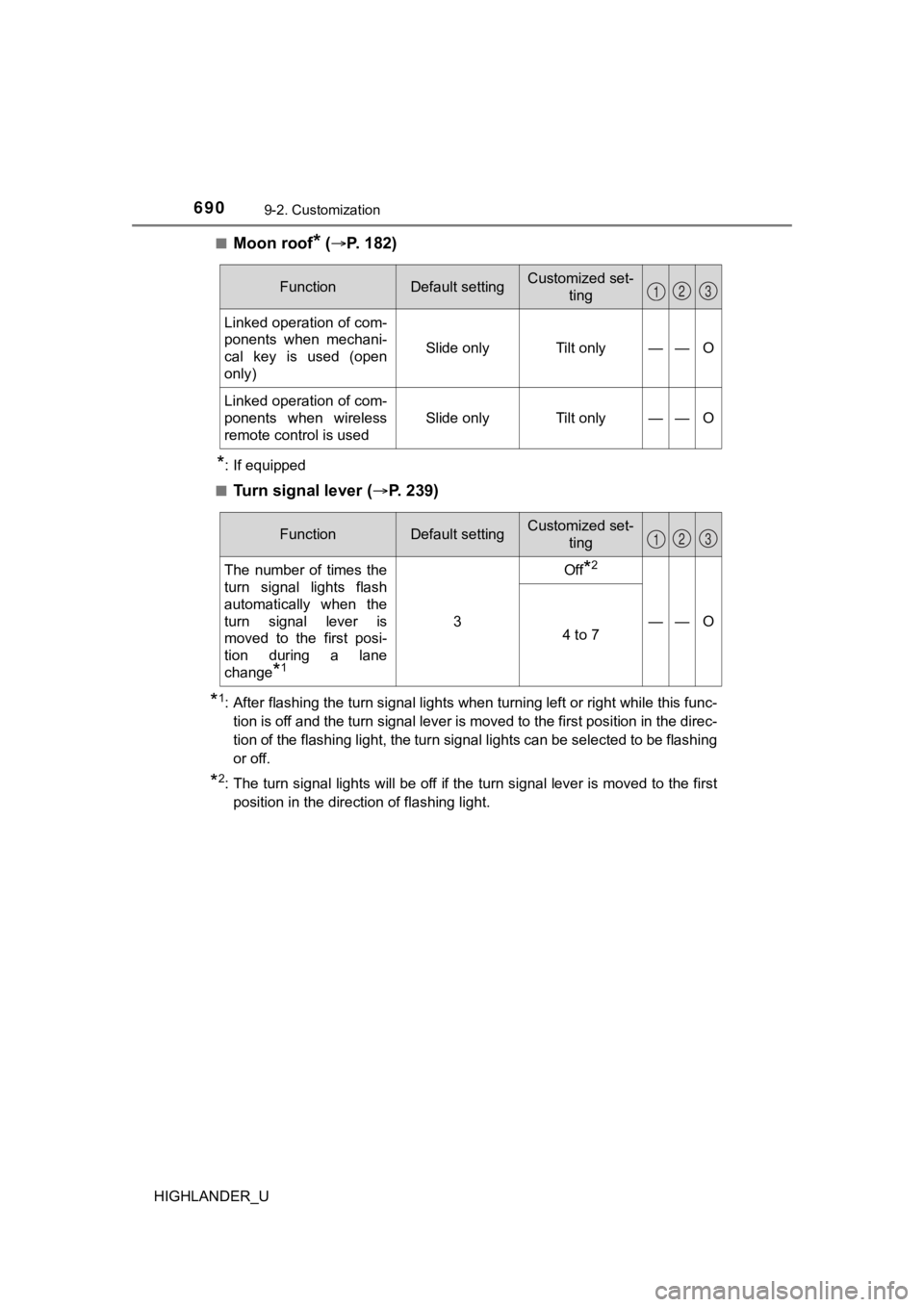

Moon roof* (
 P. 182)
*: If equipped
■
Turn signal lever ( P. 239)
*1: After flashing the turn signal lights when turning left or rig ht while this func-
tion is off and the turn signal lever is moved to the first pos ition in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the first position in the direction of flashing light.
FunctionDefault settingCustomized set- ting
Linked operation of com-
ponents when mechani-
cal key is used (open
only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
123
FunctionDefault settingCustomized set-ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123
