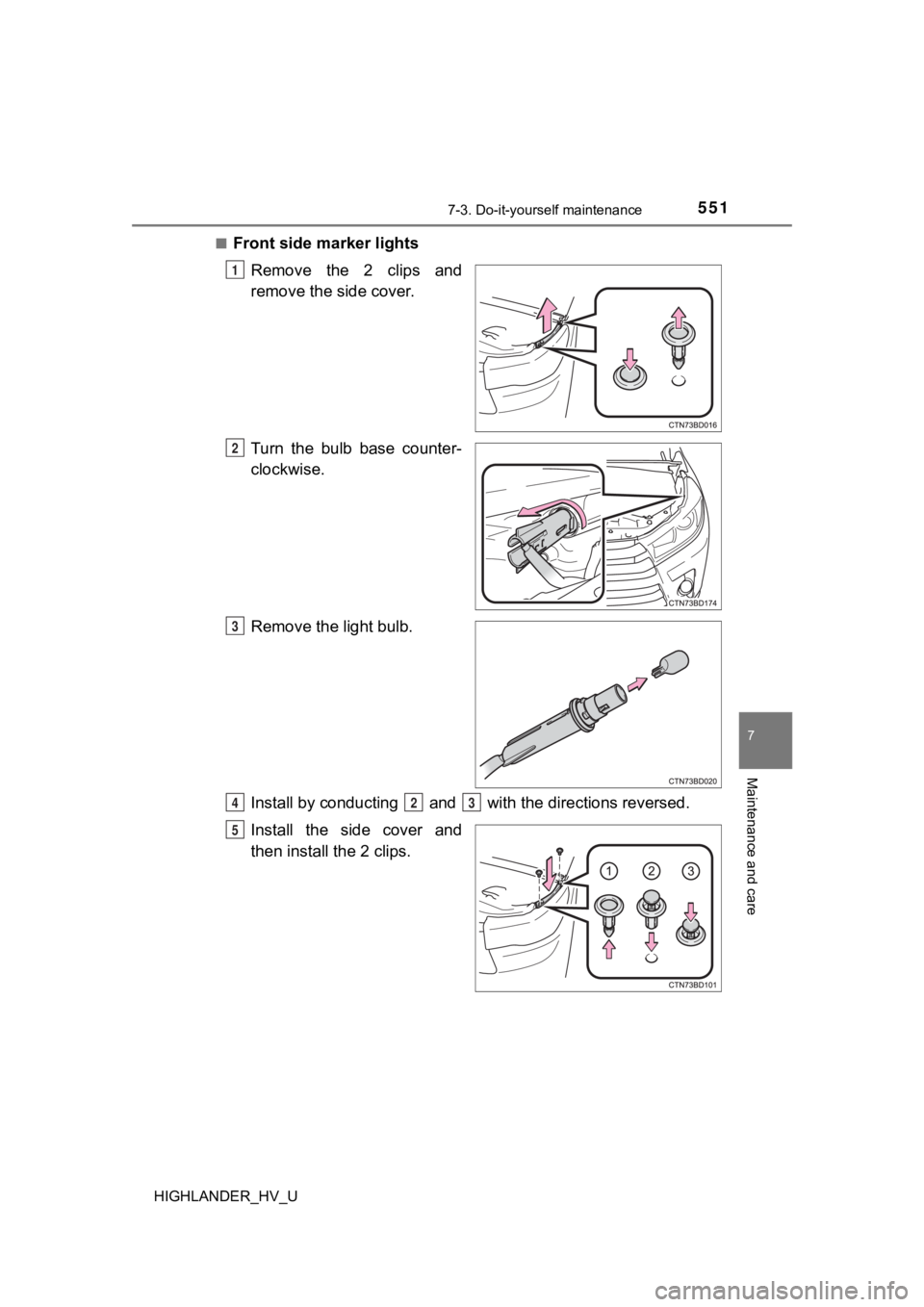

Front side marker lights
Remove the 2 clips and
remove the side cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install by conducting and wi th the directions reversed.
Install the side cover and
then install the 2 clips.
1
2
3
423
5

5527-3. Do-it-yourself maintenance
HIGHLANDER_HV_U■

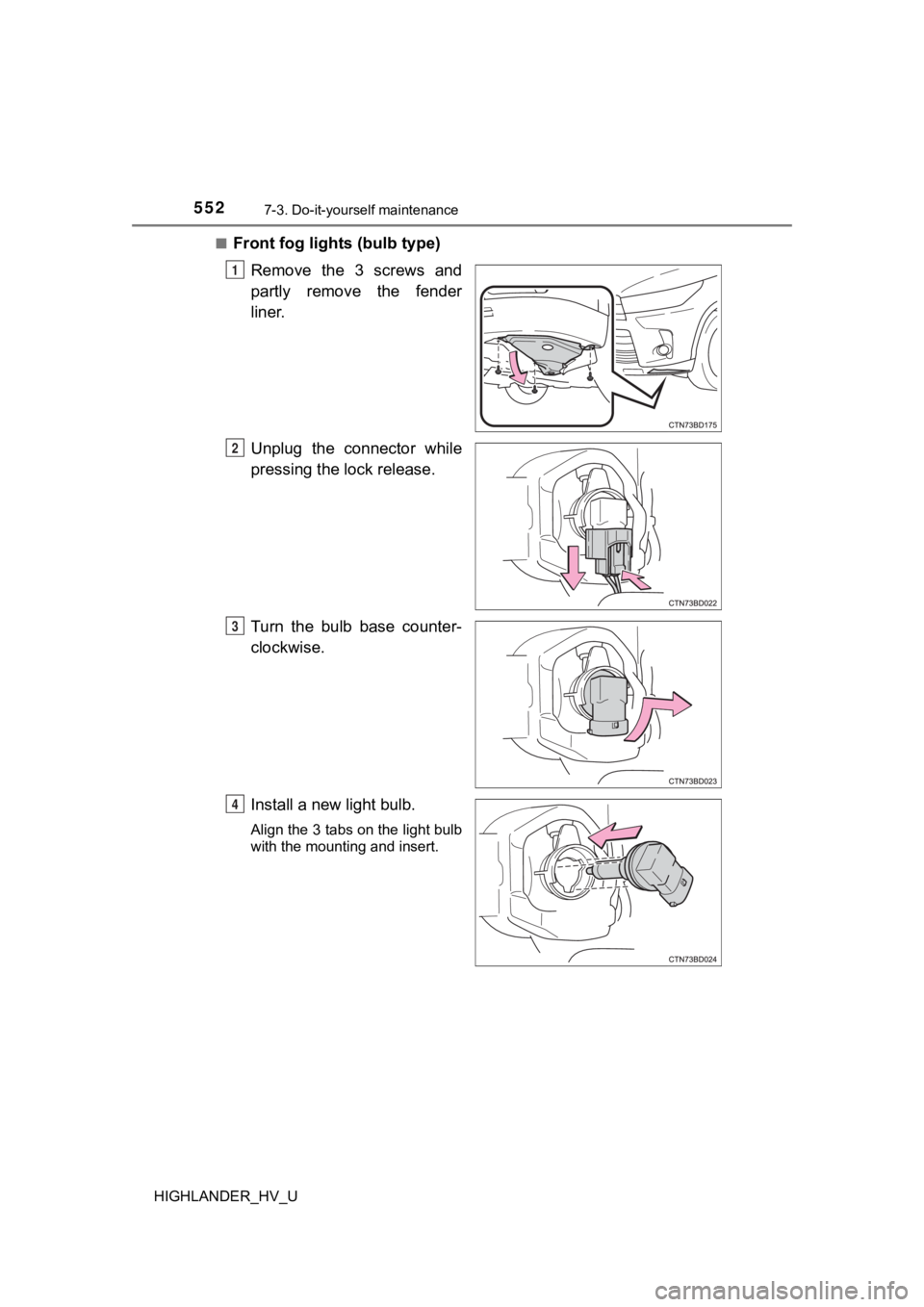

Front fog lights (bulb type)
Remove the 3 screws and
partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
1
2
3
4

5537-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U

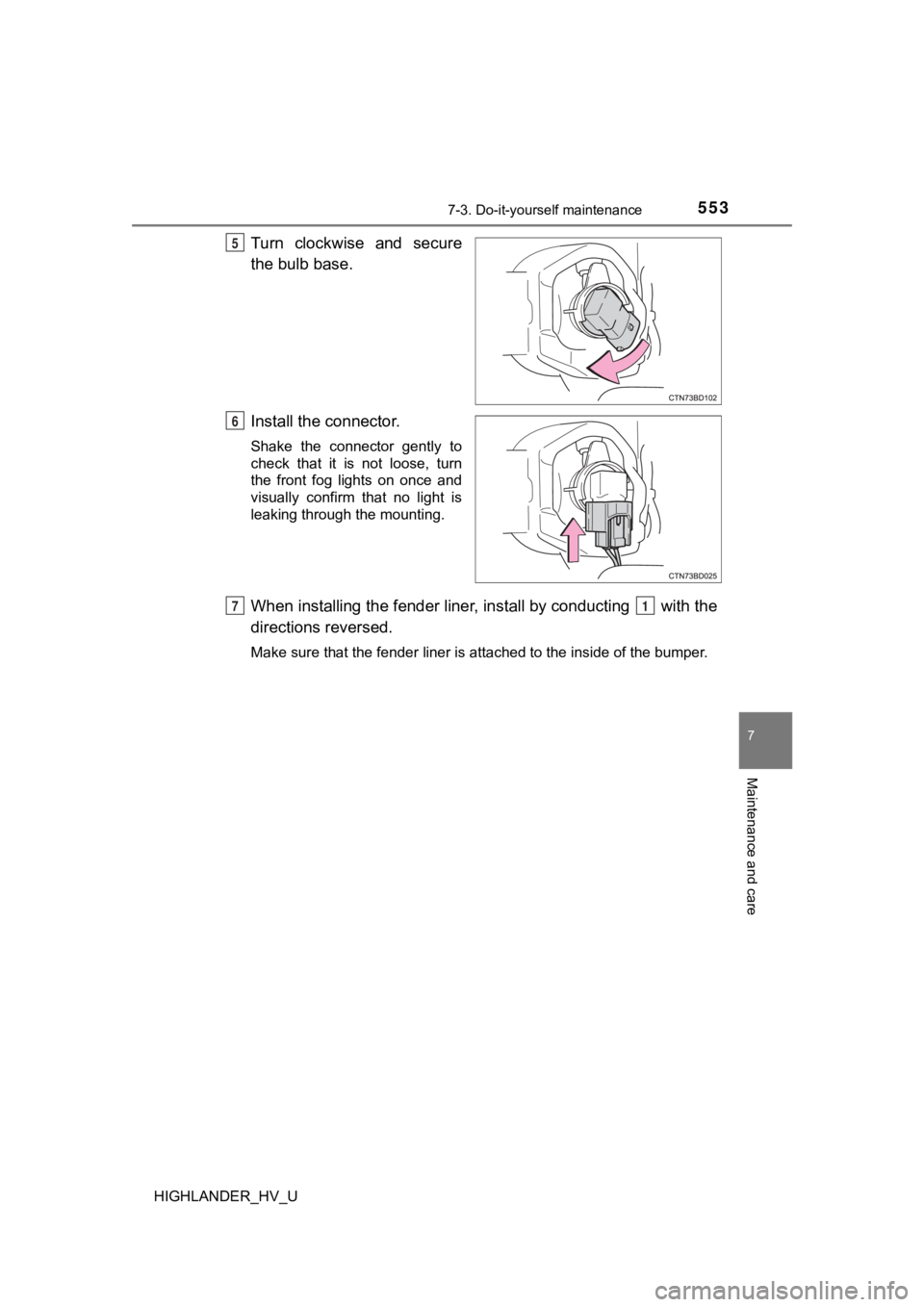

Turn clockwise and secure
the bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting with the
directions reversed.
Make sure that the fender liner is attached to the inside of th e bumper.
5
6
71

5547-3. Do-it-yourself maintenance
HIGHLANDER_HV_U■
Rear turn signal lights
Open the back door and
remove the cover.
Insert a flathead screwdriver
into the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the 2 screws, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Remove the wire harness.
Turn the bulb base counter-
clockwise.
1
2
3
4

5557-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U

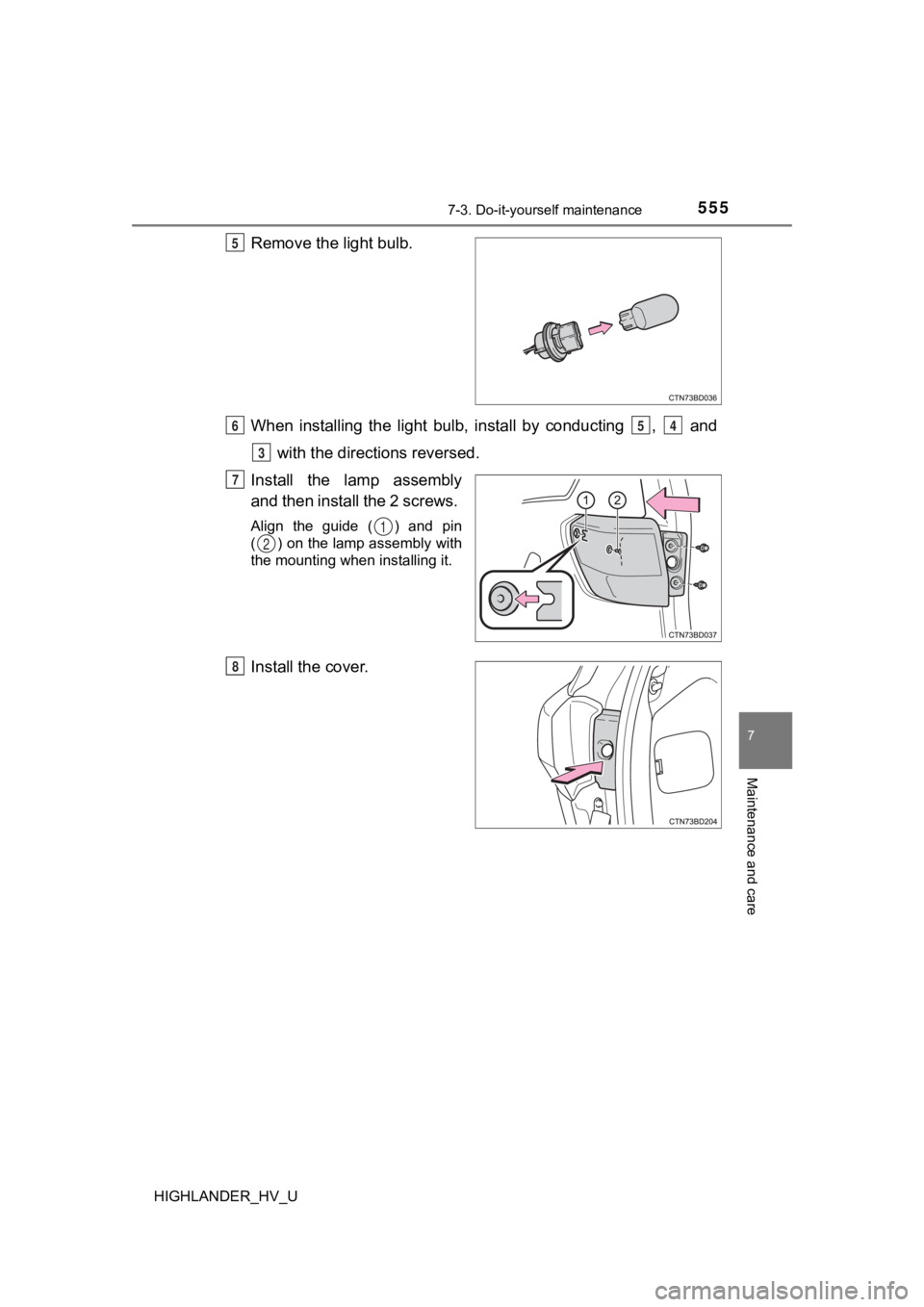

Remove the light bulb.
When installing the light bulb, install by conducting , and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
Install the cover.
5
654
3
67
1
2
678

5567-3. Do-it-yourself maintenance
HIGHLANDER_HV_U■

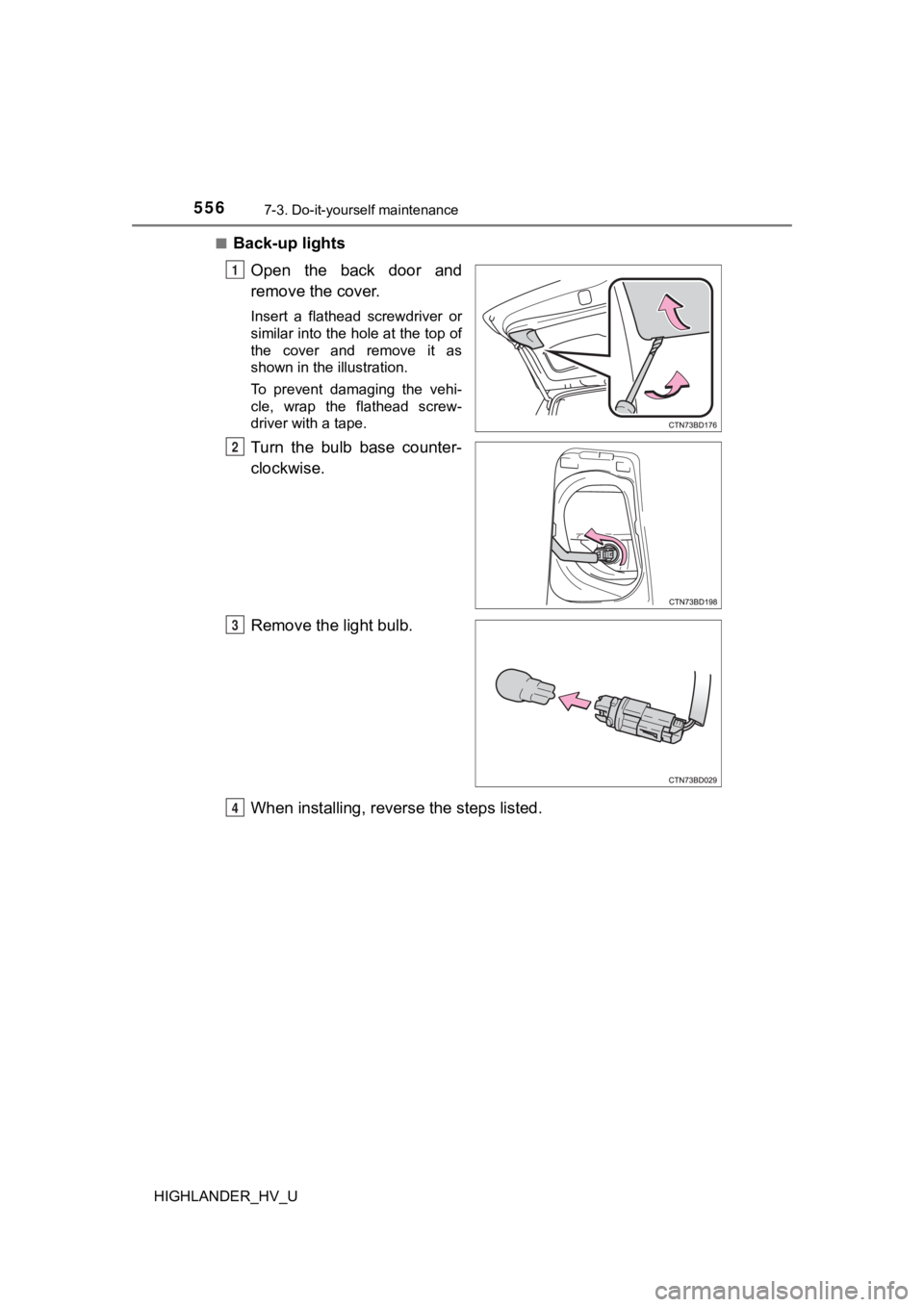

Back-up lights
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5577-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_HV_U■

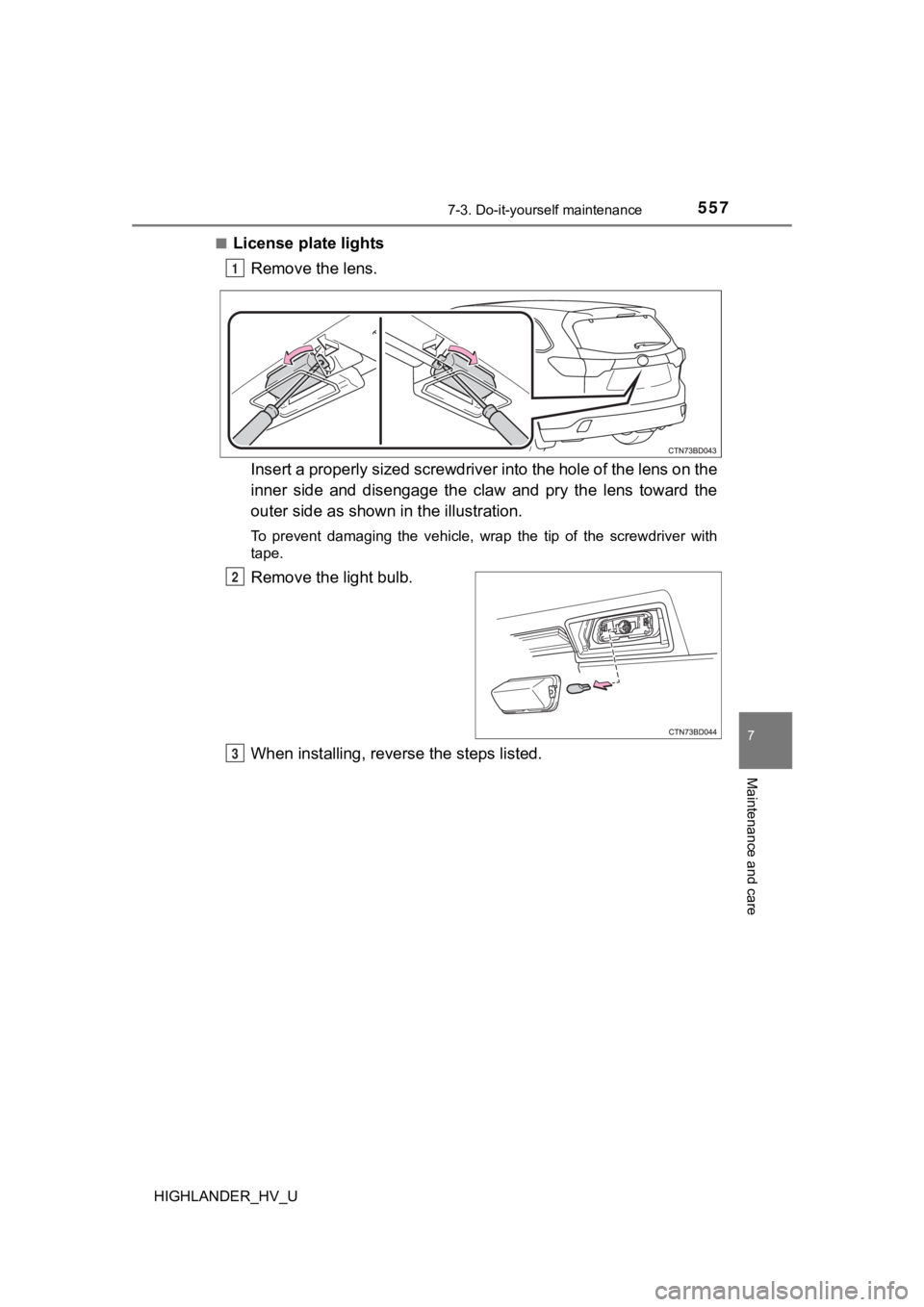

License plate lights
Remove the lens.
Insert a properly sized screwdri ver into the hole of the lens on the
inner side and disengage the claw and pry the lens toward the
outer side as shown i n the illustration.
To prevent damaging the vehicle, wrap the tip of the screwdriver with
tape.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

5587-3. Do-it-yourself maintenance
HIGHLANDER_HV_U■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replac
ed by
your Toyota dealer.
● Side turn signal lights
● Daytime running lights/ parking lights (LED type)
● Front fog lights (LED type)
● Stop lights
● Rear side marker lights
● Stop/tail lights
● High mounted stoplight
● Outer foot lights (if equipped)
■LED light bulbs
The side turn signal lights, daytime running lights/parking lig hts (LED type),
front fog lights (LED type), stop lights, rear side marker ligh ts, stop/tail lights,
high mounted stoplight and outer foot lights (if equipped) consist of a number
of LEDs. If any of the LEDs burns out, take your vehicle to you r Toyota dealer
to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the followin g situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 544
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immedia tely after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Fa ilure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

559
8When trouble arises
HIGHLANDER_HV_U8-1. Essential information
Emergency flashers .......... 560
If your vehicle has to be stopped in
an emergency ................. 561
8-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 562
If you think something is wrong .......................... 566
If a warning light turns on or a warning buzzer
sounds ............................ 567
If a warning message is displayed ..................... 576
If you have a flat tire.......... 596
If the hybrid system will not start ..................... 620
If the electronic key does not operate
properly ........................... 622
If the 12-volt battery is discharged ................... 625
If your vehicle overheats ........................ 630
If the vehicle becomes stuck ................ 634

560
HIGHLANDER_HV_U
8-1. Essential information

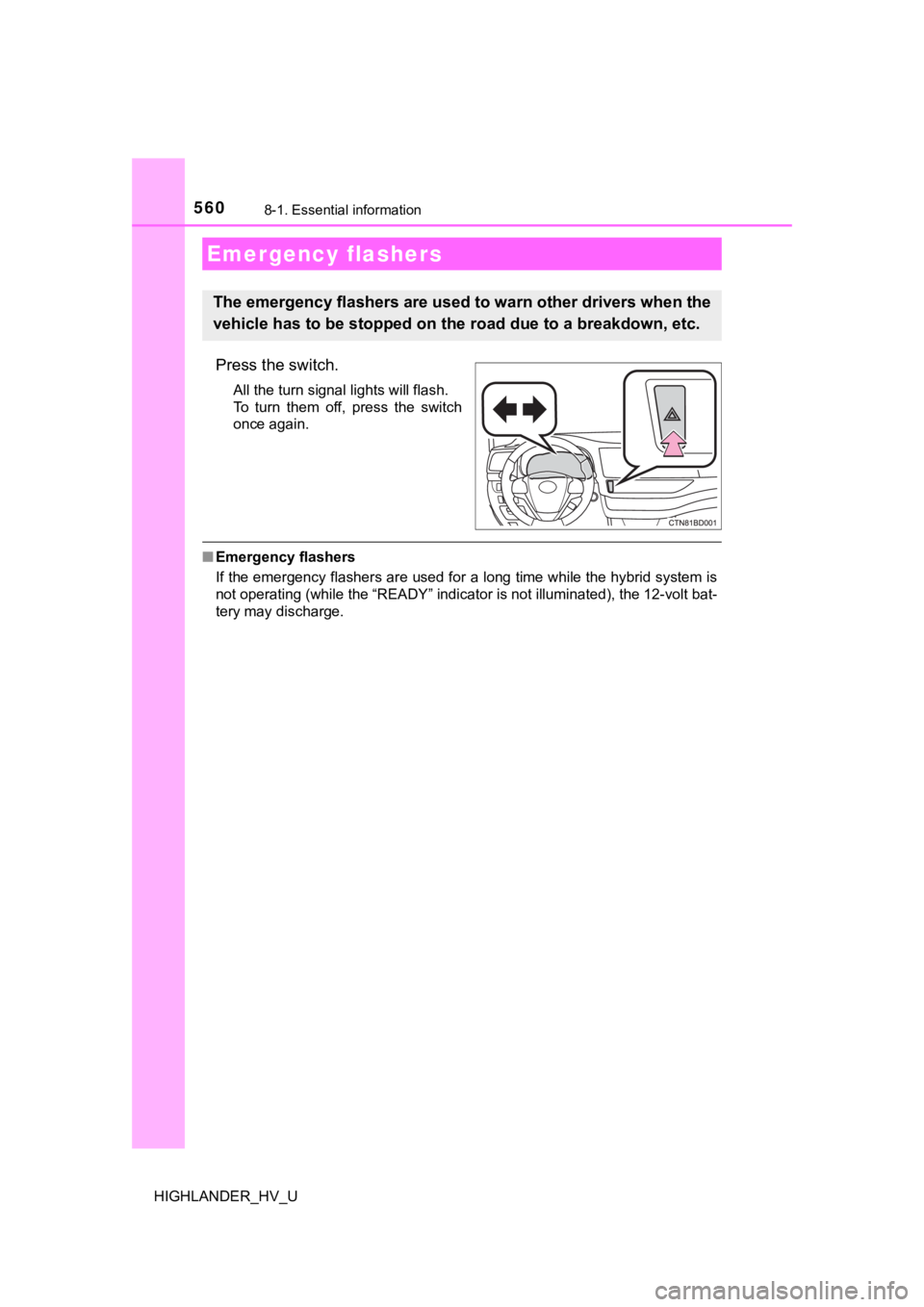

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped on the road due to a breakdown, etc.
