TOYOTA HILUX 2012 Owners Manual (in English)

241 2-5. Driving information
2
When driving
HILUX_EE (OM0K132E)

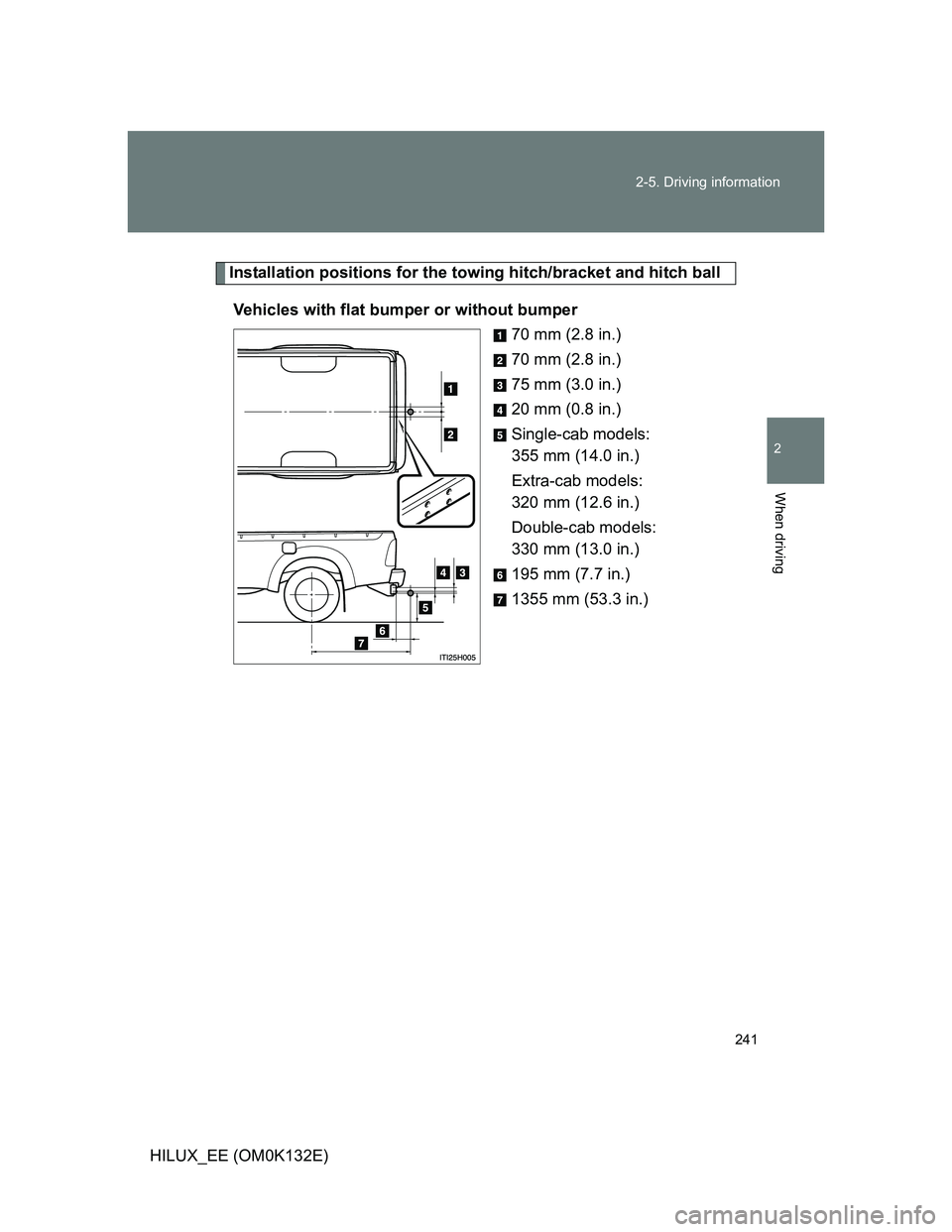

Installation positions for the towing hitch/bracket and hitch ball
Vehicles with flat bumper or without bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
75 mm (3.0 in.)
20 mm (0.8 in.)
Single-cab models:
355 mm (14.0 in.)
Extra-cab models:
320 mm (12.6 in.)
Double-cab models:
330 mm (13.0 in.)
195 mm (7.7 in.)
1355 mm (53.3 in.)

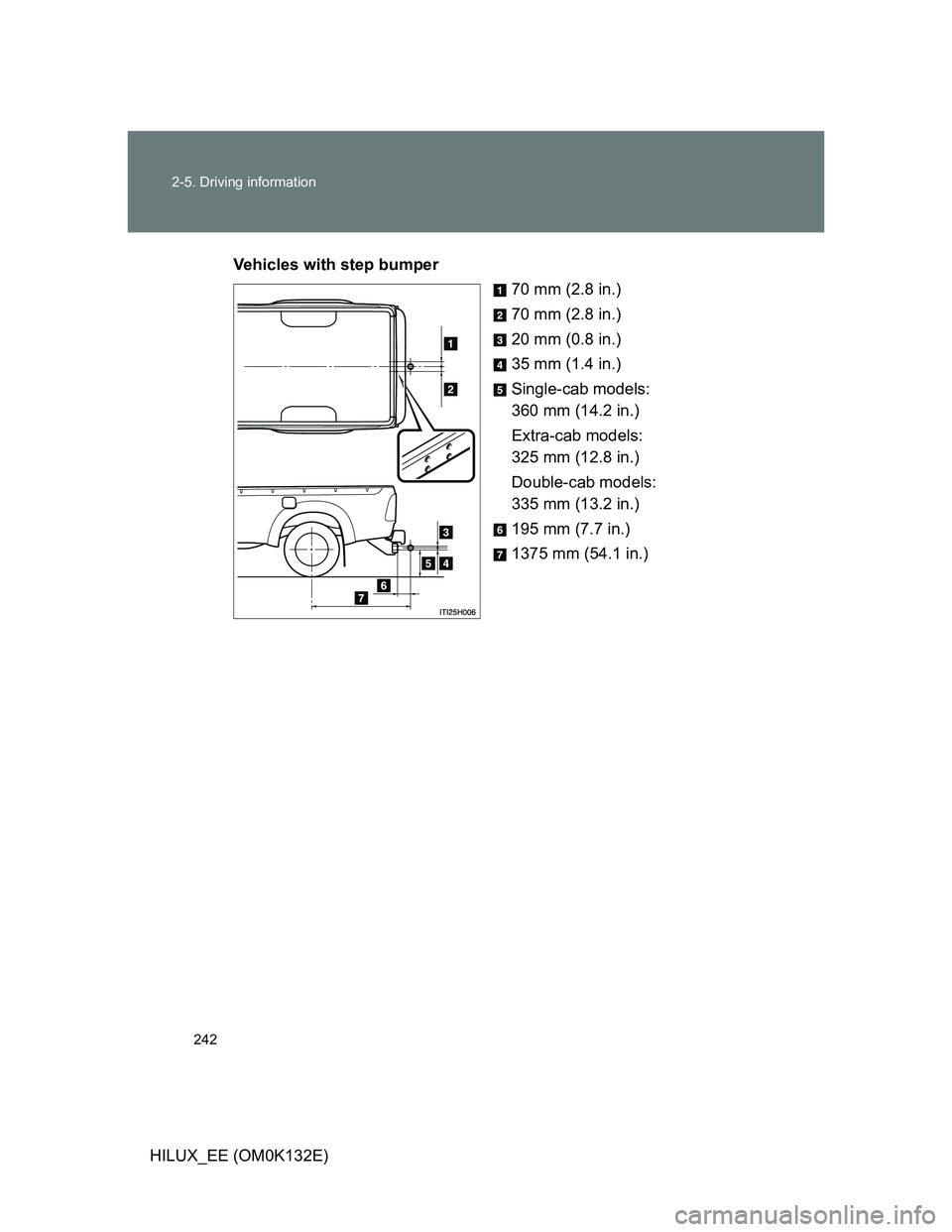

242 2-5. Driving information
HILUX_EE (OM0K132E)Vehicles with step bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
20 mm (0.8 in.)
35 mm (1.4 in.)
Single-cab models:
360 mm (14.2 in.)
Extra-cab models:
325 mm (12.8 in.)
Double-cab models:
335 mm (13.2 in.)
195 mm (7.7 in.)
1375 mm (54.1 in.)

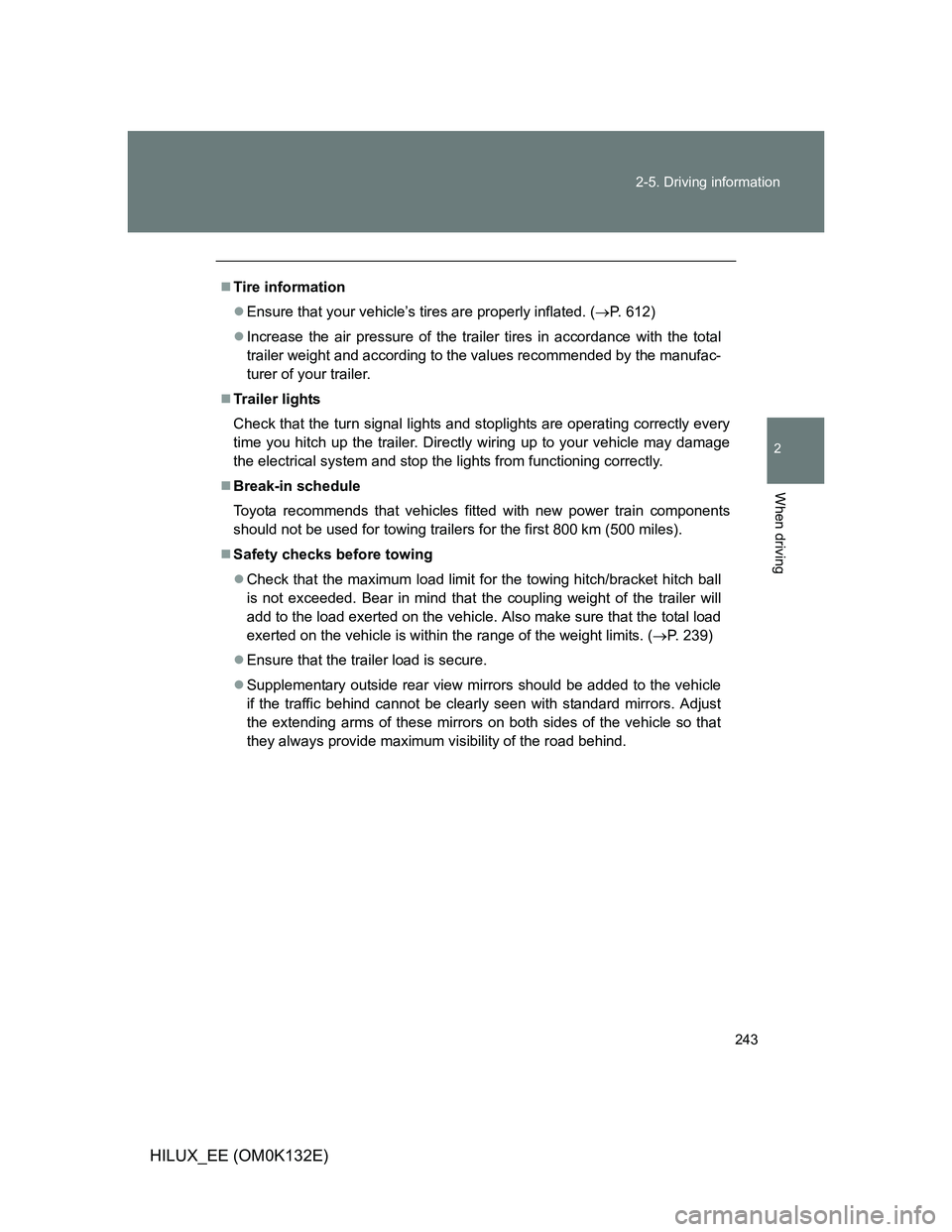

243 2-5. Driving information
2
When driving
HILUX_EE (OM0K132E)
Tire information
Ensure that your vehicle’s tires are properly inflated. (P. 612)
Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
Trailer lights
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Directly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.
Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
Safety checks before towing
Check that the maximum load limit for the towing hitch/bracket hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will
add to the load exerted on the vehicle. Also make sure that the total load
exerted on the vehicle is within the range of the weight limits. (P. 239)
Ensure that the trailer load is secure.
Supplementary outside rear view mirrors should be added to the vehicle
if the traffic behind cannot be clearly seen with standard mirrors. Adjust
the extending arms of these mirrors on both sides of the vehicle so that
they always provide maximum visibility of the road behind.

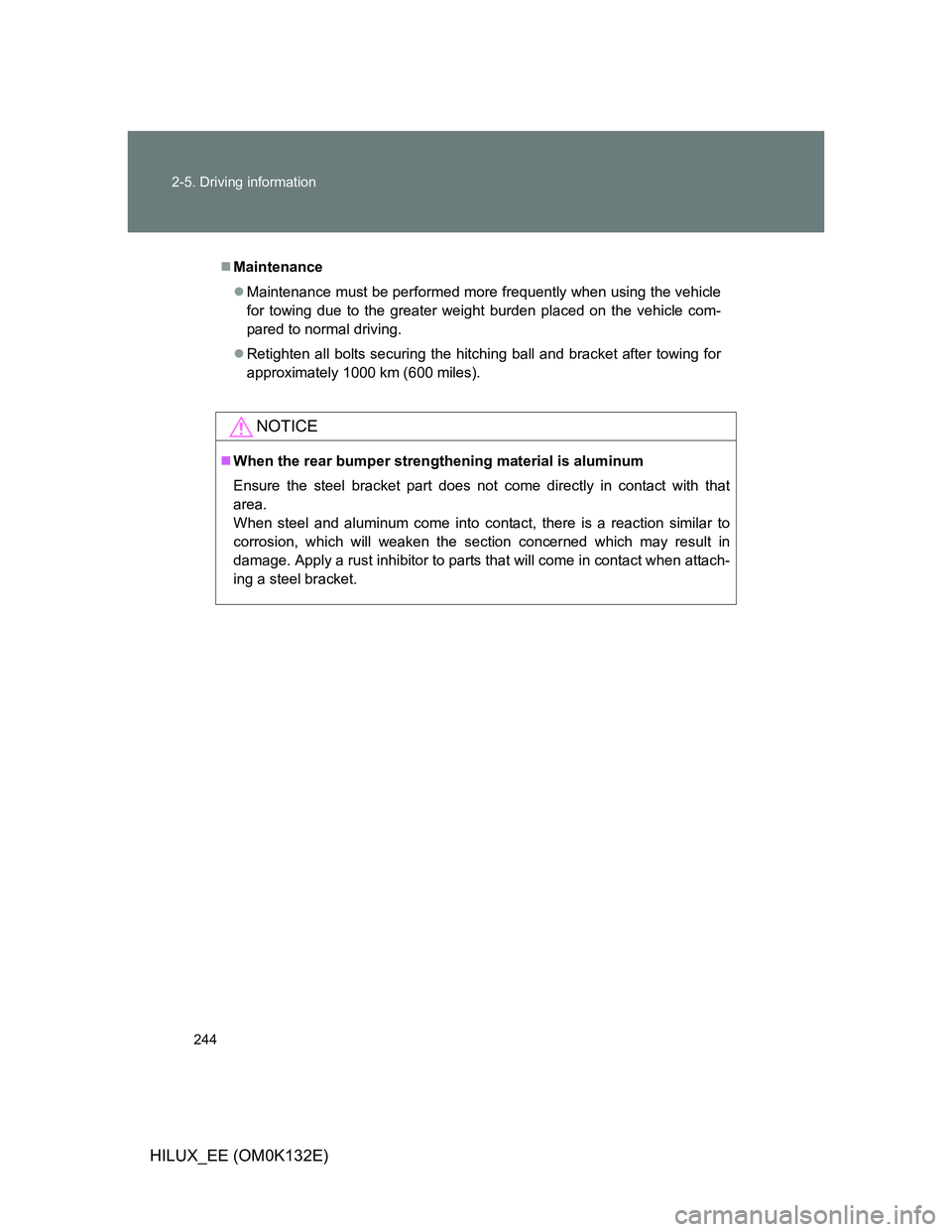

244 2-5. Driving information
HILUX_EE (OM0K132E)
Maintenance
Maintenance must be performed more frequently when using the vehicle
for towing due to the greater weight burden placed on the vehicle com-
pared to normal driving.
Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).
NOTICE
When the rear bumper strengthening material is aluminum
Ensure the steel bracket part does not come directly in contact with that
area.
When steel and aluminum come into contact, there is a reaction similar to
corrosion, which will weaken the section concerned which may result in
damage. Apply a rust inhibitor to parts that will come in contact when attach-
ing a steel bracket.

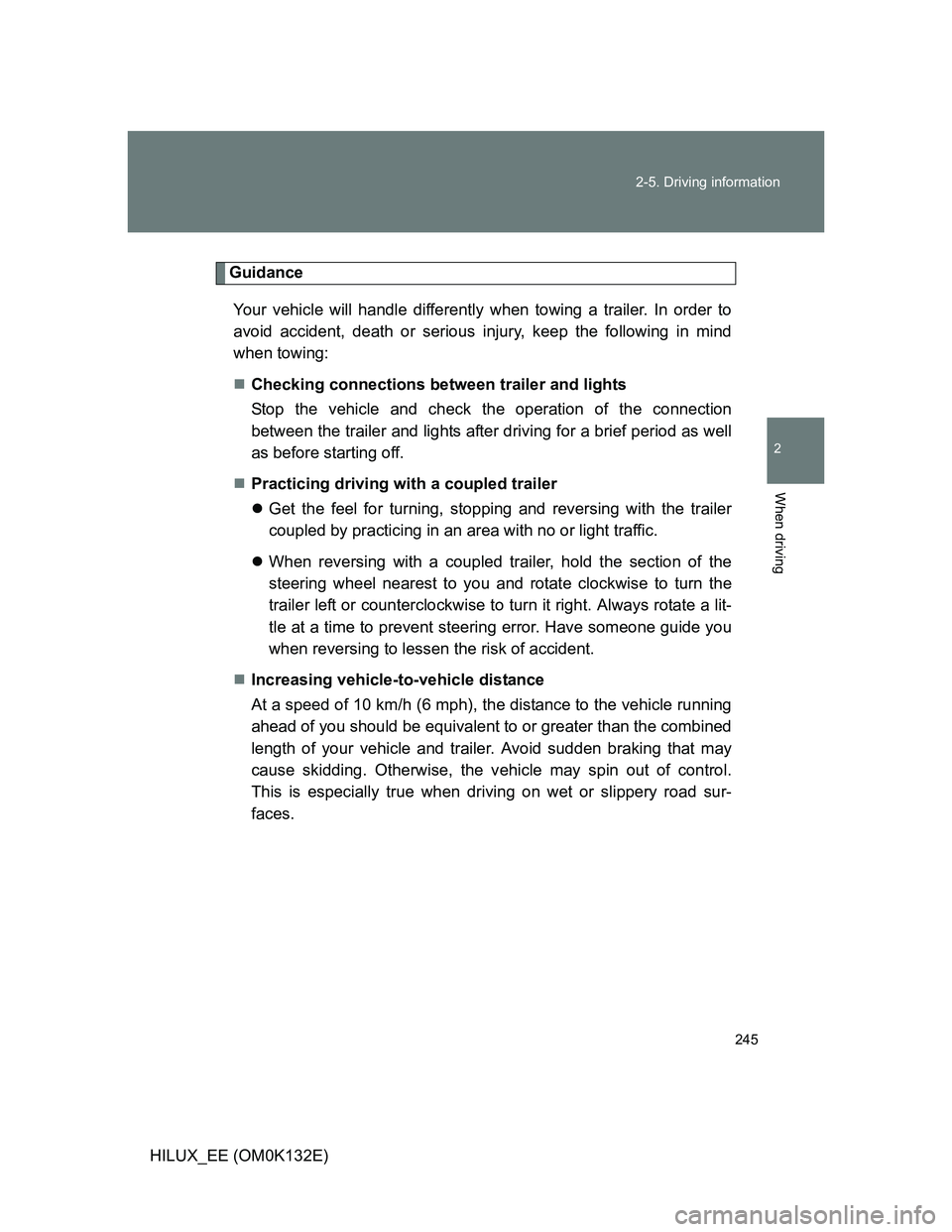

245 2-5. Driving information
2
When driving
HILUX_EE (OM0K132E)
Guidance
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection
between the trailer and lights after driving for a brief period as well
as before starting off.
Practicing driving with a coupled trailer
Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a lit-
tle at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of accident.
Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control.
This is especially true when driving on wet or slippery road sur-
faces.

246 2-5. Driving information

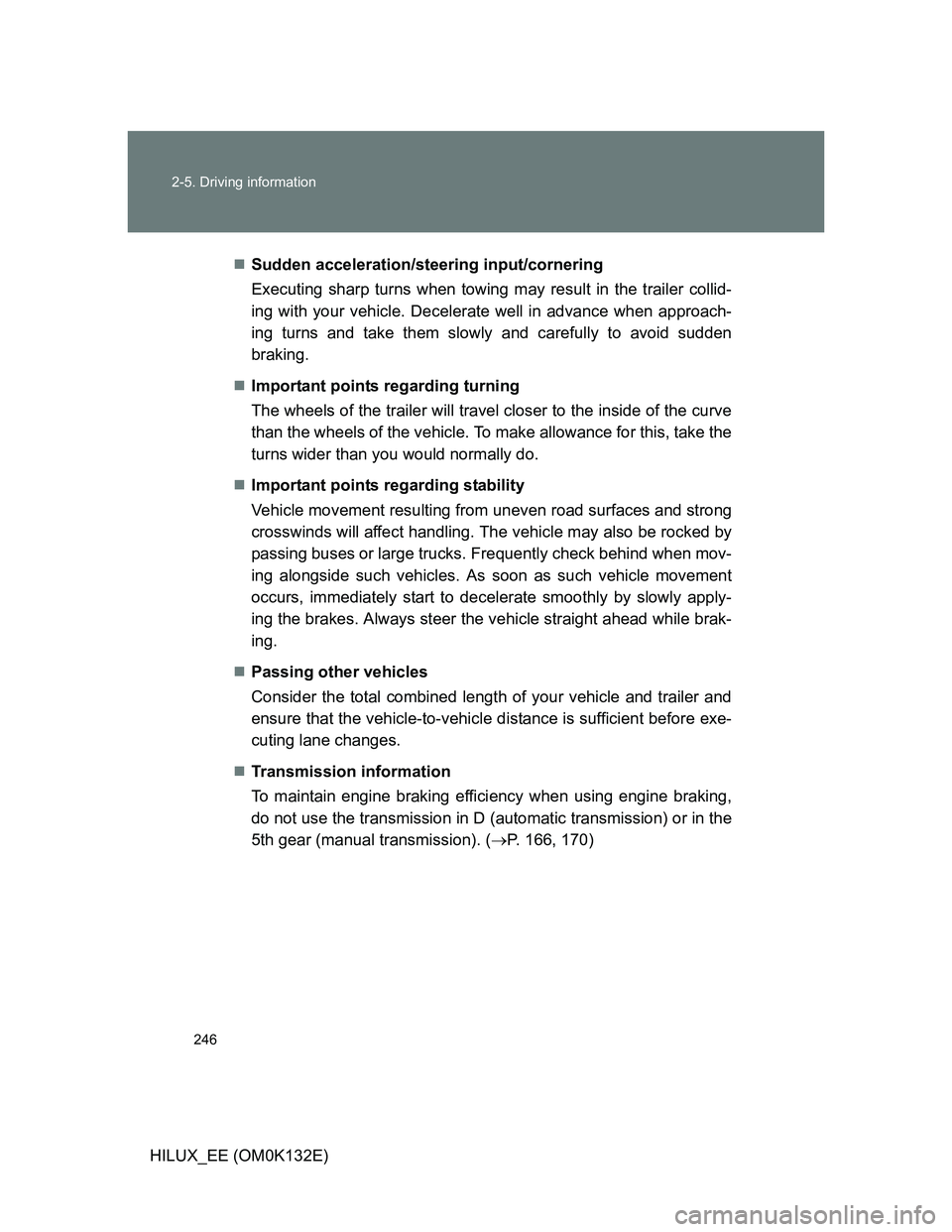

HILUX_EE (OM0K132E)Sudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer collid-
ing with your vehicle. Decelerate well in advance when approach-
ing turns and take them slowly and carefully to avoid sudden
braking.
Important points regarding turning
The wheels of the trailer will travel closer to the inside of the curve
than the wheels of the vehicle. To make allowance for this, take the
turns wider than you would normally do.
Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly apply-
ing the brakes. Always steer the vehicle straight ahead while brak-
ing.
Passing other vehicles
Consider the total combined length of your vehicle and trailer and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
Transmission information
To maintain engine braking efficiency when using engine braking,
do not use the transmission in D (automatic transmission) or in the
5th gear (manual transmission). (P. 166, 170)

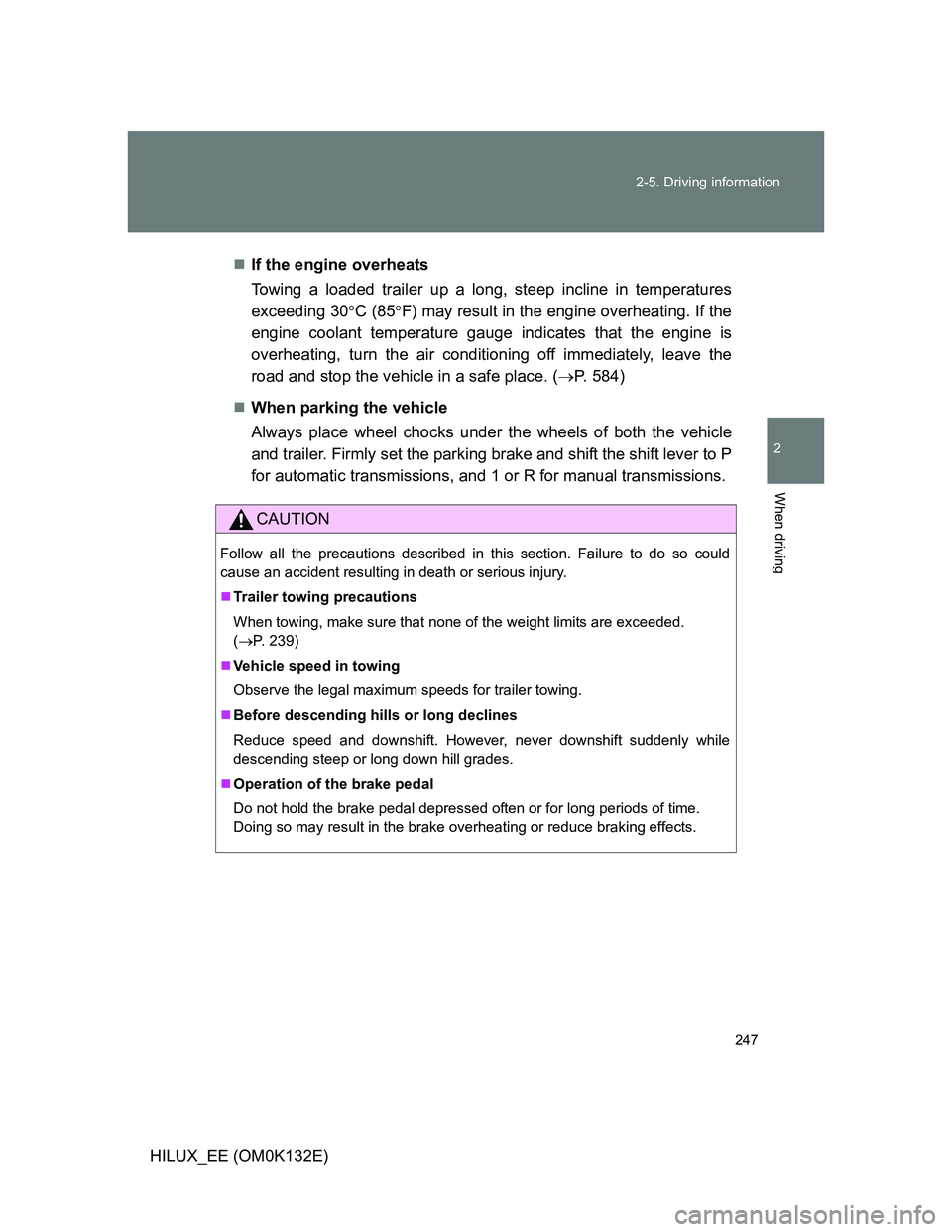

247 2-5. Driving information
2
When driving
HILUX_EE (OM0K132E)If the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures
exceeding 30C (85F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is
overheating, turn the air conditioning off immediately, leave the
road and stop the vehicle in a safe place. (P. 584)
When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for automatic transmissions, and 1 or R for manual transmissions.
CAUTION
Follow all the precautions described in this section. Failure to do so could
cause an accident resulting in death or serious injury.
Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded.
(P. 239)
Vehicle speed in towing
Observe the legal maximum speeds for trailer towing.
Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while
descending steep or long down hill grades.
Operation of the brake pedal
Do not hold the brake pedal depressed often or for long periods of time.
Doing so may result in the brake overheating or reduce braking effects.

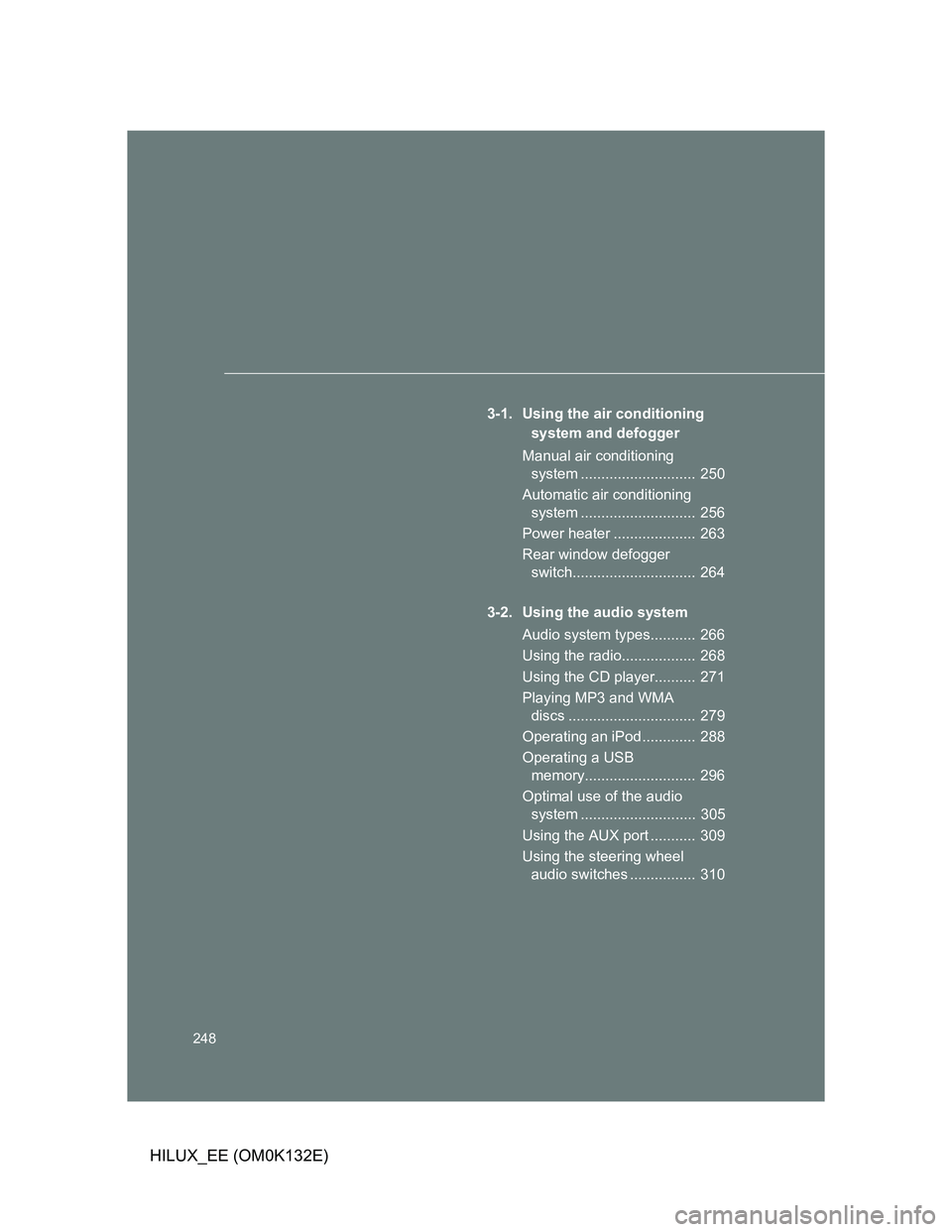

248
HILUX_EE (OM0K132E)
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 250
Automatic air conditioning
system ............................ 256
Power heater .................... 263
Rear window defogger
switch.............................. 264
3-2. Using the audio system
Audio system types........... 266
Using the radio.................. 268
Using the CD player.......... 271
Playing MP3 and WMA
discs ............................... 279
Operating an iPod ............. 288
Operating a USB
memory........................... 296
Optimal use of the audio
system ............................ 305
Using the AUX port ........... 309
Using the steering wheel
audio switches ................ 310

3Interior features

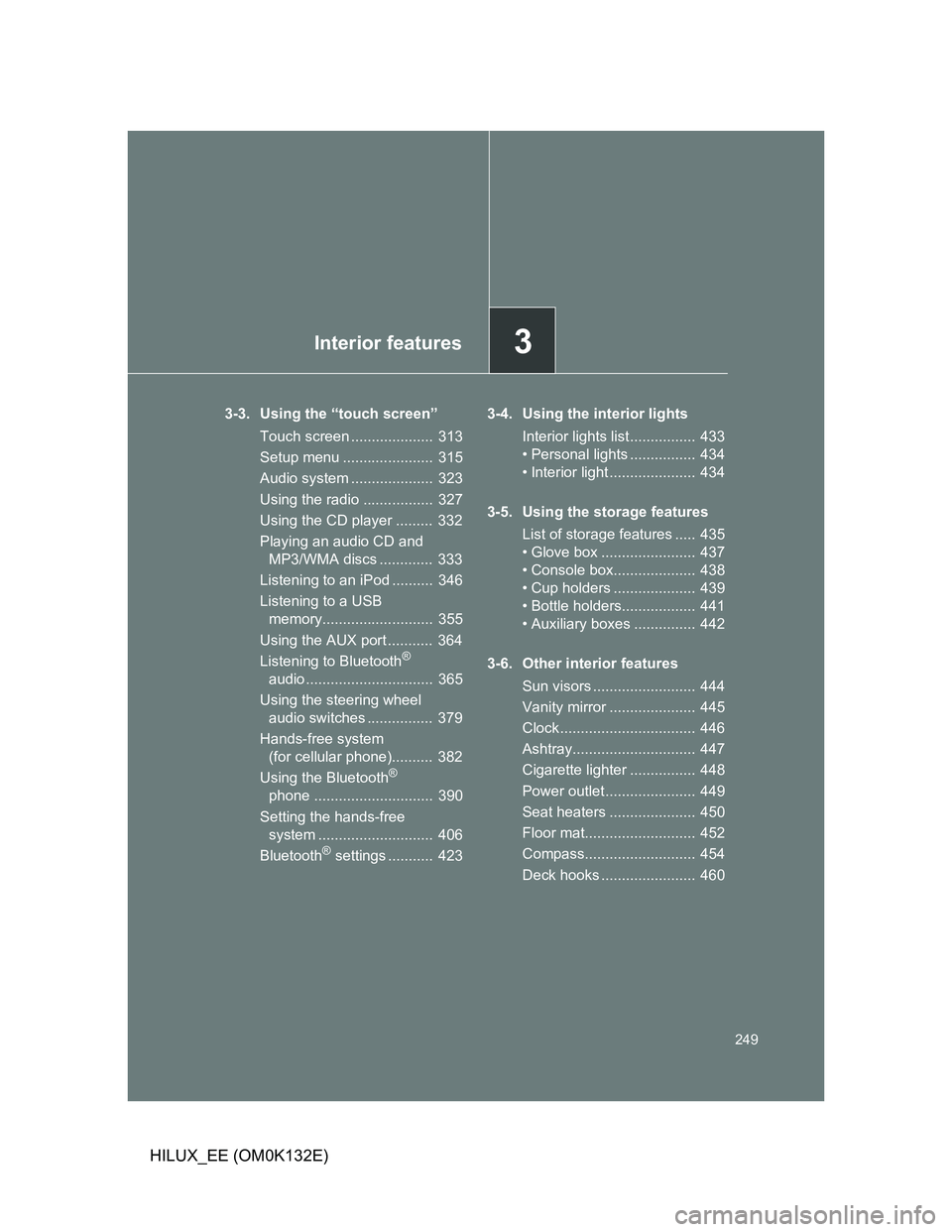

249
HILUX_EE (OM0K132E)
3-3. Using the “touch screen”
Touch screen .................... 313
Setup menu ...................... 315
Audio system .................... 323
Using the radio ................. 327
Using the CD player ......... 332
Playing an audio CD and
MP3/WMA discs ............. 333
Listening to an iPod .......... 346
Listening to a USB
memory........................... 355
Using the AUX port ........... 364
Listening to Bluetooth
®
audio ............................... 365
Using the steering wheel
audio switches ................ 379
Hands-free system
(for cellular phone).......... 382
Using the Bluetooth
®
phone ............................. 390
Setting the hands-free
system ............................ 406
Bluetooth
® settings ........... 4233-4. Using the interior lights
Interior lights list ................ 433
• Personal lights ................ 434
• Interior light ..................... 434
3-5. Using the storage features
List of storage features ..... 435
• Glove box ....................... 437
• Console box.................... 438
• Cup holders .................... 439
• Bottle holders.................. 441
• Auxiliary boxes ............... 442
3-6. Other interior features
Sun visors ......................... 444
Vanity mirror ..................... 445
Clock ................................. 446
Ashtray.............................. 447
Cigarette lighter ................ 448
Power outlet ...................... 449
Seat heaters ..................... 450
Floor mat........................... 452
Compass........................... 454
Deck hooks ....................... 460

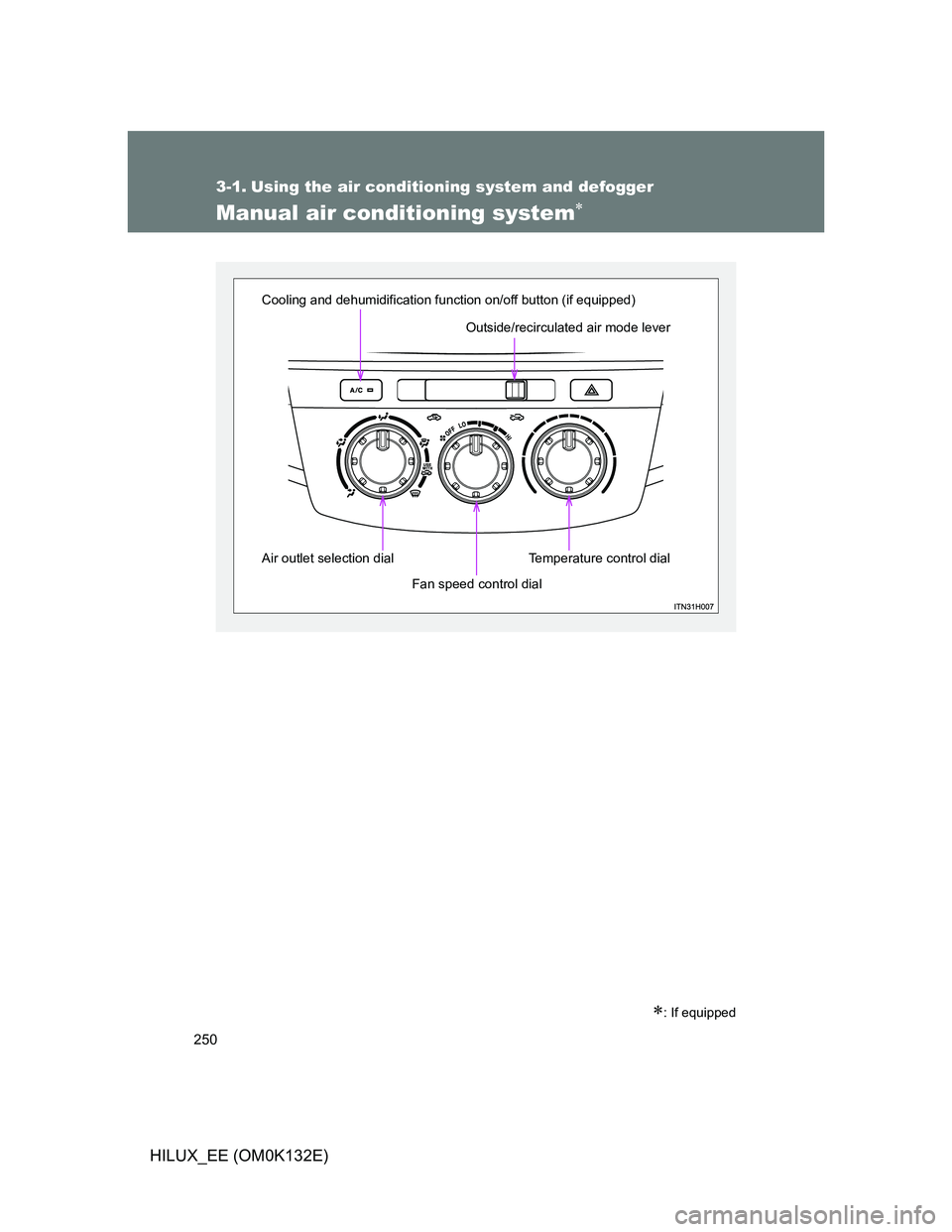

250
HILUX_EE (OM0K132E)
3-1. Using the air conditioning system and defogger
Manual air conditioning system
: If equipped
Outside/recirculated air mode lever
Air outlet selection dial
Temperature control dial
Fan speed control dial Cooling and dehumidification function on/off button (if equipped)
