TOYOTA HILUX 2012 Owners Manual (in English)

261 3-1. Using the air conditioning system and defogger
3
Interior features
HILUX_EE (OM0K132E)

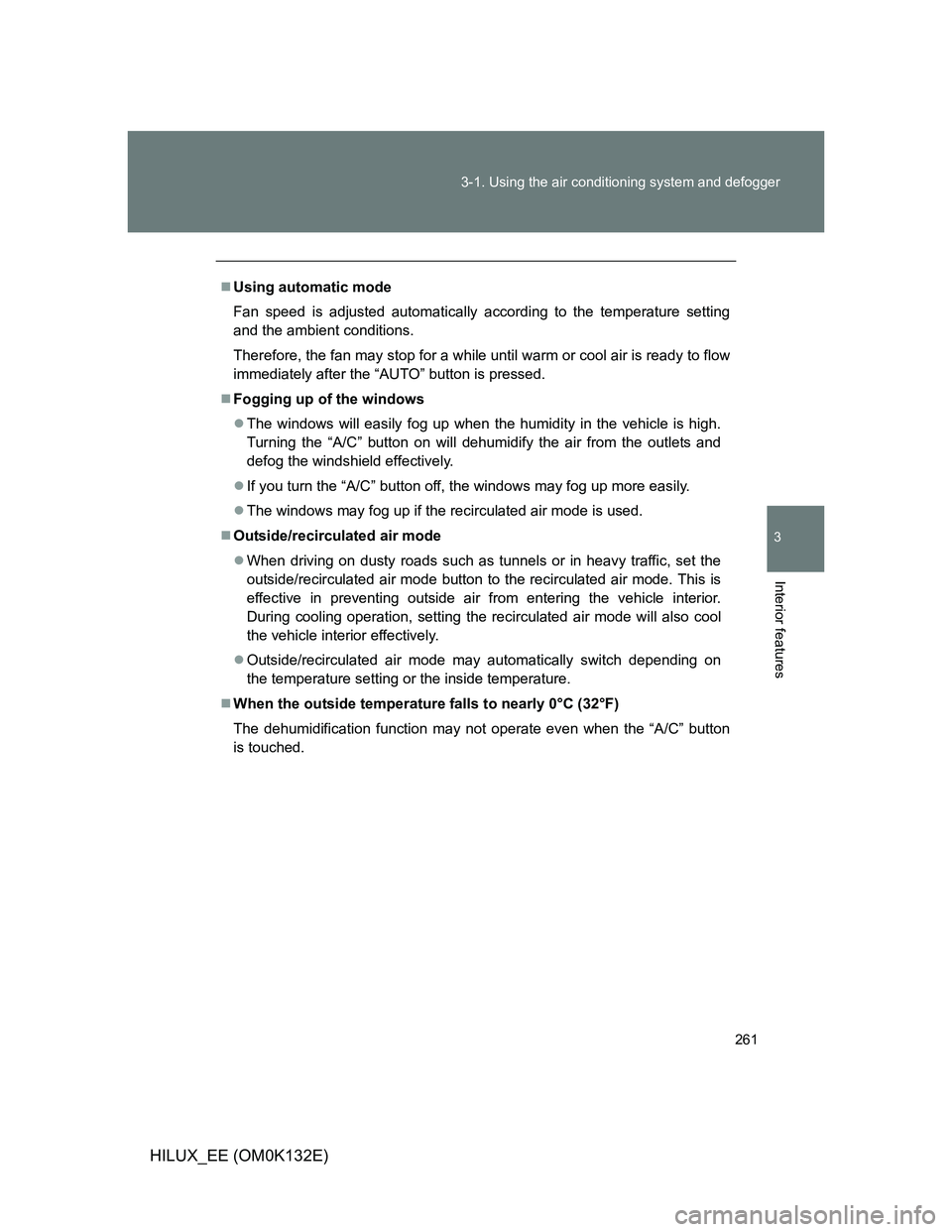

Using automatic mode
Fan speed is adjusted automatically according to the temperature setting
and the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after the “AUTO” button is pressed.
Fogging up of the windows
The windows will easily fog up when the humidity in the vehicle is high.
Turning the “A/C” button on will dehumidify the air from the outlets and
defog the windshield effectively.
If you turn the “A/C” button off, the windows may fog up more easily.
The windows may fog up if the recirculated air mode is used.
Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the
outside/recirculated air mode button to the recirculated air mode. This is
effective in preventing outside air from entering the vehicle interior.
During cooling operation, setting the recirculated air mode will also cool
the vehicle interior effectively.
Outside/recirculated air mode may automatically switch depending on
the temperature setting or the inside temperature.
When the outside temperature falls to nearly 0°C (32°F)
The dehumidification function may not operate even when the “A/C” button
is touched.

262 3-1. Using the air conditioning system and defogger
HILUX_EE (OM0K132E)

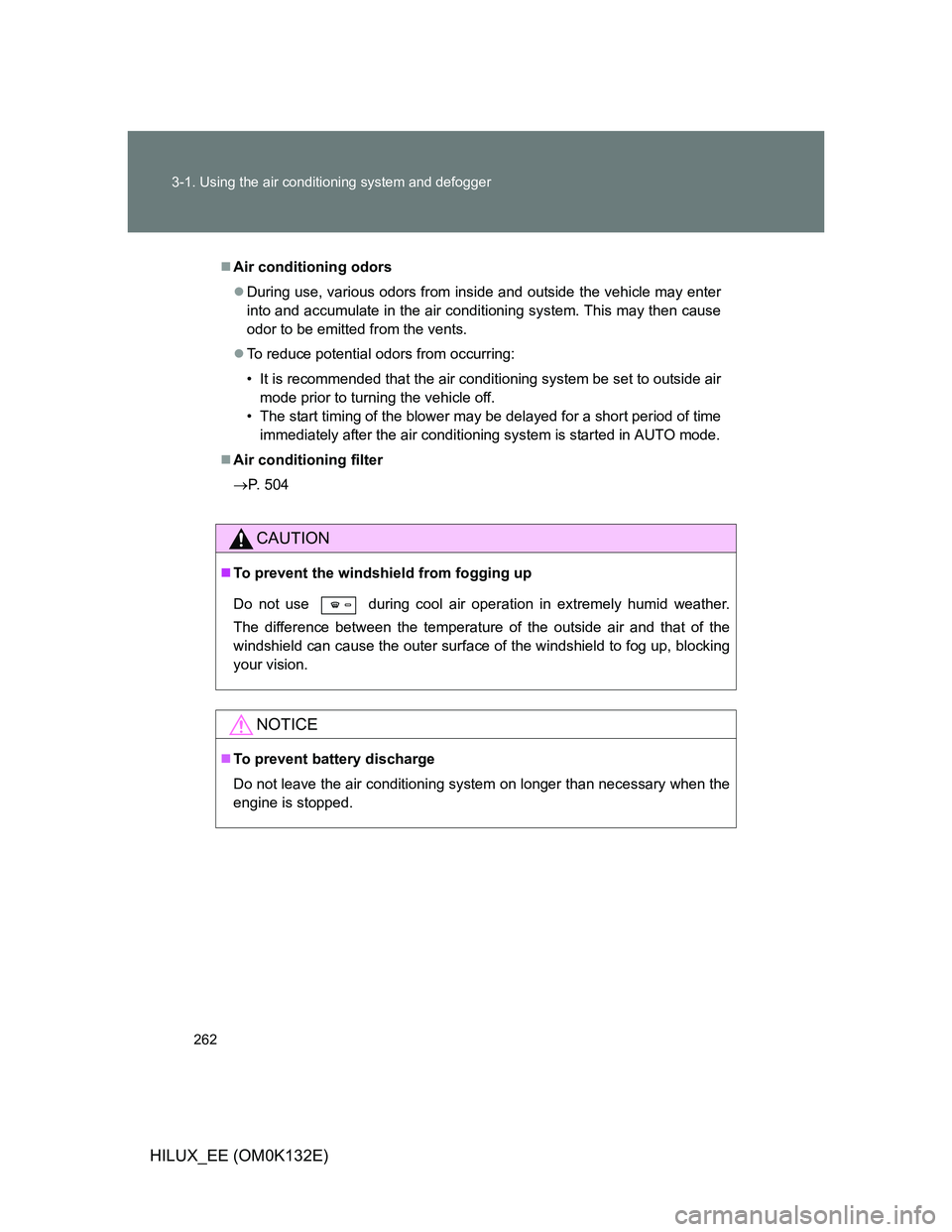

Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in AUTO mode.
Air conditioning filter
P. 504
CAUTION
To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

263
3-1. Using the air conditioning system and defogger
3
Interior features
HILUX_EE (OM0K132E)

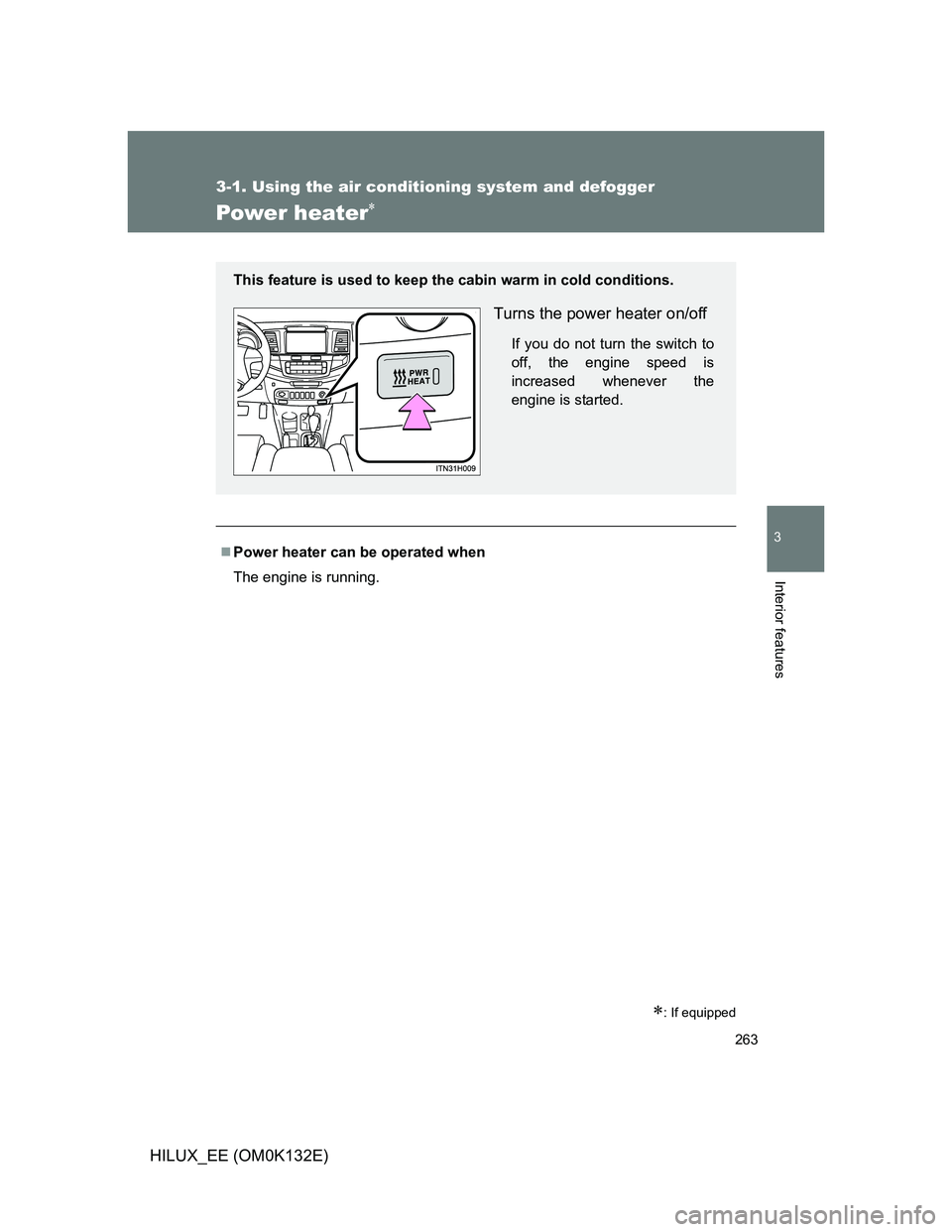

Power heater
: If equipped
Power heater can be operated when
The engine is running.
This feature is used to keep the cabin warm in cold conditions.
Turns the power heater on/off
If you do not turn the switch to
off, the engine speed is
increased whenever the
engine is started.

264
3-1. Using the air conditioning system and defogger
HILUX_EE (OM0K132E)

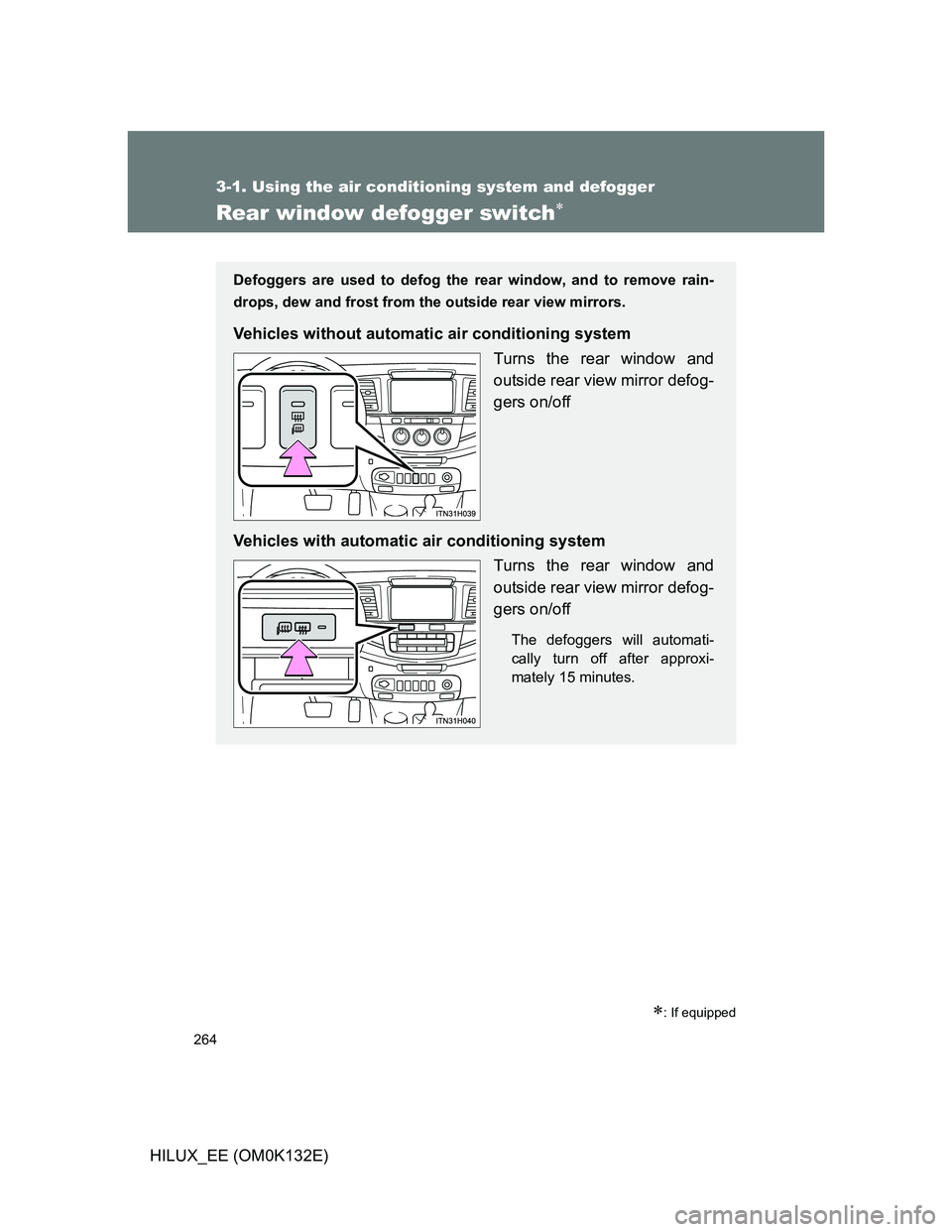

Rear window defogger switch
: If equipped
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Vehicles without automatic air conditioning system
Turns the rear window and
outside rear view mirror defog-
gers on/off
Vehicles with automatic air conditioning system
Turns the rear window and
outside rear view mirror defog-
gers on/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

265 3-1. Using the air conditioning system and defogger
3
Interior features
HILUX_EE (OM0K132E)

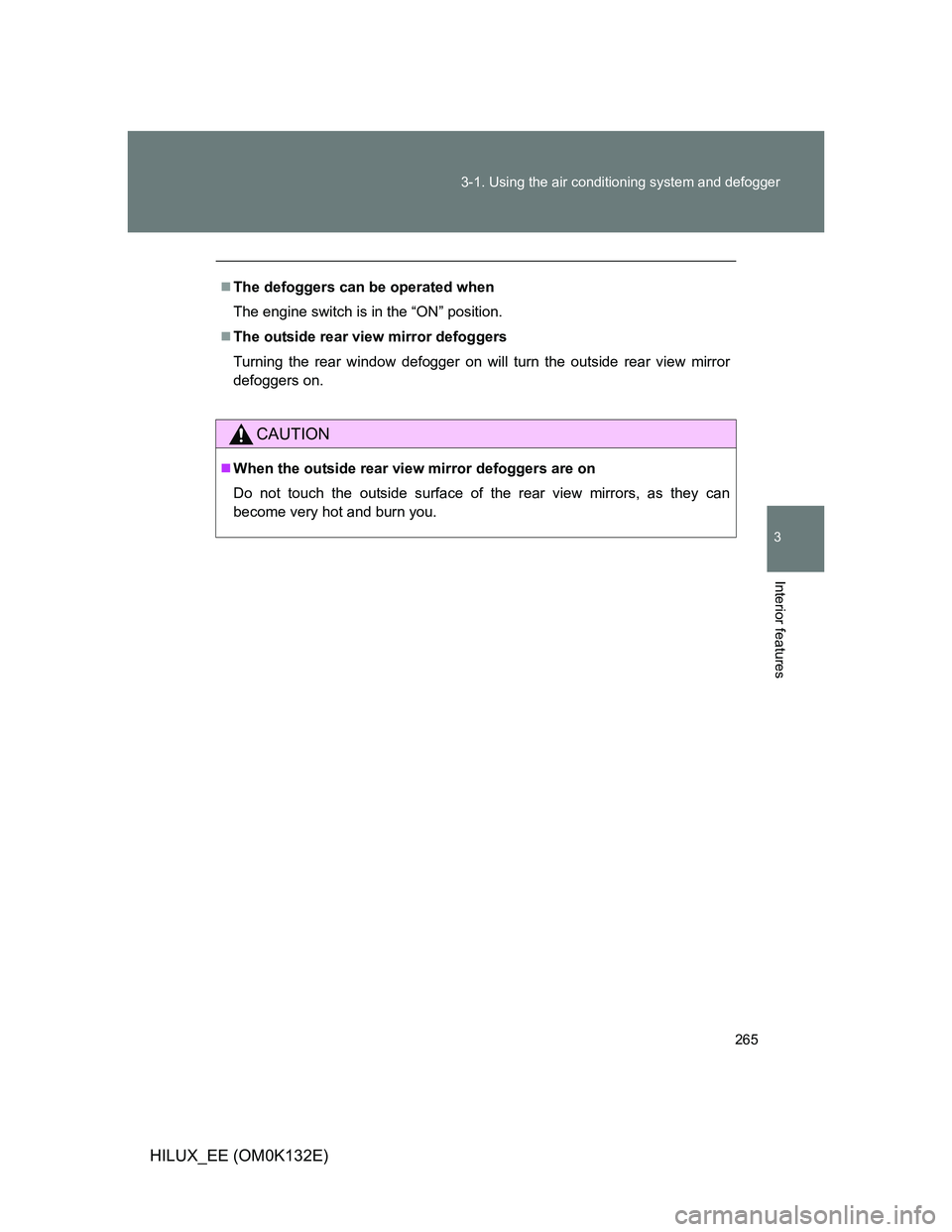

The defoggers can be operated when
The engine switch is in the “ON” position.
The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.

266
HILUX_EE (OM0K132E)

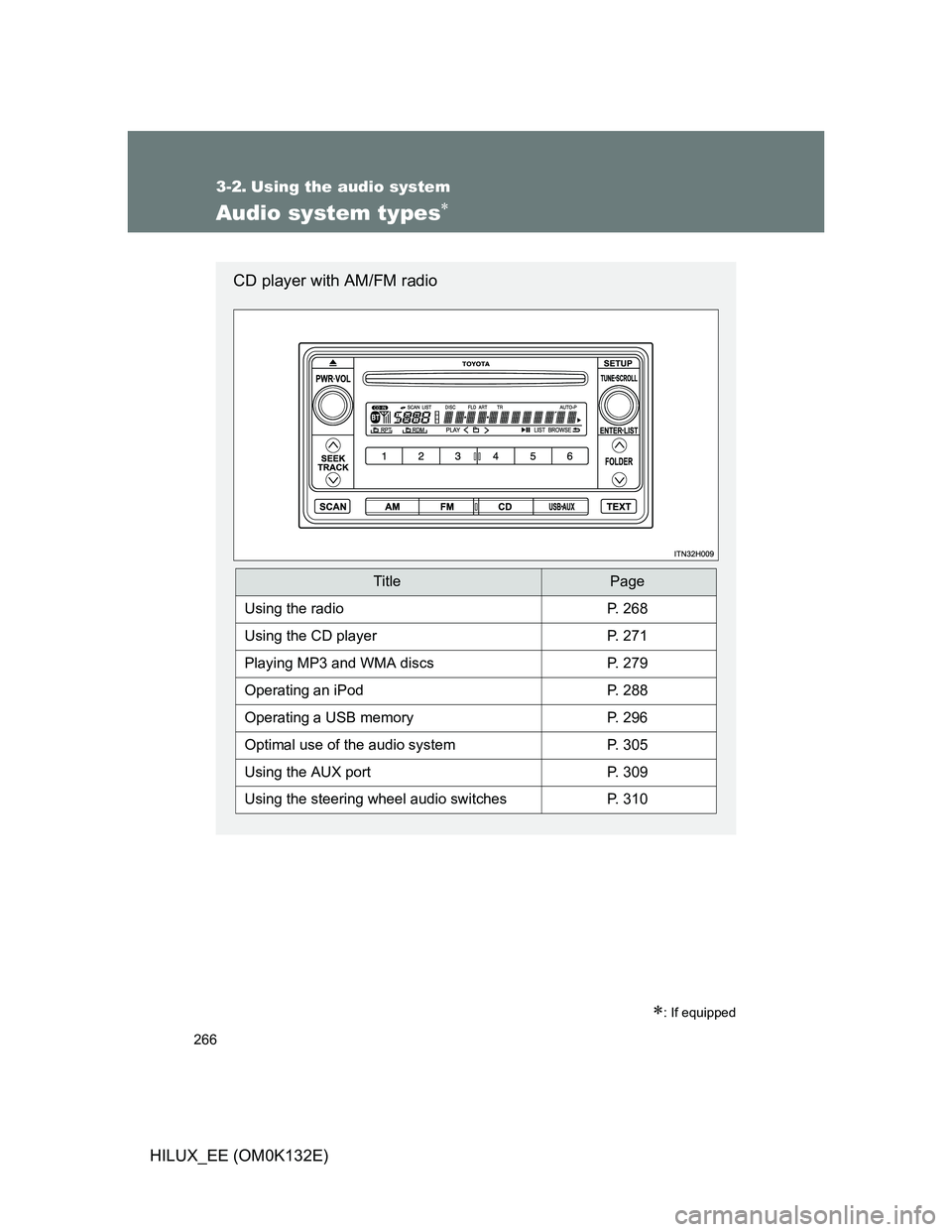

3-2. Using the audio system
Audio system types
: If equipped
CD player with AM/FM radio
TitlePage
Using the radioP. 268
Using the CD playerP. 271
Playing MP3 and WMA discsP. 279
Operating an iPodP. 288
Operating a USB memoryP. 296
Optimal use of the audio systemP. 305
Using the AUX portP. 309
Using the steering wheel audio switchesP. 310

267 3-2. Using the audio system
3
Interior features
HILUX_EE (OM0K132E)

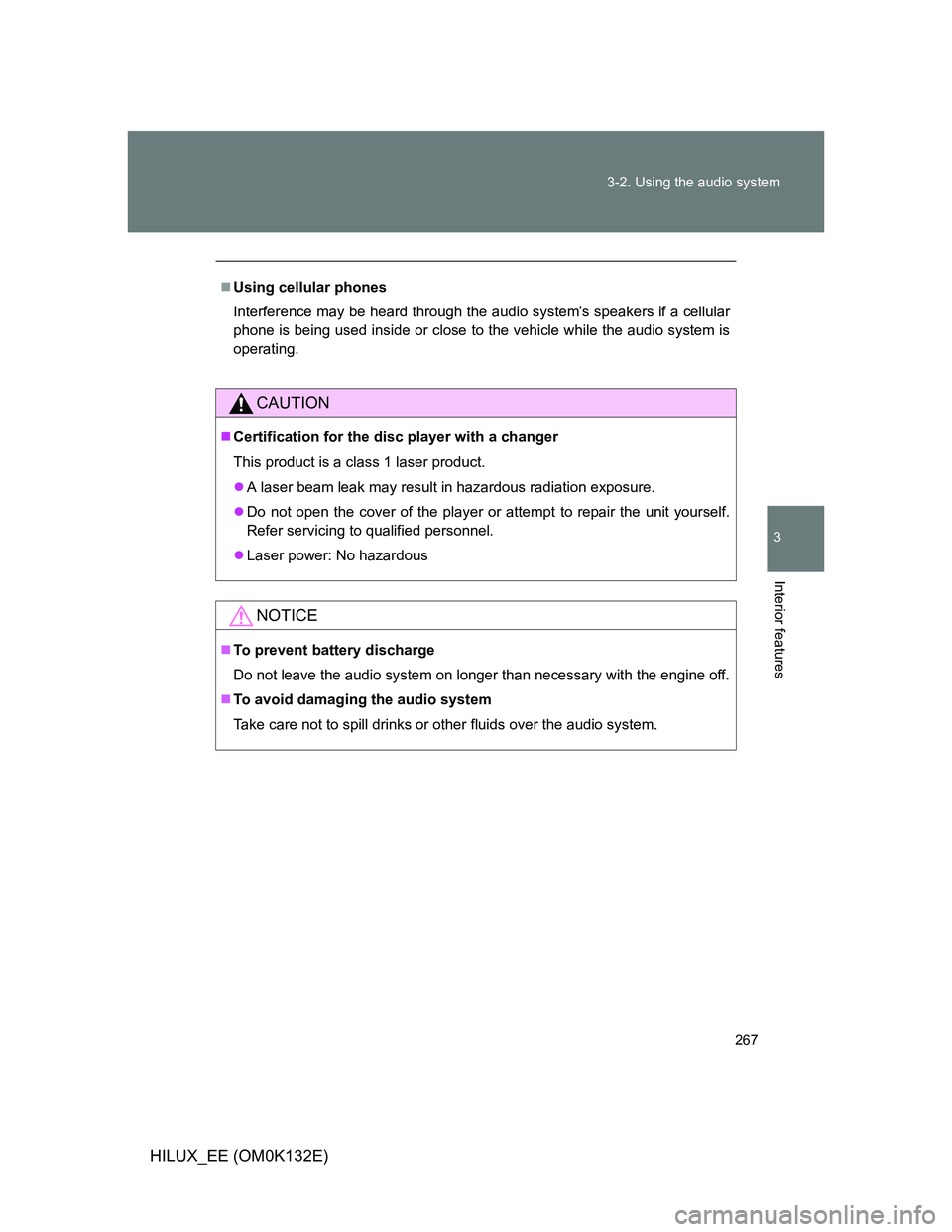

Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
CAUTION
Certification for the disc player with a changer
This product is a class 1 laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
Laser power: No hazardous
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

268
3-2. Using the audio system
HILUX_EE (OM0K132E)

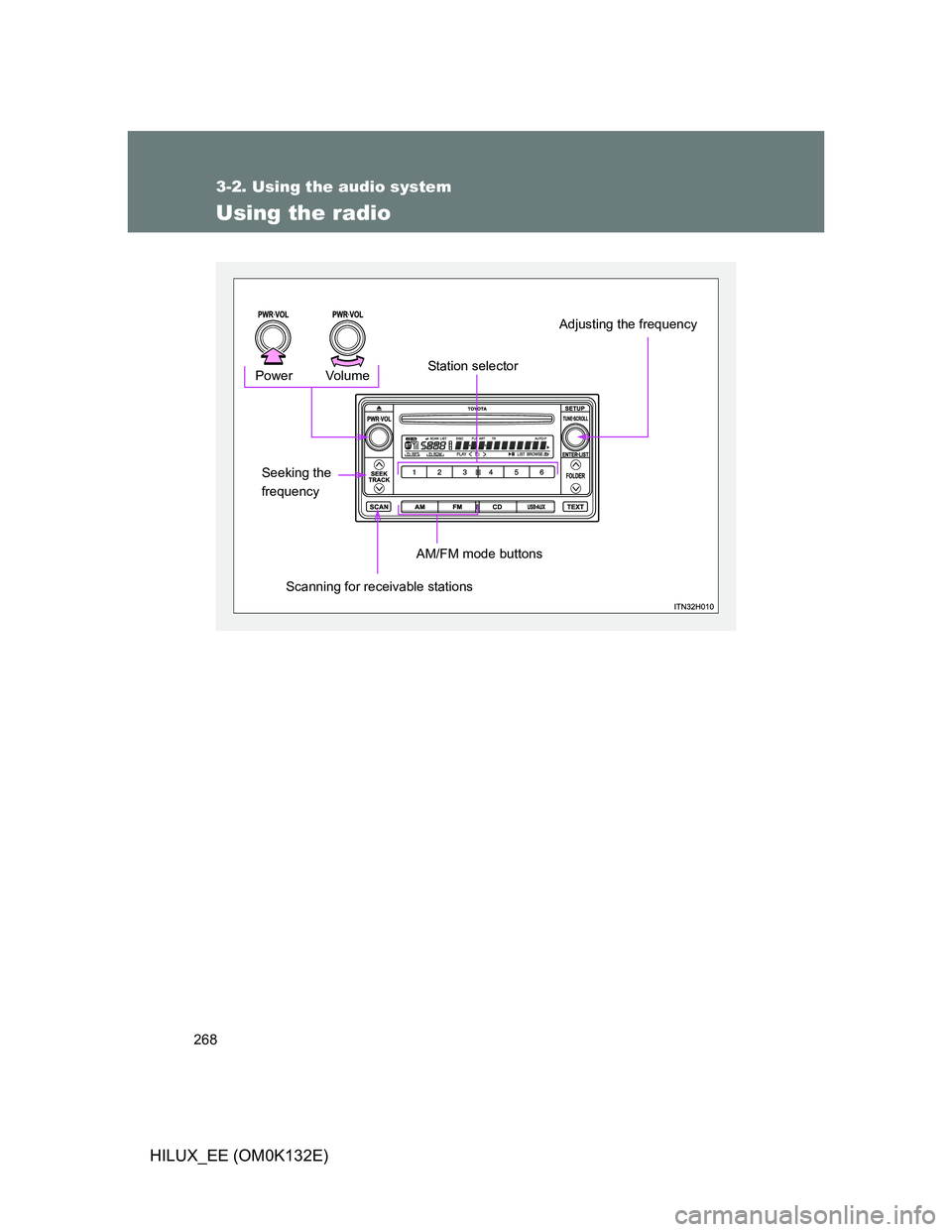

Using the radio
Vol u m e Power
Seeking the
frequency
Scanning for receivable stationsAM/FM mode buttons
Station selector
Adjusting the frequency

269 3-2. Using the audio system
3
Interior features
HILUX_EE (OM0K132E)

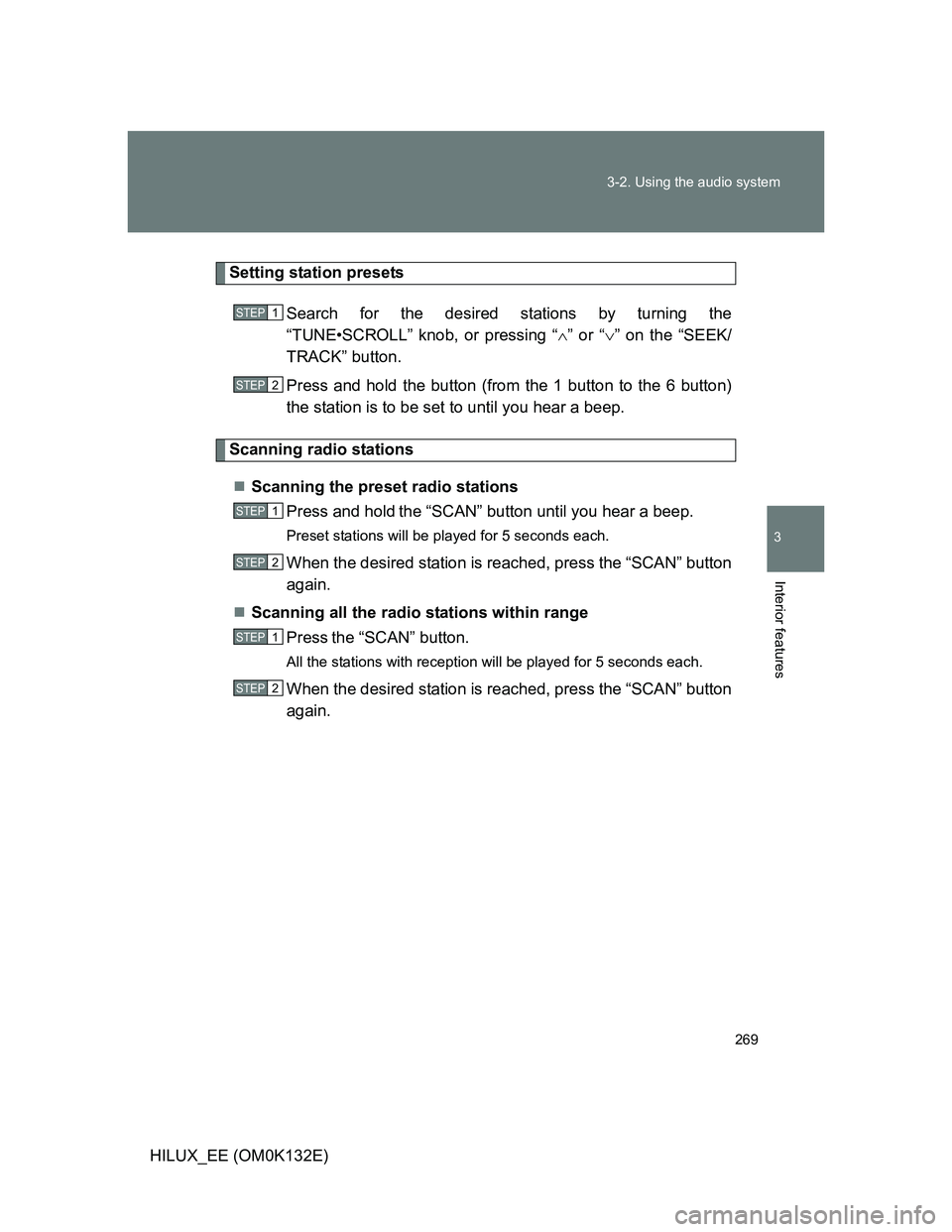

Setting station presets
Search for the desired stations by turning the
“TUNE•SCROLL” knob, or pressing “” or “” on the “SEEK/
TRACK” button.
Press and hold the button (from the 1 button to the 6 button)
the station is to be set to until you hear a beep.
Scanning radio stations
Scanning the preset radio stations
Press and hold
the “SCAN” button until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the “SCAN” button
again.
Scanning all the radio stations within range
Press
the “SCAN” button.
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the “SCAN” button
again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

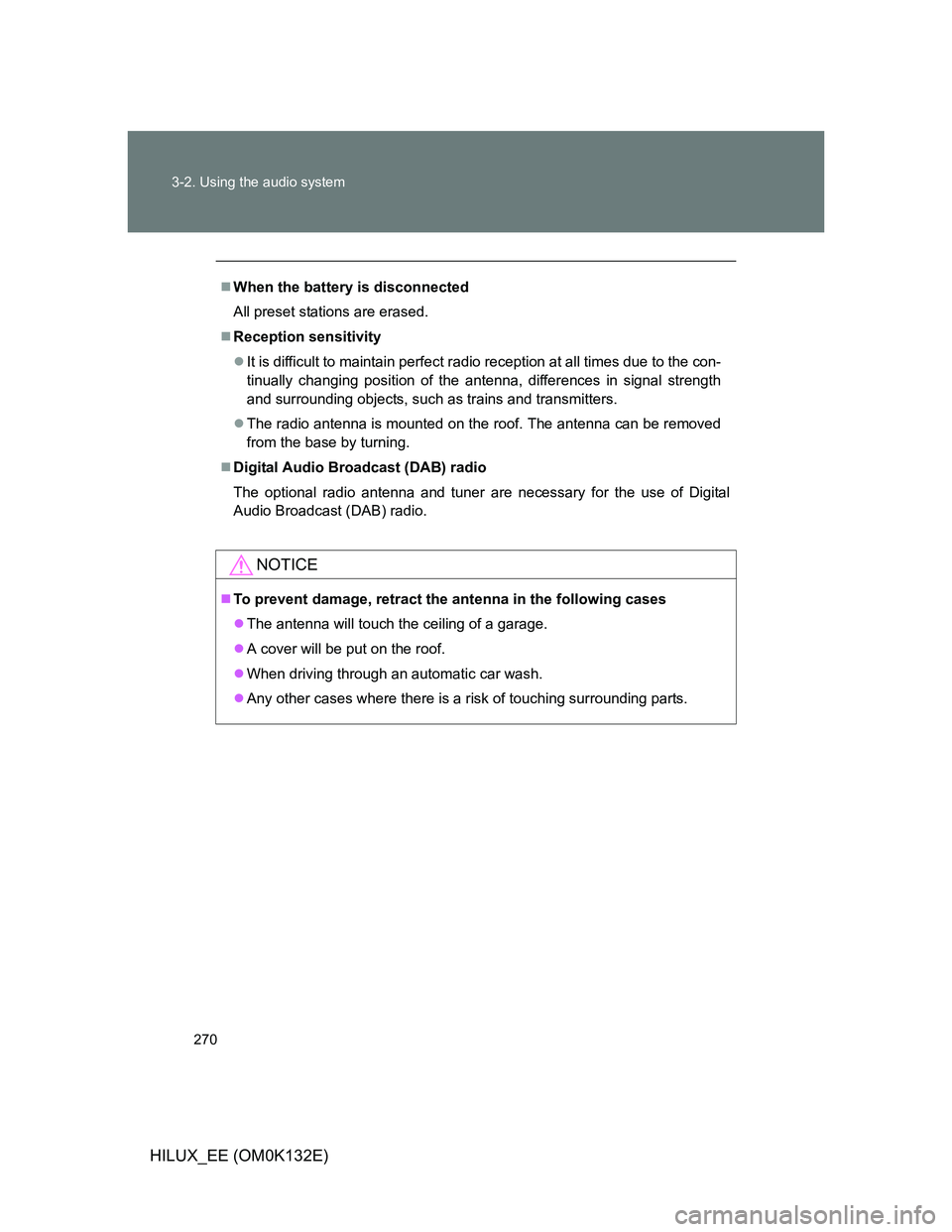

270 3-2. Using the audio system
HILUX_EE (OM0K132E)
When the battery is disconnected
All preset stations are erased.
Reception sensitivity
It is difficult to maintain perfect radio reception at all times due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains and transmitters.
The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, retract the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
When driving through an automatic car wash.
Any other cases where there is a risk of touching surrounding parts.
