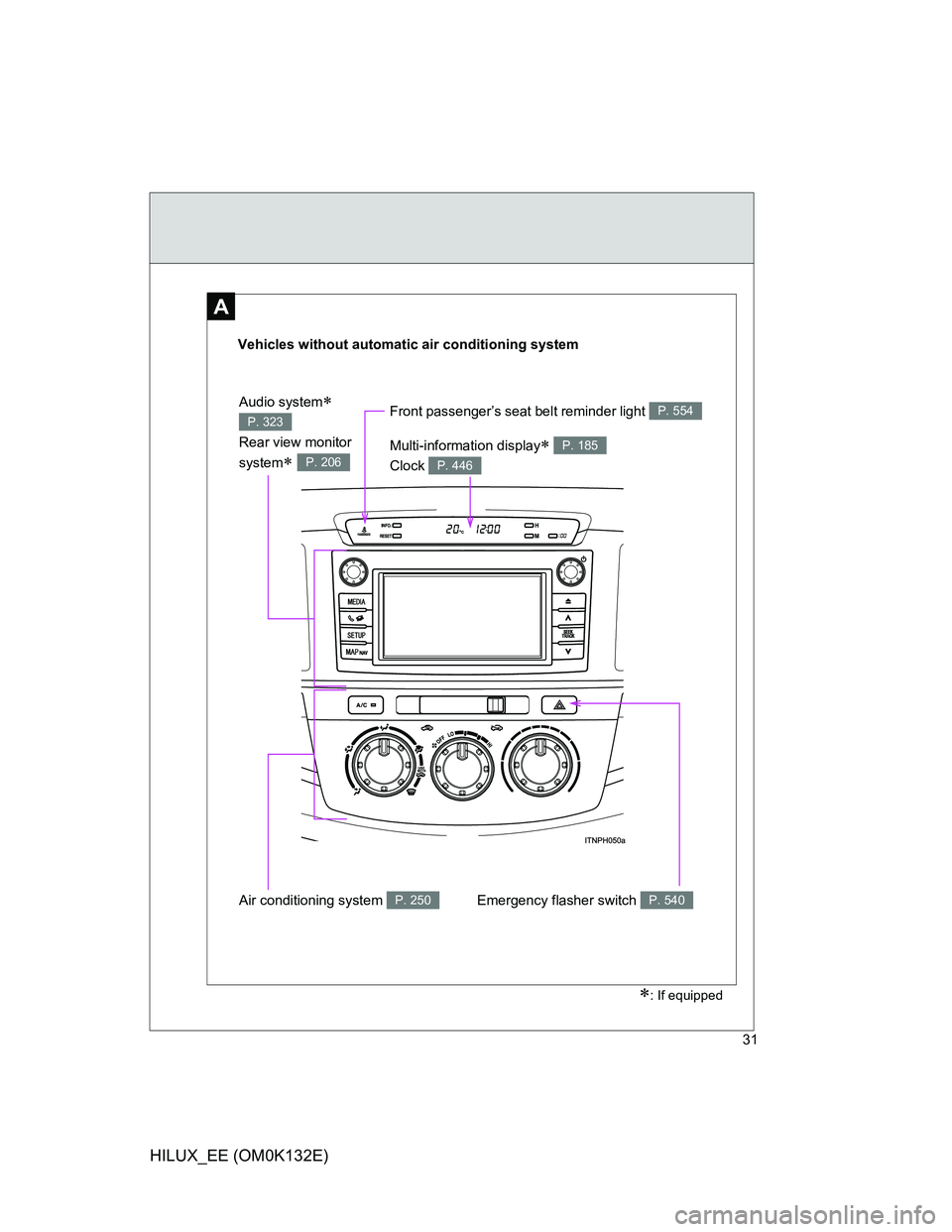

31
HILUX_EE (OM0K132E)
A
Vehicles without automatic air conditioning system
Emergency flasher switch P. 540Air conditioning system P. 250
Front passenger’s seat belt reminder light P. 554
Multi-information display
Clock P. 185
P. 446
: If equipped
Audio system
Rear view monitor
system

P. 323
P. 206

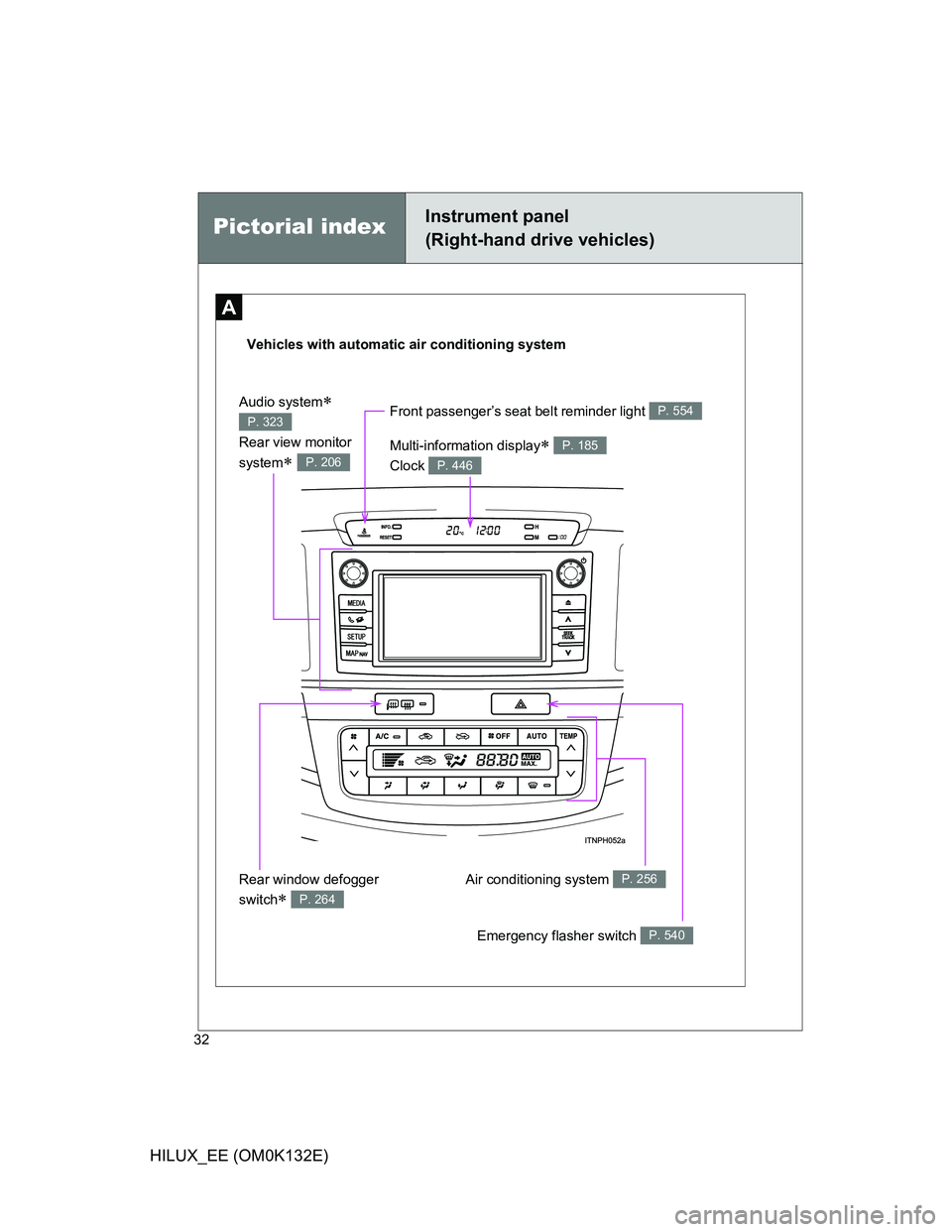

32
HILUX_EE (OM0K132E)
A
Vehicles with automatic air conditioning system
Pictorial indexInstrument panel
(Right-hand drive vehicles)
Air conditioning system P. 256Rear window defogger
switch
 P. 264
Front passenger’s seat belt reminder light P. 554
Multi-information display
Clock P. 185
P. 446
Emergency flasher switch P. 540
Audio system
Rear view monitor
system

P. 323
P. 206

33
HILUX_EE (OM0K132E)

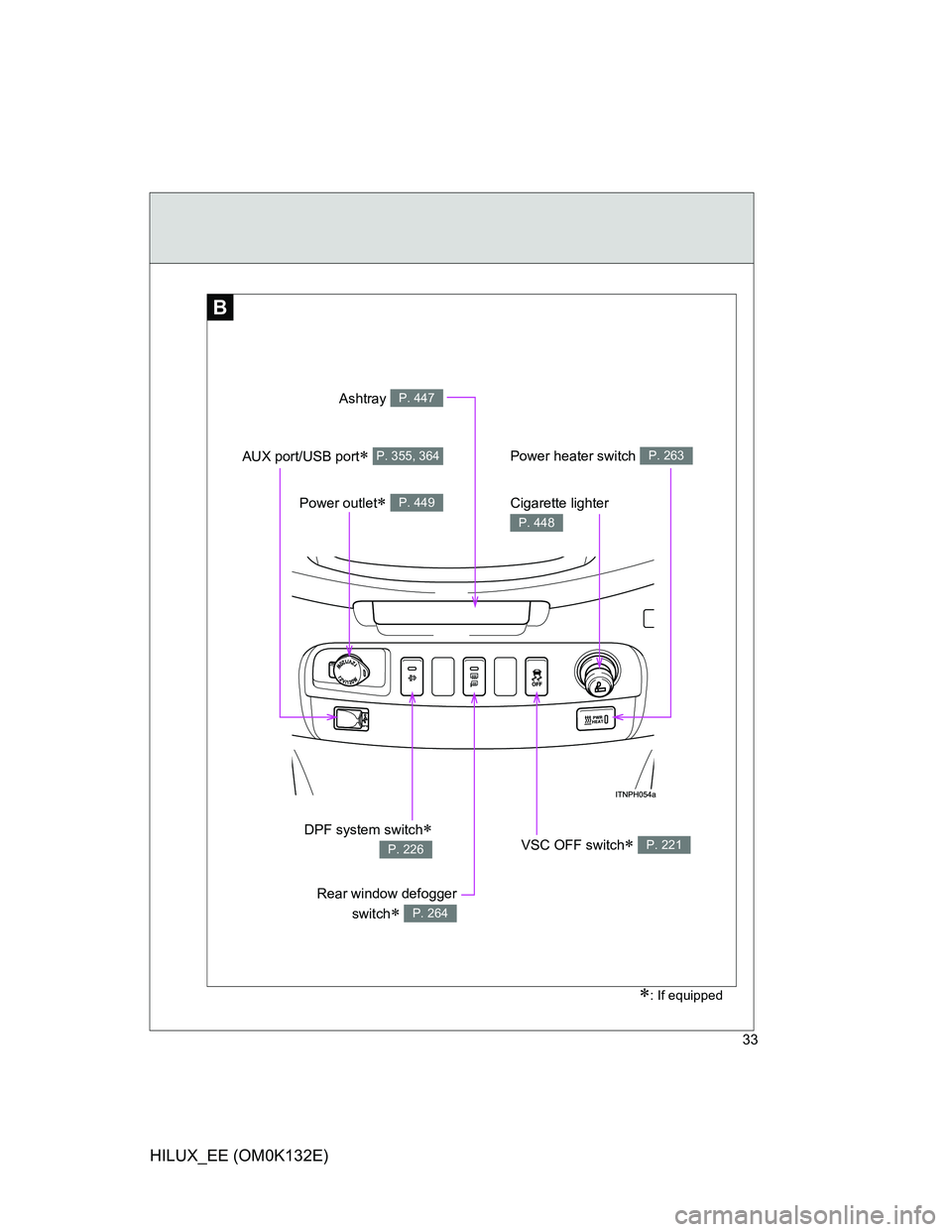

B
Power outlet P. 449
VSC OFF switch P. 221
Cigarette lighter
P. 448
Ashtray P. 447
Power heater switch P. 263
Rear window defogger
switch
 P. 264
: If equipped
DPF system switch
P. 226
AUX port/USB port P. 355, 364

34
HILUX_EE (OM0K132E)
Pictorial indexInstrument panel
(Right-hand drive vehicles)

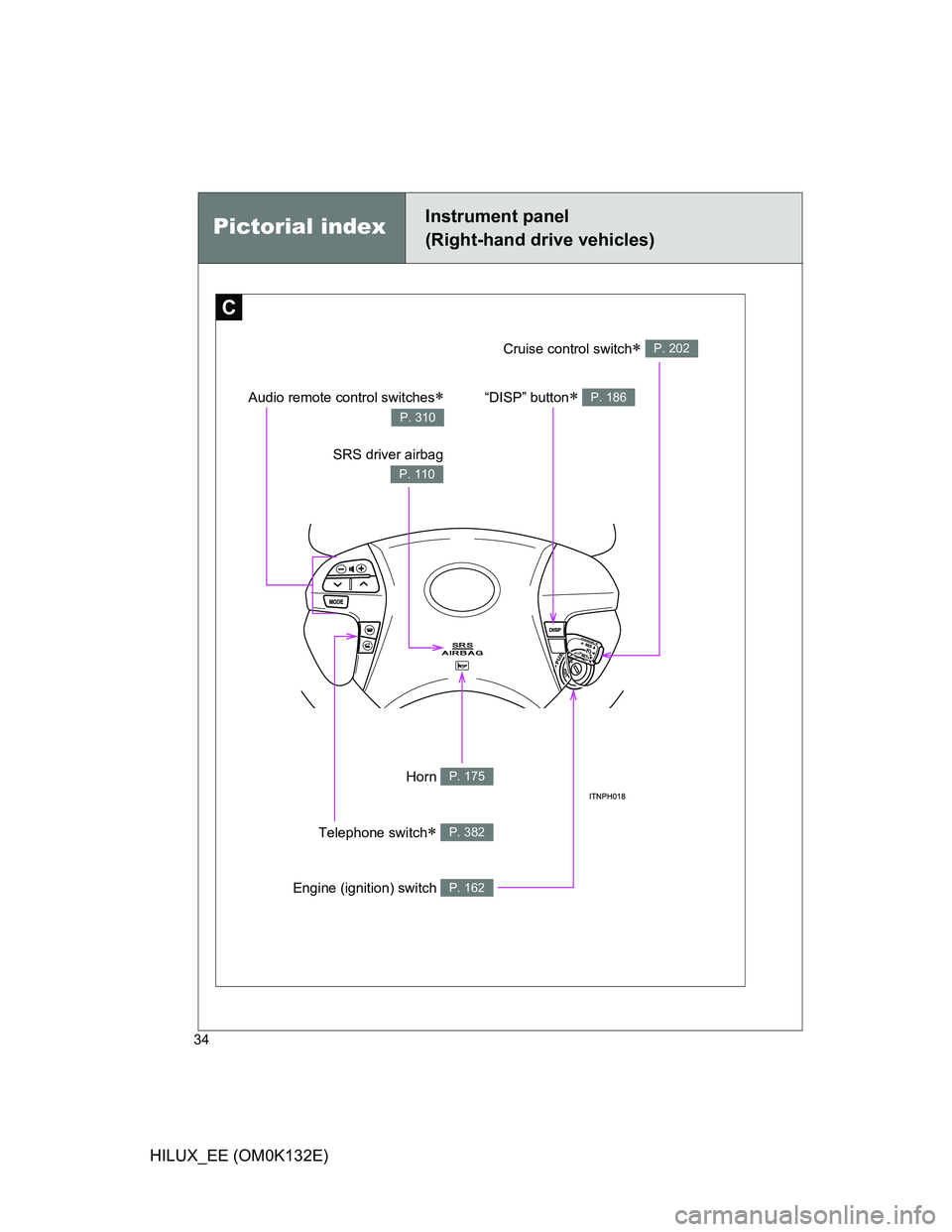

C
SRS driver airbag
P. 110
“DISP” button P. 186
Horn P. 175
Cruise control switch P. 202
Engine (ignition) switch P. 162
Audio remote control switches
P. 310
Telephone switch P. 382

35
HILUX_EE (OM0K132E)

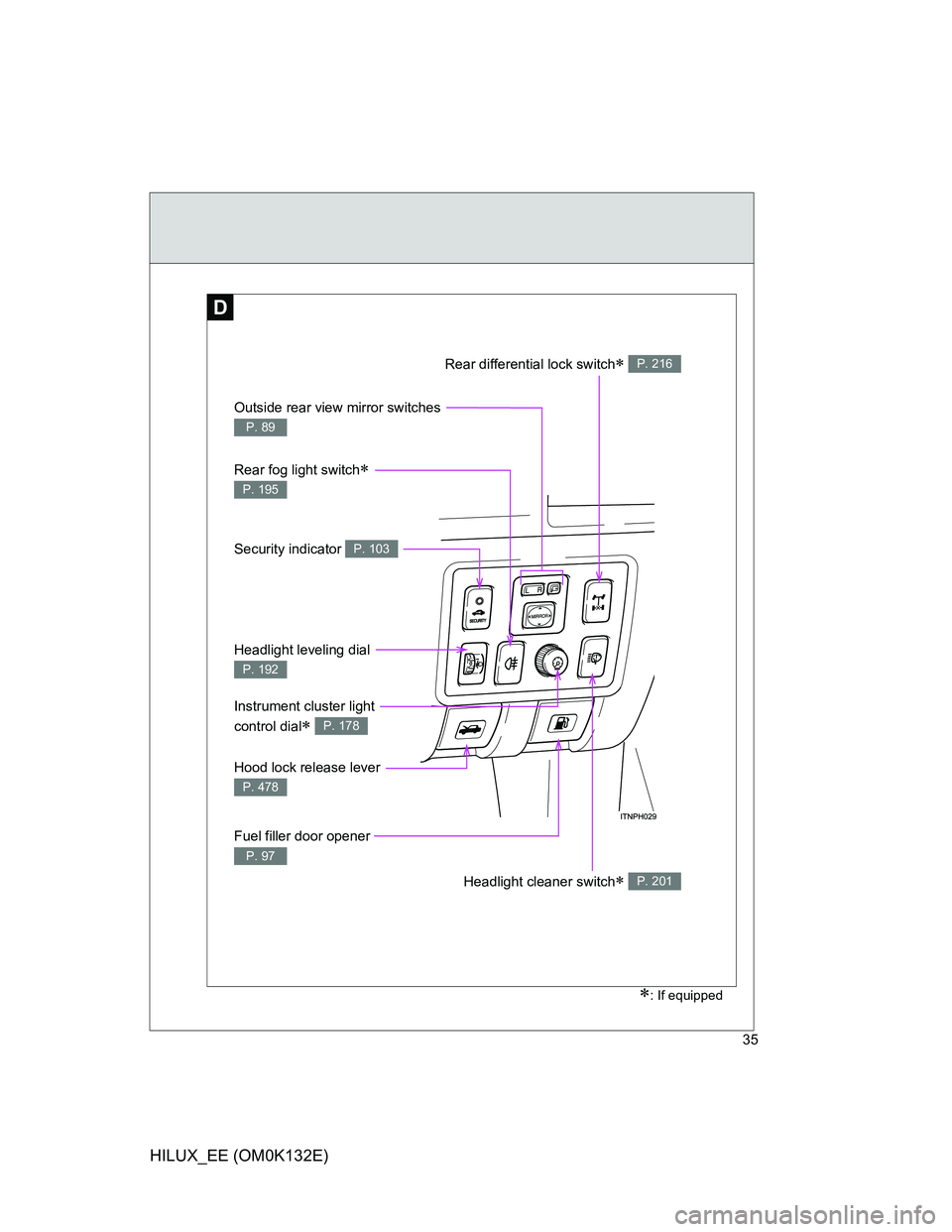

D
Outside rear view mirror switches
P. 89
Rear fog light switch
P. 195
Security indicator P. 103
Headlight leveling dial
P. 192
Hood lock release lever
P. 478
Headlight cleaner switch P. 201
Rear differential lock switch P. 216
Instrument cluster light
control dial
 P. 178
Fuel filler door opener
P. 97
: If equipped

36
HILUX_EE (OM0K132E)

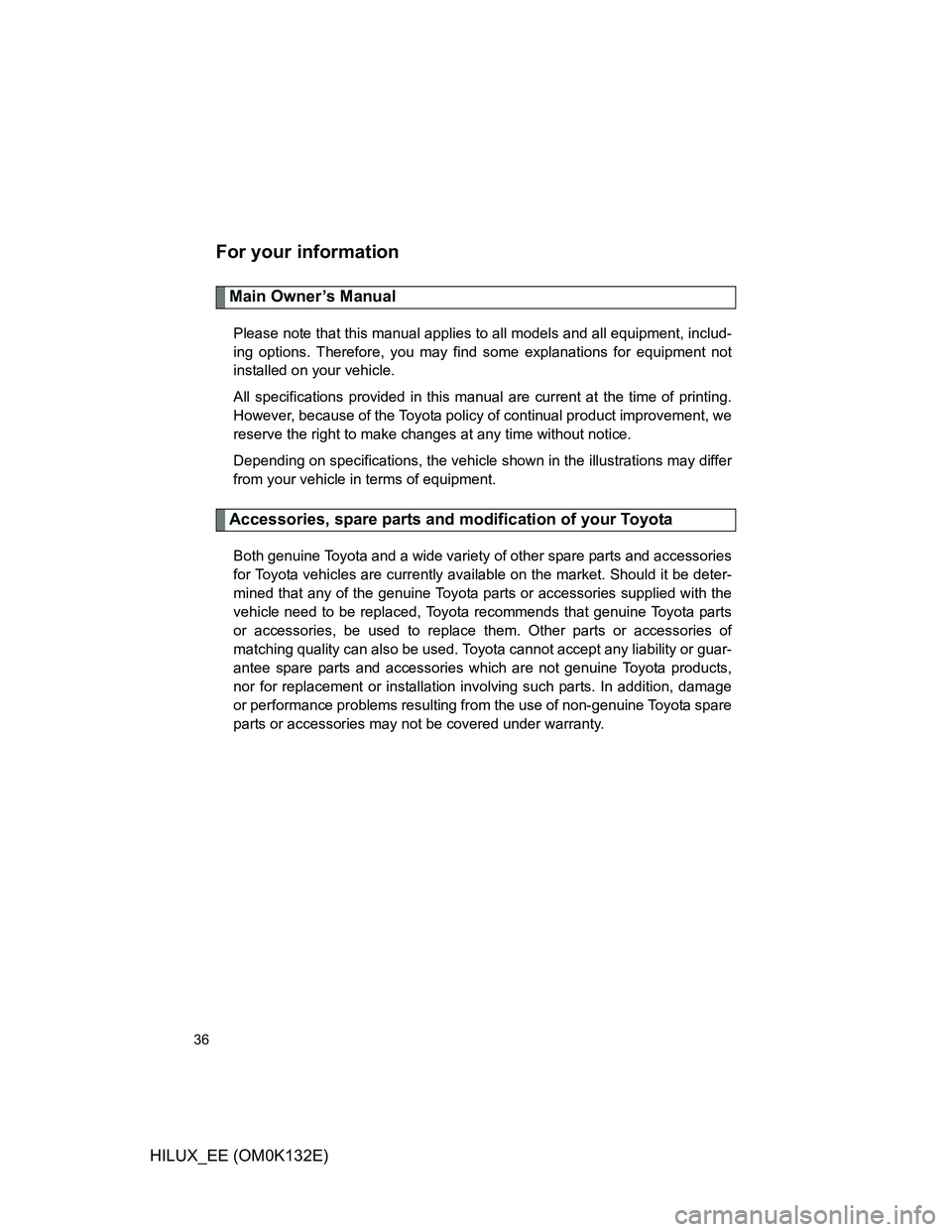

For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota recommends that genuine Toyota parts
or accessories, be used to replace them. Other parts or accessories of
matching quality can also be used. Toyota cannot accept any liability or guar-
antee spare parts and accessories which are not genuine Toyota products,
nor for replacement or installation involving such parts. In addition, damage
or performance problems resulting from the use of non-genuine Toyota spare
parts or accessories may not be covered under warranty.

37
HILUX_EE (OM0K132E)

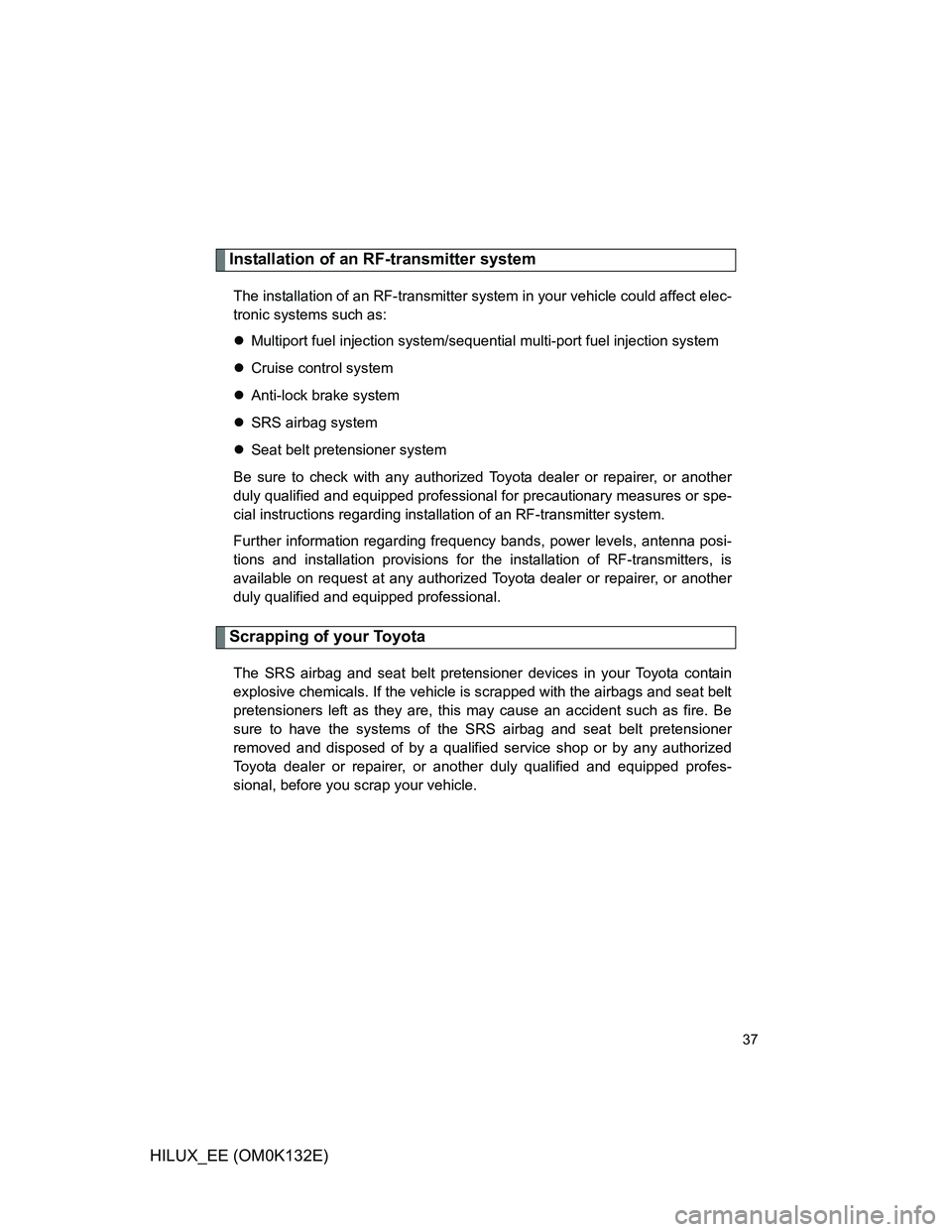

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multi-port fuel injection system
Cruise control system
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

38
HILUX_EE (OM0K132E)
CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive
2006/66/EC).

39
HILUX_EE (OM0K132E)

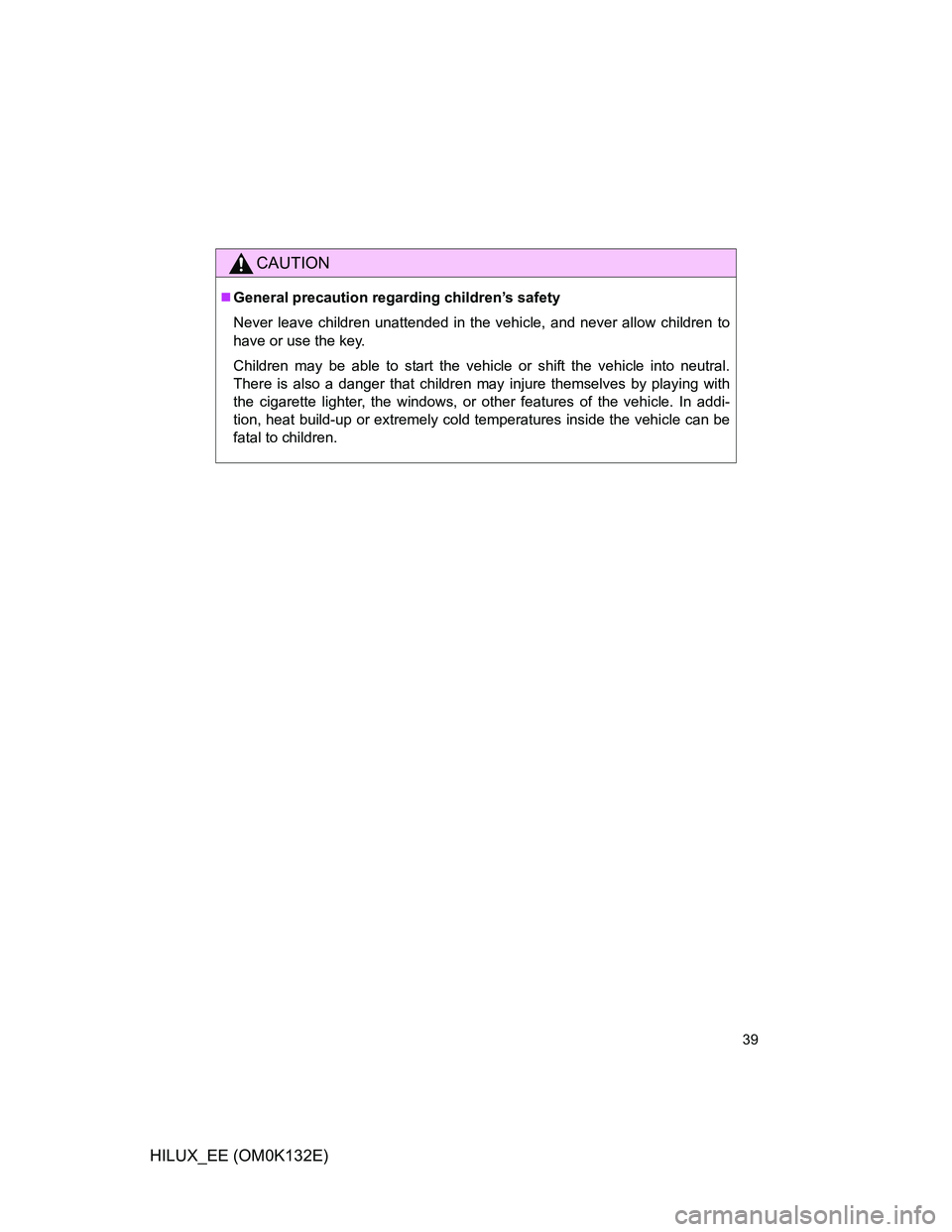

CAUTION
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

40
HILUX_EE (OM0K132E)

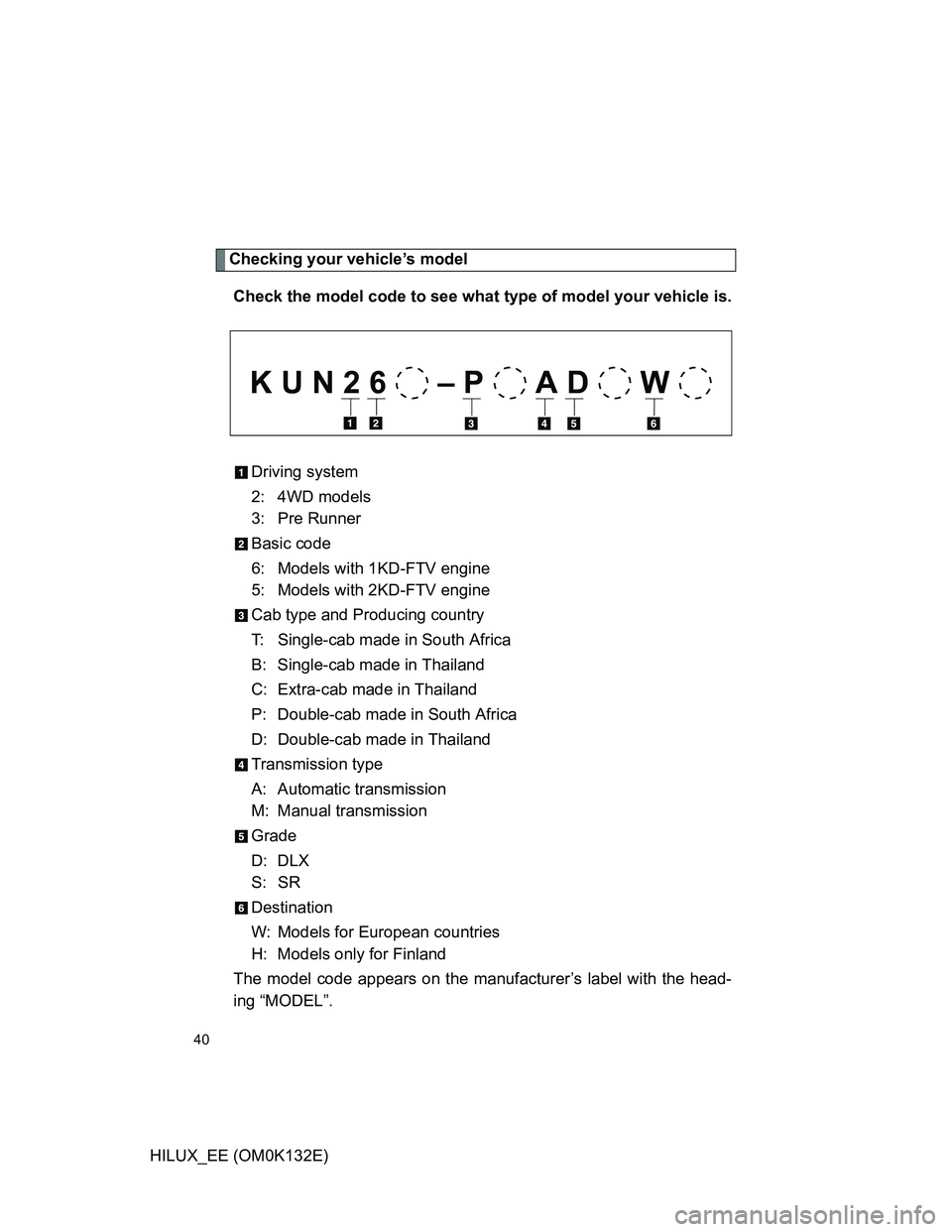

Checking your vehicle’s model
Check the model code to see what type of model your vehicle is.
Driving system
2: 4WD models
3: Pre Runner
Basic code
6: Models with 1KD-FTV engine
5: Models with 2KD-FTV engine
Cab type and Producing country
T: Single-cab made in South Africa
B: Single-cab made in Thailand
C: Extra-cab made in Thailand
P: Double-cab made in South Africa
D: Double-cab made in Thailand
Transmission type
A: Automatic transmission
M: Manual transmission
Grade
D: DLX
S: SR
Destination
W: Models for European countries
H: Models only for Finland
The model code appears on the manufacturer’s label with the head-
ing “MODEL”.
K U N 2 6 – P A D W
