1714-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
CAUTION

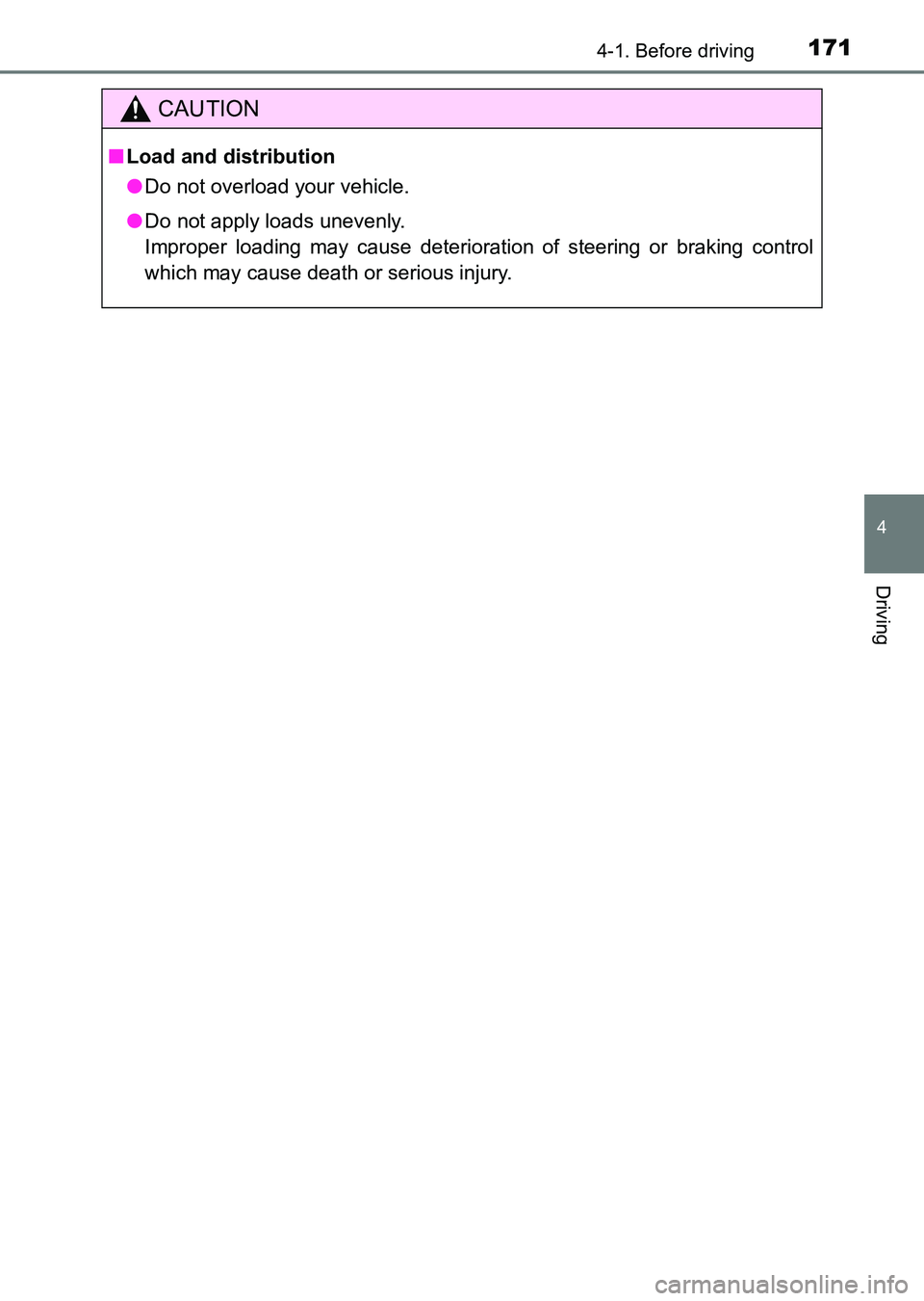

■Load and distribution
● Do not overload your vehicle.
● Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 171 Wednesday, May 14, 2014 3:06 PM

1724-1. Before driving
HILUX_OM_OM0K219E_(EE)

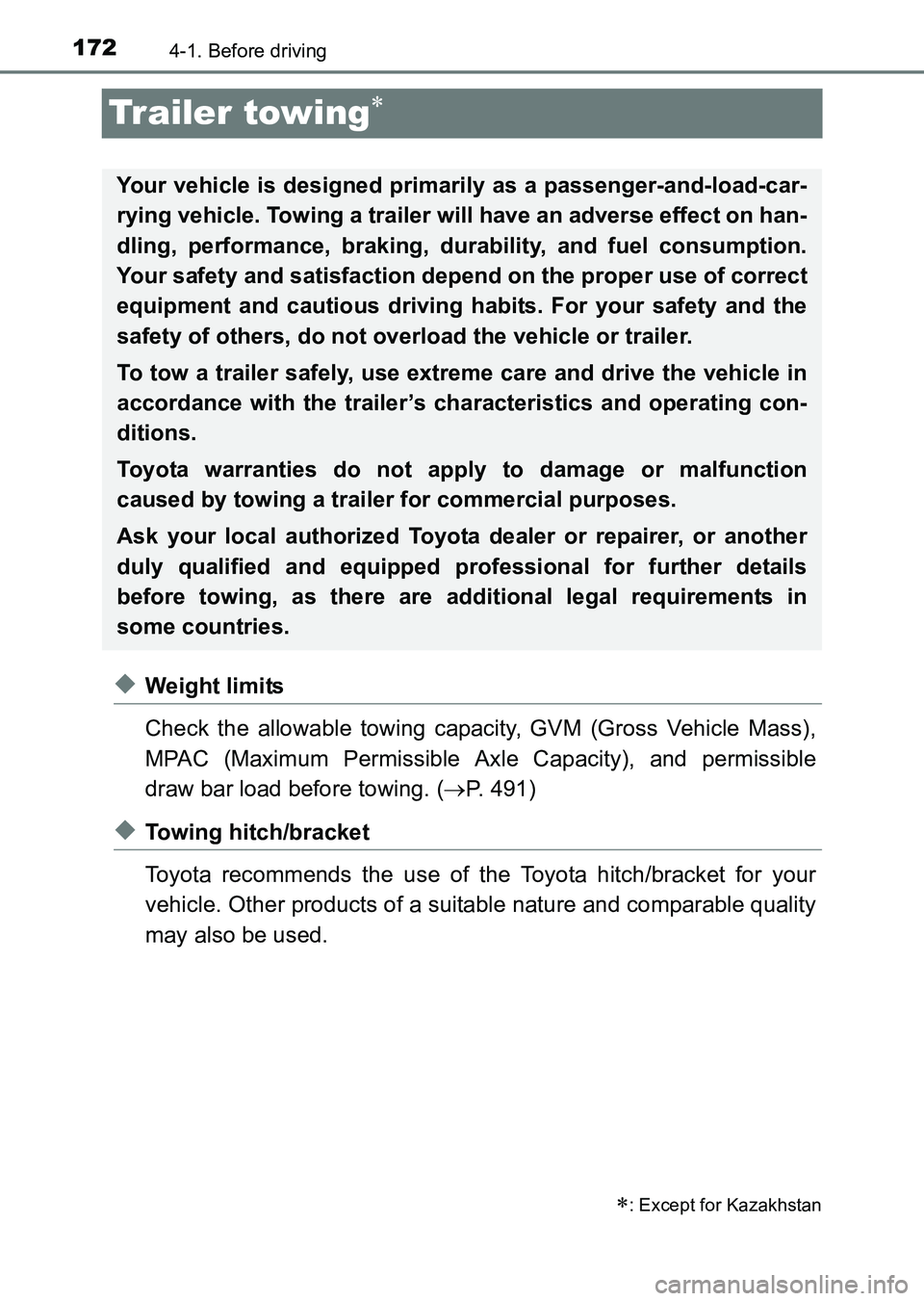

Trailer towing∗
◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible
draw bar load before towing. (→P. 491)
◆Towing hitch/bracket
Toyota recommends the use of the Toyota hitch/bracket for your
vehicle. Other products of a suitable nature and comparable quality
may also be used.
∗: Except for Kazakhstan
Your vehicle is designed primarily as a passenger-and-load-car-
rying vehicle. Towing a trailer will have an adverse effect on han-
dling, performance, braking, durability, and fuel consumption.
Your safety and satisfaction depend on the proper use of correct
equipment and cautious driving habits. For your safety and the
safety of others, do not overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer’s characteristics and operating con-
ditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.
Ask your local authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for further details
before towing, as there are additional legal requirements in
some countries.
HILUX_OM_OM0K219E_(EE).book Page 172 Wednesday, May 14, 2014 3:06 PM

1734-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)■

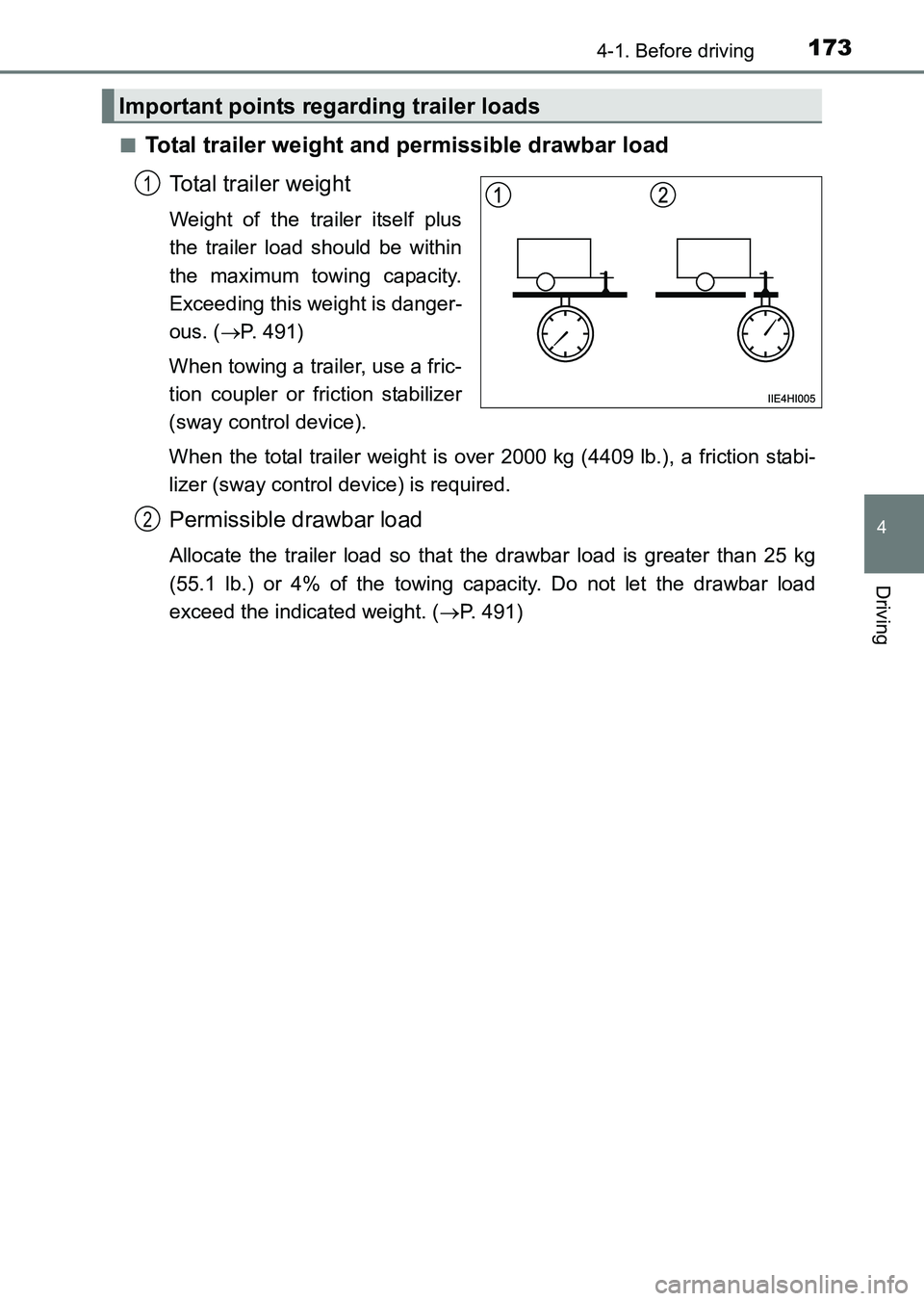

Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus
the trailer load should be within
the maximum towing capacity.
Exceeding this weight is danger-
ous. ( →P. 491)
When towing a trailer, use a fric-
tion coupler or friction stabilizer
(sway control device).
When the total trailer weight is over 2000 kg (4409 lb.), a friction stabi-
lizer (sway control device) is required.
Permissible drawbar load
Allocate the trailer load so that the drawbar load is greater than 25 kg
(55.1 lb.) or 4% of the towing ca pacity. Do not let the drawbar load
exceed the indicated weight. ( →P. 491)
Important points regarding trailer loads
1
2
HILUX_OM_OM0K219E_(EE).book Page 173 Wednesday, May 14, 2014 3:06 PM

1744-1. Before driving
HILUX_OM_OM0K219E_(EE)■

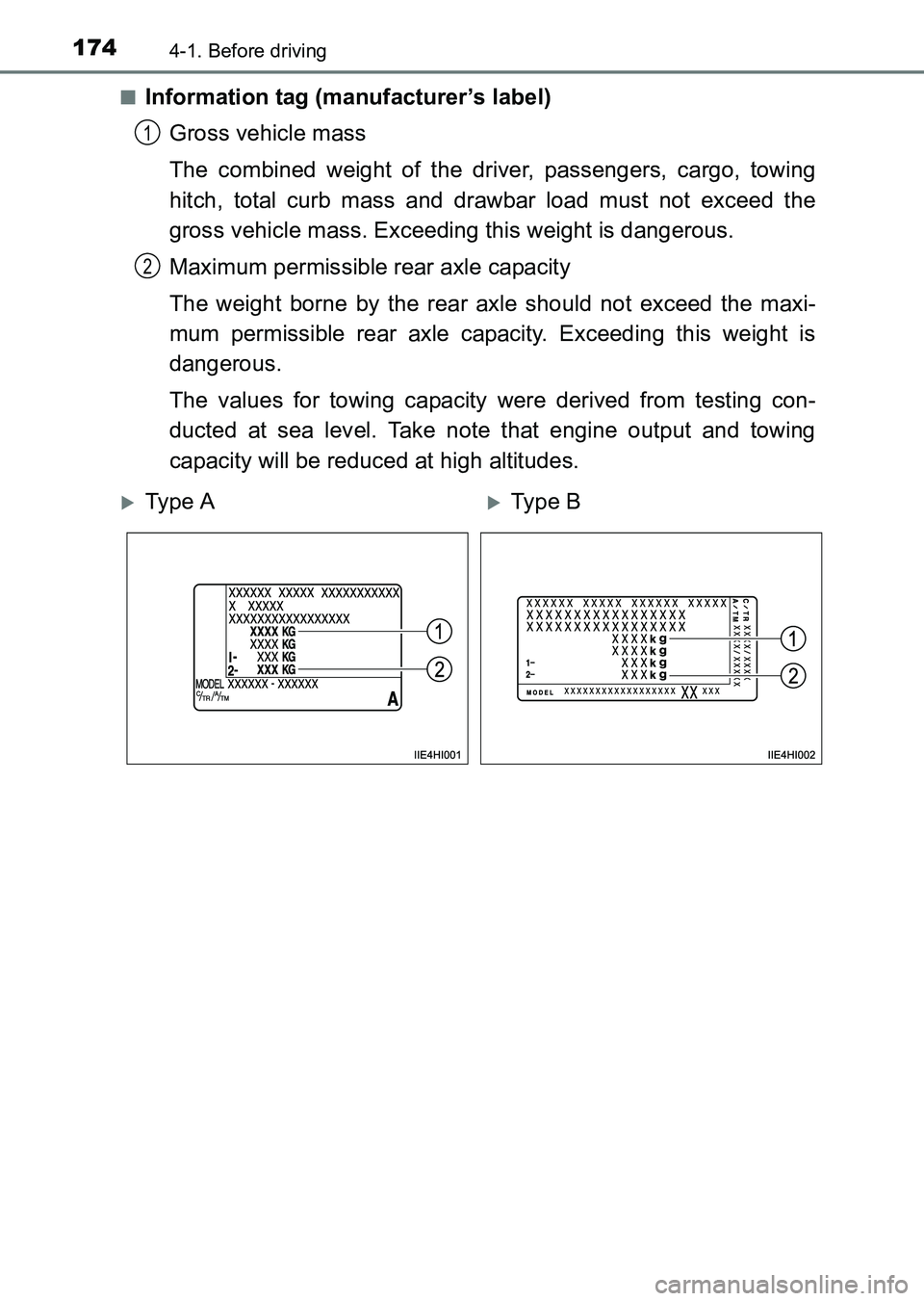

Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the driver, passengers, cargo, towing
hitch, total curb mass and drawbar load must not exceed the
gross vehicle mass. Exceeding this weight is dangerous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maxi-
mum permissible rear axle capacity. Exceeding this weight is
dangerous.
The values for towing capacity were derived from testing con-
ducted at sea level. Take note that engine output and towing
capacity will be reduced at high altitudes.
1
2
XTy pe AXType B
HILUX_OM_OM0K219E_(EE).book Page 174 Wednesday, May 14, 2014 3:06 PM

1754-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
XVehicles with flat bumper or without bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
75 mm (3.0 in.)
20 mm (0.8 in.)
Single-cab models:
355 mm (14.0 in.)
Extra-cab models:
320 mm (12.6 in.)
Double-cab models:
330 mm (13.0 in.)
195 mm (7.7 in.)
1355 mm (53.3 in.)
*: Except for KUN25L-PRMDH model (The model code is indicated on themanufacturer’s label or plate. [ →P. 494])
Installation positions for the towing hitch/bracket and hitch ball*
1
2
3
4
5
6
7
HILUX_OM_OM0K219E_(EE).book Page 175 Wednesday, May 14, 2014 3:06 PM

1764-1. Before driving
HILUX_OM_OM0K219E_(EE)

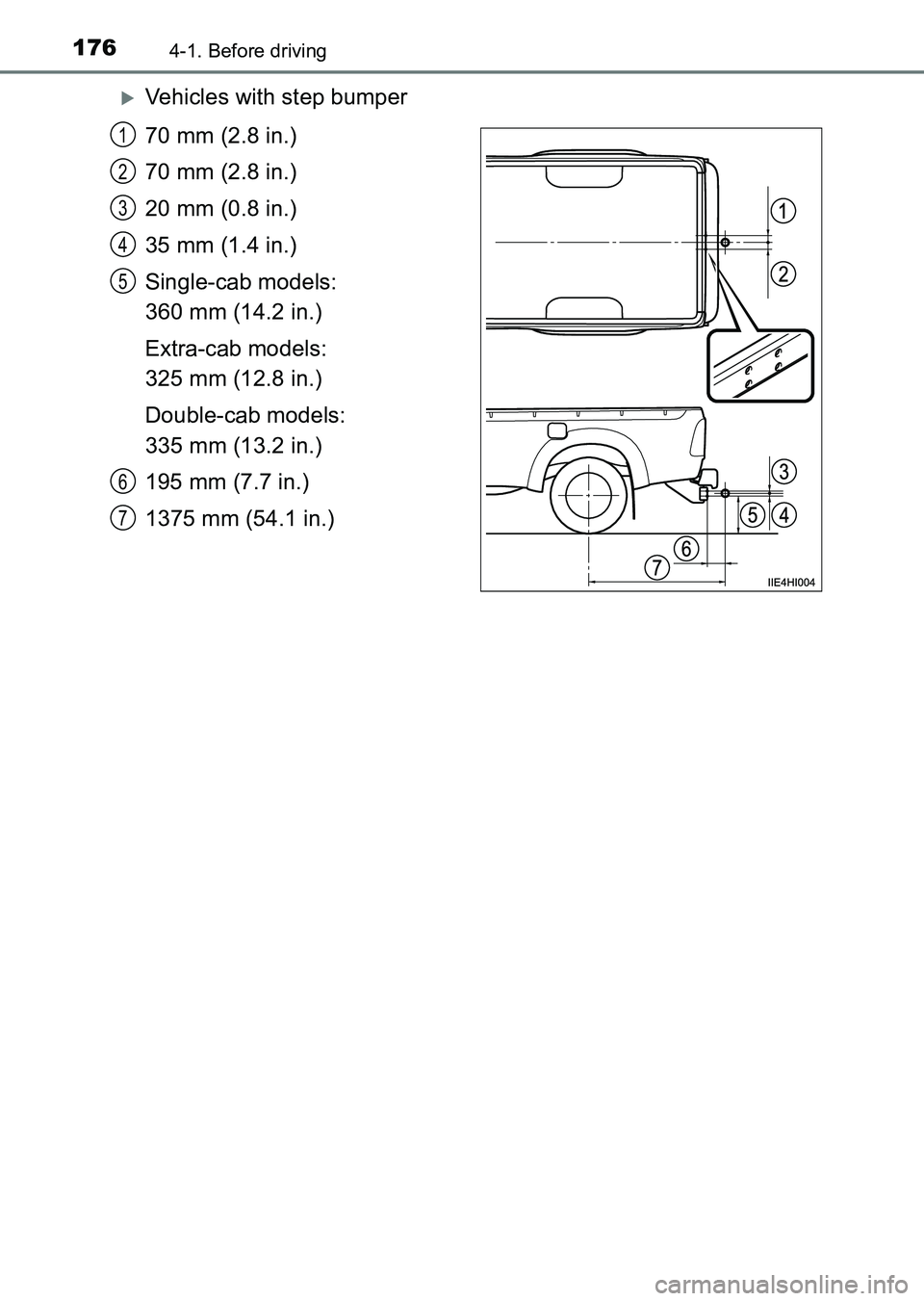

XVehicles with step bumper
70 mm (2.8 in.)
70 mm (2.8 in.)
20 mm (0.8 in.)
35 mm (1.4 in.)
Single-cab models:
360 mm (14.2 in.)
Extra-cab models:
325 mm (12.8 in.)
Double-cab models:
335 mm (13.2 in.)
195 mm (7.7 in.)
1375 mm (54.1 in.)
1
2
3
4
5
6
7
HILUX_OM_OM0K219E_(EE).book Page 176 Wednesday, May 14, 2014 3:06 PM

1774-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)
■Tire information
●Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi)
greater than the recommended value when towing. ( →P. 513)
● Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the manufac-
turer of your trailer.
■ Trailer lights
Check that the turn signal lights and stoplights are operating correctly every
time you hitch up the trailer. Direct ly wiring up to your vehicle may damage
the electrical system and stop the lights from functioning correctly.
■ Break-in schedule
Toyota recommends that vehicles fitted with new power train components
should not be used for towing trailers for the first 800 km (500 miles).
■ Safety checks before towing
●Check that the maximum load limit for the towing hitch/bracket and hitch ball
is not exceeded. Bear in mind that the coupling weight of the trailer will add
to the load exerted on the vehicle. Also make sure that the total load exerted
on the vehicle is within the range of the weight limits. ( →P. 173)
● Ensure that the trailer load is secure.
● Supplementary outside rear view mirrors should be added to the vehicle if
the traffic behind cannot be clearly seen with standard mirrors. Adjust the
extending arms of these mirrors on both sides of the vehicle so that they
always provide maximum visibility of the road behind.
● The trailer ball is set up at the proper height for the coupler on the trailer. (for
KUN25L-PRMDH model
*)
*: The model code is indicated on the manufacturer’s label or plate.
(→ P. 494)
HILUX_OM_OM0K219E_(EE).book Page 177 Wednesday, May 14, 2014 3:06 PM

1784-1. Before driving
HILUX_OM_OM0K219E_(EE)■

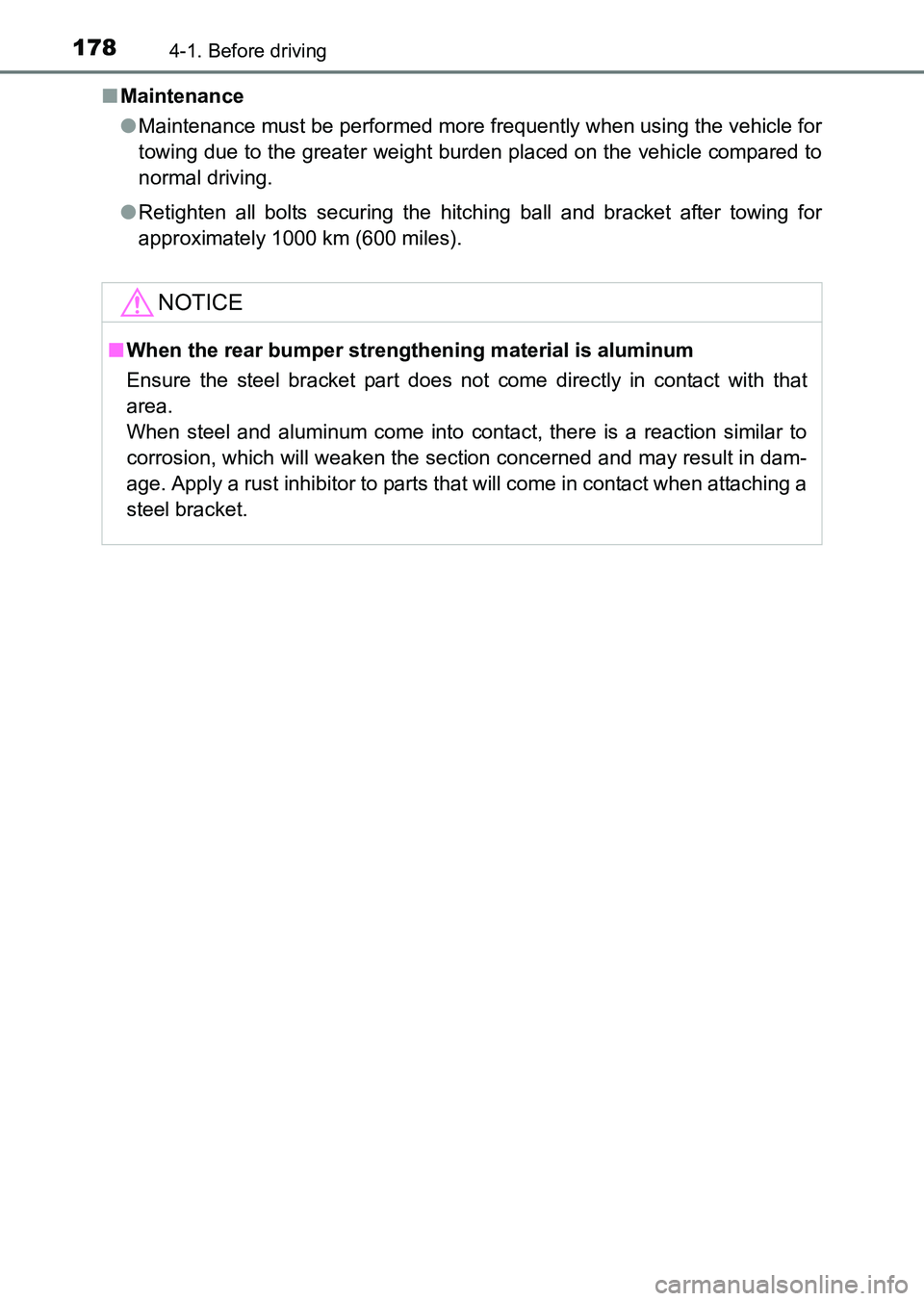

Maintenance
●Maintenance must be performed more frequently when using the vehicle for
towing due to the greater weight burden placed on the vehicle compared to
normal driving.
● Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).
NOTICE
■When the rear bumper strengthening material is aluminum
Ensure the steel bracket part does not come directly in contact with that
area.
When steel and aluminum come into contact, there is a reaction similar to
corrosion, which will weaken the section concerned and may result in dam-
age. Apply a rust inhibitor to parts that will come in contact when attaching a
steel bracket.
HILUX_OM_OM0K219E_(EE).book Page 178 Wednesday, May 14, 2014 3:06 PM

1794-1. Before driving
4
Driving
HILUX_OM_OM0K219E_(EE)

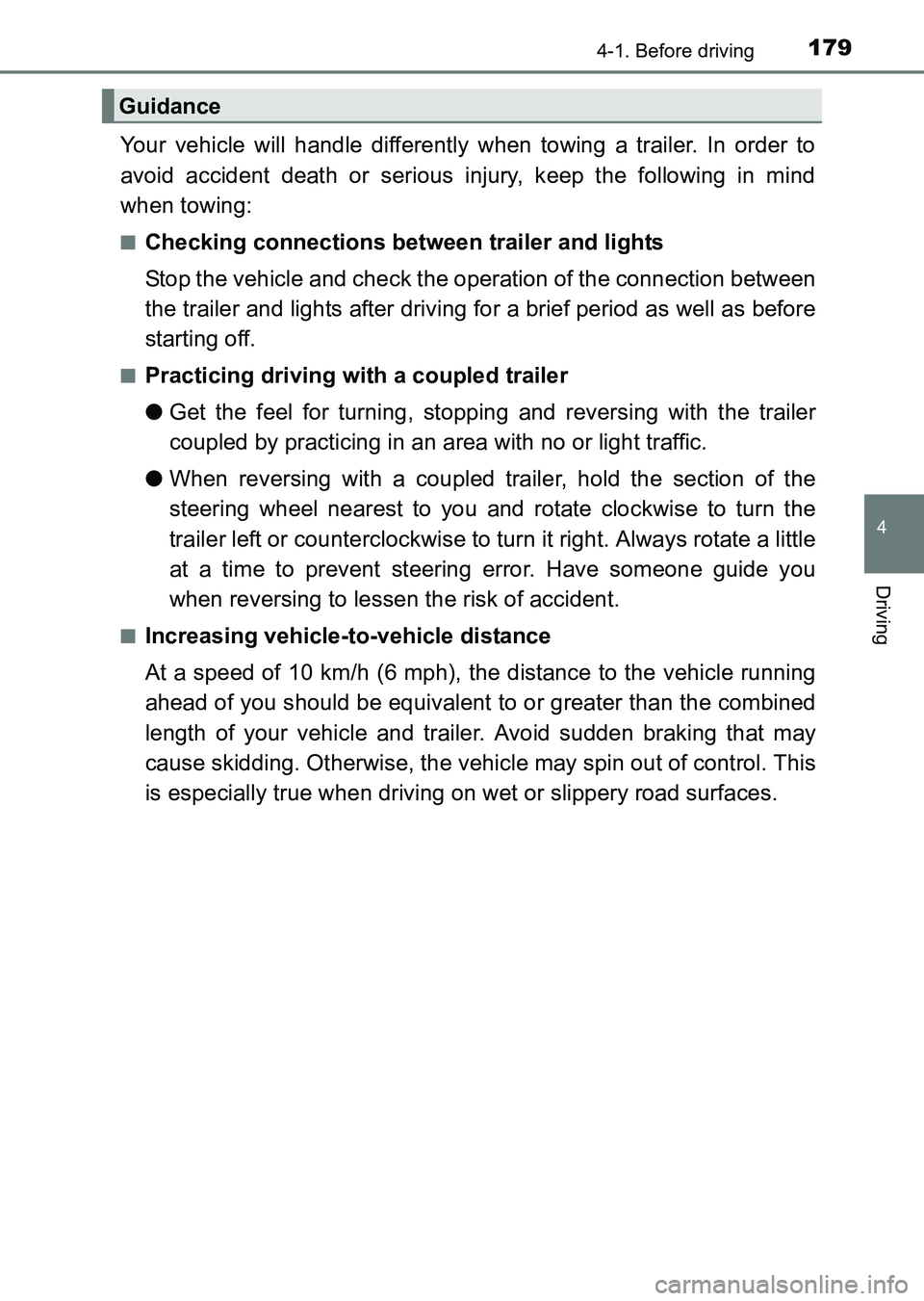

Your vehicle will handle differently when towing a trailer. In order to
avoid accident death or serious injury, keep the following in mind
when towing:
■Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection between
the trailer and lights after driving for a brief period as well as before
starting off.
■Practicing driving with a coupled trailer
●Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
● When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a little
at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of accident.
■Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control. This
is especially true when driving on wet or slippery road surfaces.
Guidance
HILUX_OM_OM0K219E_(EE).book Page 179 Wednesday, May 14, 2014 3:06 PM

1804-1. Before driving
HILUX_OM_OM0K219E_(EE)■

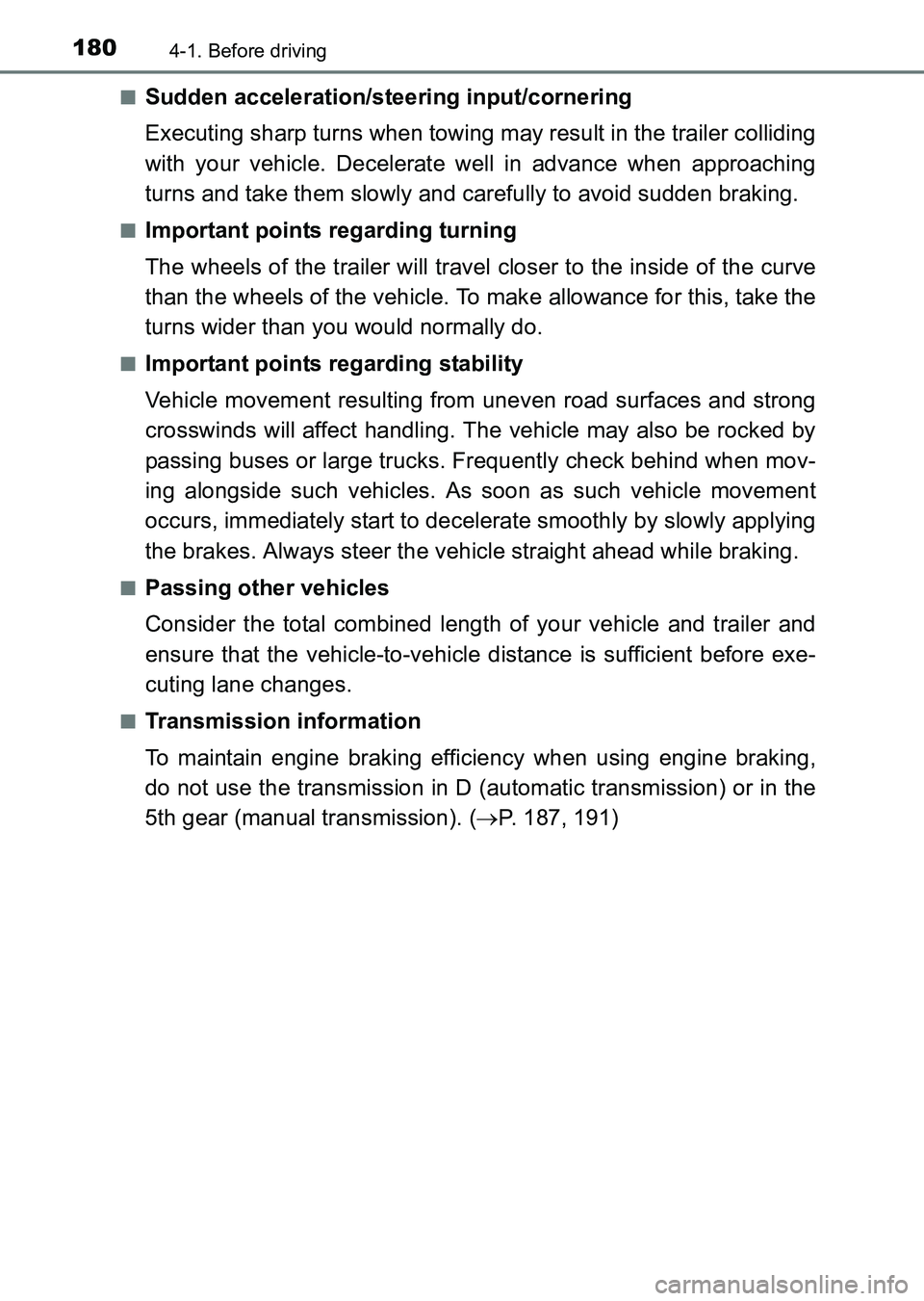

Sudden acceleration/steering input/cornering
