TOYOTA HILUX 2015 Owners Manual (in English)

2414-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K219E_(EE)

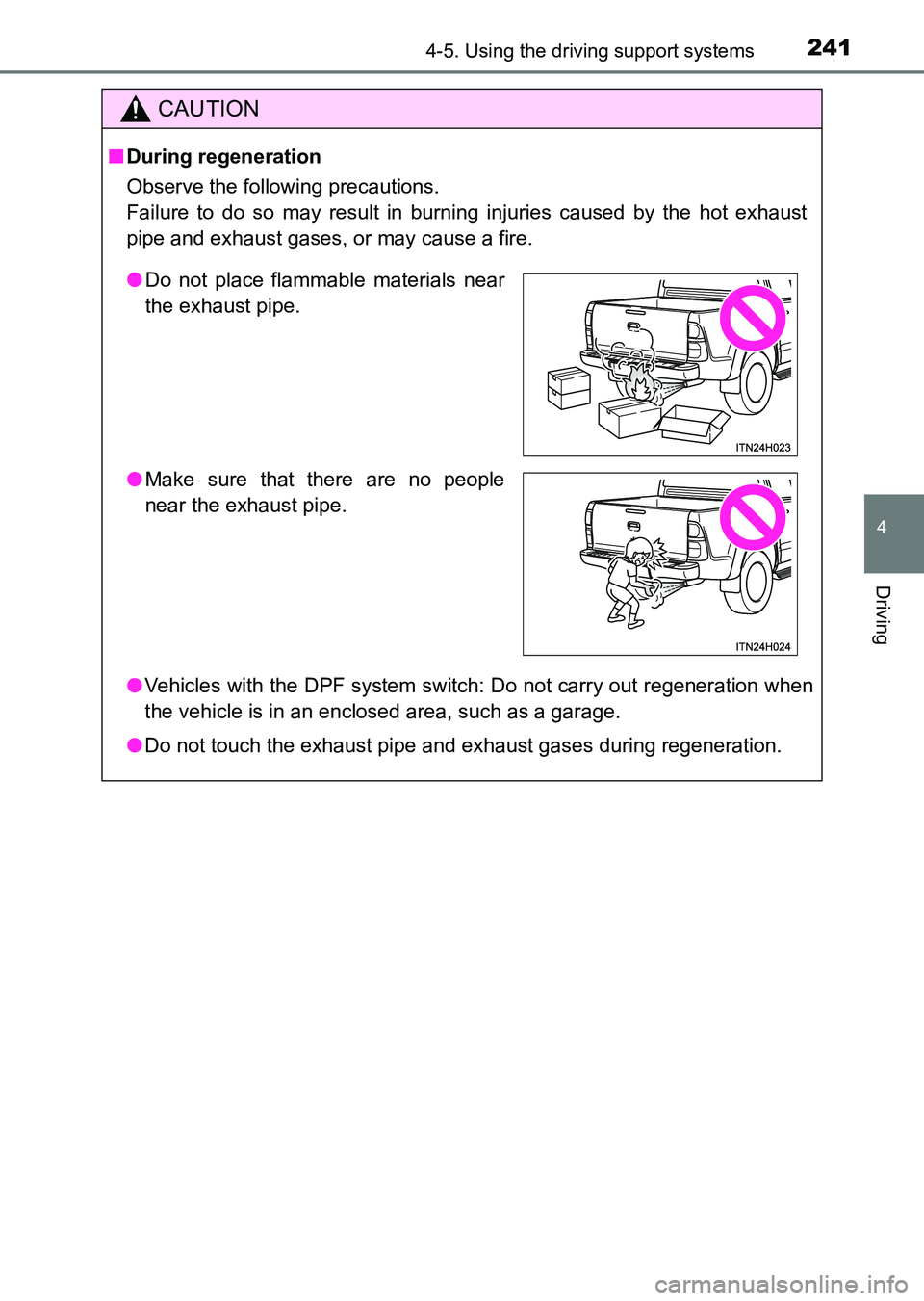

CAUTION
■During regeneration
Observe the following precautions.
Failure to do so may result in burning injuries caused by the hot exhaust
pipe and exhaust gases, or may cause a fire.
● Vehicles with the DPF system switch: Do not carry out regeneration when
the vehicle is in an enclosed area, such as a garage.
● Do not touch the exhaust pipe and exhaust gases during regeneration.
●Do not place flammable materials near
the exhaust pipe.
●
Make sure that there are no people
near the exhaust pipe.
HILUX_OM_OM0K219E_(EE).book Page 241 Wednesday, May 14, 2014 3:06 PM

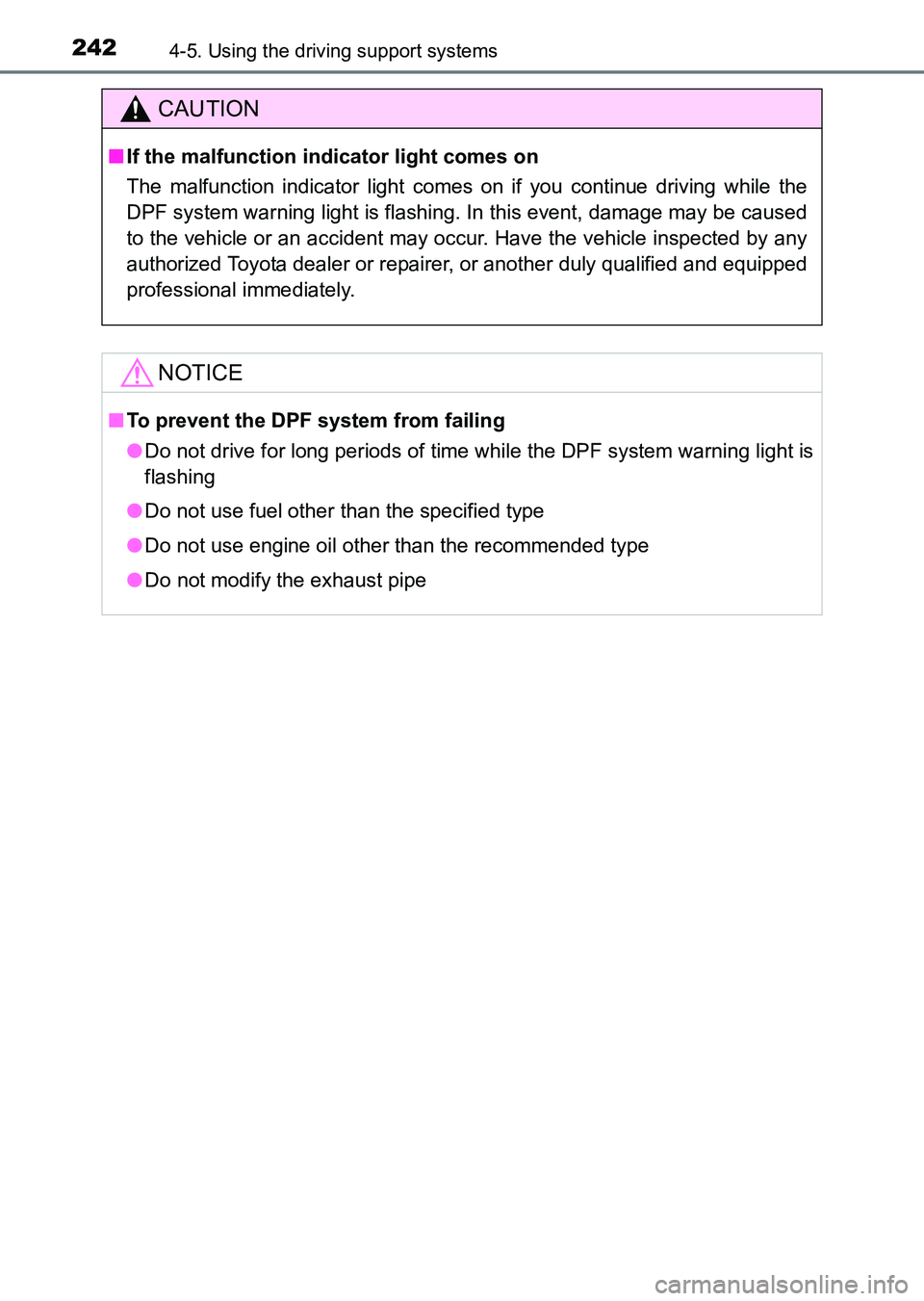

2424-5. Using the driving support systems
HILUX_OM_OM0K219E_(EE)
CAUTION
■If the malfunction indicator light comes on
The malfunction indicator light comes on if you continue driving while the
DPF system warning light is flashing. In this event, damage may be caused
to the vehicle or an accident may occur. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
NOTICE
■To prevent the DPF system from failing
● Do not drive for long periods of time while the DPF system warning light is
flashing
● Do not use fuel other than the specified type
● Do not use engine oil other than the recommended type
● Do not modify the exhaust pipe
HILUX_OM_OM0K219E_(EE).book Page 242 Wednesday, May 14, 2014 3:06 PM

243
4
4-6. Driving tips
Driving
HILUX_OM_OM0K219E_(EE)

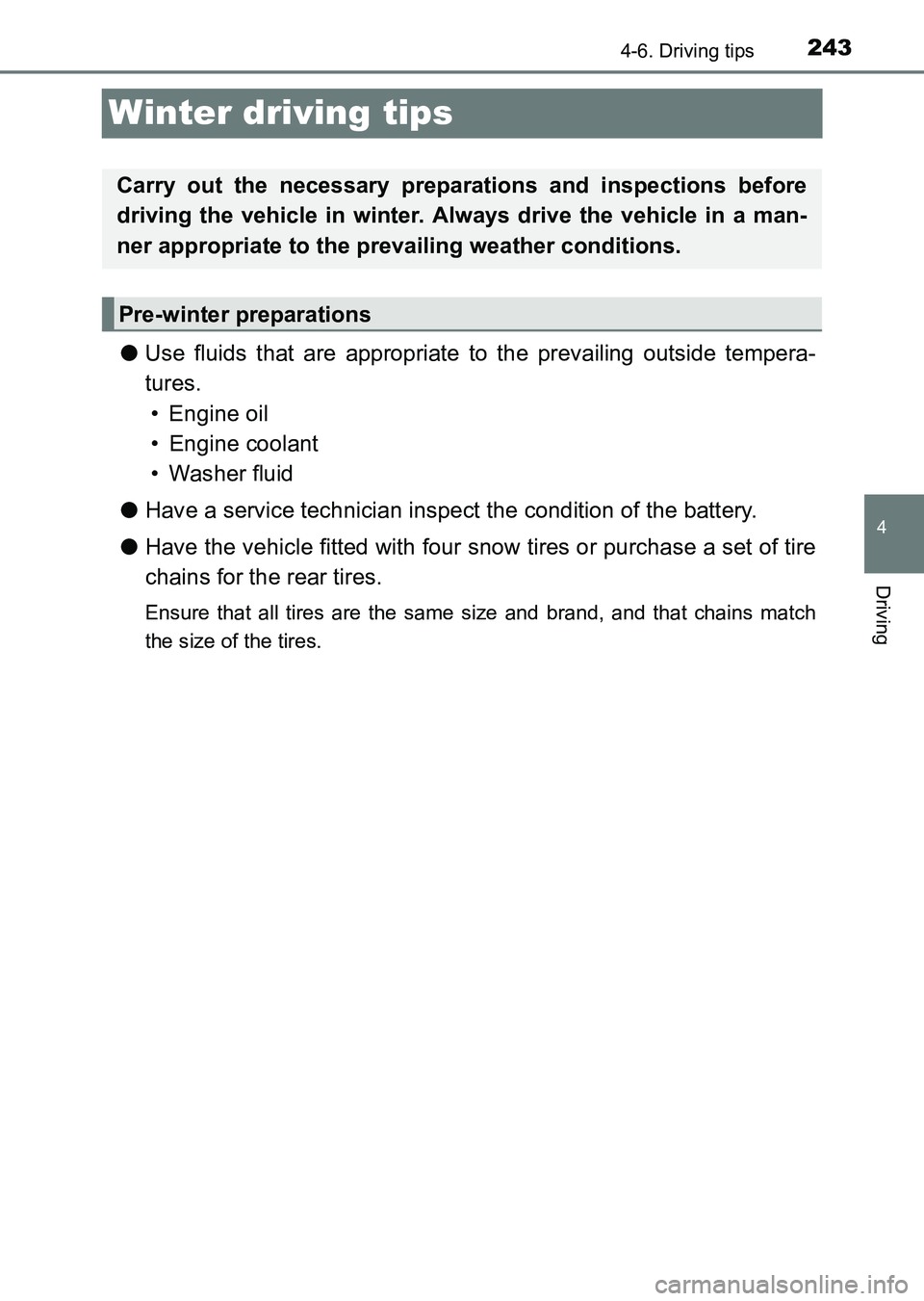

Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Pre-winter preparations
HILUX_OM_OM0K219E_(EE).book Page 243 Wednesday, May 14, 2014 3:06 PM

2444-6. Driving tips
HILUX_OM_OM0K219E_(EE)

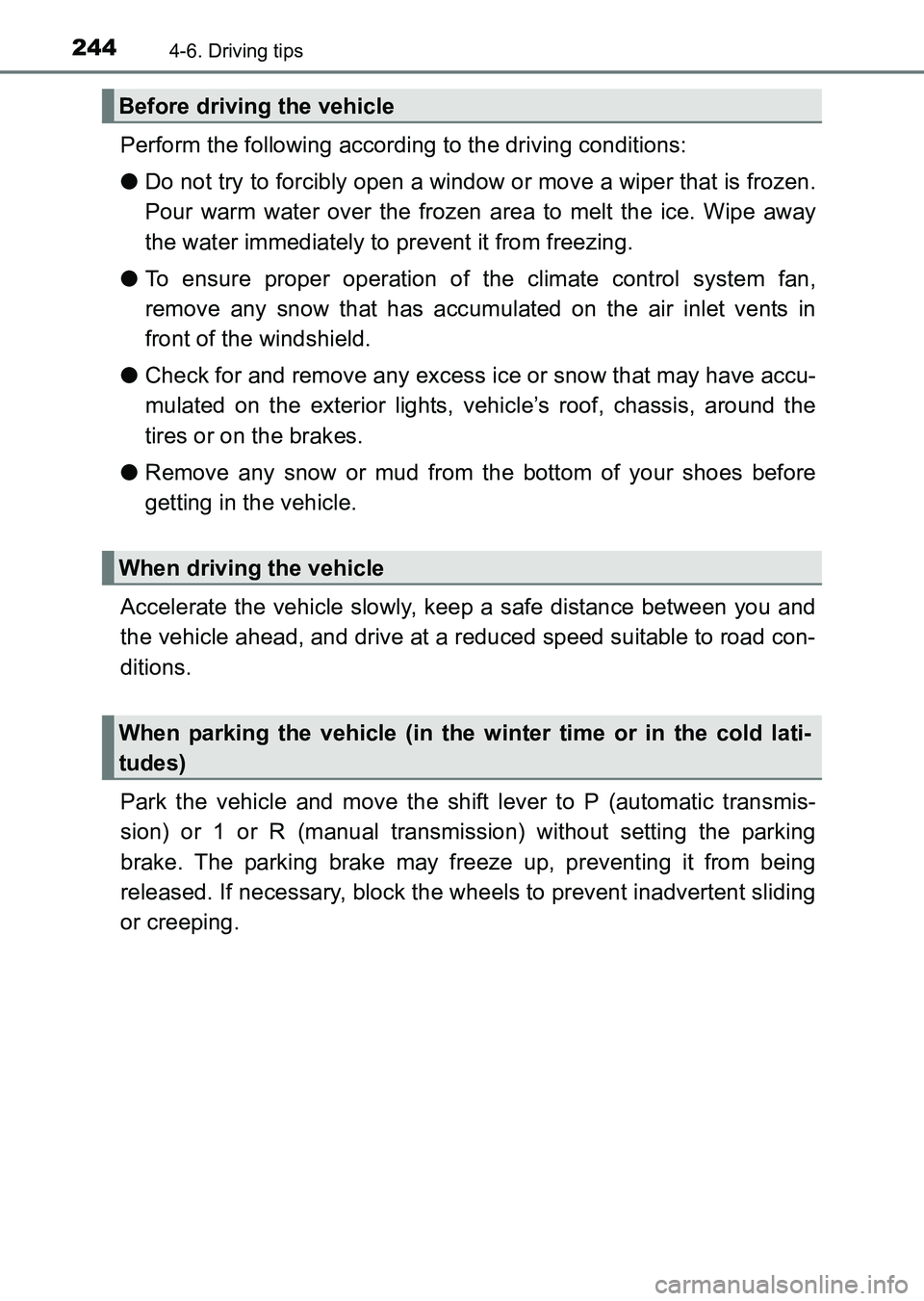

Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Park the vehicle and move the shift lever to P (automatic transmis-
sion) or 1 or R (manual transmission) without setting the parking
brake. The parking brake may freeze up, preventing it from being
released. If necessary, block the wheels to prevent inadvertent sliding
or creeping.
Before driving the vehicle
When driving the vehicle
When parking the vehicle (in the winter time or in the cold lati-
tudes)
HILUX_OM_OM0K219E_(EE).book Page 244 Wednesday, May 14, 2014 3:06 PM

2454-6. Driving tips
4
Driving
HILUX_OM_OM0K219E_(EE)

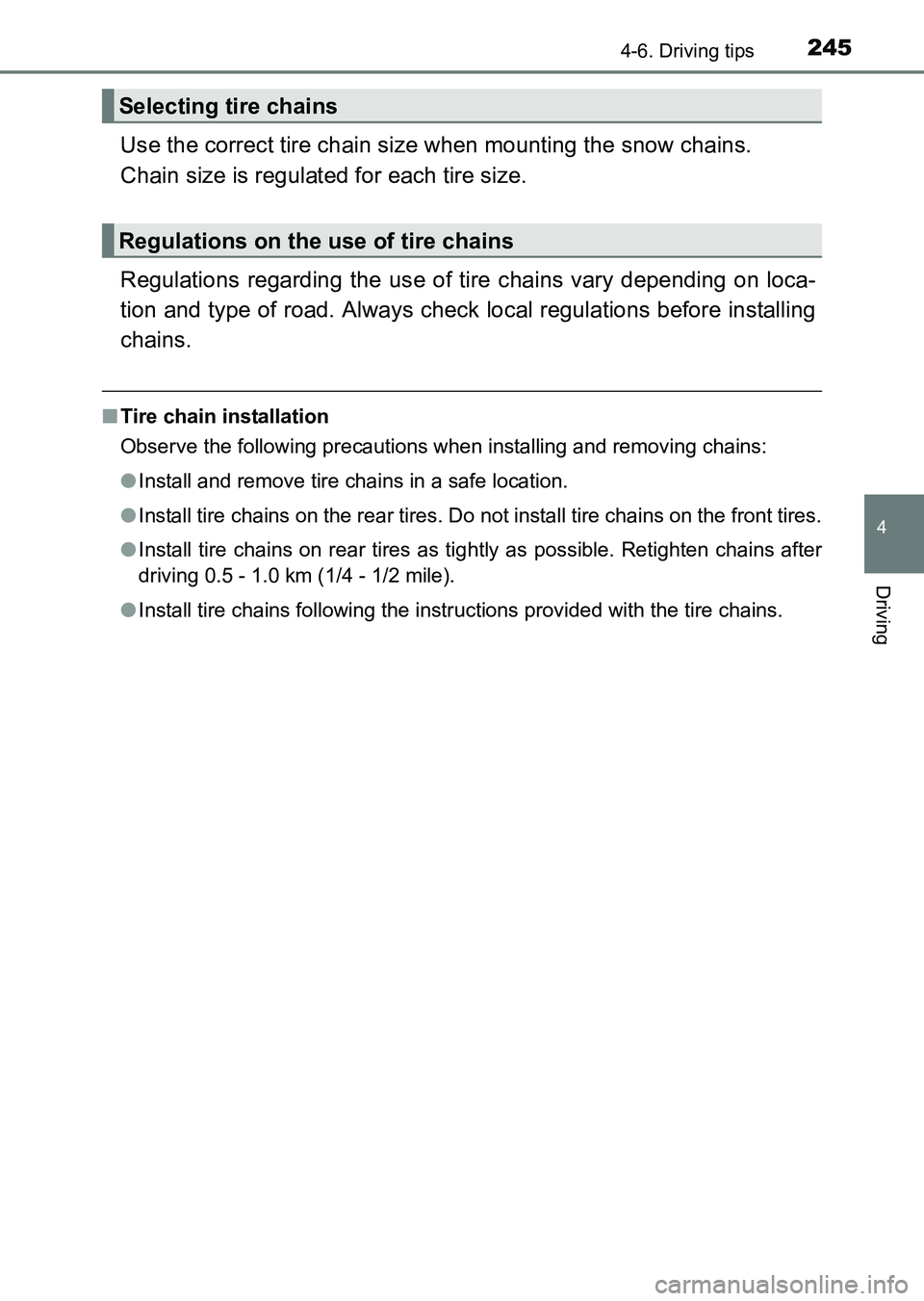

Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
■Tire chain installation
Observe the following precautions when installing and removing chains:
●Install and remove tire chains in a safe location.
● Install tire chains on the rear tires. Do not install tire chains on the front tires.
● Install tire chains on rear tires as ti ghtly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instru ctions provided with the tire chains.
Selecting tire chains
Regulations on the use of tire chains
HILUX_OM_OM0K219E_(EE).book Page 245 Wednesday, May 14, 2014 3:06 PM

2464-6. Driving tips
HILUX_OM_OM0K219E_(EE)

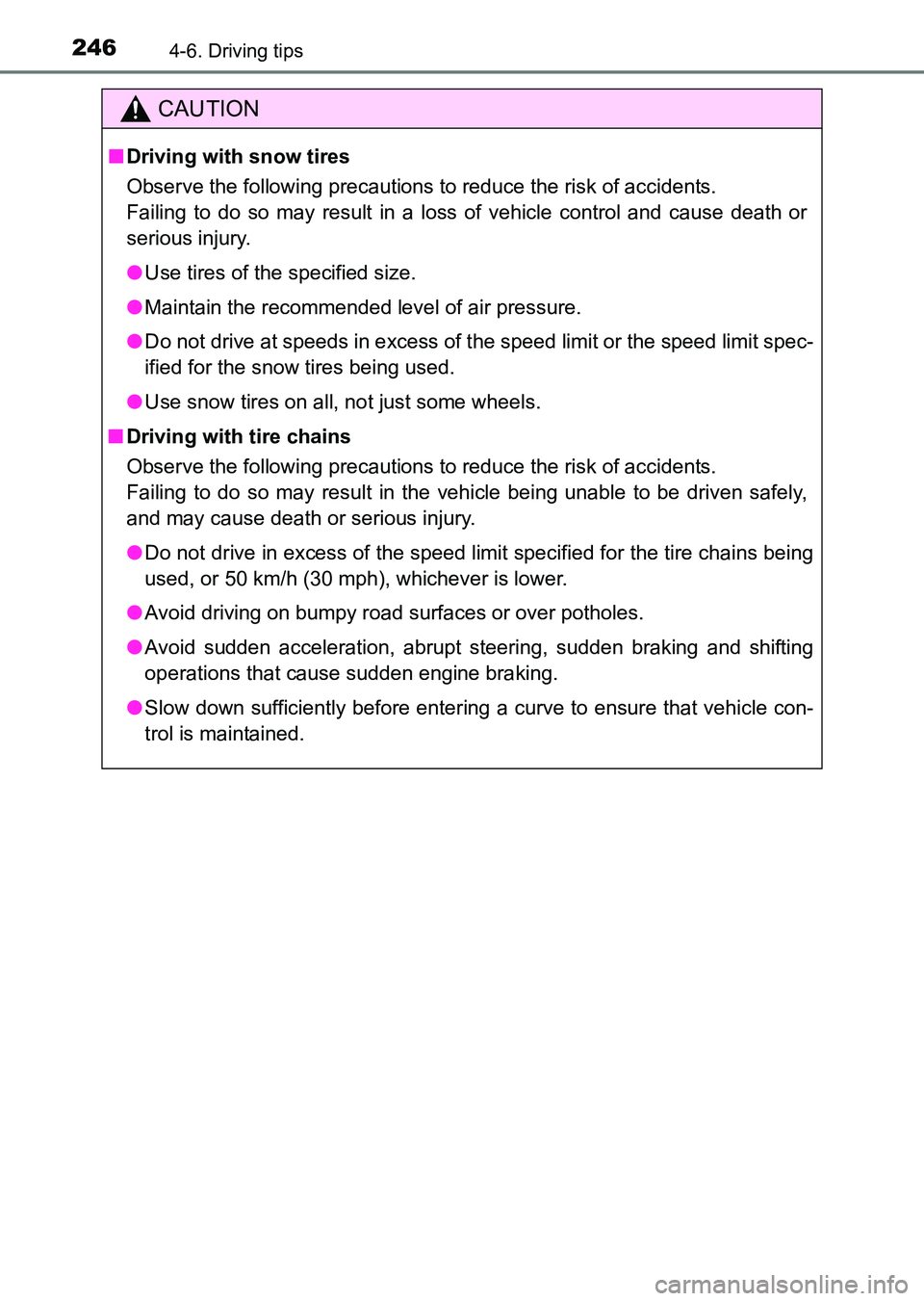

CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
HILUX_OM_OM0K219E_(EE).book Page 246 Wednesday, May 14, 2014 3:06 PM

2474-6. Driving tips
4
Driving
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 247 Wednesday, May 14, 2014 3:06 PM

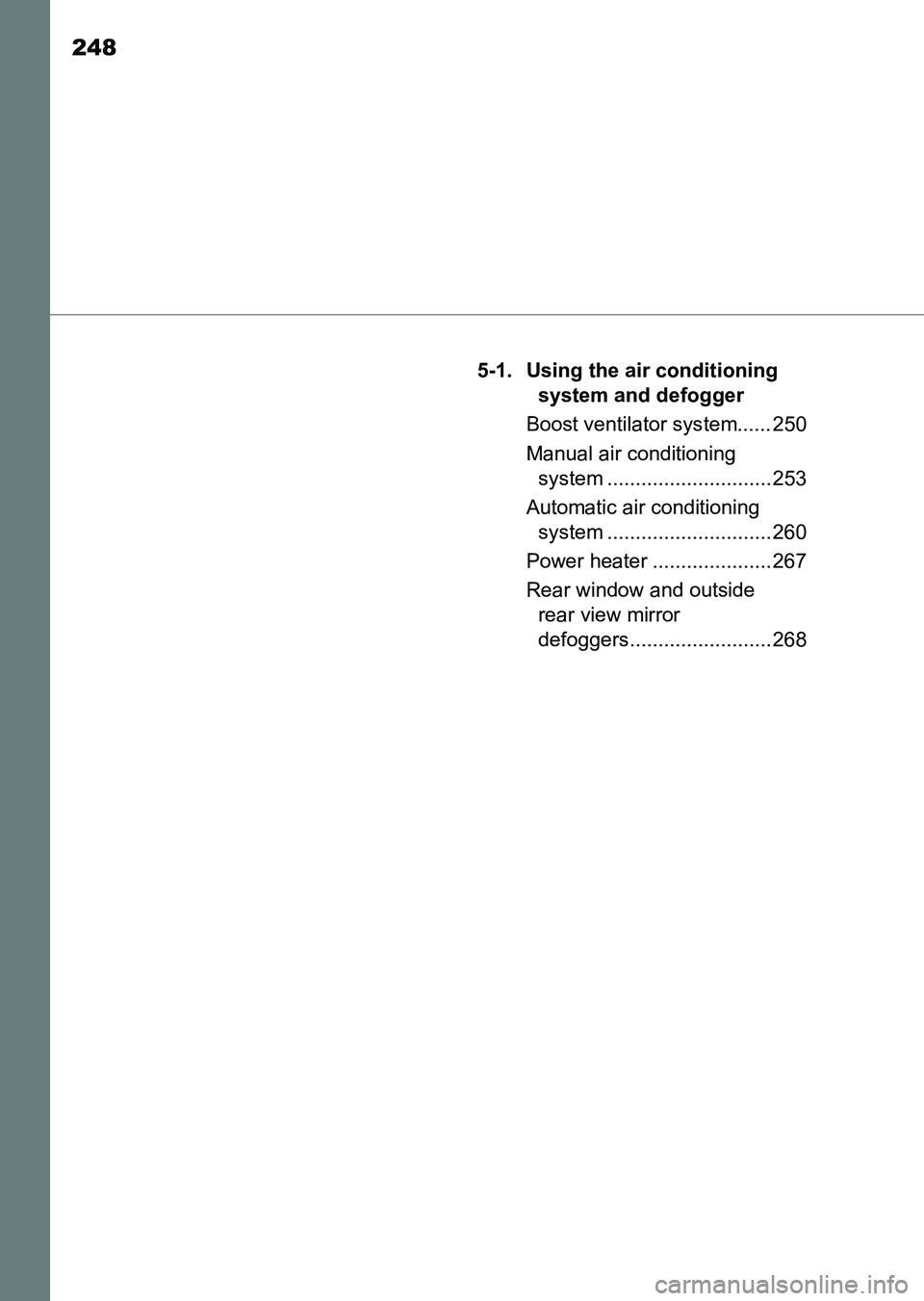

248
HILUX_OM_OM0K219E_(EE)5-1. Using the air conditioning
system and defogger
Boost ventilator system...... 250
Manual air conditioning system ............................. 253
Automatic air conditioning system ............................. 260
Power heater ..................... 267
Rear window and outside rear view mirror
defoggers......................... 268
HILUX_OM_OM0K219E_(EE).book Page 248 Wednesday, May 14, 2014 3:06 PM

249
5Interior features
HILUX_OM_OM0K219E_(EE)5-2. Using the audio system
Audio system type ............. 270
Using the radio .................. 272
Using the CD player .......... 276
Playing back MP3 and WMA discs....................... 281
Operating an iPod.............. 287
Operating a USB memory ................... 295
Optimal use of the audio system ................... 303
Using the AUX port ............ 306
Bluetooth
® audio/phone..... 307
Using the Bluetooth®
audio/phone ..................... 312
Operating a Bluetooth
®
enabled portable
player............................... 316
Making a phone call........... 319
Using the “SETUP” menu (“Bluetooth
*”
menu) .............................. 324
Using the “SETUP” menu (“TEL” or “PHONE”
menu) .............................. 331 5-3. Using the interior lights
Interior lights list ................. 338
• Personal/interior light main switch.................... 339
• Personal/interior lights .............................. 339
• Interior light.................... 340
5-4. Using the storage features List of storage features ...... 341
• Glove box ...................... 343
• Console box .................. 343
• Cup holders ................... 344
• Bottle holders ................ 345
• Auxiliary boxes .............. 346
Deck hooks ........................ 347
5-5. Other interior features Sun visors and vanity mirror ............................... 348
Clock .................................. 349
Ashtray............................... 350
Cigarette lighter ................. 351
Power outlet ....................... 352
Seat heaters ......................353
Compass............................ 355
Using the steering wheel audio switches .................361
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
HILUX_OM_OM0K219E_(EE).book Page 249 Wednesday, May 14, 2014 3:06 PM

2505-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)

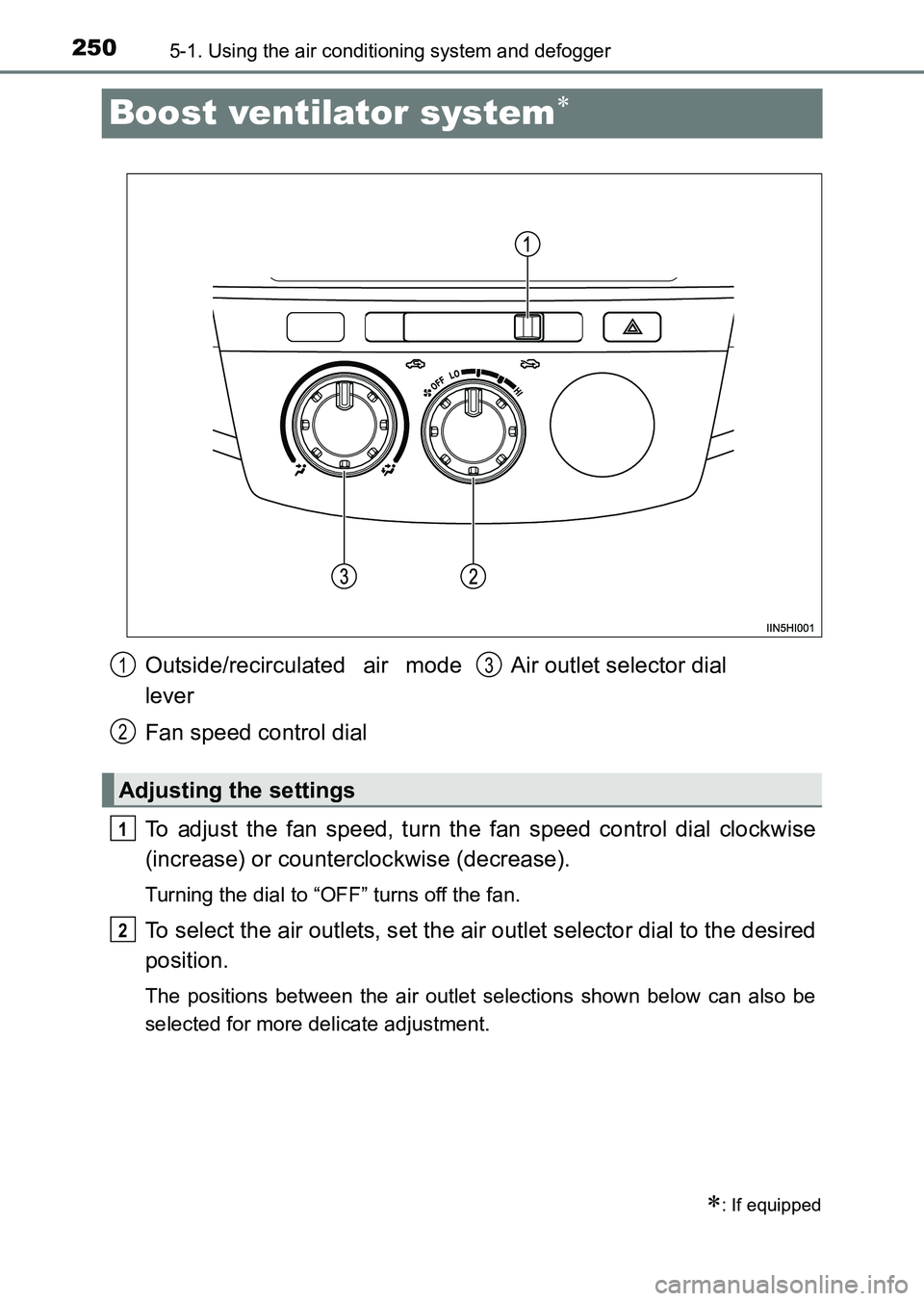

Boost ventilator system∗
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Turning the dial to “OFF” turns off the fan.
To select the air outlets, set the air outlet selector dial to the desired
position.
The positions between the air outlet selections shown below can also be
selected for more delicate adjustment.
∗: If equipped
Outside/recirculated air mode
lever
Fan speed control dialAir outlet selector dial
Adjusting the settings
1
2
3
1
2
HILUX_OM_OM0K219E_(EE).book Page 250 Wednesday, May 14, 2014
3:06 PM
