TOYOTA HILUX 2015 Owners Manual (in English)

2615-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)

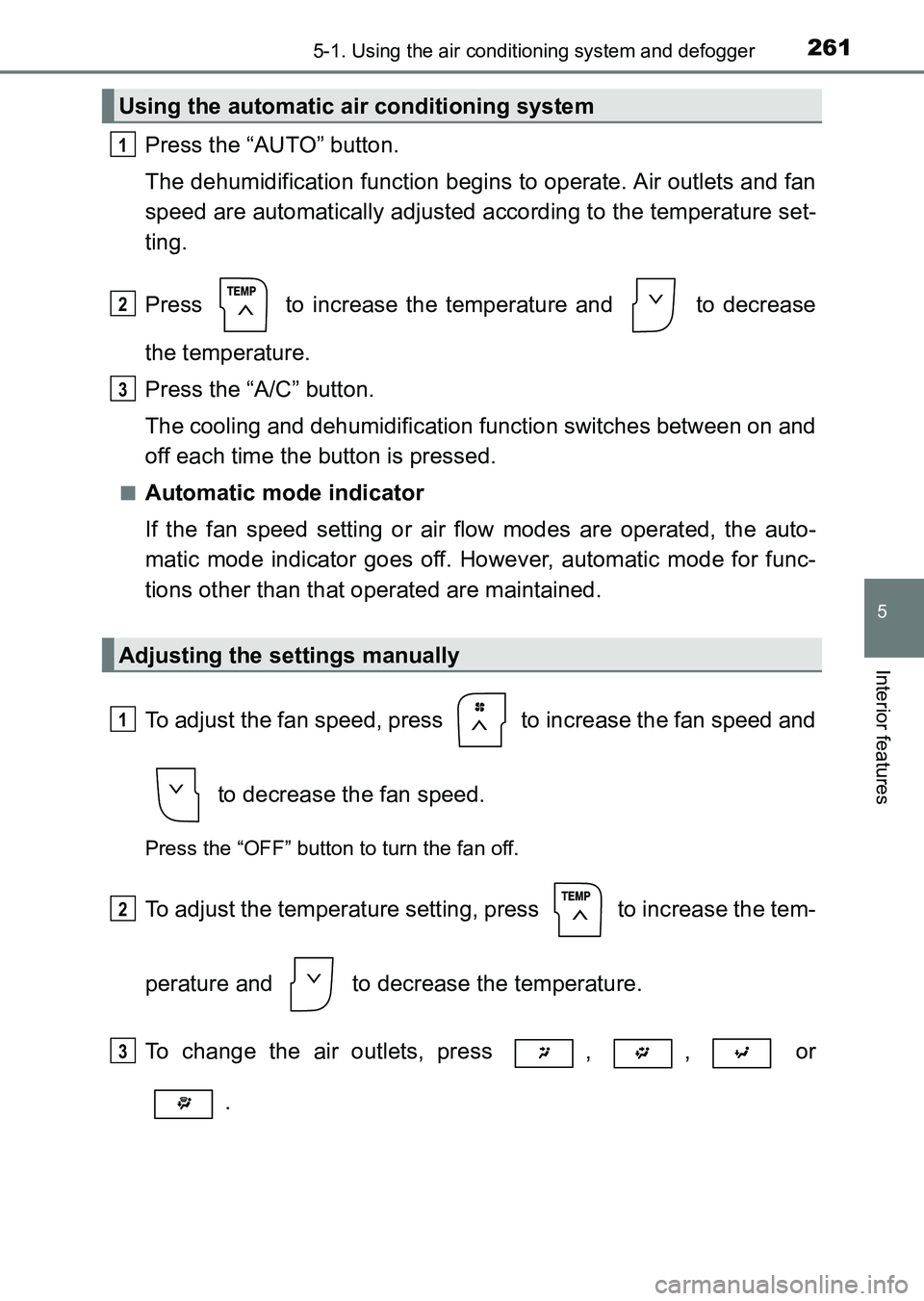

Press the “AUTO” button.
The dehumidification function begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press to increase the temperature and to decrease
the temperature.
Press the “A/C” button.
The cooling and dehumidification function switches between on and
off each time the button is pressed.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
To adjust the fan speed, press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off.
To adjust the temperature setting, press to increase the tem-
perature and to decrease the temperature.
To change the air outlets, press , , or .
Using the automatic air conditioning system
Adjusting the settings manually
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 261 Wednesday, May 14, 2014 3:06 PM

2625-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)

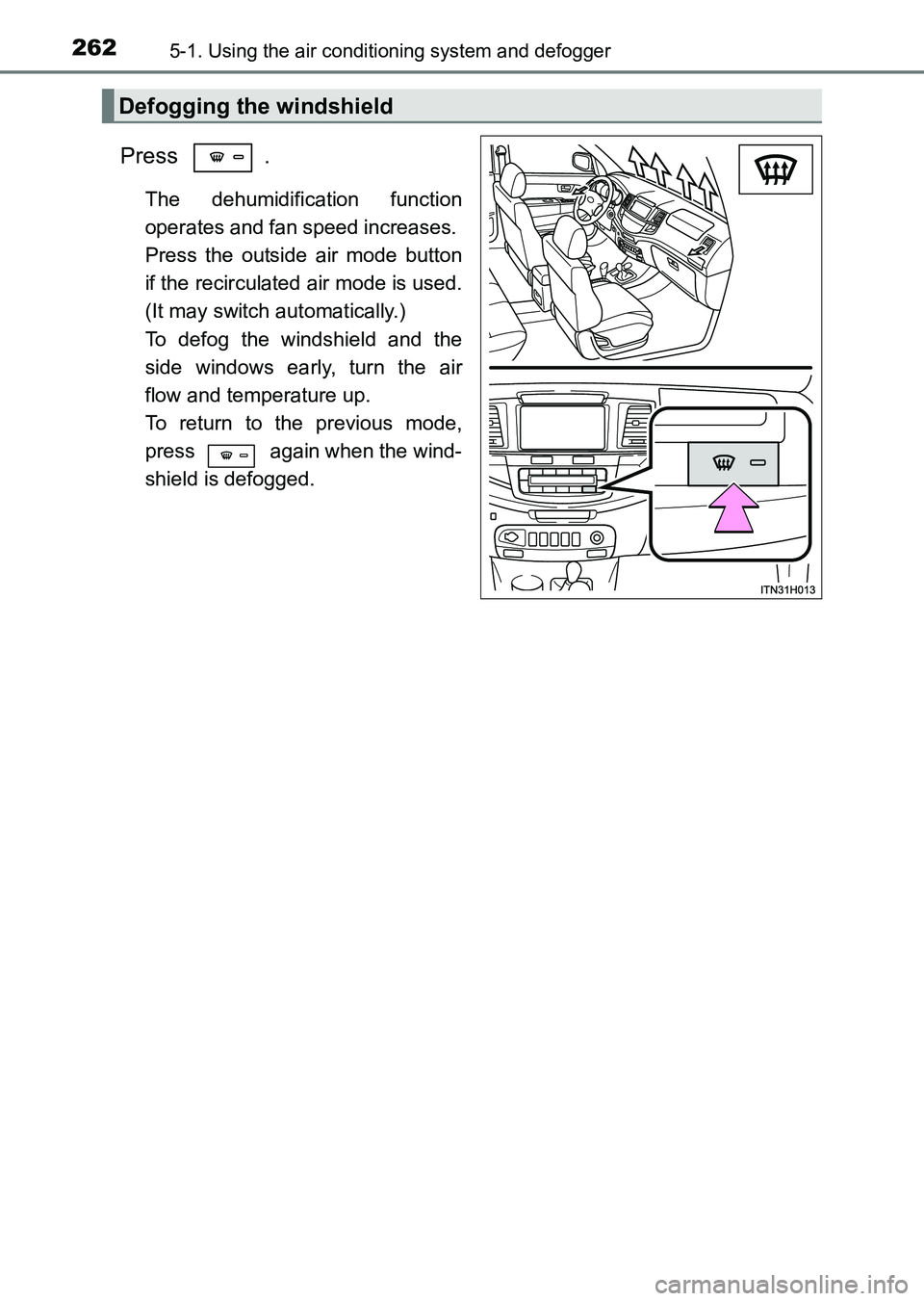

Press .
The dehumidification function
operates and fan speed increases.
Press the outside air mode button
if the recirculated air mode is used.
(It may switch automatically.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press again when the wind-
shield is defogged.
Defogging the windshield
HILUX_OM_OM0K219E_(EE).book Page 262 Wednesday, May 14, 2014 3:06 PM

2635-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)
Upper body
Upper body and feet: Some models
Feet
: Some models

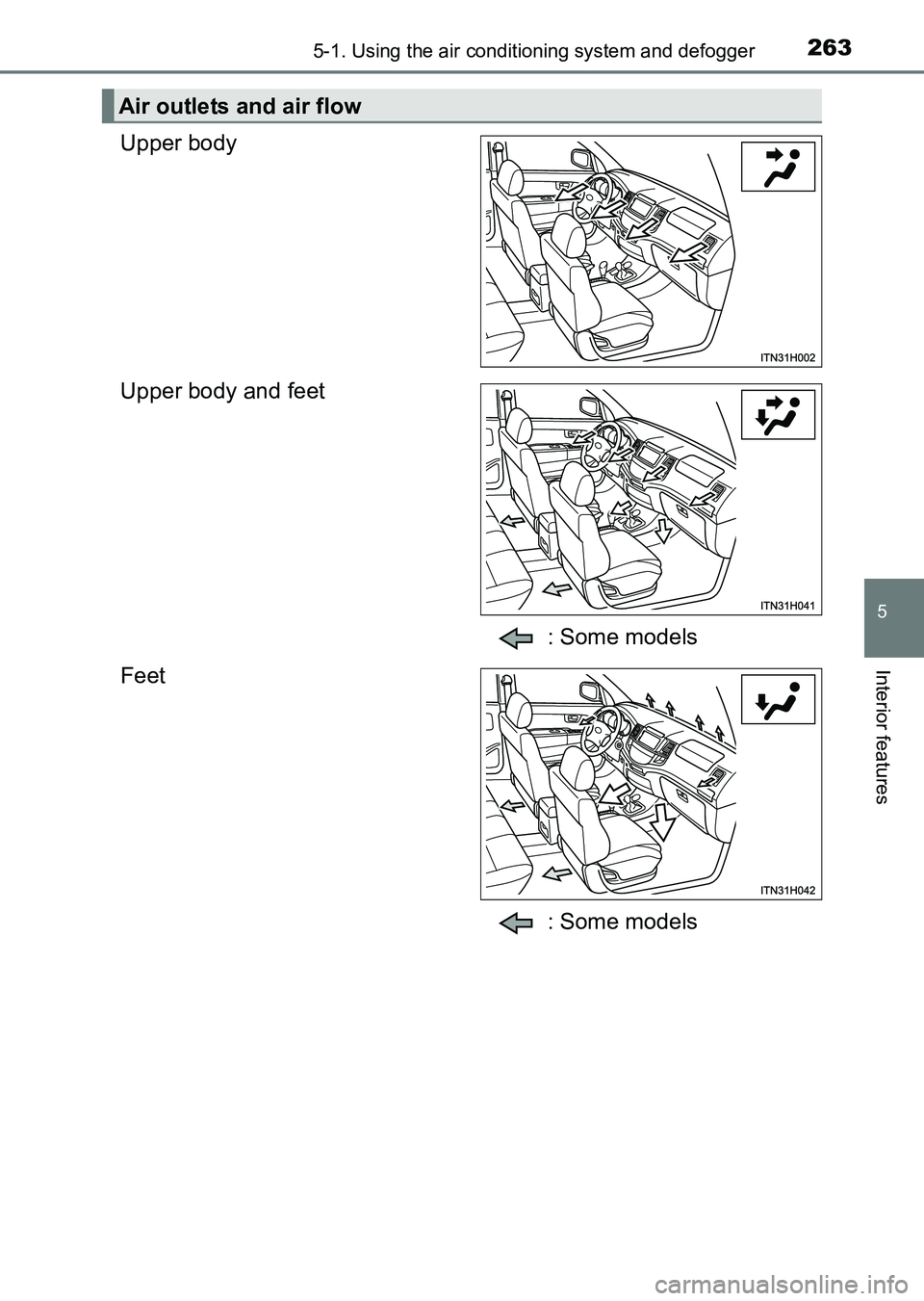

Air outlets and air flow
HILUX_OM_OM0K219E_(EE).book Page 263 Wednesday, May 14, 2014 3:06 PM

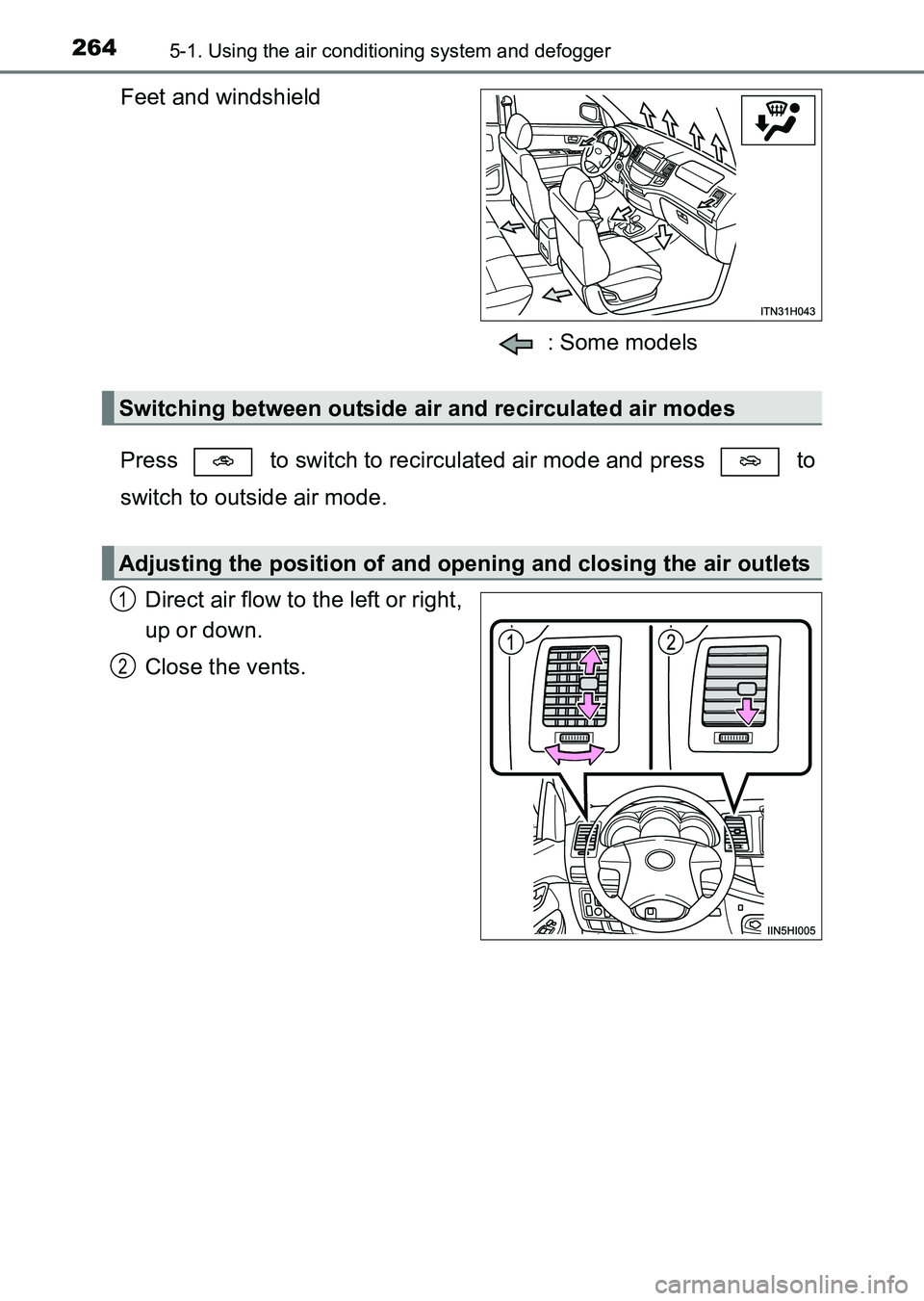

2645-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)
Feet and windshield: Some models
Press to switch to recirculated air mode and press to
switch to outside air mode. Direct air flow to the left or right,
up or down.
Close the vents.
Switching between outside air and recirculated air modes
Adjusting the position of and opening and closing the air outlets
1
2
HILUX_OM_OM0K219E_(EE).book Page 264 Wednesday, May 14, 2014 3:06 PM

2655-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)

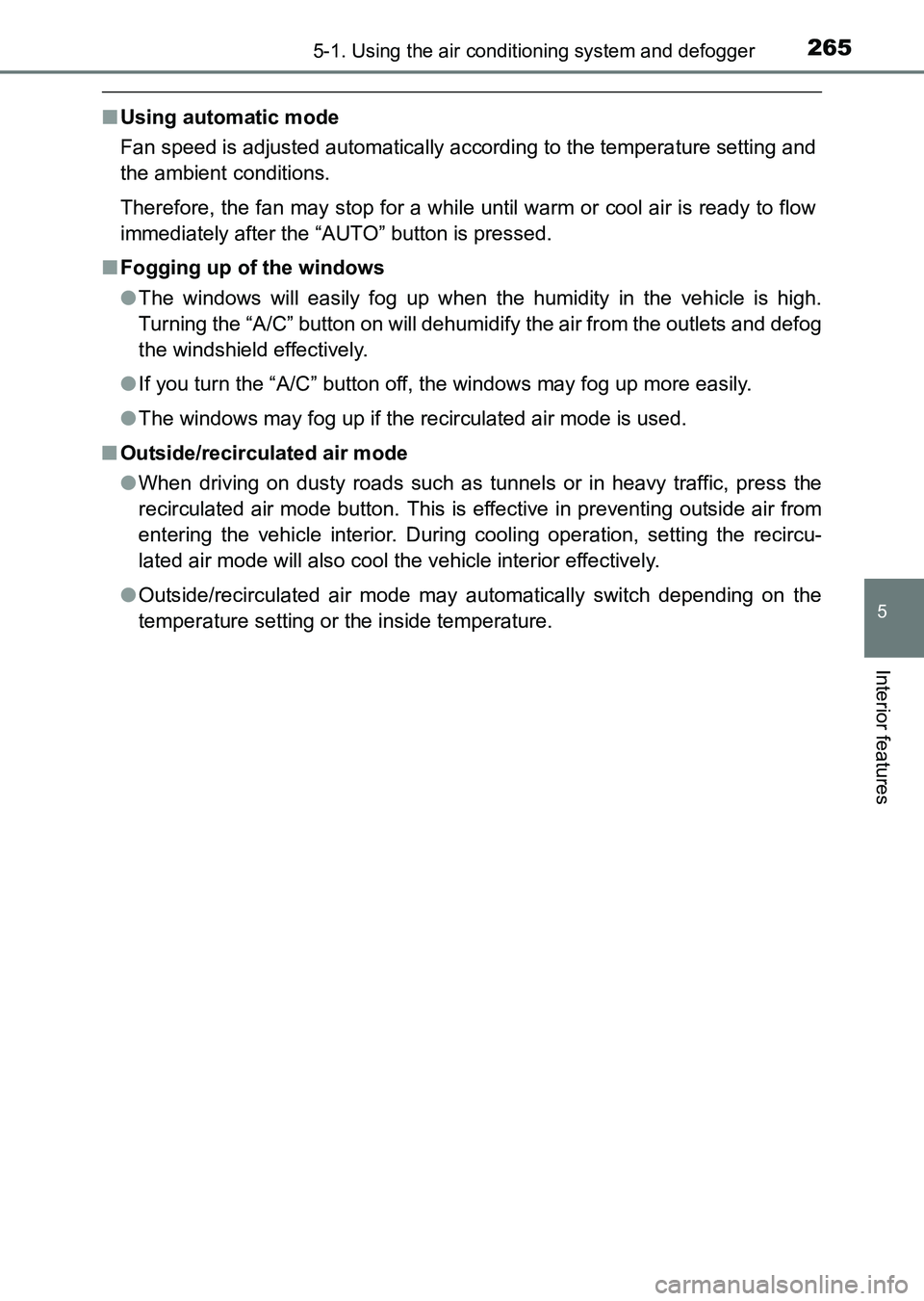

■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after the “AUTO” button is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning the “A/C” button on will dehumidify the air from the outlets and defog
the windshield effectively.
● If you turn the “A/C” button off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
●When driving on dusty roads such as t unnels or in heavy traffic, press the
recirculated air mode button. This is effective in preventing outside air from
entering the vehicle interior. During c ooling operation, setting the recircu-
lated air mode will also cool t he vehicle interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
HILUX_OM_OM0K219E_(EE).book Page 265 Wednesday, May 14, 2014 3:06 PM

2665-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)■

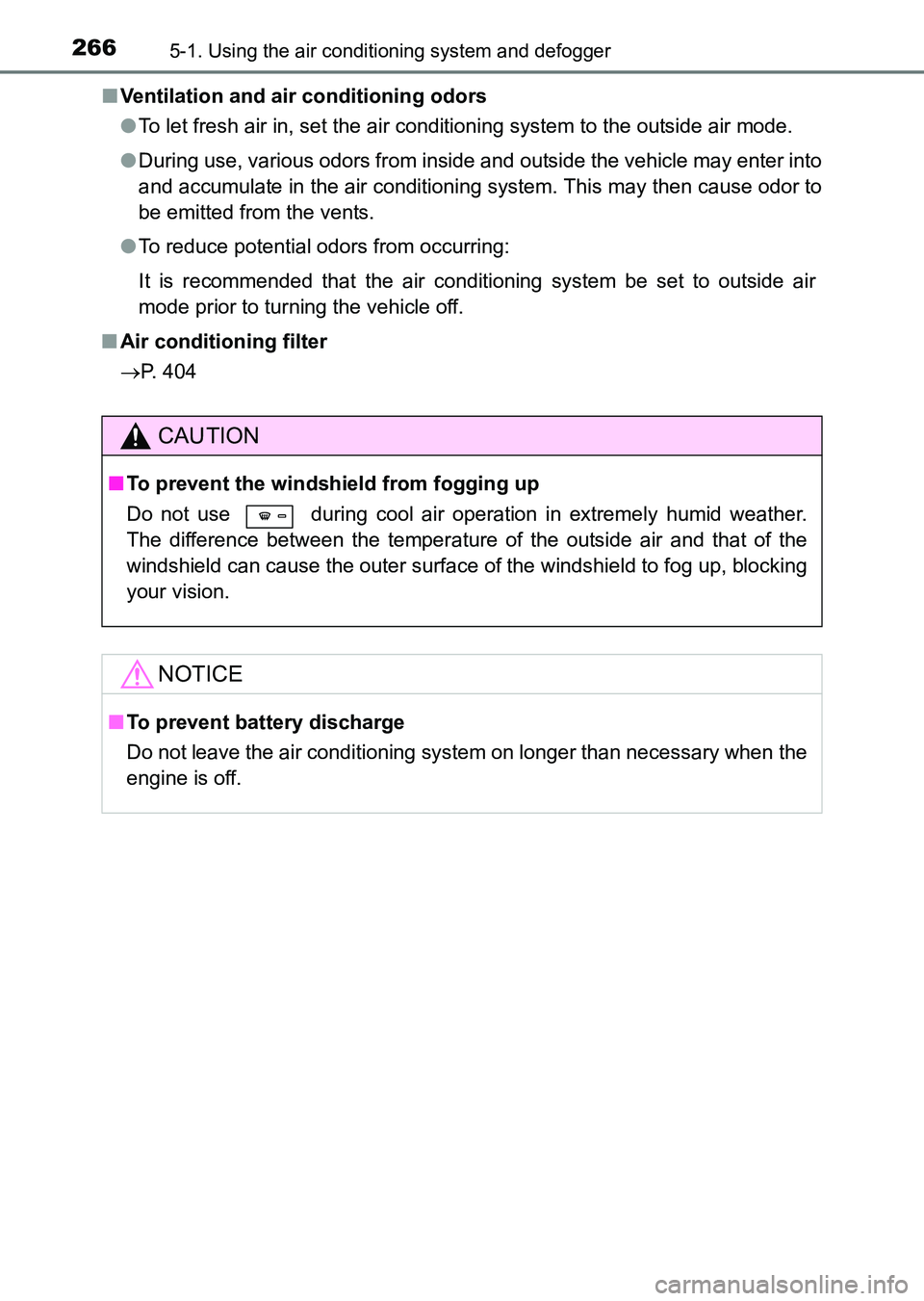

Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■ Air conditioning filter
→ P. 404
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning syst em on longer than necessary when the
engine is off.
HILUX_OM_OM0K219E_(EE).book Page 266 Wednesday, May 14, 2014 3:06 PM

267
5
5-1. Using the air conditioning system and defogger
Interior features
HILUX_OM_OM0K219E_(EE)

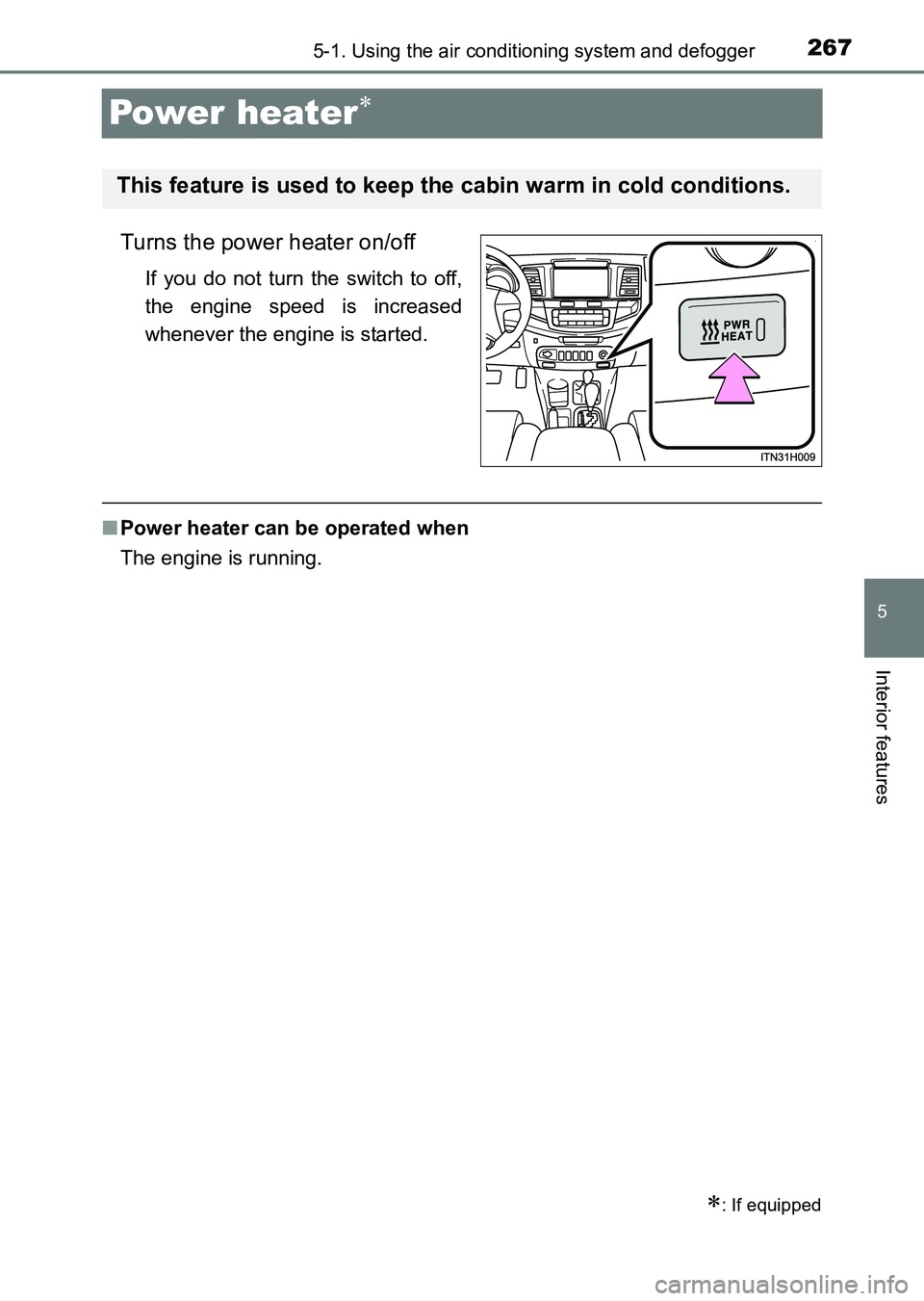

Power heater∗
Turns the power heater on/off
If you do not turn the switch to off,
the engine speed is increased
whenever the engine is started.
■Power heater can be operated when
The engine is running.
∗: If equipped
This feature is used to keep the cabin warm in cold conditions.
HILUX_OM_OM0K219E_(EE).book Page 267 Wednesday, May 14, 2014 3:06 PM

2685-1. Using the air conditioning system and defogger
HILUX_OM_OM0K219E_(EE)

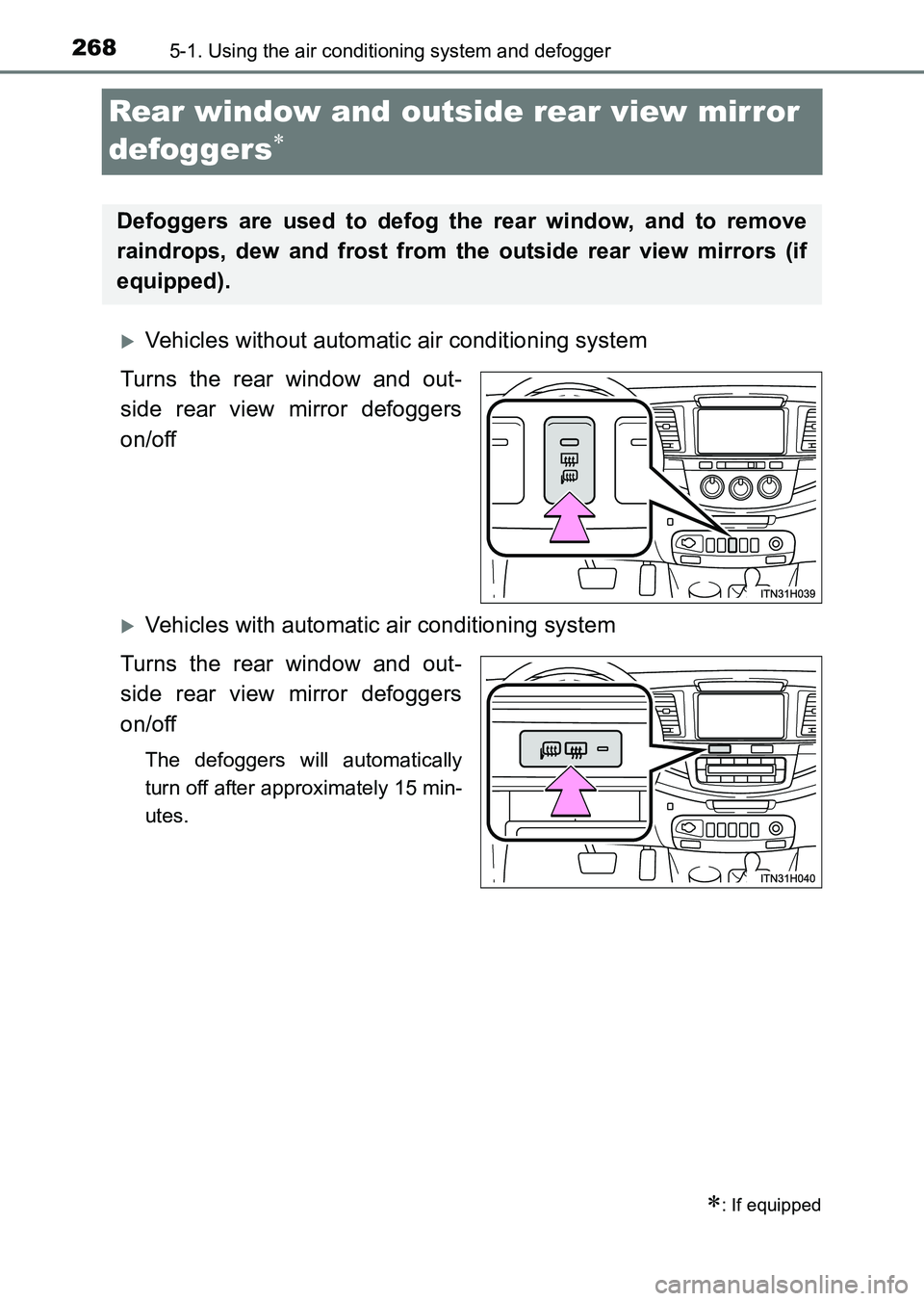

Rear window and outside rear view mirror
defoggers
∗
XVehicles without automatic air conditioning system
Turns the rear window and out-
side rear view mirror defoggers
on/off
XVehicles with automatic air conditioning system
Turns the rear window and out-
side rear view mirror defoggers
on/off
The defoggers will automatically
turn off after approximately 15 min-
utes.
∗: If equipped
Defoggers are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors (if
equipped).
HILUX_OM_OM0K219E_(EE).book Page 268 Wednesday, May 14, 2014 3:06 PM

2695-1. Using the air conditioning system and defogger
5
Interior features
HILUX_OM_OM0K219E_(EE)

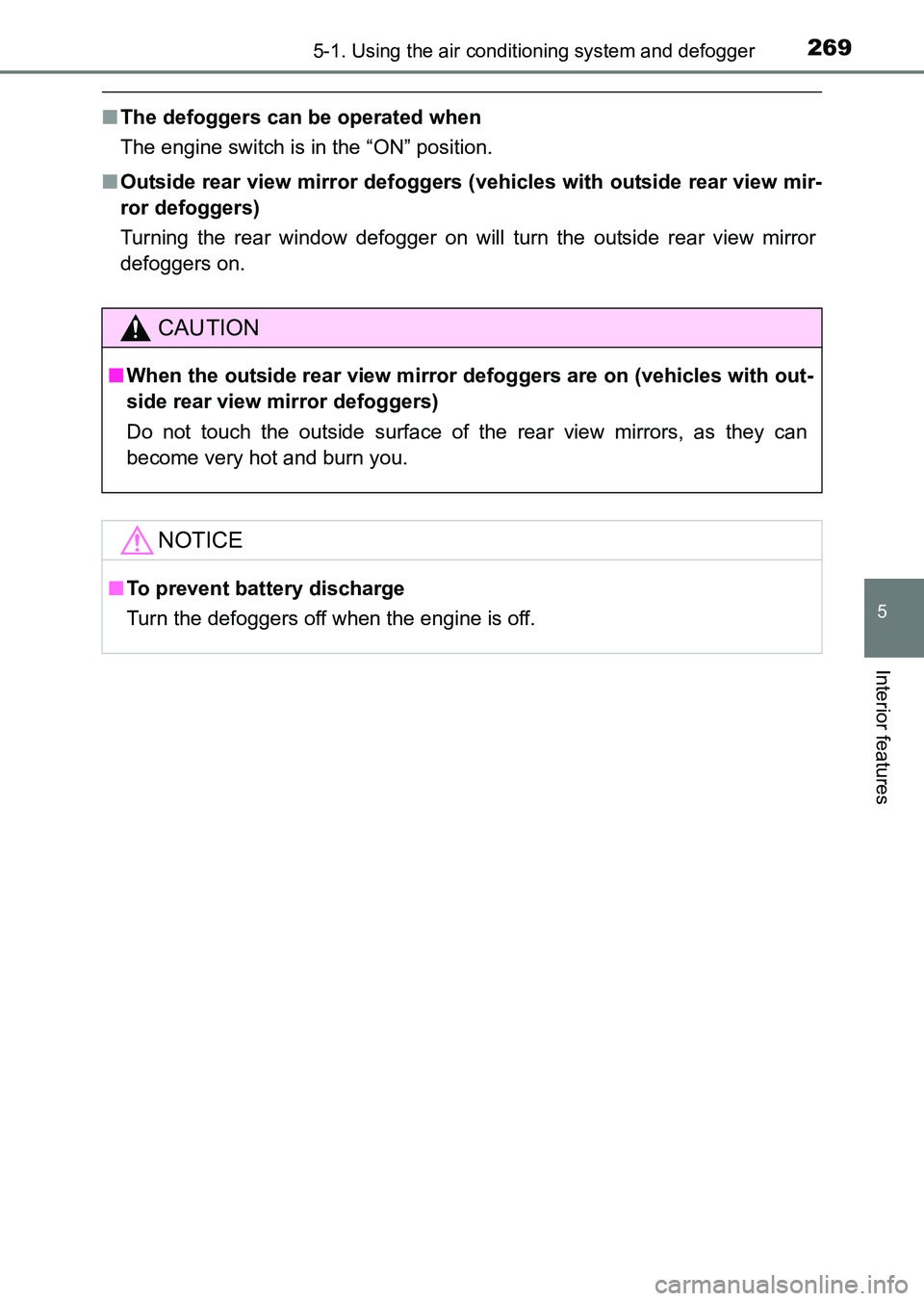

■The defoggers can be operated when
The engine switch is in the “ON” position.
■ Outside rear view mirror defoggers (vehicles with outside rear view mir-
ror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.
HILUX_OM_OM0K219E_(EE).book Page 269 Wednesday, May 14, 2014 3:06 PM

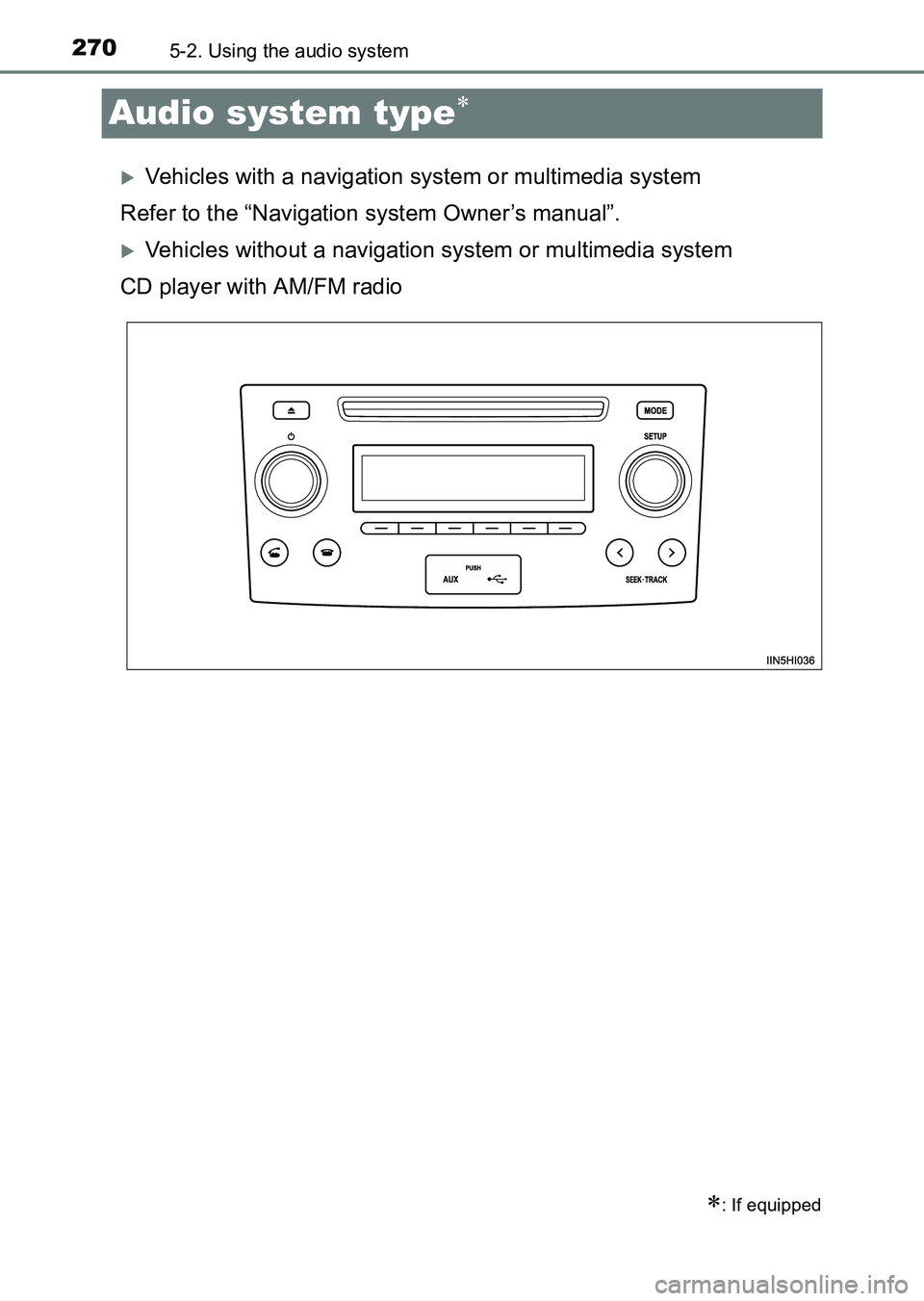

2705-2. Using the audio system
HILUX_OM_OM0K219E_(EE)
Audio system type∗
XVehicles with a navigation system or multimedia system
Refer to the “Navigation system Owner’s manual”.
XVehicles without a navigation system or multimedia system
CD player with AM/FM radio
∗: If equipped
HILUX_OM_OM0K219E_(EE).book Page 270 Wednesday, May 14, 2014 3:06 PM
