2Instrument cluster
HILUX_OM_OM0K219E_(EE)2. Instrument cluster

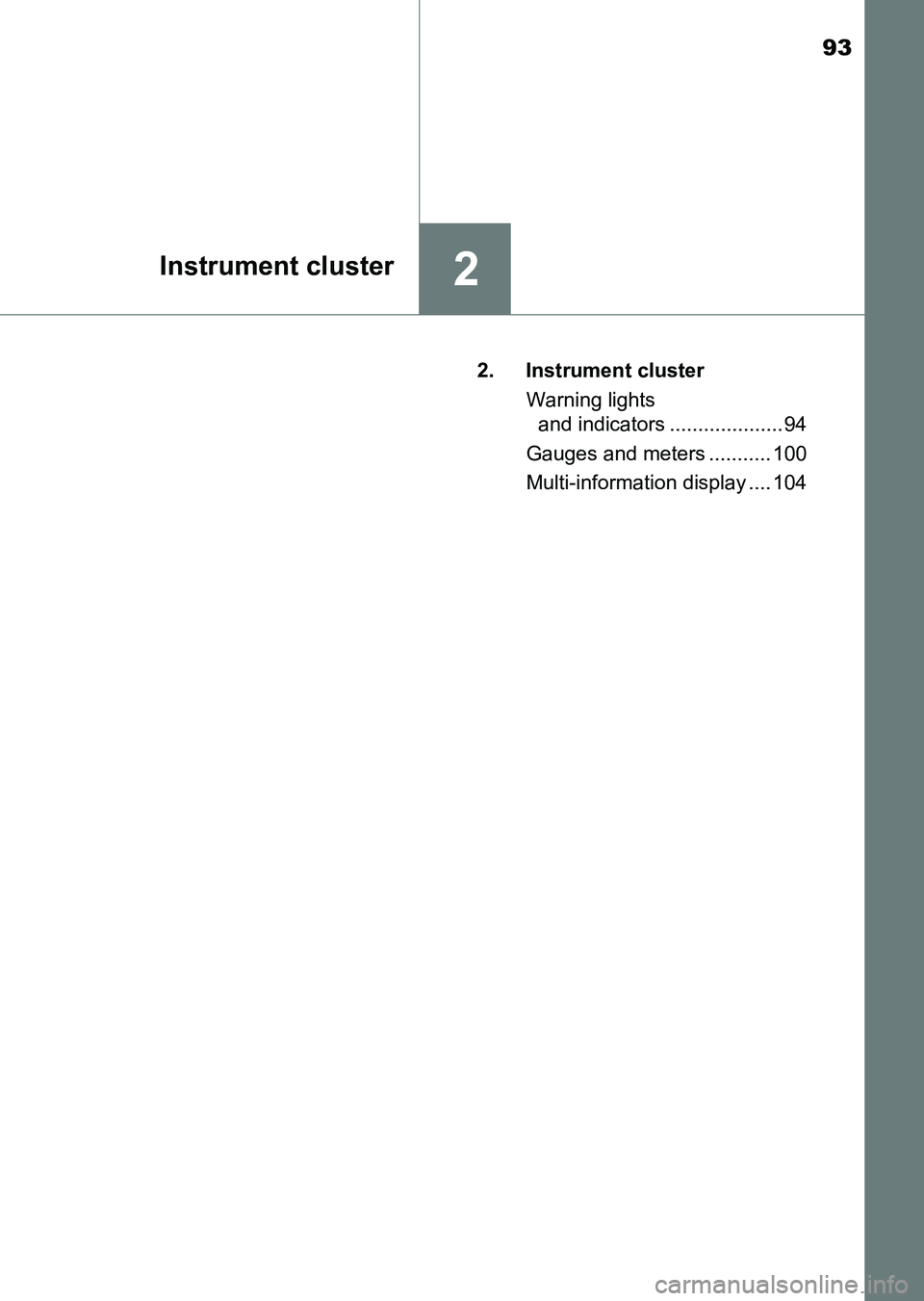

Warning lights and indicators .................... 94
Gauges and meters ........... 100
Multi-information display .... 104
HILUX_OM_OM0K219E_(EE).book Page 93 Wednesday, May 14, 2014 3:06 PM

952. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

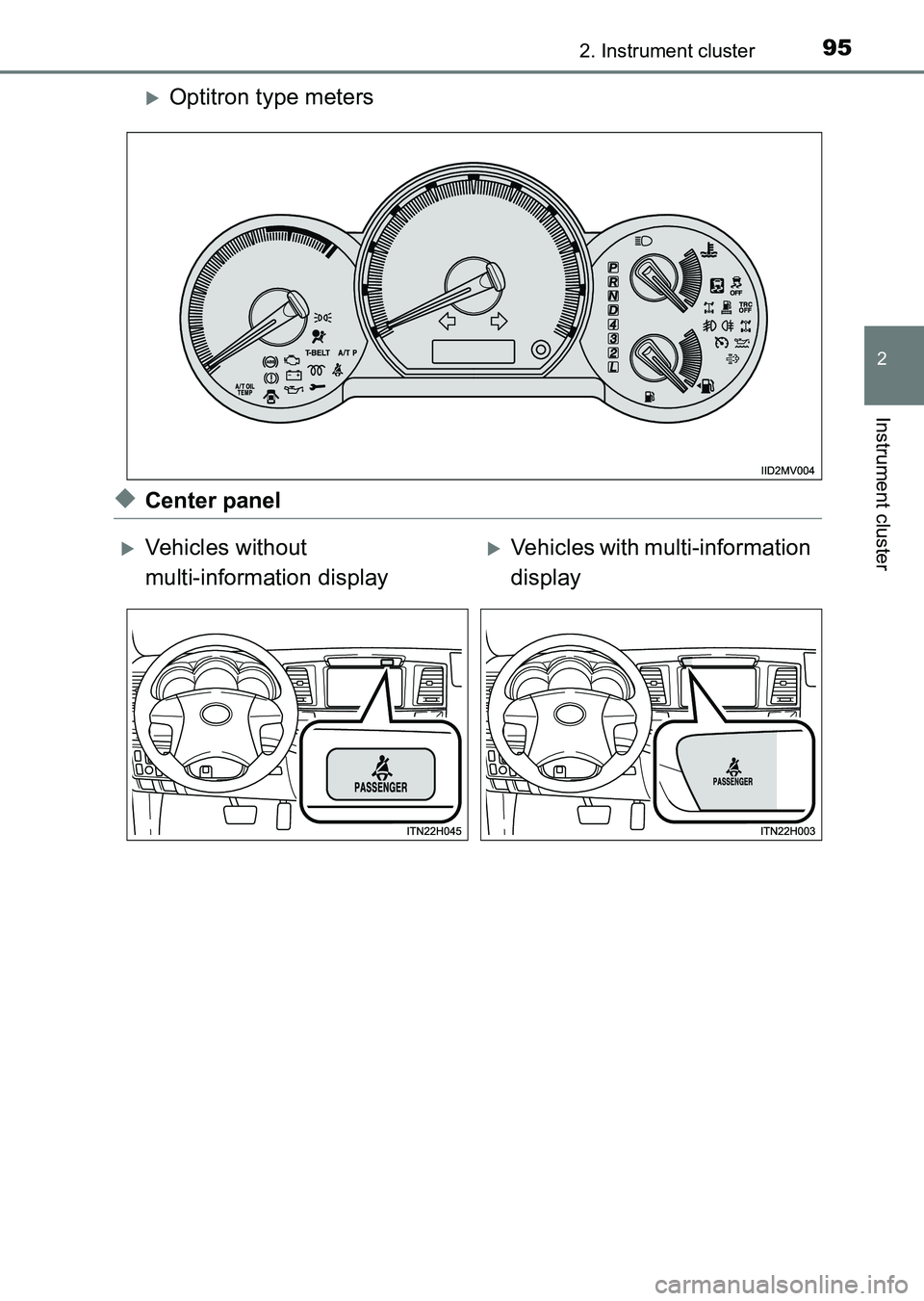

XOptitron type meters
◆Center panel
XVehicles without
multi-information displayXVehicles with multi-information
display
HILUX_OM_OM0K219E_(EE).book Page 95 Wednesday, May 14, 2014 3:06 PM

1012. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

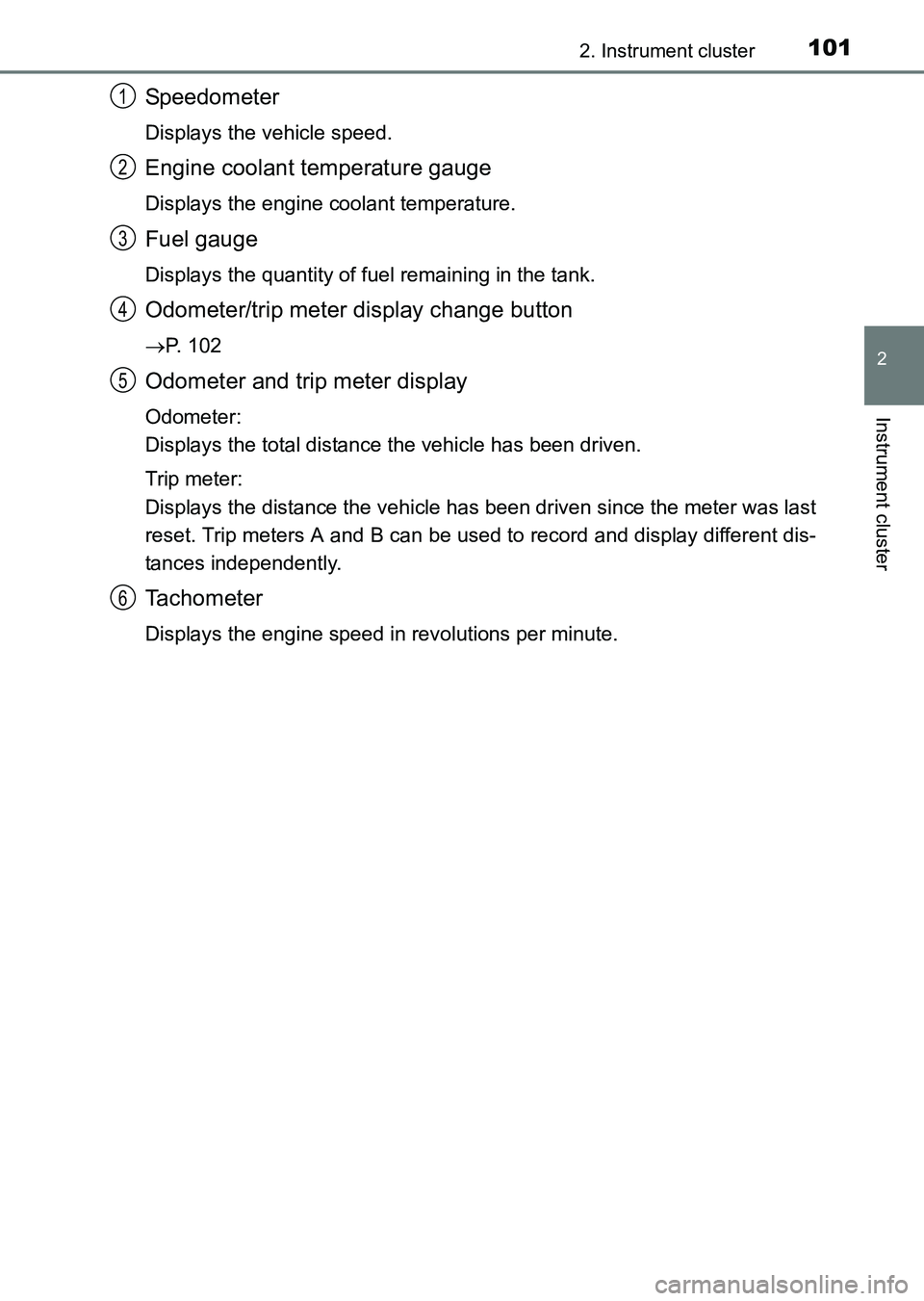

Speedometer
Displays the vehicle speed.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
→P. 102
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Tachometer
Displays the engine speed in revolutions per minute.
1
2
3
4
5
6
HILUX_OM_OM0K219E_(EE).book Page 101 Wednesday, May 14, 2014 3:06 PM

1022. Instrument cluster
HILUX_OM_OM0K219E_(EE)

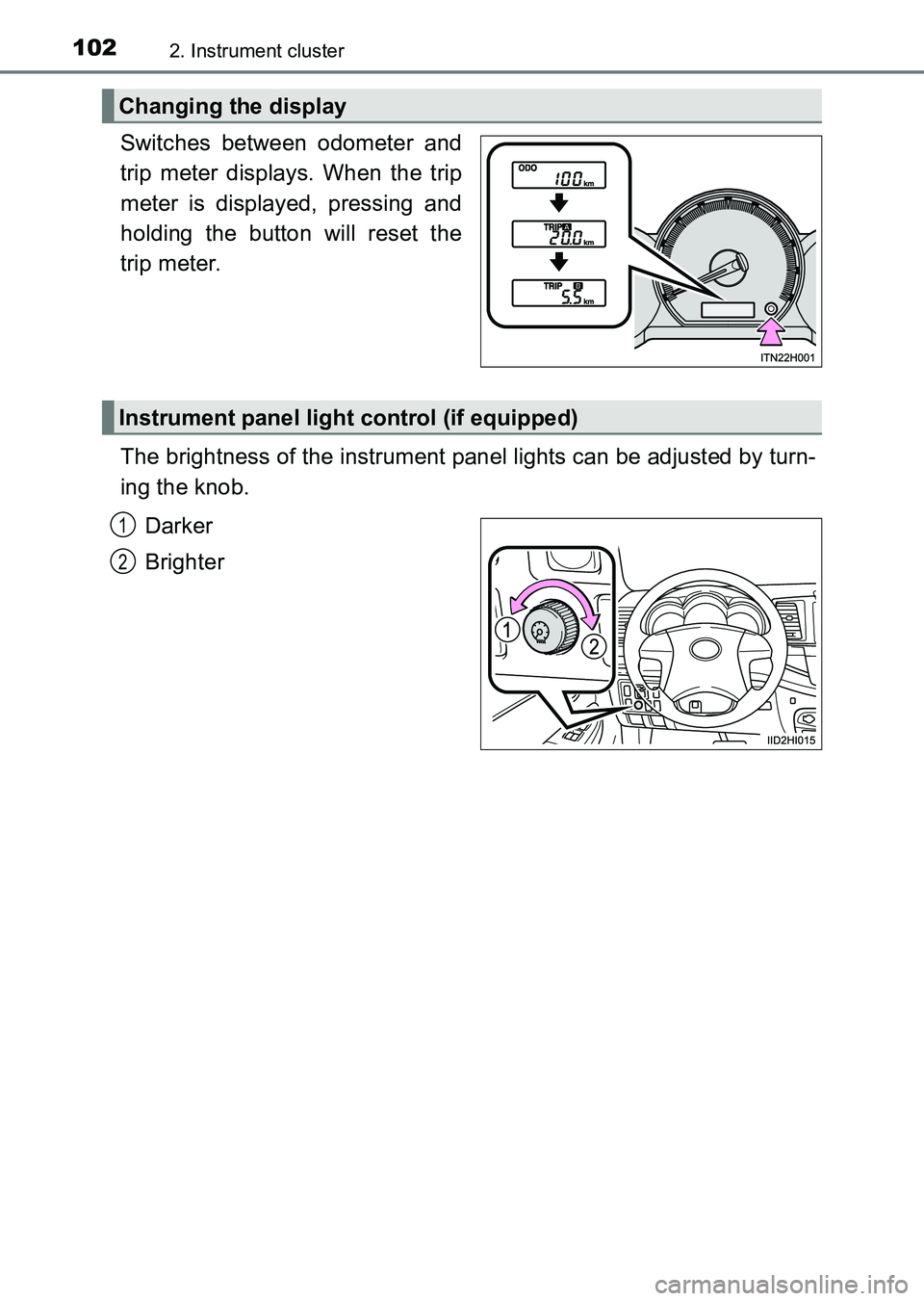

Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
The brightness of the instrument panel lights can be adjusted by turn-
ing the knob.Darker
Brighter
Changing the display
Instrument panel light control (if equipped)
1
2
HILUX_OM_OM0K219E_(EE).book Page 102 Wednesday, May 14, 2014 3:06 PM

1032. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

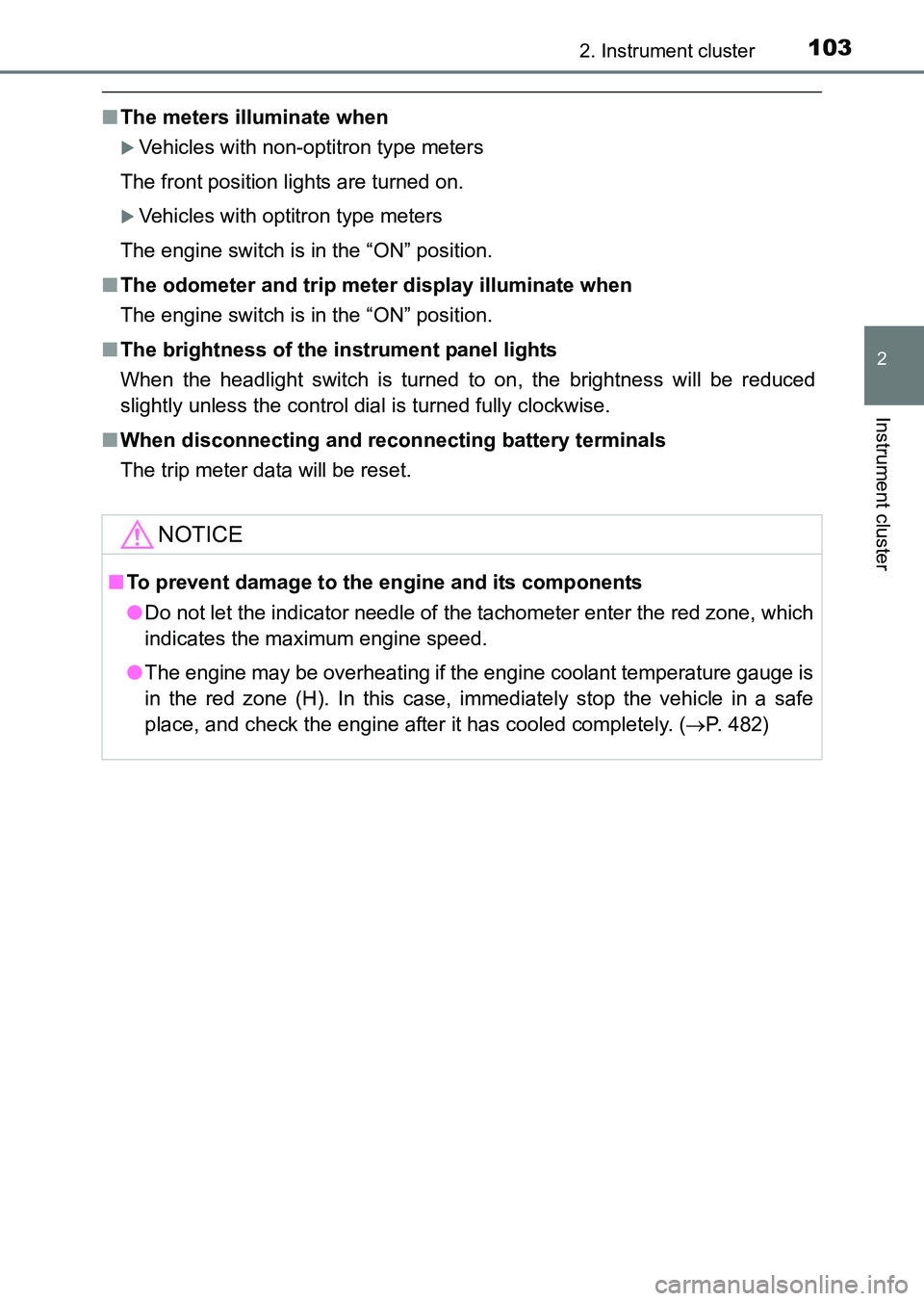

■The meters illuminate when
XVehicles with non-optitron type meters
The front position lights are turned on.
XVehicles with optitron type meters
The engine switch is in the “ON” position.
■ The odometer and trip meter display illuminate when
The engine switch is in the “ON” position.
■ The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully clockwise.
■ When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
NOTICE
■To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 482)
HILUX_OM_OM0K219E_(EE).book Page 103 Wednesday, May 14, 2014 3:06 PM

1042. Instrument cluster
HILUX_OM_OM0K219E_(EE)

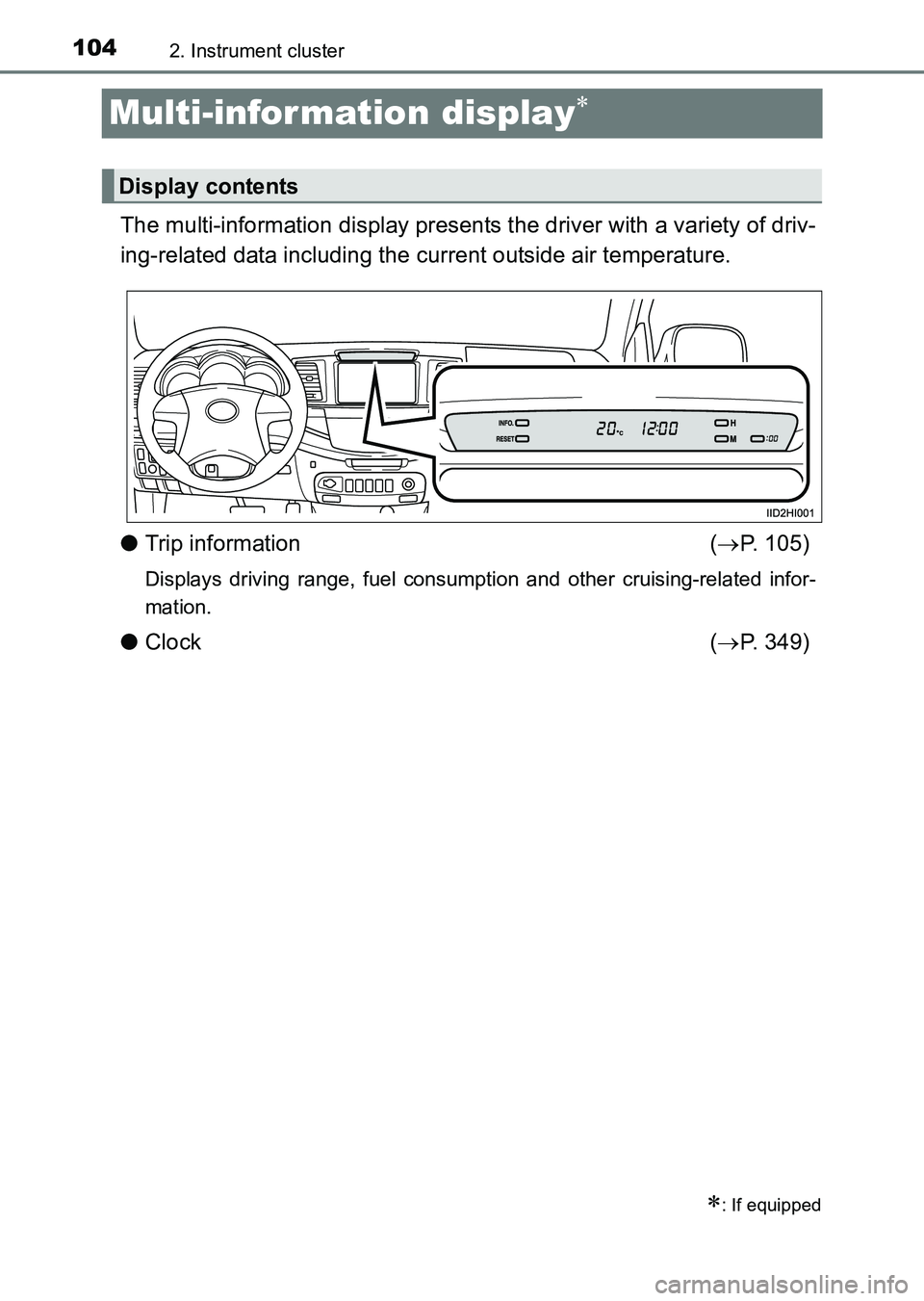

Multi-information display∗
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
●Trip information ( →P. 105)
Displays driving range, fuel consumption and other cruising-related infor-
mation.
● Clock ( →P. 349)
∗: If equipped
Display contents
HILUX_OM_OM0K219E_(EE).book Page 104 Wednesday, May 14, 2014 3:06 PM

1052. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)■

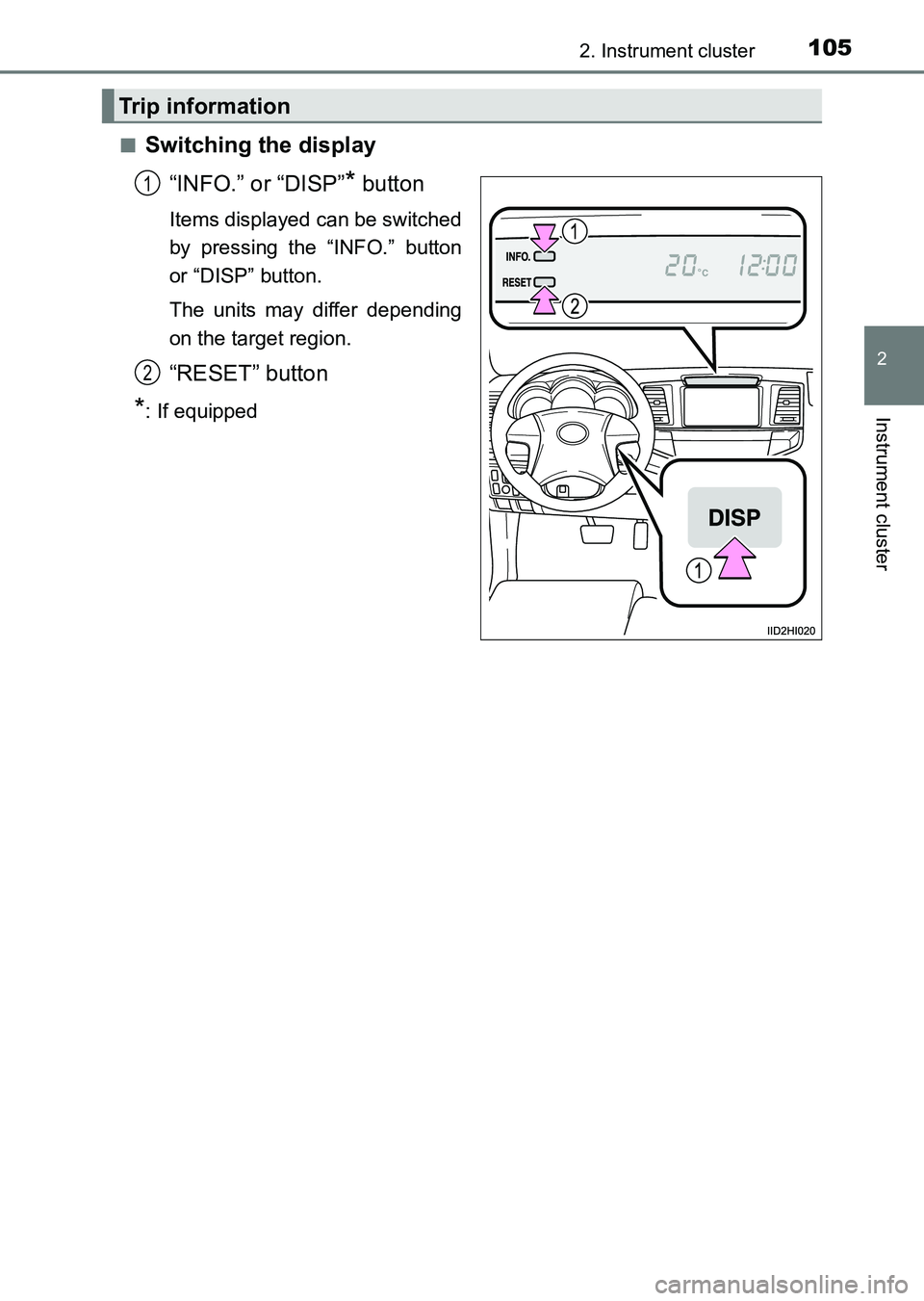

Switching the display
“INFO.” or “DISP”
* button
Items displayed can be switched
by pressing the “INFO.” button
or “DISP” button.
The units may differ depending
on the target region.
“RESET” button
*: If equipped
Trip information
1
2
HILUX_OM_OM0K219E_(EE).book Page 105 Wednesday, May 14, 2014 3:06 PM
