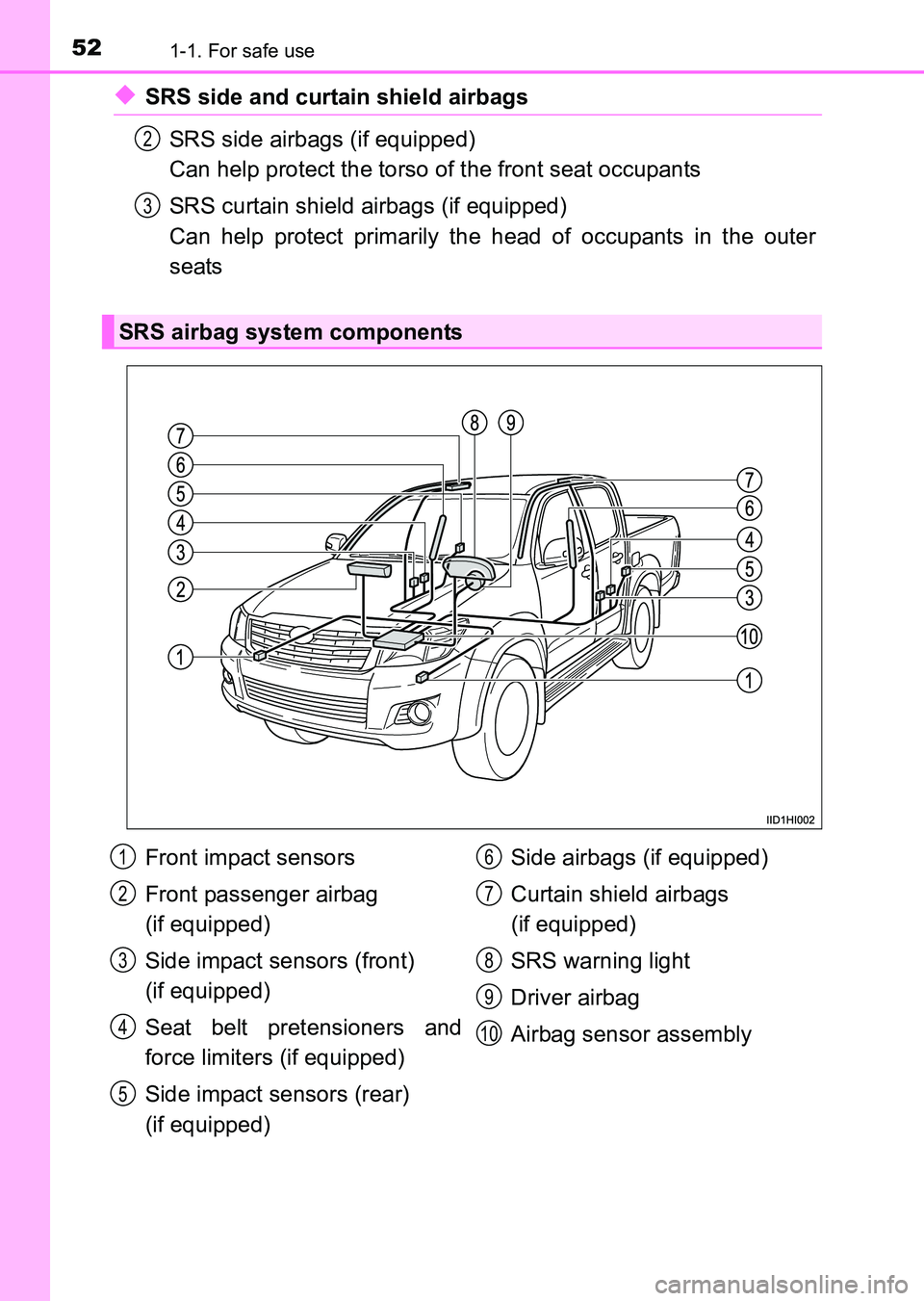

◆SRS side and curtain shield airbagsSRS side airbags (if equipped)
Can help protect the torso of the front seat occupants
SRS curtain shield airbags (if equipped)
Can help protect primarily the head of occupants in the outer
seats
SRS airbag system components
2
3
Front impact sensors
Front passenger airbag
(if equipped)
Side impact sensors (front)
(if equipped)
Seat belt pretensioners and
force limiters (if equipped)
Side impact sensors (rear)
(if equipped) Side airbags (if equipped)
Curtain shield airbags
(if equipped)
SRS warning light
Driver airbag
Airbag sensor assembly1
2
3
4
5
6
7
8
9
10
HILUX_OM_OM0K219E_(EE).book Page 52 Wednesday, May 14, 2014
3:06 PM

531-1. For safe use
1
HILUX_OM_OM0K219E_(EE)
For safety and security

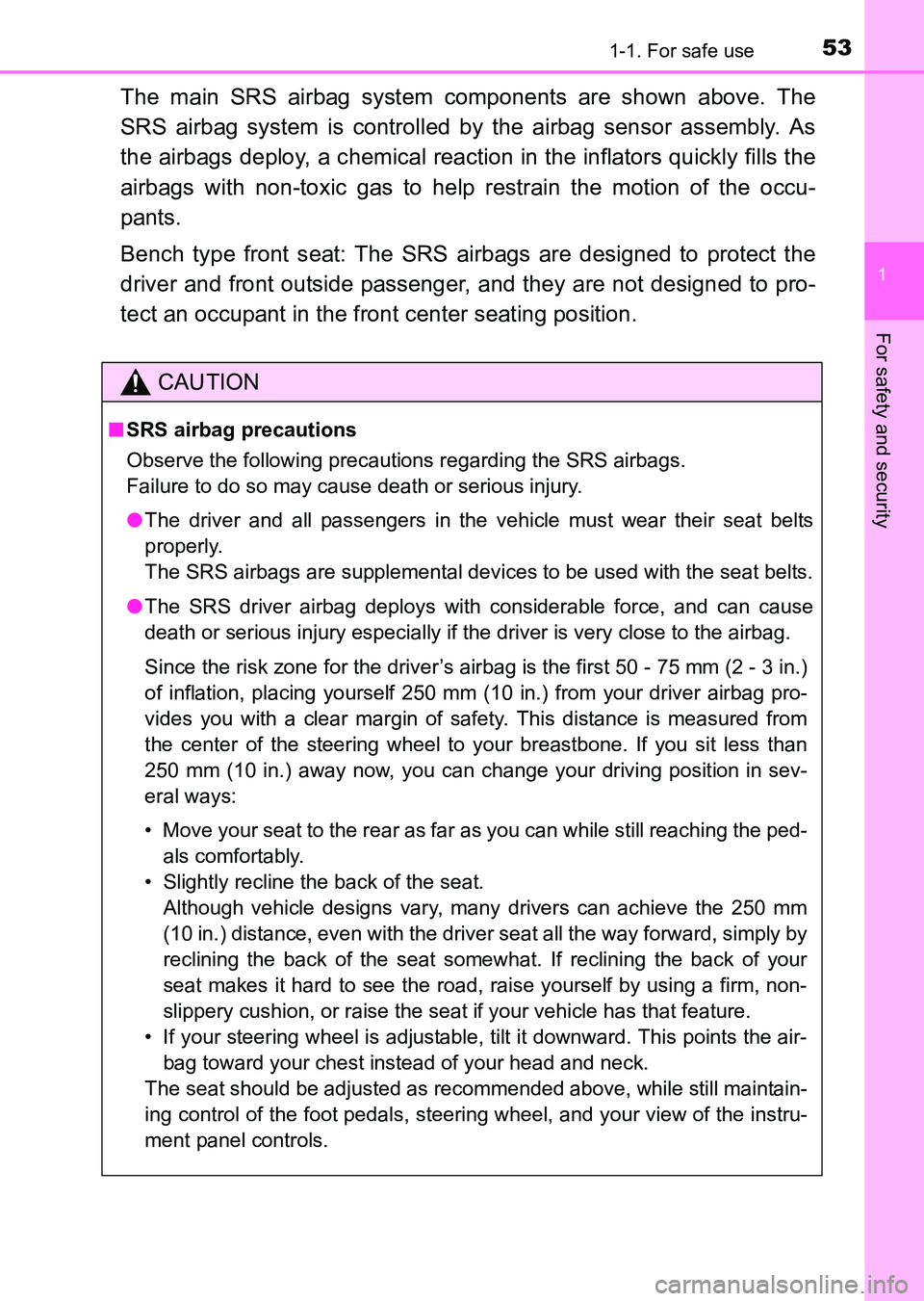

The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
Bench type front seat: The SRS airbags are designed to protect the
driver and front outside passenger, and they are not designed to pro-
tect an occupant in the front center seating position.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the v ehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped- als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.
HILUX_OM_OM0K219E_(EE).book Page 53 Wednesday, May 14, 2014 3:06 PM

89
1
1-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)
For safety and security

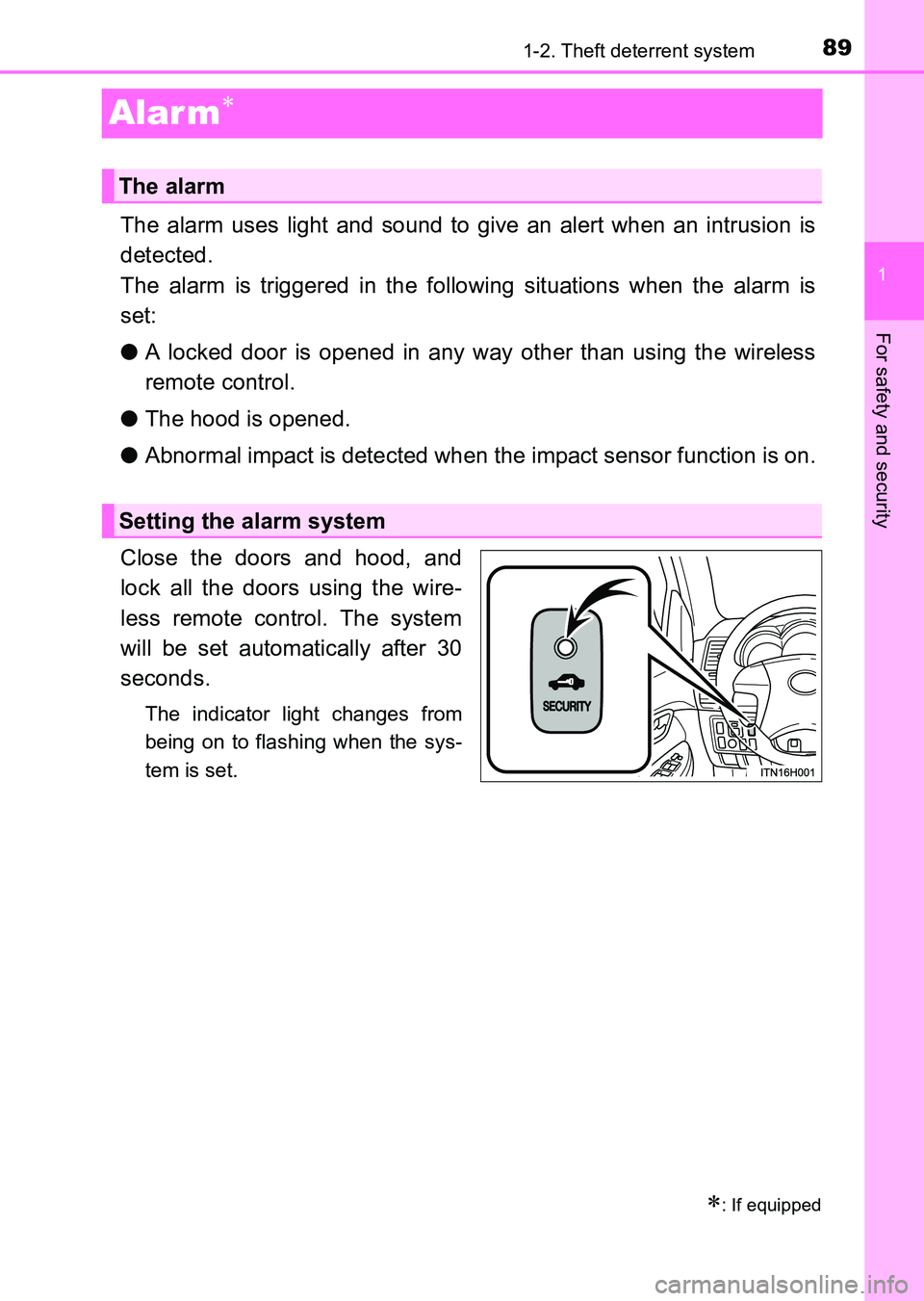

Alarm∗
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
●A locked door is opened in any way other than using the wireless
remote control.
● The hood is opened.
● Abnormal impact is detected when the impact sensor function is on.
Close the doors and hood, and
lock all the doors using the wire-
less remote control. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
∗: If equipped
The alarm
Setting the alarm system
HILUX_OM_OM0K219E_(EE).book Page 89 Wednesday, May 14, 2014 3:06 PM

901-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)

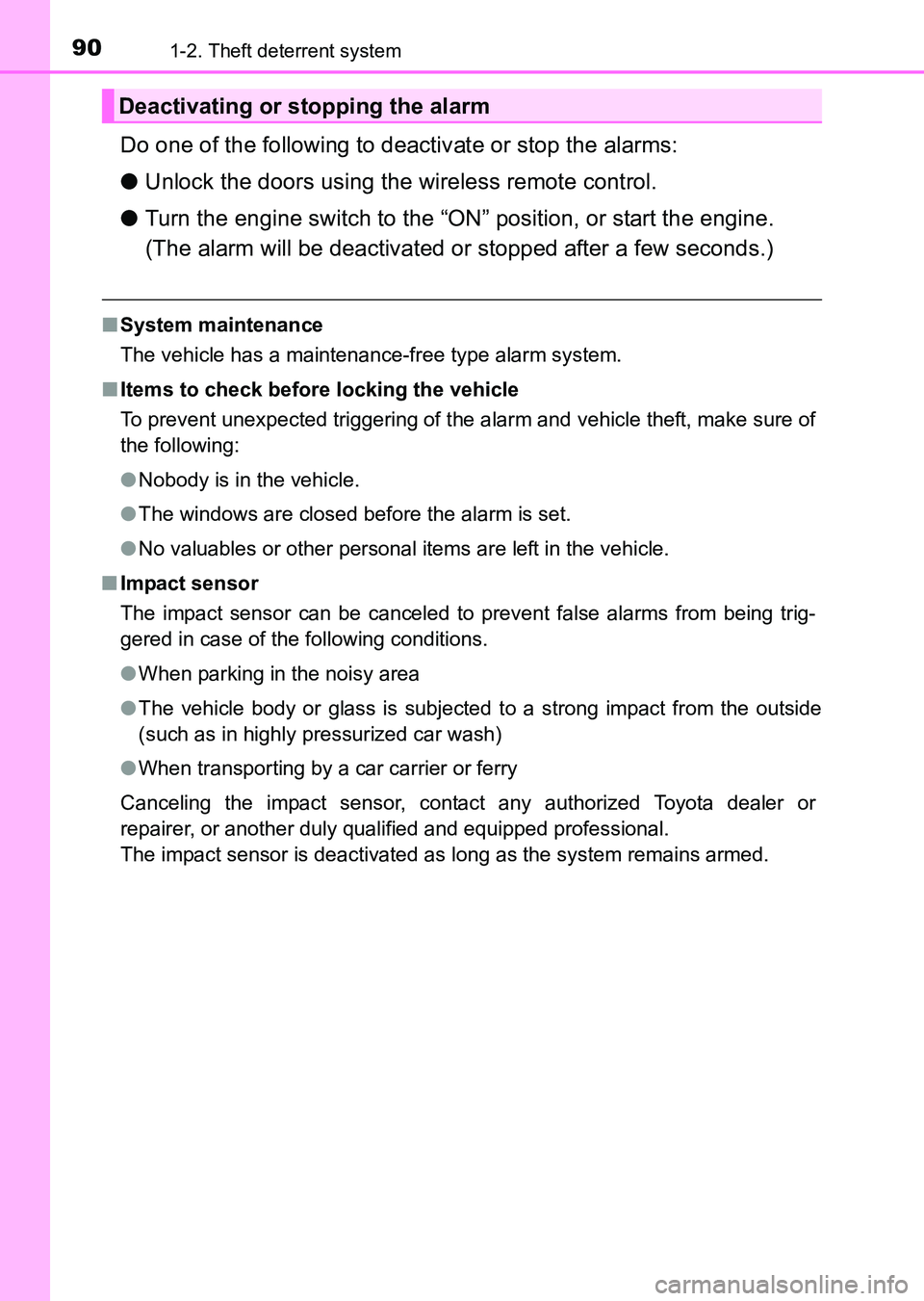

Do one of the following to deactivate or stop the alarms:
●Unlock the doors using the wireless remote control.
● Turn the engine switch to the “ON” position, or start the engine.
(The alarm will be deactivated or stopped after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Impact sensor
The impact sensor can be canceled to pr event false alarms from being trig-
gered in case of the following conditions.
● When parking in the noisy area
● The vehicle body or glass is subjected to a strong impact from the outside
(such as in highly pressurized car wash)
● When transporting by a car carrier or ferry
Canceling the impact sensor, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
The impact sensor is deactivated as long as the system remains armed.
Deactivating or stopping the alarm
HILUX_OM_OM0K219E_(EE).book Page 90 Wednesday, May 14, 2014 3:06 PM

1994-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K219E_(EE)■

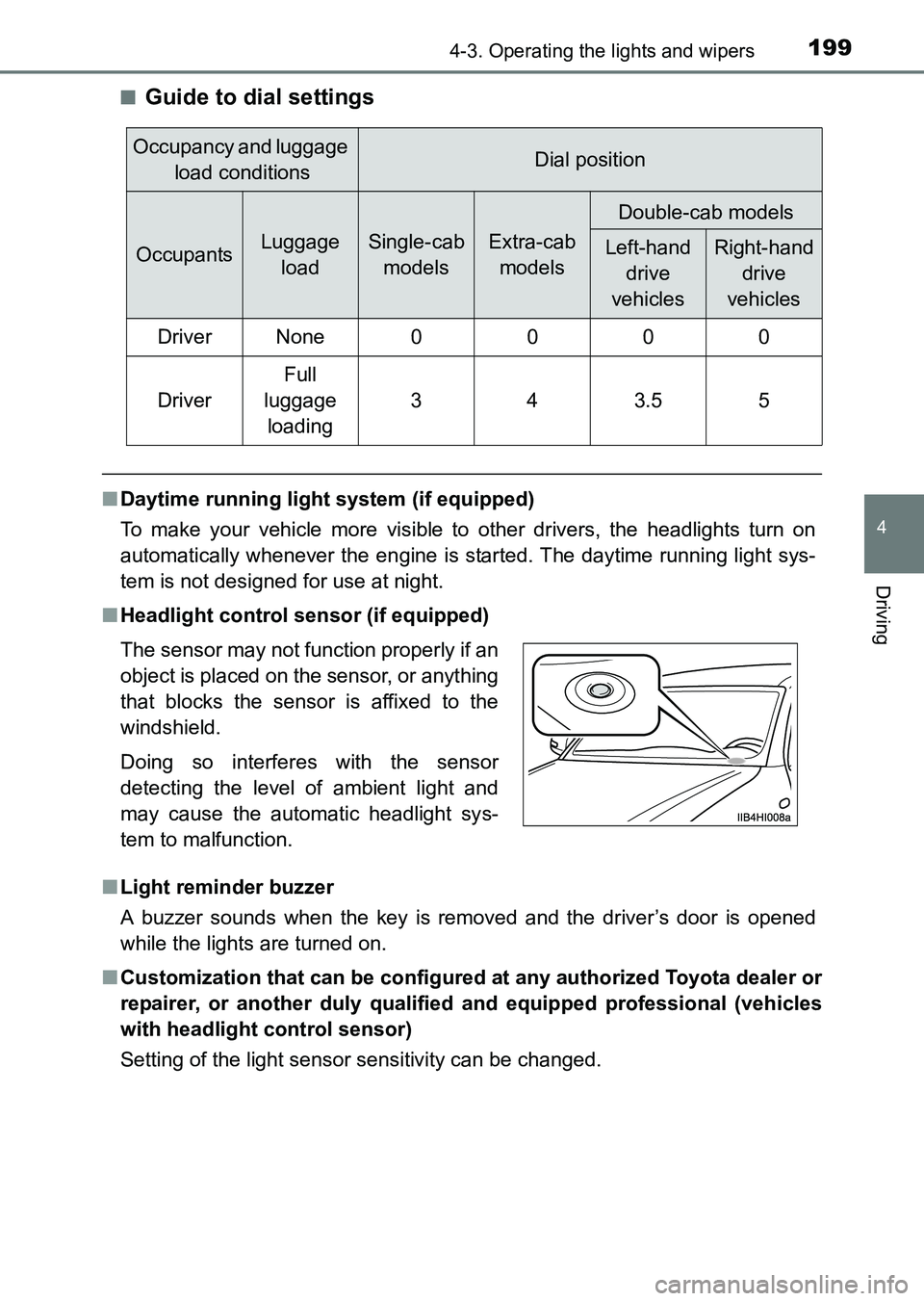

Guide to dial settings
■
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically whenever the engine is started. The daytime running light sys-
tem is not designed for use at night.
■ Headlight control sensor (if equipped)
■ Light reminder buzzer
A buzzer sounds when the key is removed and the driver’s door is opened
while the lights are turned on.
■ Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional (vehicles
with headlight control sensor)
Setting of the light sensor sensitivity can be changed.
Occupancy and luggage load conditionsDial position
OccupantsLuggage loadSingle-cab modelsExtra-cab models
Double-cab models
Left-hand drive
vehiclesRight-hand drive
vehicles
Driver None 0 0 0 0
Driver
Full
luggage loading
343.55
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
HILUX_OM_OM0K219E_(EE).book Page 199 Wednesday, May 14, 2014 3:06 PM

3605-5. Other interior features
HILUX_OM_OM0K219E_(EE)
CAUTION

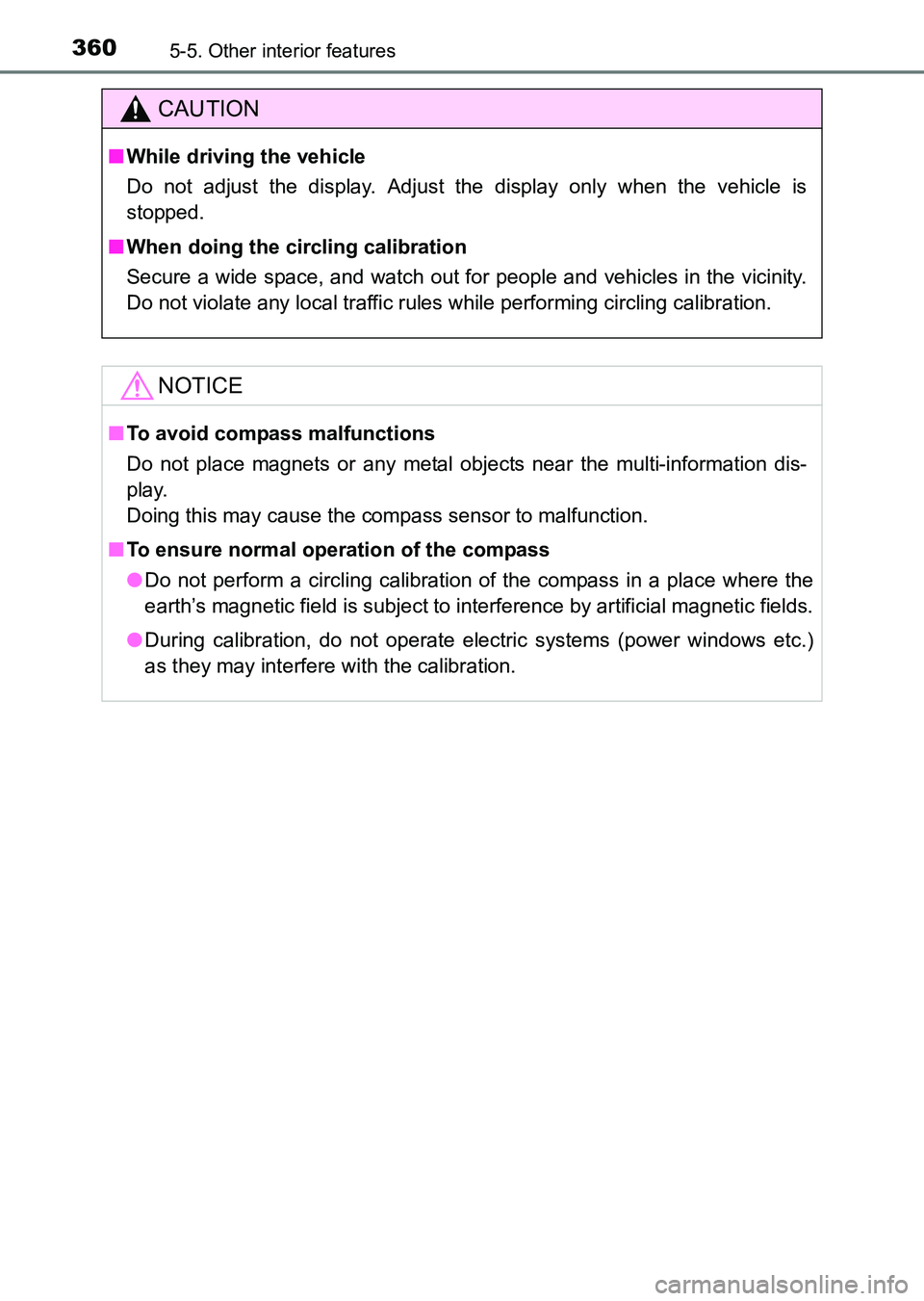

■While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
■
When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity.
Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal objects near the multi-information dis-
play.
Doing this may cause the compass sensor to malfunction.
■
To ensure normal operation of the compass
● Do not perform a circling calibration of the compass in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields.
● During calibration, do not operate electric systems (power windows etc.)
as they may interfere with the calibration.
HILUX_OM_OM0K219E_(EE).book Page 360 Wednesday, May 14, 2014 3:06 PM

4166-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)
*1: For TGN26L-PRMDK and KUN25L-PRMDH models*3
*2: Except for TGN26L-PRMDK and KUN25L-PRMDH models*3
*3: The model code is indicated on the manufacturer’s label or plate. (
→P. 494)

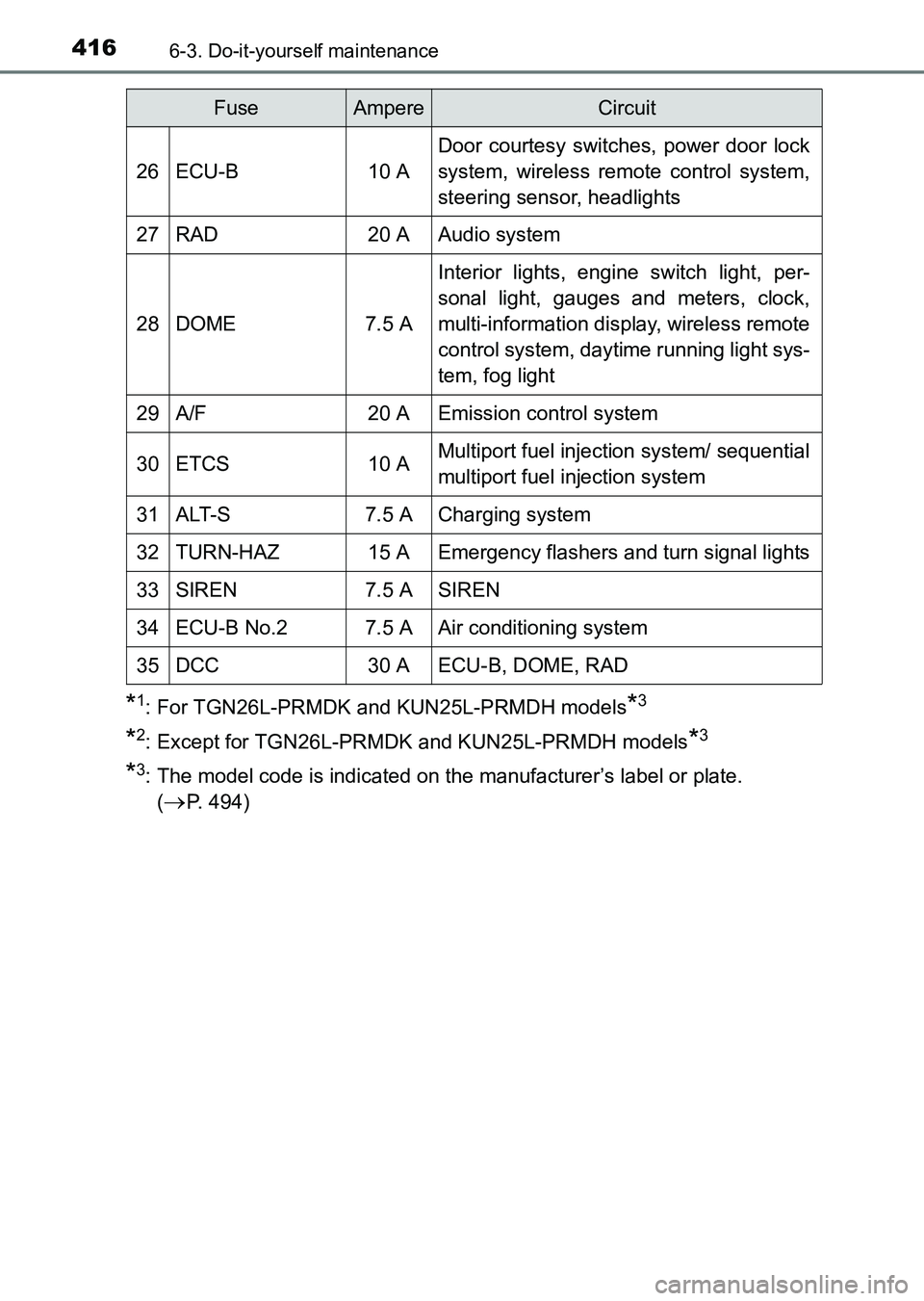

26ECU-B10 A
Door courtesy switches, power door lock
system, wireless remote control system,
steering sensor, headlights
27RAD20 AAudio system
28DOME7.5 A
Interior lights, engine switch light, per-
sonal light, gauges and meters, clock,
multi-information display, wireless remote
control system, daytime running light sys-
tem, fog light
29A/F20 AEmission control system
30ETCS10 AMultiport fuel injection system/ sequential
multiport fuel injection system
31ALT-S7.5 ACharging system
32TURN-HAZ15 AEmergency flashers and turn signal lights
33SIREN7.5 ASIREN
34ECU-B No.27.5 AAir conditioning system
35DCC30 AECU-B, DOME, RAD
FuseAmpereCircuit
HILUX_OM_OM0K219E_(EE).book Page 416 Wednesday, May 14, 2014 3:06 PM

4186-3. Do-it-yourself maintenance
HILUX_OM_OM0K219E_(EE)

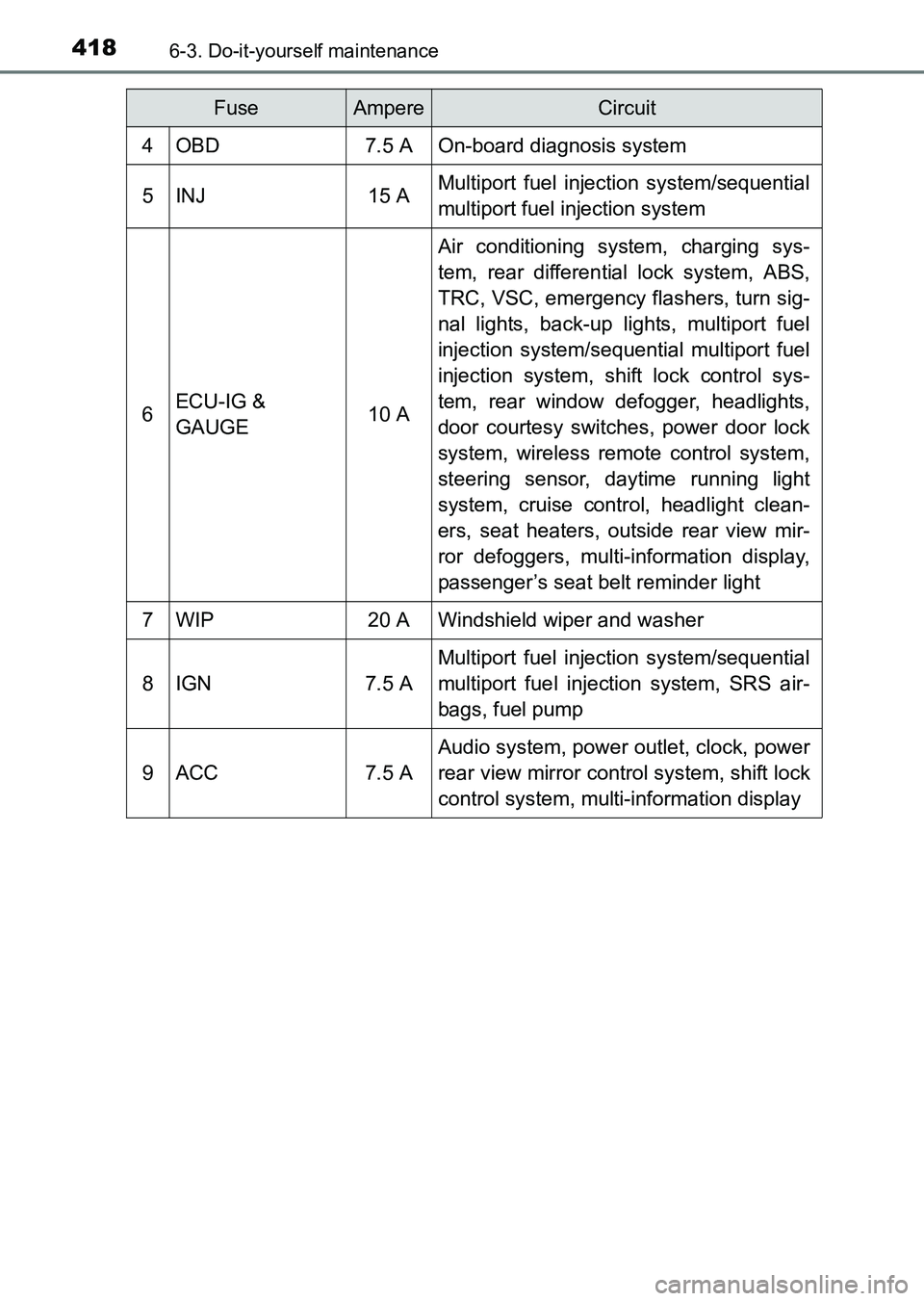

4OBD7.5 AOn-board diagnosis system
5INJ15 AMultiport fuel injection system/sequential
multiport fuel injection system
6ECU-IG &
GAUGE10 A
Air conditioning system, charging sys-
tem, rear differential lock system, ABS,
TRC, VSC, emergency flashers, turn sig-
nal lights, back-up lights, multiport fuel
injection system/sequential multiport fuel
injection system, shift lock control sys-
tem, rear window defogger, headlights,
door courtesy switches, power door lock
system, wireless remote control system,
steering sensor, daytime running light
system, cruise control, headlight clean-
ers, seat heaters, outside rear view mir-
ror defoggers, multi-information display,
passenger’s seat belt reminder light
7WIP20 AWindshield wiper and washer
8IGN7.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, SRS air-
bags, fuel pump
9ACC7.5 A
Audio system, power outlet, clock, power
rear view mirror control system, shift lock
control system, multi-information display
FuseAmpereCircuit
HILUX_OM_OM0K219E_(EE).book Page 418 Wednesday, May 14, 2014 3:06 PM

524What to do if... (Troubleshooting)
HILUX_OM_OM0K219E_(EE)

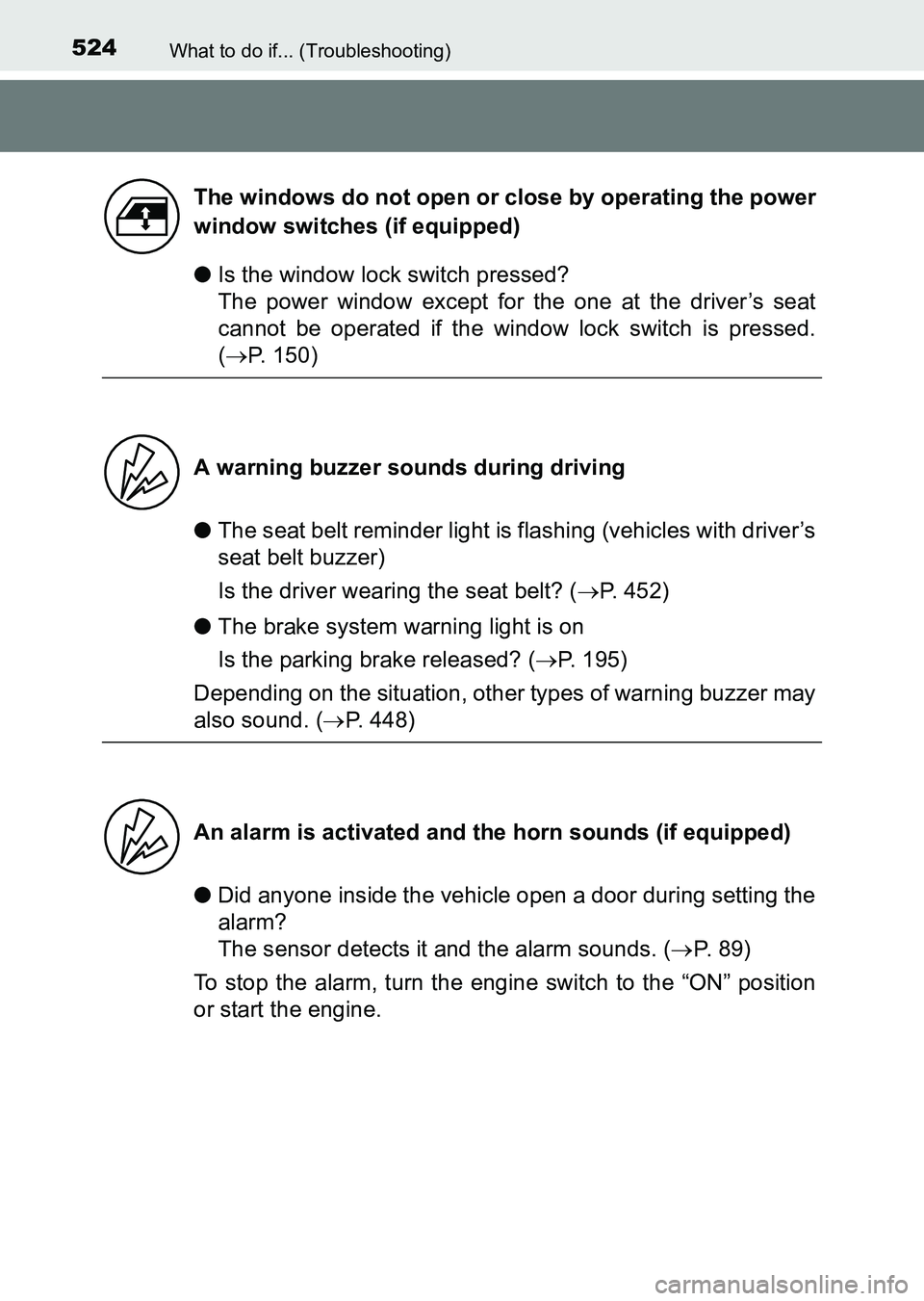

●Is the window lock switch pressed?
The power window except for the one at the driver’s seat
cannot be operated if the window lock switch is pressed.
(→ P. 150)
● The seat belt reminder light is flashing (vehicles with driver’s
seat belt buzzer)
Is the driver wearing the seat belt? ( →P. 452)
● The brake system warning light is on
Is the parking brake released? ( →P. 195)
Depending on the situation, other types of warning buzzer may
also sound. ( →P. 448)
● Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( →P. 8 9 )
To stop the alarm, turn the engine switch to the “ON” position
or start the engine. The windows do not open or close by operating the power
window switches (if equipped)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)
HILUX_OM_OM0K219E_(EE).book Page 524 Wednesday, May 14, 2014 3:06 PM

533Alphabetical index
HILUX_OM_OM0K219E_(EE)

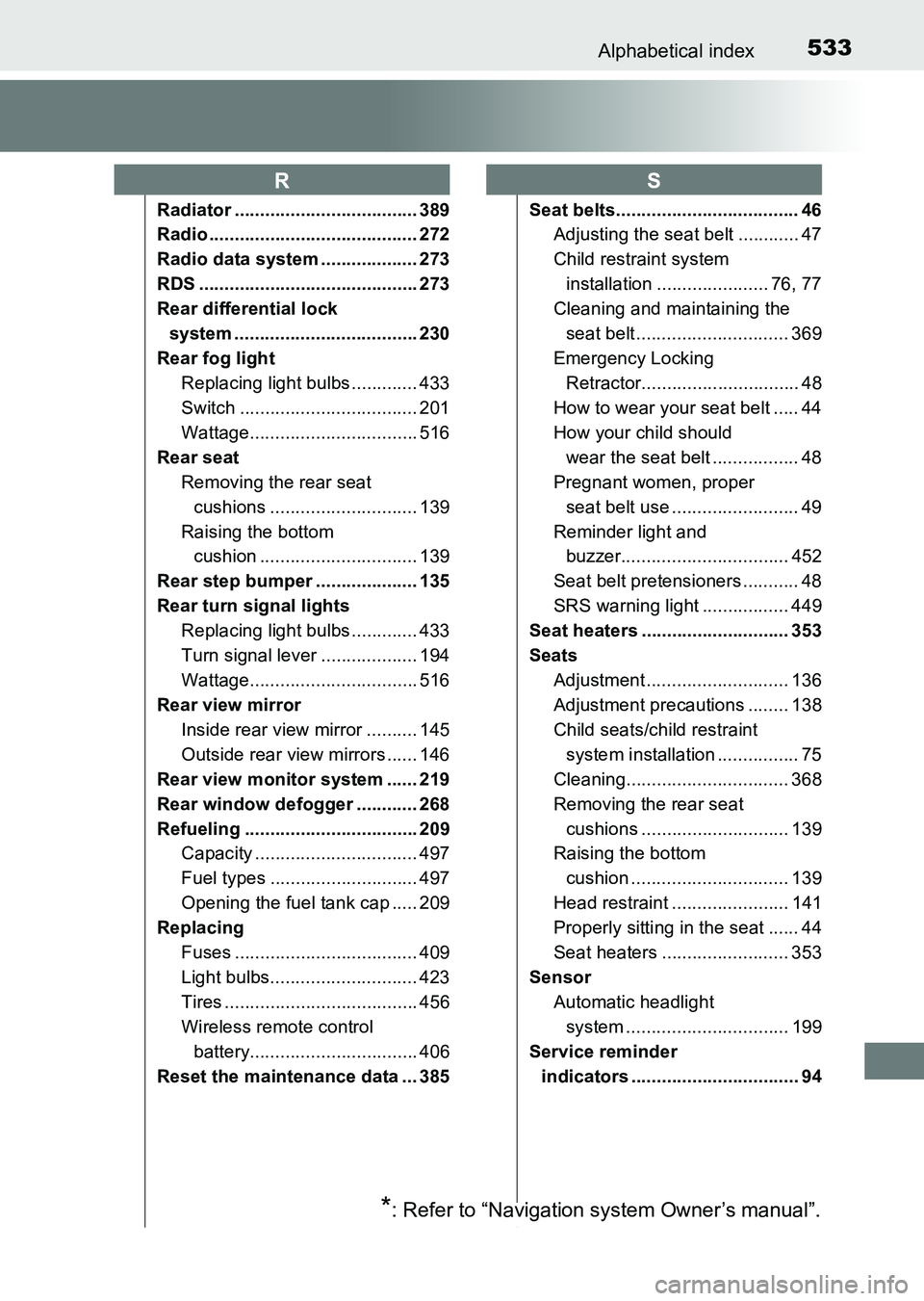

Radiator .................................... 389
Radio ......................................... 272
Radio data system ................... 273
RDS ........................................... 273
Rear differential lock system .................................... 230
Rear fog light Replacing light bulbs ............. 433
Switch ................................... 201
Wattage................................. 516
Rear seat Removing the rear seat cushions ............................. 139
Raising the bottom cushion ............................... 139
Rear step bumper .................... 135
Rear turn signal lights Replacing light bulbs ............. 433
Turn signal lever ................... 194
Wattage................................. 516
Rear view mirror
Inside rear view mirror .......... 145
Outside rear view mirrors ...... 146
Rear view monitor system ...... 219
Rear window defogger ............ 268
Refueling .................................. 209 Capacity ................................ 497
Fuel types ............................. 497
Opening the fuel tank cap ..... 209
Replacing Fuses .................................... 409
Light bulbs............................. 423
Tires ...................................... 456
Wireless remote control battery................................. 406
Reset the maintenance data ... 385 Seat belts.................................... 46
Adjusting the seat belt ............ 47
Child restraint system
installation ...................... 76, 77
Cleaning and maintaining the seat belt .............................. 369
Emergency Locking Retractor............................... 48
How to wear your seat belt ..... 44
How your child should wear the seat belt ................. 48
Pregnant women, proper seat belt use ......................... 49
Reminder light and buzzer................................. 452
Seat belt pretensioners ........... 48
SRS warning light ................. 449
Seat heaters ............................. 353
Seats Adjustment ............................ 136
Adjustment precautions ........ 138
Child seats/child restraint system installation ................ 75
Cleaning................................ 368
Removing the rear seat cushions ............................. 139
Raising the bottom
cushion ............................... 139
Head restraint ....................... 141
Properly sitting in the seat ...... 44
Seat heaters ......................... 353
Sensor Automatic headlight
system ................................ 199
Service reminder indicators ................................. 94
RS
*: Refer to “Navigation system Owner’s manual”.
HILUX_OM_OM0K219E_(EE).book Page 533 Wednesday, May 14, 2014 3:06 PM
