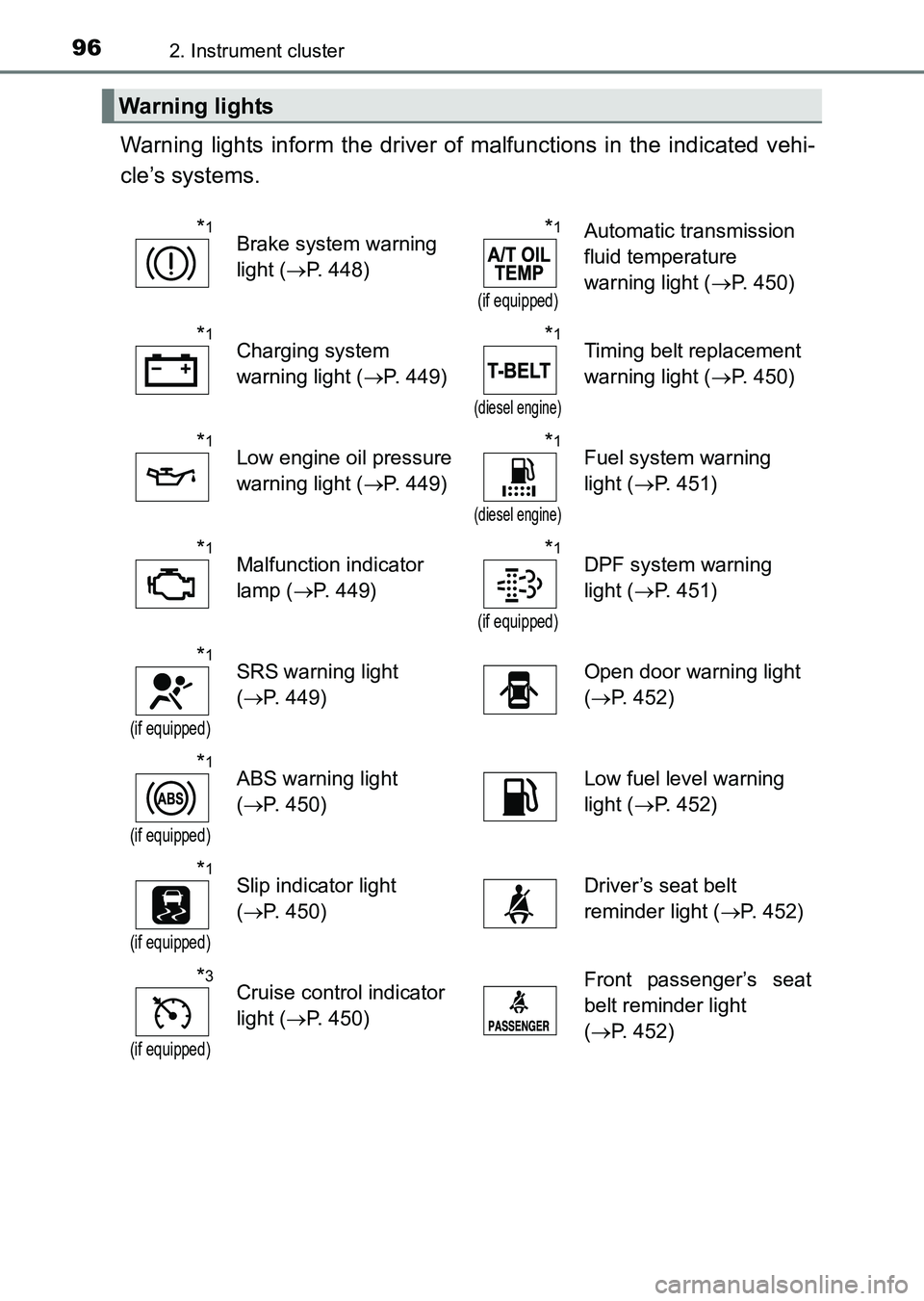

962. Instrument cluster
HILUX_OM_OM0K219E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 448)*1
(if equipped)
Automatic transmission
fluid temperature
warning light ( →P. 450)
*1Charging system
warning light ( →P. 449)*1
(diesel engine)
Timing belt replacement
warning light ( →P. 450)
*1Low engine oil pressure
warning light ( →P. 449)*1
(diesel engine)
Fuel system warning
light ( →P. 451)
*1Malfunction indicator
lamp ( →P. 449)*1
(if equipped)
DPF system warning
light ( →P. 451)
*1
(if equipped)
SRS warning light
(→ P. 449)Open door warning light
(→ P. 452)
*1
(if equipped)
ABS warning light
(→ P. 450)Low fuel level warning
light ( →P. 452)
*1
(if equipped)
Slip indicator light
(→ P. 450)Driver’s seat belt
reminder light ( →P. 452)
*3
(if equipped)
Cruise control indicator
light ( →P. 450)Front passenger’s seat
belt reminder light
(→ P. 452)
HILUX_OM_OM0K219E_(EE).book Page 96 Wednesday, May 14, 2014 3:06 PM

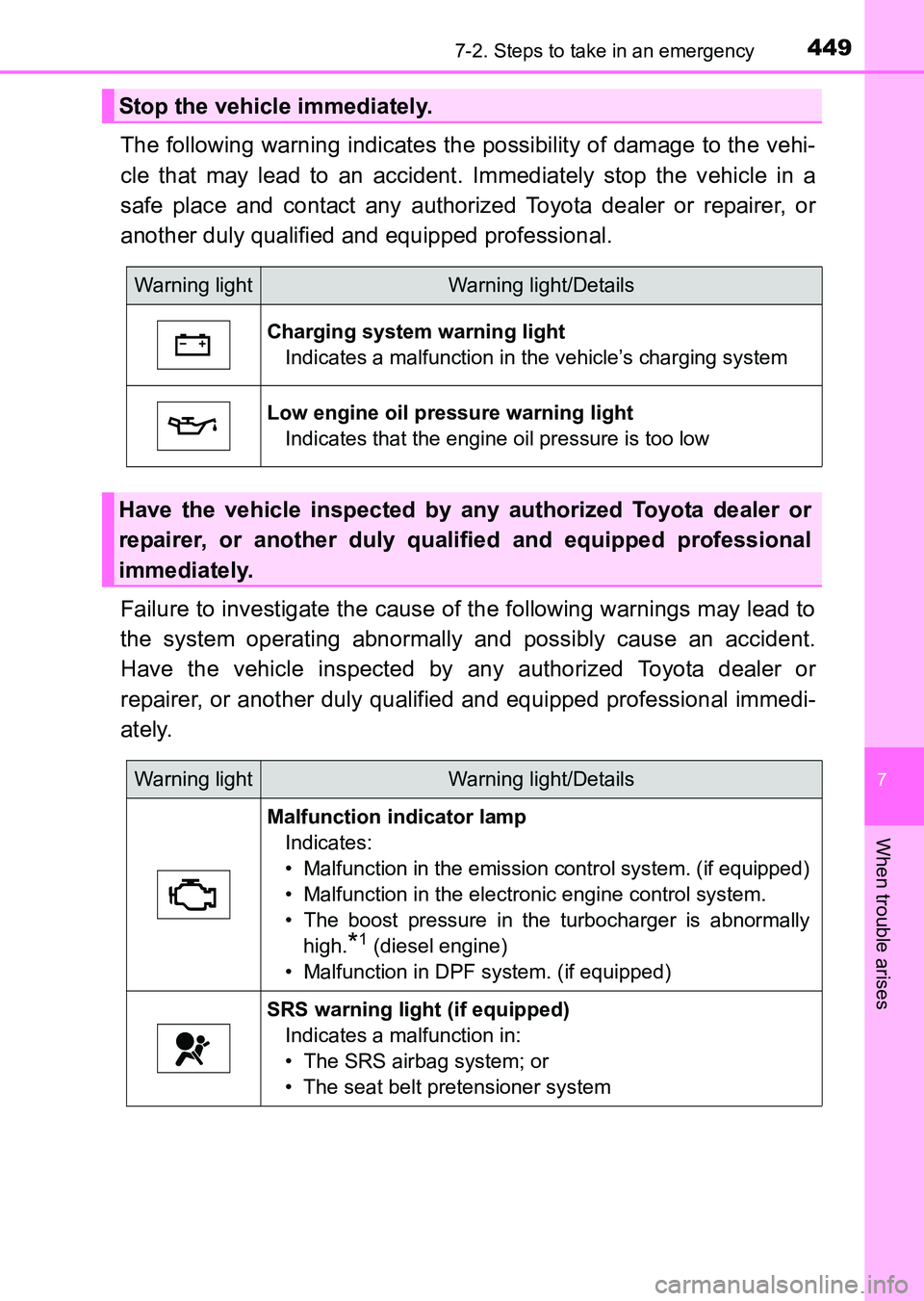

4497-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning lightIndicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning lightIndicates that the engine oil pressure is too low
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lampIndicates:
• Malfunction in the emission control system. (if equipped)
• Malfunction in the electronic engine control system.
• The boost pressure in the turbocharger is abnormallyhigh.
*1 (diesel engine)
• Malfunction in DPF system. (if equipped)
SRS warning light (if equipped) Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
HILUX_OM_OM0K219E_(EE).book Page 449 Wednesday, May 14, 2014 3:06 PM

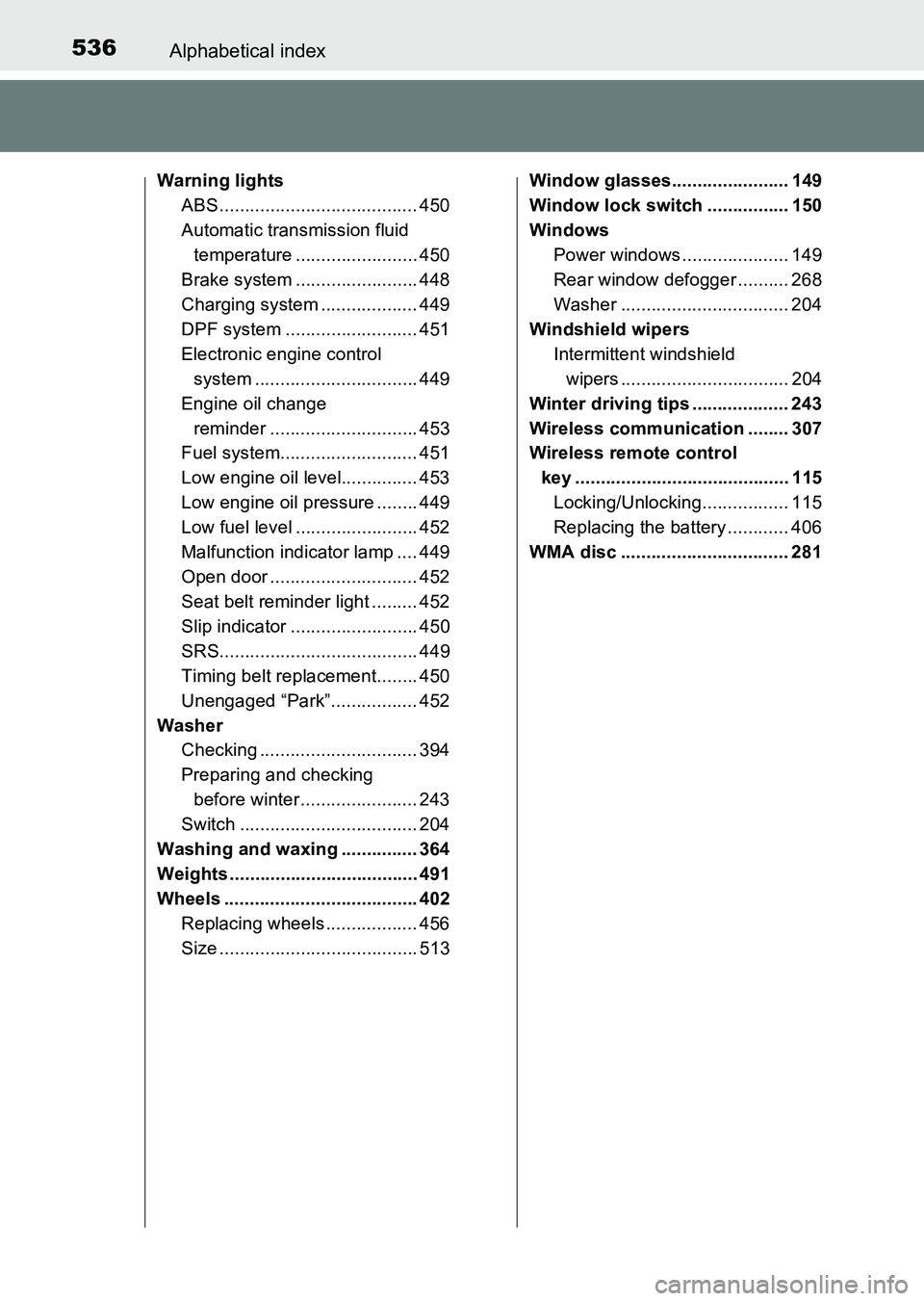

536Alphabetical index
HILUX_OM_OM0K219E_(EE)
Warning lightsABS ....................................... 450
Automatic transmission fluid temperature ........................ 450
Brake system ........................ 448
Charging system ................... 449
DPF system .......................... 451
Electronic engine control
system ................................ 449
Engine oil change reminder ............................. 453
Fuel system........................... 451
Low engine oil level............... 453
Low engine oil pressure ........ 449
Low fuel level ........................ 452
Malfunction indicator lamp .... 449
Open door ............................. 452
Seat belt reminder light ......... 452
Slip indicator ......................... 450
SRS....................................... 449
Timing belt replacement........ 450
Unengaged “Park”................. 452
Washer Checking ............................... 394
Preparing and checking
before winter....................... 243
Switch ................................... 204
Washing and waxing ............... 364
Weights ..................................... 491
Wheels ...................................... 402 Replacing wheels .................. 456
Size ....................................... 513 Window glasses....................... 149
Window lock switch ................ 150
Windows
Power windows ..................... 149
Rear window defogger .......... 268
Washer ................................. 204
Windshield wipers Intermittent windshield wipers ................................. 204
Winter driving tips ................... 243
Wireless communication ........ 307
Wireless remote control key .......................................... 115Locking/Unlocking................. 115
Replacing the battery ............ 406
WMA disc ................................. 281
