steering wheel adjustment TOYOTA HILUX 2015 Owners Manual (in English)

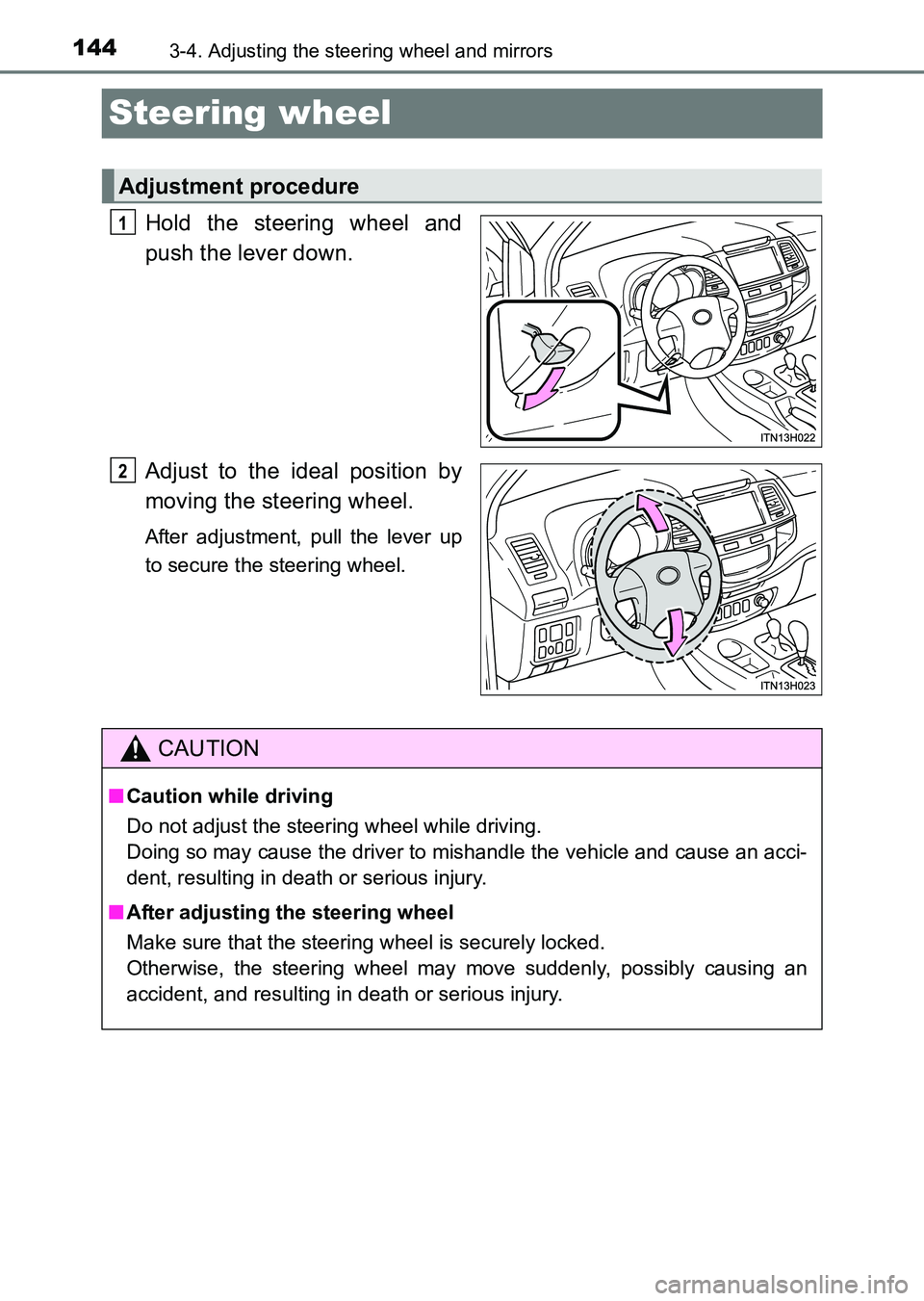

1443-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K219E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel.
After adjustment, pull the lever up
to secure the steering wheel.
Adjustment procedure
1
2
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
HILUX_OM_OM0K219E_(EE).book Page 144 Wednesday, May 14, 2014 3:06 PM

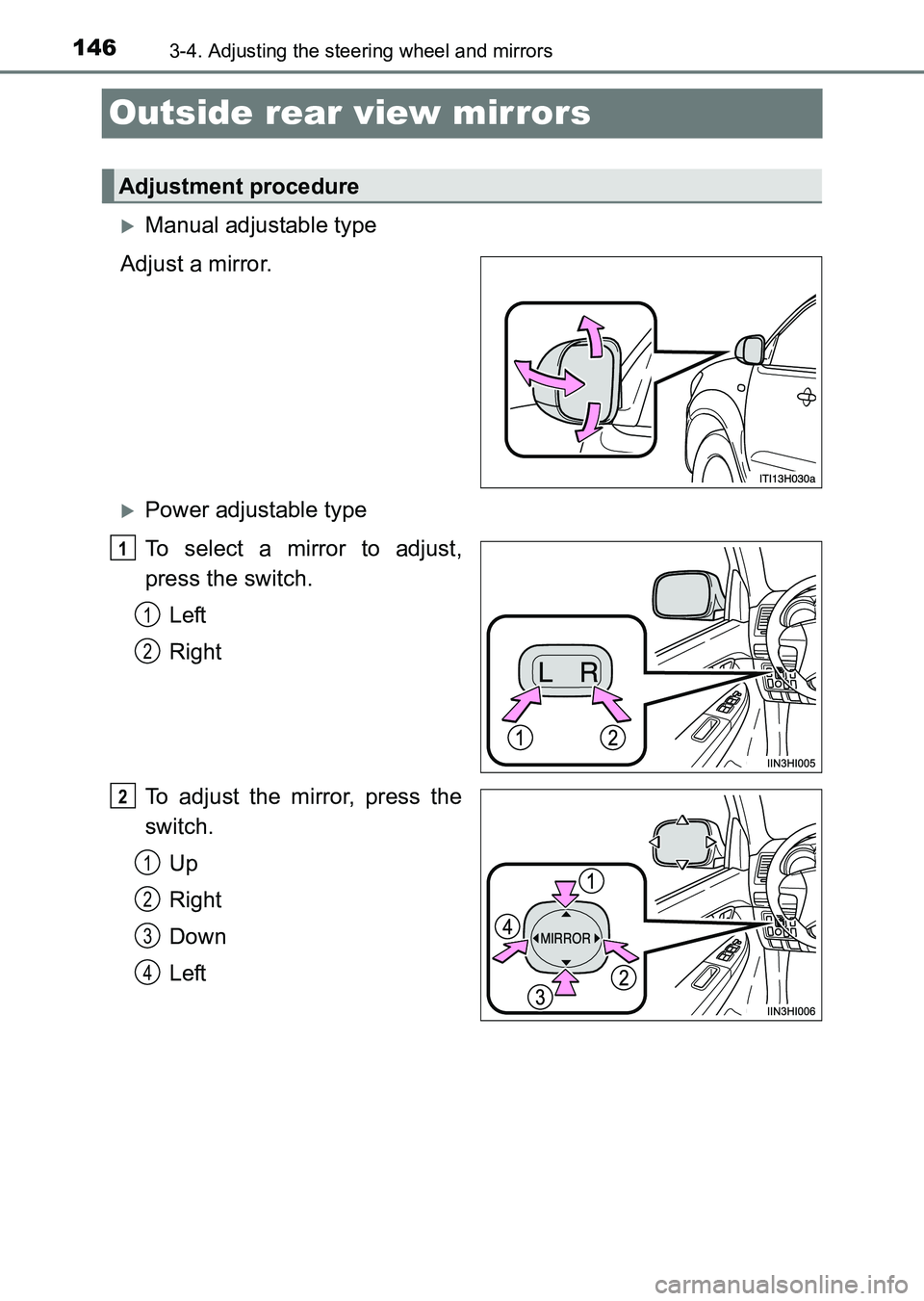

1463-4. Adjusting the steering wheel and mirrors
HILUX_OM_OM0K219E_(EE)
Outside rear view mirrors
XManual adjustable type
Adjust a mirror.
XPower adjustable type
To select a mirror to adjust,
press the switch. Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left
Adjustment procedure
1
1
2
2
1
2
3
4
HILUX_OM_OM0K219E_(EE).book Page 146 Wednesday, May 14, 2014 3:06 PM

530Alphabetical index
HILUX_OM_OM0K219E_(EE)
Flat tire ...................................... 456
Floor mat .................................... 42
FluidAutomatic transmission ......... 509
Brake..................................... 512
Clutch.................................... 511
Steering................................. 512
Transfer................................. 510
Washer.................................. 394
Four-wheel drive system Front drive control lever ........ 226
Warning light ......................... 450
Front fog lights Replacing light bulbs ............. 431
Switch ................................... 201
Wattage................................. 516
Front passenger’s seat belt reminder light ........................ 452
Front position lights Light switch ........................... 197
Replacing light bulbs ............. 426
Wattage................................. 516
Front seats Adjustment ............................ 136
Cleaning ................................ 368
Correct driving posture............ 44
Head restraints...................... 141
Seat heaters.......................... 353
Front turn signal lights Replacing light bulbs ............. 428
Turn signal lever ................... 194
Wattage................................. 516 Fuel
Capacity ................................ 497
Fuel filter ............................... 396
Fuel gauge ............................ 101
Fuel pump shut off system.... 447
Gas station information ......... 540
If you run out of fuel and the engine stalls .......... 485
Information ............................ 517
Refueling............................... 209
Type ...................................... 497
Warning light ......................... 451
Fuel filler door.......................... 209 Refueling............................... 209
Fuel filter .......................... 396, 451
Fuel pump shut off system ..... 447
Fuses ........................................ 409
Gas station information .......... 540
Gauges ..................................... 100
Glove box ................................. 343
Hands-free system (for cellular phone)................ 307
Head restraints ........................ 141
Headlight cleaner..................... 208
Headlights ................................ 197 Light switch ........................... 197
Replacing light bulbs............. 424
Wattage ................................ 516
Heaters Automatic air conditioning system ................................ 260
Manual air conditioning
system ................................ 253
Seat heaters ......................... 353
Outside rear view mirrors...... 268
F
G
H
HILUX_OM_OM0K219E_(EE).book Page 530 Wednesday, May 14, 2014 3:06 PM

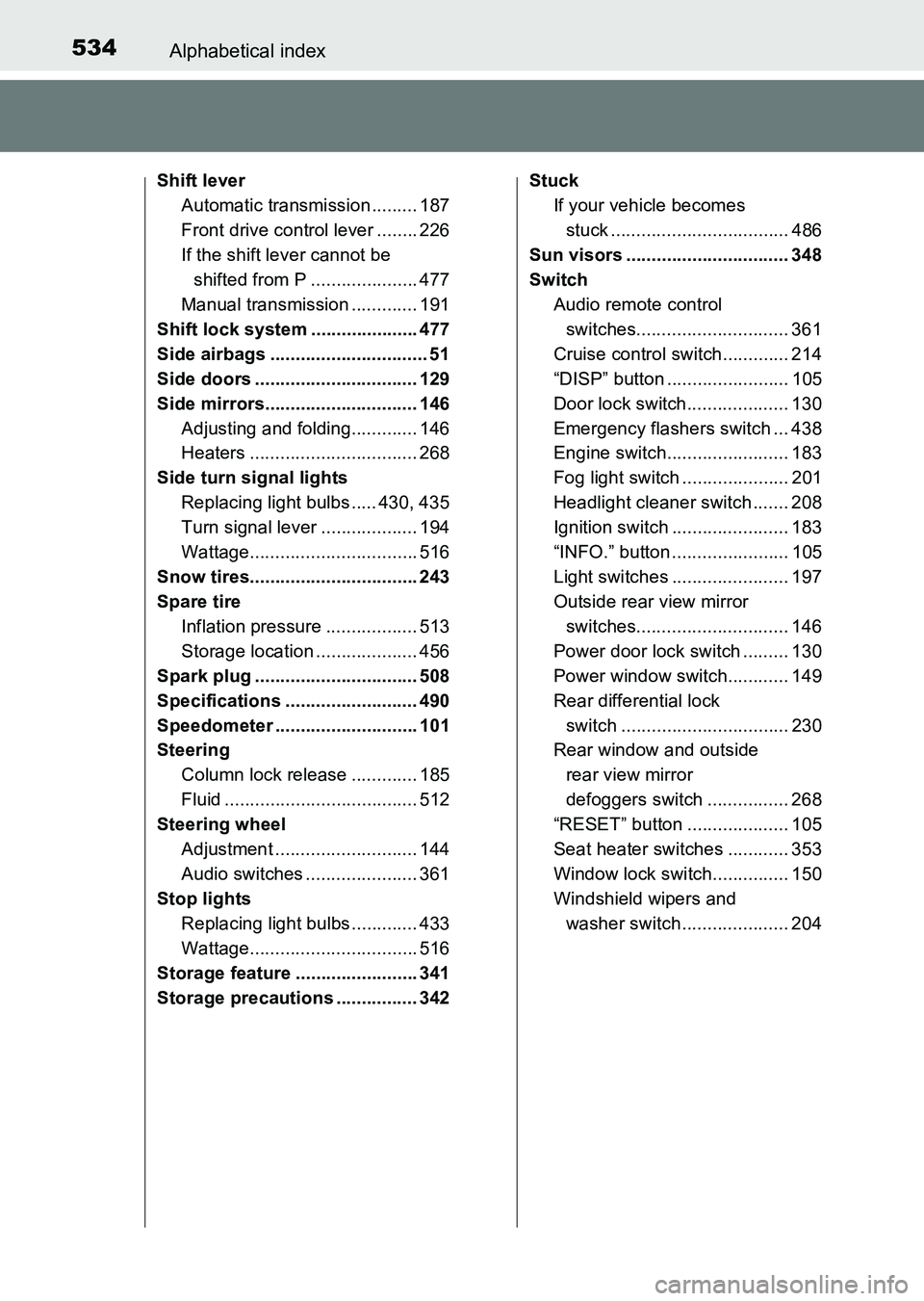

534Alphabetical index
HILUX_OM_OM0K219E_(EE)
Shift leverAutomatic transmission ......... 187
Front drive control lever ........ 226
If the shift lever cannot be shifted from P ..................... 477
Manual transmission ............. 191
Shift lock system ..................... 477
Side airbags ............................... 51
Side doors ................................ 129
Side mirrors.............................. 146 Adjusting and folding............. 146
Heaters ................................. 268
Side turn signal lights Replacing light bulbs ..... 430, 435
Turn signal lever ................... 194
Wattage................................. 516
Snow tires................................. 243
Spare tire Inflation pressure .................. 513
Storage location .................... 456
Spark plug ................................ 508
Specifications .......................... 490
Speedometer ............................ 101
Steering Column lock release ............. 185
Fluid ...................................... 512
Steering wheel Adjustment ............................ 144
Audio switches ...................... 361
Stop lights
Replacing light bulbs ............. 433
Wattage................................. 516
Storage feature ........................ 341
Storage precautions ................ 342 Stuck
If your vehicle becomes stuck ................................... 486
Sun visors ................................ 348
Switch Audio remote control switches.............................. 361
Cruise control switch............. 214
“DISP” button ........................ 105
Door lock switch.................... 130
Emergency flashers switch ... 438
Engine switch........................ 183
Fog light switch ..................... 201
Headlight cleaner switch ....... 208
Ignition switch ....................... 183
“INFO.” button ....................... 105
Light switches ....................... 197
Outside rear view mirror switches.............................. 146
Power door lock switch ......... 130
Power window switch............ 149
Rear differential lock switch ................................. 230
Rear window and outside
rear view mirror
defoggers switch ................ 268
“RESET” button .................... 105
Seat heater switches ............ 353
Window lock switch............... 150
Windshield wipers and washer switch..................... 204
HILUX_OM_OM0K219E_(EE).book Page 534 Wednesday, May 14, 2014 3:06 PM
