571-2. Child safety
1
HILUX_OM_OM0K322E_(EE)
For safety and security
Front passenger occupant classification
system
SRS warning light
Seat belt reminder light
“PASSENGER AIR BAG” indicator
Vehicles without smart entry & start system: The ON indicator light turns on
when the airbag system is on (only when the engine switch is in the “ON”
position).
Vehicles with smart entry & start system: The ON indicator light turns on
when the airbag system is on (only when the engine switch is in IGNITION
ON mode).
: If equipped
Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the devices for the
front passenger.
1
2
3

581-2. Child safety
HILUX_OM_OM0K322E_(EE)
■Adult*1
■Child*4 or child restraint system*5
Condition and operation in the front passenger occupant classi-
fication system
Indicator/
warning light
“PASSENGER AIR BAG” indicator ON indicator
SRS warning light Off
Seat belt reminder light Off*2 or
flashing*3
Devices
Front passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner
Indicator/
warning light
“PASSENGER AIR BAG” indicator OFF
indicator*6
SRS warning light Off
Seat belt reminder light Off*2 or
flashing*3
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner

591-2. Child safety
1
HILUX_OM_OM0K322E_(EE)
For safety and security
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“PASSENGER AIR BAG” indicator OFF indicator
SRS warning light OffSeat belt reminder light
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner
Activated*7
or
deactivated*8
Indicator/
warning light
“PASSENGER AIR BAG” indicator OFF indicator
SRS warning light On
Seat belt reminder light flashing
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated Curtain shield airbag in the front
passenger side
Front passenger’s seat belt pretensioner

601-2. Child safety
HILUX_OM_OM0K322E_(EE)
*1: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/her
as a child depending on his/her physique and posture.
*2: In the event the front passenger is wearing a seat belt.
*3: In the event the front passenger does not wear a seat belt.
*4: When a larger child who has outgrown a child restraint system sits in the
front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.
*5: For the child’s safety, install the child restraint system to a rear seat.
When it is unavoidable, a child restraint system can be installed on the
front passenger seat. A rear-facing child restraint system should be
installed when “OFF” of the “PASSENGER AIR BAG” indicator is illumi-
nated. ( P. 6 5 )
*6: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. ( P. 65)
*7: In the event of a side collision.
*8: In the event of a frontal collision.
WARNING
■Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pocket or armrest).
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.

611-2. Child safety
1
HILUX_OM_OM0K322E_(EE)
For safety and security
WARNING
■Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause “OFF” of the “PASSENGER AIR BAG” indicator to
be illuminated, which indicates that the SRS airbags for the front passen-
ger will not activate in the event of a severe accident. If the seatback
touches the rear seat, return the seatback to a position where it does not
touch the rear seat. Keep the front passenger seatback as upright as pos-
sible when the vehicle is moving. Reclining the seatback excessively may
lessen the effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, “ON” of the “PASSENGER AIR
BAG” indicator is illuminated. If “OFF ” of the “PASSENGER AIR BAG” indi-
cator is illuminated, ask the passenger to sit up straight, well back in the
seat, feet on the floor, and with the seat belt worn correctly. If “OFF” of the
“PASSENGER AIR BAG” indicator still re mains illuminated, either ask the
passenger to move to the rear seat, or if that is not possible, move the
front passenger seat fully rearward.
● When it is unavoidable to install a child restraint system on the front pas-
senger seat, install the child restraint system on the front passenger seat
in the proper order. ( P. 65)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
● When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, do not release the seat belt while the vehicle is mov-
ing. Doing so may cause the airbag system to be on.

631-2. Child safety
1
HILUX_OM_OM0K322E_(EE)
For safety and security
Vehicles without smart entry &
start system:
Insert the key into the cylinder and
turn to the “OFF” position.
The OFF indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with smart entry & start
system:
Insert the mechanical key into the cylinder and rotate to the “OFF”
position.
The OFF indicator light turns on (only when the engine switch is in
IGNITION ON mode).
■ “PASSENGER AIR BAG” indicator lights information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
● Neither “ON” nor “OFF” comes on.
● The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag
WARNING
■ When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

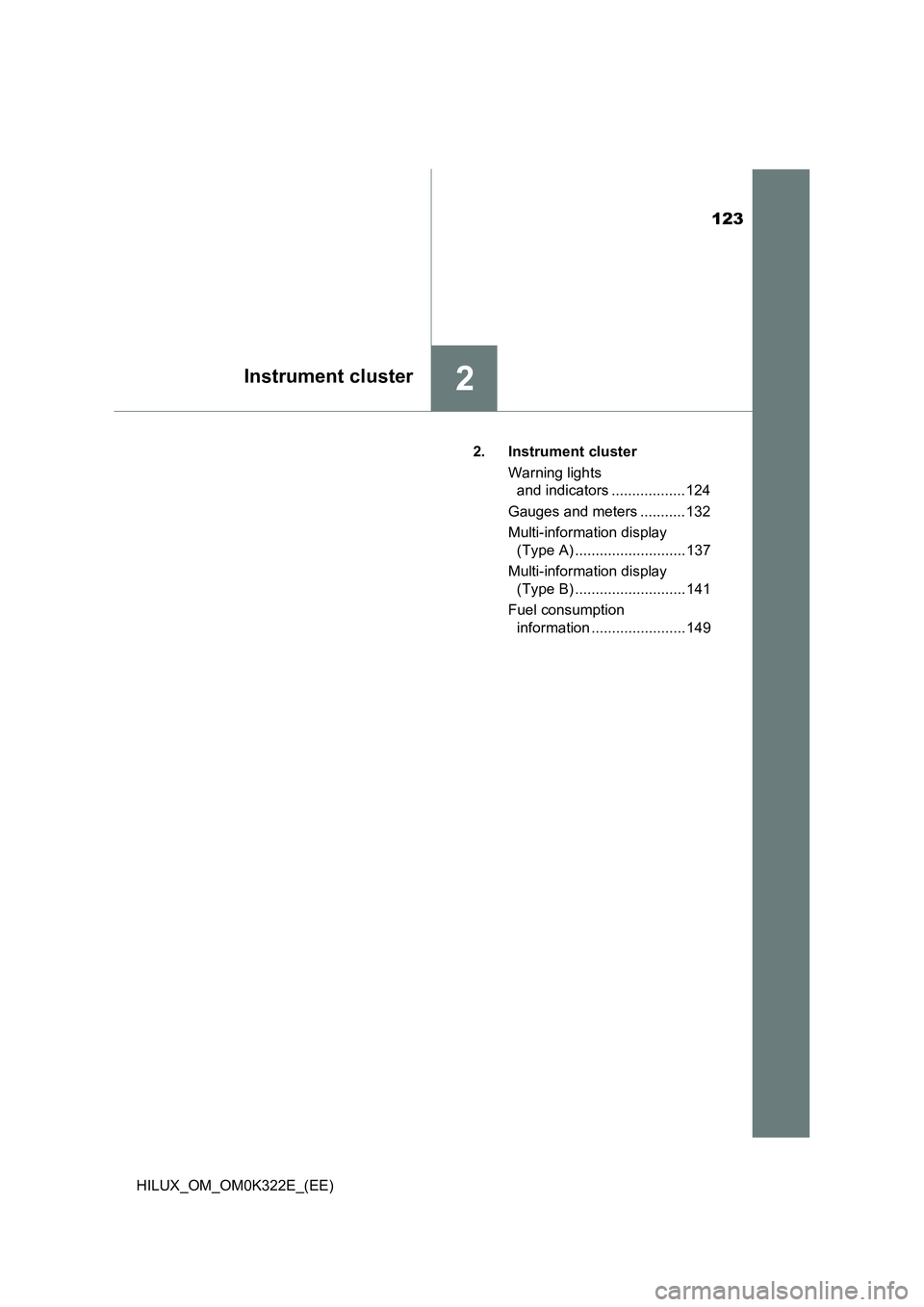

123
2Instrument cluster
HILUX_OM_OM0K322E_(EE)
2. Instrument cluster
Warning lights
and indicators .................. 124
Gauges and meters ........... 132
Multi-information display
(Type A) ........................... 137
Multi-information display
(Type B) ........................... 141
Fuel consumption
information ....................... 149

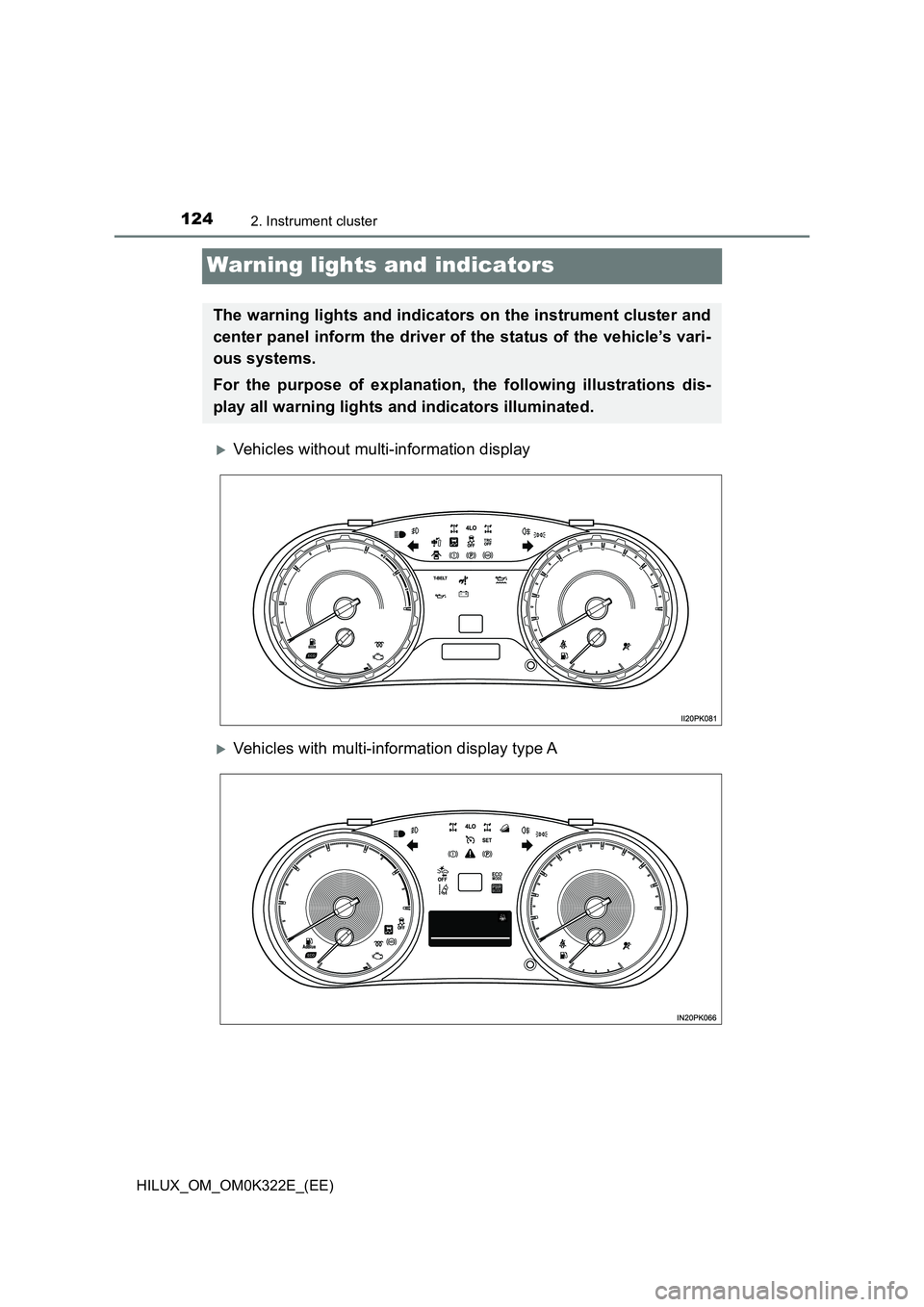

1242. Instrument cluster
HILUX_OM_OM0K322E_(EE)
Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display type A
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

1252. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K322E_(EE)
Vehicles with multi-information display type B
The positions of some warning lights and indicators differ depending on
vehicles.
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 610)
*1, 2Malfunction indicator
lamp ( P. 611)
*1
(if equipped)
Charging system
warning light ( P. 610)
*1SRS warning light
( P. 611)
*1
(if equipped)
Low engine oil pressure
warning light ( P. 610)
*1ABS warning light
( P. 611)

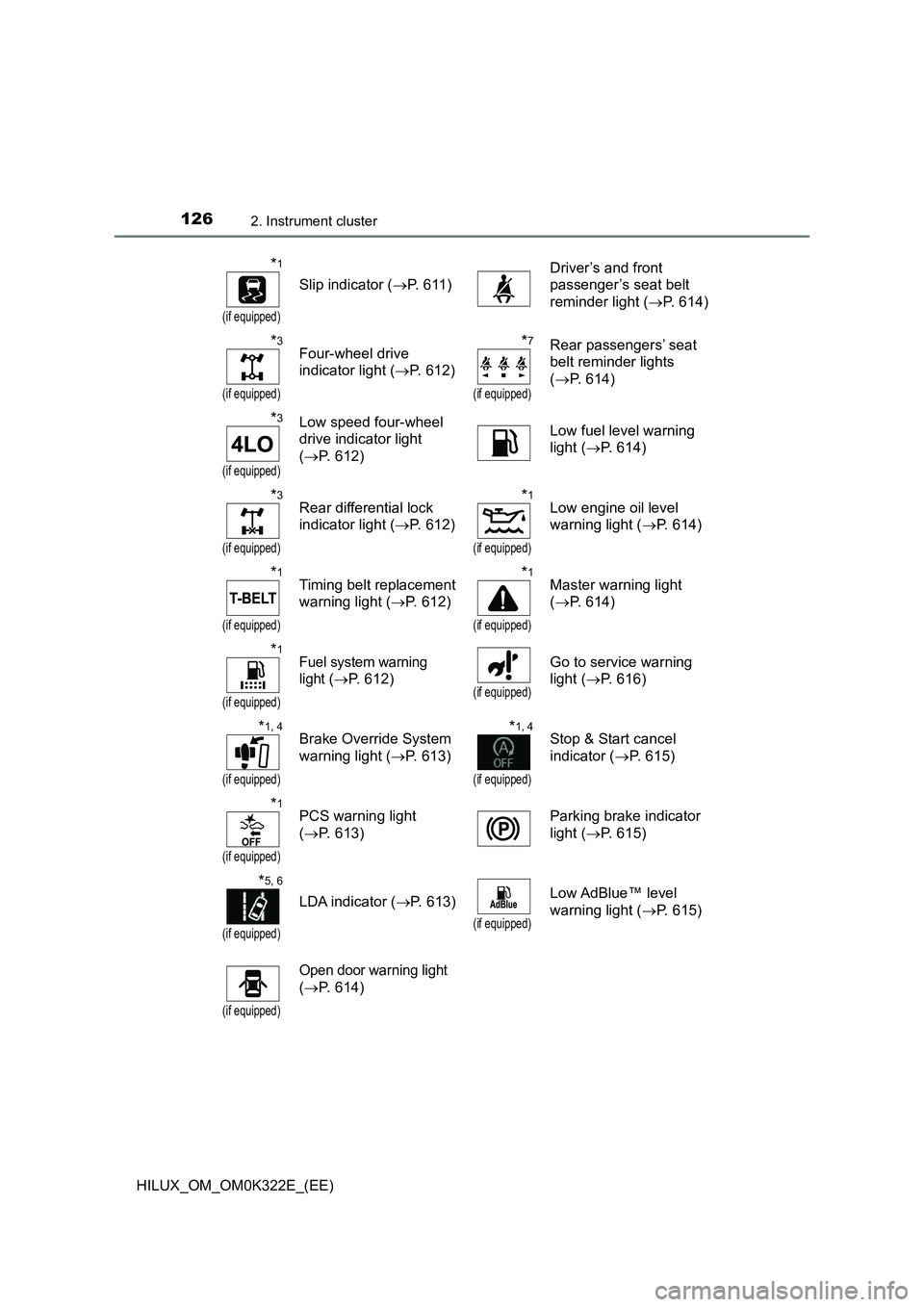

1262. Instrument cluster
HILUX_OM_OM0K322E_(EE)
*1
(if equipped)
Slip indicator (P. 611)
Driver’s and front
passenger’s seat belt
reminder light ( P. 614)
*3
(if equipped)
Four-wheel drive
indicator light ( P. 612)
*7
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 614)
*3
(if equipped)
Low speed four-wheel
drive indicator light
( P. 612)
Low fuel level warning
light ( P. 614)
*3
(if equipped)
Rear differential lock
indicator light ( P. 612)
*1
(if equipped)
Low engine oil level
warning light ( P. 614)
*1
(if equipped)
Timing belt replacement
warning light ( P. 612)
*1
(if equipped)
Master warning light
( P. 614)
*1
(if equipped)
Fuel system warning
light ( P. 612)(if equipped)
Go to service warning
light ( P. 616)
*1, 4
(if equipped)
Brake Override System
warning light ( P. 613)
*1, 4
(if equipped)
Stop & Start cancel
indicator ( P. 615)
*1
(if equipped)
PCS warning light
( P. 613)
Parking brake indicator
light ( P. 615)
*5, 6
(if equipped)
LDA indicator (P. 613)
(if equipped)
Low AdBlue™ level
warning light ( P. 615)
(if equipped)
Open door warning light
( P. 614)
