TOYOTA HILUX 2020 Owners Manual (in English)

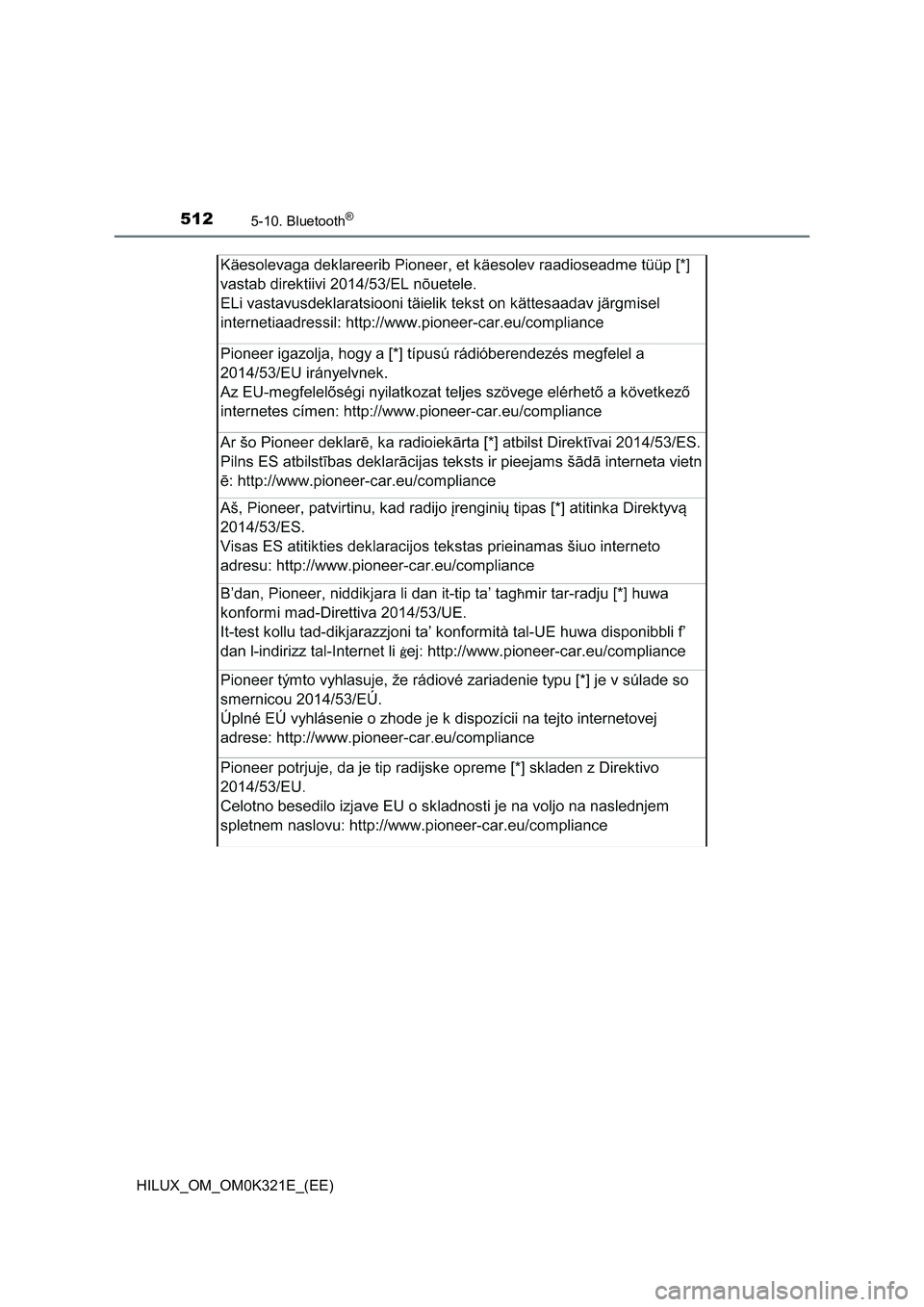

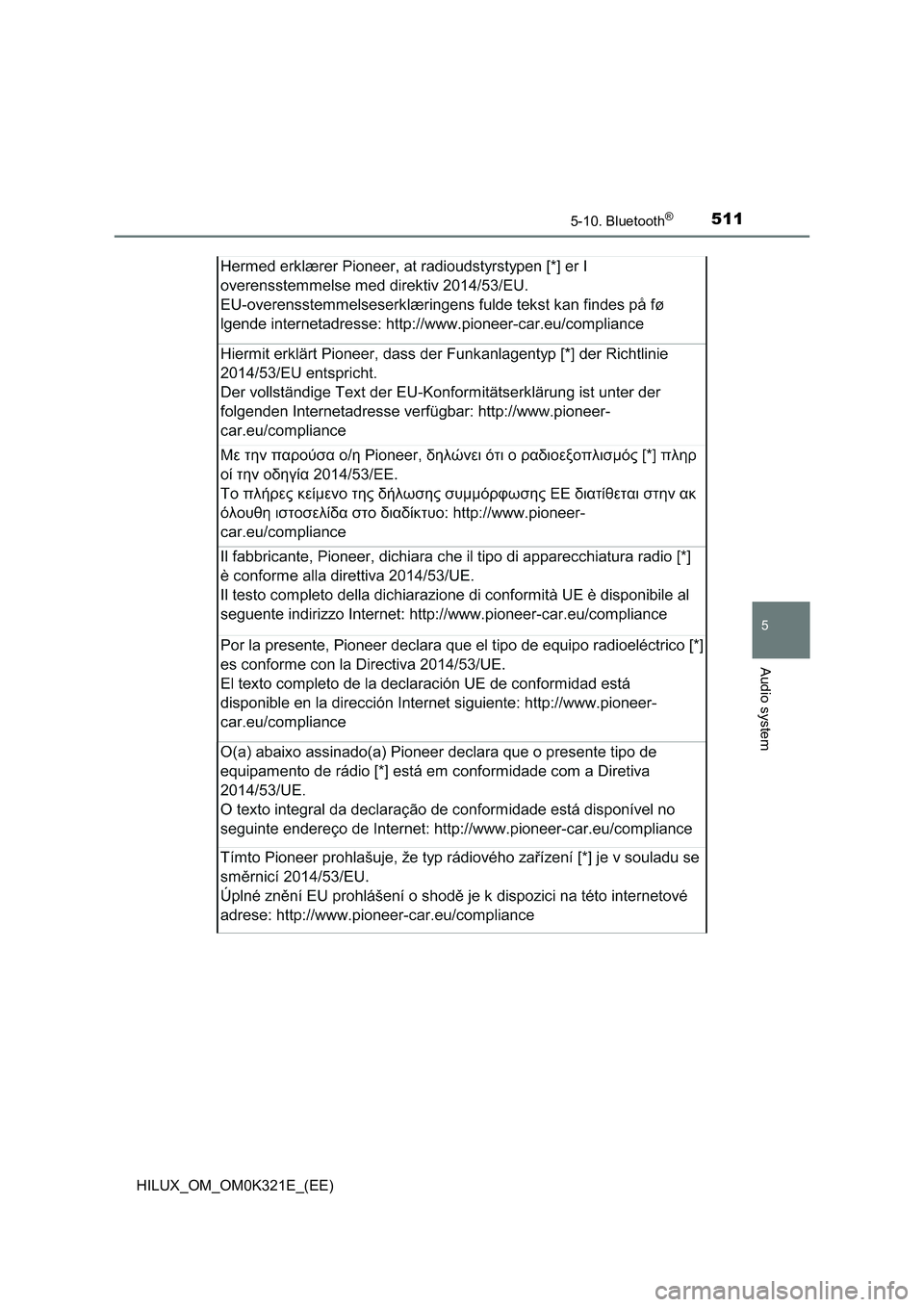

5115-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K321E_(EE)

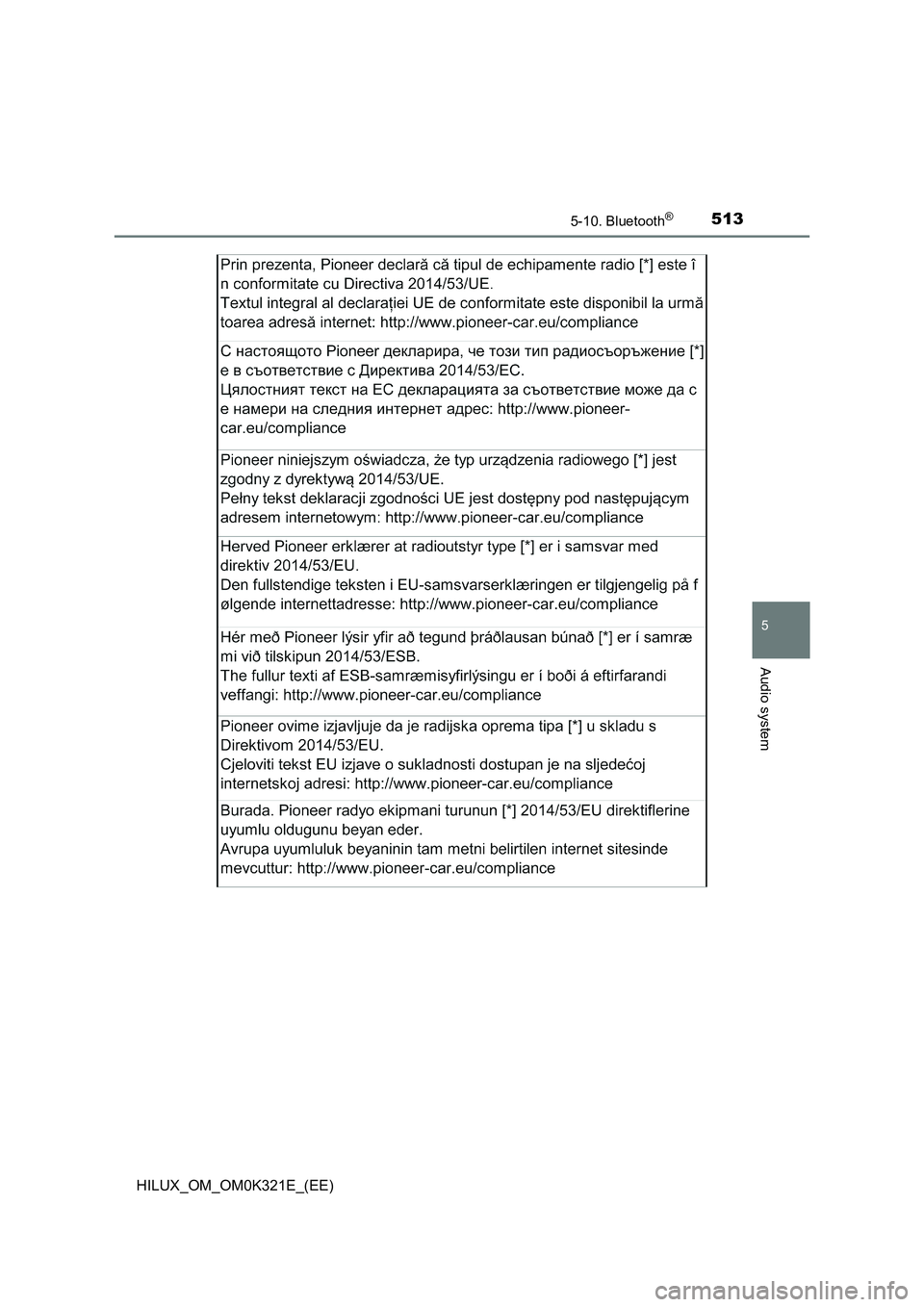

5125-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)

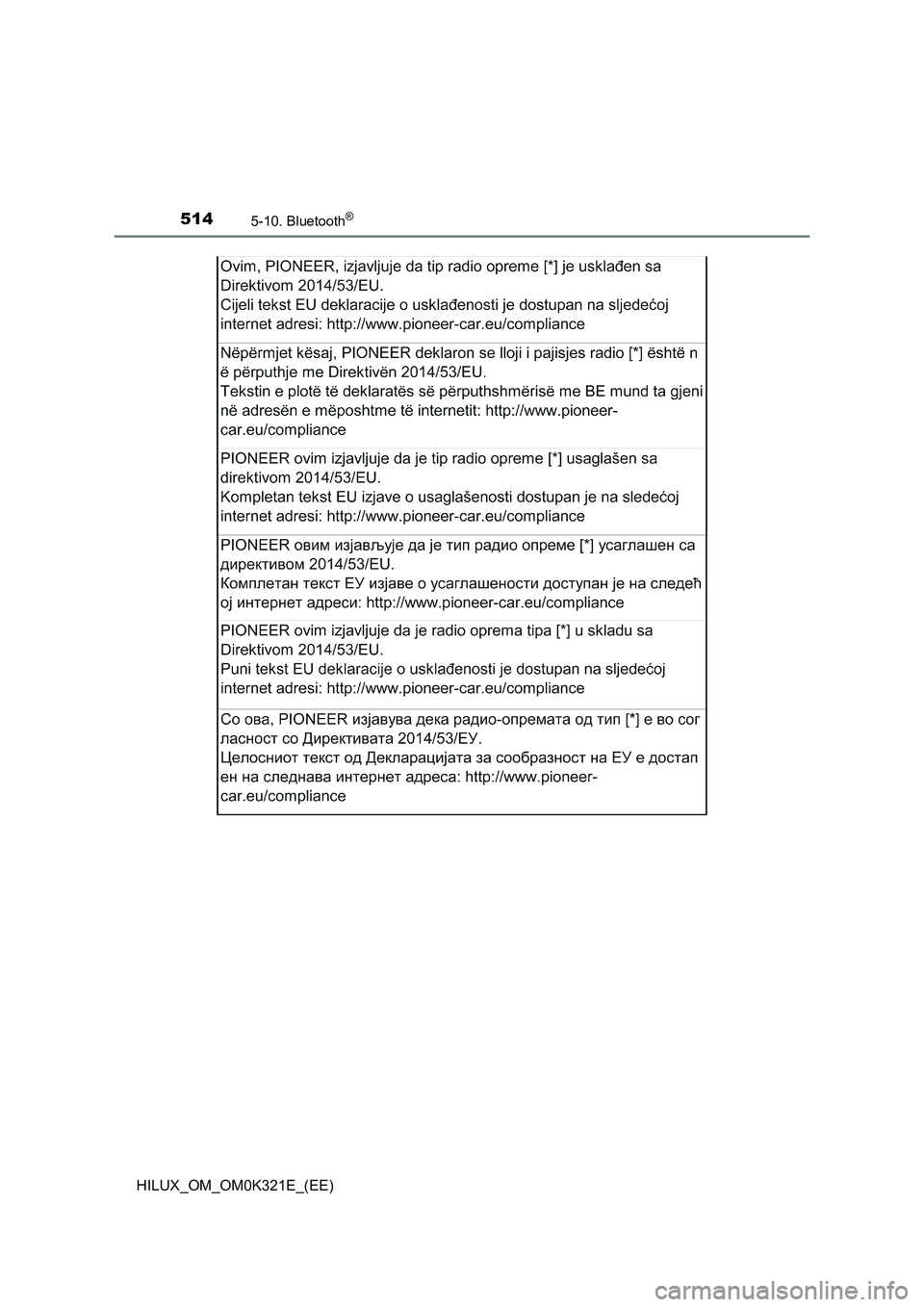

5135-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K321E_(EE)

5145-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)

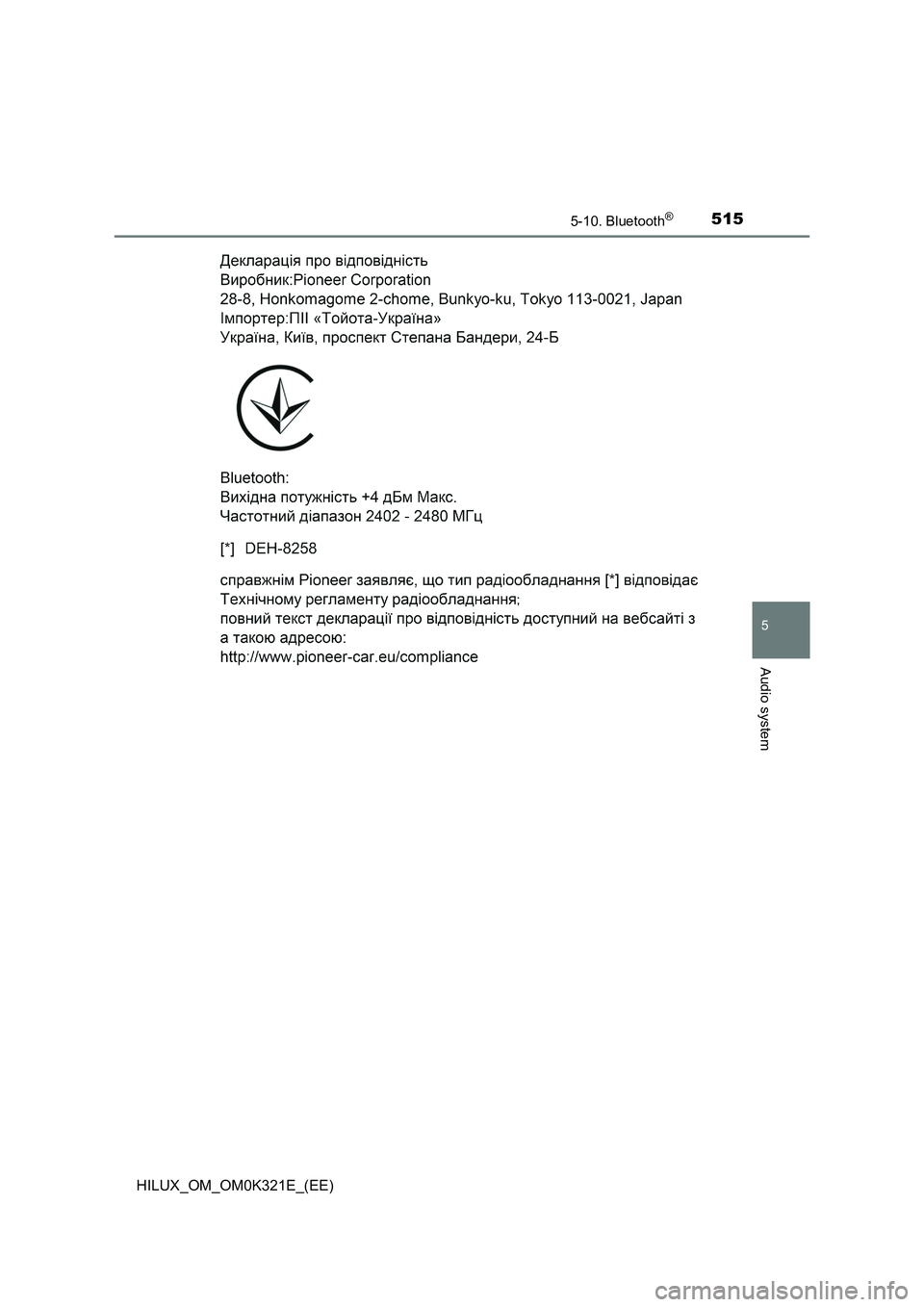

5155-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K321E_(EE)

5165-10. Bluetooth®
HILUX_OM_OM0K321E_(EE)

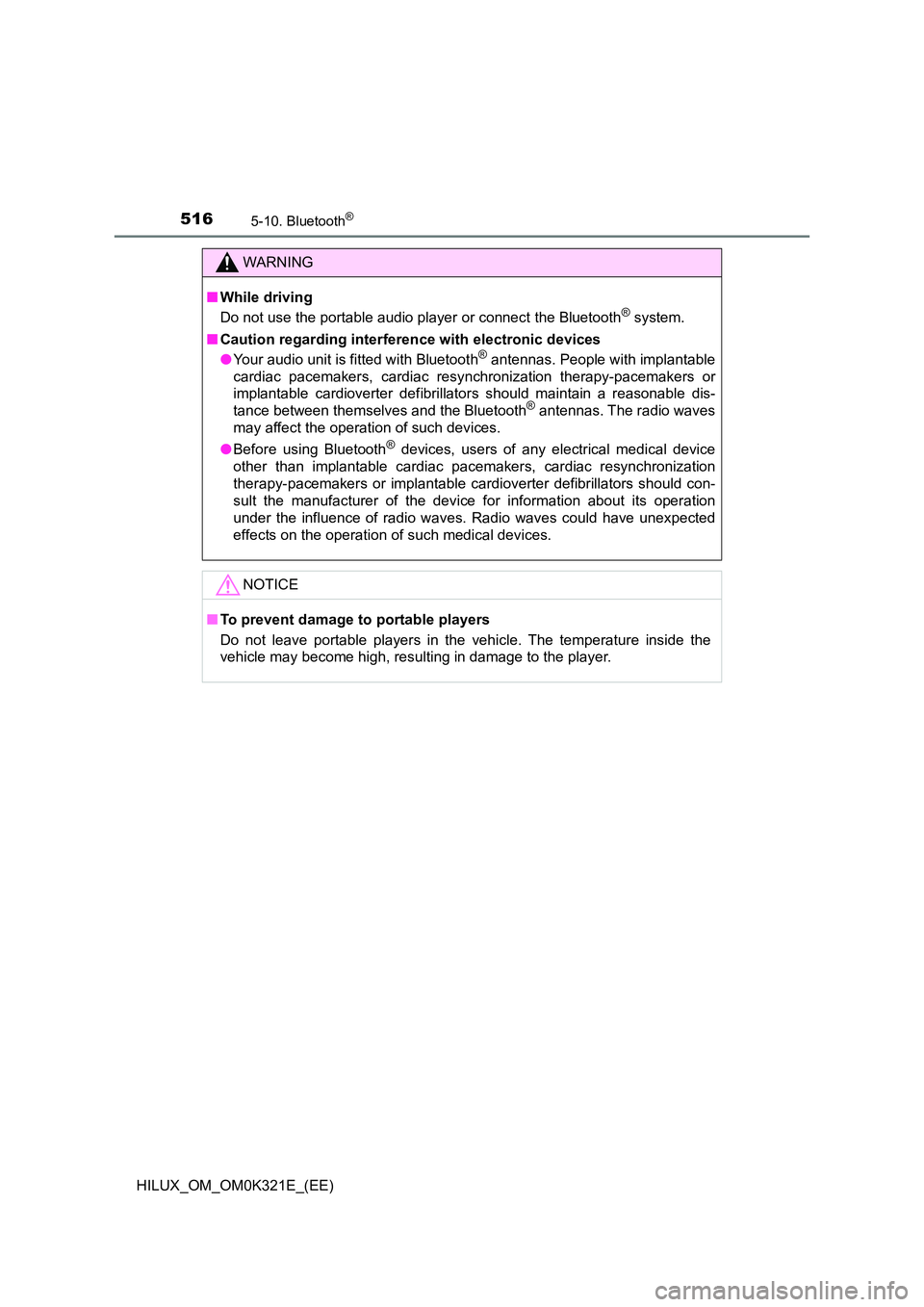

WARNING
■While driving
Do not use the portable audio player or connect the Bluetooth® system.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.

517
6Interior features
HILUX_OM_OM0K321E_(EE)
6-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................. 518
Automatic air conditioning
system ............................. 526
Heated steering wheel/
seat heaters ..................... 535
6-2. Using the interior lights
Interior lights list ................. 537
• Personal/interior light
main switch.................... 538
• Personal/interior
lights .............................. 538
• Interior light.................... 538
6-3. Using the storage features
List of storage features ...... 540
• Glove box ...................... 541
• Console box .................. 541
• Cup holders ................... 542
• Bottle holders ................ 543
• Auxiliary boxes .............. 544
Luggage compartment
features............................ 547
6-4. Using the other interior
features
Other interior features ........ 548
• Sun visors...................... 548
• Vanity mirror .................. 548
• Clock ............................. 549
• Power outlets................. 550
• Grocery bag hooks ........ 552
• Coat hooks .................... 553
• Armrest .......................... 553

5186-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)
Manual air conditioning system
■Adjusting the fan speed setting
Turn clockwise (increase) or counterclockwise (decrease).
Turning the dial to “OFF” turns off the fan.
■Adjusting the temperature setting
Turn clockwise (warm) or counterclockwise (cool).
If (if equipped) is not pressed, the system will blow ambient tem-
perature air or heated air.
■Changing the air flow mode
Set to the desired position.
The positions between the air outlet selections can also be selected for
more delicate adjustment.
: If equipped
Air conditioning controls

5196-1. Using the air conditioning system and defogger
6
Interior features
HILUX_OM_OM0K321E_(EE)

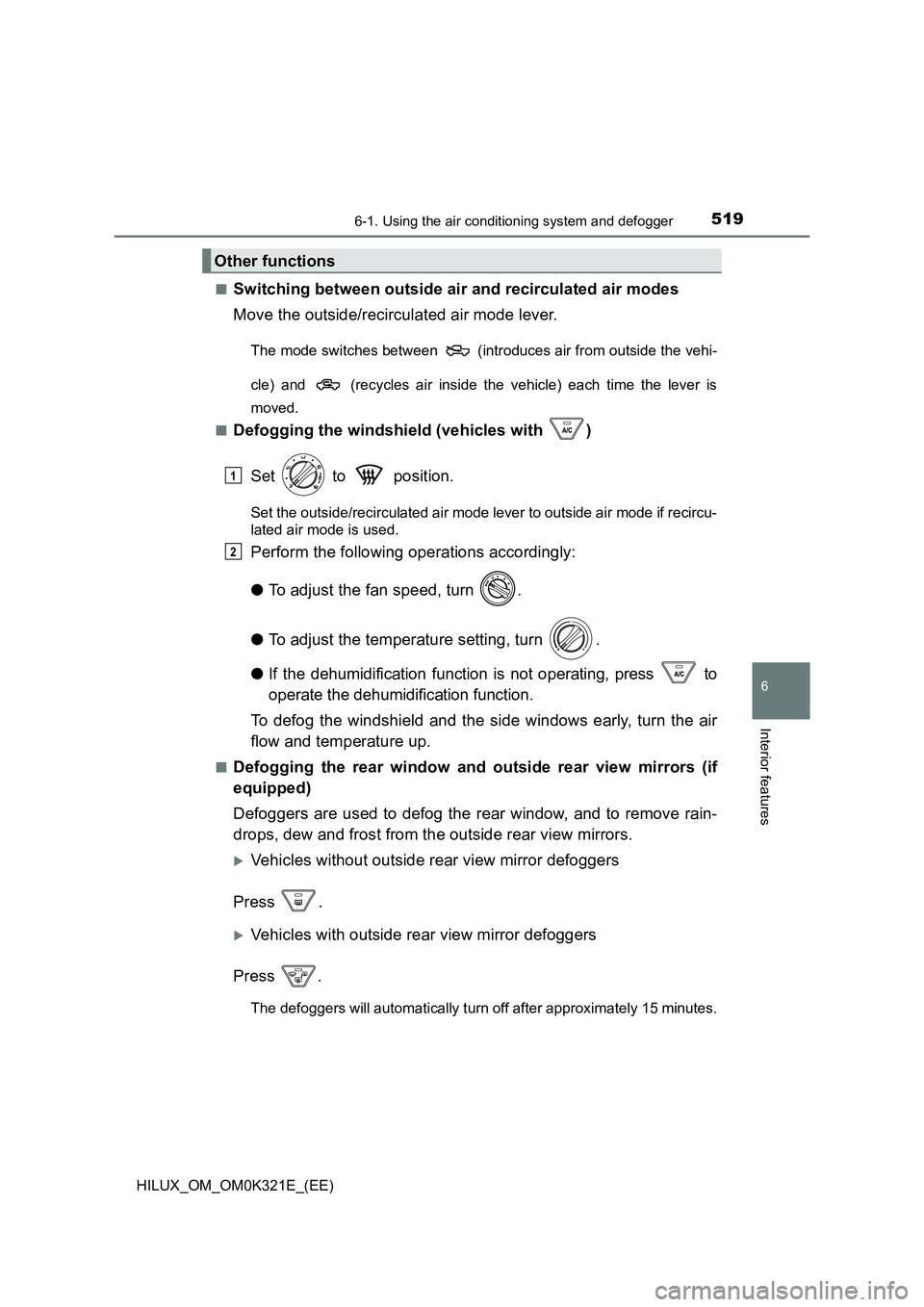

■Switching between outside air and recirculated air modes
Move the outside/recirculated air mode lever.
The mode switches between (introduces air from outside the vehi-
cle) and (recycles air inside the vehicle) each time the lever is
moved.
■Defogging the windshield (vehicles with )
Set to position.
Set the outside/recirculated air mode lever to outside air mode if recircu-
lated air mode is used.
Perform the following operations accordingly:
● To adjust the fan speed, turn .
● To adjust the temperature setting, turn .
● If the dehumidification function is not operating, press to
operate the dehumidification function.
To defog the windshield and the side windows early, turn the air
flow and temperature up.
■Defogging the rear window and outside rear view mirrors (if
equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Vehicles without outside rear view mirror defoggers
Press .
Vehicles with outside rear view mirror defoggers
Press .
The defoggers will automatically turn off after approximately 15 minutes.
Other functions
1
2

5206-1. Using the air conditioning system and defogger
HILUX_OM_OM0K321E_(EE)

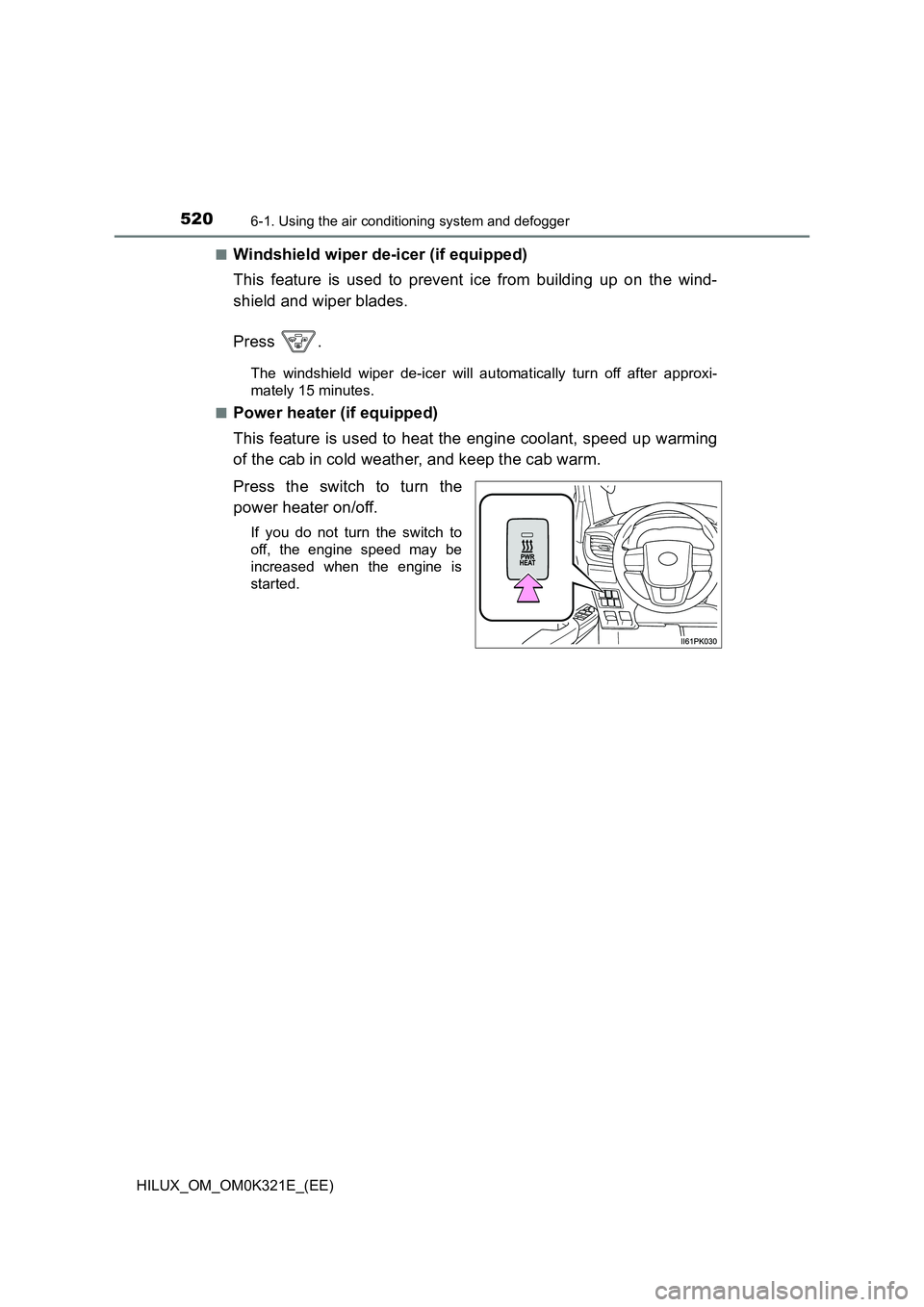

■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the wind-
shield and wiper blades.
Press .
The windshield wiper de-icer will automatically turn off after approxi-
mately 15 minutes.
■Power heater (if equipped)
This feature is used to heat the engine coolant, speed up warming
of the cab in cold weather, and keep the cab warm.
Press the switch to turn the
power heater on/off.
If you do not turn the switch to
off, the engine speed may be
increased when the engine is
started.
