TOYOTA HILUX 2021 Owners Manual (in English)

5497-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

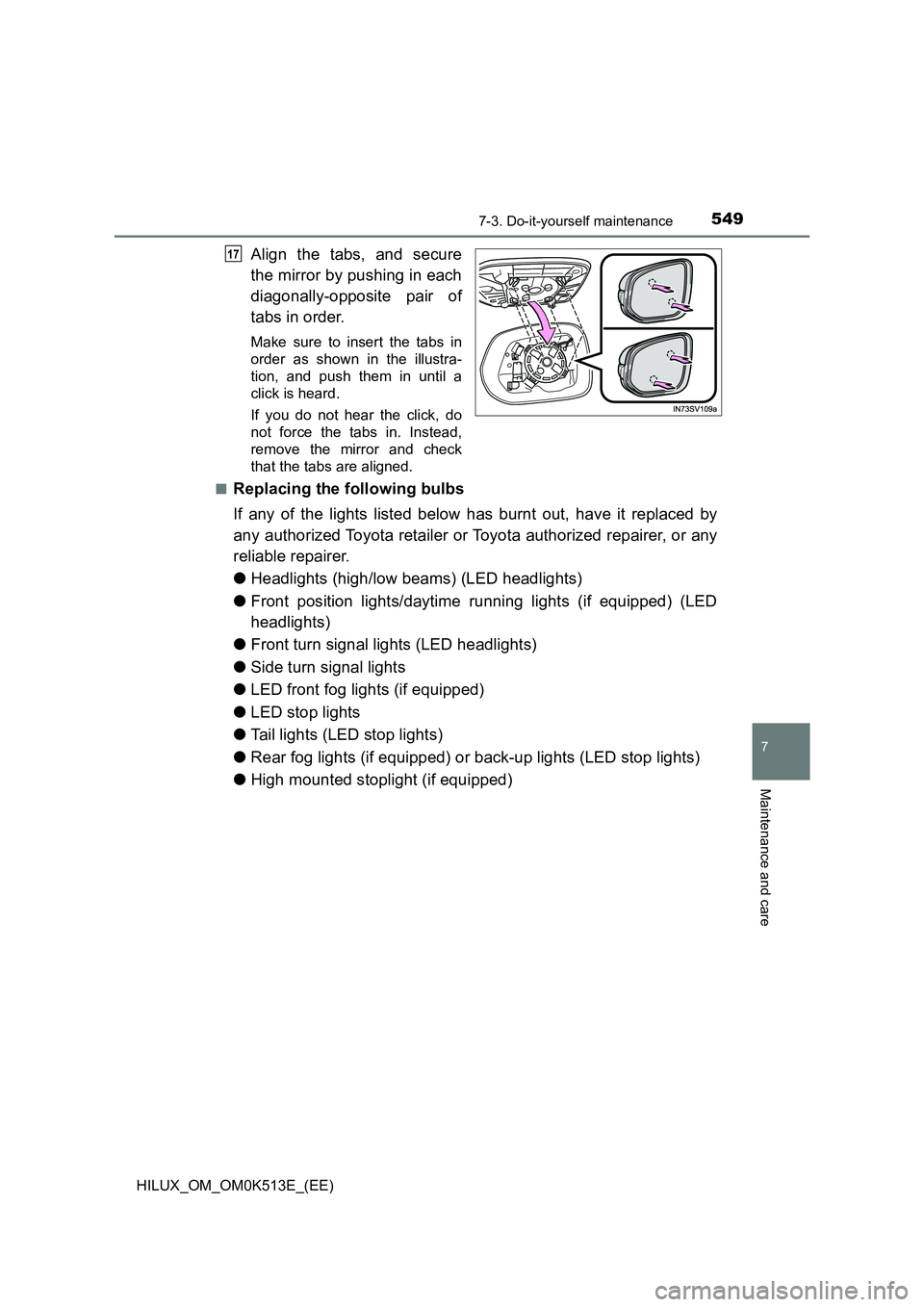

Align the tabs, and secure
the mirror by pushing in each
diagonally-opposite pair of
tabs in order.
Make sure to insert the tabs in
order as shown in the illustra-
tion, and push them in until a
click is heard.
If you do not hear the click, do
not force the tabs in. Instead,
remove the mirror and check
that the tabs are aligned.
QReplacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
O Headlights (high/low beams) (LED headlights)
O Front position lights/daytime running lights (if equipped) (LED
headlights)
O Front turn signal lights (LED headlights)
O Side turn signal lights
O LED front fog lights (if equipped)
O LED stop lights
O Tail lights (LED stop lights)
O Rear fog lights (if equipped) or back-up lights (LED stop lights)
O High mounted stoplight (if equipped)
17

5507-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

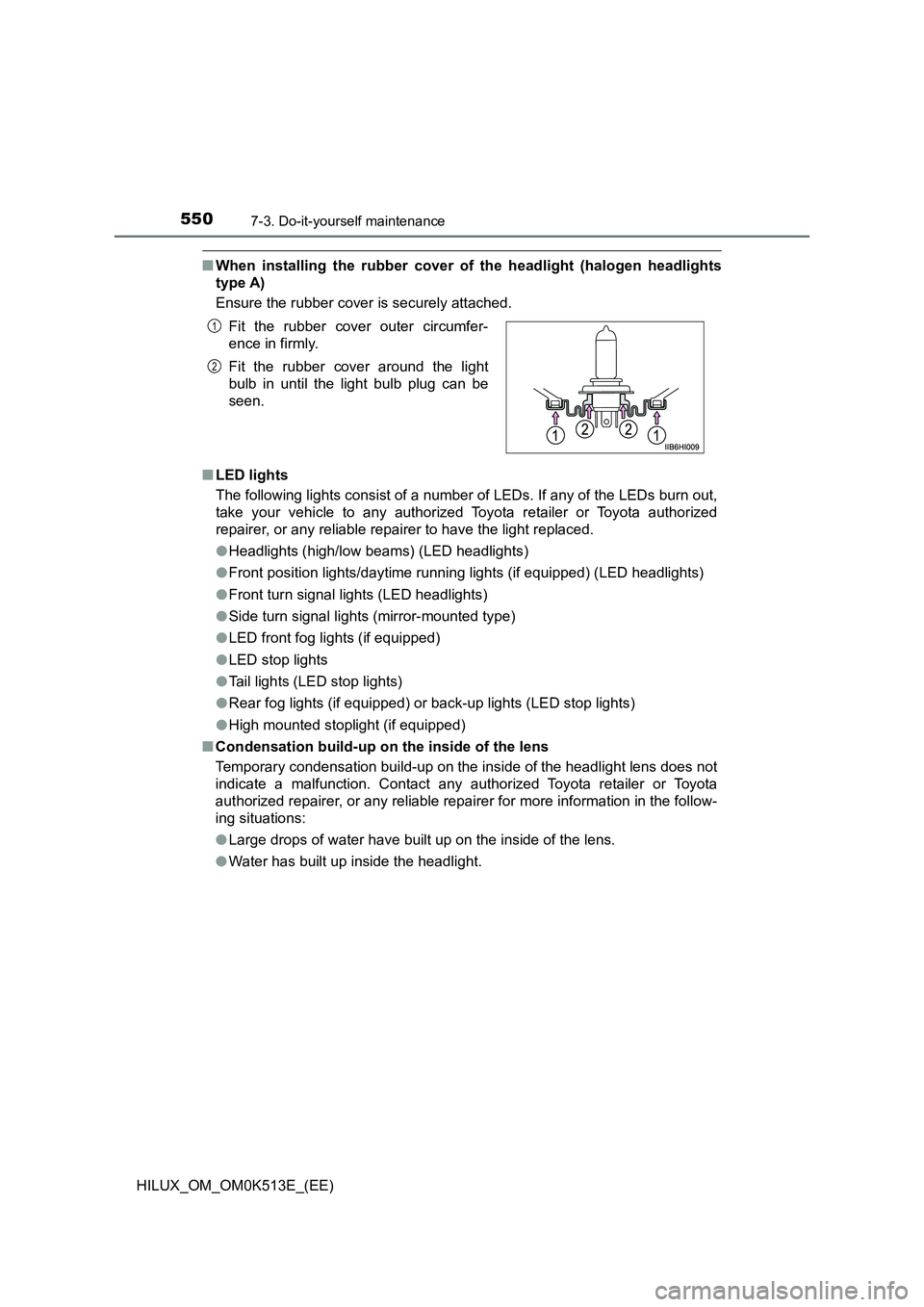

QWhen installing the rubber cover of the headlight (halogen headlights
type A)
Ensure the rubber cover is securely attached.
Q LED lights
The following lights consist of a number of LEDs. If any of the LEDs burn out,
take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer to have the light replaced.
O Headlights (high/low beams) (LED headlights)
O Front position lights/daytime running lights (if equipped) (LED headlights)
O Front turn signal lights (LED headlights)
O Side turn signal lights (mirror-mounted type)
O LED front fog lights (if equipped)
O LED stop lights
O Tail lights (LED stop lights)
O Rear fog lights (if equipped) or back-up lights (LED stop lights)
O High mounted stoplight (if equipped)
Q Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for more information in the follow-
ing situations:
O Large drops of water have built up on the inside of the lens.
O Water has built up inside the headlight.
Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.
1
2

5517-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

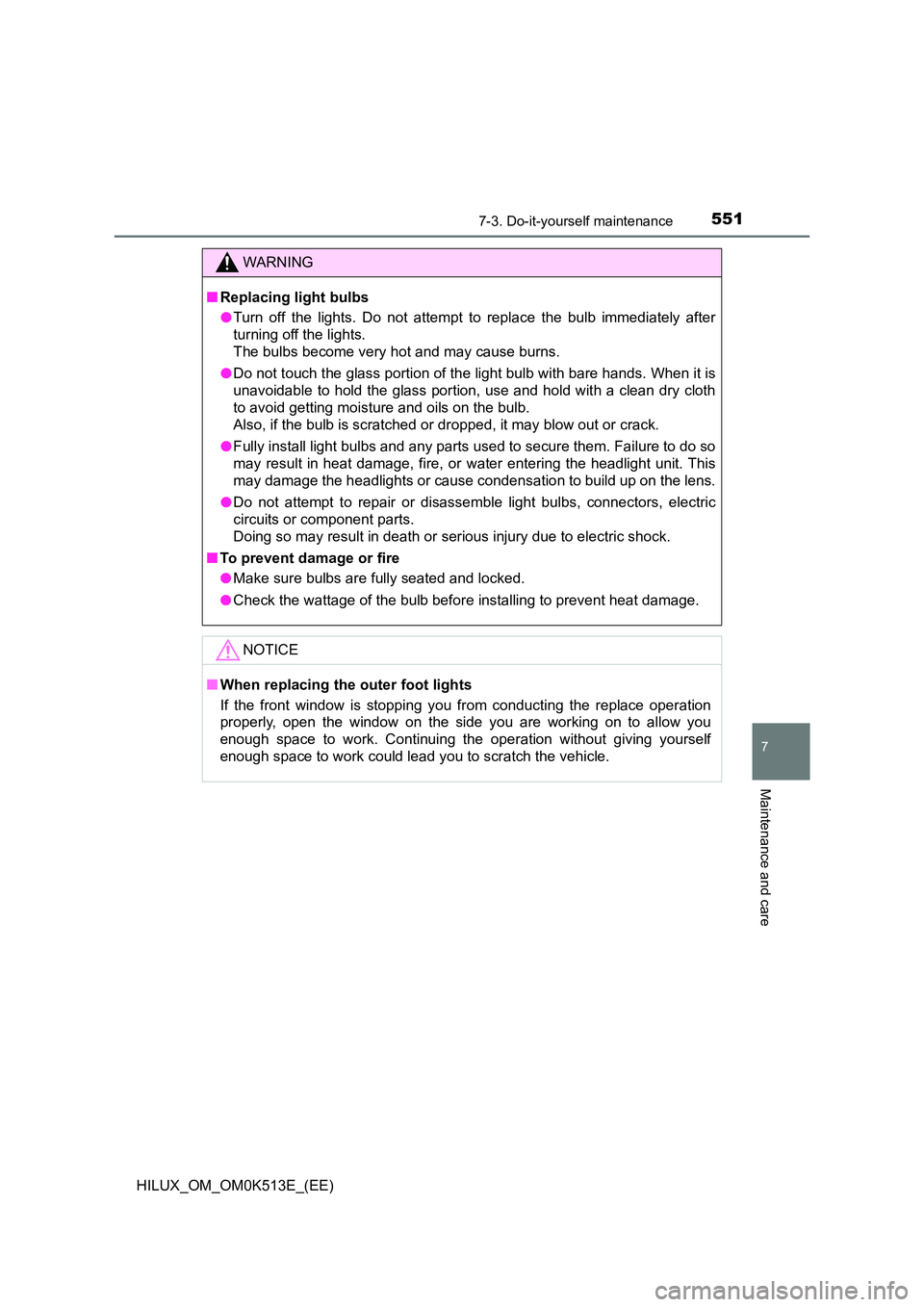

WARNING
QReplacing light bulbs
O Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
O Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
O Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
O Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
Q To prevent damage or fire
O Make sure bulbs are fully seated and locked.
O Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
QWhen replacing the outer foot lights
If the front window is stopping you from conducting the replace operation
properly, open the window on the side you are working on to allow you
enough space to work. Continuing the operation without giving yourself
enough space to work could lead you to scratch the vehicle.

5527-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

553
8When trouble arises
HILUX_OM_OM0K513E_(EE)
8-1. Essential information
Emergency flashers ........... 554
If your vehicle has to
be stopped in an
emergency ....................... 555
If the vehicle is
submerged or water on
the road is rising .............. 557
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ...................... 559
If you think something is
wrong ............................... 564
Fuel pump shut off
system (gasoline engine
only) ................................. 565
If a warning light turns on
or a warning buzzer
sounds ............................. 566
If a warning message is
displayed ......................... 575
If you have a flat tire .......... 581
If the engine will not
start.................................. 598
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)........ 600
If the vehicle battery is
discharged ....................... 604
If your vehicle
overheats ......................... 610
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 614
If the vehicle becomes
stuck ................................ 615

5548-1. Essential information
HILUX_OM_OM0K513E_(EE)

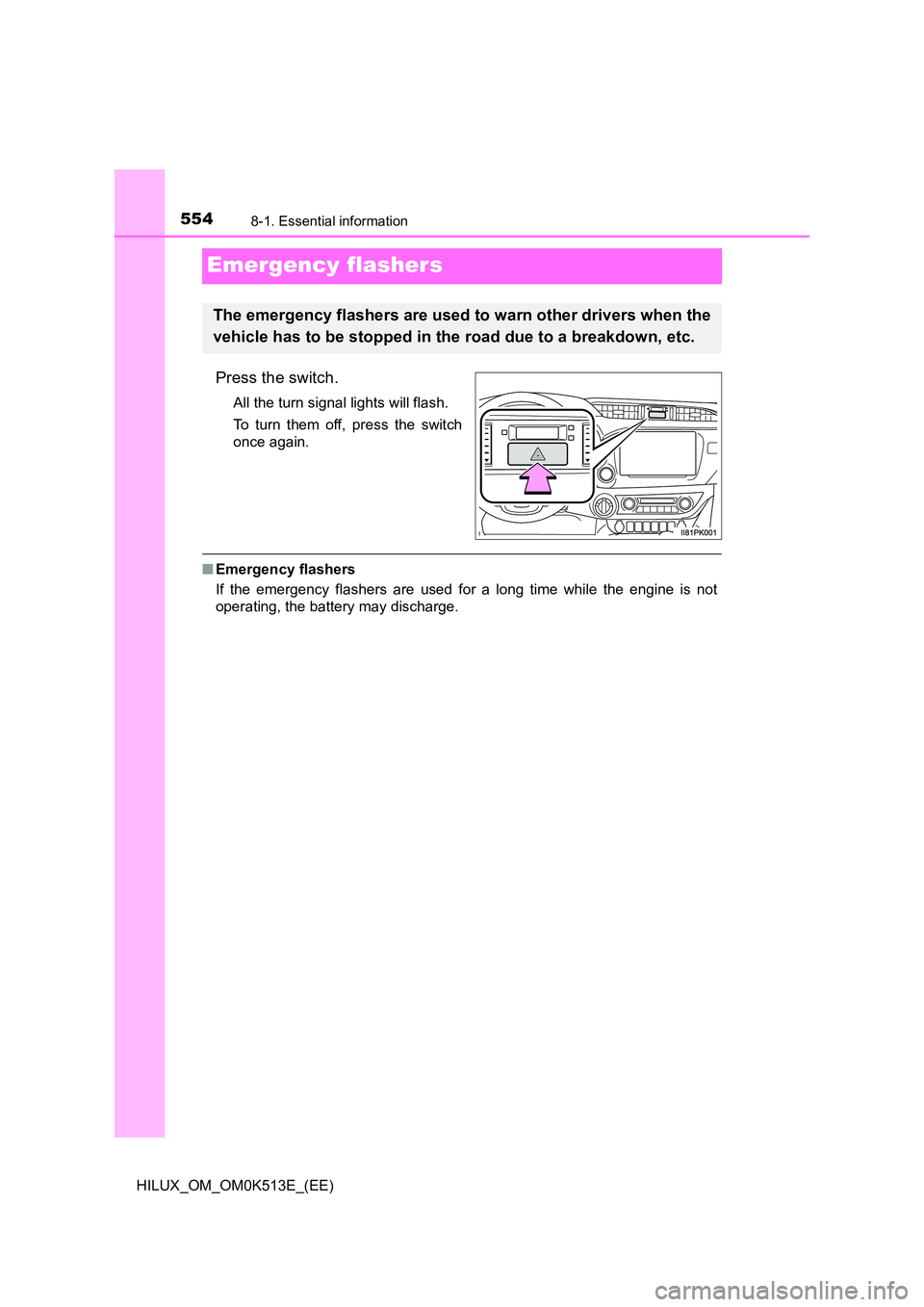

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
Q Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

5558-1. Essential information
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without smart entry &
start system:
Stop the engine by turning the
engine switch to the “ACC”
position.
Vehicles with smart entry &
start system:
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
5

5568-1. Essential information
HILUX_OM_OM0K513E_(EE)

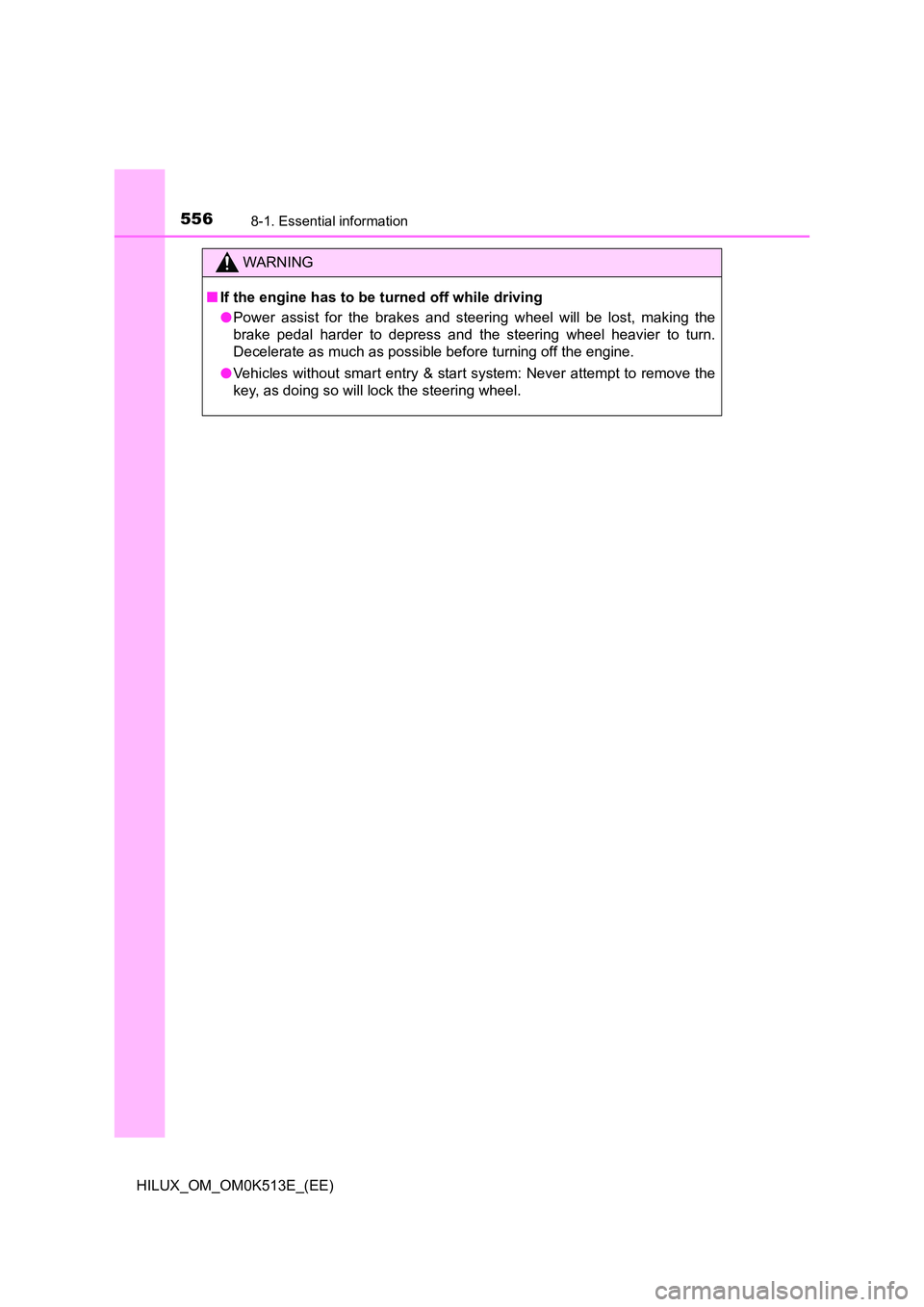

WARNING
QIf the engine has to be turned off while driving
O Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
O Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.

5578-1. Essential information
HILUX_OM_OM0K513E_(EE)
8
When trouble arises

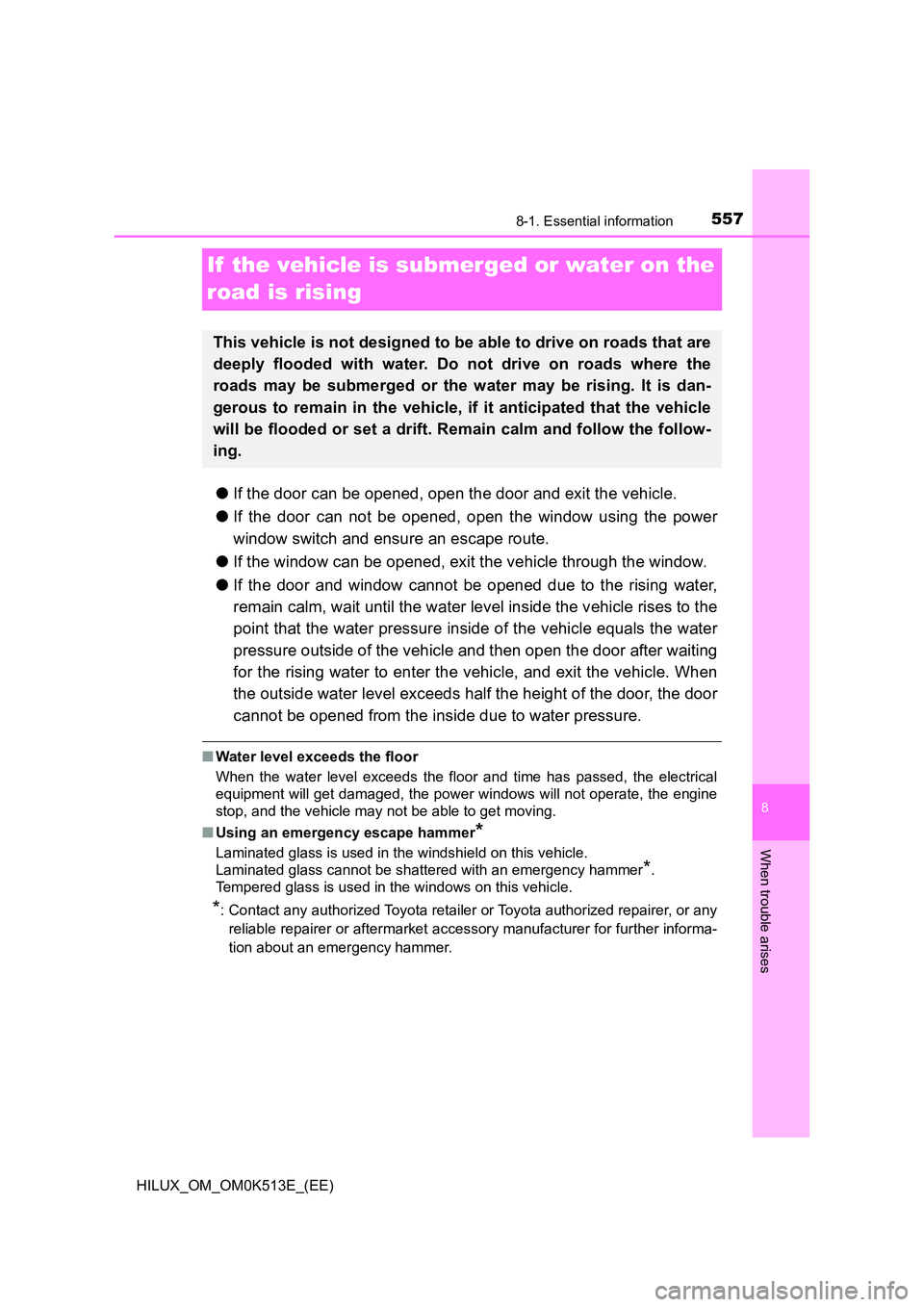

If the vehicle is submerged or water on the
road is rising
O If the door can be opened, open the door and exit the vehicle.
O If the door can not be opened, open the window using the power
window switch and ensure an escape route.
O If the window can be opened, exit the vehicle through the window.
O If the door and window cannot be opened due to the rising water,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle and then open the door after waiting
for the rising water to enter the vehicle, and exit the vehicle. When
the outside water level exceeds half the height of the door, the door
cannot be opened from the inside due to water pressure.
Q Water level exceeds the floor
When the water level exceeds the floor and time has passed, the electrical
equipment will get damaged, the power windows will not operate, the engine
stop, and the vehicle may not be able to get moving.
Q Using an emergency escape hammer*
Laminated glass is used in the windshield on this vehicle.
Laminated glass cannot be shattered with an emergency hammer*.
Tempered glass is used in the windows on this vehicle.
*: Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or aftermarket access ory manufacturer for further informa-
tion about an emergency hammer.
This vehicle is not designed to be able to drive on roads that are
deeply flooded with water. Do not drive on roads where the
roads may be submerged or the water may be rising. It is dan-
gerous to remain in the vehicle, if it anticipated that the vehicle
will be flooded or set a drift. Remain calm and follow the follow-
ing.

5588-1. Essential information
HILUX_OM_OM0K513E_(EE)

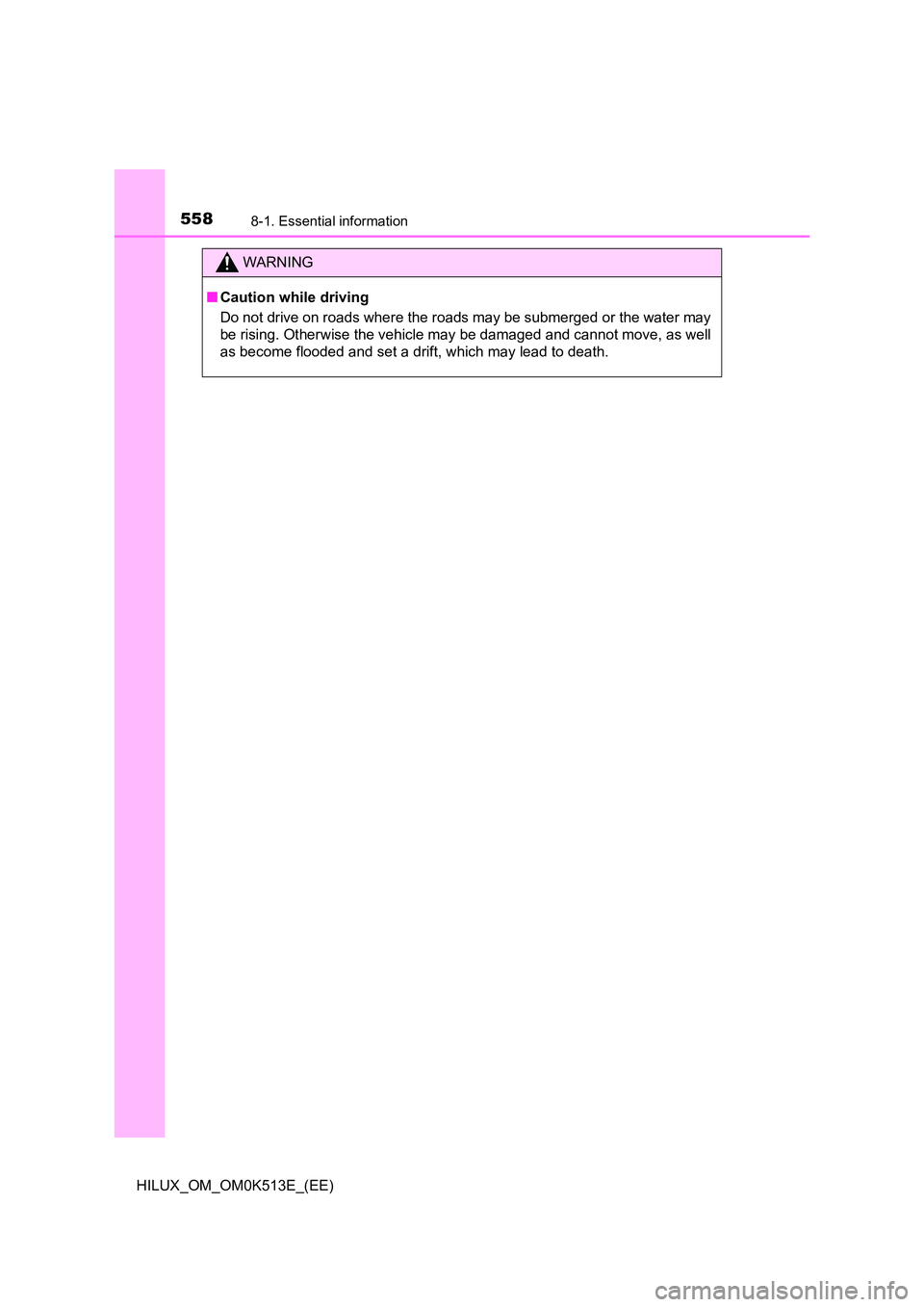

WARNING
QCaution while driving
Do not drive on roads where the roads may be submerged or the water may
be rising. Otherwise the vehicle may be damaged and cannot move, as well
as become flooded and set a drift, which may lead to death.
