TOYOTA HILUX 2023 Owners Manual

119

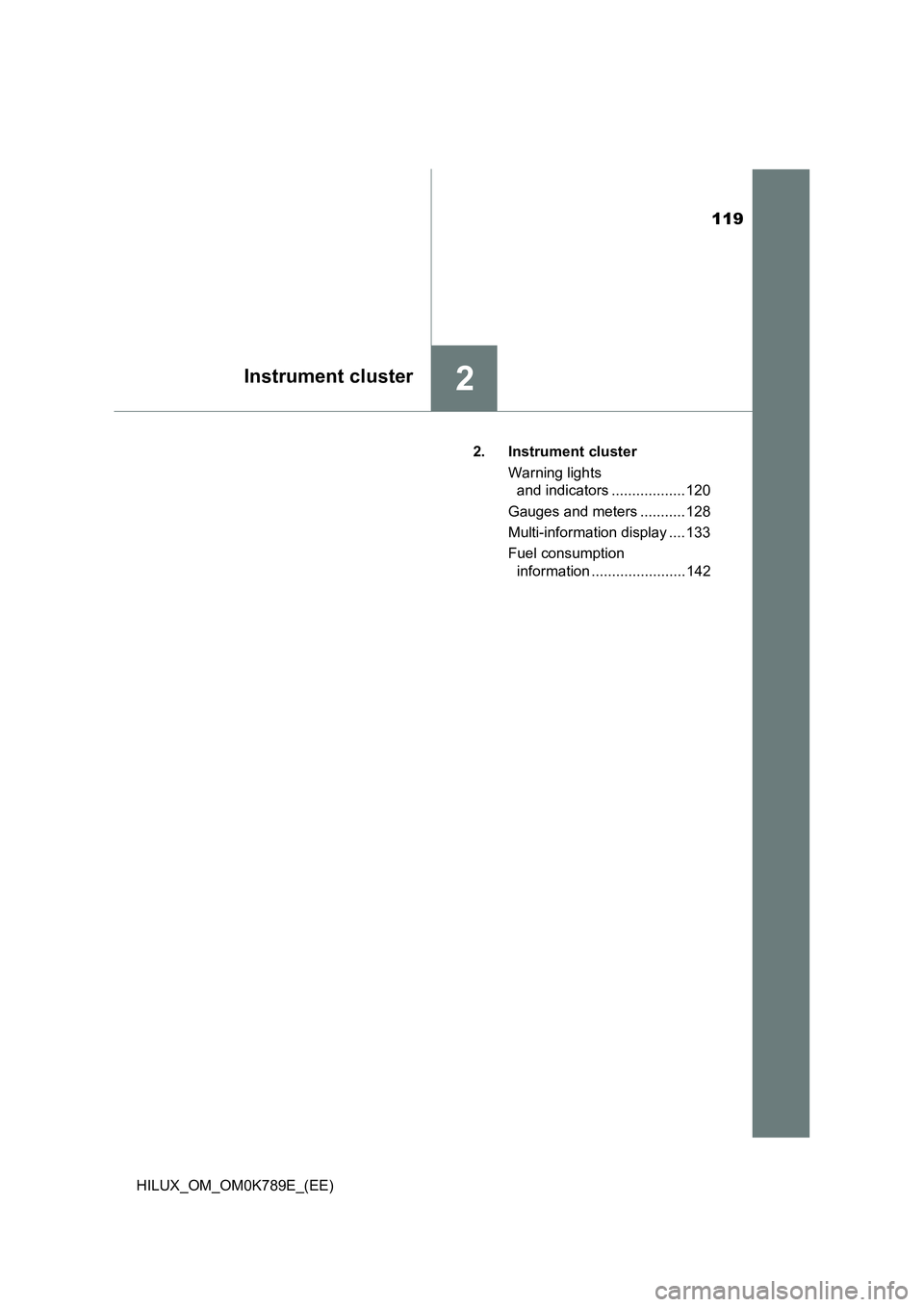

2Instrument cluster
HILUX_OM_OM0K789E_(EE)
2. Instrument cluster
Warning lights
and indicators .................. 120
Gauges and meters ........... 128
Multi-information display .... 133
Fuel consumption
information ....................... 142

1202. Instrument cluster
HILUX_OM_OM0K789E_(EE)

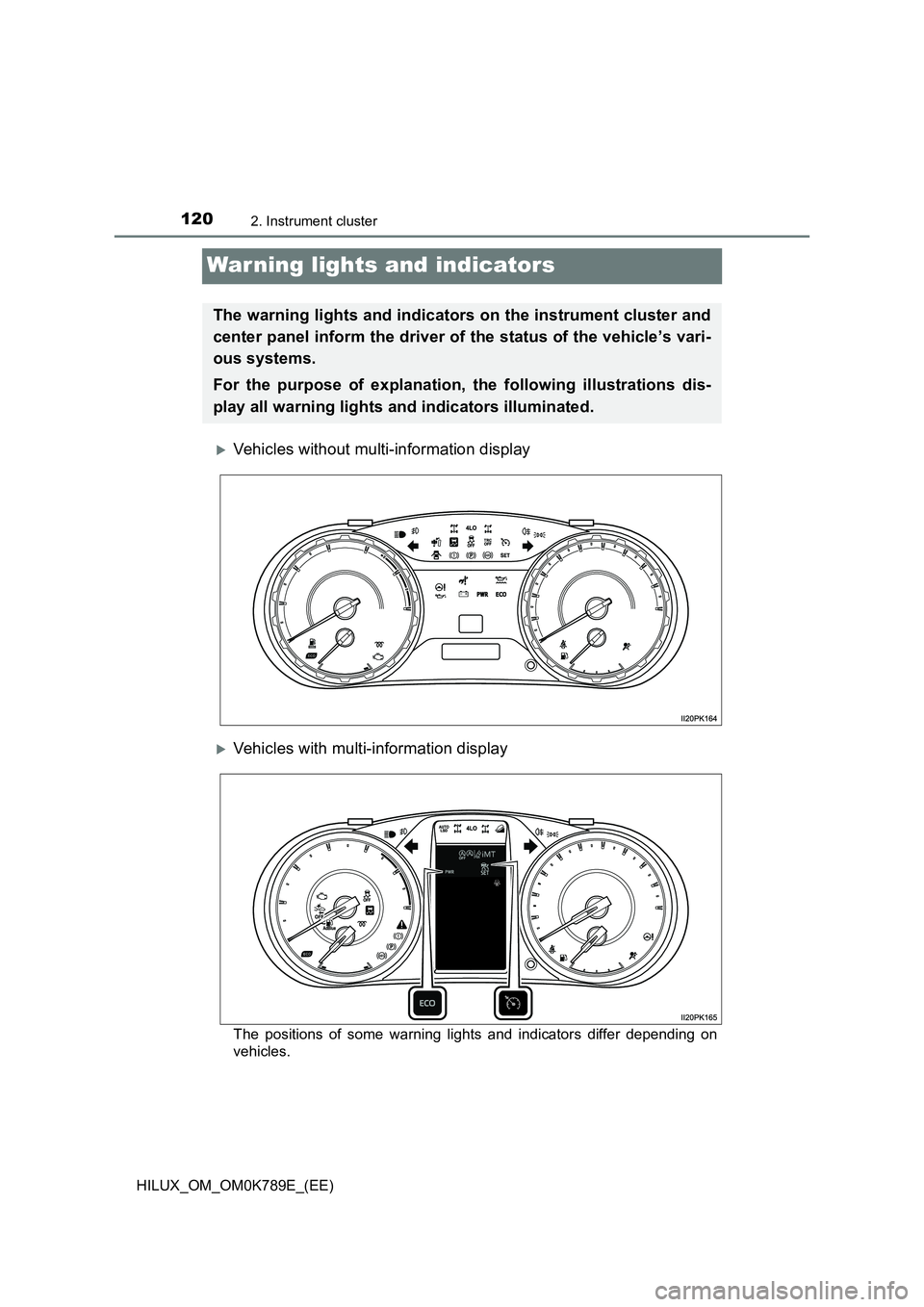

War ning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The positions of some warning lights and indicators differ depending on
vehicles.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

1212. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)

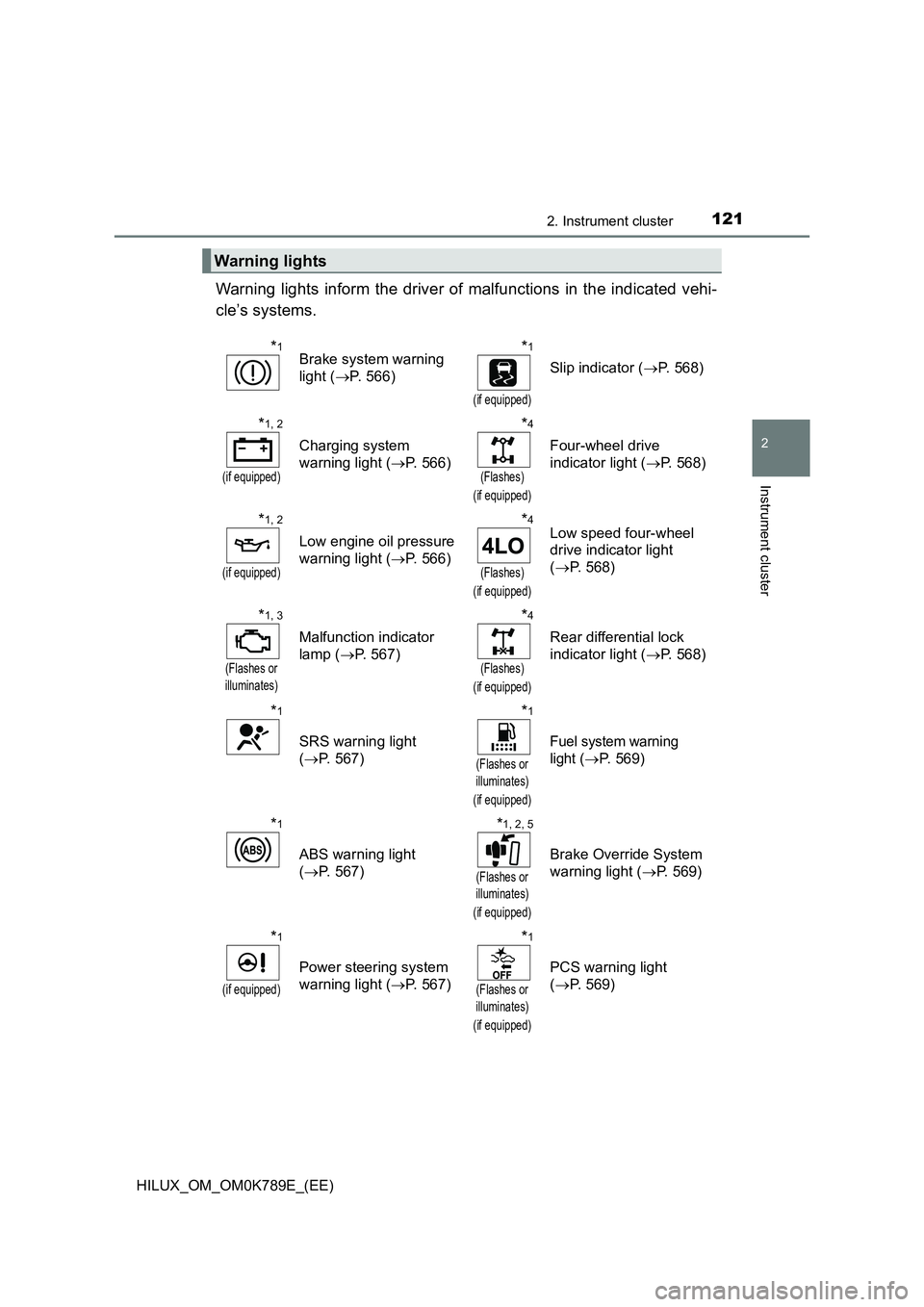

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light ( P. 566)
*1
(if equipped)
Slip indicator (P. 568)
*1, 2
(if equipped)
Charging system
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Four-wheel drive
indicator light ( P. 568)
*1, 2
(if equipped)
Low engine oil pressure
warning light ( P. 566)
*4
(Flashes)
(if equipped)
Low speed four-wheel
drive indicator light
( P. 568)
*1, 3
(Flashes or
illuminates)
Malfunction indicator
lamp ( P. 567)
*4
(Flashes)
(if equipped)
Rear differential lock
indicator light ( P. 568)
*1
SRS warning light
( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
Fuel system warning
light ( P. 569)
*1
ABS warning light
( P. 567)
*1, 2, 5
(Flashes or
illuminates)
(if equipped)
Brake Override System
warning light ( P. 569)
*1
(if equipped)
Power steering system
warning light ( P. 567)
*1
(Flashes or
illuminates)
(if equipped)
PCS warning light
( P. 569)

1222. Instrument cluster
HILUX_OM_OM0K789E_(EE)
(Yellow)
(if equipped)
LDA indicator (P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 571)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)Rear passengers’ seat
belt reminder lights
( P. 570)
(if equipped)
Low AdBlue™ level
warning light ( P. 571)
*7
(Flashes or
illuminates)
(If equipped)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
Low fuel level warning
light ( P. 570)(if equipped)
Go to service warning
light ( P. 571)

1232. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
*3: The light turns on or flashes to indicate a malfunction.
*4: The light flashes rapidly to indicate a malfunction.
*5: The light flashes to indicate a malfunction.
*6: The light turns to yellow to indicate a malfunction. (vehicles without multi-
information display)
*7: The lights illuminate on the center panel.

1242. Instrument cluster
HILUX_OM_OM0K789E_(EE)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 245)(if equipped)
Dynamic radar cruise
control indicator
( P. 300)
Headlight high beam
indicator ( P. 249)(if equipped)
Cruise control “SET”
indicator ( P. 300, 316)
Tail light indicator
( P. 247)
*1
(if equipped)
Downhill assist control
system indicator
( P. 363)
(if equipped)
Front fog light indicator
( P. 254)
*1, 3
(if equipped)
Slip indicator (P. 355)
(if equipped)
Rear fog light indicator
( P. 255)
*1, 2
(if equipped)
VSC OFF indicator
( P. 356)
*1Eco Driving Indicator
Light ( P. 126)
*1, 2
(if equipped)
“TRC OFF” indicator
( P. 356)
*1
(if equipped)
Stop & Start indicator
( P. 344)(4WD models)
Four-wheel drive
indicator ( P. 330)
*1, 2
(if equipped)
Stop & Start cancel
indicator ( P. 345)(4WD models)
Low speed four-wheel
drive indicator light
( P. 330)
(diesel engine)
Engine preheating
indicator ( P. 219, 222)(if equipped)
Rear differential lock
indicator ( P. 340)
*6
(if equipped)
Cruise control indicator
( P. 300, 316)(if equipped)
“ECO” indicator
( P. 232, 239)

1252. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: The light turns on when the system is turned off.
*3: The light flashes to indicate that the system is operating.
*4: Depending on the operating condition, the color and illuminating/flashing
state of the light change.
*5: The light illuminates on the center panel.
*6: The light turns to green.
(if equipped)
“PWR” indicator
( P. 232, 239)(if equipped)
Low outside
temperature indicator
( P. 129)
(if equipped)
“iMT” indicator
( P. 240)
Parking brake indicator
light ( P. 246)
*1, 2
(if equipped)
PCS warning light
( P. 272)
*1
(if equipped)
“AUTO LSD” indicator
( P. 366)
*4
(if equipped)
LDA indicator (P. 289)
*1, 5
(if equipped)
“PASSENGER AIR
BAG” indicator
( P. 57, 62)

1262. Instrument cluster
HILUX_OM_OM0K789E_(EE)

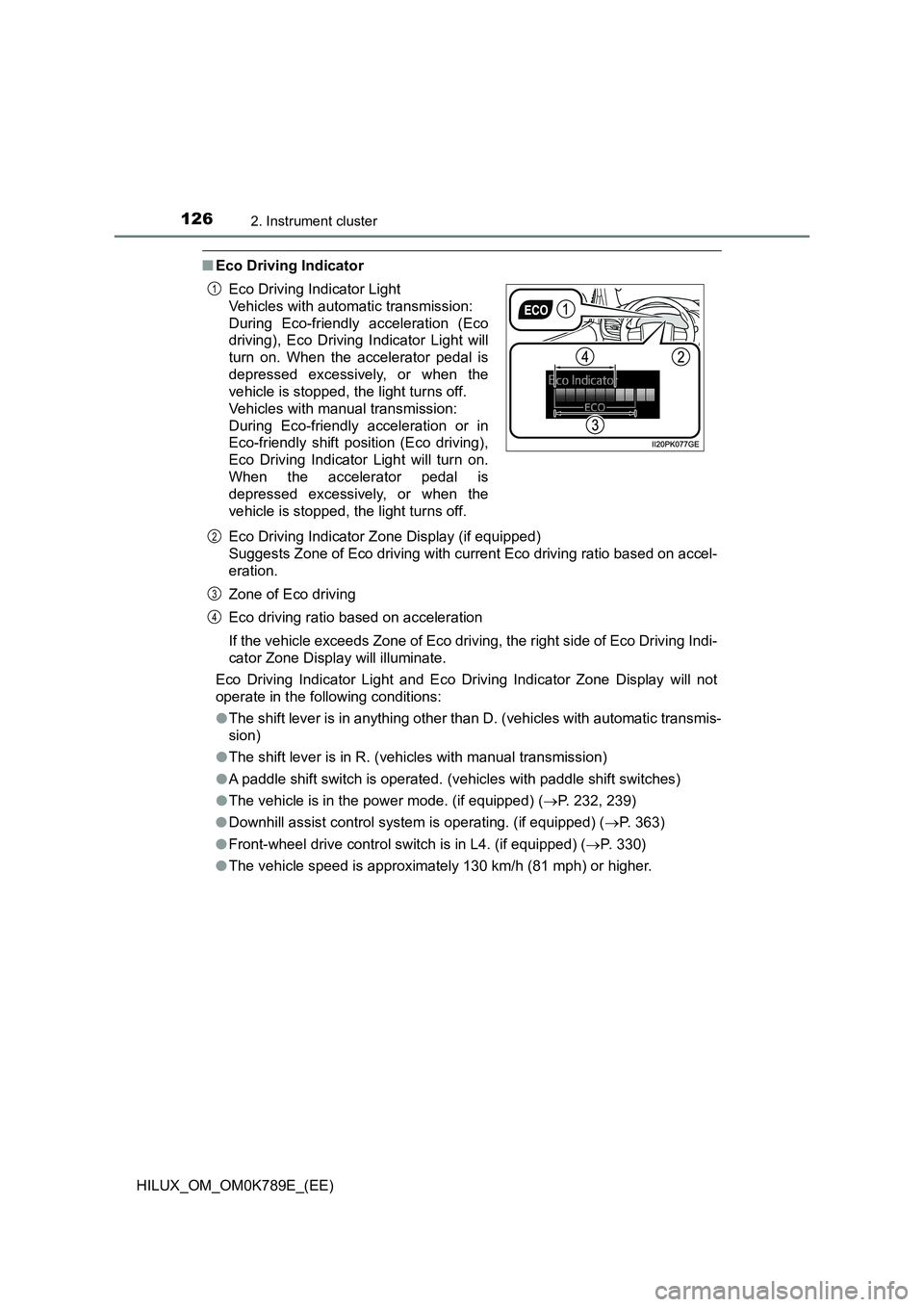

■Eco Driving Indicator
Eco Driving Indicator Zone Display (if equipped)
Suggests Zone of Eco driving with current Eco driving ratio based on accel-
eration.
Zone of Eco driving
Eco driving ratio based on acceleration
If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-
cator Zone Display will illuminate.
Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not
operate in the following conditions:
● The shift lever is in anything other than D. (vehicles with automatic transmis-
sion)
● The shift lever is in R. (vehicles with manual transmission)
● A paddle shift switch is operated. (vehicles with paddle shift switches)
● The vehicle is in the power mode. (if equipped) (P. 232, 239)
● Downhill assist control system is operating. (if equipped) (P. 363)
● Front-wheel drive control switch is in L4. (if equipped) (P. 330)
● The vehicle speed is approximately 130 km/h (81 mph) or higher.
Eco Driving Indicator Light
Vehicles with automatic transmission:
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Vehicles with manual transmission:
During Eco-friendly acceleration or in
Eco-friendly shift position (Eco driving),
Eco Driving Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
1
2
3
4

1272. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)

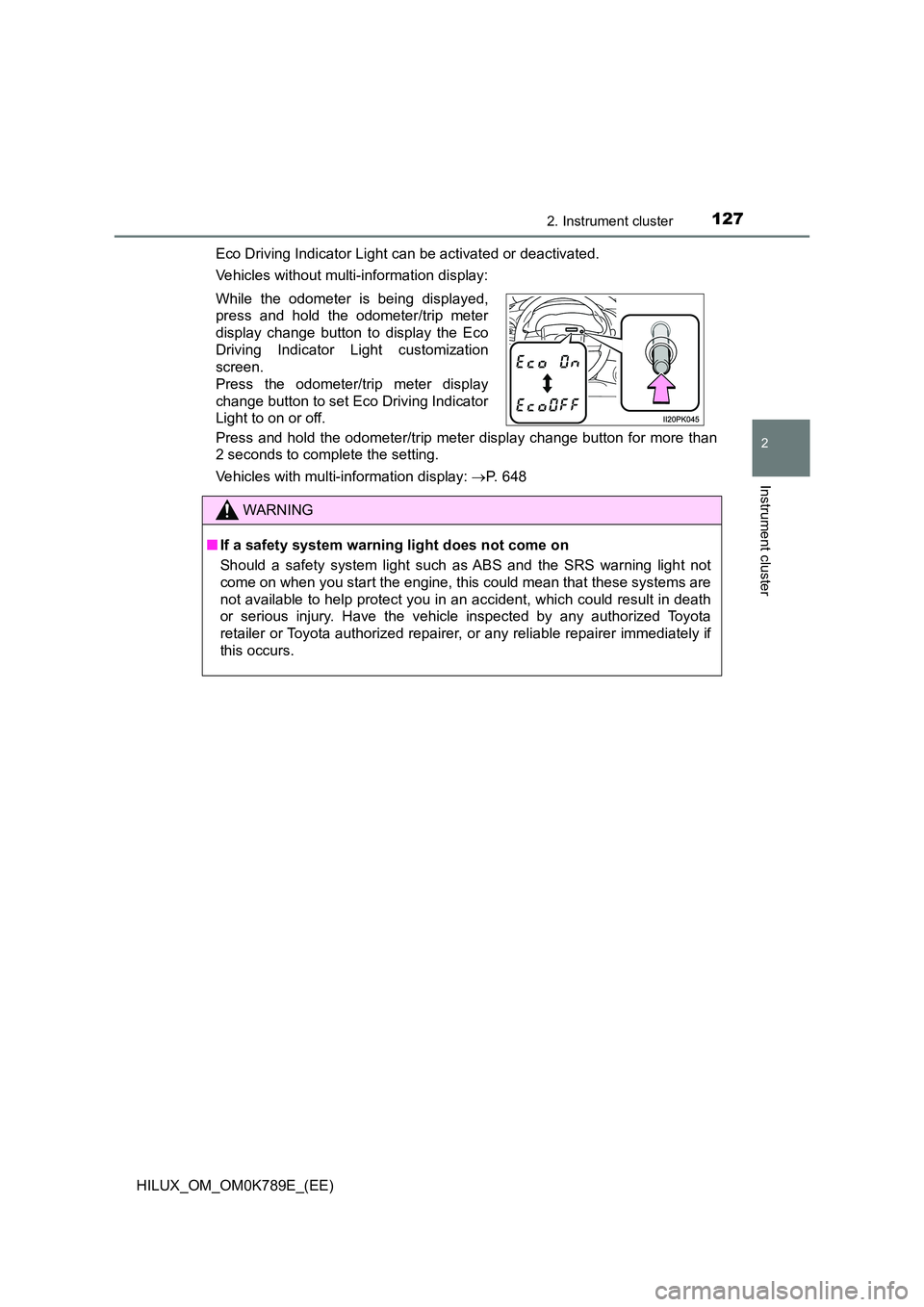

Eco Driving Indicator Light can be activated or deactivated.
Vehicles without multi-information display:
Press and hold the odometer/trip meter display change button for more than
2 seconds to complete the setting.
Vehicles with multi-information display: P. 648
While the odometer is being displayed,
press and hold the odometer/trip meter
display change button to display the Eco
Driving Indicator Light customization
screen.
Press the odometer/trip meter display
change button to set Eco Driving Indicator
Light to on or off.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately if
this occurs.

1282. Instrument cluster
HILUX_OM_OM0K789E_(EE)

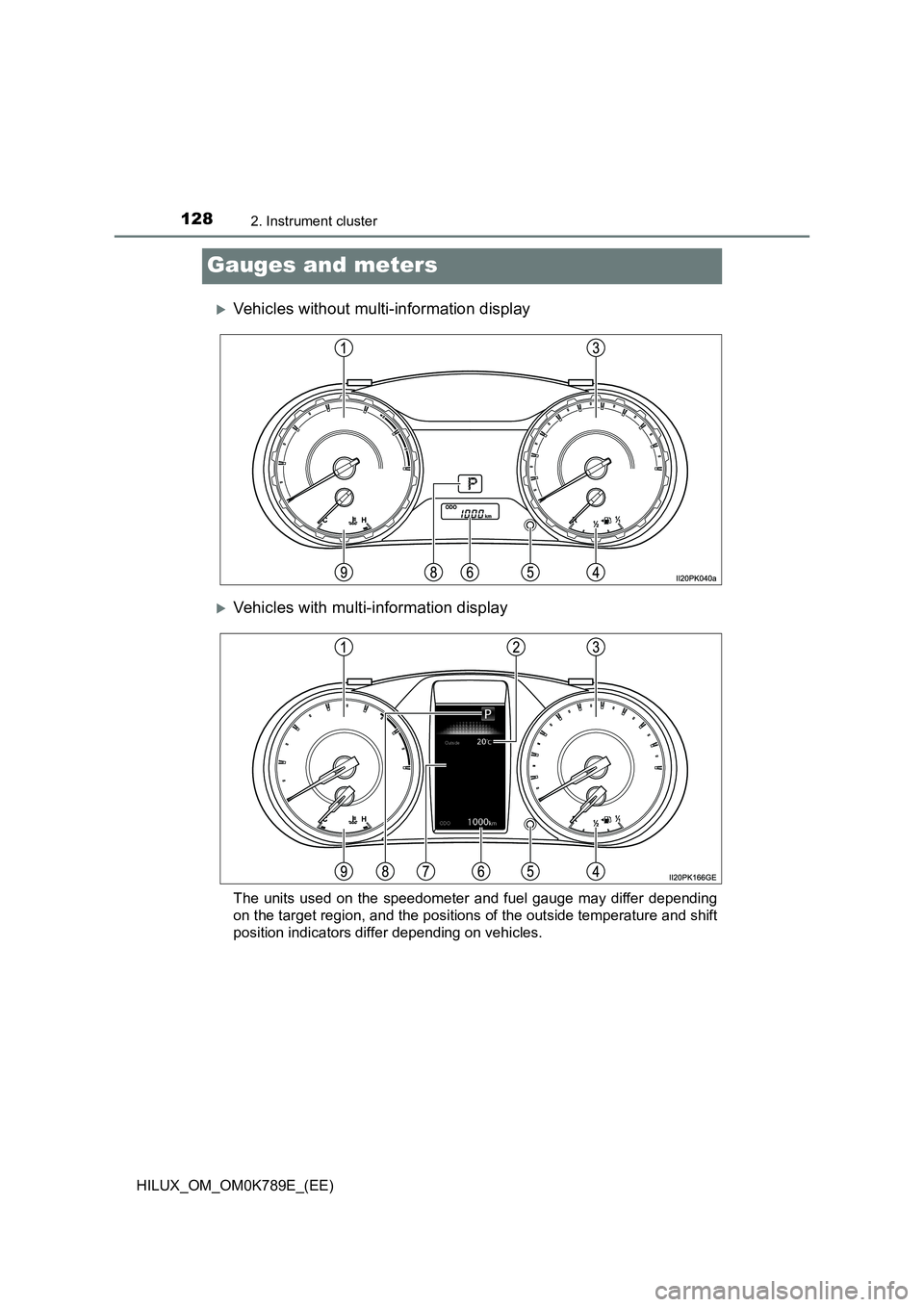

Gauges and meters
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the speedometer and fuel gauge may differ depending
on the target region, and the positions of the outside temperature and shift
position indicators differ depending on vehicles.
