For safety and security

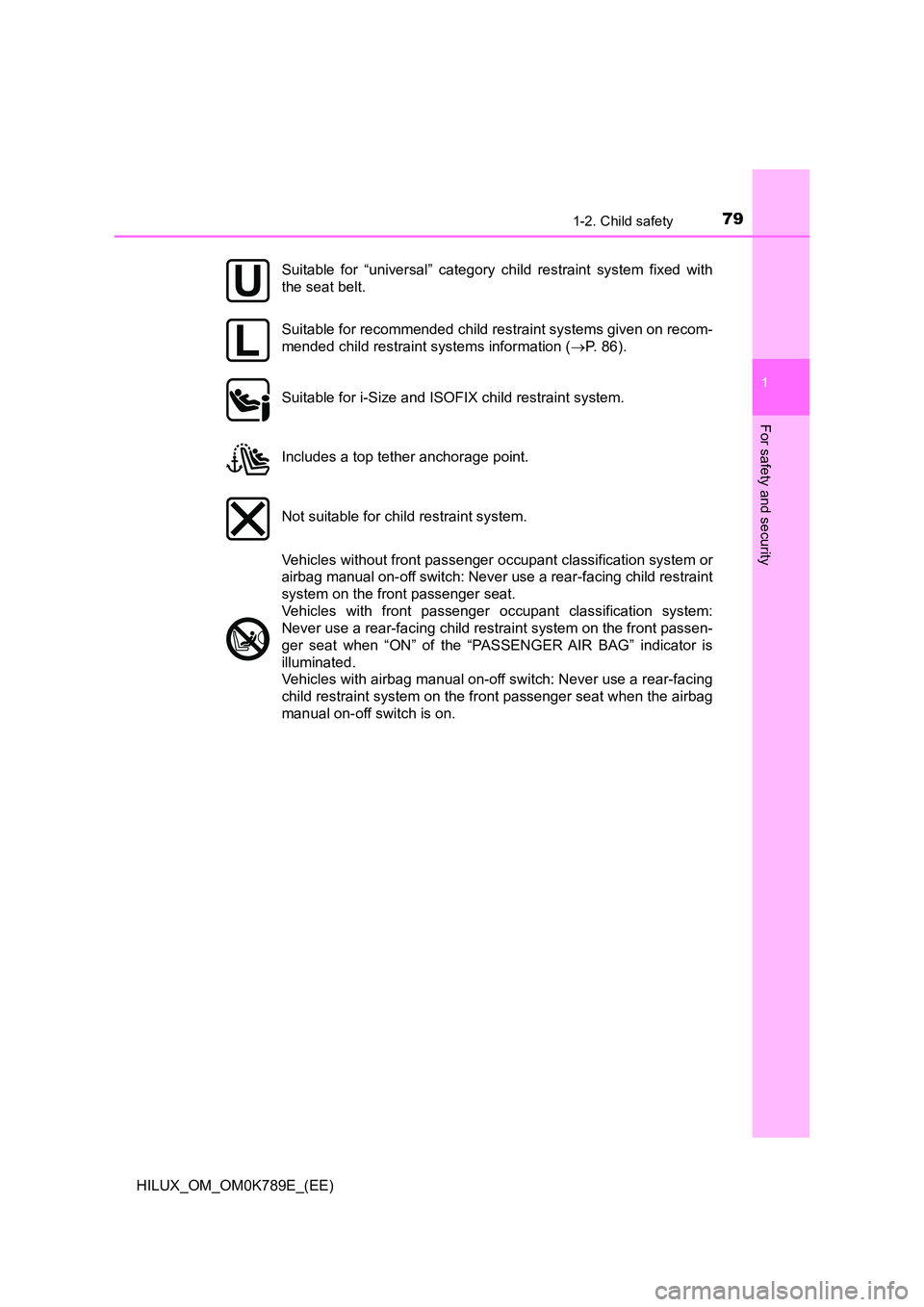

Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for recommended child restraint systems given on recom-
mended child restraint systems information ( P. 8 6 ) .
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.
Vehicles without front passenger occupant classification system or
airbag manual on-off switch: Never use a rear-facing child restraint
system on the front passenger seat.
Vehicles with front passenger occupant classification system:
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.
Vehicles with airbag manual on-off switch: Never use a rear-facing
child restraint system on the front passenger seat when the airbag
manual on-off switch is on.

801-2. Child safety
HILUX_OM_OM0K789E_(EE)

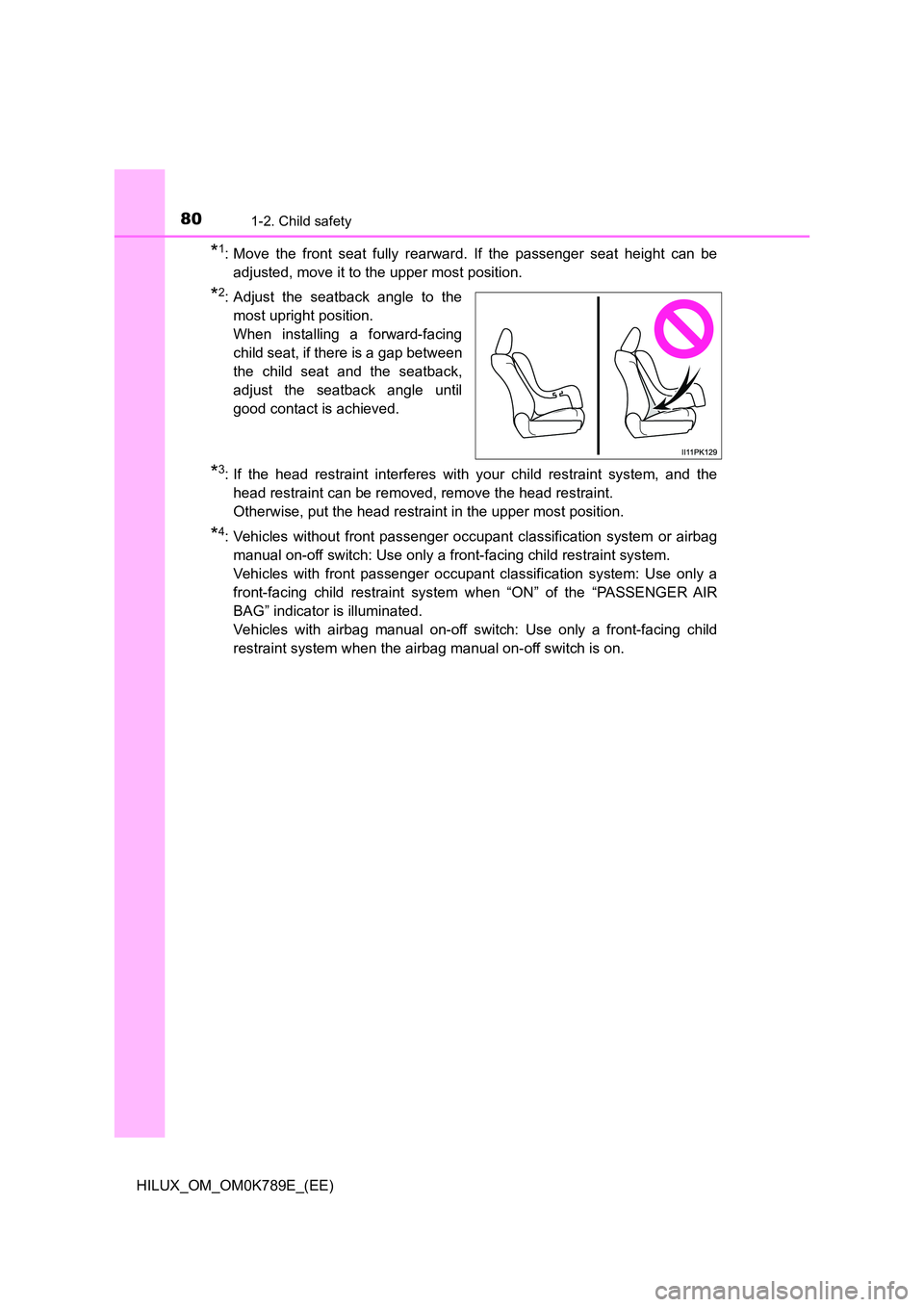

*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap between
the child seat and the seatback,
adjust the seatback angle until
good contact is achieved.
*3: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Vehicles without front passenger occupant classification system or airbag
manual on-off switch: Use only a front-facing child restraint system.
Vehicles with front passenger occupant classification system: Use only a
front-facing child restraint system when “ON” of the “PASSENGER AIR
BAG” indicator is illuminated.
Vehicles with airbag manual on-off switch: Use only a front-facing child
restraint system when the airbag manual on-off switch is on.

811-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next
to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoul-
der and low on your hips. If it does not, or if it interferes with the
child restraint, move to a different position.
Failure to do so may result in death or serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child restraint
system (if equipped).
● When installing a child seat with support base in the front seats, if
the child seat interferes with the seatback when latching it into
the support base, adjust the seatback rearward until there is no
interference.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat in the front seats, if the child in your
child restraint system is in a very upright position, adjust the seat-
back angle to the most comfortable position. And if the seat belt
shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.

821-2. Child safety
HILUX_OM_OM0K789E_(EE)

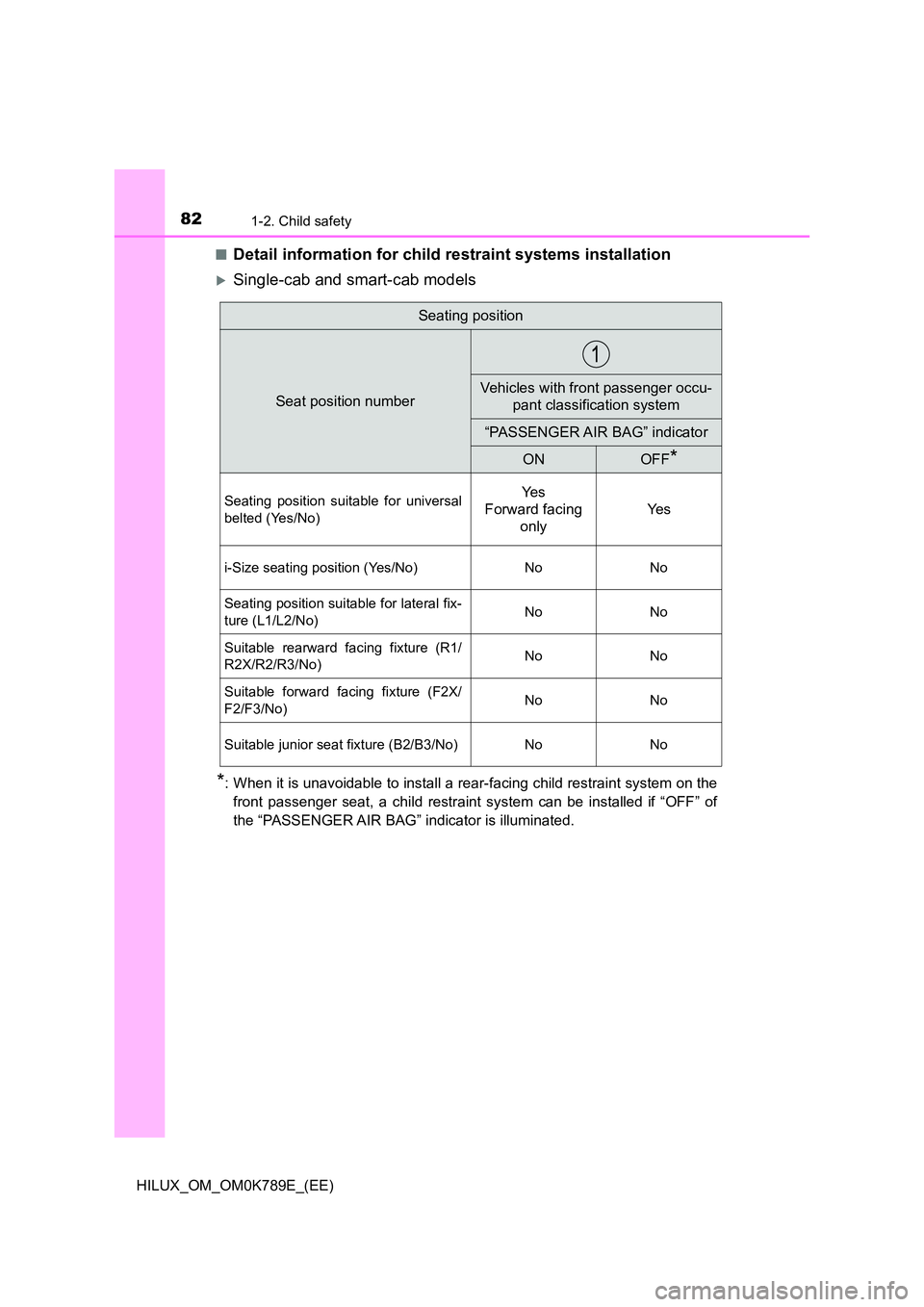

■Detail information for child restraint systems installation
Single-cab and smart-cab models
*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
Seating position
Seat position numberVehicles with front passenger occu-
pant classification system
“PASSENGER AIR BAG” indicator
ONOFF*
Seating position suitable for universal
belted (Yes/No)
Ye s
Forward facing
only
Ye s
i-Size seating position (Yes/No) No No
Seating position suitable for lateral fix-
ture (L1/L2/No) No No
Suitable rearward facing fixture (R1/
R2X/R2/R3/No) No No
Suitable forward facing fixture (F2X/
F2/F3/No) No No
Suitable junior seat fixture (B2/B3/No) No No

831-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security

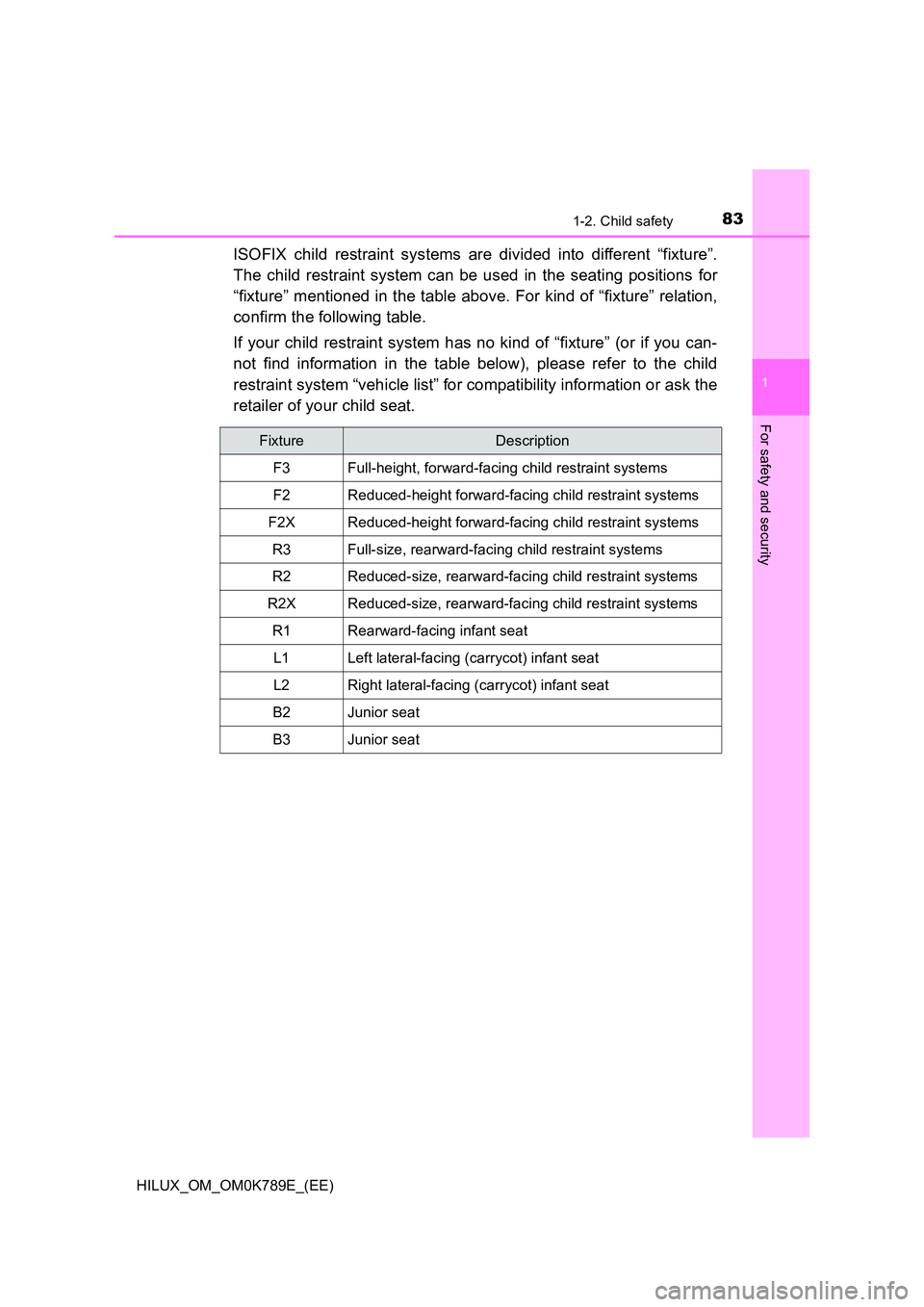

ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

841-2. Child safety
HILUX_OM_OM0K789E_(EE)

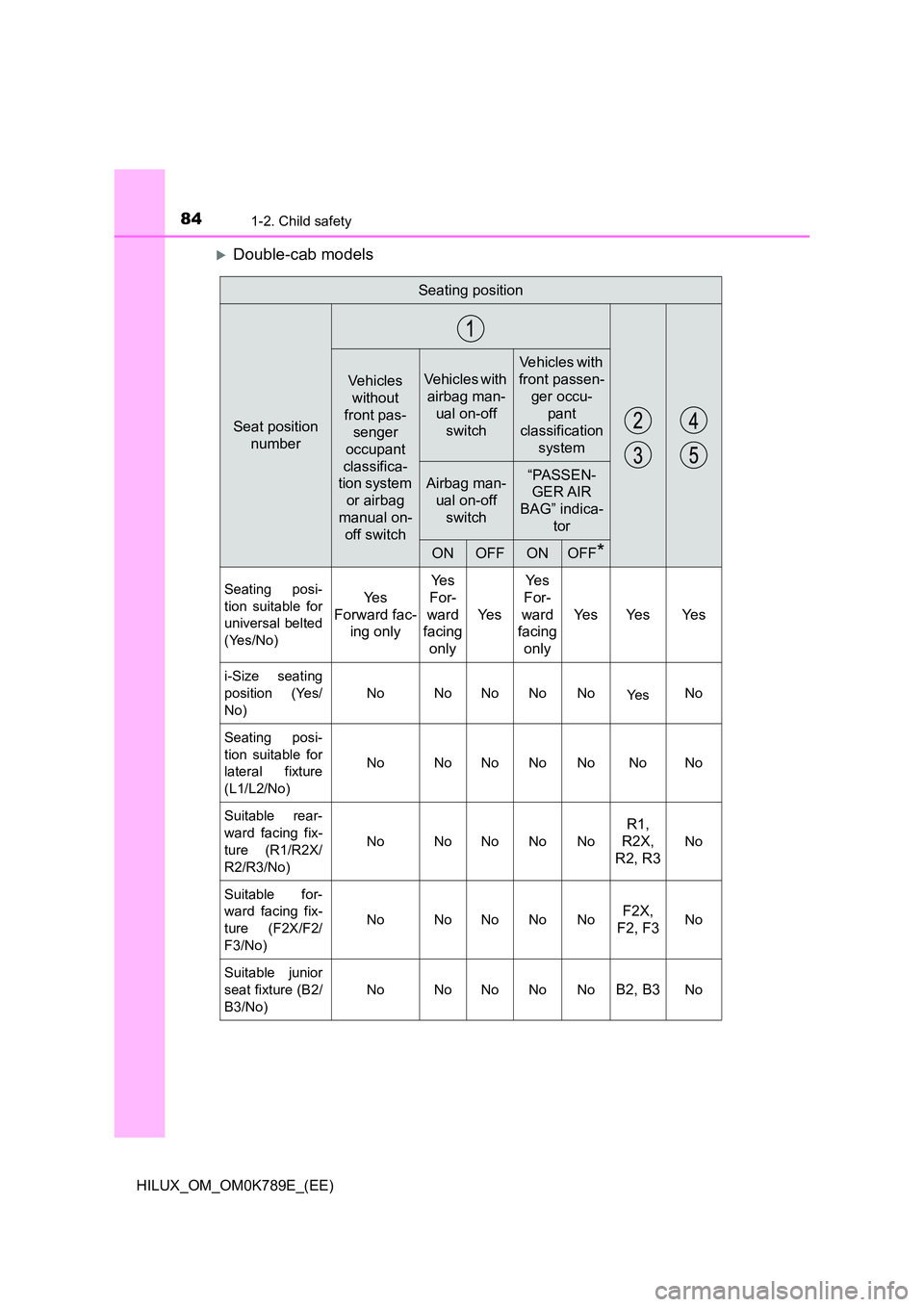

Double-cab models
Seating position
Seat position
number
Vehicles
without
front pas-
senger
occupant
classifica-
tion system
or airbag
manual on-
off switch
Vehi c les w ith
airbag man-
ual on-off
switch
Vehicles with
front passen-
ger occu-
pant
classification
system
Airbag man-
ual on-off
switch
“PASSEN-
GER AIR
BAG” indica-
tor
ONOFFONOFF*
Seating posi-
tion suitable for
universal belted
(Yes/No)
Ye s
Forward fac-
ing only
Ye s
For-
ward
facing
only
Ye s
Ye s
For-
ward
facing
only
Ye s Ye s Ye s
i-Size seating
position (Yes/
No)
No No No No No Ye s No
Seating posi-
tion suitable for
lateral fixture
(L1/L2/No)
No No No No No No No
Suitable rear-
ward facing fix-
ture (R1/R2X/
R2/R3/No)
No No No No No
R1,
R2X,
R2, R3
No
Suitable for-
ward facing fix-
ture (F2X/F2/
F3/No)
No No No No NoF2X,
F2, F3No
Suitable junior
seat fixture (B2/
B3/No)
No No No No NoB2, B3No

851-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security

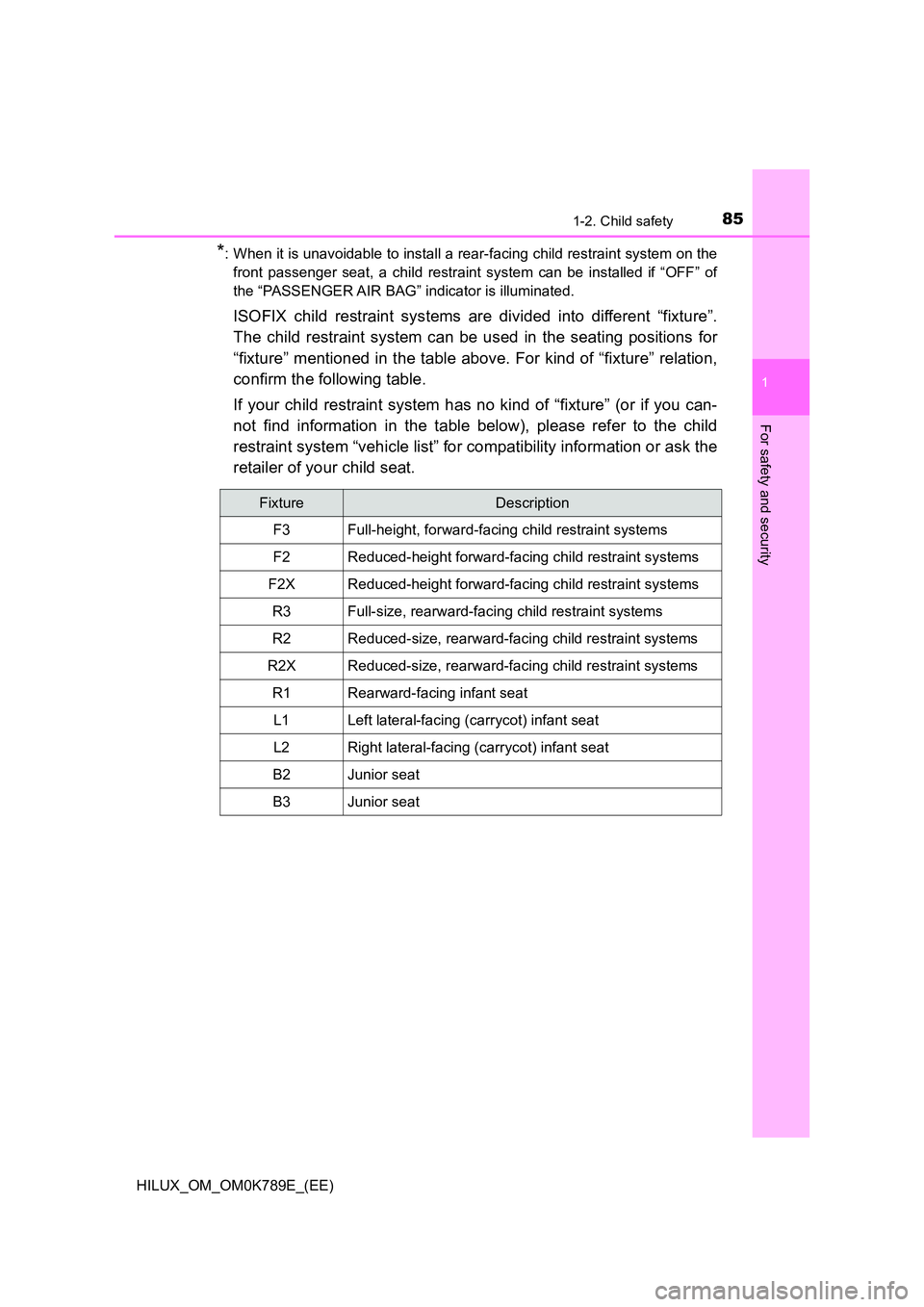

*: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if “OFF” of
the “PASSENGER AIR BAG” indicator is illuminated.
ISOFIX child restraint systems are divided into different “fixture”.
The child restraint system can be used in the seating positions for
“fixture” mentioned in the table above. For kind of “fixture” relation,
confirm the following table.
If your child restraint system has no kind of “fixture” (or if you can-
not find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.
FixtureDescription
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat

861-2. Child safety
HILUX_OM_OM0K789E_(EE)
■Recommended child restraint systems information (except for
single-cab and smart-cab models)
*: Be sure to attach the seat belt through the SecureGuard. ( P. 86)
The child restraint systems mentioned in the table may not be avail-
able outside the EU countries and United Kingdom.
● When using the child
restraint system with Secu-
reGuard, be sure to guide the
lap belt into SecureGuard
as shown in the illustration.
Recom-
mended child
restraint
system
SizeDirection of
travel
Fixation
fixed with
lower
anchorages
fixed with a
seat belt
MAXI COSI
CABRIOFIX
Up to 13 kg
(Up to 28 lb.)
Rearward-
facing use
only
Not
applicableYe s
BRITAX
TRIFIX 2
i-SIZE
76 to 105 cmForward-
facing use
only
Ye sNot
applicable9 to 18 kg
(20 to 39 lb.)
TOYOTA
KIDFIX
i-SIZE*
100 to 150 cmForward-
facing use
only
Ye sNo15 to 36 kg
(34 to 79 lb.)
TOYOTA
MAXI PLUS
15 to 36 kg
(34 to 79 lb.)
Forward-
facing use
only
Ye sNo

871-2. Child safety
1
HILUX_OM_OM0K789E_(EE)
For safety and security

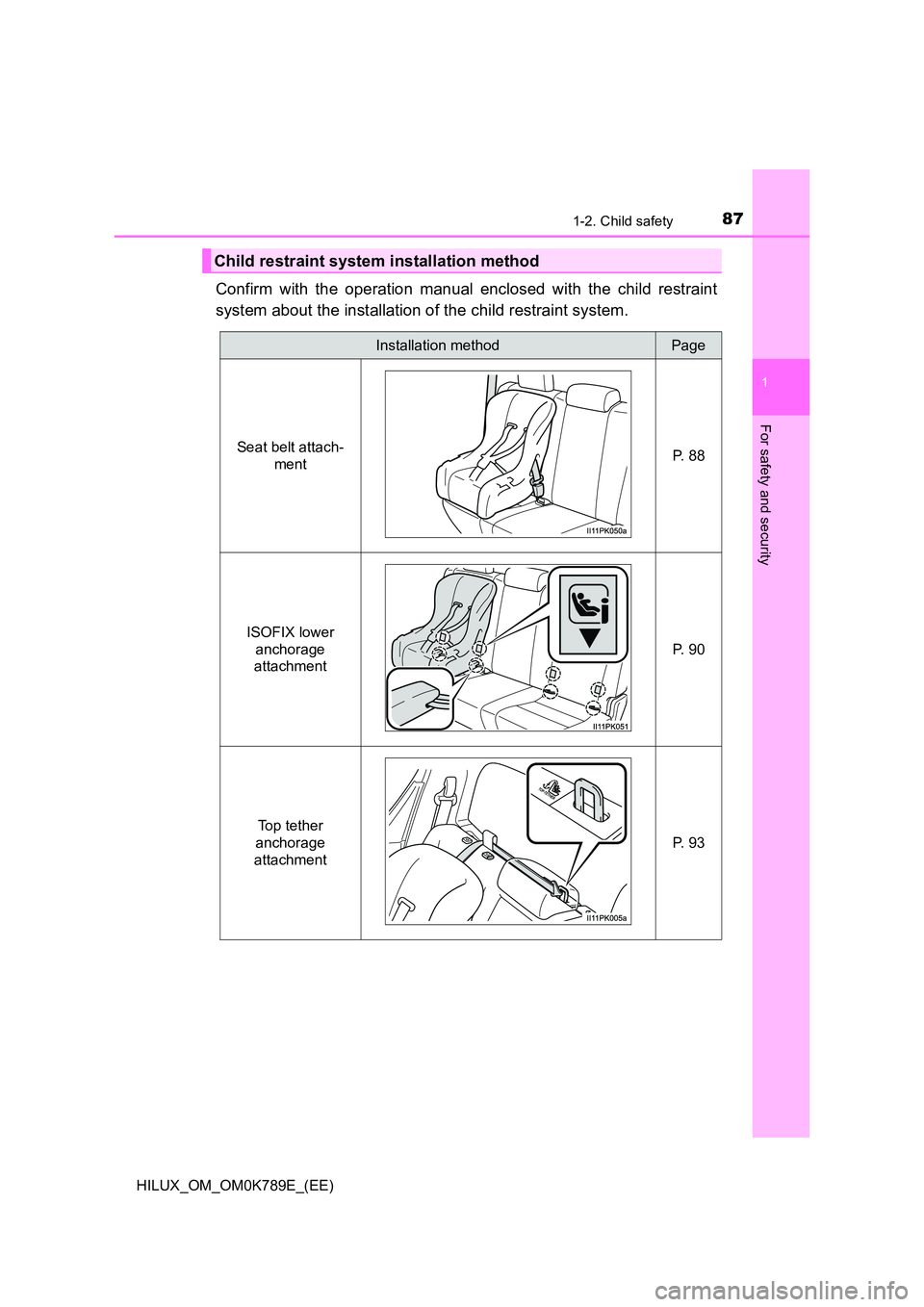

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt attach-
ment P. 8 8
ISOFIX lower
anchorage
attachment
P. 9 0
Top tether
anchorage
attachment
P. 9 3

881-2. Child safety
HILUX_OM_OM0K789E_(EE)
■Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 73, 74)
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 68 for front passenger seat adjustment.
Double-cab models: If the head restraint interferes with the child
restraint system installation and the head restraint can be
removed, remove the head restraint. Otherwise, put the head
restraint in the upper most position. ( P. 173)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 8 9 )
Child restraint system fixed with a seat belt
1
2
3
4
