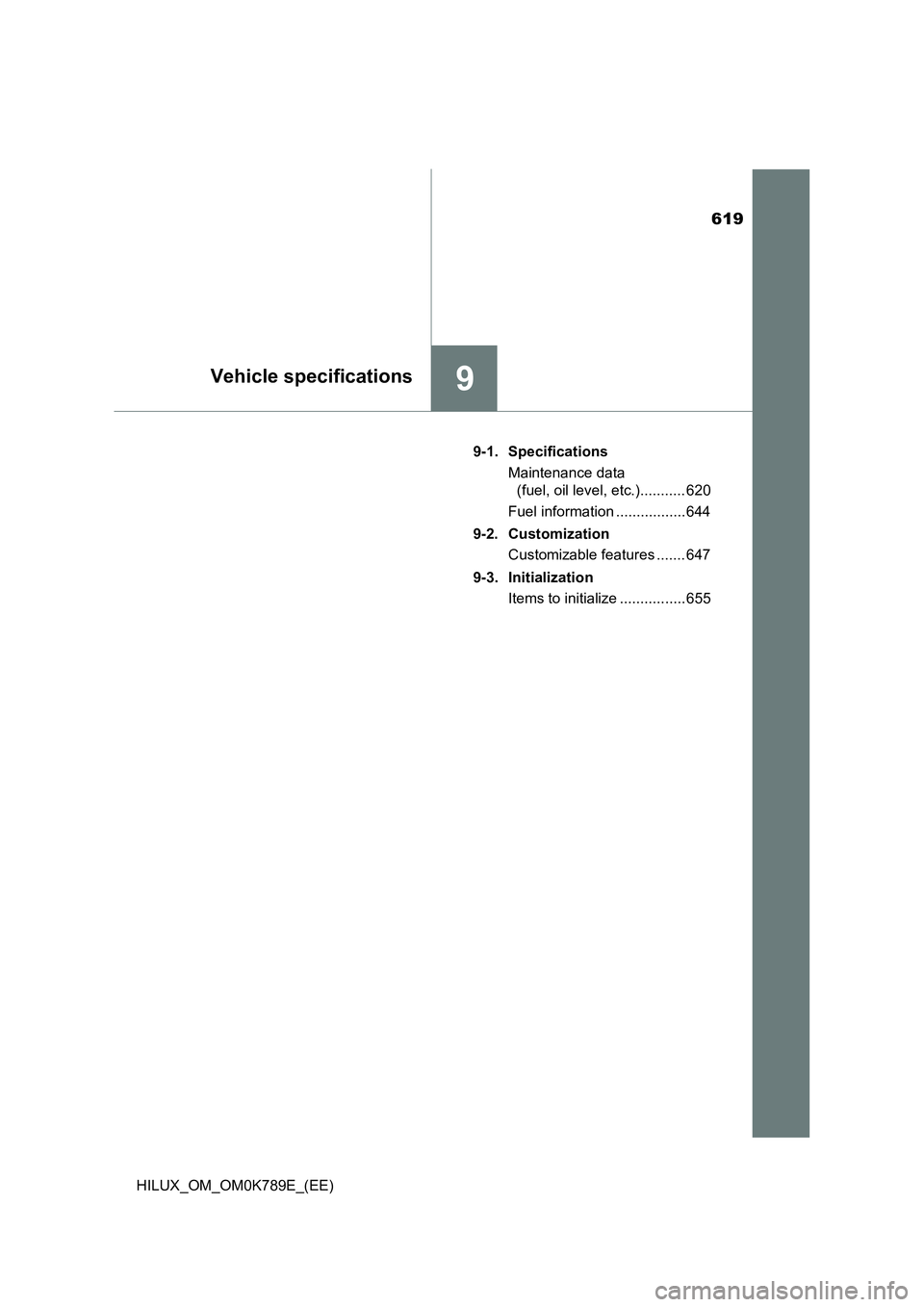

9Vehicle specifications
HILUX_OM_OM0K789E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 620
Fuel information ................. 644
9-2. Customization
Customizable features ....... 647
9-3. Initialization
Items to initialize ................ 655

6209-1. Specifications
HILUX_OM_OM0K789E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: With tailgate type A (P. 158)
*3: With tailgate type B (P. 158)
*4: Without side step
*5: With side step
Dimensions
Overall
length
Without
over fender
Without rear bumper 5265 mm (207.3 in.)*2
5285 mm (208.1 in.)*3
With rear bumper 5335 mm (210.0 in.)
With
over fender
Without rear bumper 5255 mm (206.9 in.)*2
5275 mm (207.7 in.)*3
With rear bumper 5325 mm (209.6 in.)
Overall
width
Without over fender 1800 mm (70.9 in.)*4
1815 mm (71.5 in.)*5
With over fender
1855 mm (73.0 in.)*6, 15
1900 mm (74.8 in.)*7, 15
1910 mm (75.2 in.)*8, 15
2015 mm (79.3 in.)*16
Overall
height*1
Single-cab models 1855 mm (73.0 in.)*10
1795 mm (70.7 in.)*11
Smart-cab models 1860 mm (73.2 in.)*10
1810 mm (71.3 in.)*11
Double-cab models
1865 mm (73.4 in.)*10, 15
1880 mm (74.0 in.)*10, 16
1815 mm (71.5 in.)*11, 15
1830 mm (72.0 in.)*11, 16
Wheelbase 3090 mm (121.7 in.)
Front tread
1505 mm (59.3 in.)*12
1495 mm (58.9 in.)*13
1535 mm (60.4 in.)*14, 15
1670 mm (65.7 in.)*14, 16
Rear tread
1520 mm (59.8 in.)*12
1510 mm (59.4 in.)*13
1550 mm (61.0 in.)*14, 15
1705 mm (67.1 in.)*14, 16

621
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
*6: With exterior type A*9
*7: With exterior type B*9
*8: With exterior type C*9
*9: See “How to identify exterior type” to check the type of your vehicle.
( P. 621)
*10: Without short pole antenna
*11: With short pole antenna
*12: With 205R16C tires
*13: With 225/70R17C tires
*14: With 265/65R17 or 265/60R18 tires
*15: With rear drum brake
*16: With rear disc brake

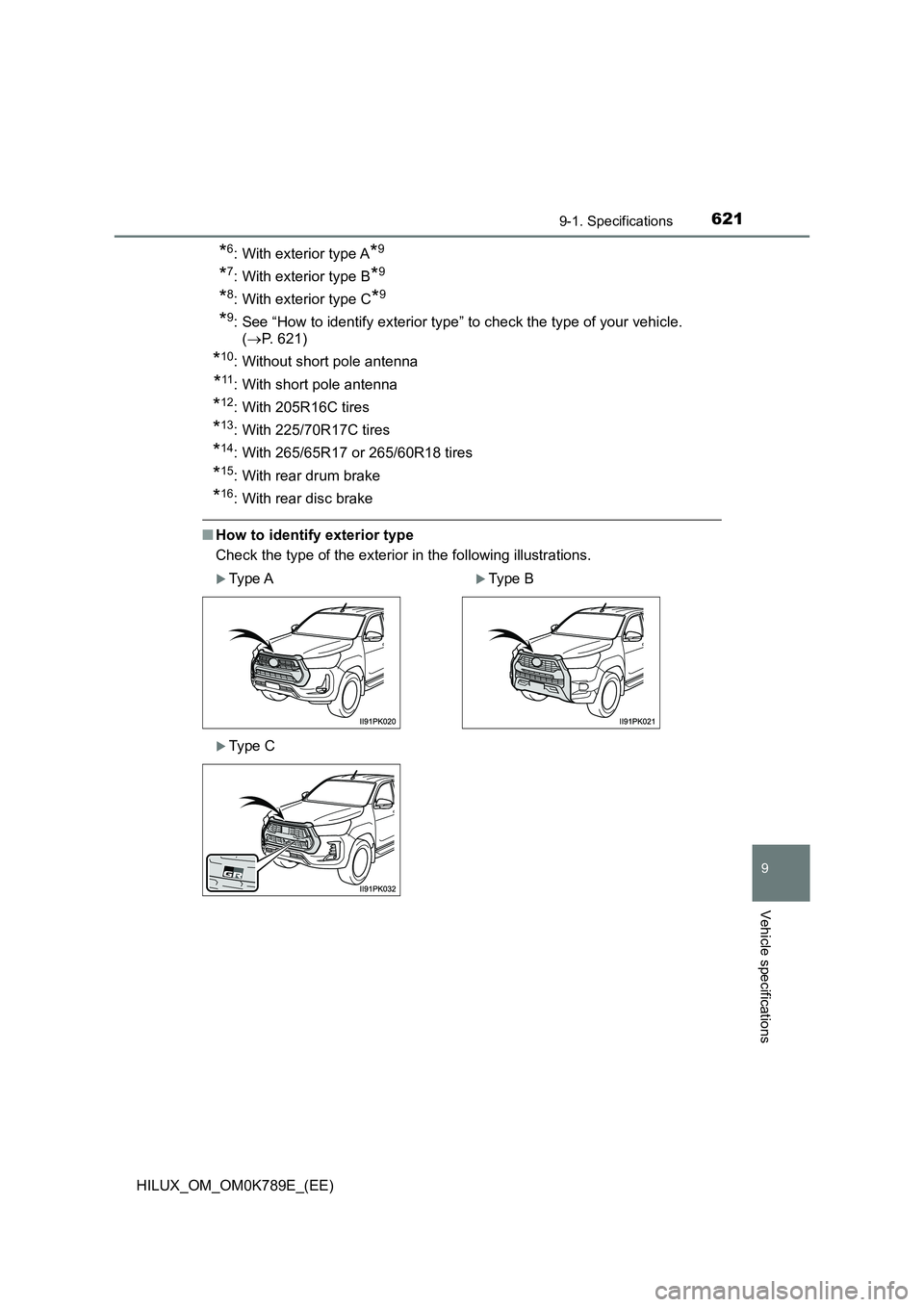

■How to identify exterior type
Check the type of the exterior in the following illustrations.
Type AType B
Type C

6229-1. Specifications
HILUX_OM_OM0K789E_(EE)

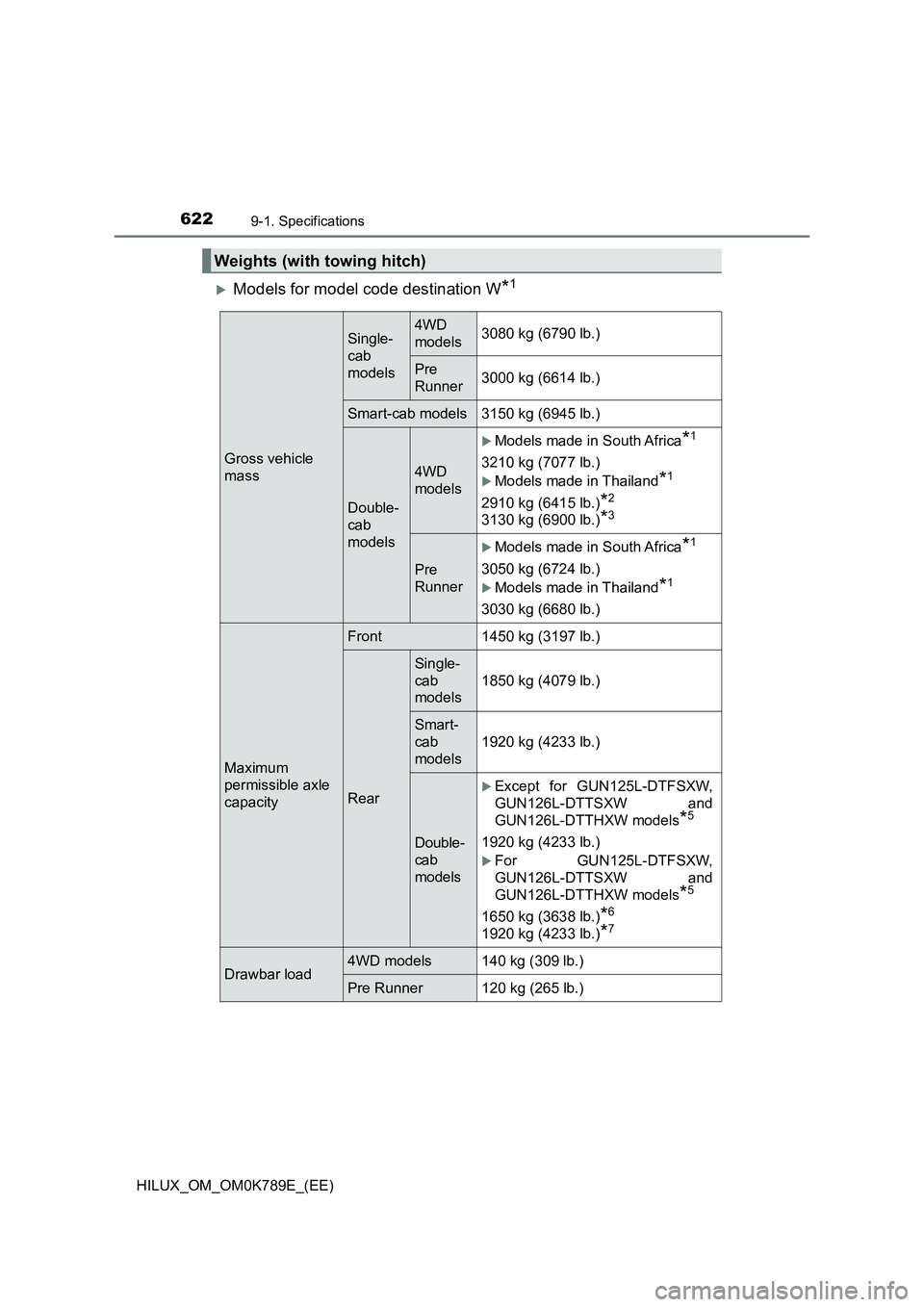

Models for model code destination W*1
Weights (with towing hitch)
Gross vehicle
mass
Single-
cab
models
4WD
models 3080 kg (6790 lb.)
Pre
Runner 3000 kg (6614 lb.)
Smart-cab models 3150 kg (6945 lb.)
Double-
cab
models
4WD
models
Models made in South Africa*1
3210 kg (7077 lb.)
Models made in Thailand*1
2910 kg (6415 lb.)*2
3130 kg (6900 lb.)*3
Pre
Runner
Models made in South Africa*1
3050 kg (6724 lb.)
Models made in Thailand*1
3030 kg (6680 lb.)
Maximum
permissible axle
capacity
Front 1450 kg (3197 lb.)
Rear
Single-
cab
models
1850 kg (4079 lb.)
Smart-
cab
models
1920 kg (4233 lb.)
Double-
cab
models
Except for GUN125L-DTFSXW,
GUN126L-DTTSXW and
GUN126L-DTTHXW models*5
1920 kg (4233 lb.)
For GUN125L-DTFSXW,
GUN126L-DTTSXW and
GUN126L-DTTHXW models*5
1650 kg (3638 lb.)*6
1920 kg (4233 lb.)*7
Drawbar load4WD models 140 kg (309 lb.)
Pre Runner 120 kg (265 lb.)

623
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
*1: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
*2: Except for EURO VI models*4 for Israel and Turkey
*3: For EURO VI models*4 for Israel and Turkey
*4: EURO VI is an emission standard. If it is not clear that your vehicle meets
relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*5: The model code is indicated on the manufacturer’ plate or label.
( P. 624)
*6: Except for EURO VI models*4 for Israel, Turkey and Ukraine
*7: For EURO VI models*4 for Israel, Turkey and Ukraine
Models for model code destination Blank* (for Kazakhstan and
Russia)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)

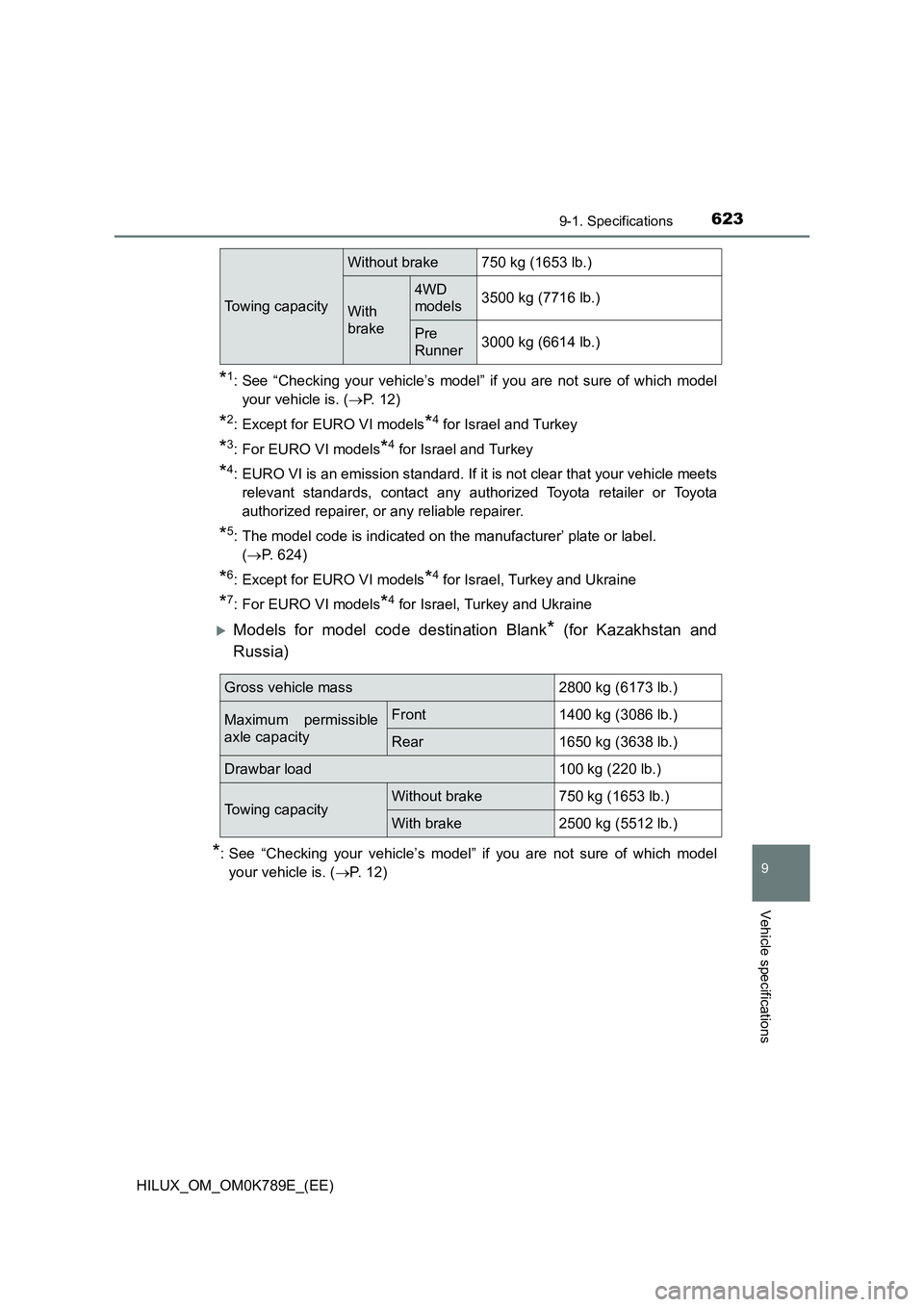

Towing capacity
Without brake 750 kg (1653 lb.)
With
brake
4WD
models 3500 kg (7716 lb.)
Pre
Runner 3000 kg (6614 lb.)
Gross vehicle mass2800 kg (6173 lb.)
Maximum permissible
axle capacity
Front1400 kg (3086 lb.)
Rear1650 kg (3638 lb.)
Drawbar load100 kg (220 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake2500 kg (5512 lb.)

6249-1. Specifications
HILUX_OM_OM0K789E_(EE)

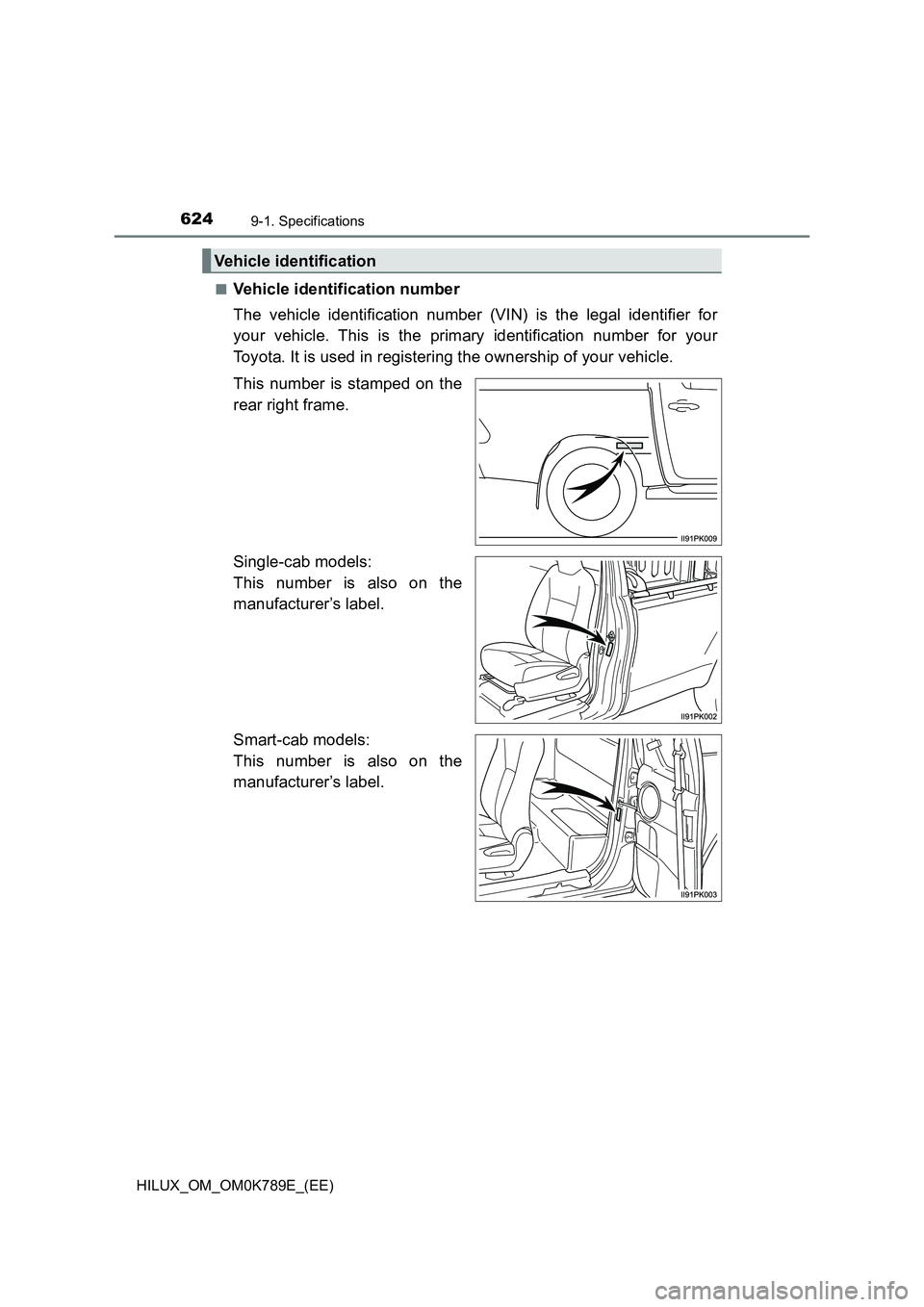

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
Single-cab models:
This number is also on the
manufacturer’s label.
Smart-cab models:
This number is also on the
manufacturer’s label.
Vehicle identification

625
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
Double-cab models:
This number is also on the
manufacturer’s label.
■Engine number
The engine number is stamped on the engine block as shown.
Gasoline engineDiesel engine

6269-1. Specifications
HILUX_OM_OM0K789E_(EE)
2TR-FE engine
1GD-FTV engine
2GD-FTV engine

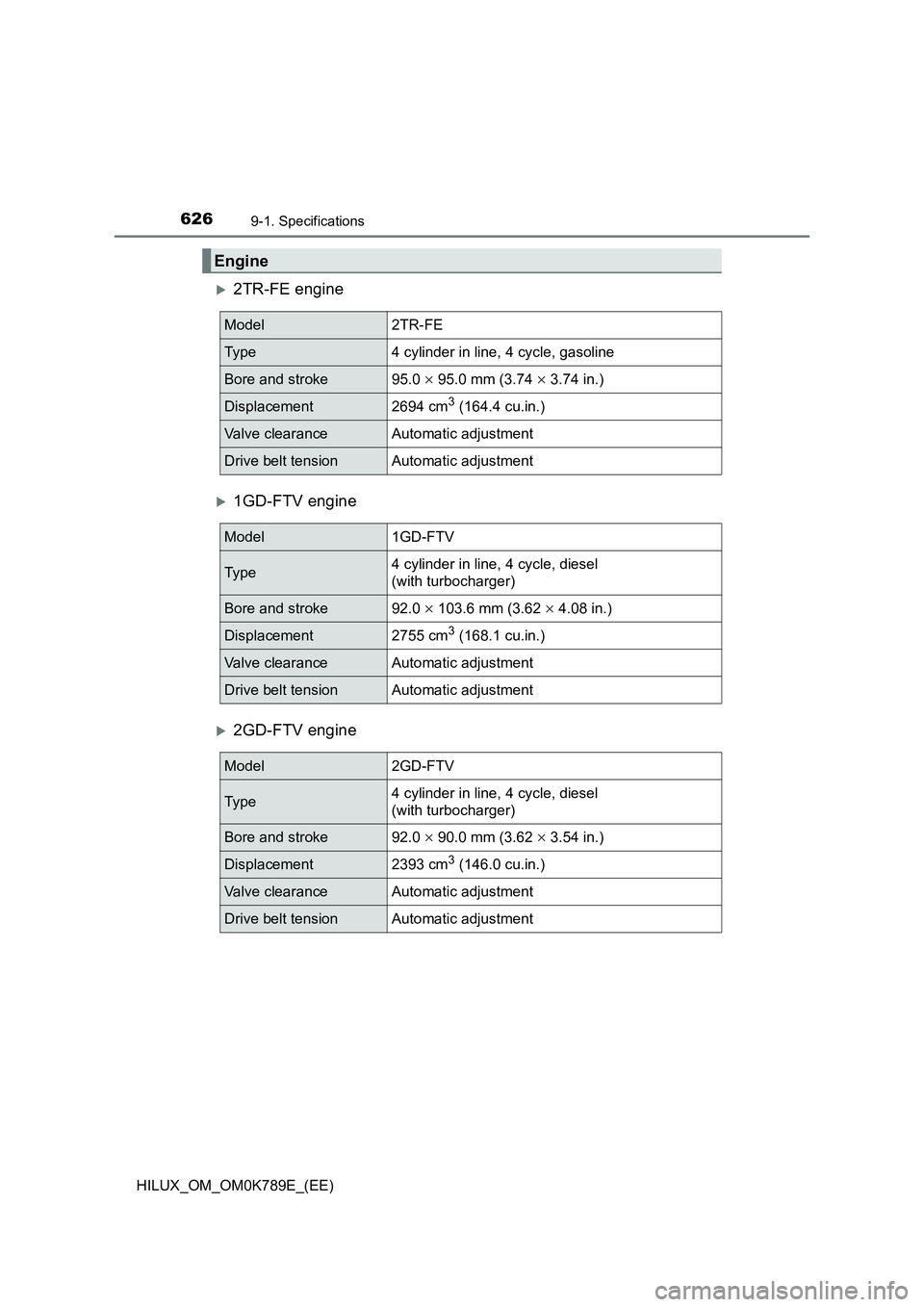

Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

627
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
Gasoline engine
Diesel engine
*: In case that a vehicle which has “XTL” label on the fuel lid, XTL (EN15940,
paraffin diesel) can be used.

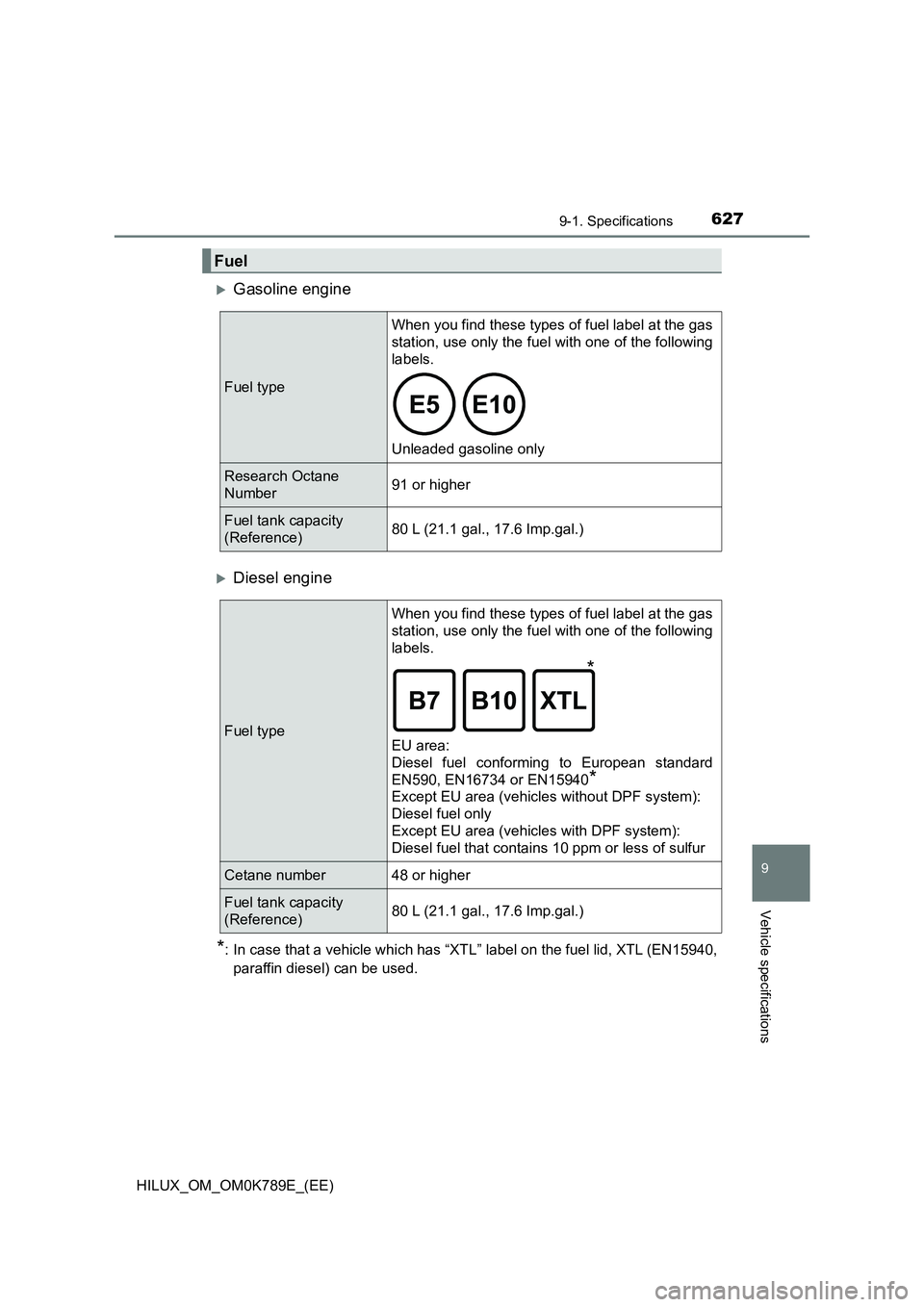

Fuel
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

Unleaded gasoline only
Research Octane
Number 91 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type
When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.

EU area:
Diesel fuel conforming to European standard
EN590, EN16734 or EN15940*
Except EU area (vehicles without DPF system):
Diesel fuel only
Except EU area (vehicles with DPF system):
Diesel fuel that contains 10 ppm or less of sulfur
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)
*

6289-1. Specifications
HILUX_OM_OM0K789E_(EE)
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated before next oil change
Preferred
