TOYOTA HILUX 2023 Owners Manual

6499-2. Customization
HILUX_OM_OM0K789E_(EE)
9

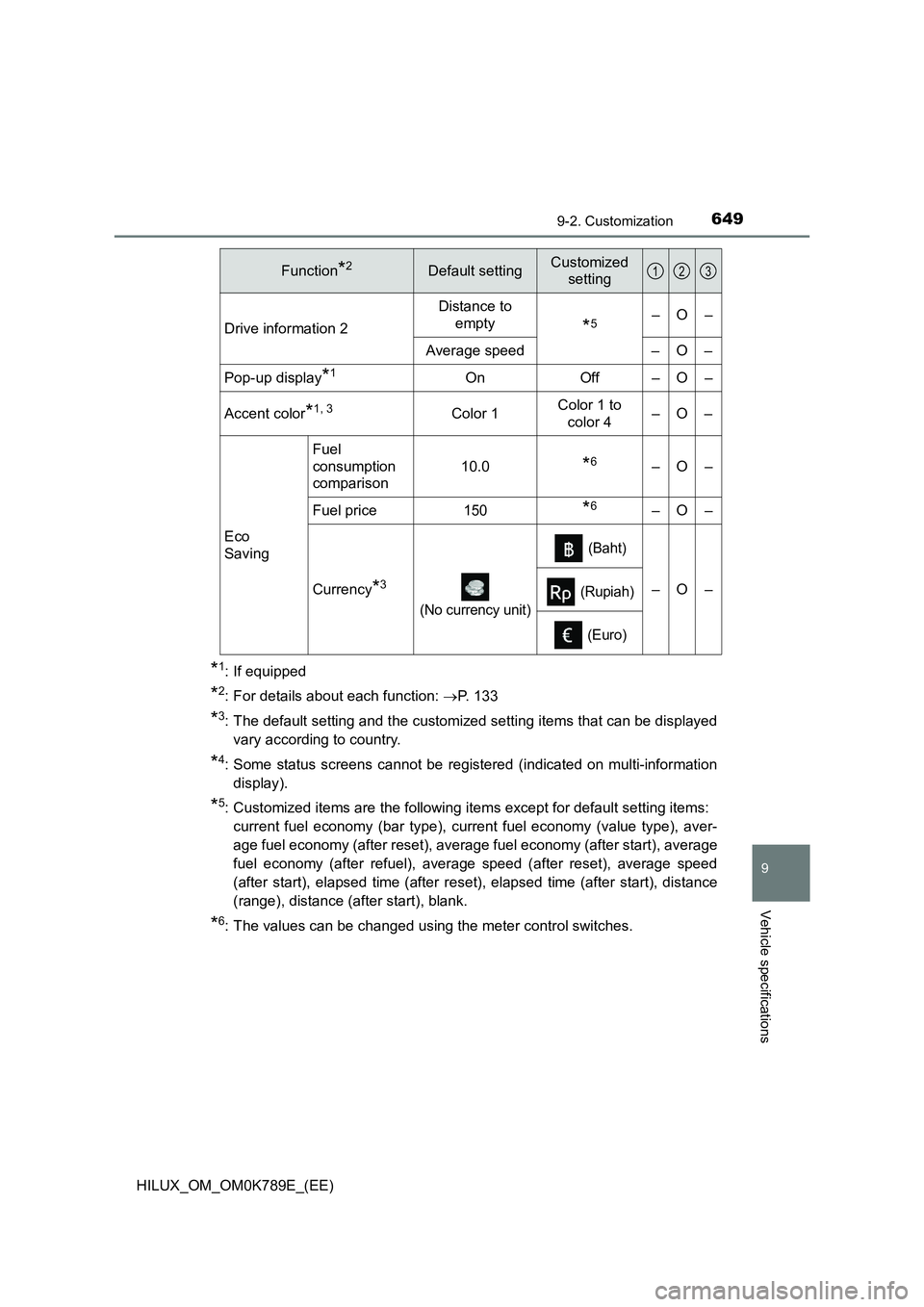

Vehicle specifications
*1: If equipped
*2: For details about each function: P. 133
*3: The default setting and the customized setting items that can be displayed
vary according to country.
*4: Some status screens cannot be registered (indicated on multi-information
display).
*5: Customized items are the following items except for default setting items:
current fuel economy (bar type), curr ent fuel economy (value type), aver-
age fuel economy (after reset), average fuel economy (after start), average
fuel economy (after refuel), average speed (after reset), average speed
(after start), elapsed time (after reset), elapsed time (after start), distance
(range), distance (after start), blank.
*6: The values can be changed using the meter control switches.
Drive information 2
Distance to
empty*5–O–
Average speed – O –
Pop-up display*1On Off – O –
Accent color*1, 3Color 1 Color 1 to
color 4 –O–
Eco
Saving
Fuel
consumption
comparison
10.0*6–O–
Fuel price150*6–O–
Currency*3
(No currency unit)
(Baht)
–O– (Rupiah)
(Euro)
Function*2Default settingCustomized
setting123

6509-2. Customization
HILUX_OM_OM0K789E_(EE)

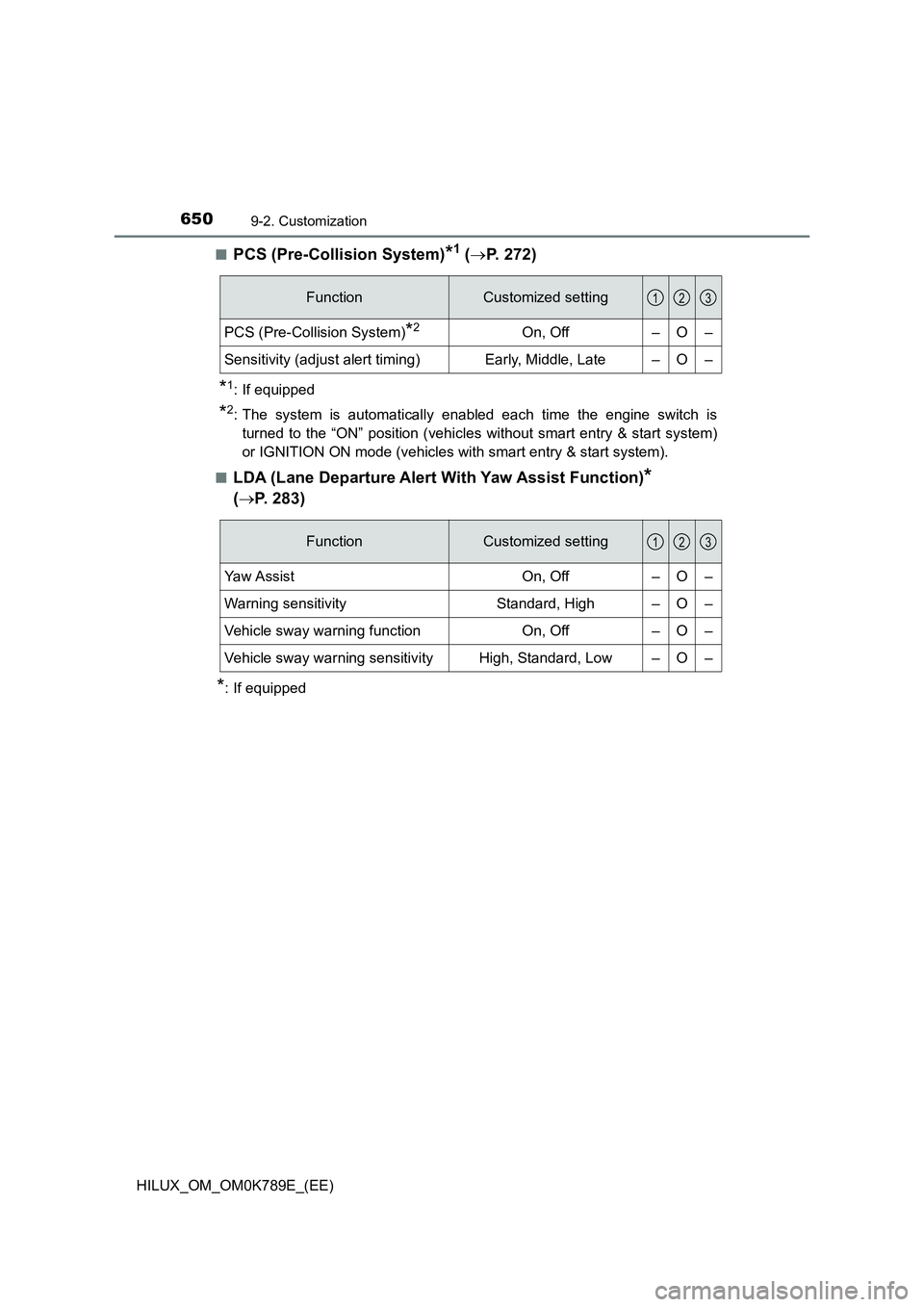

■PCS (Pre-Collision System)*1 ( P. 272)
*1: If equipped
*2: The system is automatically enabled each time the engine switch is
turned to the “ON” position (vehicles without smart entry & start system)
or IGNITION ON mode (vehicles with smart entry & start system).
■LDA (Lane Departure Alert With Yaw Assist Function)*
( P. 283)
*: If equipped
FunctionCustomized setting
PCS (Pre-Collision System)*2On, Off–O–
Sensitivity (adjust alert timing)Early, Middle, Late–O–
123
FunctionCustomized setting
Yaw AssistOn, Off–O–
Warning sensitivityStandard, High–O–
Vehicle sway warning functionOn, Off–O–
Vehicle sway warning sensitivityHigh, Standard, Low–O–
123

6519-2. Customization
HILUX_OM_OM0K789E_(EE)
9
Vehicle specifications

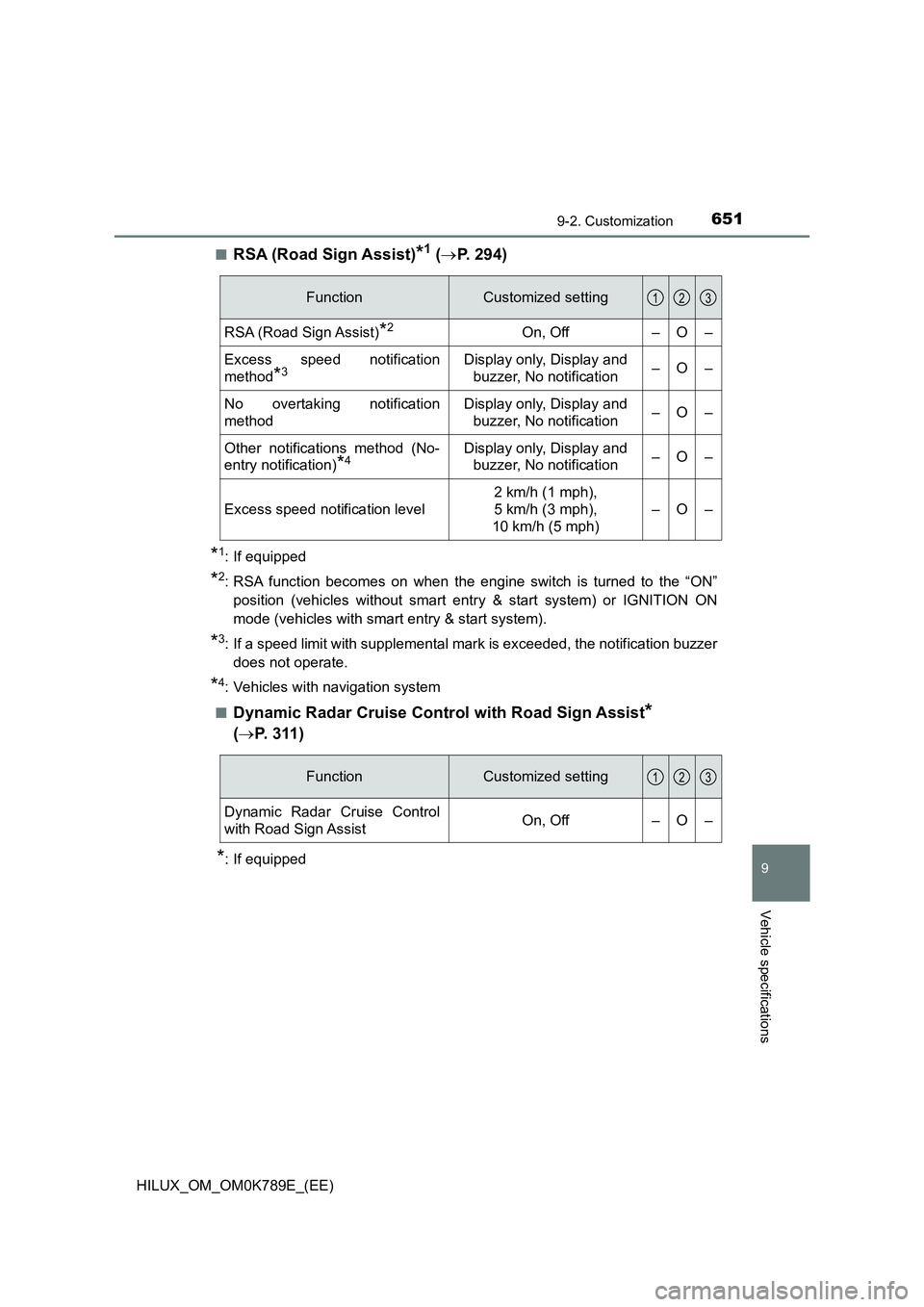

■RSA (Road Sign Assist)*1 (P. 294)
*1: If equipped
*2: RSA function becomes on when the engine switch is turned to the “ON”
position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system).
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
■Dynamic Radar Cruise Control with Road Sign Assist*
( P. 3 1 1 )
*: If equipped
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off–O–
Excess speed notification
method*3Display only, Display and
buzzer, No notification–O–
No overtaking notification
method
Display only, Display and
buzzer, No notification–O–
Other notifications method (No-
entry notification)*4Display only, Display and
buzzer, No notification–O–
Excess speed notification level
2 km/h (1 mph),
5 km/h (3 mph),
10 km/h (5 mph)
–O–
123
FunctionCustomized setting
Dynamic Radar Cruise Control
with Road Sign AssistOn, Off–O–
123

6529-2. Customization
HILUX_OM_OM0K789E_(EE)
■Stop & Start system* ( P. 344)
*: If equipped
■Toyota parking assist-sensor* ( P. 320)
*: If equipped
■Door lock ( P. 155)
*1: If equipped
*2: Setting that can be changed manually (P. 155) or at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
■Smart entry & start system* ( P. 161)
*: If equipped
FunctionDefault settingCustomized
setting
Idling stopStandardExtended–O–
123
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensorLongShortO–O
Buzzer volumeLevel 2Level 1 to 3O–O
123
FunctionDefault settingCustomized
setting
Speed linked door locking
function*1OnOff––O*2
Driver’s door linked door
unlocking function*1OffOn––O*2
123
FunctionDefault settingCustomized
setting
Smart entry & start systemOnOff––O
Operational signal
(buzzer)*Level 5Off––OLevel 1 to 7
123

6539-2. Customization
HILUX_OM_OM0K789E_(EE)
9
Vehicle specifications

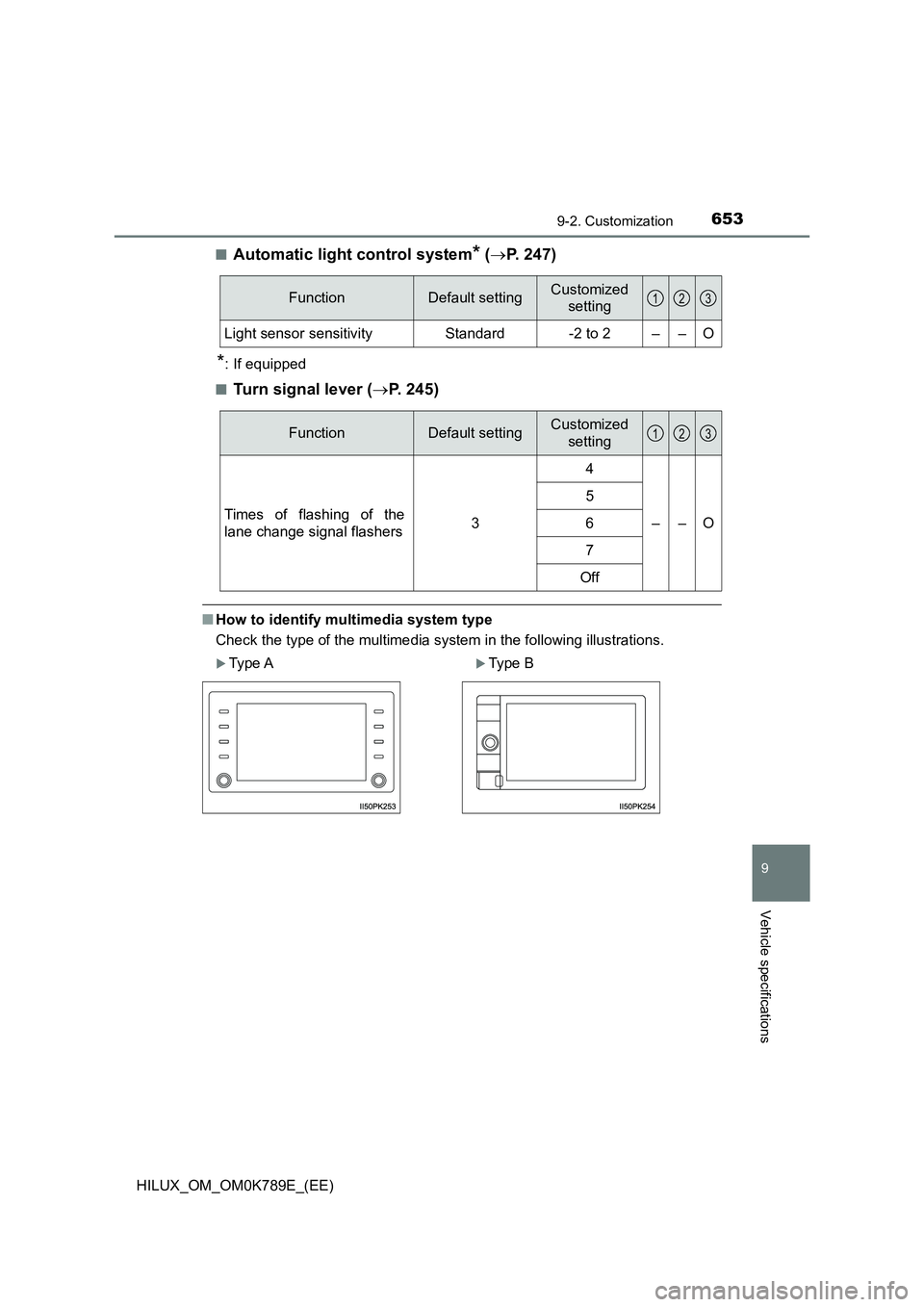

■Automatic light control system* (P. 247)
*: If equipped
■Turn signal lever ( P. 245)
■How to identify multimedia system type
Check the type of the multimedia system in the following illustrations.
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2––O
123
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flashers3
4
––O
5
6
7
Off
Type AType B
123

6549-2. Customization
HILUX_OM_OM0K789E_(EE)

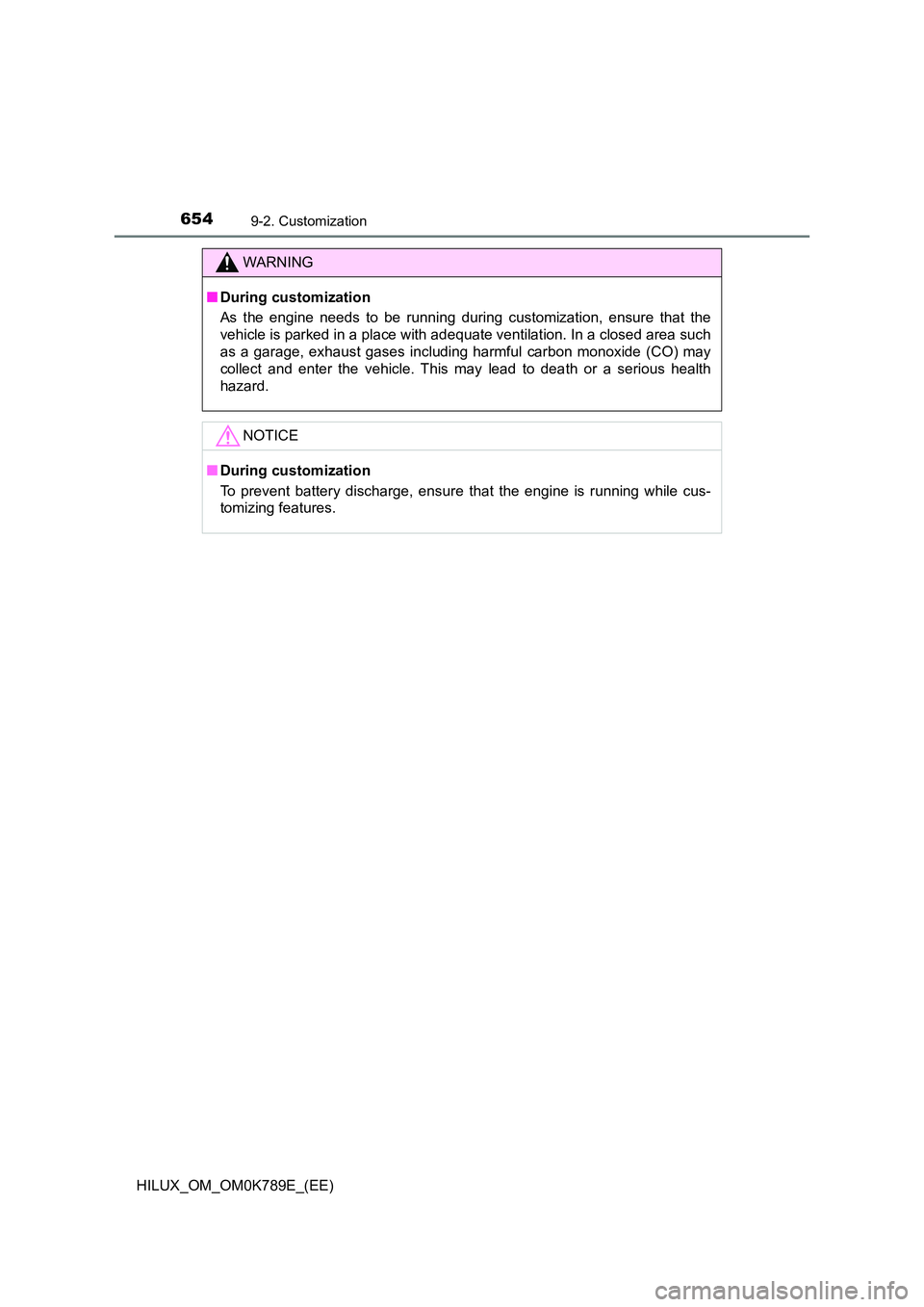

WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

6559-3. Initialization
HILUX_OM_OM0K789E_(EE)
9
Vehicle specifications

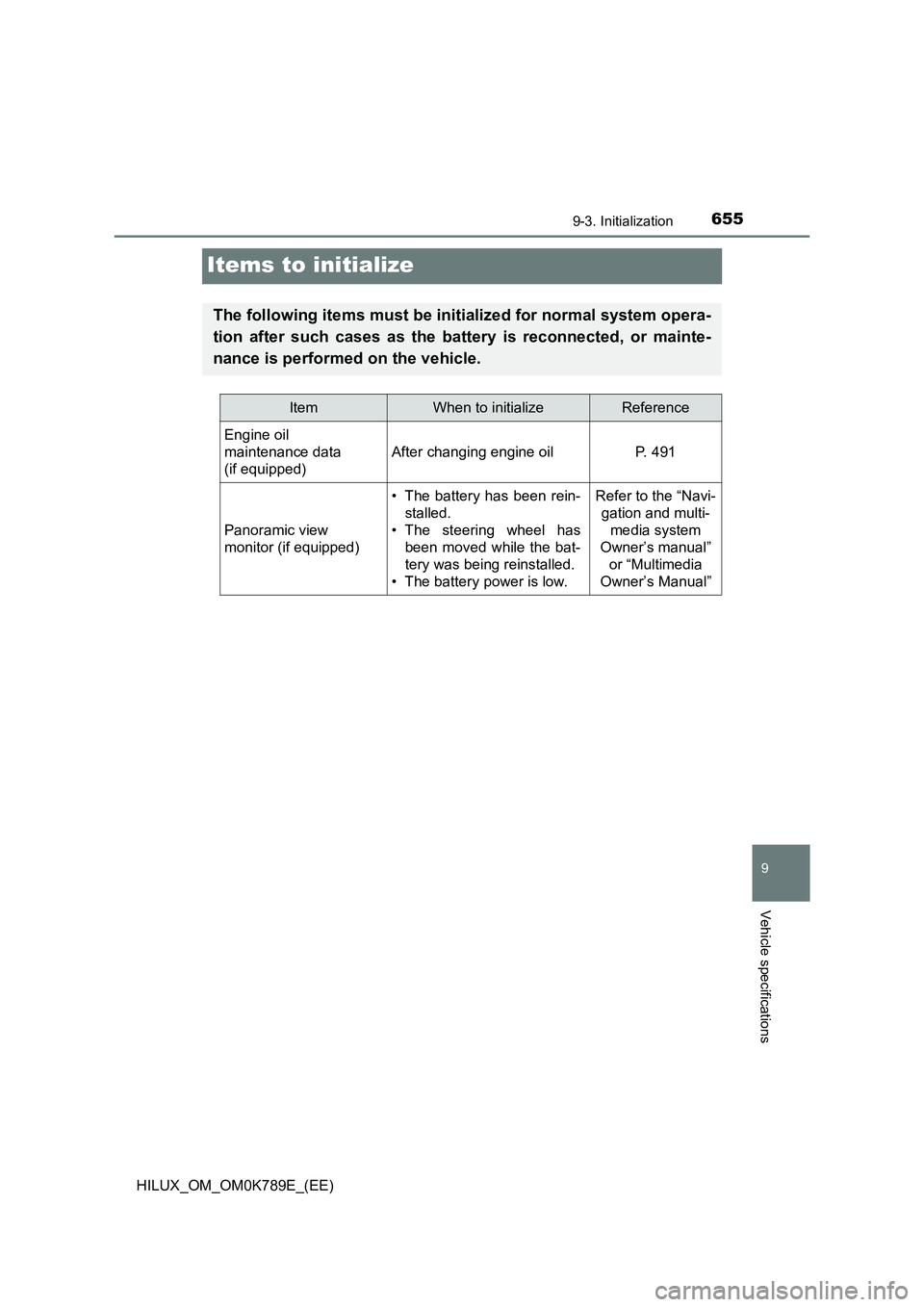

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery is reconnected, or mainte-
nance is performed on the vehicle.
ItemWhen to initializeReference
Engine oil
maintenance data
(if equipped)
After changing engine oilP. 491
Panoramic view
monitor (if equipped)
• The battery has been rein-
stalled.
• The steering wheel has
been moved while the bat-
tery was being reinstalled.
• The battery power is low.
Refer to the “Navi-
gation and multi-
media system
Owner’s manual”
or “Multimedia
Owner’s Manual”

6569-3. Initialization
HILUX_OM_OM0K789E_(EE)

657

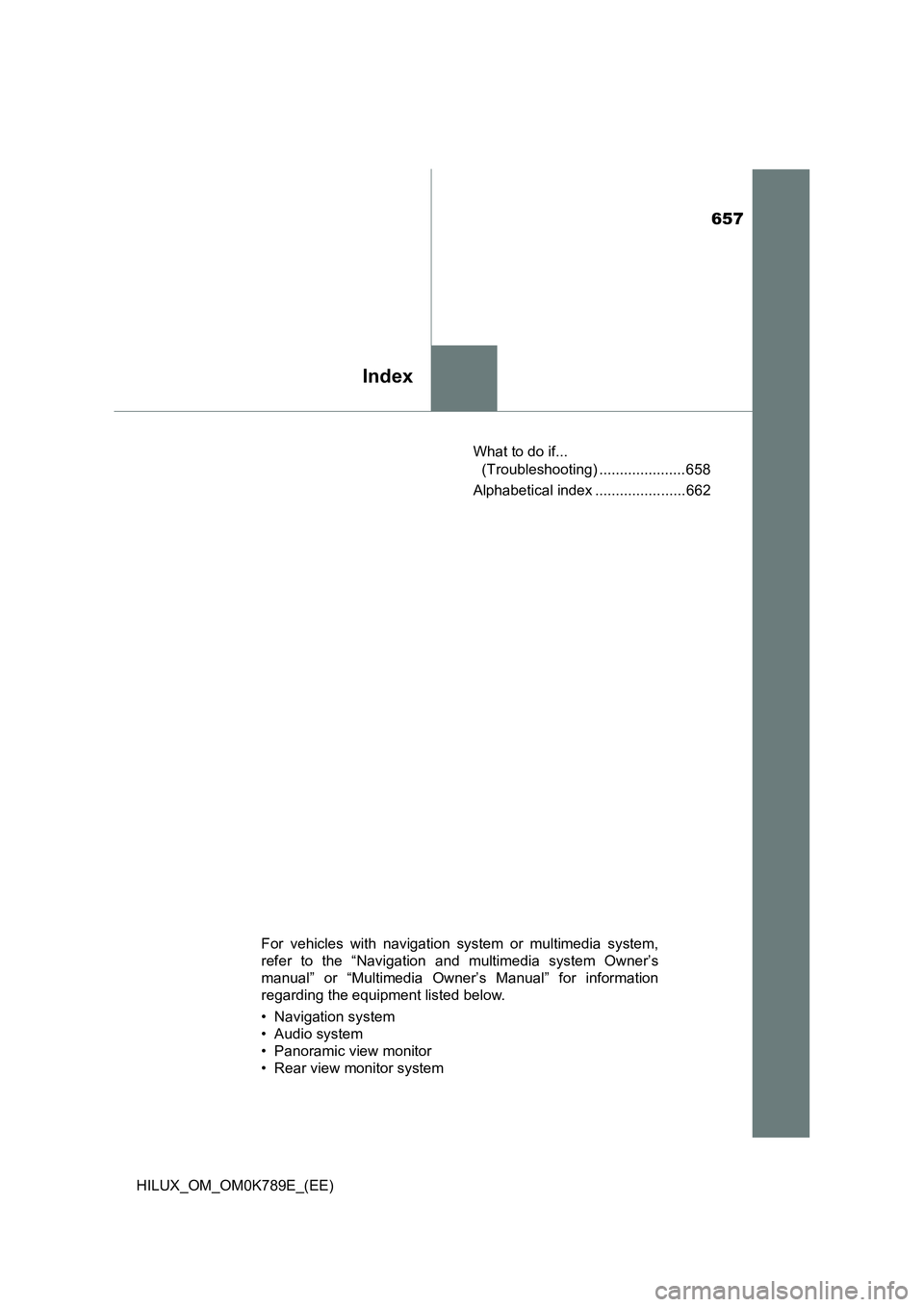

Index
HILUX_OM_OM0K789E_(EE)
What to do if...
(Troubleshooting) ..................... 658
Alphabetical index ...................... 662
For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s
manual” or “Multimedia Owner’s Manual” for information
regarding the equipment listed below.
• Navigation system
• Audio system
• Panoramic view monitor
• Rear view monitor system

658What to do if... (Troubleshooting)
HILUX_OM_OM0K789E_(EE)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. ( P. 149)
●Vehicles with smart entry & start system:
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. ( P. 150)
●Is the key battery weak or depleted? (P. 516)
●Vehicles with smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 225)
●Vehicles with smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 156, 164)
●Is the rear door child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the rear door child-
protector lock. ( P. 154)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
(vehicles with rear door child-protector lock)
