TOYOTA HILUX 2023 Owners Manual

639
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
*1: Models made in Thailand*3
*2: With grease fitting only
*3: See “Checking your vehicle’s model” if you are not sure of which model your vehicle is. ( P. 1 2 )

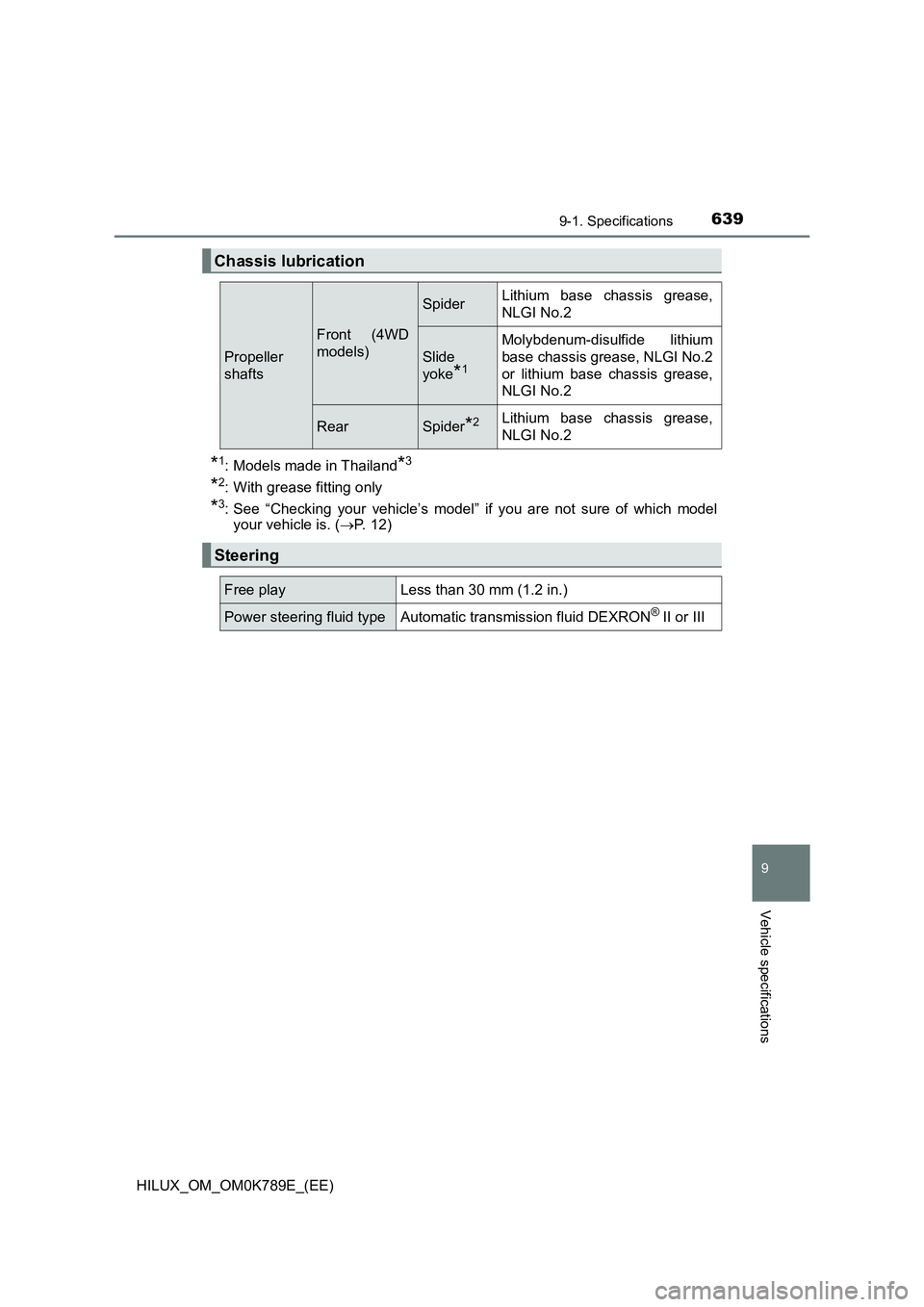

Chassis lubrication
Propeller
shafts
Front (4WD
models)
SpiderLithium base chassis grease,
NLGI No.2
Slide
yoke*1
Molybdenum-disulfide lithium
base chassis grease, NLGI No.2
or lithium base chassis grease,
NLGI No.2
RearSpider*2Lithium base chassis grease,
NLGI No.2
Steering
Free playLess than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III

6409-1. Specifications
HILUX_OM_OM0K789E_(EE)

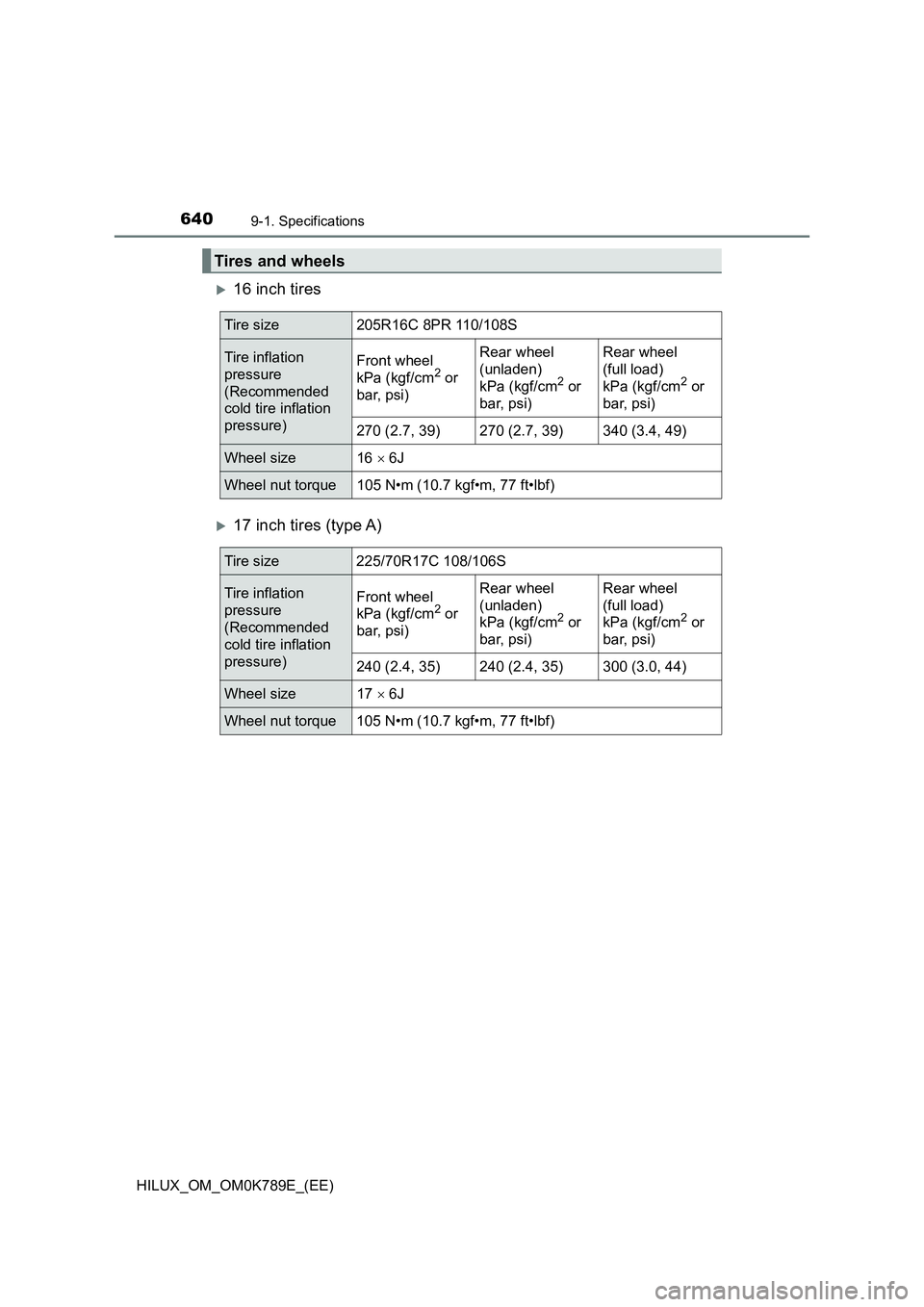

16 inch tires
17 inch tires (type A)
Tires and wheels
Tire size205R16C 8PR 110/108S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
270 (2.7, 39)270 (2.7, 39)340 (3.4, 49)
Wheel size16  6J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)
Tire size 225/70R17C 108/106S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa (kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa (kgf/cm2 or
bar, psi)
240 (2.4, 35)240 (2.4, 35)300 (3.0, 44)
Wheel size17  6J
Wheel nut torque 105 N•m (10.7 kgf•m, 77 ft•lbf)

641
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)

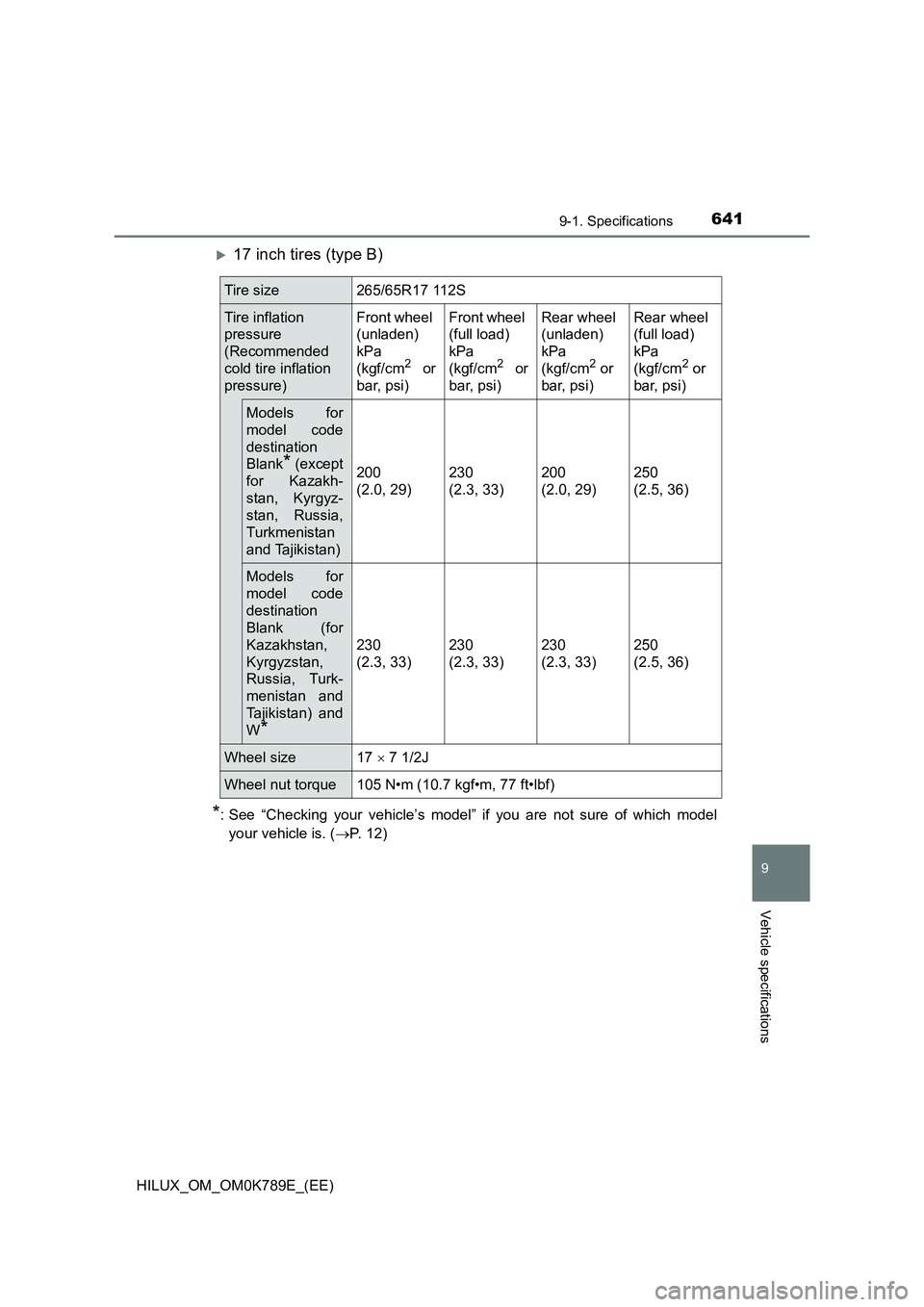

17 inch tires (type B)
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
Tire size265/65R17 112S
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Models for
model code
destination
Blank* (except
for Kazakh-
stan, Kyrgyz-
stan, Russia,
Turkmenistan
and Tajikistan)
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
Models for
model code
destination
Blank (for
Kazakhstan,
Kyrgyzstan,
Russia, Turk-
menistan and
Tajikistan) and
W*
230
(2.3, 33)
230
(2.3, 33)
230
(2.3, 33)
250
(2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)

6429-1. Specifications
HILUX_OM_OM0K789E_(EE)

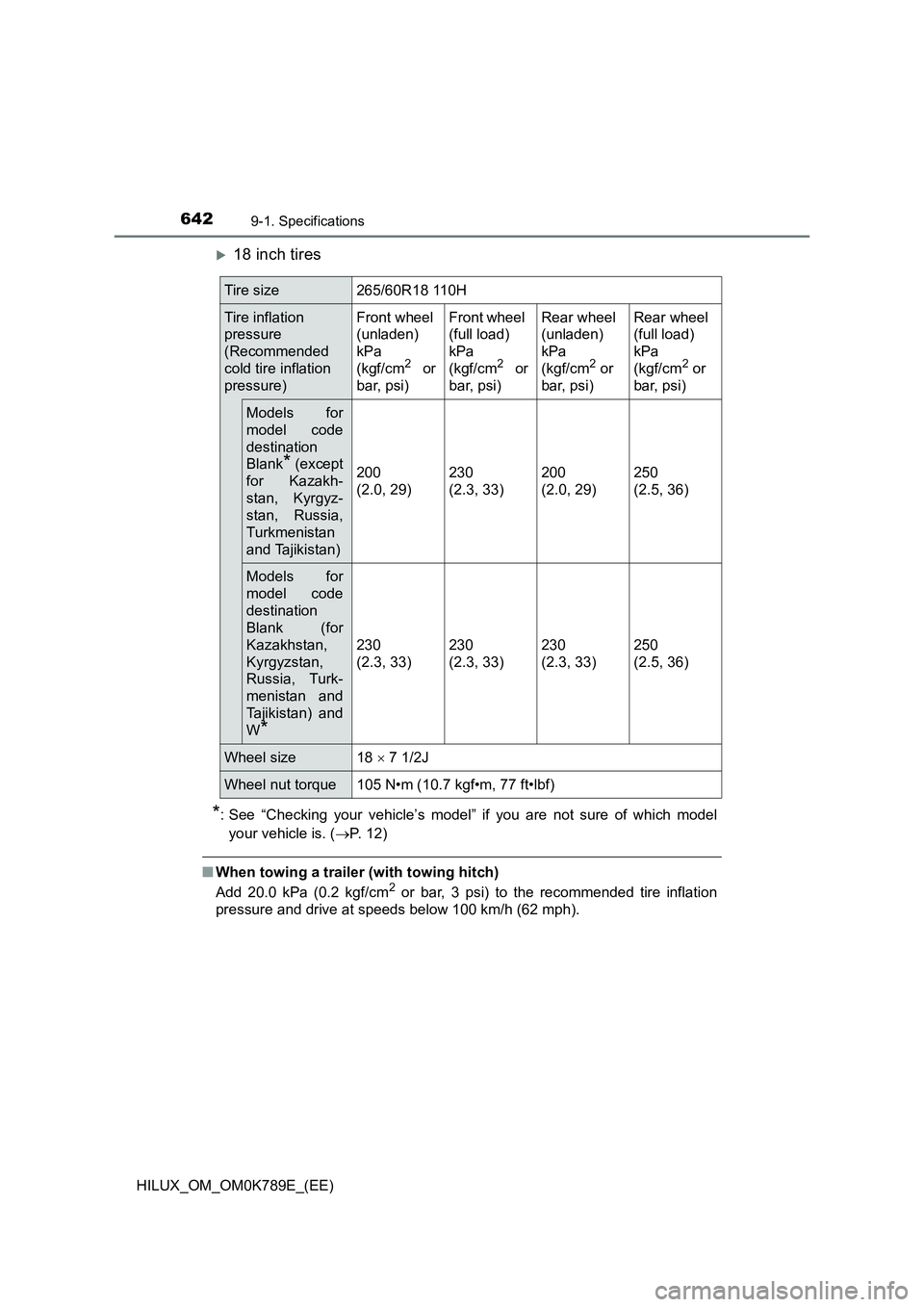

18 inch tires
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
■When towing a trailer (with towing hitch)
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size265/60R18 110H
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)
Front wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Front wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(unladen)
kPa
(kgf/cm2 or
bar, psi)
Rear wheel
(full load)
kPa
(kgf/cm2 or
bar, psi)
Models for
model code
destination
Blank* (except
for Kazakh-
stan, Kyrgyz-
stan, Russia,
Turkmenistan
and Tajikistan)
200
(2.0, 29)
230
(2.3, 33)
200
(2.0, 29)
250
(2.5, 36)
Models for
model code
destination
Blank (for
Kazakhstan,
Kyrgyzstan,
Russia, Turk-
menistan and
Tajikistan) and
W*
230
(2.3, 33)
230
(2.3, 33)
230
(2.3, 33)
250
(2.5, 36)
Wheel size18  7 1/2J
Wheel nut torque105 N•m (10.7 kgf•m, 77 ft•lbf)

643
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
*: If equipped
Light bulbs
Light bulbsWTyp e
Exterior
Headlights
High/low beams (halogen headlights
type A)
Low beams (halogen headlights type B)
High beams (halogen headlights type B)
60/55
55
60
A
B
C
Halogen front fog lights*19 D
Front position lights (halogen headlights)
Without daytime running lights
With daytime running lights
5
21/5
E
E
Front turn signal lights (halogen headlights
type A) 21 F
Front turn signal lights (halogen headlights
type B) 21 G
Rear turn signal lights 21 F
Back-up lights (without LED stop lights) 21 H
Rear fog light (without LED stop lights)*21 H
Stop/tail lights (without LED stop lights) 21/5 H
License plate light 5 E
Outer foot lights*5E
Interior Interior light*8I
Personal/interior lights 5 E
A: H4 halogen bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: H16 halogen bulbs
E: Wedge base bulbs (clear)
F: Single end bulbs (amber)
G: Wedge base bulbs (amber)
H: Single end bulbs (clear)
I: Double end bulbs

6449-1. Specifications
HILUX_OM_OM0K789E_(EE)
Fuel infor mation
◆Gasoline engine
When you find these types of fuel label at the gas station, use only
the fuel with one of the following labels.

You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 91 or
higher for optimum engine performance.
◆Diesel engine
When you find these types of fuel label at the gas station, use only
the fuel with one of the following labels.

EU area:
You must use diesel fuel conforming to European standard EN590,
EN16734 or EN15940*.
Except EU area (vehicles without DPF system):
You must use only diesel fuel with a cetane number of 48 or higher.
Except EU area (vehicles with DPF system):
You must use only diesel fuel that contains 10 ppm or less of sulfur
with a cetane number of 48 or higher.
*: In case that a vehicle which has “XTL” label on the fuel lid, XTL (EN15940,
paraffin diesel) can be used.
*

645
9
9-1. Specifications
Vehicle specifications
HILUX_OM_OM0K789E_(EE)
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (vehicles with DPF system)
Low sulfur diesel fuel may not be avai lable, so please check the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on gasoline fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● Do not use the methanol blended gasoline such as M15, M85, M100. The
use of gasoline containing methanol may cause engine damage or failure.
● Bioethanol fuel sold under names such as “E50” or “E85” and fuel contain-
ing a large amount of ethanol should not be used. Your vehicle can use
gasoline mixed with 10% max ethanol. The use of fuel with more than 10%
ethanol content (E10) will damage the vehicle’s fuel system. You must
ensure that refueling is carried out only from a source where fuel specifica-
tion and quality can be guaranteed. In case of any doubt, ask any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

6469-1. Specifications
HILUX_OM_OM0K789E_(EE)

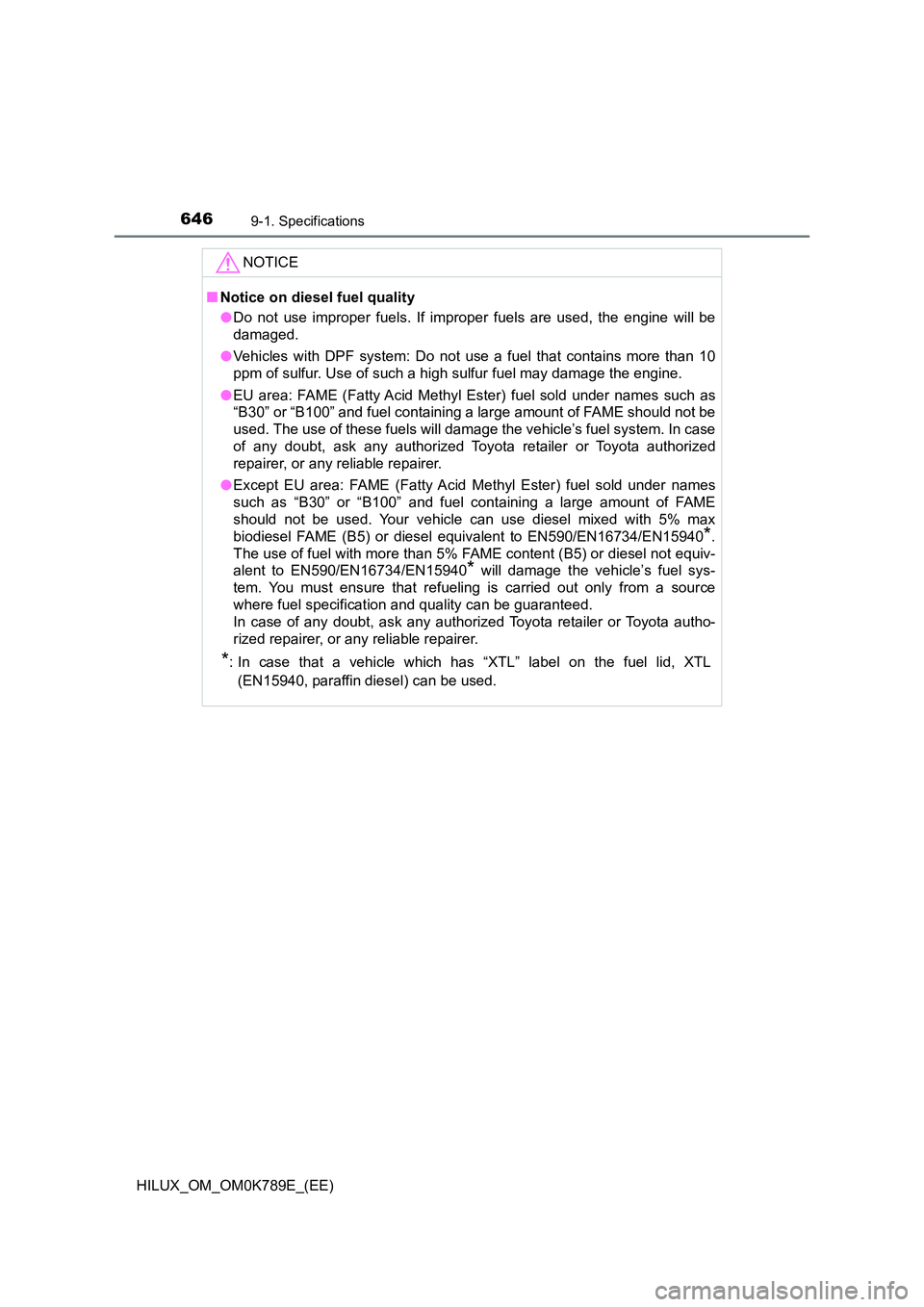

NOTICE
■Notice on diesel fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Vehicles with DPF system: Do not use a fuel that contains more than 10
ppm of sulfur. Use of such a high sulfur fuel may damage the engine.
● EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names such as
“B30” or “B100” and fuel containing a large amount of FAME should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● Except EU area: FAME (Fatty Acid Methyl Ester) fuel sold under names
such as “B30” or “B100” and fuel containing a large amount of FAME
should not be used. Your vehicle can use diesel mixed with 5% max
biodiesel FAME (B5) or diesel equivalent to EN590/EN16734/EN15940*.
The use of fuel with more than 5% FAME content (B5) or diesel not equiv-
alent to EN590/EN16734/EN15940* will damage the vehicle’s fuel sys-
tem. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed.
In case of any doubt, ask any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*: In case that a vehicle which has “XTL” label on the fuel lid, XTL
(EN15940, paraffin diesel) can be used.

6479-2. Customization
HILUX_OM_OM0K789E_(EE)
9
Vehicle specifications

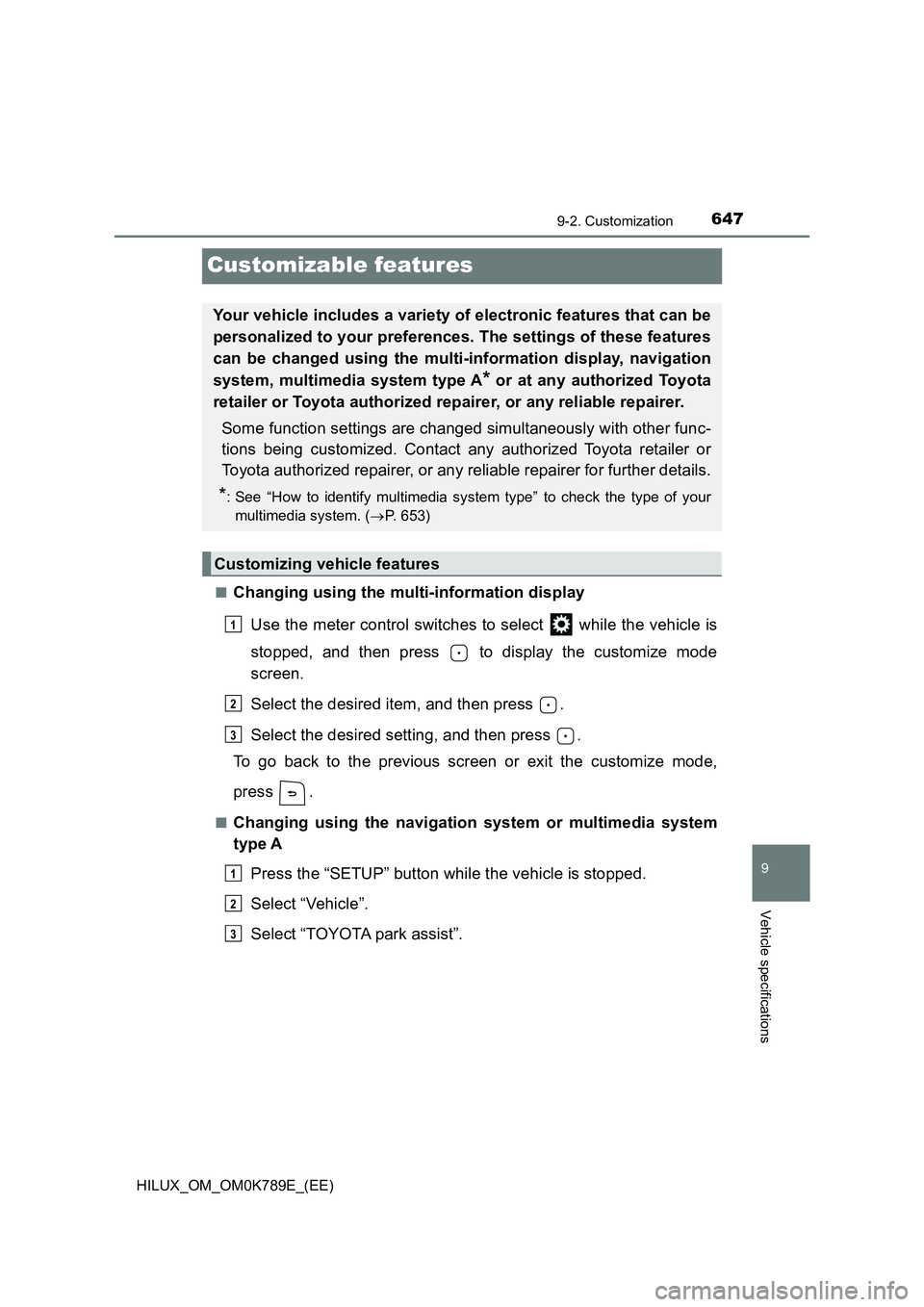

Customizable features
■Changing using the multi-information display
Use the meter control switches to select while the vehicle is
stopped, and then press to display the customize mode
screen.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
■Changing using the navigation system or multimedia system
type A
Press the “SETUP” button while the vehicle is stopped.
Select “Vehicle”.
Select “TOYOTA park assist”.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, navigation
system, multimedia system type A* or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
*: See “How to identify multimedia system type” to check the type of your
multimedia system. ( P. 653)
Customizing vehicle features
1
2
3
1
2
3

6489-2. Customization
HILUX_OM_OM0K789E_(EE)

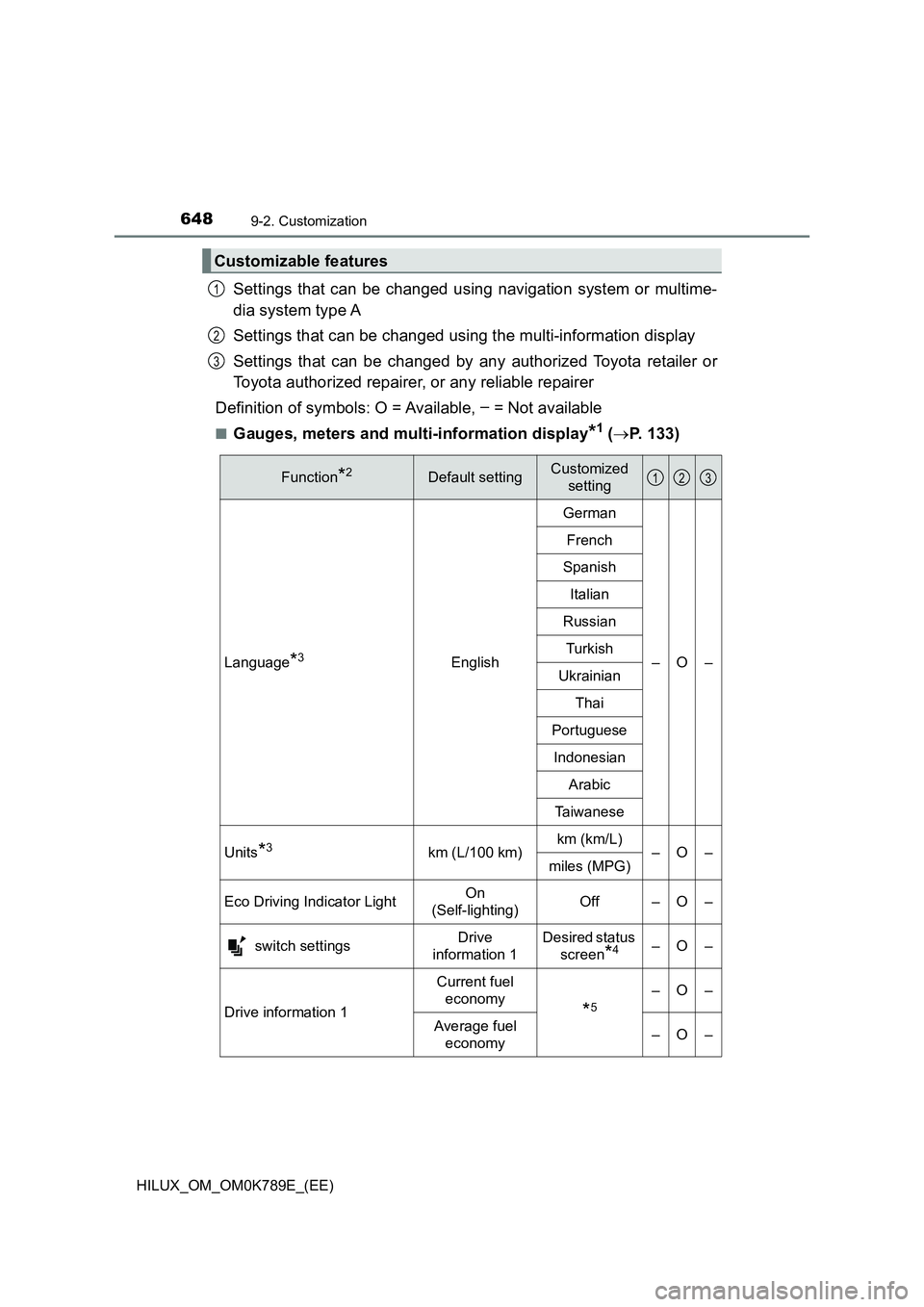

Settings that can be changed using navigation system or multime-
dia system type A
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
■Gauges, meters and multi-information display*1 ( P. 133)
Customizable features
1
2
3
Function*2Default settingCustomized
setting
Language*3English
German
–O–
French
Spanish
Italian
Russian
Turkish
Ukrainian
Thai
Portuguese
Indonesian
Arabic
Taiwanese
Units*3km (L/100 km) km (km/L) –O– miles (MPG)
Eco Driving Indicator Light On
(Self-lighting) Off – O –
switch settings Drive
information 1
Desired status
screen*4–O–
Drive information 1
Current fuel
economy*5
–O–
Average fuel
economy –O–
123
