TOYOTA iA 2016 Owners Manual (in English)

371
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
4
Interior Features
Bluetooth® Hands-Free (Type B)
■Phonebook Usage
Telephone calls can be made by saying the contact name in the
downloaded phonebook or the name of a person whose phone
number has been registered in the Bluetooth
® Hands-Free. Refer
to Import contact (Download Phonebook).
Press the talk button.
Wait for the beep sound.
Say: “Call XXXXX... (Ex. “John”) Mobile”.
Follow the voice guidance to place the call.
● Screen operation
Select the icon on the home screen and display the
Communication screen.
Select to display the contact list.
Select the contact you would like to call to display the details
for the contact.
Select the desired phone number to make the call.
● Import contact (Download Phonebook)
Phonebook data from your device (Mobile phone) can be sent
and registered to your Bluetooth
® Hands-Free phonebook using
Bluetooth®.
Automatic downloading:
The “Auto Download Contacts” setting must be on. When hands-
free is connected to the device, the phonebook is downloaded
automatically.
Refer to Communication Settings on P. 382.
Manually downloading:
If the “Auto Download Contacts” setting is off, download the
phonebook using the following procedure. Select the icon on the home screen and display the
Communication screen.
Select to display the contact list.
Select .
Making a Call
1
2
3
4
1
2
3
4
1
2
3

372
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
Select or to switch to the
device operation.
If is selected, select .
Download will be started from the mobile phone.
■Favorites Contacts
A maximum of 50 contacts can be registered. It will take less time to
make a call after registering the telephone number. In addition, you
do not have to look for the person you want to call in the phone-
book.
●Registering to your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select or .
Select from the displayed list.
● Making a call from your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Only one phone number is registered to contact:
Select the contact information you would like to call. Go to
St ep 5 .
Multiple phone numbers are registered to contact:
Select the contact you would like to call to display the screen
indicating the details for the contact. Go to Step 4.
Select the phone number you would like to call.
Select .
4
5
6
1
2
3
4
5
1
2
3
4
5

iA_OM_OM99M17z_(U)
3734-3. Bluetooth®
4
Interior Features
●Deleting from your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
Select the contact information which you would like to delete.
Select .
● Changing the display order of your favorites list
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
The contact can be moved after it is selected.
Slide the contact or move it using the commander switch, then
select .
● Changing contact name of your favorites
Select the icon on the home screen and display the
Communication screen.
Select to display the favorites list.
Select .
Select .
Select the contact to display the keyboard screen.
If a new name is input and is selected, the contact name is
stored.
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6

374
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
■Telephone Number InputSelect the icon on the home screen and display the Com-
munication screen.
When is pressed, the dial pad is displayed.
Input the telephone number using the dial pad.
Select to make the call.
● Numeral or symbol entry
Use the dial pad.
Long-press the to input +.
Select to delete the currently input value.
Long-press to delete all input values.
■Redial Function
Makes a call to the last person called (latest person on outgoing call
record) from the mobile phone/vehicle.
Press the talk button.
Wait for the beep sound.
Say: “Redial”
■Call back Function
Makes a call to the last person who called your (latest person on
incoming call record) mobile phone/vehicle.Press the talk button.
Wait for the beep sound.
Say: “Call back”
● Mobile 911 (U.S.A./Canada only)
If the vehicle is involved in a m oderate to severe collision, a call
is made automatically to 911 from the connected device. The
“Emergency Assistance Call” setting must be on.
Refer to Communication Settings on P. 382.
NOTICE
Though the system can be set to not call 911, doing so will defeat the pur-
pose of the system. Scion recommends that the Mobile 911 system remain
activated.
1
2
3
4
1
2
3
1
2
3

iA_OM_OM99M17z_(U)
3754-3. Bluetooth®
4
Interior Features
■Making a Call
●If “Import All Contacts” is performed after saving the phonebook to the
Bluetooth
® unit, the phonebook will be overwritten.
● A maximum of 1000 contacts can be registered to the phonebook.
● Phonebook, incoming/outgoing call record, and favorite memories are
exclusive to each mobile phone to protect privacy.
● When “Add New Contact” is selected, information such as the selected per-
son’s name is also registered. In addition, when “Add New Contact Details”
is selected, only the telephone number of the selected person is registered.
● If the contact is long-pressed when the favorites list is displayed, the contact
information can be edited (deleted, moved).
● Practice this while parked until you are confident you can do it while driving
in a non-taxing road situation. If you are not completely comfortable, make
all calls from a safe parking position, and only start driving when you can
devote your full attention to driving.
● Mobile 911 is a secondary function of the audio entertainment system.
Therefore, the mobile 911 function does not assure that the call is always
made to 911 after an accident occurs.
● A Hands-free device must be paired and connected. The 911 operator can
verify the vehicle’s position information using the Hands-free device GPS if
equipped. The 911 operator can verify the vehicle’s position information.
If the vehicle is involved in a moder ate to severe collision, notifi-
cation of the call to 911 is made via audio and screen display. To
cancel the call, press or hang-up button
within 10 seconds.
If or hang-up button is not pressed within
10 seconds, the call is made to 911 automatically.1
2

376
iA_OM_OM99M17z_(U)
4-3. Bluetooth®

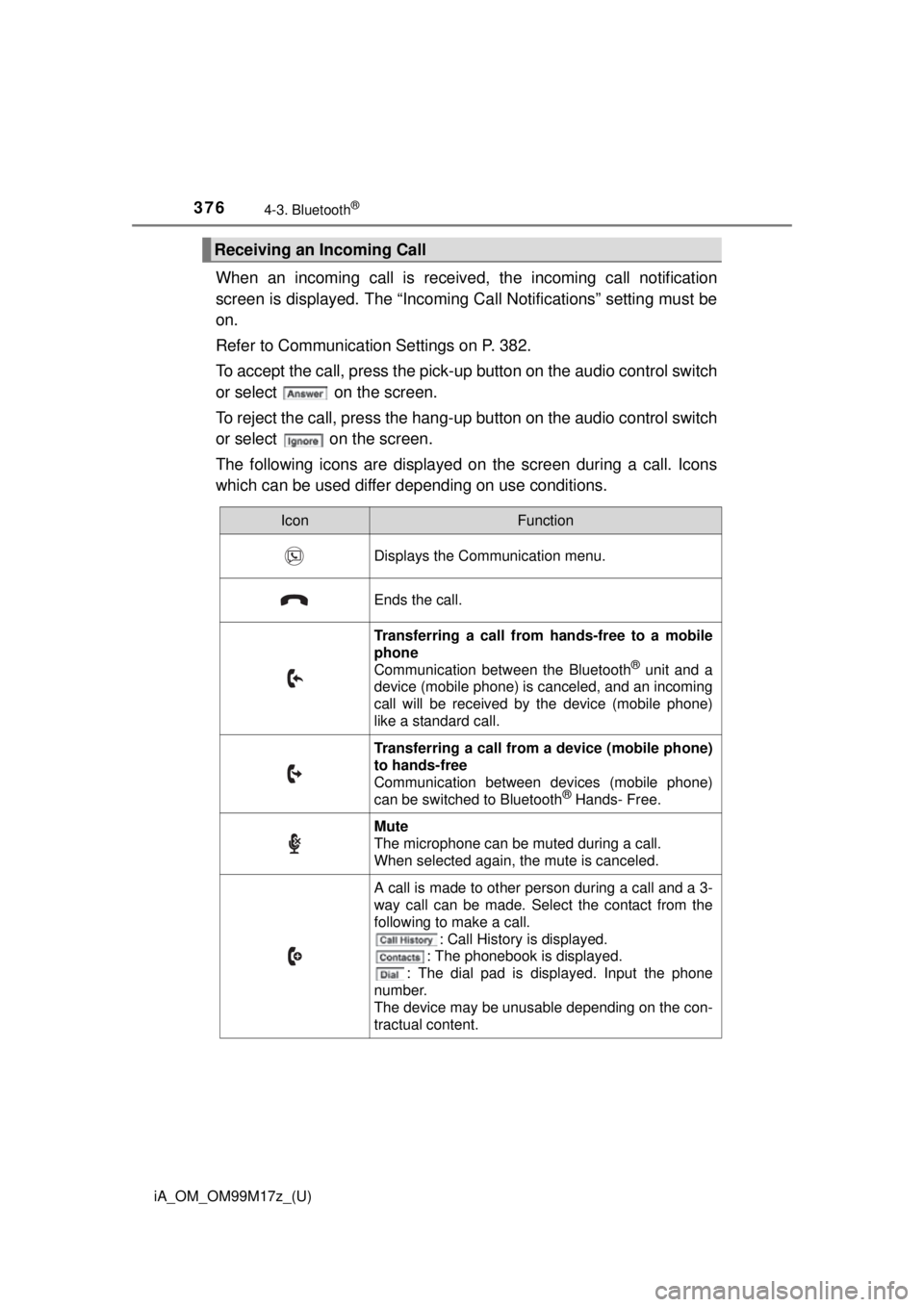

When an incoming call is received, the incoming call notification
screen is displayed. The “Incoming Ca ll Notifications” setting must be
on.
Refer to Communication Settings on P. 382.
To accept the call, press the pick-up button on the audio control switch
or select on the screen.
To reject the call, press the hang-up button on the audio control switch
or select on the screen.
The following icons are displayed on the screen during a call. Icons
which can be used differ d epending on use conditions.
Receiving an Incoming Call
IconFunction
Displays the Communication menu.
Ends the call.
Transferring a call from hands-free to a mobile
phone
Communication between the Bluetooth
® unit and a
device (mobile phone) is canceled, and an incoming
call will be received by the device (mobile phone)
like a standard call.
Transferring a call from a device (mobile phone)
to hands-free
Communication between devices (mobile phone)
can be switched to Bluetooth
® Hands- Free.
Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.
A call is made to other person during a call and a 3-
way call can be made. Select the contact from the
following to make a call.
: Call History is displayed.
: The phonebook is displayed.
: The dial pad is displayed. Input the phone
number.
The device may be unusable depending on the con-
tractual content.

iA_OM_OM99M17z_(U)
3774-3. Bluetooth®
4
Interior Features

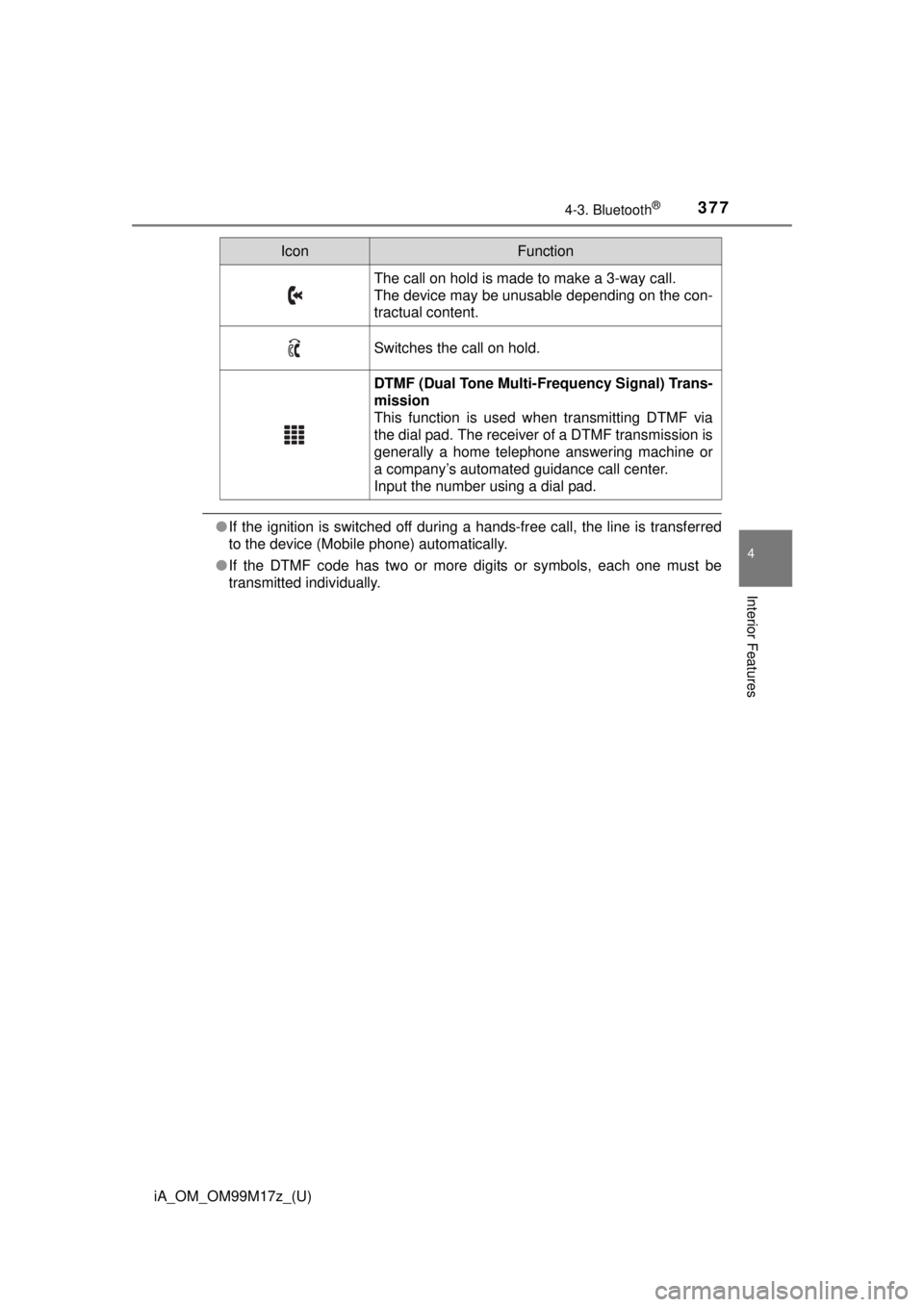

●If the ignition is switched off during a hands-free call, the line is transferred
to the device (Mobile phone) automatically.
● If the DTMF code has two or more digits or symbols, each one must be
transmitted individually.
The call on hold is made to make a 3-way call.
The device may be unusable depending on the con-
tractual content.
Switches the call on hold.
DTMF (Dual Tone Multi-Frequency Signal) Trans-
mission
This function is used when transmitting DTMF via
the dial pad. The receiver of a DTMF transmission is
generally a home telephone answering machine or
a company’s automated guidance call center.
Input the number using a dial pad.
IconFunction

378
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
A call can be interrupted to receive an incoming call from a third party.
When is selected or the pick- up button on the steering
wheel is pressed, the current call is held and the system switches to
the new incoming call.
When is selected, the current call is ended and the system
switches to the new incoming call (GSM network only).
When is selected or the hang-up button on the steering wheel
is pressed, an incoming call is refused.
● The function may not be available depending on the contractual content of
the mobile device.
● The function may not be operable depending on the type of the telephone
network and the mobile device.
SMS (Short Message Service) messages, and E-mail received by
connected devices can be downloaded, displayed, and played (read
by the system).
Additionally, replies can also be made to calls and messages in the
received messages.
■Downloading messages
Up to 20 new messages can be downloaded and displayed from a
connected device.
For e-mail, 20 messages for each account can be downloaded.
Automatic downloading:
The “Auto Download Email” (E-mail) or “Auto Download Text Mes-
sage” (SMS) setting must be on. A message is downloaded auto-
matically when the
Bluetooth
® unit is connected to the device. Refer to Communication
Settings on P. 382.
Manually downloading:
When the “Auto Download Email” (E -mail) or “Auto Download Text
Message” (SMS) setting is off, the message is downloaded using
the following procedure.
Select the icon on the home screen and display the Com-
munication screen.
Call Interrupt
Receiving and Replying to Messages (available only with E-mail/
SMS compatible phones)
1

iA_OM_OM99M17z_(U)
3794-3. Bluetooth®
4
Interior Features

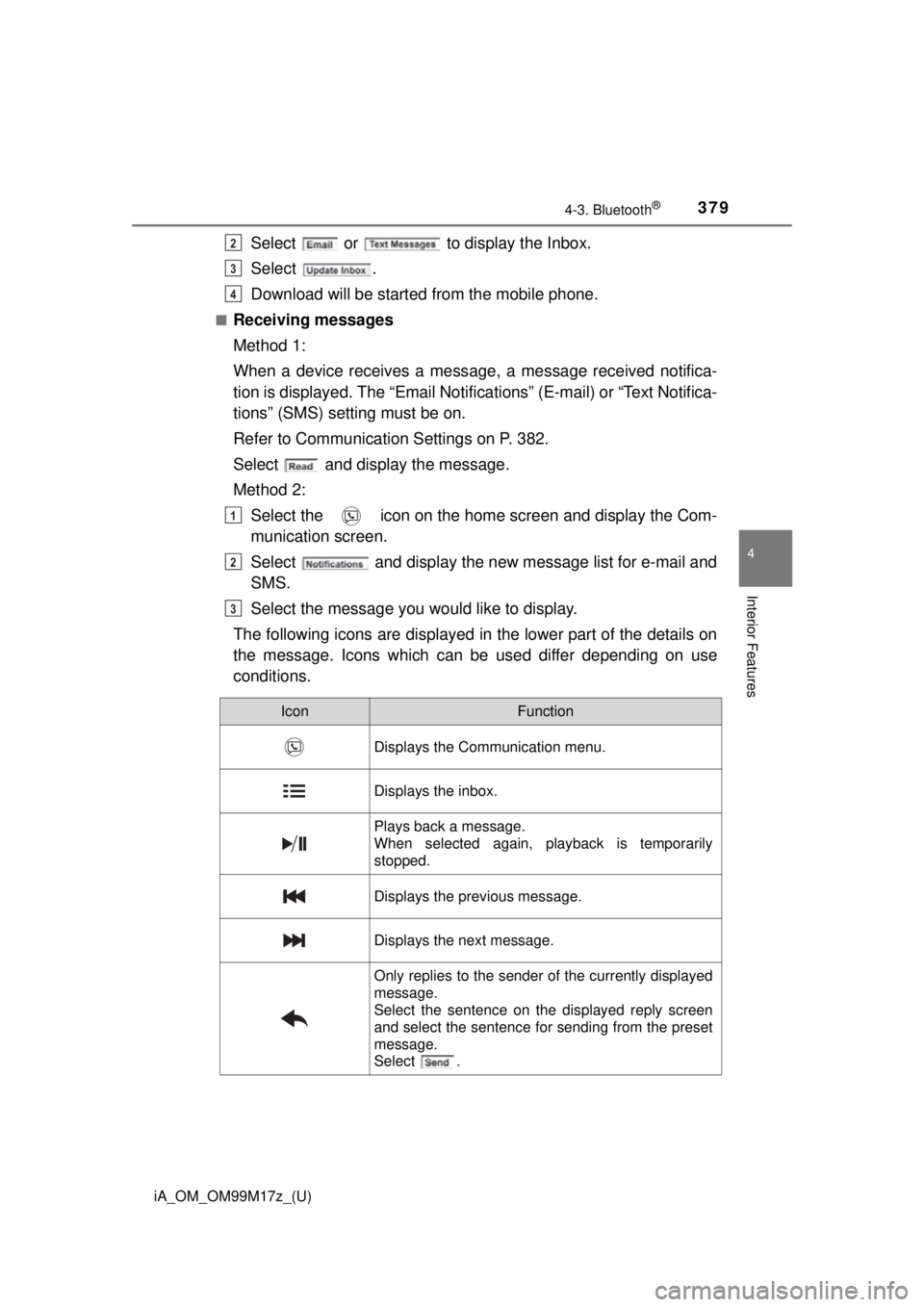

Select or to display the Inbox.
Select .
Download will be started from the mobile phone.

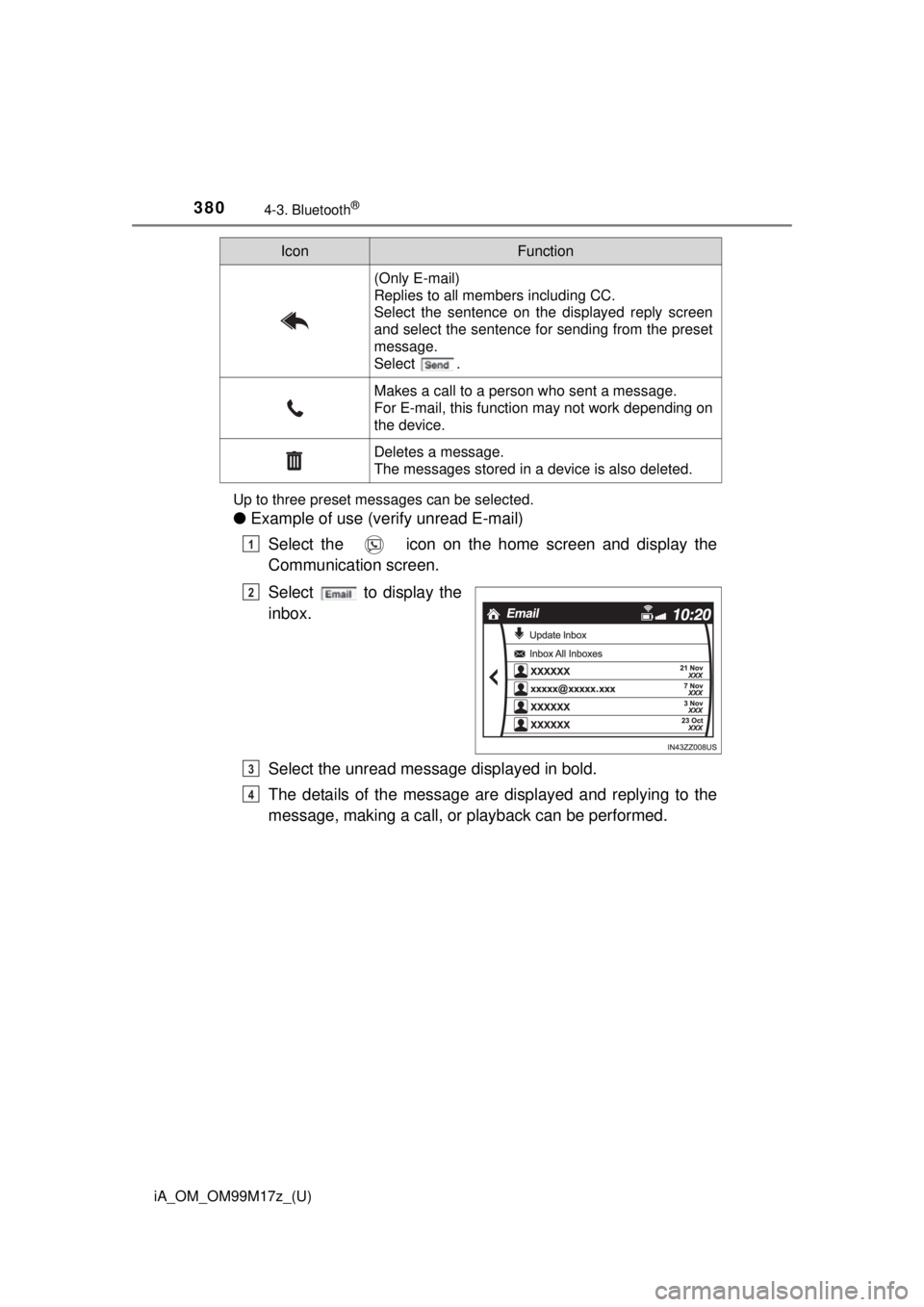

■Receiving messages
Method 1:
When a device receives a mess age, a message received notifica-
tion is displayed. The “Email Notifica tions” (E-mail) or “Text Notifica-
tions” (SMS) setting must be on.
Refer to Communication Settings on P. 382.
Select and display the message.
Method 2:
Select the icon on the home screen and display the Com-
munication screen.
Select and display the new message list for e-mail and
SMS.
Select the message you would like to display.
The following icons are displayed in the lower part of the details on
the message. Icons which can be used differ depending on use
conditions.
2
3
4
1
2
3
IconFunction
Displays the Communication menu.
Displays the inbox.
Plays back a message.
When selected again, playback is temporarily
stopped.
Displays the previous message.
Displays the next message.
Only replies to the sender of the currently displayed
message.
Select the sentence on the displayed reply screen
and select the sentence for sending from the preset
message.
Select .

380
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
Up to three preset messages can be selected.
●Example of use (verify unread E-mail)
Select the icon on the home screen and display the
Communication screen.
Select to display the
inbox.
Select the unread message displayed in bold.
The details of the message are displayed and replying to the
message, making a call, or playback can be performed.
(Only E-mail)
Replies to all members including CC.
Select the sentence on the displayed reply screen
and select the sentence for sending from the preset
message.
Select .
Makes a call to a person who sent a message.
For E-mail, this function may not work depending on
the device.
Deletes a message.
The messages stored in a device is also deleted.
IconFunction
1
2
3
4
