TOYOTA iA 2016 Owners Manual (in English)

401
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
4
Interior Features
Troubleshooting
■Scion Customer Experience
If you have any problems with Bluetooth
®, contact our toll-free cus-
tomer service center.
● U.S.A.
Phone: 1-866-70-SCION or 1-866-707-2466 (Toll-free)
Web: http://www.scion.com/BeSpoke
● Canada
Phone: 1-888-TOYOTA-8 or 1-888-869-6828 (Toll-free)
Web: www.toyota.ca
■Bluetooth® Device pairing, connection problems
SymptomCauseSolution method
Unable to perform pair-
ing-
First make sure the
device is compatible
with the Bluetooth
®
unit, and then check
whether the Bluetooth®
function and the Find
Mode/Visible setting
*1
on the device are
turned on. If pairing is
still not possible after
this, contact your Scion
dealer or Scion Cus-
tomer Experience.
Pairing cannot be per-
formed again
The pairing information
paired to the Blue-
tooth
® unit or device is
not recognized cor-
rectly.
Perform pairing using
the following proce-
dure.
• Clear “Scion” stored in the device.
• Perform pairing
again.
Unable to perform pair-
ingThe Bluetooth® func-
tion and the Find Mode/
Visible setting
*1 on the
device may turn off
automatically after a
period of time has
elapsed depending on
the device.
Check whether the
Bluetooth® function
and the Find Mode/Vis-
ible setting
*1 on the
device are turned on
and pairing or recon-
nect.
Does not connect auto-
matically when starting
the engine
Automatically con-
nects, but then discon-
nects suddenly

402
iA_OM_OM99M17z_(U)
4-3. Bluetooth®
*1Setting which detects the existence of a device external to the Bluetooth®
unit
●When the OS of the device is updated, the pairing information may be
deleted. If this happens, reprogram the pairing information to the Bluetooth®
unit.
● If you pair your phone which has already been paired to your vehicle more
than once in the past, you need to delete “Scion” on your mobile device.
Then, execute the Bluetooth
® search on your mobile device once again,
and pair to a newly detected “Scion”.
● Before you pair your device, make sure that Bluetooth
® is “ON”, both on
your phone and on the vehicle.
Disconnects intermit-
tently
The device is in a loca-
tion in which radio
wave interference can
occur easily, such as
inside a bag in a rear
seat, in a rear pocket of
a pair of pants.
Move the device to a
location in which radio
wave interference is
less likely to occur.
Does not connect auto-
matically when starting
the engineThe pairing information
is updated when the
device OS is updated.
Perform pairing again.
SymptomCauseSolution method

iA_OM_OM99M17z_(U)
4034-3. Bluetooth®
4
Interior Features

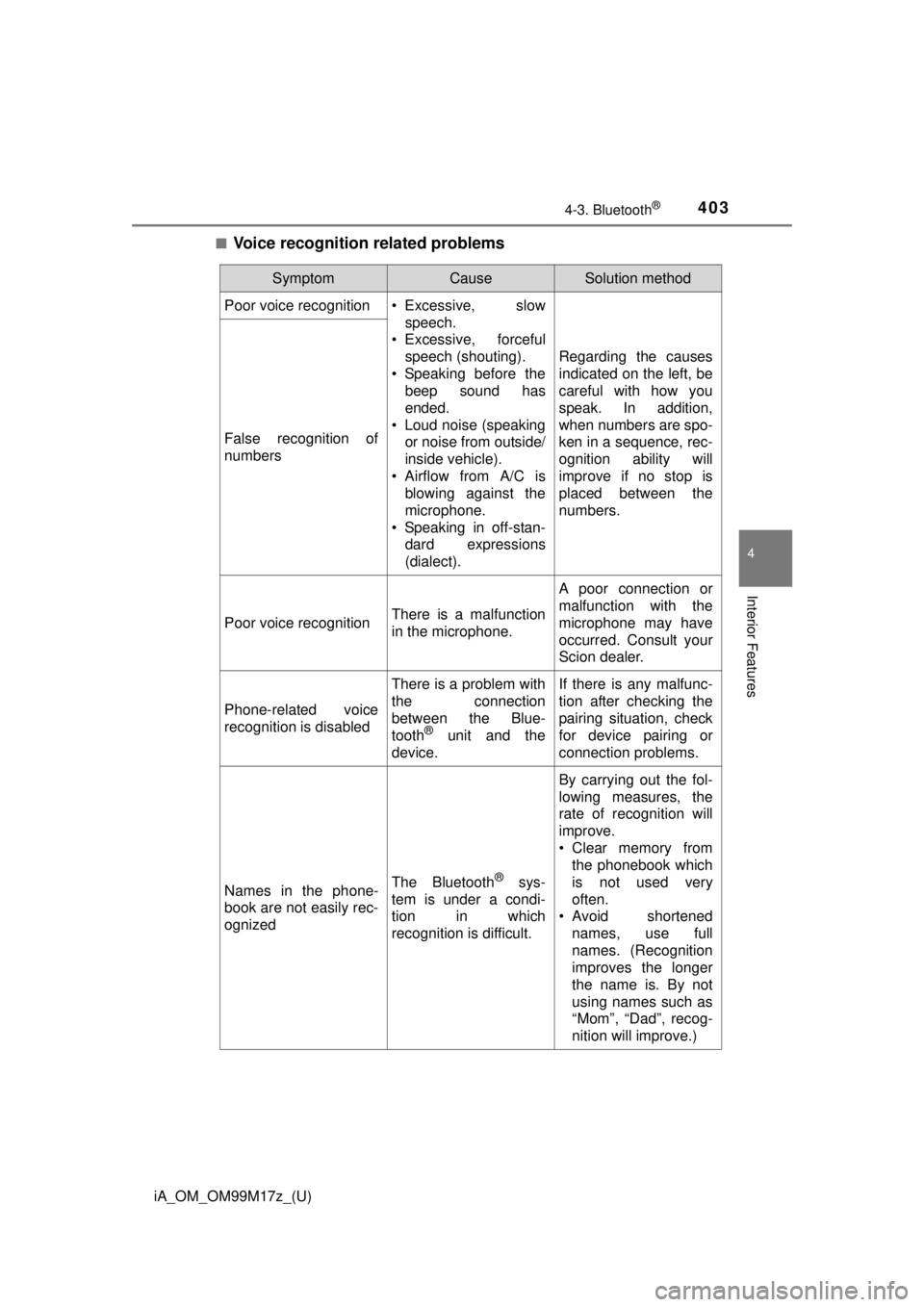

■Voice recognition related problems
SymptomCauseSolution method
Poor voice recognition• Excessive, slowspeech.
• Excessive, forceful speech (shouting).
• Speaking before the beep sound has
ended.
• Loud noise (speaking or noise from outside/
inside vehicle).
• Airflow from A/C is blowing against the
microphone.
• Speaking in off-stan- dard expressions
(dialect).
Regarding the causes
indicated on the left, be
careful with how you
speak. In addition,
when numbers are spo-
ken in a sequence, rec-
ognition ability will
improve if no stop is
placed between the
numbers.
False recognition of
numbers
Poor voice recognitionThere is a malfunction
in the microphone.
A poor connection or
malfunction with the
microphone may have
occurred. Consult your
Scion dealer.
Phone-related voice
recognition is disabled
There is a problem with
the connection
between the Blue-
tooth
® unit and the
device.
If there is any malfunc-
tion after checking the
pairing situation, check
for device pairing or
connection problems.
Names in the phone-
book are not easily rec-
ognizedThe Bluetooth® sys-
tem is under a condi-
tion in which
recognition is difficult.
By carrying out the fol-
lowing measures, the
rate of recognition will
improve.
• Clear memory from the phonebook which
is not used very
often.
• Avoid shortened names, use full
names. (Recognition
improves the longer
the name is. By not
using names such as
“Mom”, “Dad”, recog-
nition will improve.)

404
iA_OM_OM99M17z_(U)
4-3. Bluetooth®

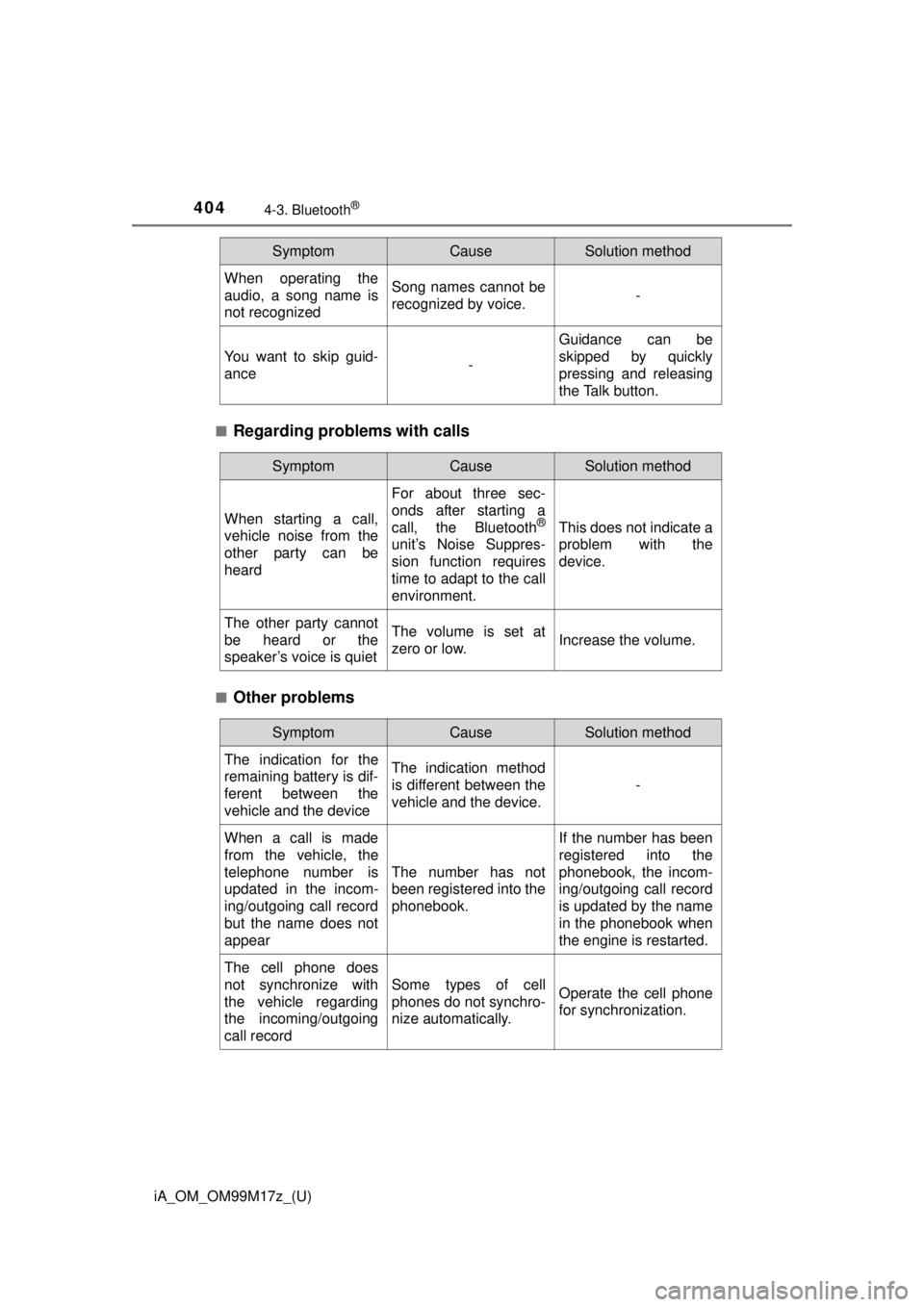

■Regarding problems with calls
■Other problems
When operating the
audio, a song name is
not recognizedSong names cannot be
recognized by voice.-
You want to skip guid-
ance-
Guidance can be
skipped by quickly
pressing and releasing
the Talk button.
SymptomCauseSolution method
SymptomCauseSolution method
When starting a call,
vehicle noise from the
other party can be
heard
For about three sec-
onds after starting a
call, the Bluetooth
®
unit’s Noise Suppres-
sion function requires
time to adapt to the call
environment.
This does not indicate a
problem with the
device.
The other party cannot
be heard or the
speaker’s voice is quietThe volume is set at
zero or low.Increase the volume.
SymptomCauseSolution method
The indication for the
remaining battery is dif-
ferent between the
vehicle and the deviceThe indication method
is different between the
vehicle and the device.
-
When a call is made
from the vehicle, the
telephone number is
updated in the incom-
ing/outgoing call record
but the name does not
appear
The number has not
been registered into the
phonebook.
If the number has been
registered into the
phonebook, the incom-
ing/outgoing call record
is updated by the name
in the phonebook when
the engine is restarted.
The cell phone does
not synchronize with
the vehicle regarding
the incoming/outgoing
call record
Some types of cell
phones do not synchro-
nize automatically.Operate the cell phone
for synchronization.

iA_OM_OM99M17z_(U)
4054-3. Bluetooth®
4
Interior Features

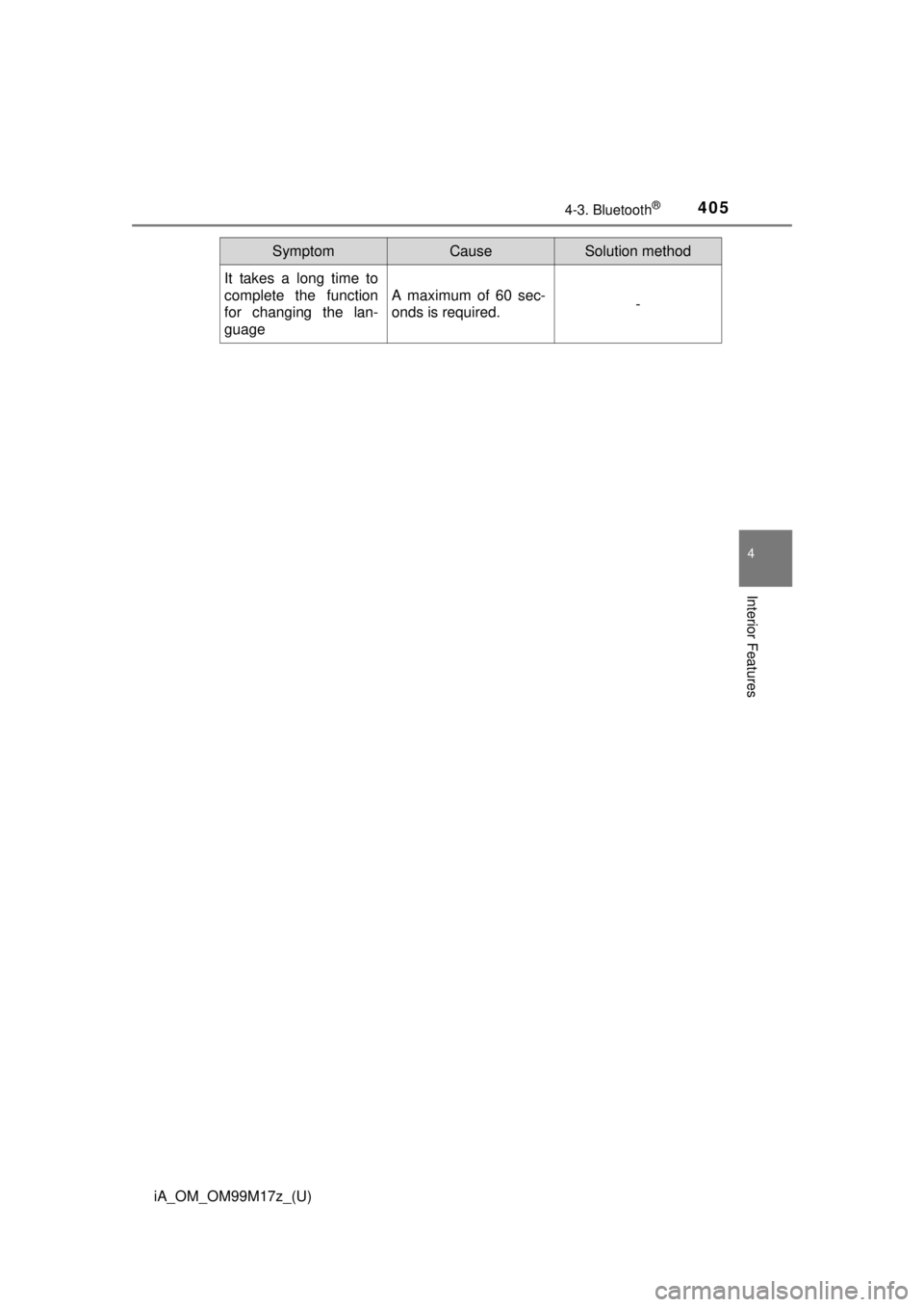

It takes a long time to
complete the function
for changing the lan-
guage
A maximum of 60 sec-
onds is required.-
SymptomCauseSolution method

406
iA_OM_OM99M17z_(U)
4-4. Interior Equipment
Sunvisors
When you need a sunvisor, lower
it for use in front or swing it to the
side.
To use the vanity mirror, lower the sunvisor.Sunvisor
Vanity Mirrors

407
iA_OM_OM99M17z_(U)
4-4. Interior Equipment
4
Interior Features
Interior Lights
■Overhead LightsOFF
DOOR
ON
■Map Lights
When the overhead light switch
is in the door or off position,
press the lens to illuminate the
map lights, and then press the
lens again to turn them off.
Switch PositionOverhead Lights
OFFLight off
DOOR
• Light is on when any door is open
• Light is on or off when the illuminated entry sys-tem is on
ONLight on
1
2
3

408
iA_OM_OM99M17z_(U)
4-4. Interior Equipment
■Trunk Light
The trunk light is on when the
lid is open and off when it’s
closed.
■Map Lights
The map lights will not turn off even if the lens is pressed in the following
cases:
●The overhead light switch is in the ON position.
● The overhead light switch is in the door position with the door open.
● The illuminated entry system is on.
■ Trunk Light
To prevent the battery from being discharged, do not leave the trunk open\
for
a long period when the engine is not running.
The overhead lights turn on when any of the following operations is
done with the overhead light switch in the DOOR position and the igni-
tion switched off.
● Turn on for about 30 seconds when the driver’s door is unlocked.
● Turn on for about 15 seconds when a door is opened with a key left
in the vehicle and then the door is closed.
● Turn on for about 5 seconds when a door is opened from the out-
side with a key being carried and then the door is closed.
The overhead lights turn on for about 15 seconds when the ignition is
switched off with the overhead light switch in the DOOR position.
The overhead lights turn off immediately in the following cases:
● The ignition is switched on and all doors are closed.
● The driver’s door is locked.
Illuminated Entry System

iA_OM_OM99M17z_(U)
4094-4. Interior Equipment
4
Interior Features
■Illuminated Entry System
●Battery saver
If any door is left open with the overhead light switch in the DOOR position,
or the trunk lid is left open, the overhead light or luggage compartment light/
trunk light turns off after about 30 minutes to prevent battery depletion.
● To prevent battery depletion, if the interior lights remain turned on (the inte-
rior light switch is in the ON position or an interior light is turned on by press-
ing the lens of the interior light), they turn off automatically under the
following conditions:
• No operations are done for about 30 minutes after the ignition is switched
off.
• When the LOCK button on the key is pressed or the request switch is pressed to lock the doors on vehicles with the advanced keyless function
after the ignition is switched off (interior lights turn off a few seconds).
In addition, if the following operations are performed after turning the interior
lights off, they will turn on again.
• The ignition is switched to a position other than OFF.
• A door is opened.
• A door is unlocked.
● The operation of the illuminated entry system can be changed.
Refer to Customizable Features on P. 572.

410
iA_OM_OM99M17z_(U)
4-4. Interior Equipment
Accessor y Sockets
Only use genuine Scion accessories or the equivalent requiring no
greater than 120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or ON.
To prevent discharging of the battery, do not use the socket for long periods
with the engine off or idling.
Ty p e AType B
NOTICE
●To prevent accessory socket damage or electrical failure, pay attention to
the following:
• Do not use accessories that require more than 120 W (DC 12 V, 10 A).
• Do not use accessories that are not genuine Scion accessories or the
equivalent.
• Close the cover when the accessory socket is not in use to prevent for-
eign objects and liquids from getting into the accessory socket.
• Correctly insert the plug into the accessory socket.
• Do not insert the cigarette lighter into the accessory socket.
● Noise may occur on the audio playback depending on the device con-
nected to the accessory socket.
● Depending on the device connected to the accessory socket, the vehicle’s
electrical system may be affected, which could cause the warning light to
illuminate. Disconnect the connected device and make sure that the prob-
lem is resolved. If the problem is resolved, disconnect the device from the
socket and switch the ignition off. If the problem is not resolved, consult
your Scion dealer.
