TOYOTA iQ EV 2013 Accessories, Audio & Navigation (in English)

121
4. SETUP
3
NAVIGATION SYSTEM
iQ_EV NAVI OM74061U
5Input the conditions.
6Touch “OK”.
The screen then returns to the
“Maintenance” screen.
1Press the “SETUP” button.
2Touch “Vehicle” on the “Setup”
screen.
3Touch “Maintenance” on the “Vehicle
Settings” screen.
4Touch “Set Dealer” .
5If a dealer has not been registered, en-
ter the location of a dealer in the same
way as for a destination search. (See
“DESTINATION SEARCH” on page
56.)
When “Set Dealer” registration is finished,
the “Dealer” screen is displayed.
No.Function
Touch to input the next maintenance
date.
Touch to input the driving distance
until the next maintenance check.
Touch to cancel the date and dis-
tance conditions.
Touch to reset the date and distance
conditions.
INFORMATION
●For scheduled maintenance information,
refer to “Scheduled Maintenance Guide”
or “Owner’s Manual Supplement”.
● Depending on driving or road conditions,
the actual date and distance mainte-
nance should be performed may differ
from the stored date and distance in the
system.
DEALER SETTING
Dealer information can be registered in
the system. With dealer information
registered, route guidance to the deal-
er is available.

122
4. SETUP
iQ_EV NAVI OM74061U
6Touch “Edit” next to the item to be ed-
ited.■TO EDIT “Dealer” OR “Contact”
1Touch “Edit” next to “Dealer” or “Con-
tact”.
2Enter the name using the alphanumer-
ic keys.
 Up to 70 characters can be entered for
dealer and 24 characters for contact.
3Touch “OK”.
The previous screen will be displayed.
No.Function
Touch to enter the name of a dealer.
(See page 122.)
Touch to enter the name of a dealer
member. (See page 122.)
Touch to set the location. (See page
123.)
Touch to enter the phone number.
(See page 123.)
Touch to delete the dealer informa-
tion displayed on the screen.
Touch to set the displayed dealer as
a destination. (See “STARTING
ROUTE GUIDANCE” on page 73.)

123
4. SETUP
3
NAVIGATION SYSTEM
iQ_EV NAVI OM74061U
■TO EDIT “Location”
1Touch “Edit” next to “Location”.
2Touch one of the 8 directional screen
buttons to move the cursor to the
desired point on the map screen.
3Touch “OK”.
The previous screen will be displayed.
■TO EDIT “Phone #”
(PHONE NUMBER)
1Touch “Edit” next to “Phone #”.
2Enter the number using number keys.
3Touch “OK”.
The previous screen will be displayed.

124
4. SETUP
iQ_EV NAVI OM74061U
1Press the “SETUP” button.
2Touch “Vehicle” on the “Setup”
screen.
3Touch “Vehicle Customization” .
4Touch the desired items to be set.
For a list of the settings that can be
changed, refer to “Owner’s Manual”.
5After changing the settings, touch
“Save” . A message indicating that the
settings are being saved will appear.
Do not perform any other operations
while this message is displayed.
VEHICLE CUSTOMIZATION
Vehicle settings can be changed.
INFORMATION
● To avoid discharging the 12-volt battery,
perform the customization procedure
with the EV system operating.

125
3
NAVIGATION SYSTEM
iQ_EV NAVI OM74061U
5. GPS (GLOBAL PO SITIONING SYSTEM)
1. LIMITATIONS OF THE NAVIGATION SYSTEM
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate
current position, normally using 4 or more
satellites, and in some case 3 satellites.
The GPS system has a certain level of in-
accuracy. While the navigation system will
compensate for this most of the time, oc-
casional positioning errors of up to 300 ft.
(100 m) can and should be expected. Gen-
erally, position errors will be corrected
within a few seconds. When the vehicle is receiving signals from
satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle po-
sition on the map screen. Tunnels, tall
buildings, trucks, or even the placement of
objects on the instrument panel may ob-
struct the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle po-
sition may not be shown accurately or
inappropriate route guidance may occur in
some cases.
This navigation system calculates the
current position using satellite signals,
various vehicle signals, map data, etc.
However, an accurate position may not
be shown depending on satellite condi-
tions, road configuration, vehicle con-
dition or other circumstances.
NOTICE
●
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion of the antenna in the instrument
panel. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

126
5. GPS (GLOBAL POSITIONING SYSTEM)
iQ_EV NAVI OM74061U
Accurate current position may not be
shown in the following cases:
• When driving on a small angled Y-
shaped road.
• When driving on a winding road.
• When driving on a slippery road such as in sand, gravel, snow, etc.
• When driving on a long straight road.
• When freeway and surface streets run in parallel.
• After moving by ferry or vehicle carrier.
• When a long route is searched during high speed driving.
• When driving without setting the current position calibration correctly.
• After repeating a change of direction by going forward and backward, or turning
on a turntable in a parking lot.
• When leaving a covered parking lot or parking garage.
• When a roof carrier is installed.
• When driving with tire chains installed.
• When the tires are worn.
• After replacing a tire or tires.
• When using tires that are smaller or larger than the factory specifications.
• When the tire pressure in any of the 4
tires is not correct. 
Inappropriate route guidance may occur in
the following cases:
• When turning at an intersection off the
designated route guidance.
• If you set more than 1 destination but skip any of them, auto reroute will dis-
play a route returning to the destination
on the previous route.
• When turning at an intersection for which there is no route guidance.
• When passing through an intersection for which there is no route guidance.
• During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
• During high speed driving, it may take a long time for auto reroute to operate. In
auto reroute, a detour route may be
shown.
• After auto reroute, the route may not be changed.
• If an unnecessary U-turn is shown or announced.
• If a location has multiple names and the
system announces 1 or more of them.
• When a route cannot be searched.
• If the route to your destination includes
gravel, unpaved roads or alleys, the
route guidance may not be shown.
• Your destination point might be shown
on the opposite side of the street.
• When a portion of the route has regula- tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
• The road and map data stored in the
navigation system may not be complete
or may not be the latest version.
 If the vehicle cannot receive GPS sig-
nals, the current position can be
adjusted manually. For information on
setting the current position calibration,
see page 116.
After replacing a tire, implement the
operation described in “TIRE CHANGE
CALIBRATION”. (See page 117.)

127
5. GPS (GLOBAL POSITIONING SYSTEM)
3
NAVIGATION SYSTEM
iQ_EV NAVI OM74061U
INFORMATION
●This navigation system uses tire turning
data and is designed to work with fac-
tory-specified tires for the vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter
may cause inaccurate display of the cur-
rent position. The tire pressure also
affects the diameter of the tires, so make
sure that the tire pressure of all 4 tires is
correct.

128
5. GPS (GLOBAL POSITIONING SYSTEM)
iQ_EV NAVI OM74061U

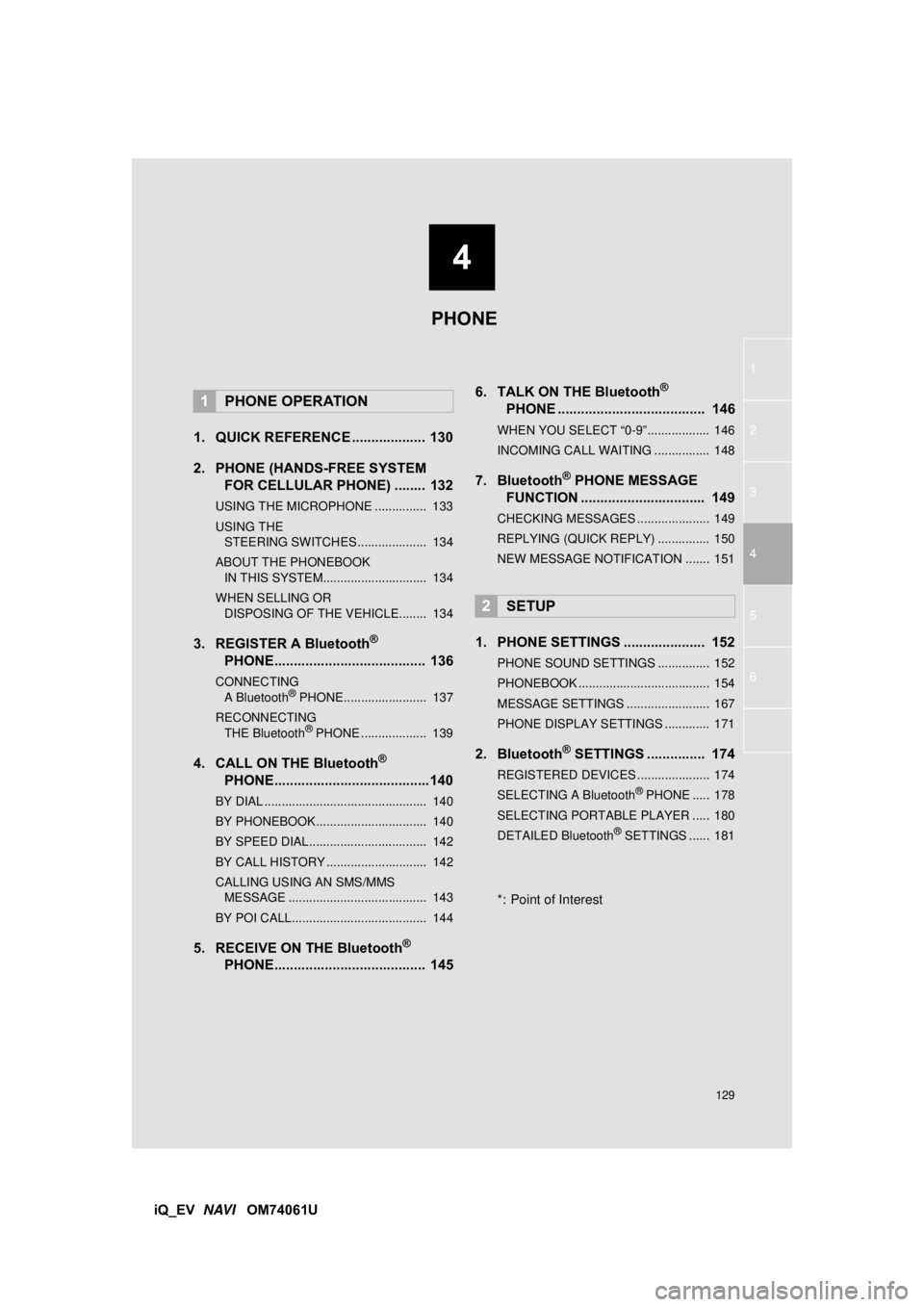

4
129
1
2
3
4
5
6
iQ_EV NAVI OM74061U
1. QUICK REFERENCE ................... 130
2. PHONE (HANDS-FREE SYSTEM
FOR CELLULAR PHONE) ........ 132
USING THE MICROPHONE ............... 133
USING THE
STEERING SWITCHES .................... 134
ABOUT THE PHONEBOOK IN THIS SYSTEM.............................. 134
WHEN SELLING OR DISPOSING OF THE VEHICLE........ 134
3. REGISTER A Bluetooth®
PHONE....................................... 136
CONNECTING
A Bluetooth® PHONE........................ 137
RECONNECTING THE Bluetooth
® PHONE ................... 139
4. CALL ON THE Bluetooth®
PHONE........................................140
BY DIAL ............................................... 140
BY PHONEBOOK................................ 140
BY SPEED DIAL.................................. 142
BY CALL HISTORY ............................. 142
CALLING USING AN SMS/MMS
MESSAGE ........................................ 143
BY POI CALL....................................... 144
5. RECEIVE ON THE Bluetooth®
PHONE....................................... 145 6. TALK ON THE Bluetooth
®
PHONE ...................................... 146
WHEN YOU SELECT “0-9”.................. 146
INCOMING CALL WAITING ................ 148
7. Bluetooth® PHONE MESSAGE
FUNCTION ...... ....................... ... 149
CHECKING MESSAGES ..................... 149
REPLYING (QUICK REPLY) ............... 150
NEW MESSAGE NOTIFICATION ....... 151
1. PHONE SETTINGS ..................... 152
PHONE SOUND SETTINGS ............... 152
PHONEBOOK ...................................... 154
MESSAGE SETTINGS ........................ 167
PHONE DISPLAY SETTINGS ............. 171
2. Bluetooth® SETTINGS ............... 174
REGISTERED DEVICES ..................... 174
SELECTING A Bluetooth® PHONE ..... 178
SELECTING PORTABLE PLAYER ..... 180
DETAILED Bluetooth
® SETTINGS ...... 181
*: Point of Interest
1PHONE OPERATION
2SETUP
PHONE

130
iQ_EV NAVI OM74061U
1. PHONE OPERATION
1. QUICK REFERENCE
Bluetooth® phones can be operated via the navigation system’s screen. To display
the hands-free operation screen, press the button.
*
