TOYOTA iQ EV 2013 Owners Manual (in English)

3117-3. Do-it-yourself maintenance
7
Maintenance and care

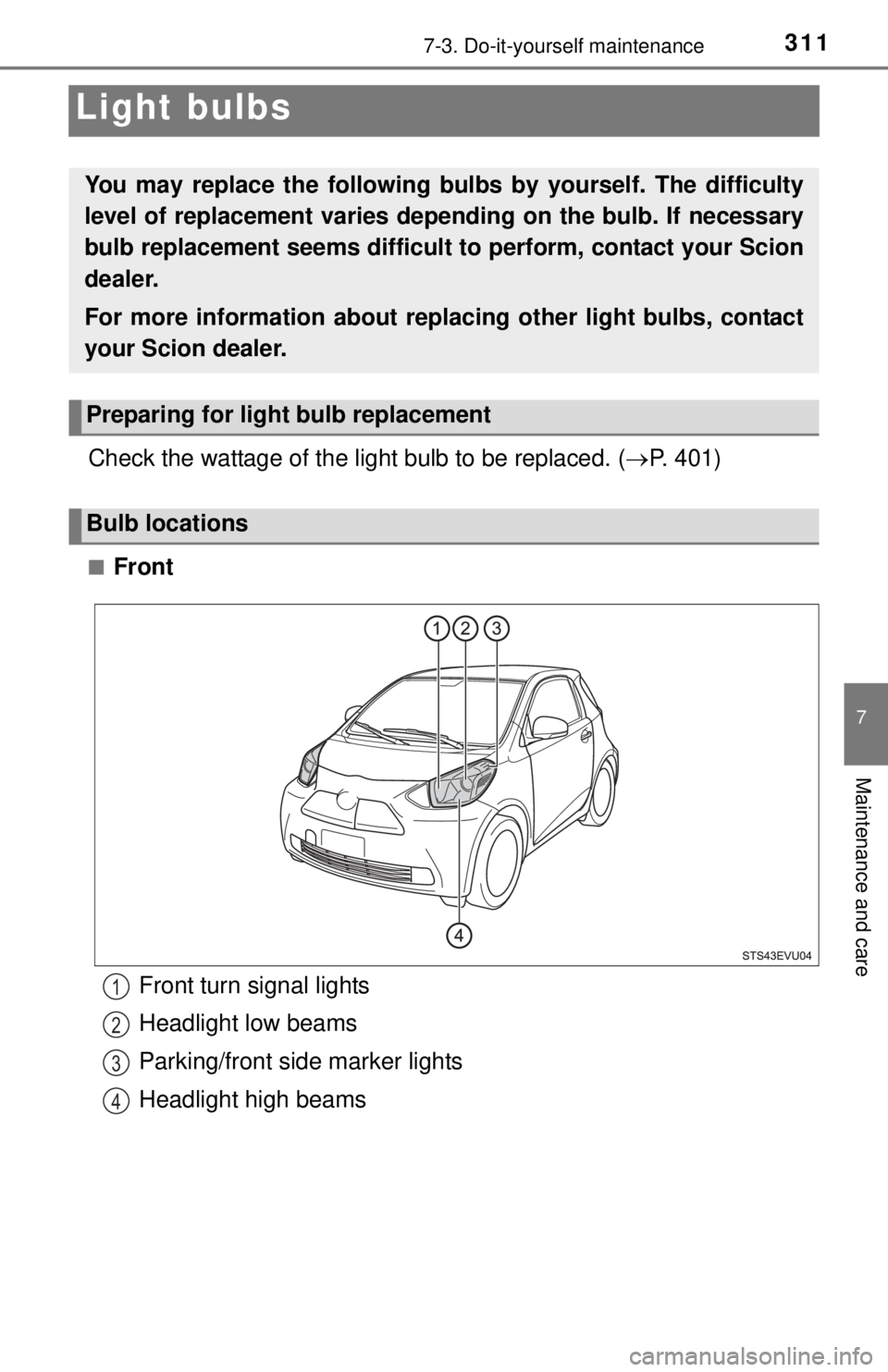

Light bulbs
Check the wattage of the light bulb to be replaced. (P. 401)
■Front
You may replace the following bulbs by yourself. The difficulty
level of replacement varies de pending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Scion
dealer.
For more information about repl acing other light bulbs, contact
your Scion dealer.
Preparing for light bulb replacement
Bulb locations
Front turn signal lights
Headlight low beams
Parking/front side marker lights
Headlight high beams1
2
3
4

3127-3. Do-it-yourself maintenance

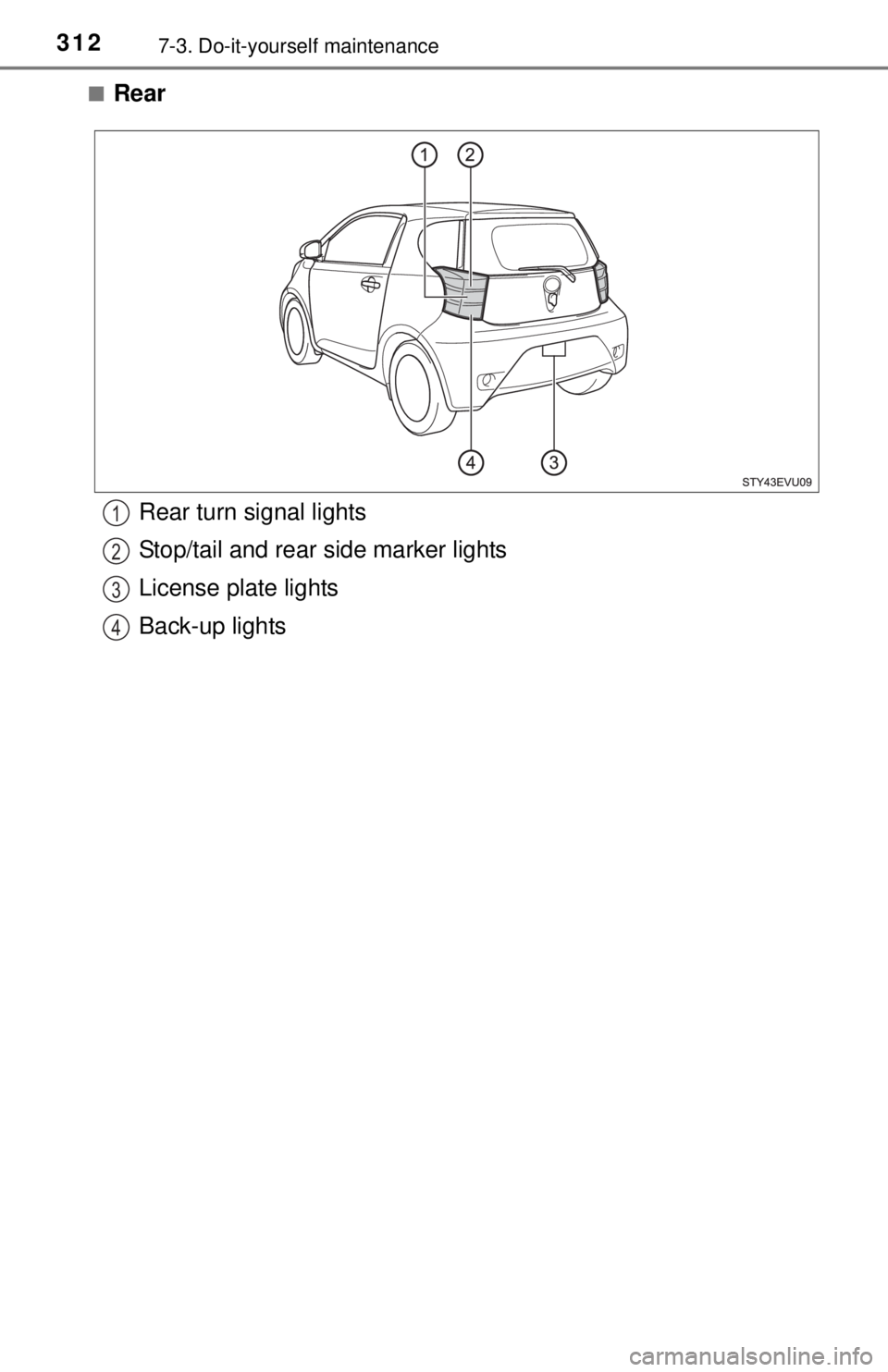

■Rear
Rear turn signal lights
Stop/tail and rear side marker lights
License plate lights
Back-up lights1
2
3
4

3137-3. Do-it-yourself maintenance
7
Maintenance and care

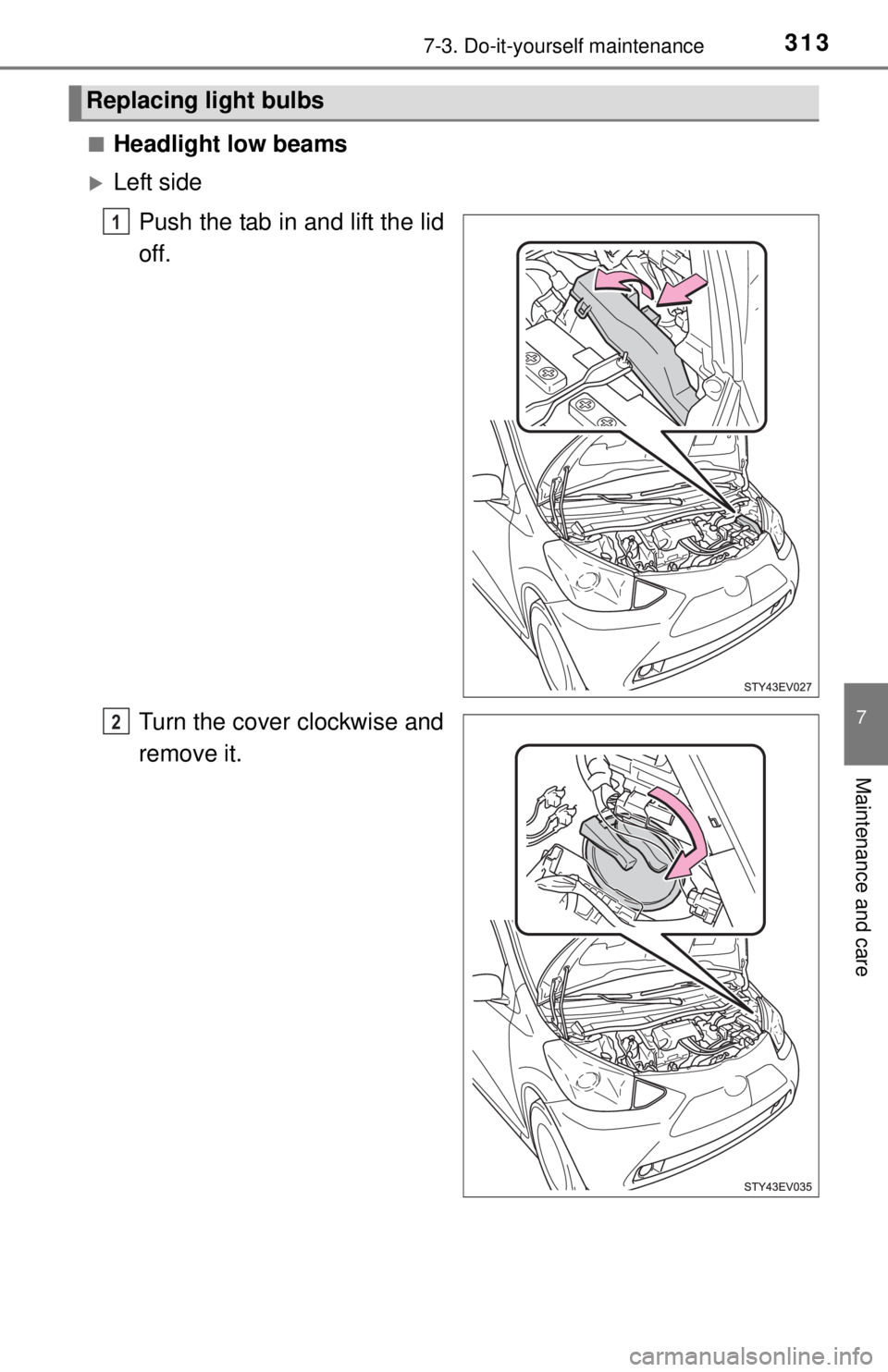

■Headlight low beams
Left sidePush the tab in and lift the lid
off.
Turn the cover clockwise and
remove it.
Replacing light bulbs
1
2

3147-3. Do-it-yourself maintenance

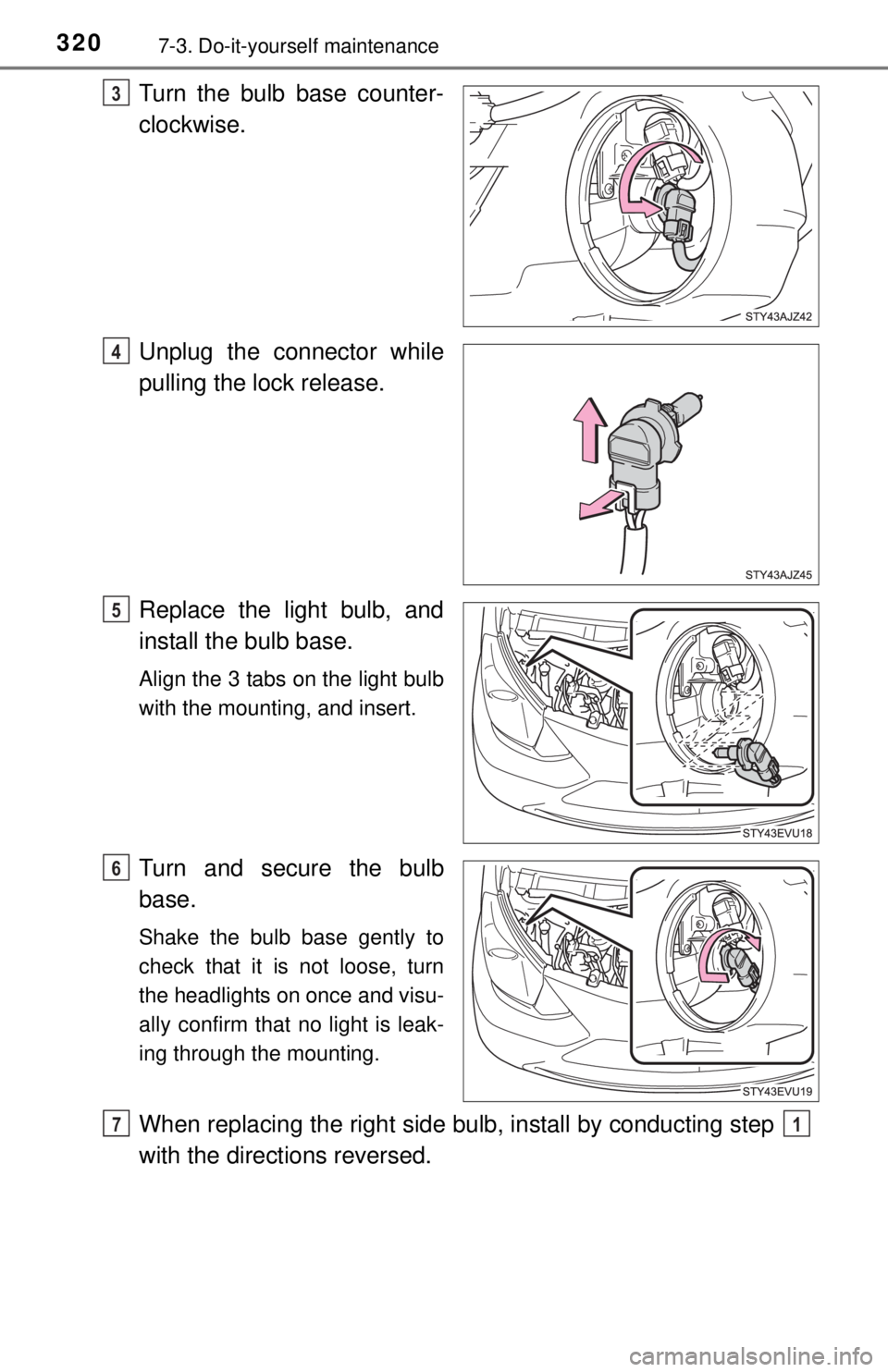

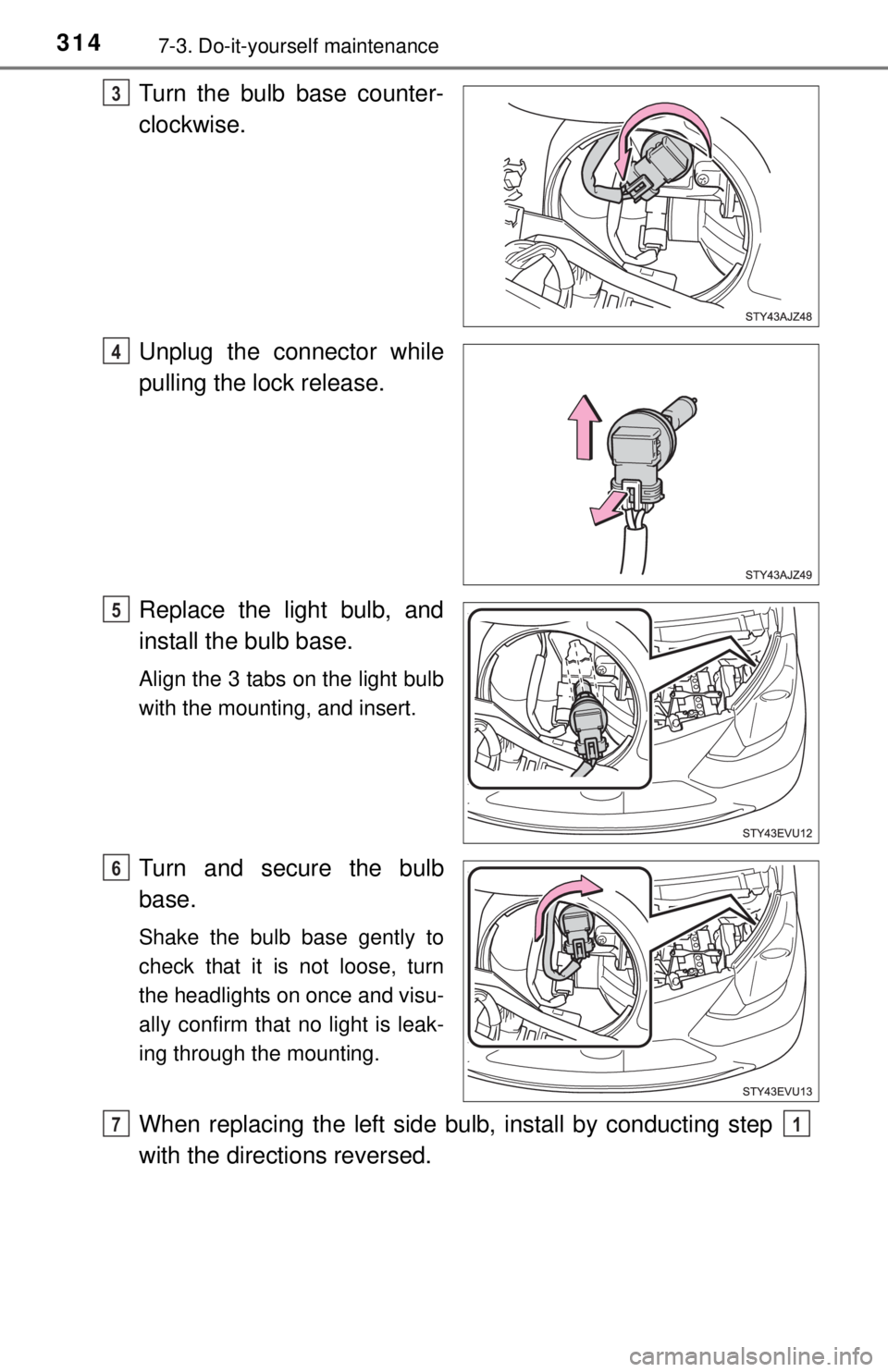

Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When replacing the left side bulb, install by conducting step
with the directions reversed.
3
4
5
6
71

3157-3. Do-it-yourself maintenance
7
Maintenance and care

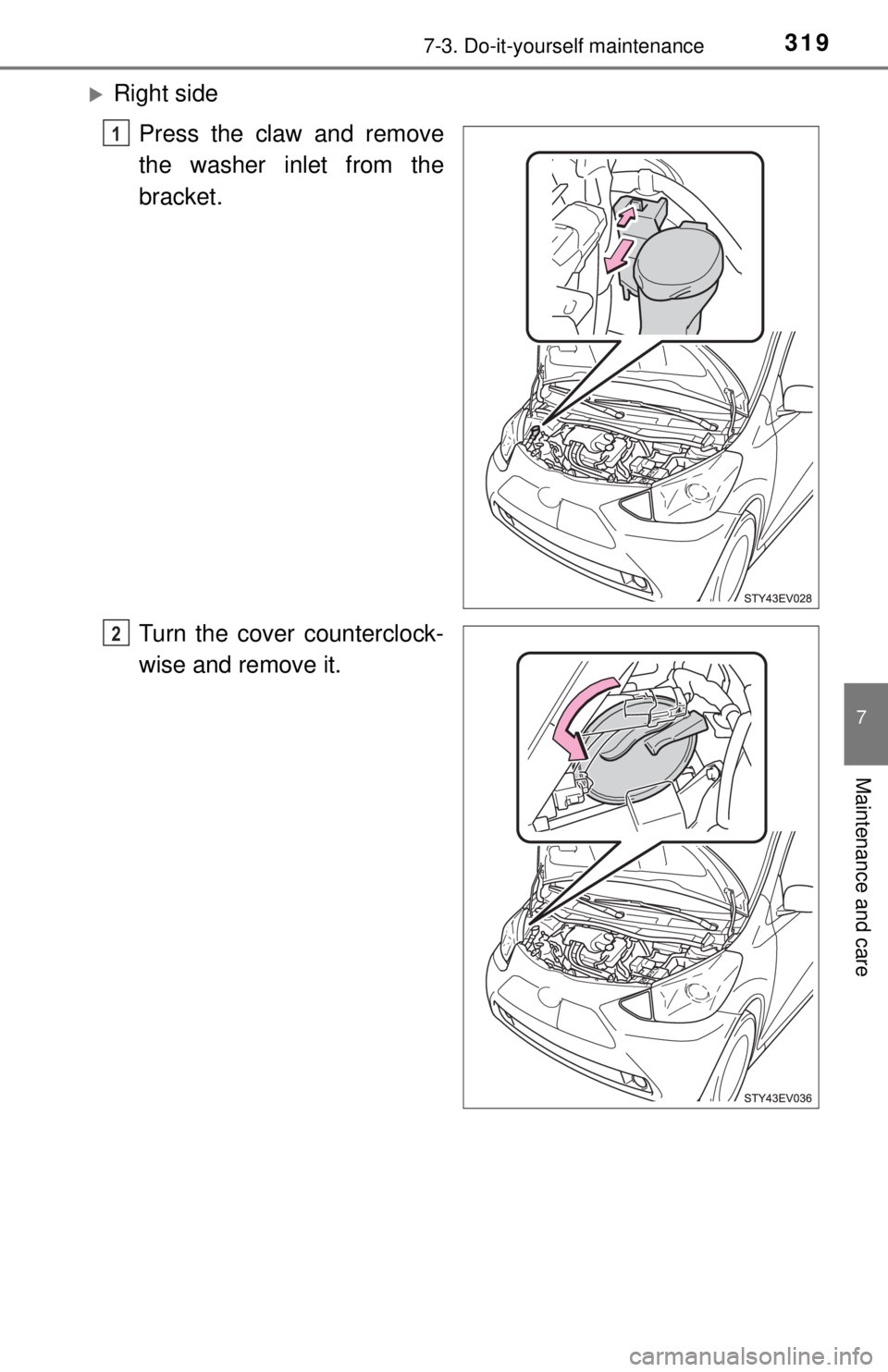

Right sidePress the claw and remove
the washer inlet from the
bracket.
Turn the cover counterclock-
wise and remove it.
1
2

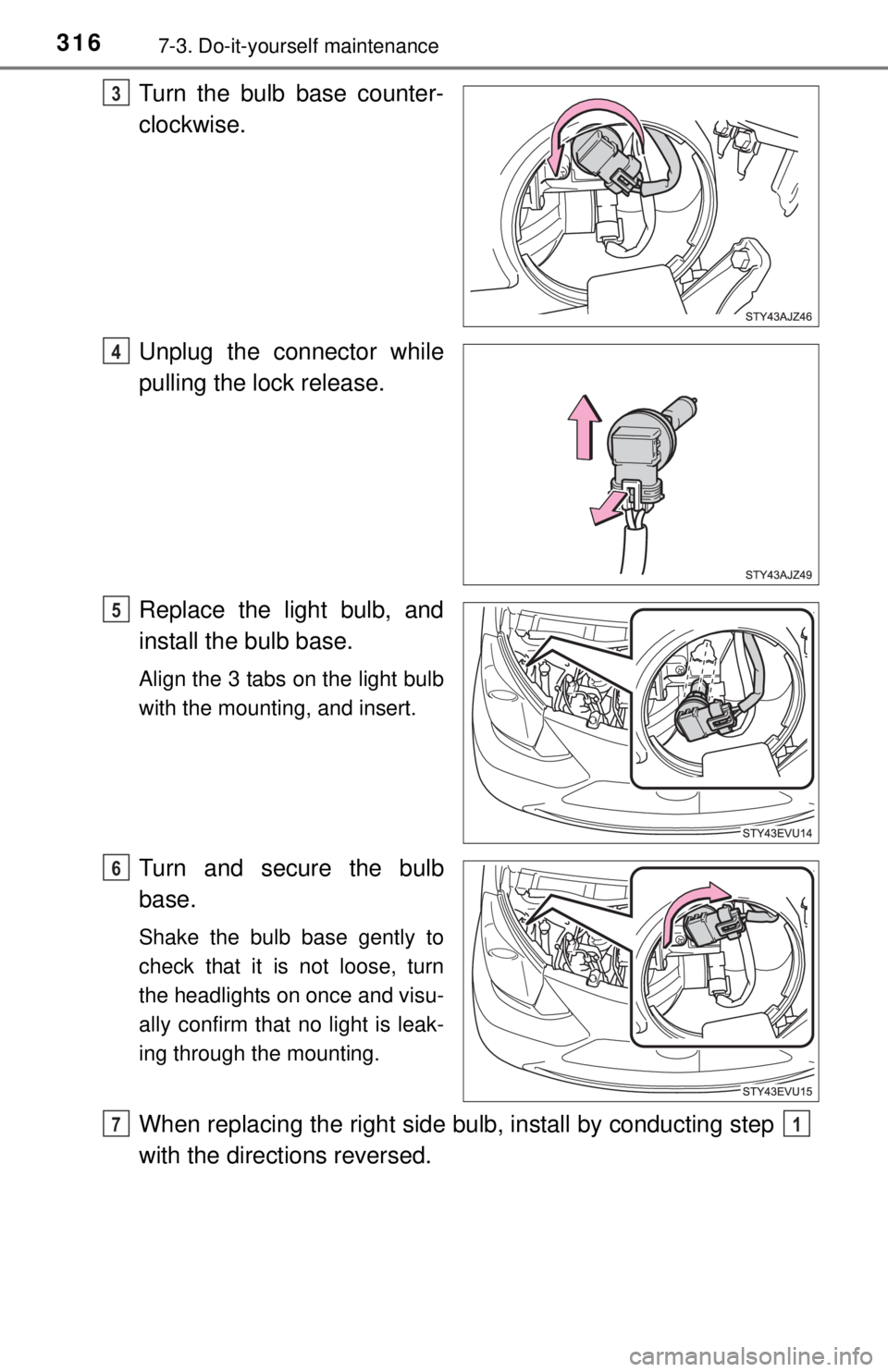

3167-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When replacing the right side bulb, install by conducting step
with the directions reversed.
3
4
5
6
71

3177-3. Do-it-yourself maintenance
7
Maintenance and care

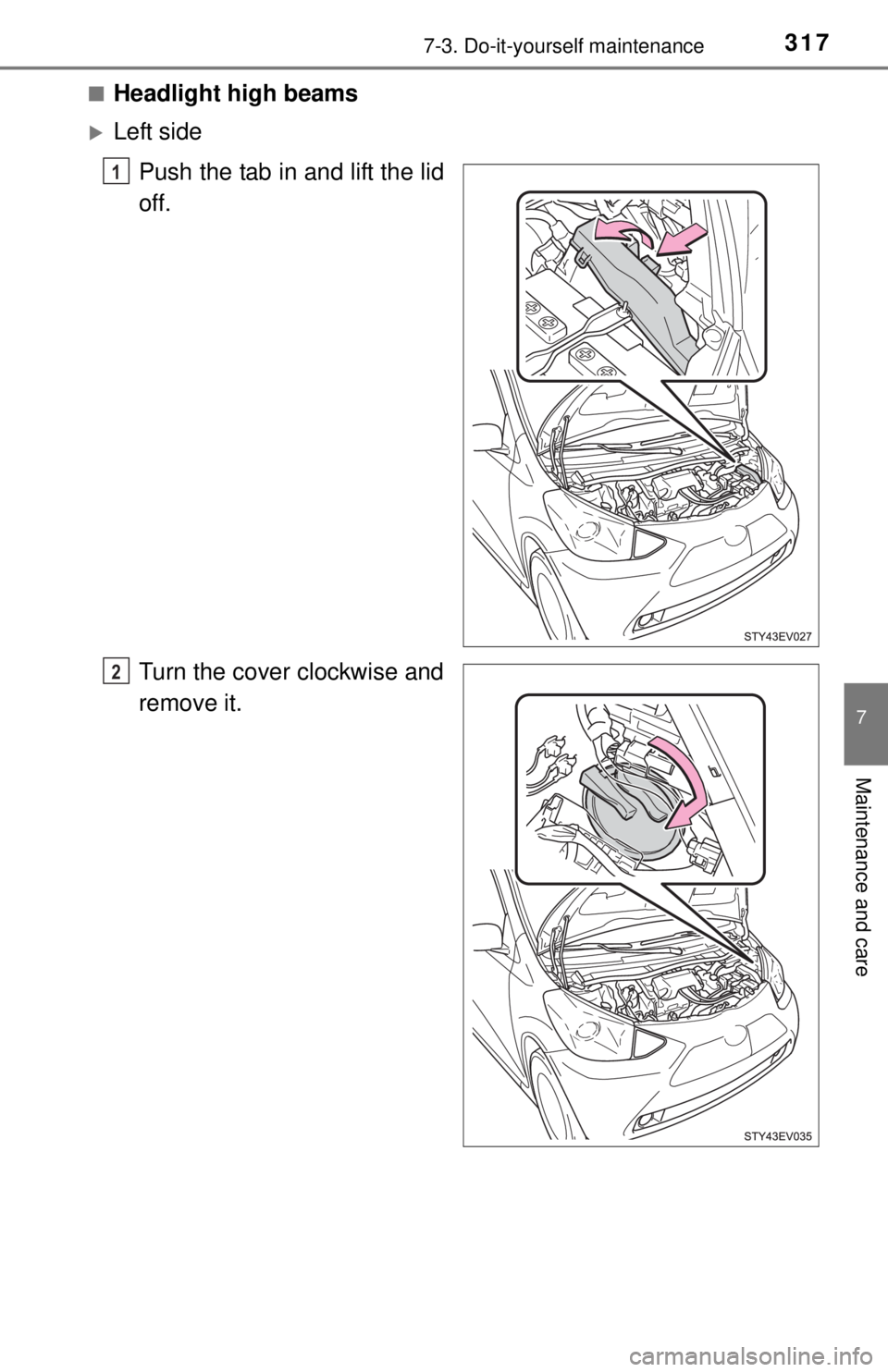

■Headlight high beams
Left sidePush the tab in and lift the lid
off.
Turn the cover clockwise and
remove it.
1
2

3187-3. Do-it-yourself maintenance

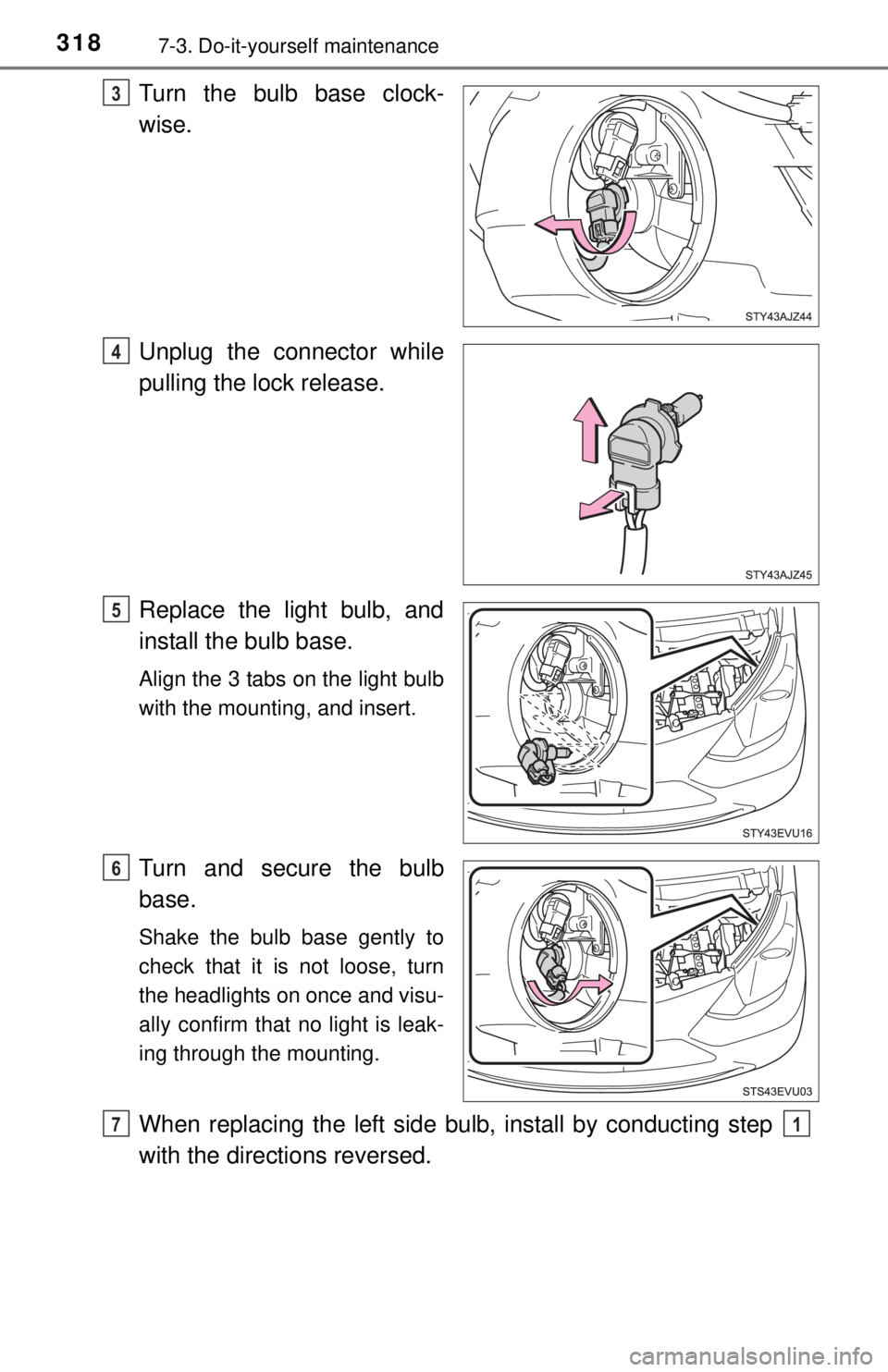

Turn the bulb base clock-
wise.
Unplug the connector while
pulling the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When replacing the left side bulb, install by conducting step
with the directions reversed.
3
4
5
6
71

3197-3. Do-it-yourself maintenance
7
Maintenance and care
Right sidePress the claw and remove
the washer inlet from the
bracket.
Turn the cover counterclock-
wise and remove it.
1
2

3207-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Unplug the connector while
pulling the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When replacing the right side bulb, install by conducting step
with the directions reversed.
3
4
5
6
171
