TOYOTA iQ EV 2013 Owners Manual (in English)

2717-3. Do-it-yourself maintenance
7
Maintenance and care
Chock* the tires.
*: Chock can be purchased atyour Scion dealer.
Remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
*: Wheel nut wrench can be pur-chased at your Scion dealer.
Slightly loosen the wheel nuts
(one turn).

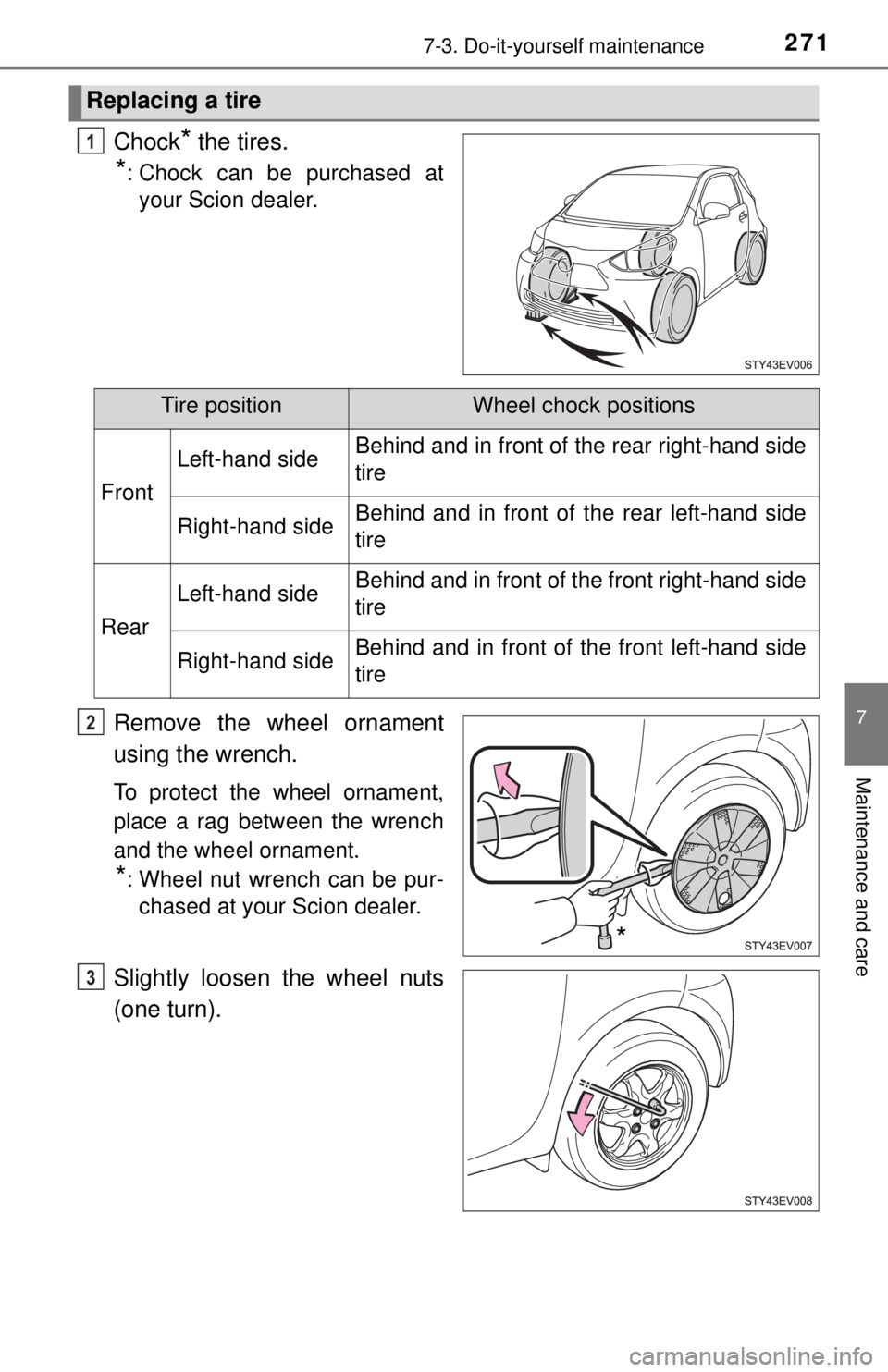

Replacing a tire
1
Tire positionWheel chock positions
Front
Left-hand sideBehind and in front of the rear right-hand side
tire
Right-hand sideBehind and in front of the rear left-hand side
tire
Rear
Left-hand sideBehind and in front of the front right-hand side
tire
Right-hand sideBehind and in front of the front left-hand side
tire
*
2
3

2727-3. Do-it-yourself maintenance

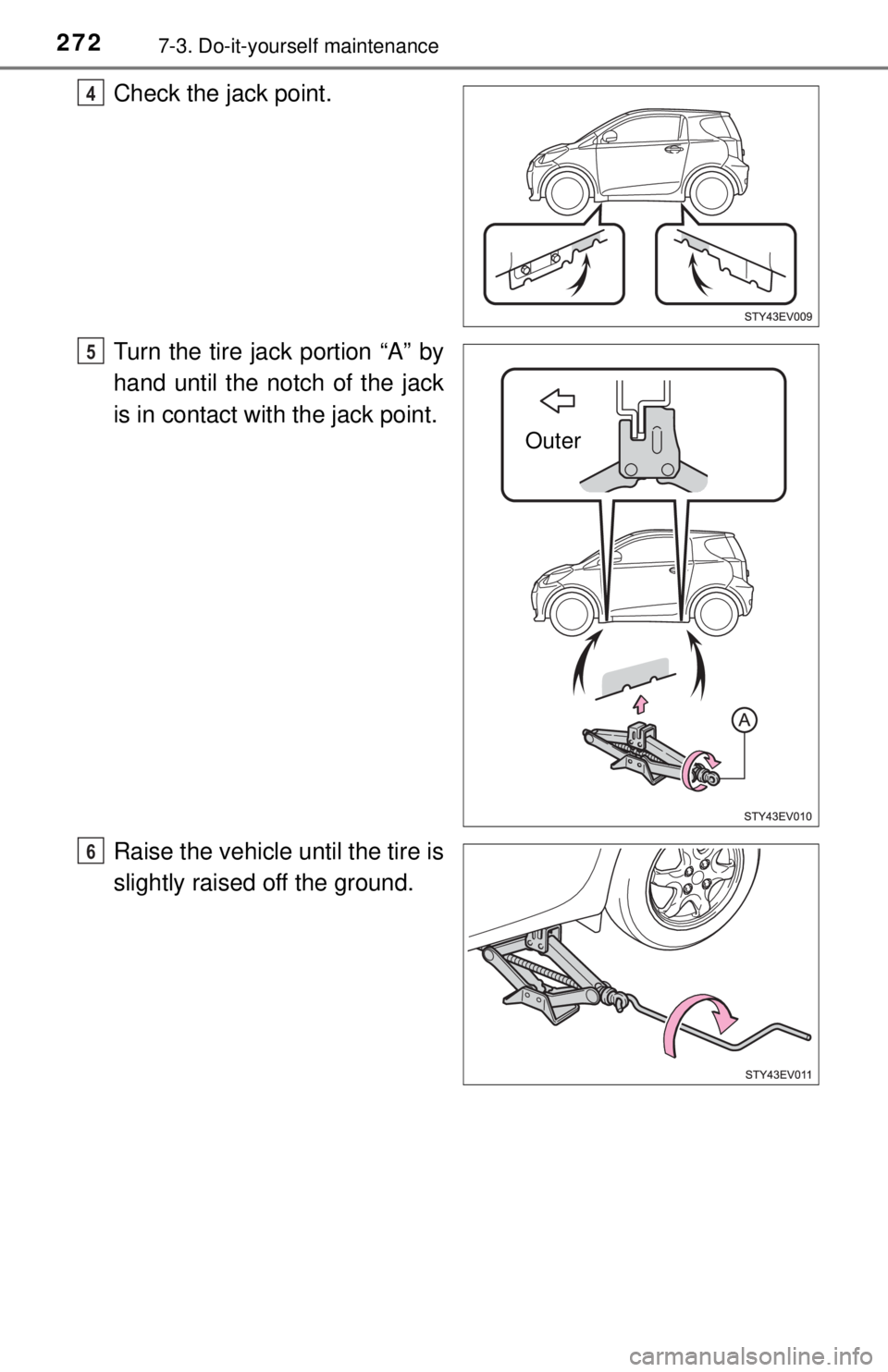

Check the jack point.
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.4
Outer
5
6

2737-3. Do-it-yourself maintenance
7
Maintenance and care

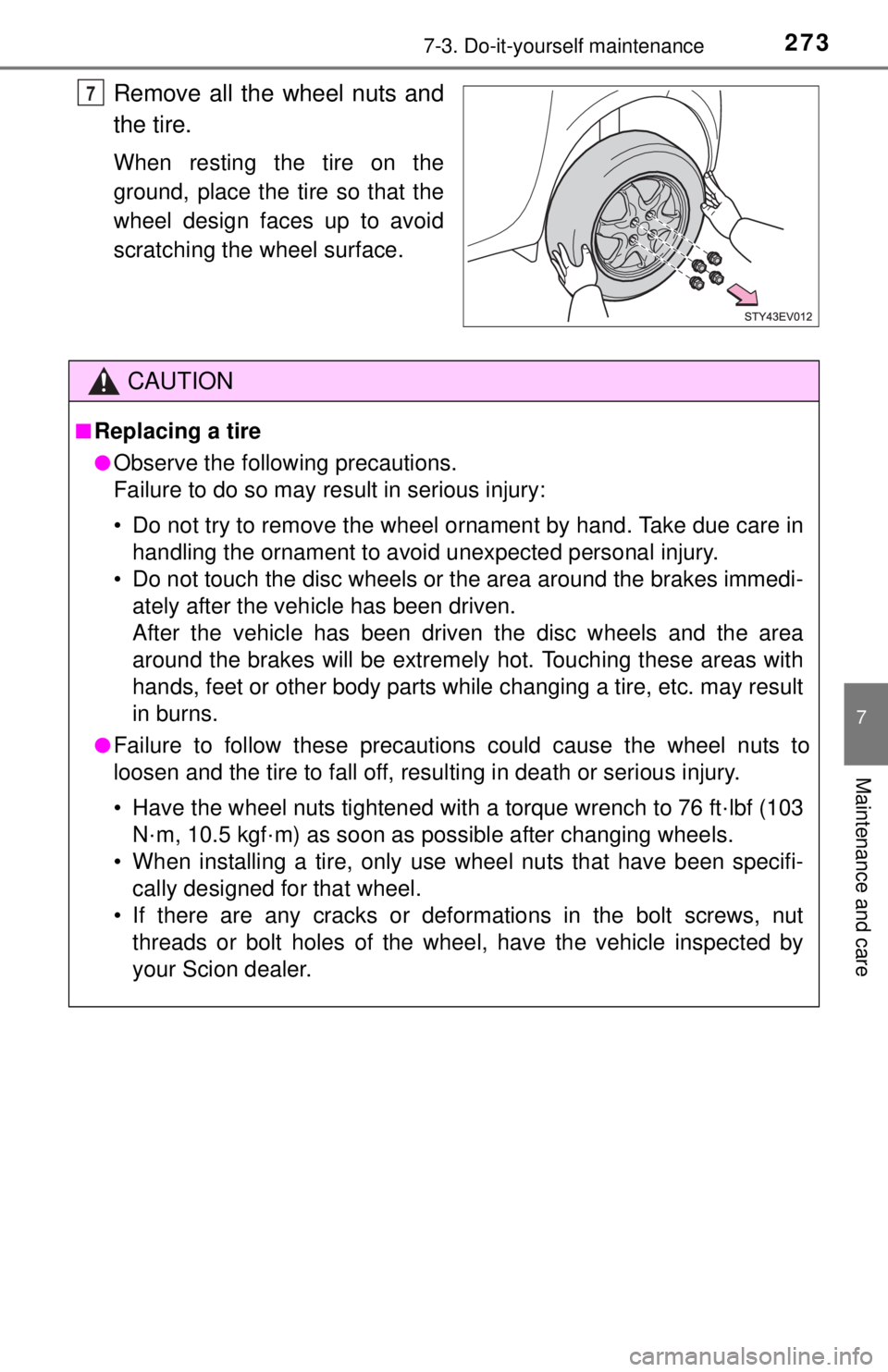

Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
7
CAUTION
■Replacing a tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoi d unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immedi- ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extremely hot. Touching these areas with
hands, feet or other body parts wh ile changing a tire, etc. may result
in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft·lbf (103 N·m, 10.5 kgf·m) as soon as possible after changing wheels.
• When installing a tire, only use wh eel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Scion dealer.

2747-3. Do-it-yourself maintenance
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Turn the wheel nuts until the
washers come into contact with
the disc wheel.
CAUTION
■When installing the wheel nuts
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.
Installing the tire

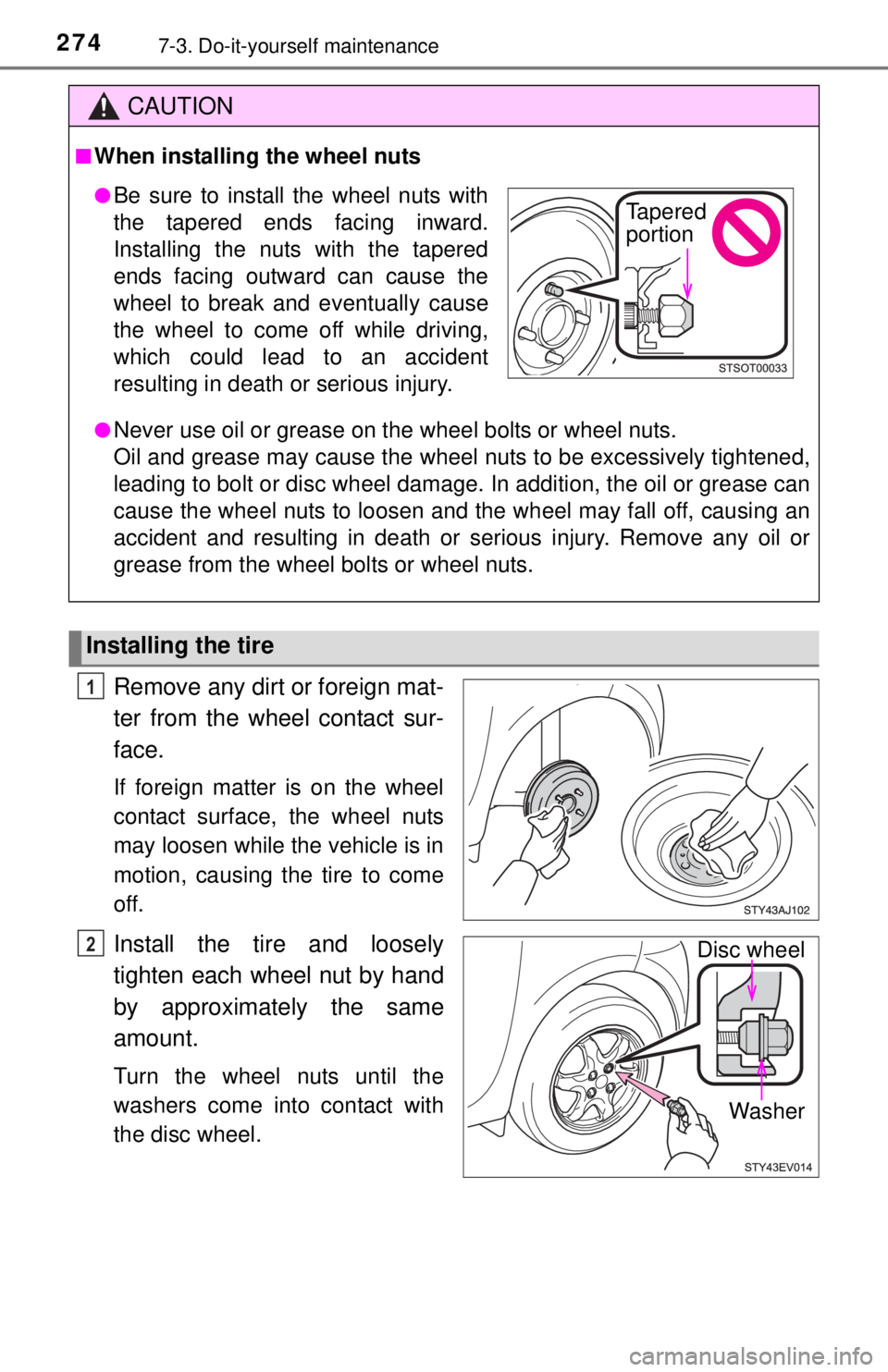

●Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.Tapered
portion
1
Disc wheel
Washer2

2757-3. Do-it-yourself maintenance
7
Maintenance and care

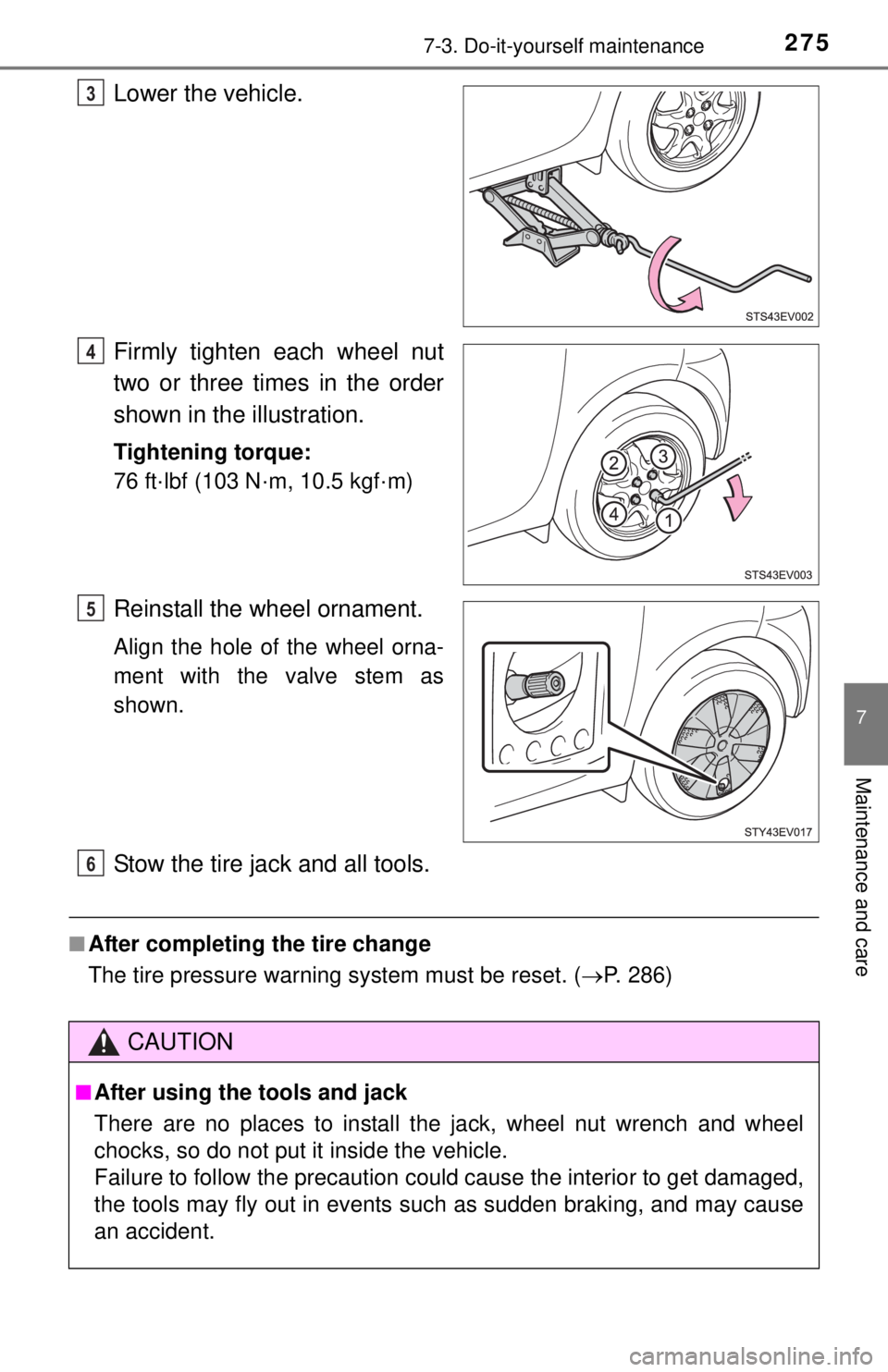

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft·lbf (103 N·m, 10.5 kgf·m)
Reinstall the wheel ornament.
Align the hole of the wheel orna-
ment with the valve stem as
shown.
Stow the tire jack and all tools.
■After completing the tire change
The tire pressure warning system must be reset. ( P. 286)
3
4
5
CAUTION
■After using the tools and jack
There are no places to install the jack, wheel nut wrench and wheel
chocks, so do not put it inside the vehicle.
Failure to follow the precaution could cause the interior to get damaged,
the tools may fly out in events such as sudden braking, and may cause
an accident.
6

2767-3. Do-it-yourself maintenance
NOTICE
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Scion dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Scion dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. ( P. 286)

2777-3. Do-it-yourself maintenance
7
Maintenance and care

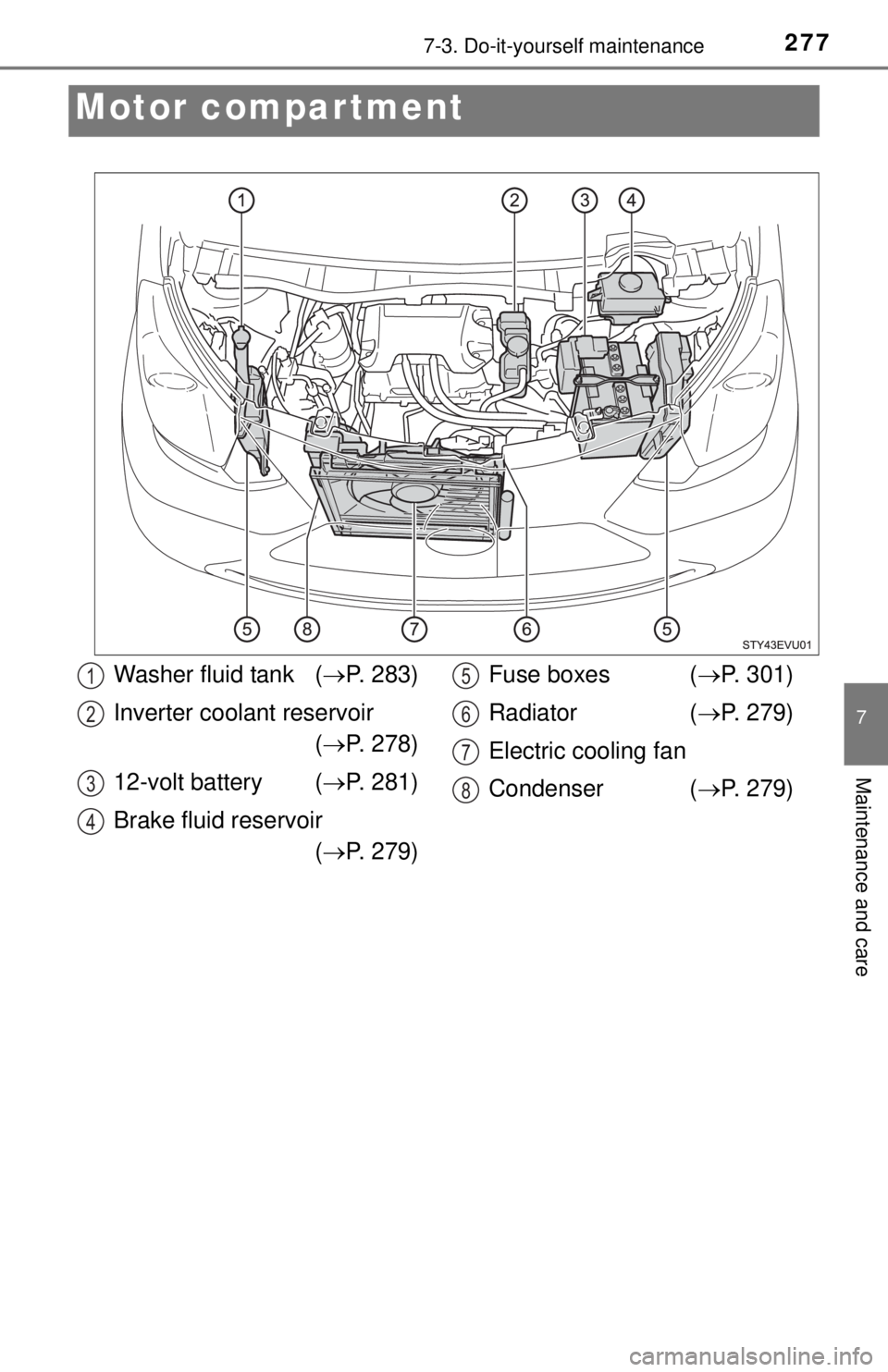

Motor compar tment
Washer fluid tank (P. 283)
Inverter coolant reservoir ( P. 278)
12-volt battery ( P. 281)
Brake fluid reservoir ( P. 279) Fuse boxes (
P. 301)
Radiator ( P. 279)
Electric cooling fan
Condenser ( P. 279)1
2
3
4
5
6
7
8

2787-3. Do-it-yourself maintenance

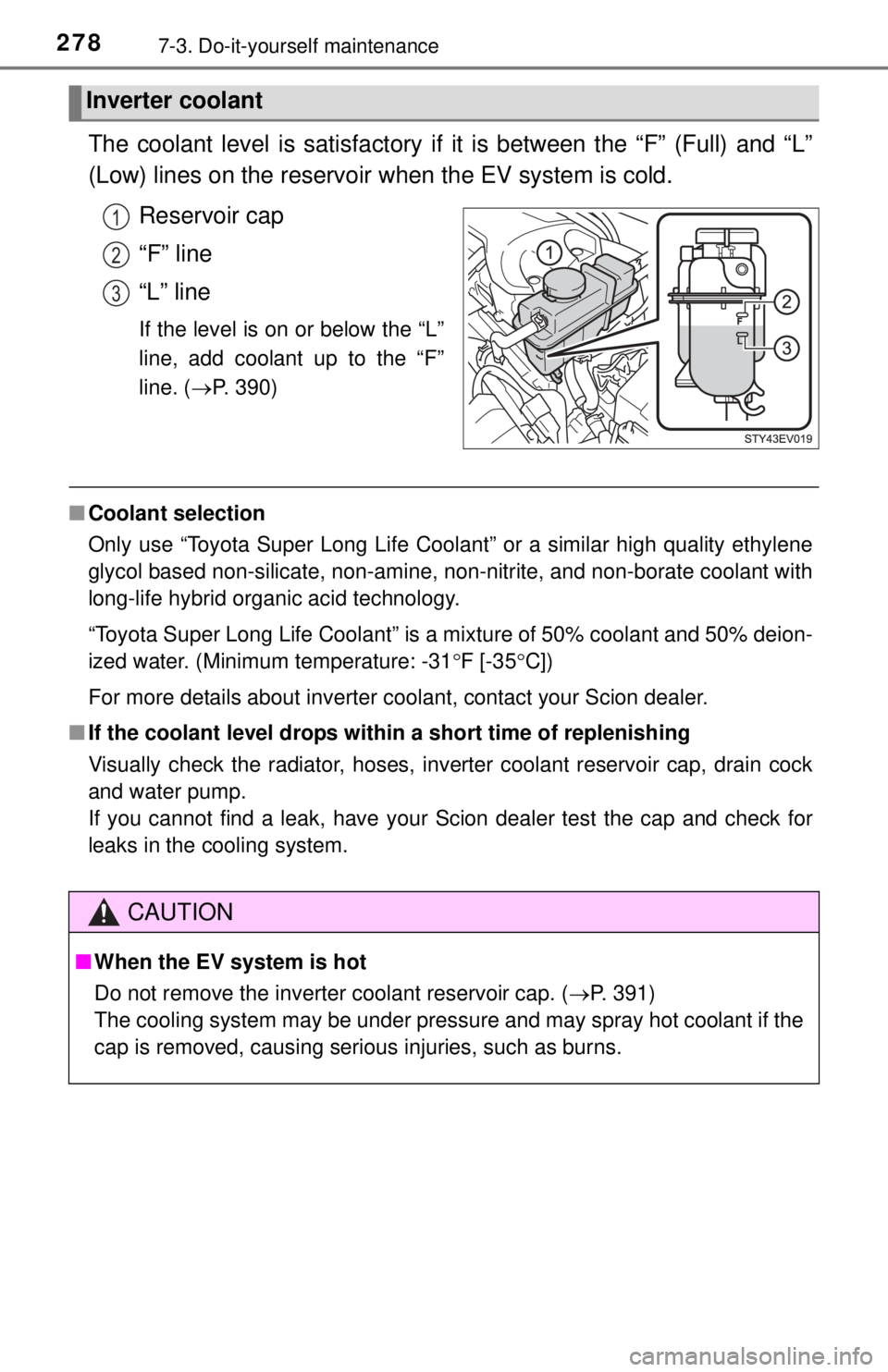

The coolant level is satisfactory if it is between the “F” (Full) and “L”
(Low) lines on the reservoir when the EV system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line. ( P. 390)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31 F [-35 C])
For more details about inverter coolant, contact your Scion dealer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, inverter coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have your Scion dealer test the cap and check for
leaks in the cooling system.
Inverter coolant
1
2
3
CAUTION
■When the EV system is hot
Do not remove the inverter coolant reservoir cap. ( P. 391)
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

2797-3. Do-it-yourself maintenance
7
Maintenance and care

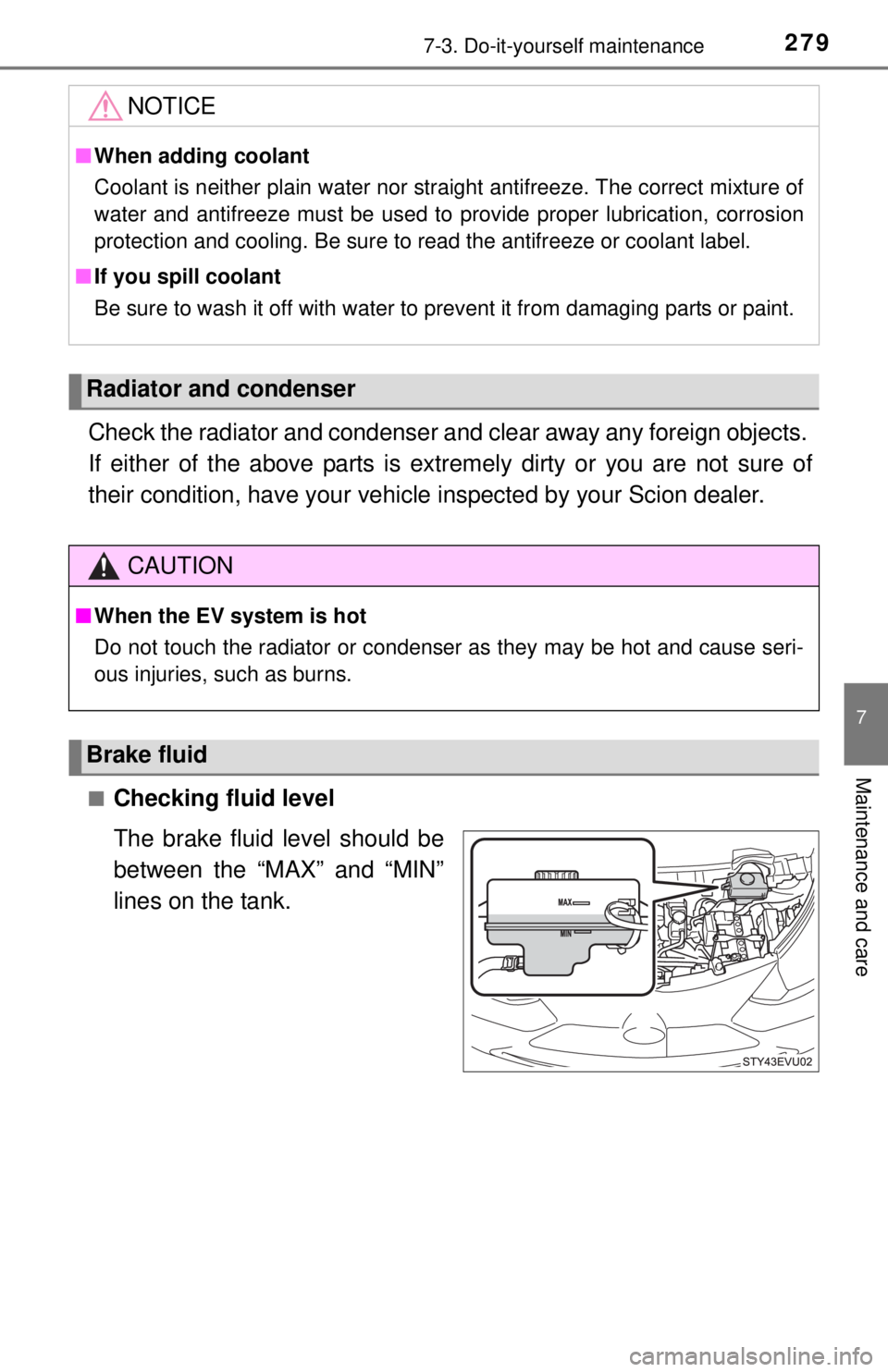

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is ex tremely dirty or you are not sure of
their condition, have yo ur vehicle inspected by your Scion dealer.
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
CAUTION
■When the EV system is hot
Do not touch the radiator or condenser as they may be hot and cause seri\
-
ous injuries, such as burns.
Brake fluid

2807-3. Do-it-yourself maintenance
■Adding fluid
Make sure to check the fluid type and prepare the necessary item.
Disconnect the claws to
remove the service cover as
shown in the illustration.
Remove the reservoir cap.
Add brake fluid slowly while checking the fluid level.
■ Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.
Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Items Clean funnel
1
2
CAUTION
■When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.
3
