3918-2. Steps to take in an emergency
8
When trouble arises
Add inverter coolant if nec-
essary. (P. 398)
Water can be used in an emer-
gency if inverter coolant is
unavailable.
Have the vehicle inspected at the nearest Scion dealer as soon as
possible.
■Overheating
If you observe the following, your vehicle may be overheating:
●“EV SYSTEM OVERHEAT” is shown on the multi-information display.
● EV system output decreases.
● Steam comes out from under the hood.
5
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The motor compartment will be very hot.
● Keep hands and clothing away from the fan, etc. while the EV system is
operating.
● Even if EV system has stopped, the cooling fan may begin to move sud-
denly. Do not touch or approach the rotating parts of the fan. Doing so may
lead to fingers, clothes or tools getting caught, resulting in injury.
●Do not loosen the coolant reservoir cap
while the EV system and radiator are
hot.
High temperature steam or coolant
could spray out.

3928-2. Steps to take in an emergency
NOTICE
■When adding inverter coolant
Add coolant slowly after the EV system has cooled down sufficiently. Adding
cool coolant to a hot EV system too quickly can cause damage to the EV
system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additives other than the Scion genuine or similar
coolant additives.

393
8
When trouble arises
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Set the parking brake, shift the shift lever to P and stop the EV sys-
tem.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some othe r material under the front wheels
to help provide traction.
Restart the EV system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
CAUTION
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the tran smission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
1
2
3
4
5

3948-2. Steps to take in an emergency

395
9Vehicle specifications
9-1. SpecificationsMaintenance data ............. 396
Tire information ................. 402
9-2. Customization Customizable features ...... 414
9-3. Items to initialize Items to initialize ............... 420

3969-1. Specifications
Maintenance data
*: Unladen vehicle
Dimensions and weights
Overall length122.6 in. (3115 mm)
Overall width66.1 in. (1680 mm)
Overall height*59.3 in. (1505 mm)
Wheelbase78.7 in. (2000 mm)
TreadFront58.1 in. (1475 mm)
Rear57.5 in. (1460 mm)
Vehicle capacity weight
(Occupants + luggage)665 lb. (300 kg)

3979-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Scion. It is used in registerin g the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is stamped under
the front passenger’s seat.
This number is also on the Cer-
tification Label on the driver’s
side center pillar.
Vehicle identification

3989-1. Specifications
*: The capacity is a reference quantity. If replacement is necessary, contact your Scion dealer.

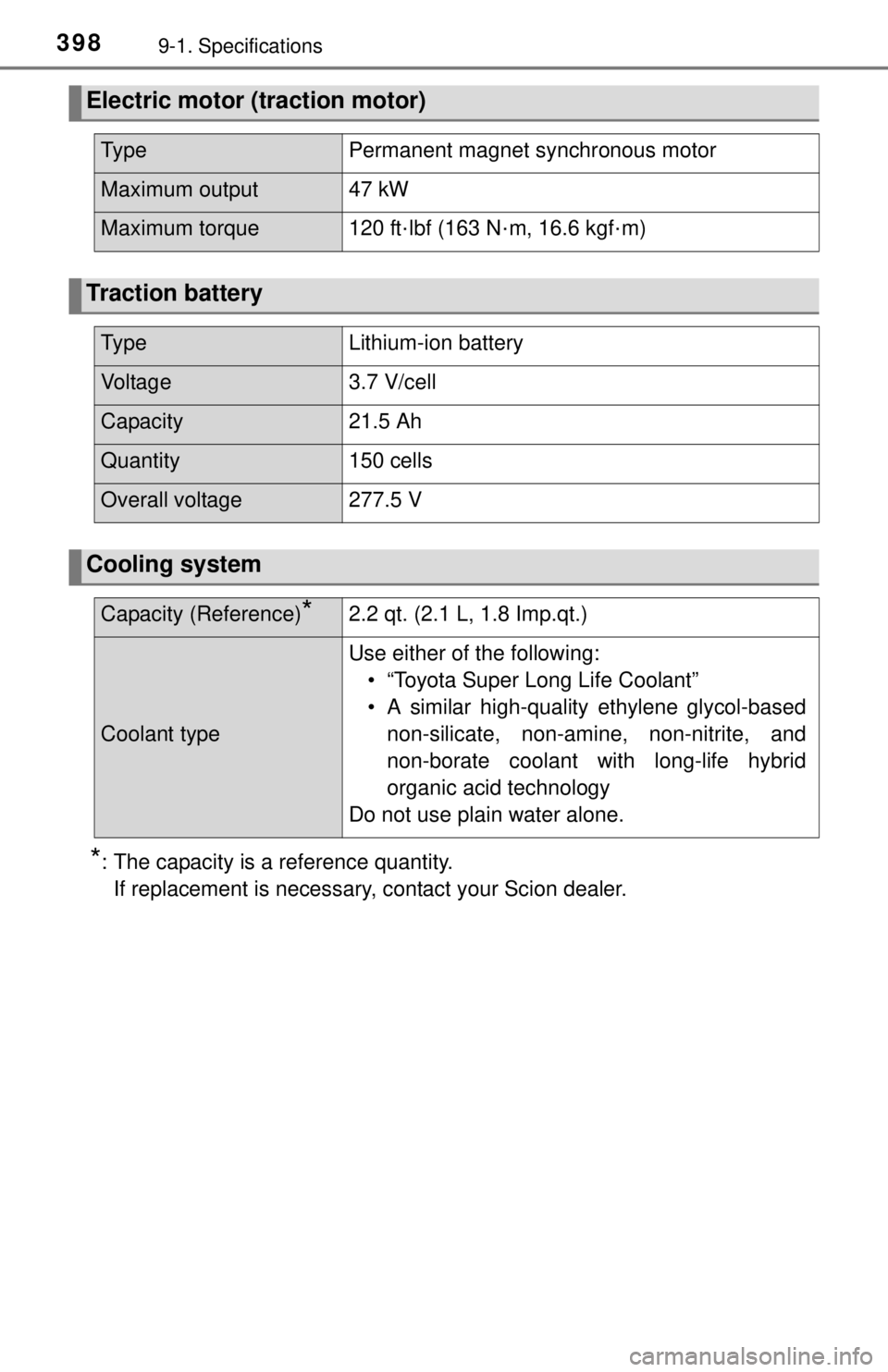

Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output47 kW
Maximum torque120 ft·lbf (163 N·m, 16.6 kgf·m)
Traction battery
Ty p eLithium-ion battery
Voltage3.7 V/cell
Capacity21.5 Ah
Quantity150 cells
Overall voltage277.5 V
Cooling system
Capacity (Reference)*2.2 qt. (2.1 L, 1.8 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

3999-1. Specifications
9
Vehicle specifications
*: The capacity is a reference quantity. If replacement is necessary, contact your Scion dealer.
*1: Minimum pedal clearance when depressed with a force of 66 lbf (300 N,30 kgf) while the EV system is operating.
*2: Parking brake lever travel when pulled up with a force of 44 lbf (200 N,20 kgf).

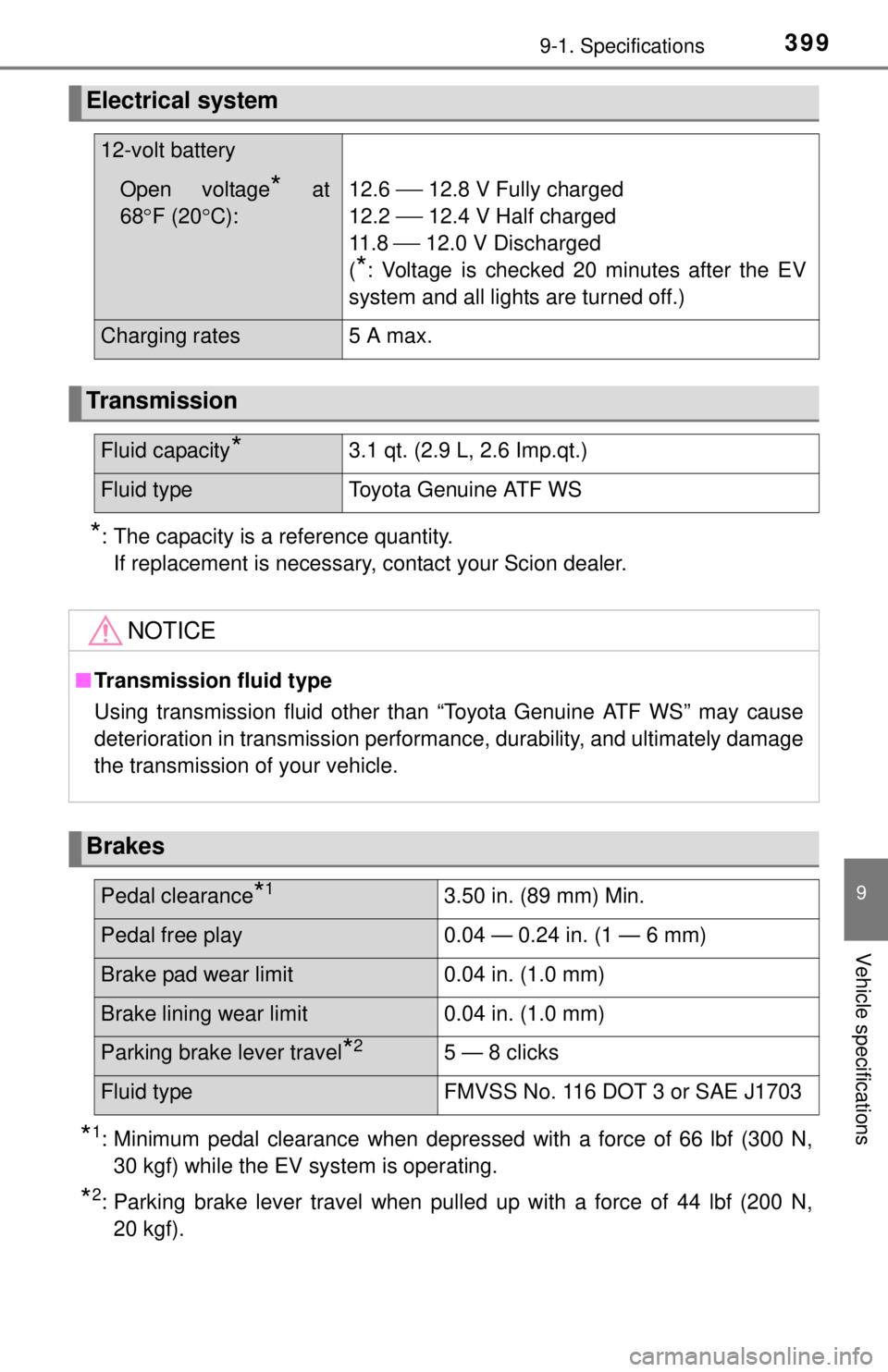

Electrical system
12-volt battery
Open voltage* at
68 F (20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(
*: Voltage is checked 20 minutes after the EV
system and all lights are turned off.)
Charging rates5 A max.
Transmission
Fluid capacity*3.1 qt. (2.9 L, 2.6 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in transmission performance, durability, and ultimately damage
the transmission of your vehicle.
Brakes
Pedal clearance*13.50 in. (89 mm) Min.
Pedal free play0.04 — 0.24 in. (1 — 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*25 — 8 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

4009-1. Specifications

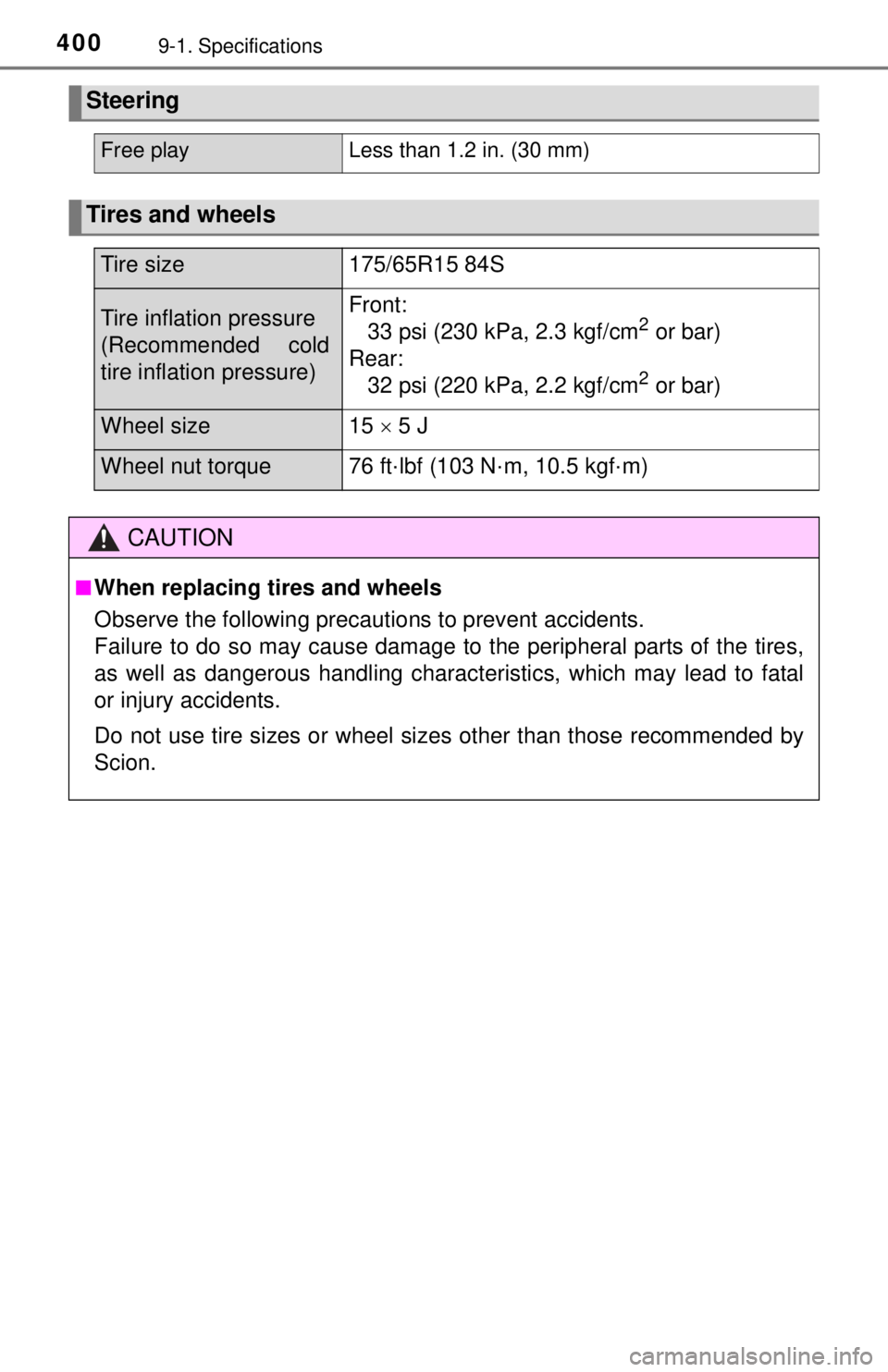

Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size175/65R15 84S
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front:33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Wheel size15  5 J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
CAUTION
■When replacing tires and wheels
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to the peripheral parts of the tires,
as well as dangerous handling characte ristics, which may lead to fatal
or injury accidents.
Do not use tire sizes or wheel sizes other than those recommended by
Scion.
