TOYOTA iQ EV 2013 Owners Manual (in English)

4119-1. Specifications
9
Vehicle specifications

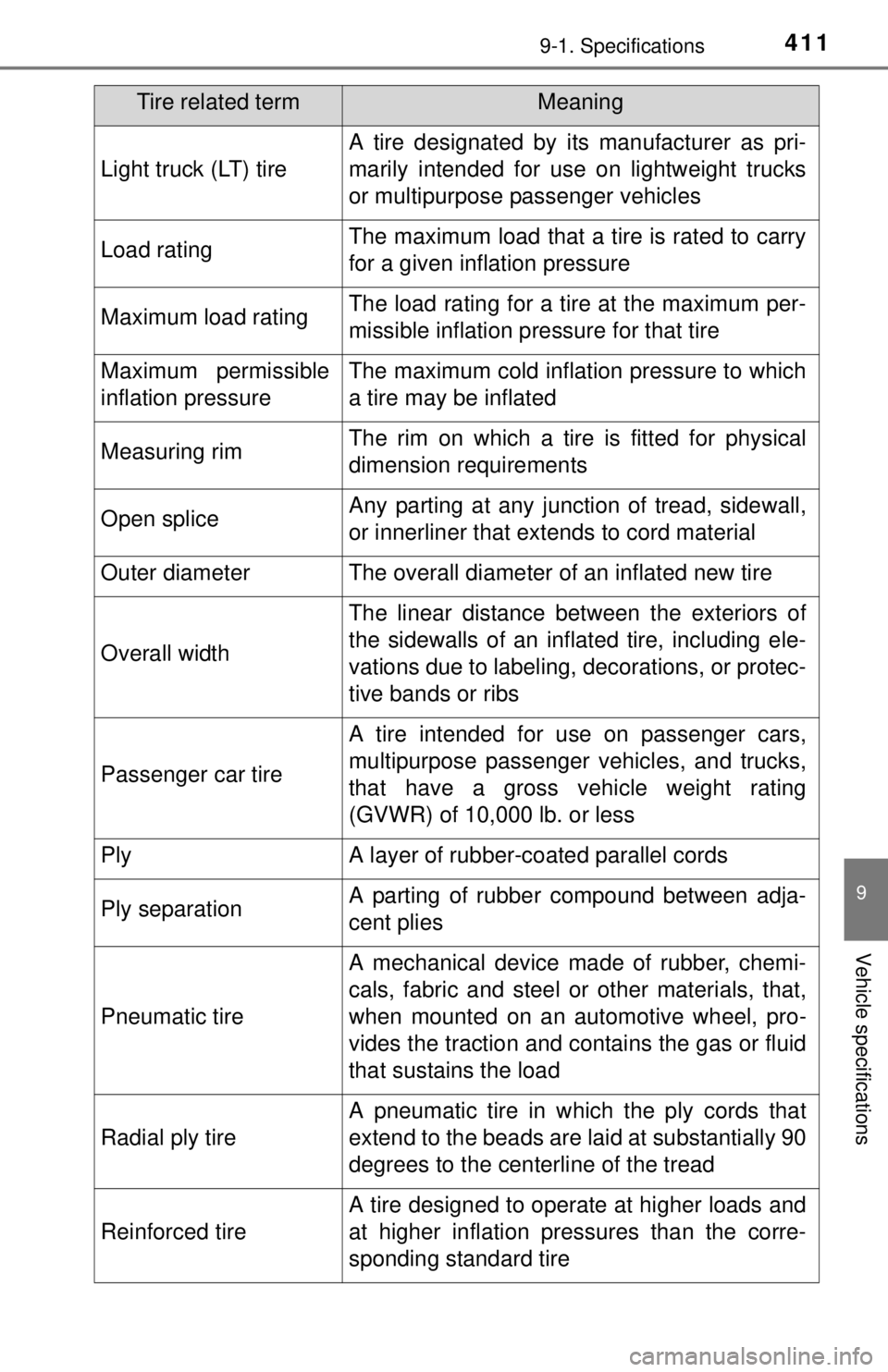

Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

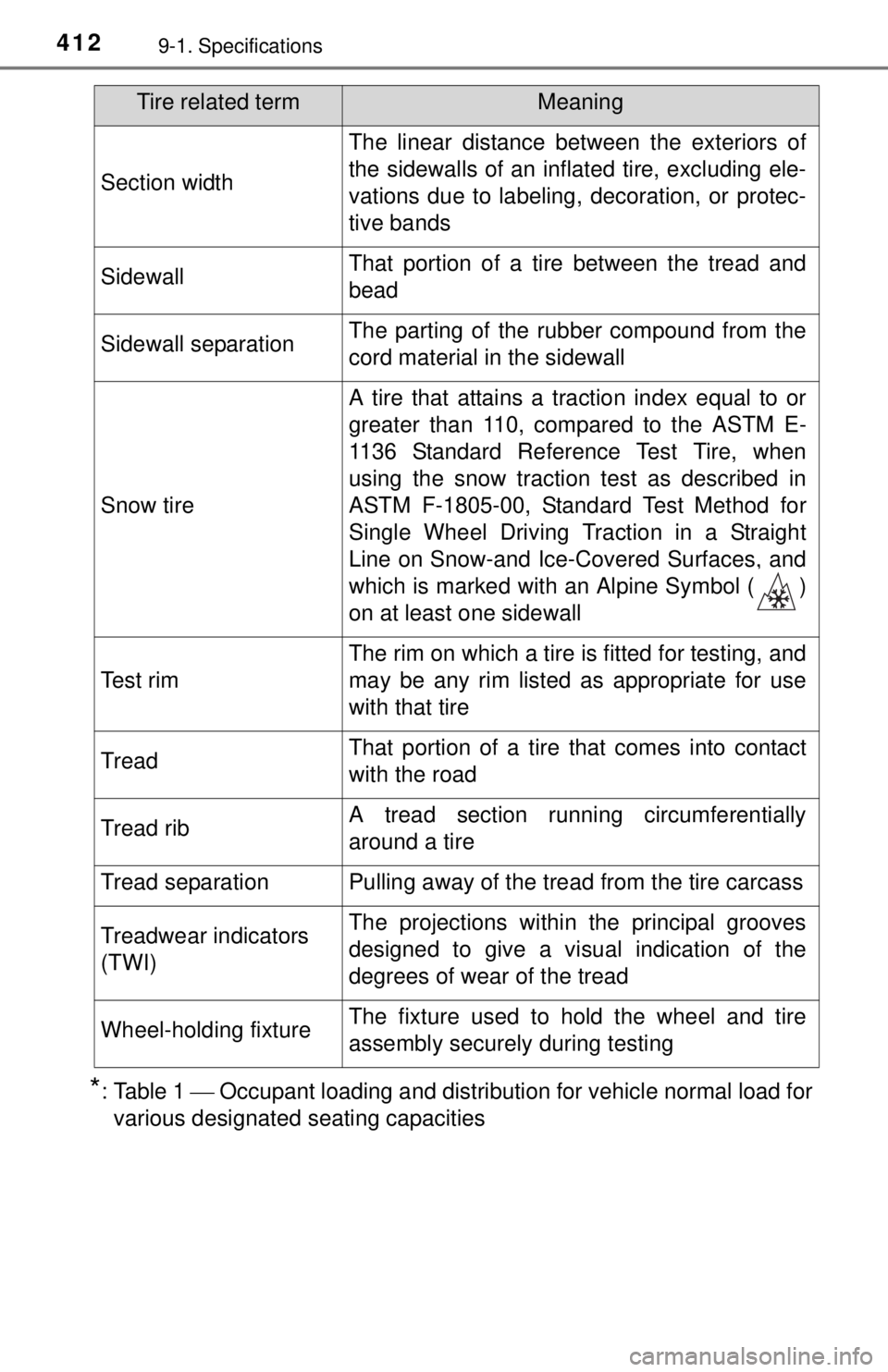

Tire related termMeaning

4129-1. Specifications
*: Table 1  Occupant loading and distribution for vehicle normal load forvarious designated seating capacities
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning

4139-1. Specifications
9
Vehicle specifications

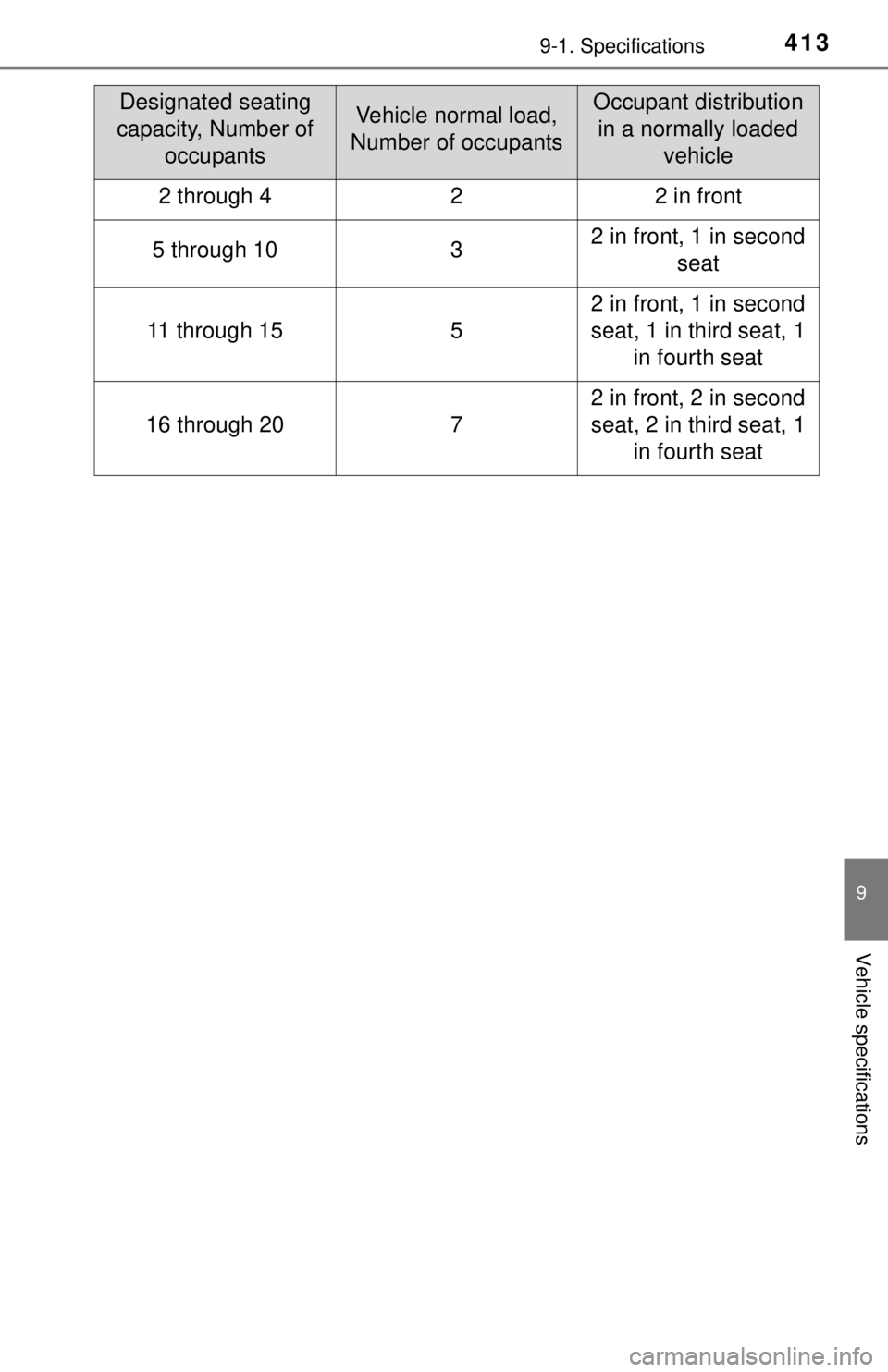

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

4149-2. Customization

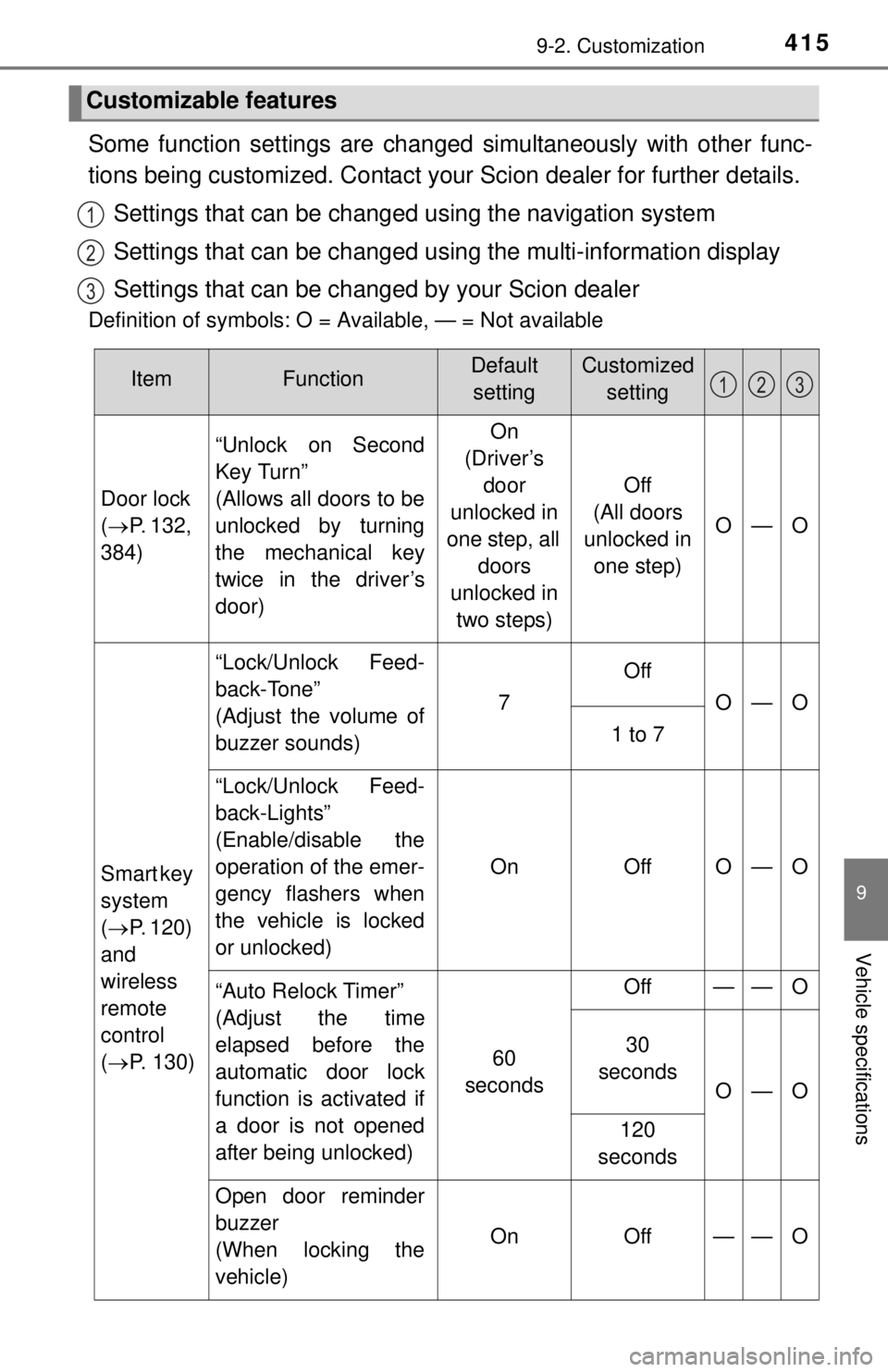

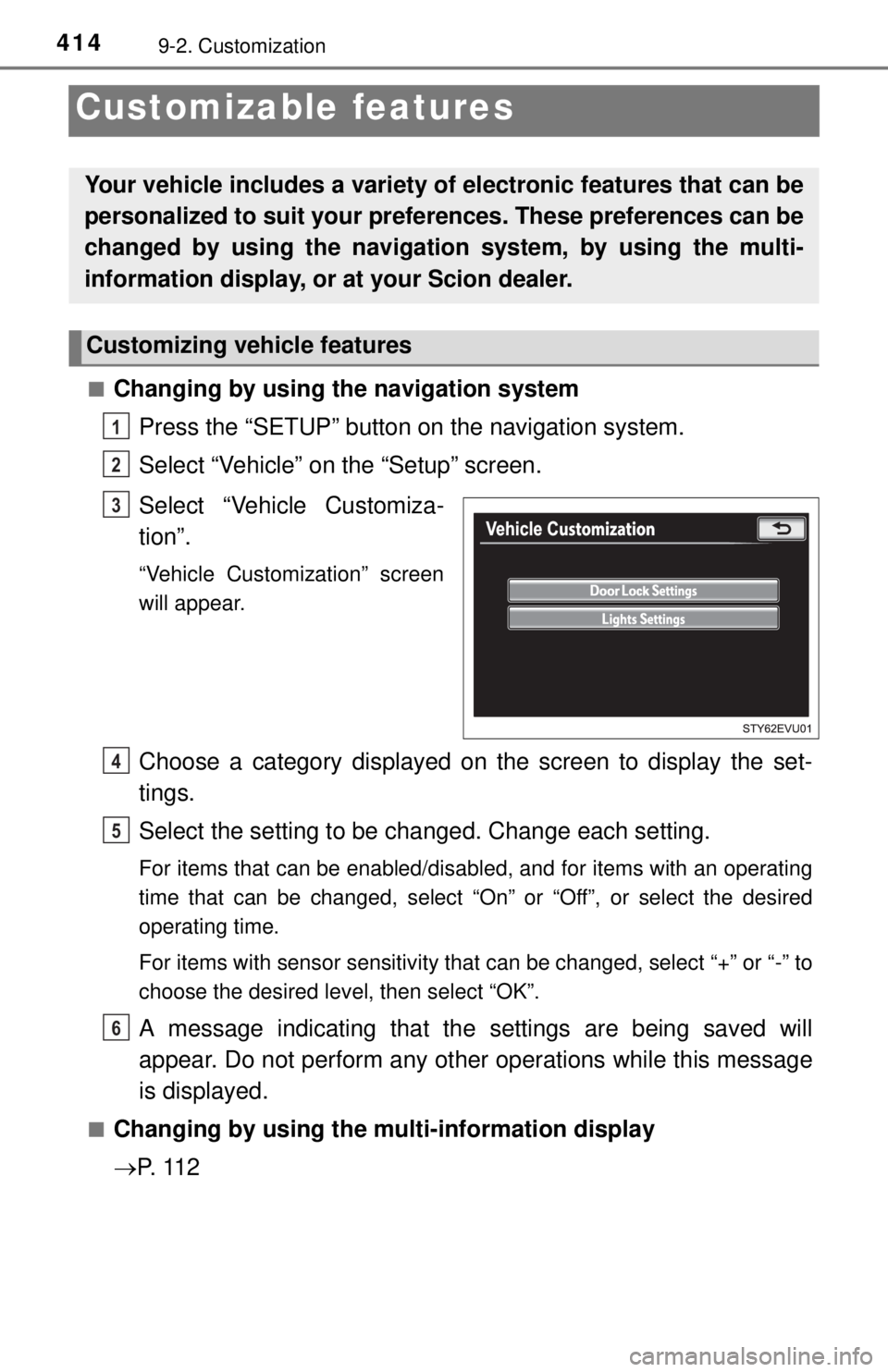

Customizable features
■Changing by using the navigation systemPress the “SETUP” button on the navigation system.
Select “Vehicle” on the “Setup” screen.
Select “Vehicle Customiza-
tion”.
“Vehicle Customization” screen
will appear.
Choose a category displayed on the screen to display the set-
tings.
Select the setting to be changed. Change each setting.
For items that can be enabled/disabled, and for items with an operating
time that can be changed, select “On” or “Off”, or select the desired
operating time.
For items with sensor sensitivity that can be changed, select “+” or “-” to
choose the desired level, then select “OK”.
A message indicating that the settings are being saved will
appear. Do not perform any other operations while this message
is displayed.
■Changing by using the mu lti-information display
 P. 1 1 2
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. These preferences can be
changed by using the navigati on system, by using the multi-
information display, or at your Scion dealer.
Customizing vehicle features
1
2
3
4
5
6

4159-2. Customization
9
Vehicle specifications
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Scion dealer for further details.
Settings that can be changed using the navigation system
Settings that can be changed using the multi-information display
Settings that can be changed by your Scion dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
ItemFunctionDefault settingCustomized setting
Door lock
( P. 132,
384)
“Unlock on Second
Key Turn”
(Allows all doors to be
unlocked by turning
the mechanical key
twice in the driver’s
door)On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Smart key
system
( P. 120)
and
wireless
remote
control
(  P. 130)
“Lock/Unlock Feed-
back-Tone”
(Adjust the volume of
buzzer sounds)
7
Off
O—O
1 to 7
“Lock/Unlock Feed-
back-Lights”
(Enable/disable the
operation of the emer-
gency flashers when
the vehicle is locked
or unlocked)
OnOffO—O
“Auto Relock Timer”
(Adjust the time
elapsed before the
automatic door lock
function is activated if
a door is not opened
after being unlocked)
60
seconds
Off——O
30
seconds
O—O
120
seconds
Open door reminder
buzzer
(When locking the
vehicle)
OnOff——O
123

4169-2. Customization

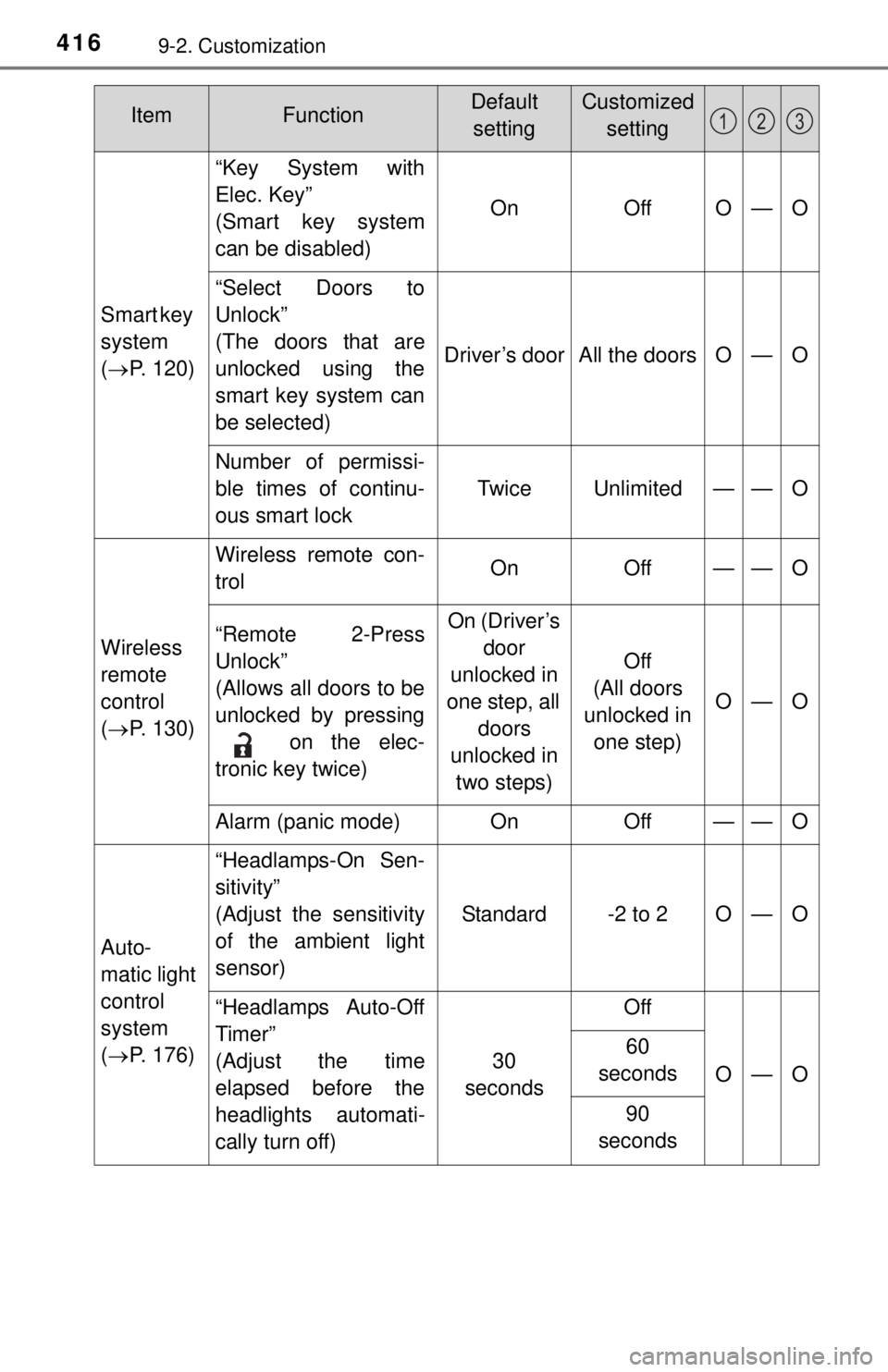

Smart key
system
( P. 120)
“Key System with
Elec. Key”
(Smart key system
can be disabled)
OnOffO—O
“Select Doors to
Unlock”
(The doors that are
unlocked using the
smart key system can
be selected)
Driver’s doorAll the doorsO—O
Number of permissi-
ble times of continu-
ous smart lock
TwiceUnlimited——O
Wireless
remote
control
( P. 130)
Wireless remote con-
trolOnOff——O
“Remote 2-Press
Unlock”
(Allows all doors to be
unlocked by pressing
on the elec-
tronic key twice)On (Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Alarm (panic mode)OnOff——O
Auto-
matic light
control
system
( P. 176)
“Headlamps-On Sen-
sitivity”
(Adjust the sensitivity
of the ambient light
sensor)
Standard-2 to 2O—O
“Headlamps Auto-Off
Timer”
(Adjust the time
elapsed before the
headlights automati-
cally turn off)
30
seconds
Off
O—O
60
seconds
90
seconds
ItemFunctionDefault settingCustomized setting123

4179-2. Customization
9
Vehicle specifications

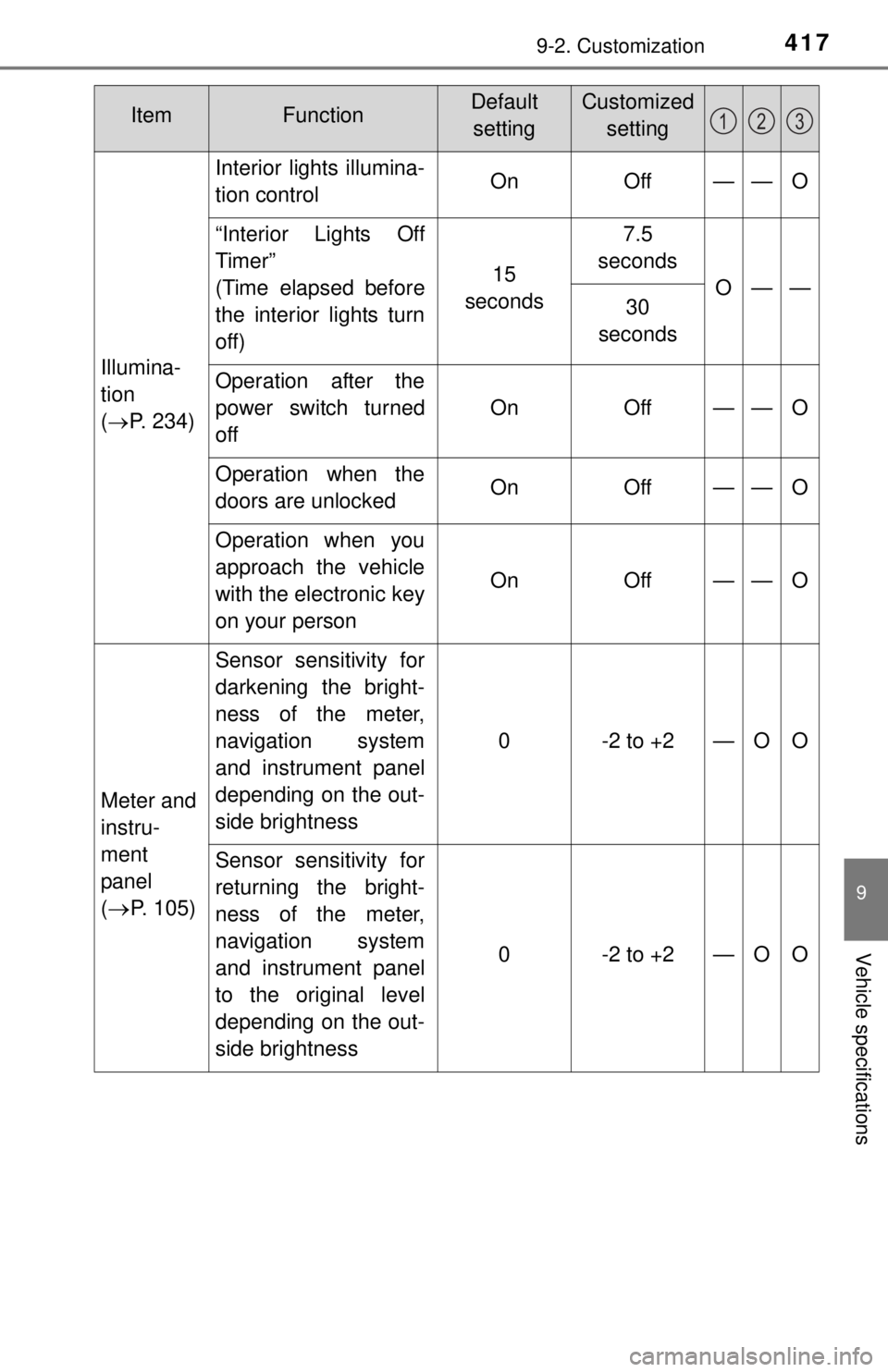

Illumina-
tion
( P. 234)
Interior lights illumina-
tion controlOnOff——O
“Interior Lights Off
Timer”
(Time elapsed before
the interior lights turn
off)
15
seconds
7.5
seconds
O——30
seconds
Operation after the
power switch turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Meter and
instru-
ment
panel
(
P. 105)
Sensor sensitivity for
darkening the bright-
ness of the meter,
navigation system
and instrument panel
depending on the out-
side brightness
0-2 to +2—OO
Sensor sensitivity for
returning the bright-
ness of the meter,
navigation system
and instrument panel
to the original level
depending on the out-
side brightness
0-2 to +2—OO
ItemFunctionDefault settingCustomized setting123

4189-2. Customization

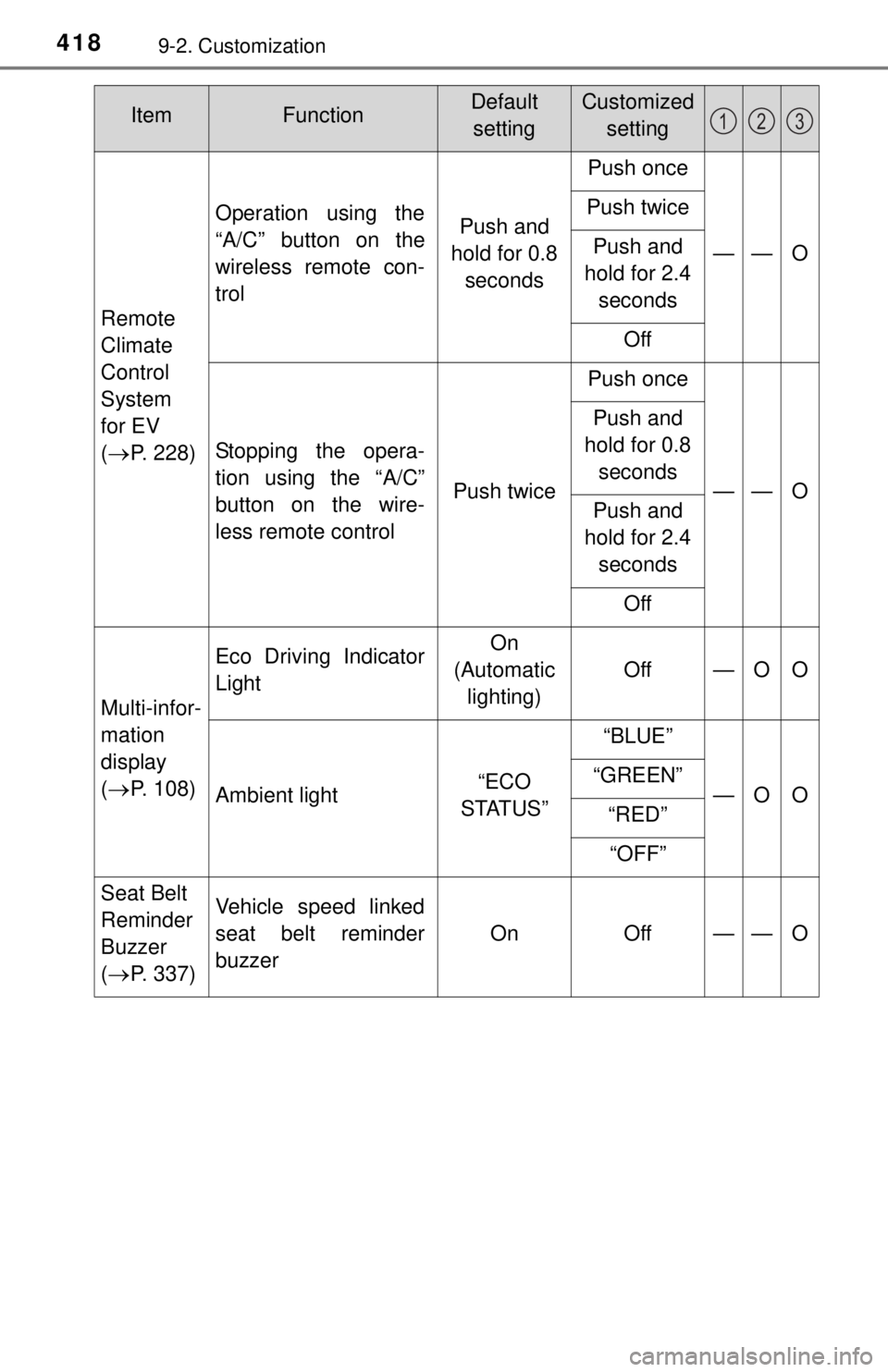

Remote
Climate
Control
System
for EV
(
P. 228)
Operation using the
“A/C” button on the
wireless remote con-
trolPush and
hold for 0.8 seconds
Push once
——O
Push twice
Push and
hold for 2.4 seconds
Off
Stopping the opera-
tion using the “A/C”
button on the wire-
less remote control
Push twice
Push once
——O
Push and
hold for 0.8 seconds
Push and
hold for 2.4 seconds
Off
Multi-infor-
mation
display
(
P. 108)
Eco Driving Indicator
LightOn
(Automatic lighting)
Off—OO
Ambient light“ECO
STATUS”
“BLUE”
—OO“GREEN”
“RED”
“OFF”
Seat Belt
Reminder
Buzzer
(
P. 337)
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
ItemFunctionDefault settingCustomized setting123

4199-2. Customization
9
Vehicle specifications
■Vehicle customization
●When the smart key system is off, the “Select Doors to Unlock” cannot be
customized.
● When the doors remain closed after unlocking the doors and the “Auto
Relock Timer” activates, the signals will be generated in accordance with
the “Lock/Unlock Feedback-Tone” and the “Lock/Unlock Feedback-Lights”
settings.
■ When customizing using the multi-information display
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P.
Also, to prevent 12-volt battery discharge, leave the EV system operating
while customizing the features.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the EV system is operating
while customizing features.

4209-3. Items to initialize

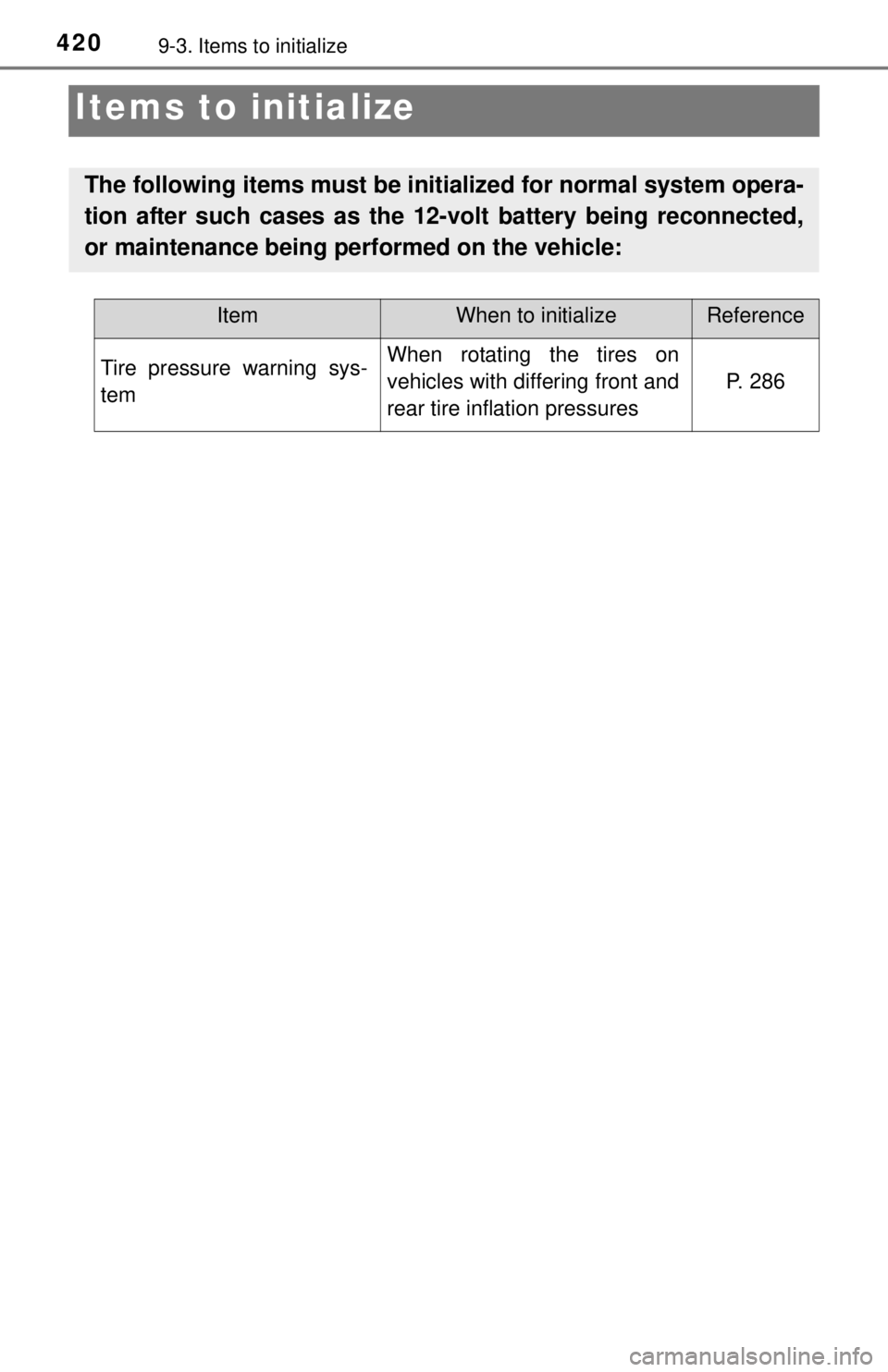

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
temWhen rotating the tires on
vehicles with differing front and
rear tire inflation pressures
P. 286
