TOYOTA LAND CRUISER 2010 J200 Owners Manual

331
3
Interior features
L/C200_U

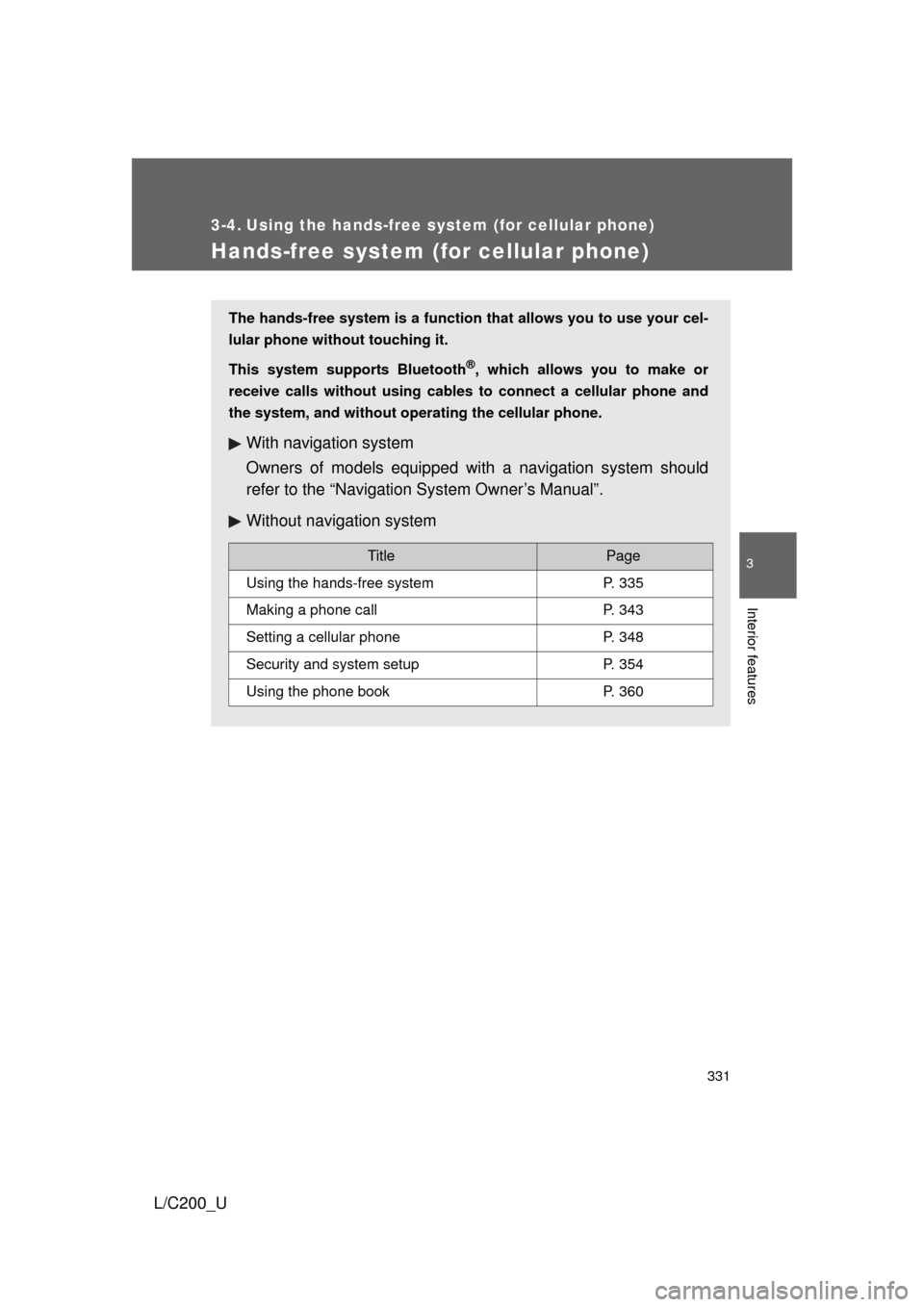

3-4. Using the hands-free system (for cellular phone)
Hands-free system (for cellular phone)
The hands-free system is a function that allows you to use your cel-
lular phone without touching it.
This system supports Bluetooth
®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
TitlePage
Using the hands-free systemP. 335
Making a phone callP. 343
Setting a cellular phoneP. 348
Security and system setupP. 354
Using the phone bookP. 360

332 3-4. Using the hands-free system (for cellular phone)
L/C200_U
■Conditions under which th e system will not operate
● If using a mobile phone that does not support Bluetooth
®
●If the mobile phone is switched off
● If you are outside service range
● If the mobile phone is not connected
● If the mobile phone’s battery is low
● If the mobile phone is behind the seat or in the glove box or console box
● If metal is covering or touching the phone
■ When using the hands-free system
● The audio system and voice guidance are muted when making a call.
● If both parties speak at the same time, it may be difficult to hear.
● If the incoming call volume is overly loud, an echo may be heard.
● Try to face toward the microphone as much as possible when speaking.
● In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.

333
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U
■About Bluetooth®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.5 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone. If your cellular phone supports OPP alone, you cannot use the Blue-
tooth® phone.
■ Certification for the hands-free system
FCC ID: AJDK018
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

334 3-4. Using the hands-free system (for cellular phone)
L/C200_U
CAUTION
■FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC
radiation exposure limits set forth for uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure Gui delines in Supplement C to OET65.
This equipment has very low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation (MPE). But it is desirable
that it should be installed and operated with at least 7.9 in. (20 cm) and more
between the radiator and person’s body (excluding extremities: hands,
wrists, feet and legs).
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
■ While driving
Do not use a cellular phone, or connect the Bluetooth
® phone.
NOTICE
■To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.

335
3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_U
Using the hands-free system

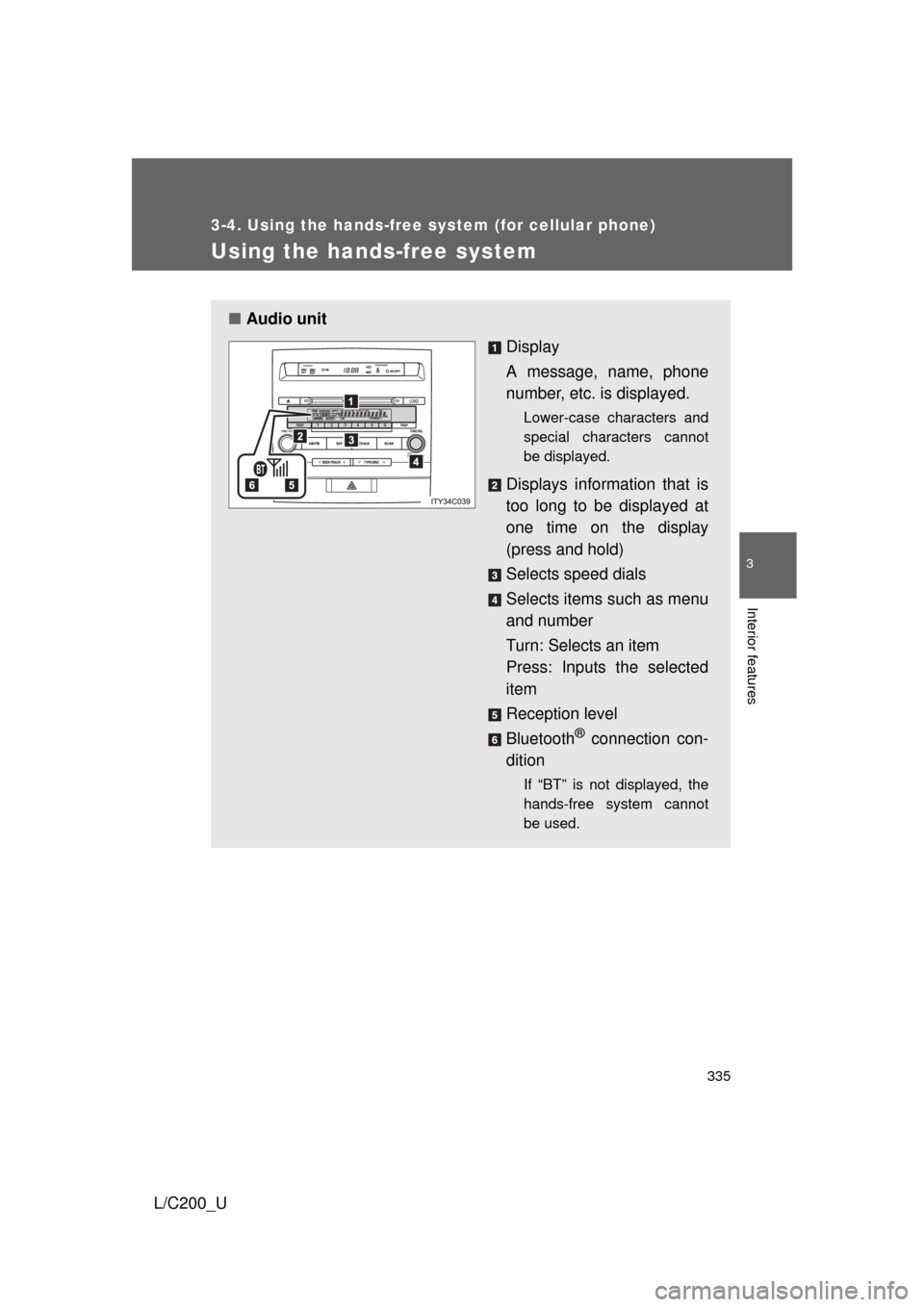

■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters cannot
be displayed.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects speed dials
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Reception level
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
hands-free system cannot
be used.

336 3-4. Using the hands-free system (for cellular phone)
L/C200_U

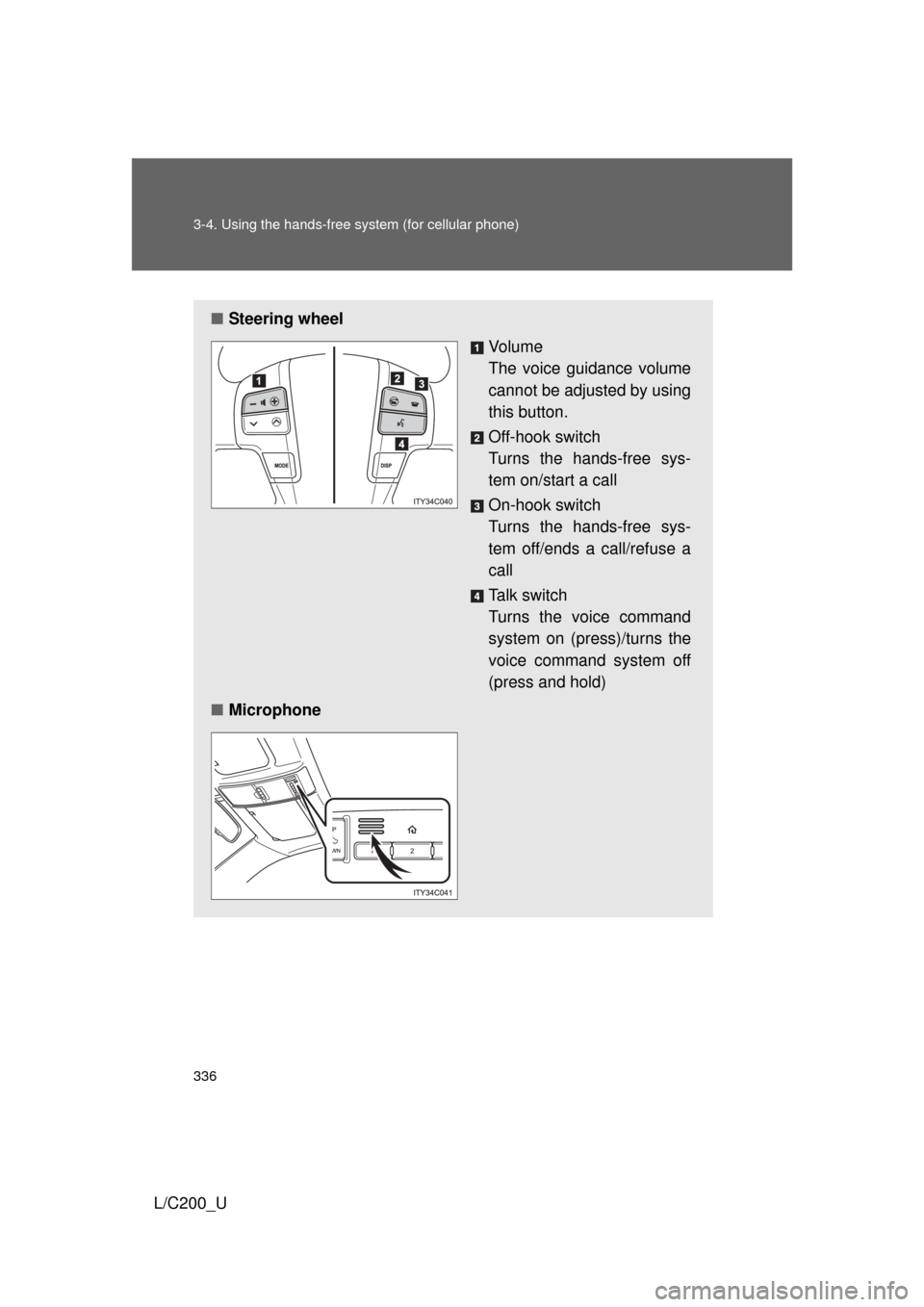

■Steering wheel
Vo l u m e
The voice guidance volume
cannot be adjusted by using
this button.
Off-hook switch
Turns the hands-free sys-
tem on/start a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuse a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
■ Microphone

337
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U
Operating the system by using a voice command
By following voice guidance inst ructions output from the speaker,
voice commands enable to the operation of the hands-free system
without need to check t he display or operate .
■ Operation procedure when using a voice command
Press the talk switch and follo w voice guidance instructions.
■ Auxiliary commands when using a voice command
The following auxiliary commands can be used:
Cancel: Exits the hands-free system
Repeat: Repeats the previous voice guidance instruction
Go back: Returns to the previous procedure
Help: Reads aloud the function summary if a help comment is registered for the selected function
Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The sy stem will enter phone registration
mode automatically when starting t he system with no cellular phone
registered. Follow the procedure below to register (pair) a cellular
phone:

338 3-4. Using the hands-free system (for cellular phone)
L/C200_UPress the off-hook switch
or the talk switch.
The introductory guidance and phone name registration instructions
are heard.
Select “Pair Phone” using a voice command or .
Register a phone name by either of the following methods.
a. Select “Record Name” using , and say the name tobe registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.
If the cellular phone has a Bluetooth
® audio player, the audio player
can be registered at the same time. A voice guidance instruction to
register a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® audio player P. 3 1 1 )
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

339
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
L/C200_U
Menu list of the hands-free system
■ Normal operation
First menuSecond
menuThird menuOperation detail
Callback

Dialing a number stored in
the incoming call history
memory
Redial

Dialing a number stored in
the outgoing call history
memory
Phone-
book Add Entry
Adding a new number
Change
Name
Changing a name in the
phone book
Delete
Entry
Deleting the phone book
data
Delete
Speed
Dial (Del
Spd Dial)
Deleting a registered speed
dial
List
Names
List the phone book data
Set
Speed
Dial
(Speed
Dial) 
Registering a speed dial

340 3-4. Using the hands-free system (for cellular phone)
L/C200_U
First menuSecond menuThird menuOperation detail
Setup Security
Set PIN Setting a PIN code
Phbk Lock Locking the phone book
Phbk Unlock Unlocking the phone book
Phone
Setup Pair Phone
Registering a cellular phone
to be used
Connect Selecting a cellular phone to
be used
Change Name Changing a registered name
of a cellular phone
List phones Listing the registered cellular
phones
Set Passkey Changing the passkey
Delete Deleting a registered cellular
phone
System
Setup Guidance
Vo l u m e
(Guidance Vol)
Setting voice guidance
volume
Device Name Displaying the Bluetooth
®
device address and name
Initialize Initialization
