211 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)
CAUTION
If a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning light not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately if this occurs.

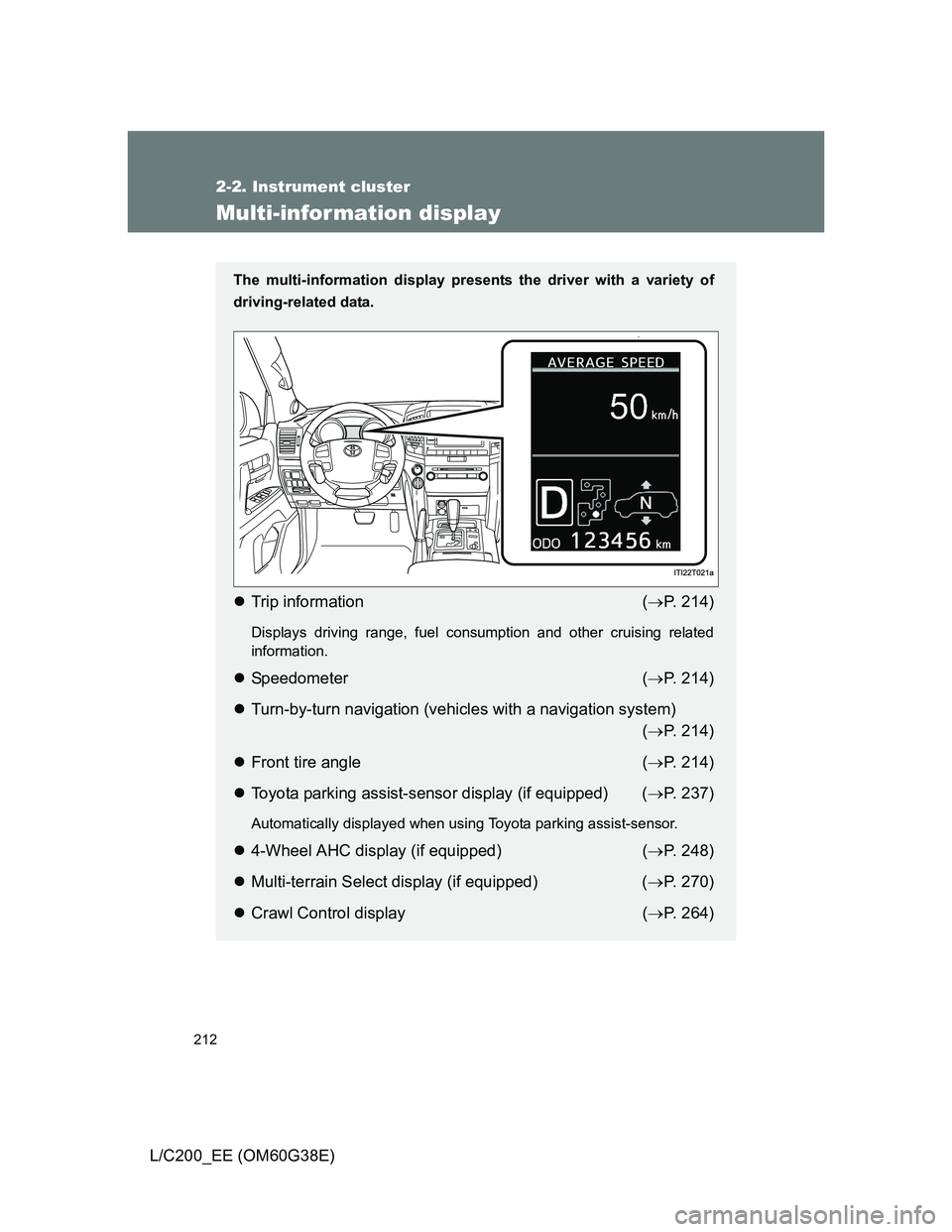

212
2-2. Instrument cluster
L/C200_EE (OM60G38E)
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Trip information (P. 214)
Displays driving range, fuel consumption and other cruising related
information.
Speedometer (P. 214)
Turn-by-turn navigation (vehicles with a navigation system)
(P. 214)
Front tire angle (P. 214)
Toyota parking assist-sensor display (if equipped) (P. 237)
Automatically displayed when using Toyota parking assist-sensor.
4-Wheel AHC display (if equipped) (P. 248)
Multi-terrain Select display (if equipped) (P. 270)
Crawl Control display (P. 264)

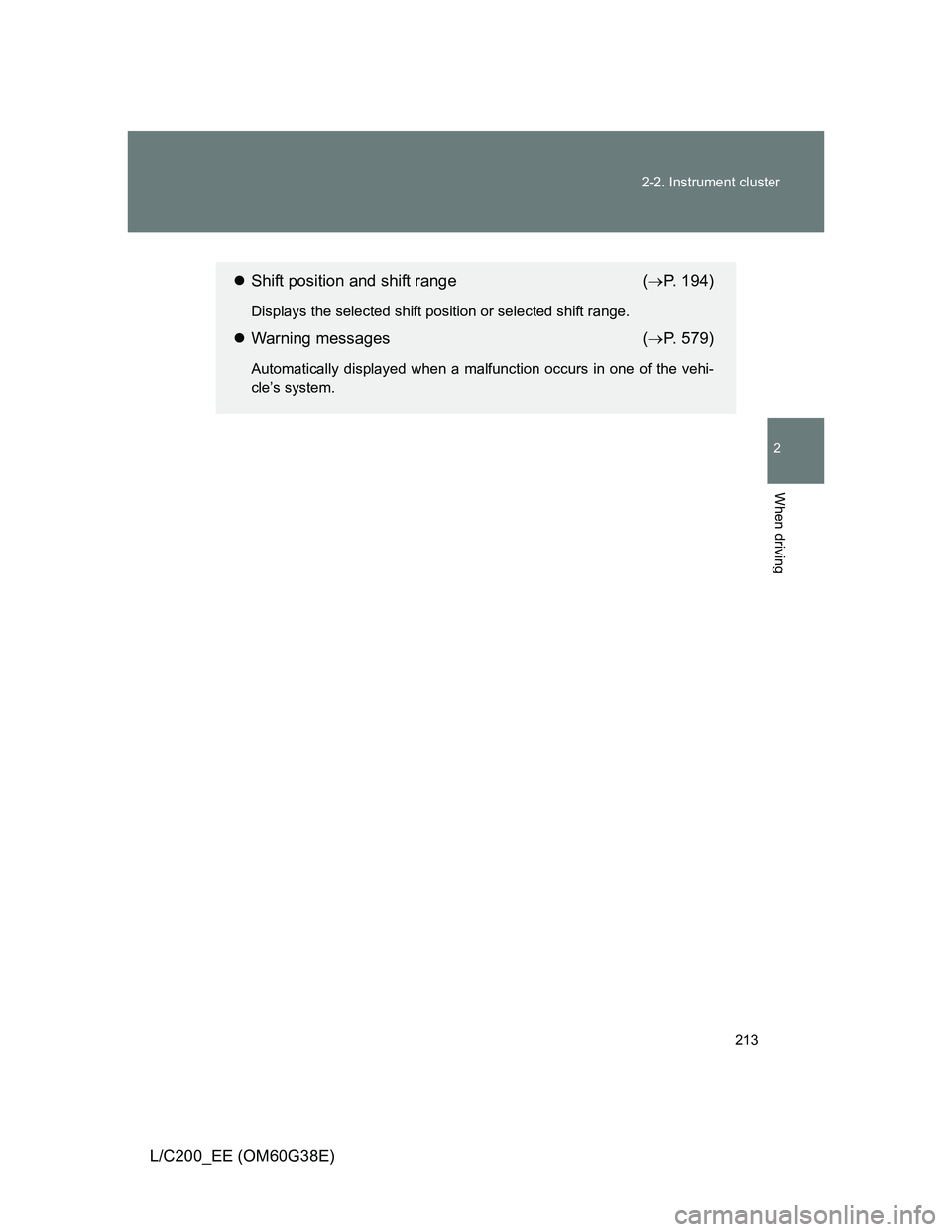

213 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)
Shift position and shift range (P. 194)
Displays the selected shift position or selected shift range.
Warning messages (P. 579)
Automatically displayed when a malfunction occurs in one of the vehi-
cle’s system.

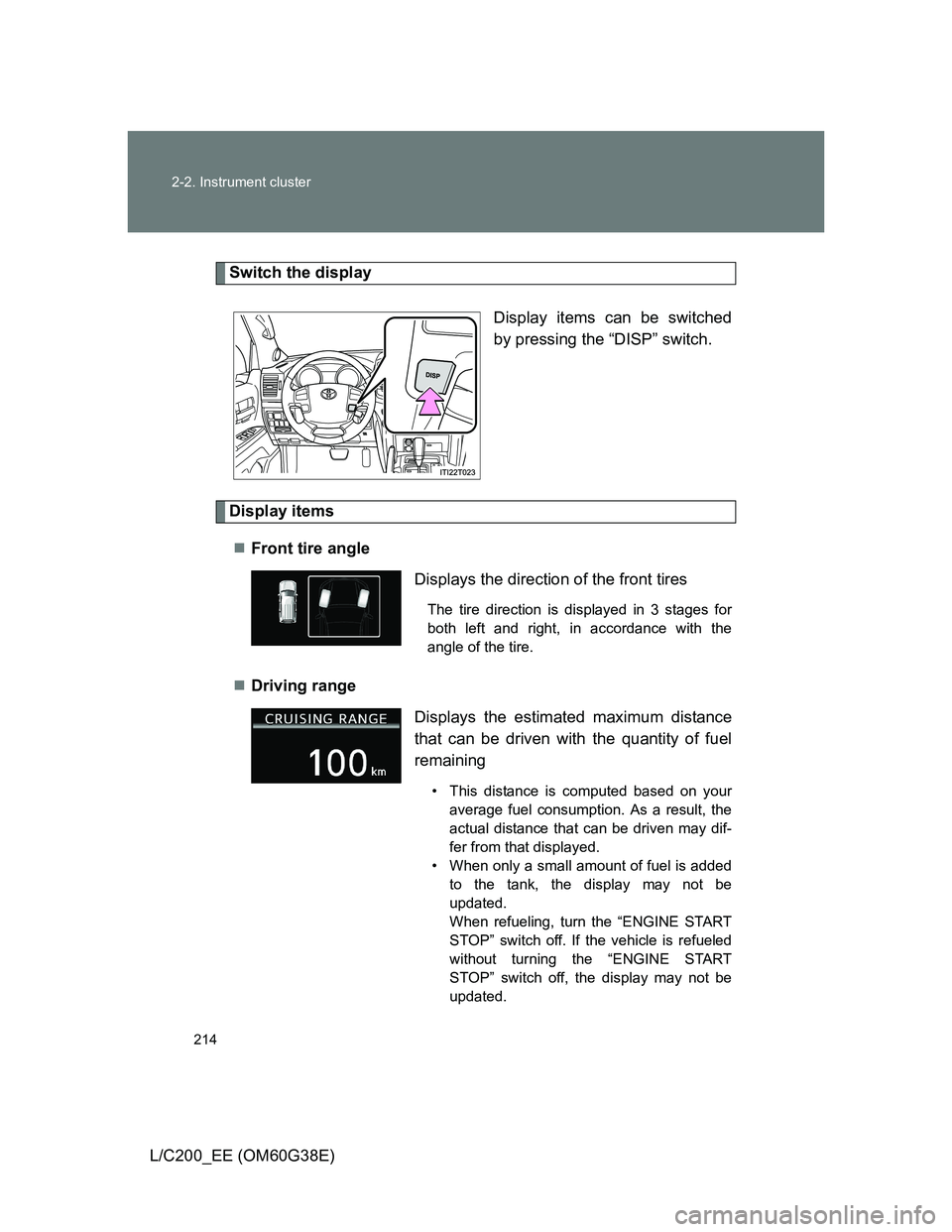

214 2-2. Instrument cluster
L/C200_EE (OM60G38E)
Switch the display
Display items can be switched
by pressing the “DISP” switch.
Display items
Front tire angle
Driving range
Displays the direction of the front tires
The tire direction is displayed in 3 stages for
both left and right, in accordance with the
angle of the tire.
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining
• This distance is computed based on your
average fuel consumption. As a result, the
actual distance that can be driven may dif-
fer from that displayed.
• When only a small amount of fuel is added
to the tank, the display may not be
updated.
When refueling, turn the “ENGINE START
STOP” switch off. If the vehicle is refueled
without turning the “ENGINE START
STOP” switch off, the display may not be
updated.

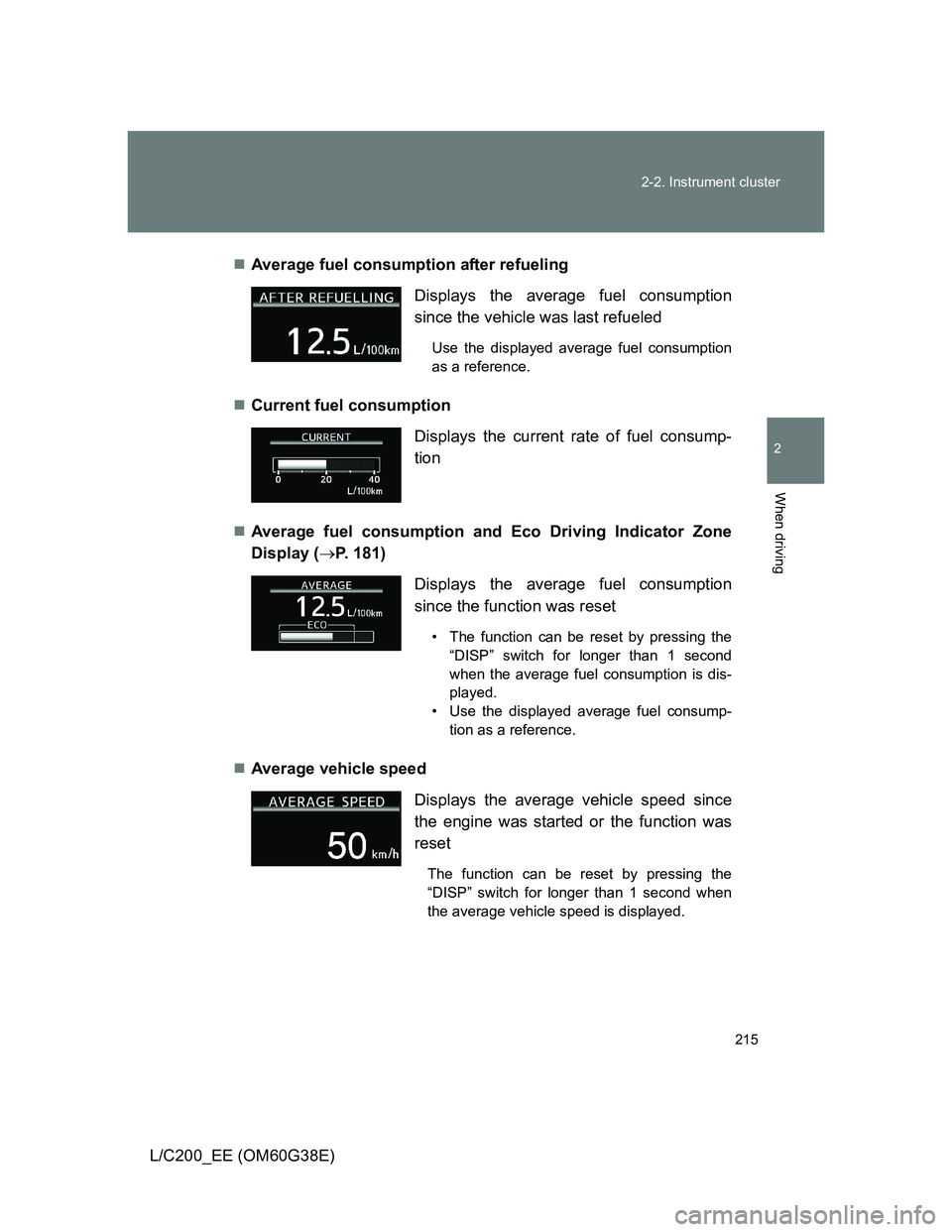

215 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)Average fuel consumption after refueling
Current fuel consumption
Average fuel consumption and Eco Driving Indicator Zone
Display (P. 181)
Average vehicle speed Displays the average fuel consumption
since the vehicle was last refueled
Use the displayed average fuel consumption
as a reference.
Displays the current rate of fuel consump-
tion
Displays the average fuel consumption
since the function was reset
• The function can be reset by pressing the
“DISP” switch for longer than 1 second
when the average fuel consumption is dis-
played.
• Use the displayed average fuel consump-
tion as a reference.
Displays the average vehicle speed since
the engine was started or the function was
reset
The function can be reset by pressing the
“DISP” switch for longer than 1 second when
the average vehicle speed is displayed.

216 2-2. Instrument cluster
L/C200_EE (OM60G38E)Speedometer
Turn-by-turn navigation (vehicles with a navigation system)
Display off
A blank screen is displayed
Displays the vehicle speed.
The speed units (MPH or km/h) can be
selected by pressing the “DISP” switch for
longer than 1 second when the speedometer
is displayed.
The turn-by-turn navigation can be set to on
or off.
The function can be activated or deactivated
by pressing the “DISP” switch for longer than
1 second when turn-by-turn navigation setting
screen is displayed.
System check display
After turning the “ENGINE START STOP” switch to IGNITION ON mode,
“LAND CRUISER” is displayed while system operation is checked. When the
system check is complete, the normal screen will return.

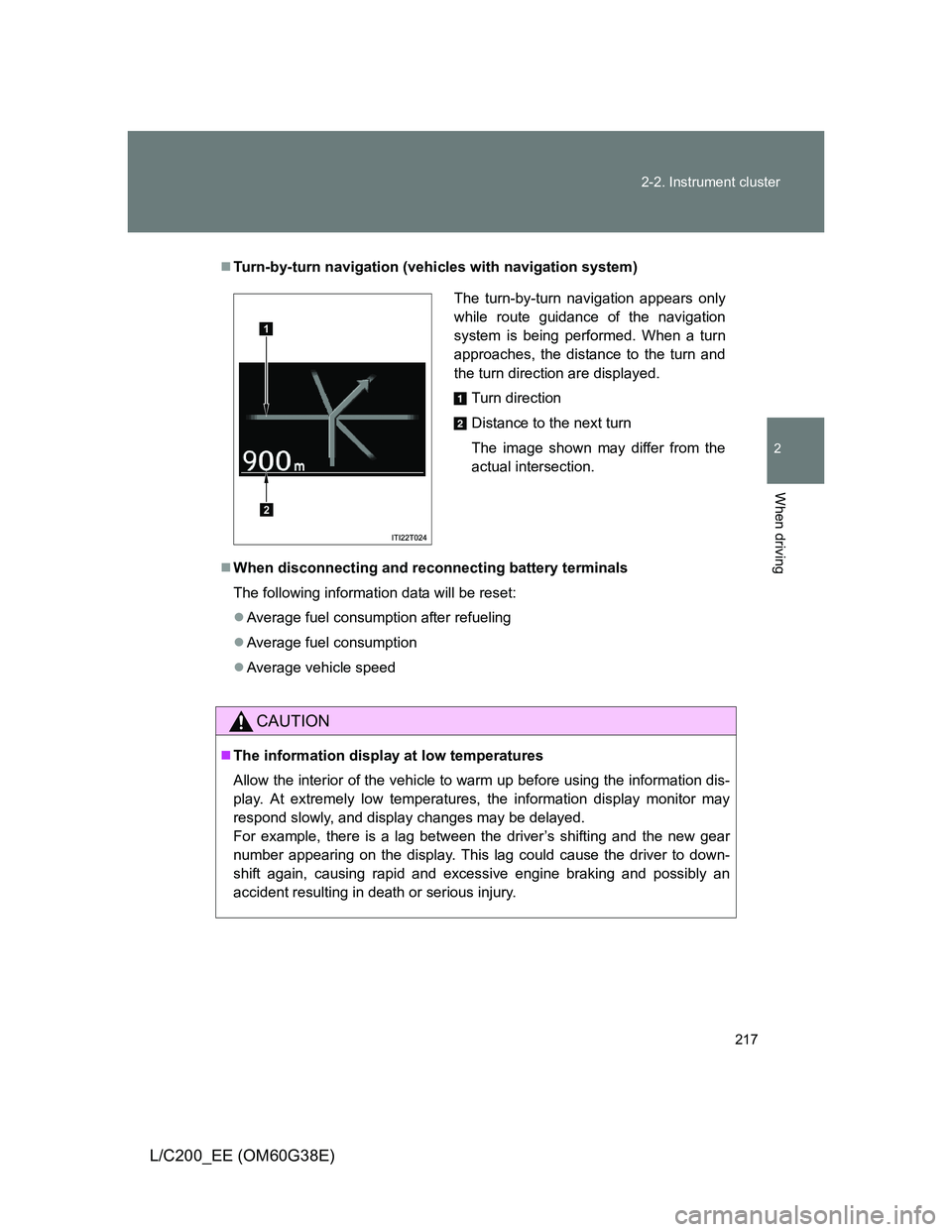

217 2-2. Instrument cluster
2
When driving
L/C200_EE (OM60G38E)
Turn-by-turn navigation (vehicles with navigation system)
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Average fuel consumption after refueling
Average fuel consumption
Average vehicle speed
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the information dis-
play. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or serious injury.
The turn-by-turn navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
Distance to the next turn
The image shown may differ from the
actual intersection.
1
2

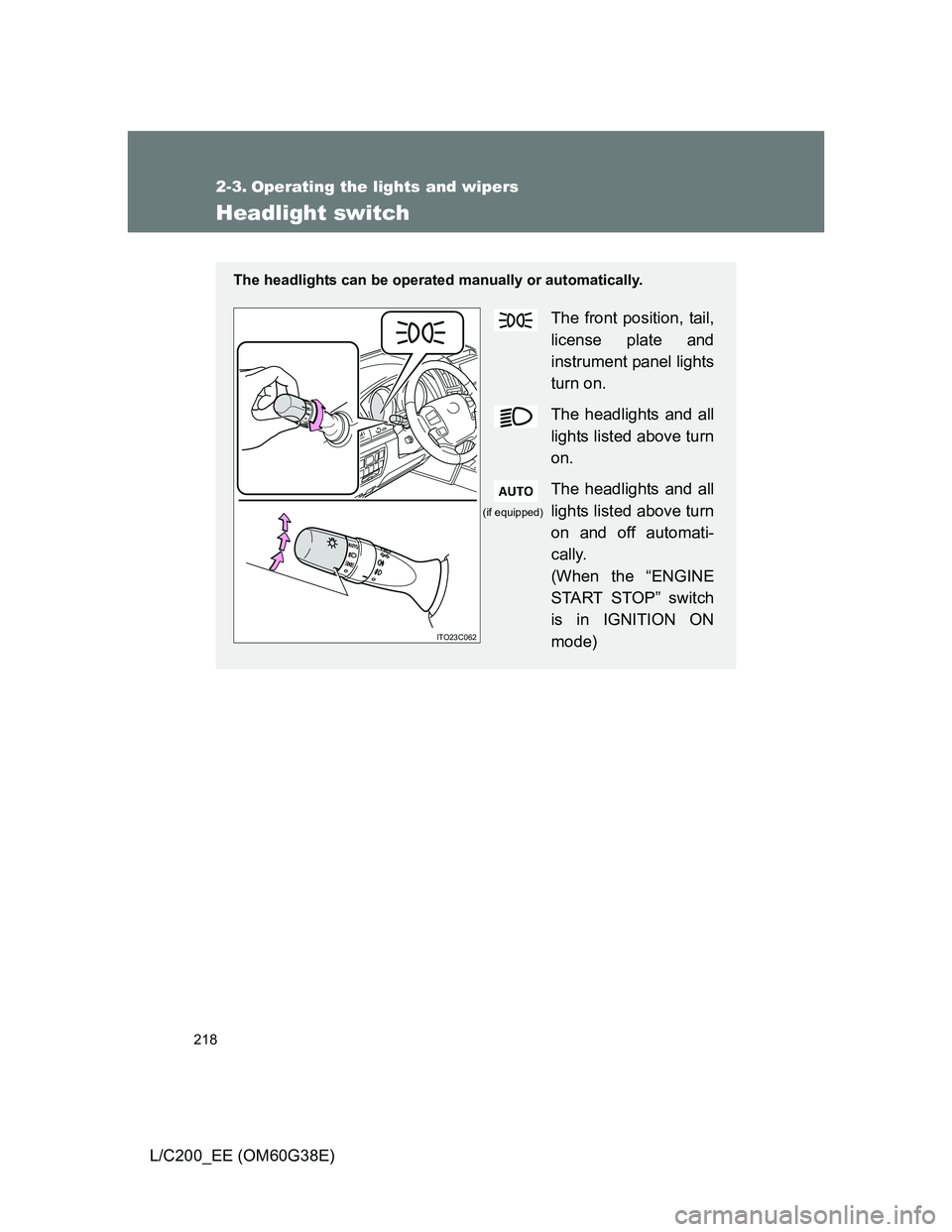

218
L/C200_EE (OM60G38E)
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch
is in IGNITION ON
mode)
ITO23C062
(if equipped)

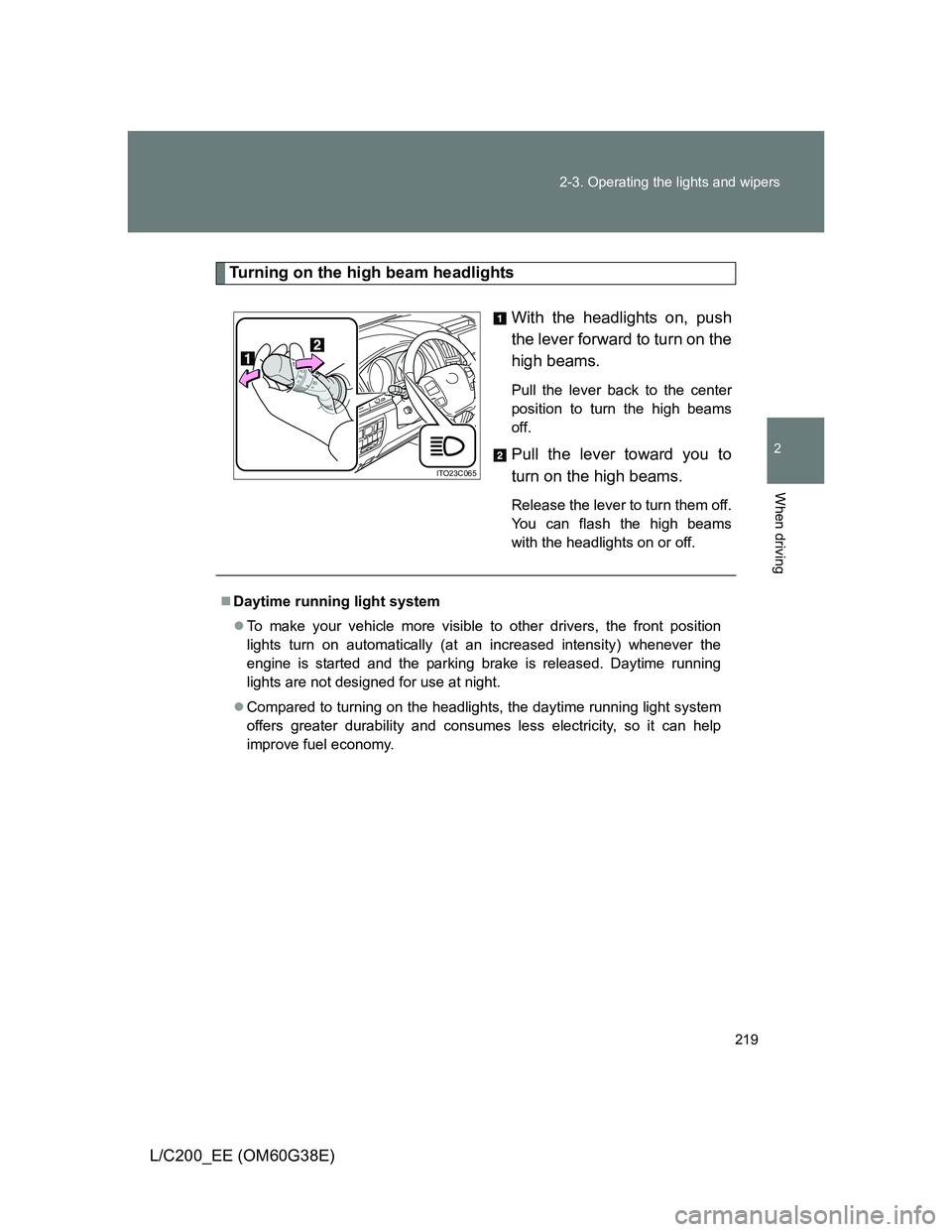

219 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
ITO23C065
Daytime running light system
To make your vehicle more visible to other drivers, the front position
lights turn on automatically (at an increased intensity) whenever the
engine is started and the parking brake is released. Daytime running
lights are not designed for use at night.
Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.

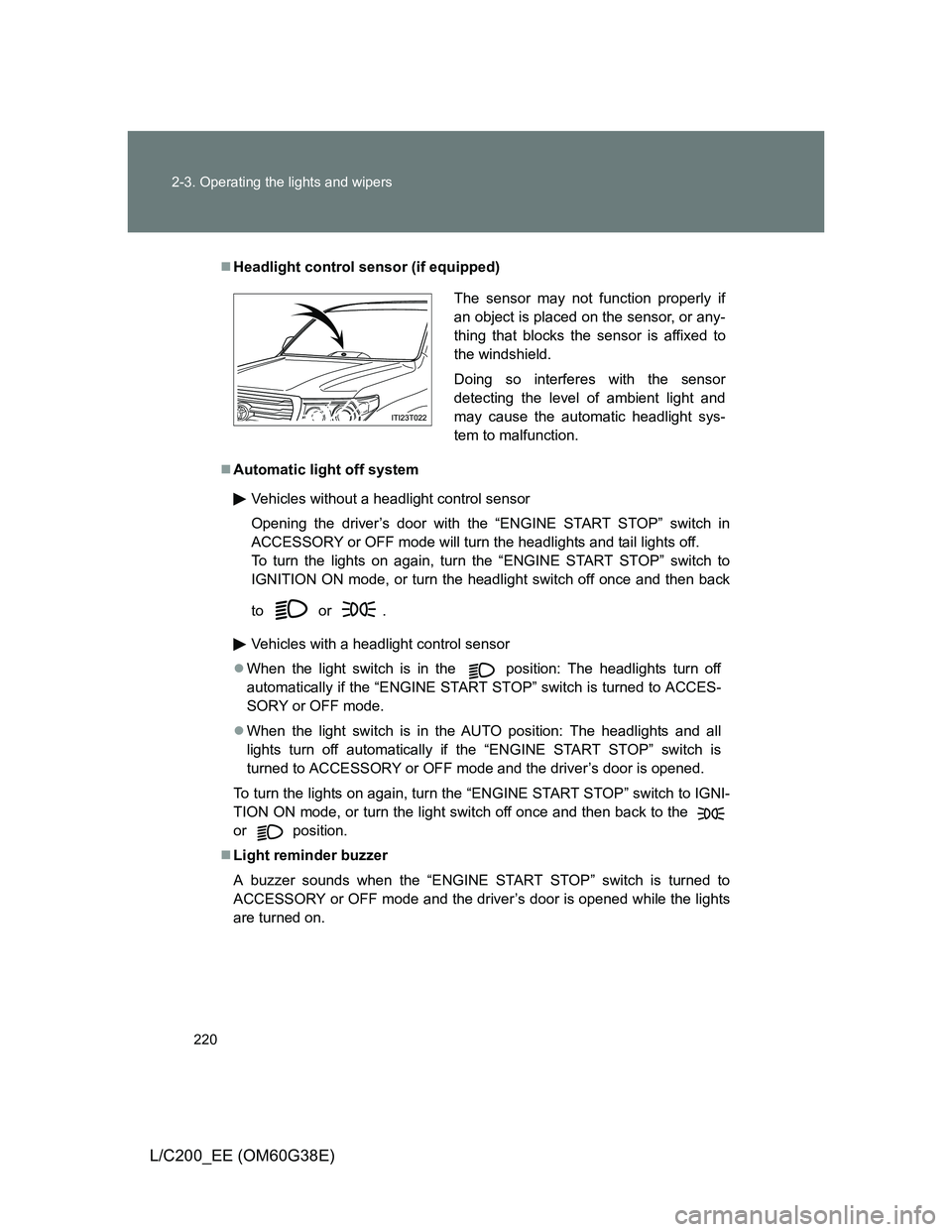

220 2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)
Headlight control sensor (if equipped)
Automatic light off system
Vehicles without a headlight control sensor
Opening the driver’s door with the “ENGINE START STOP” switch in
ACCESSORY or OFF mode will turn the headlights and tail lights off.
To turn the lights on again, turn the “ENGINE START STOP” switch to
IGNITION ON mode, or turn the headlight switch off once and then back
to or .
Vehicles with a headlight control sensor
When the light switch is in the
position: The headlights turn off
automatically if the “ENGINE START STOP” switch is turned to ACCES-
SORY or OFF mode.
When the light switch is in the
AUTO position: The headlights and all
lights turn off automatically if the “ENGINE START STOP” switch is
turned to ACCESSORY or OFF mode and the driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the

or position.
Light reminder buzzer
A buzzer sounds when the “ENGINE START STOP” switch is turned to
ACCESSORY or OFF mode and the driver’s door is opened while the lights
are turned on.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
