TOYOTA LAND CRUISER 2012 Owners Manual

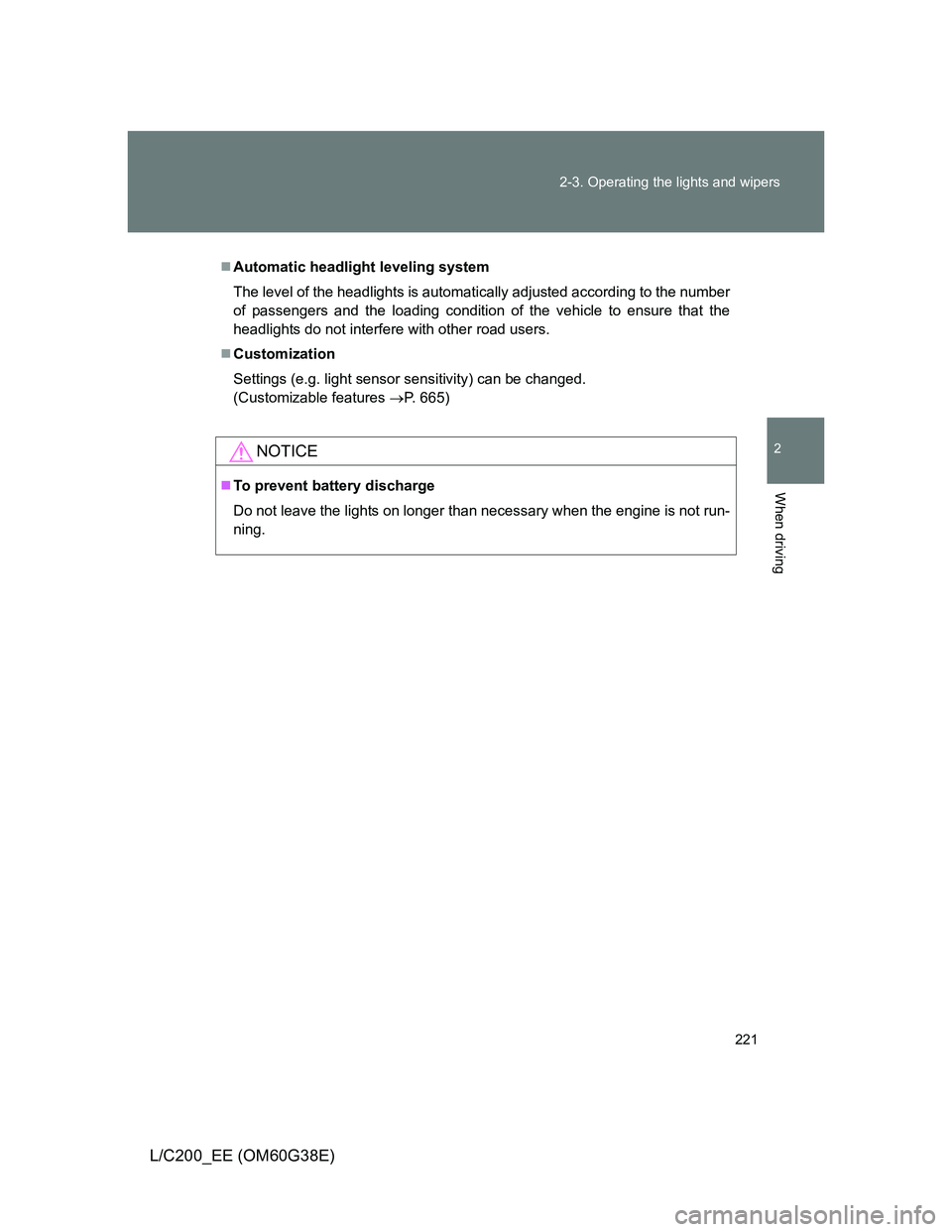

221 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)
Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 665)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

222
2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

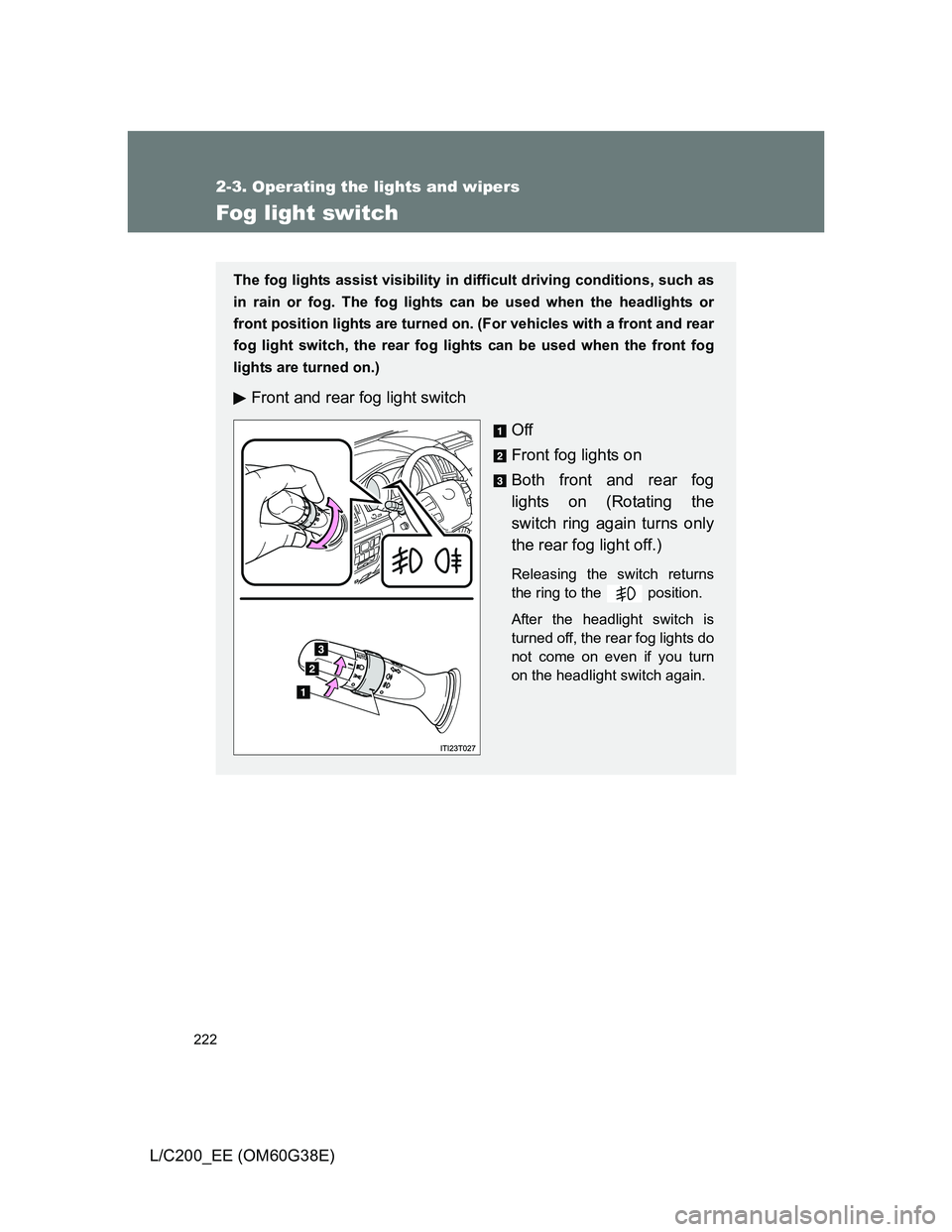

Fog light switch
The fog lights assist visibility in difficult driving conditions, such as
in rain or fog. The fog lights can be used when the headlights or
front position lights are turned on. (For vehicles with a front and rear
fog light switch, the rear fog lights can be used when the front fog
lights are turned on.)
Front and rear fog light switch
Off
Front fog lights on
Both front and rear fog
lights on (Rotating the
switch ring again turns only
the rear fog light off.)
Releasing the switch returns
the ring to the position.
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.

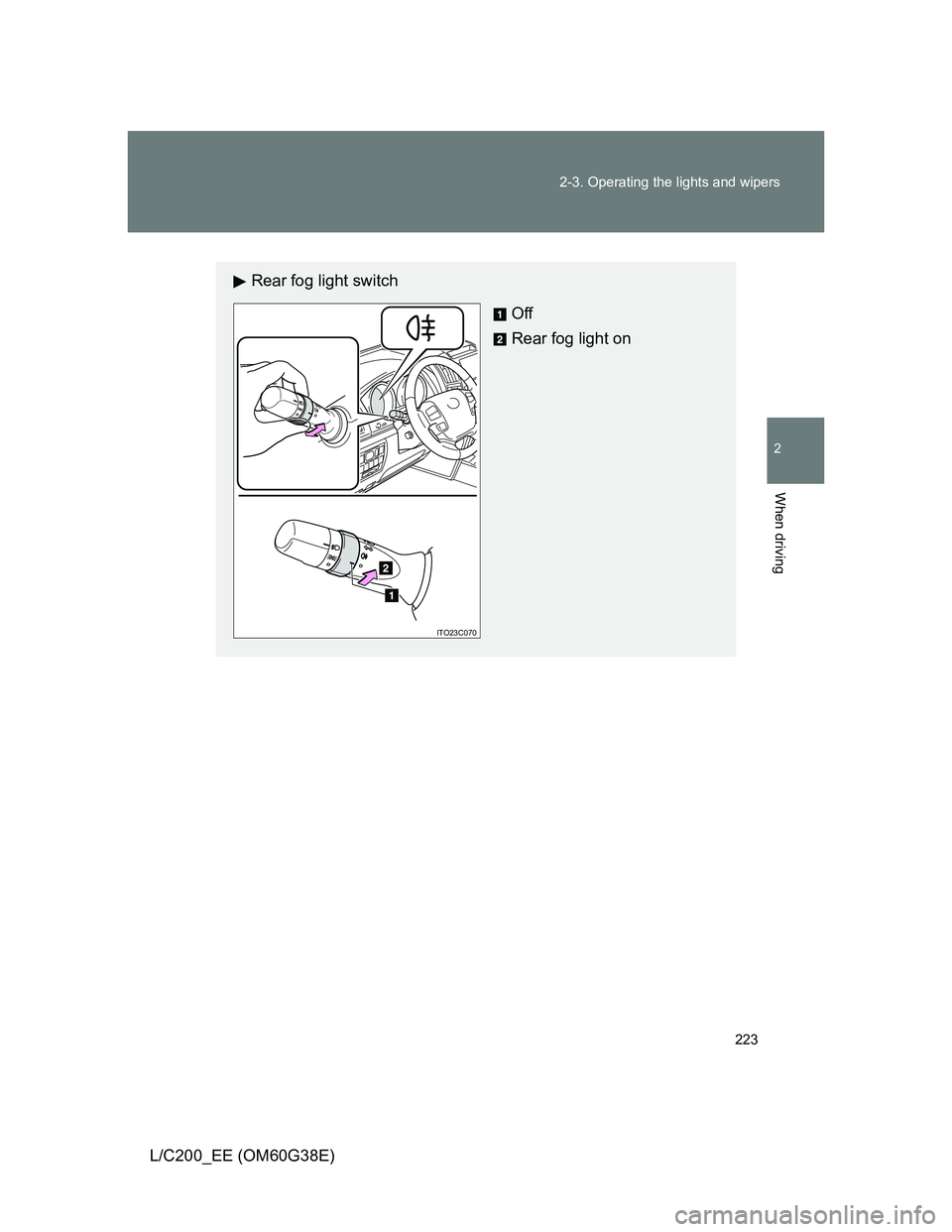

223 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)
Rear fog light switch
Off
Rear fog light on
ITO23C070

224
2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

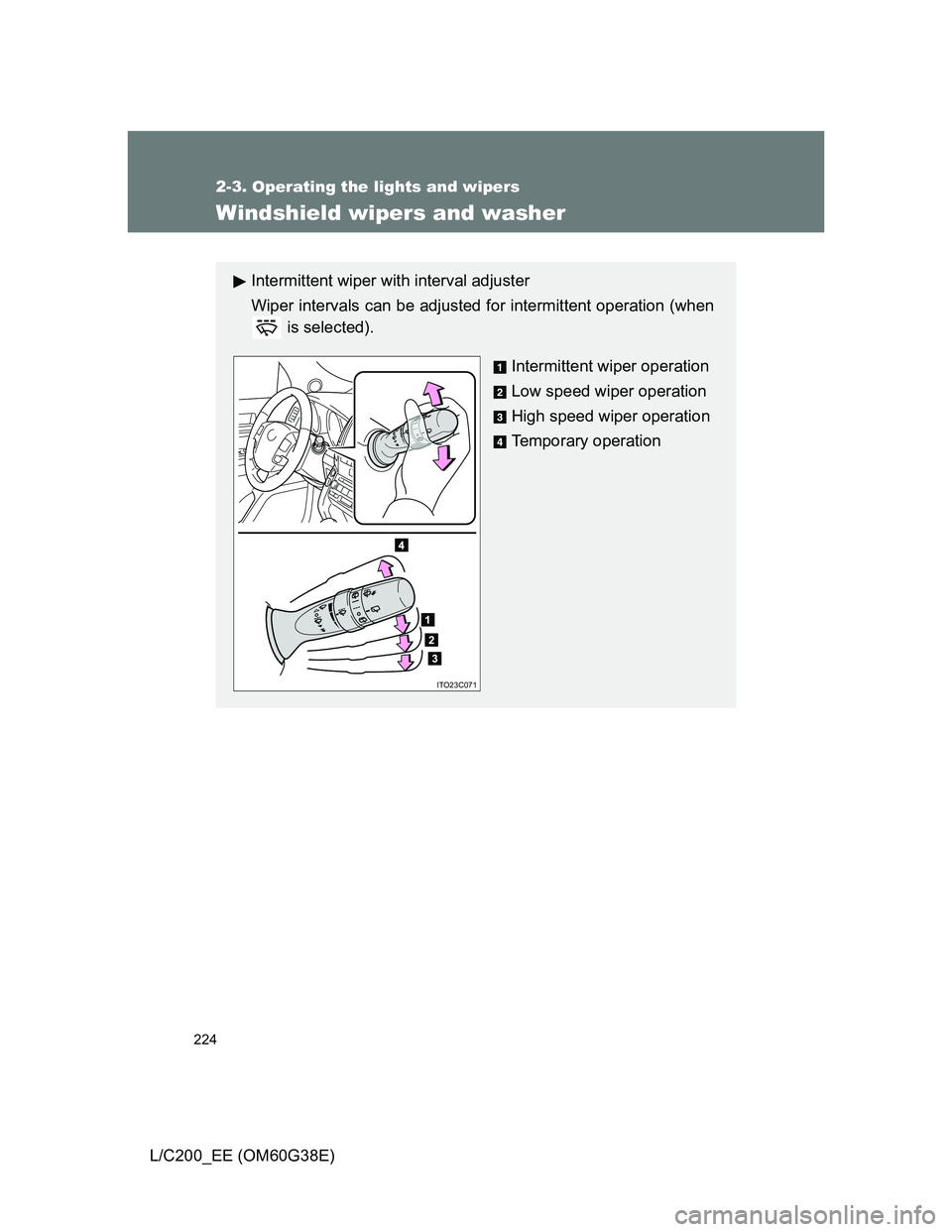

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
ITO23C071

225 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)

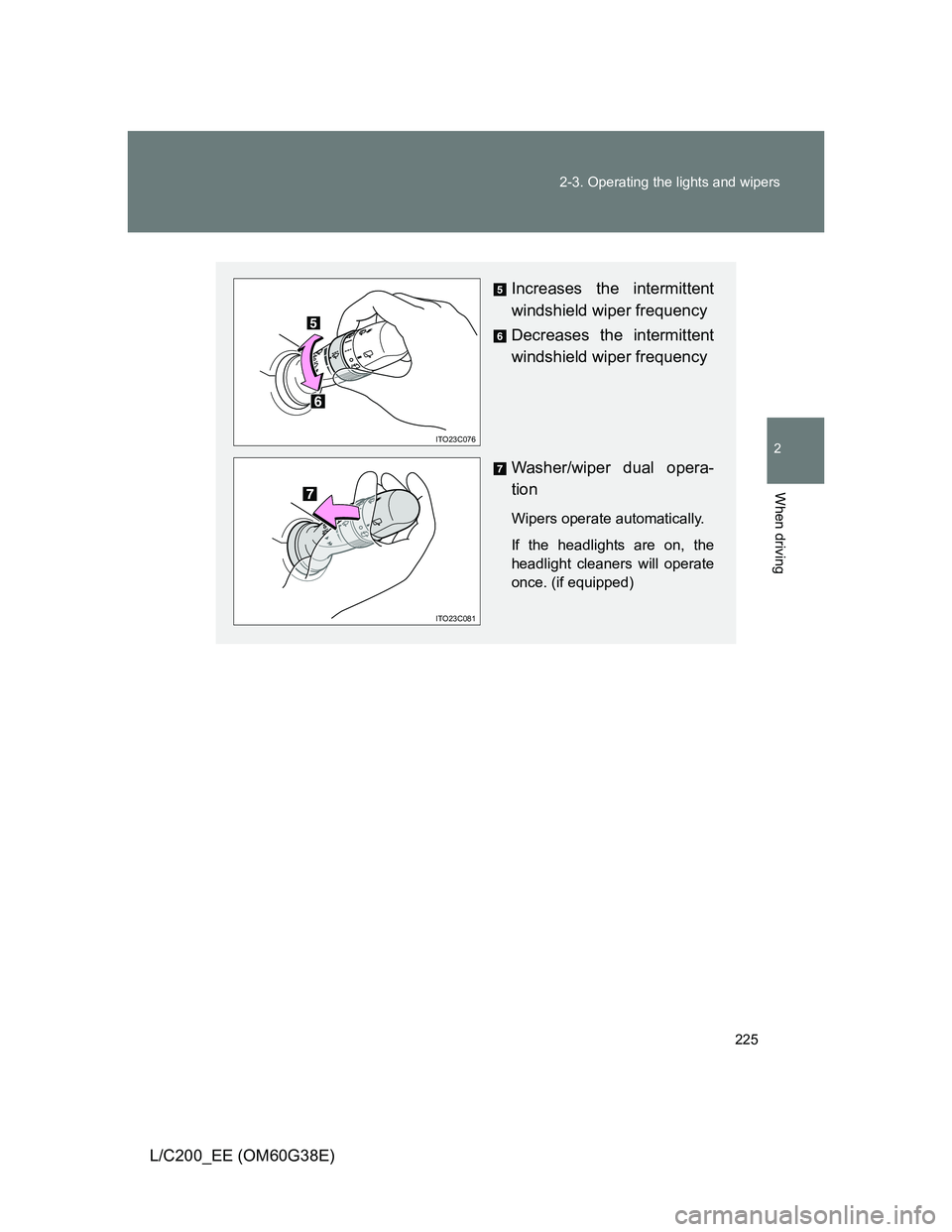

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
Wipers operate automatically.
If the headlights are on, the
headlight cleaners will operate
once. (if equipped)
ITO23C076
ITO23C081

226 2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

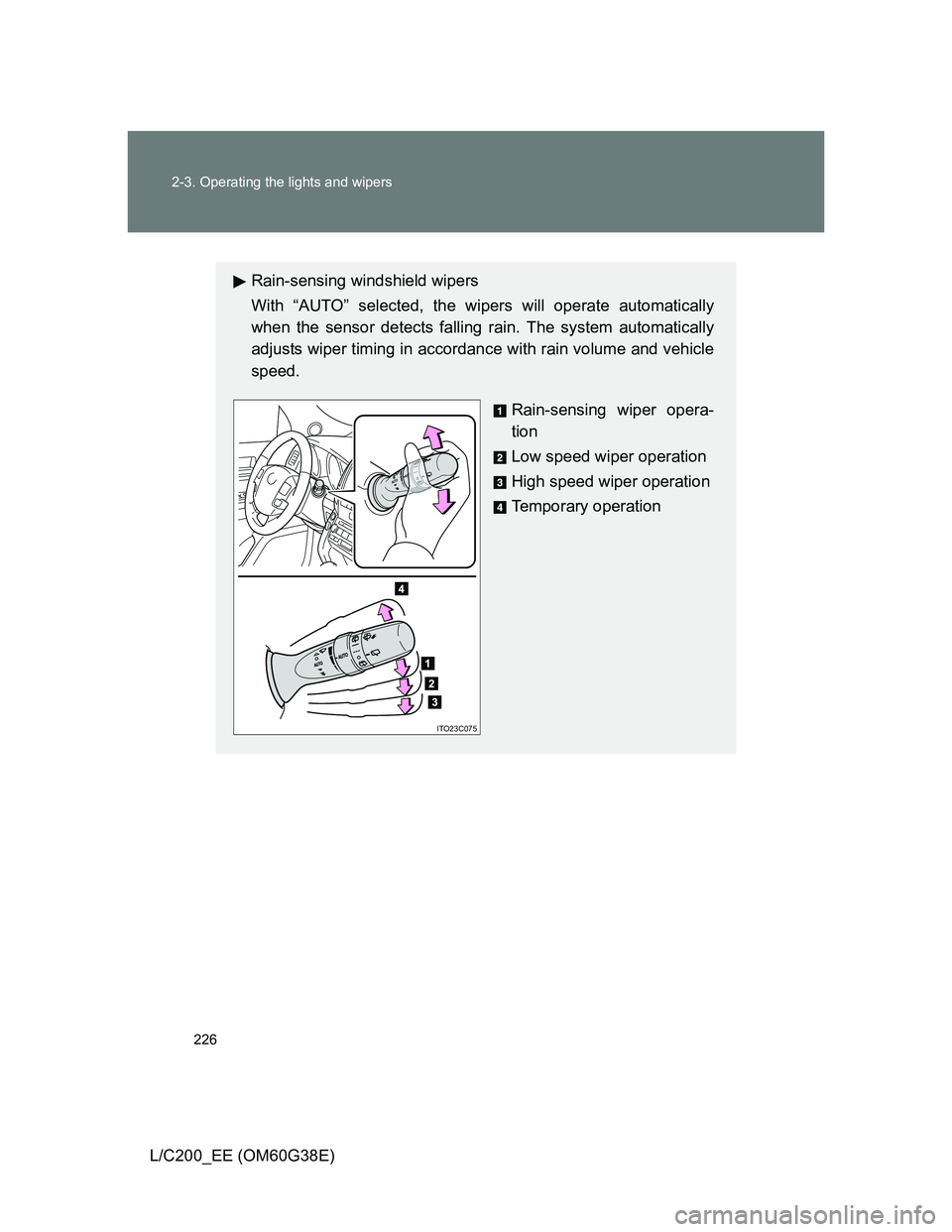

Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Rain-sensing wiper opera-
tion
Low speed wiper operation
High speed wiper operation
Temporary operation
ITO23C075

227 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)

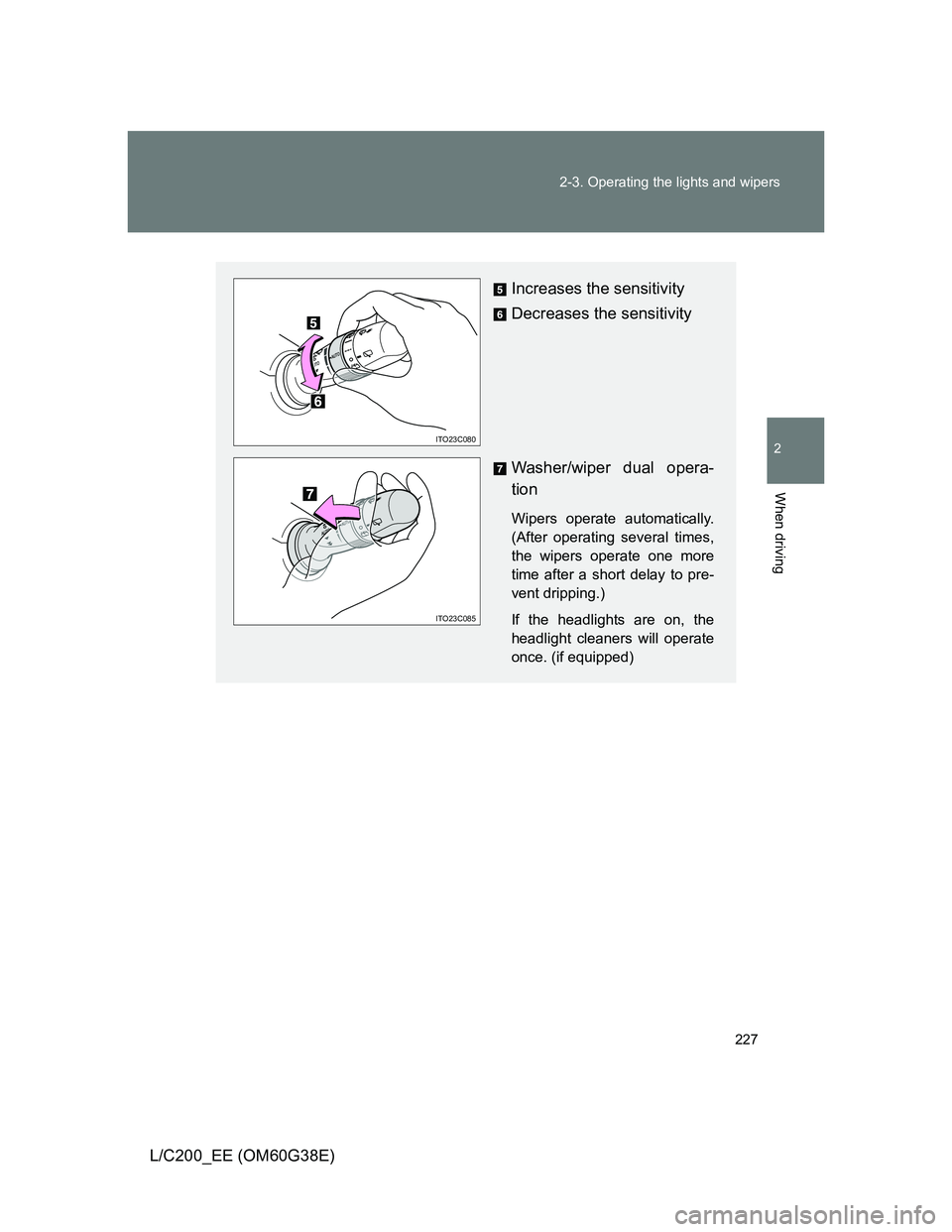

Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual opera-
tion
Wipers operate automatically.
(After operating several times,
the wipers operate one more
time after a short delay to pre-
vent dripping.)
If the headlights are on, the
headlight cleaners will operate
once. (if equipped)
ITO23C080
ITO23C085

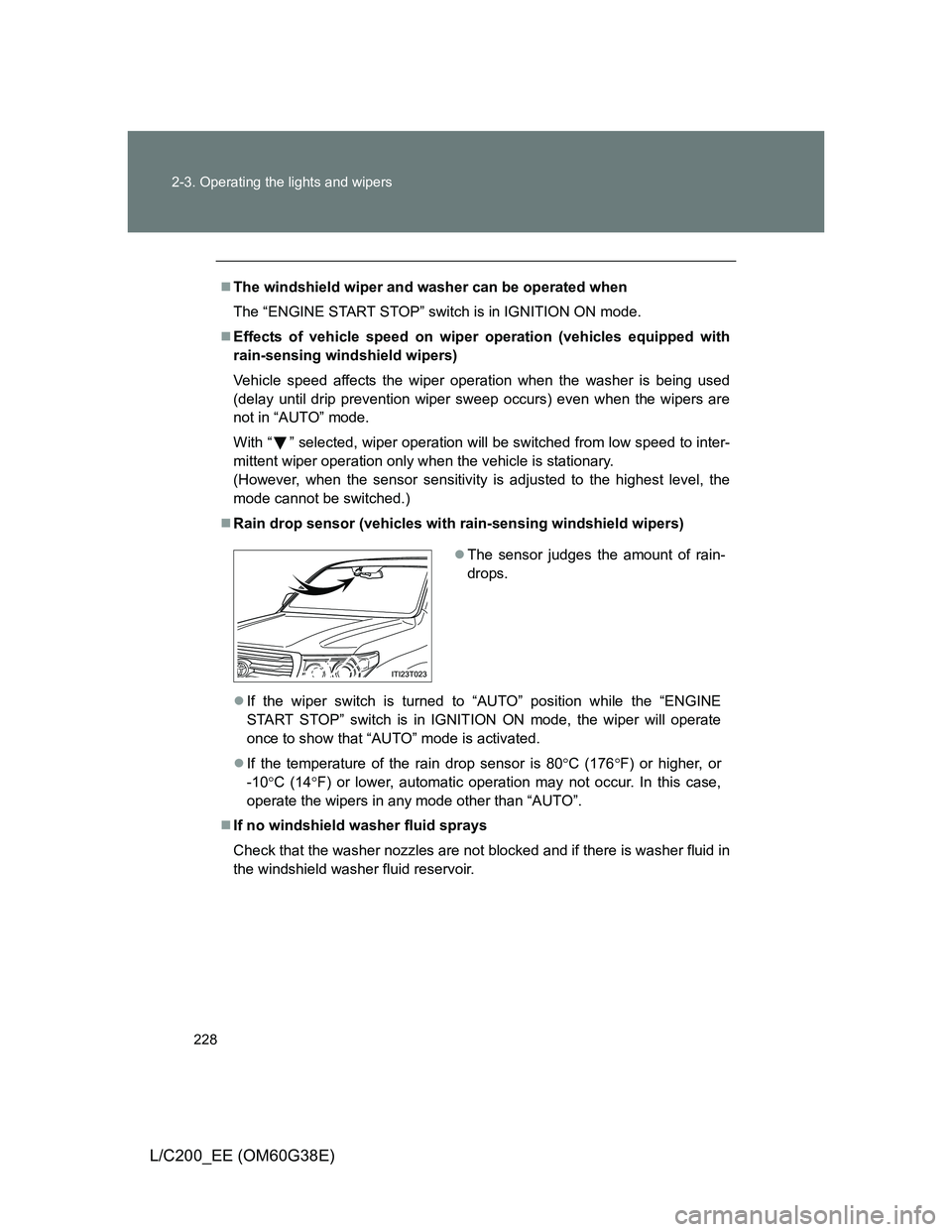

228 2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)
The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
Effects of vehicle speed on wiper operation (vehicles equipped with
rain-sensing windshield wipers)
Vehicle speed affects the wiper operation when the washer is being used
(delay until drip prevention wiper sweep occurs) even when the wipers are
not in “AUTO” mode.
With “ ” selected, wiper operation will be switched from low speed to inter-
mittent wiper operation only when the vehicle is stationary.
(However, when the sensor sensitivity is adjusted to the highest level, the
mode cannot be switched.)
Rain drop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to “AUTO” position while the “ENGINE
START STOP” switch is in IGNITION ON mode, the wiper will operate
once to show that “AUTO” mode is activated.
If the temperature of the rain drop sensor is 80C (176F) or higher, or
-10C (14F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
The sensor judges the amount of rain-
drops.

229 2-3. Operating the lights and wipers
2
When driving
L/C200_EE (OM60G38E)

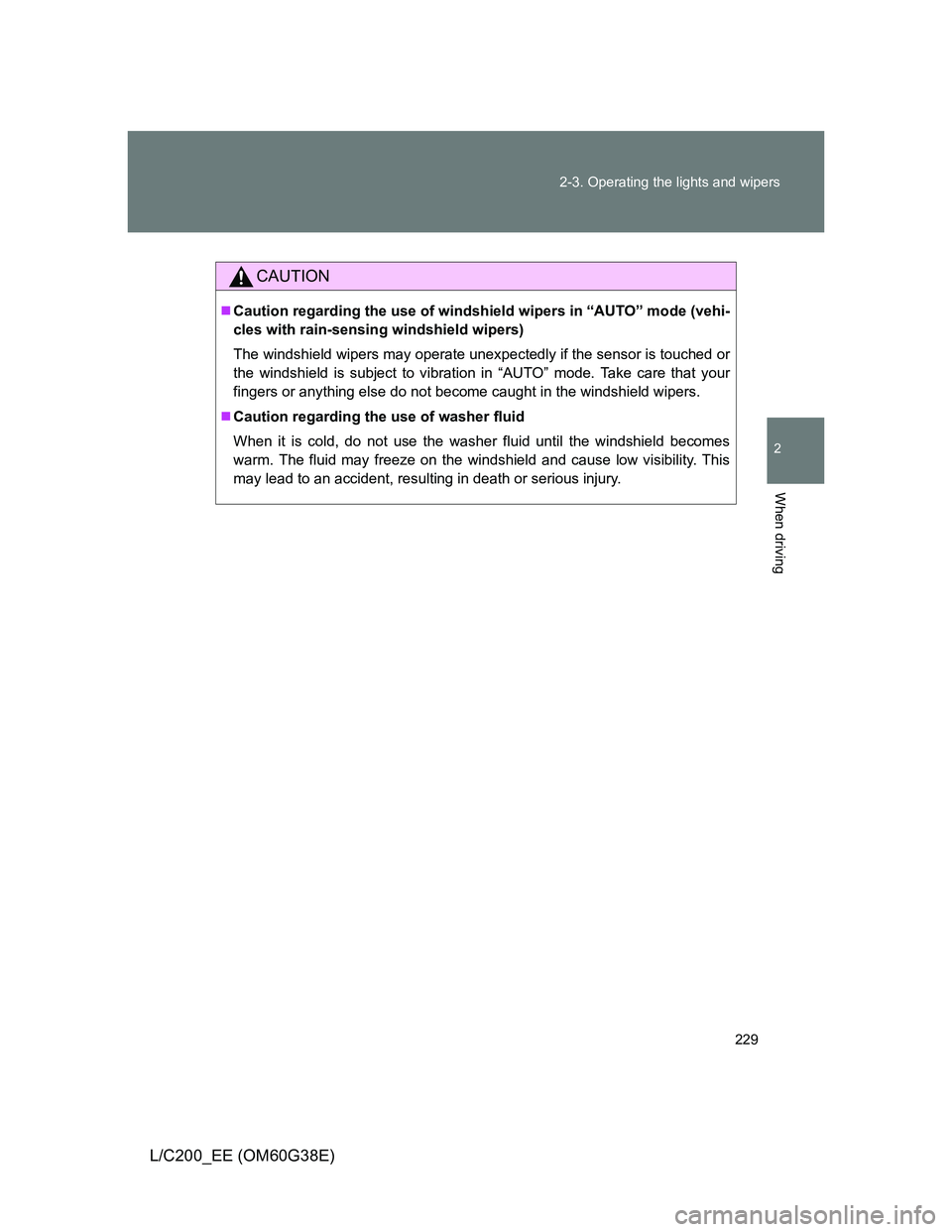

CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.

230 2-3. Operating the lights and wipers
L/C200_EE (OM60G38E)

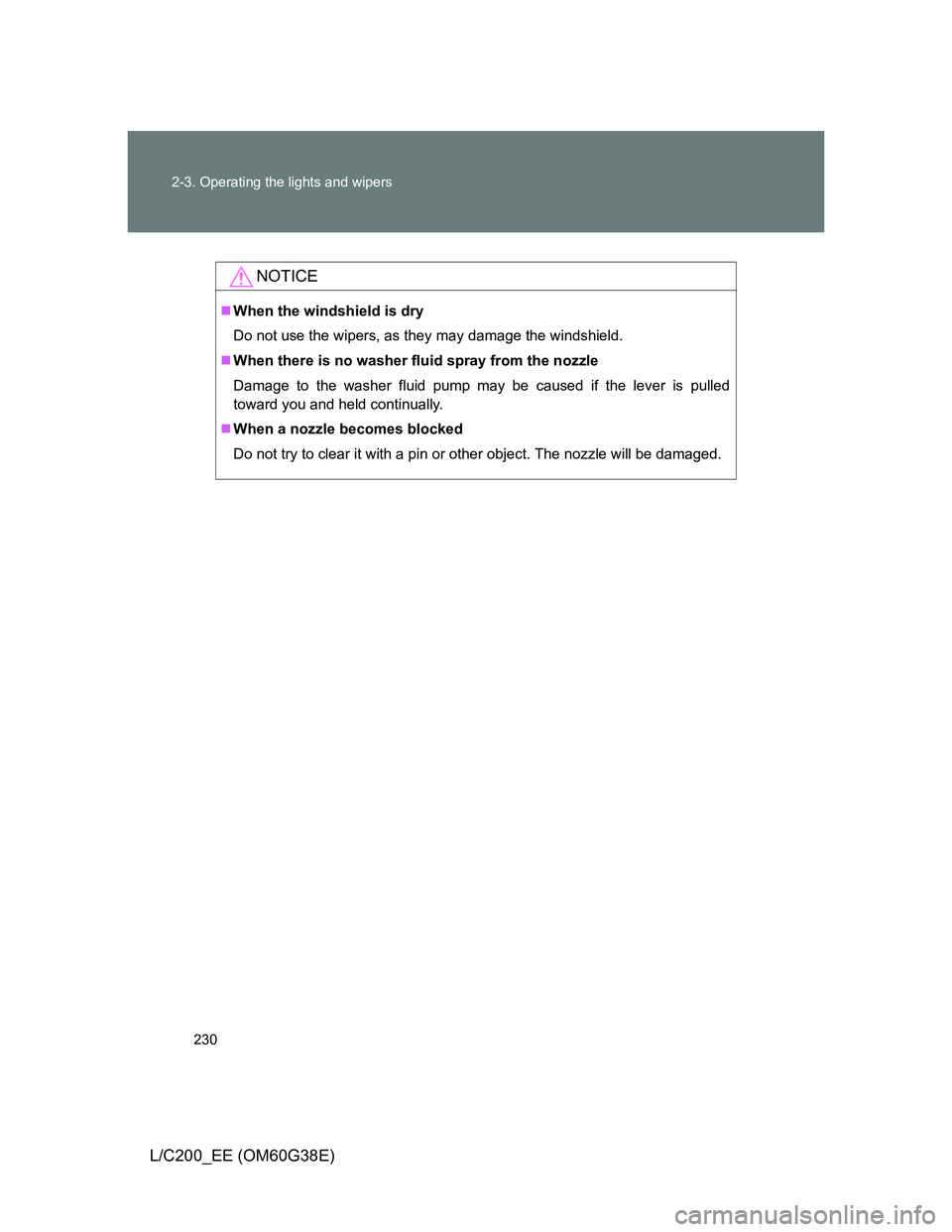

NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.
