TOYOTA LAND CRUISER 2012 Owners Manual

361 3-2. Using the audio system
3
Interior features
L/C200_EE (OM60G38E)

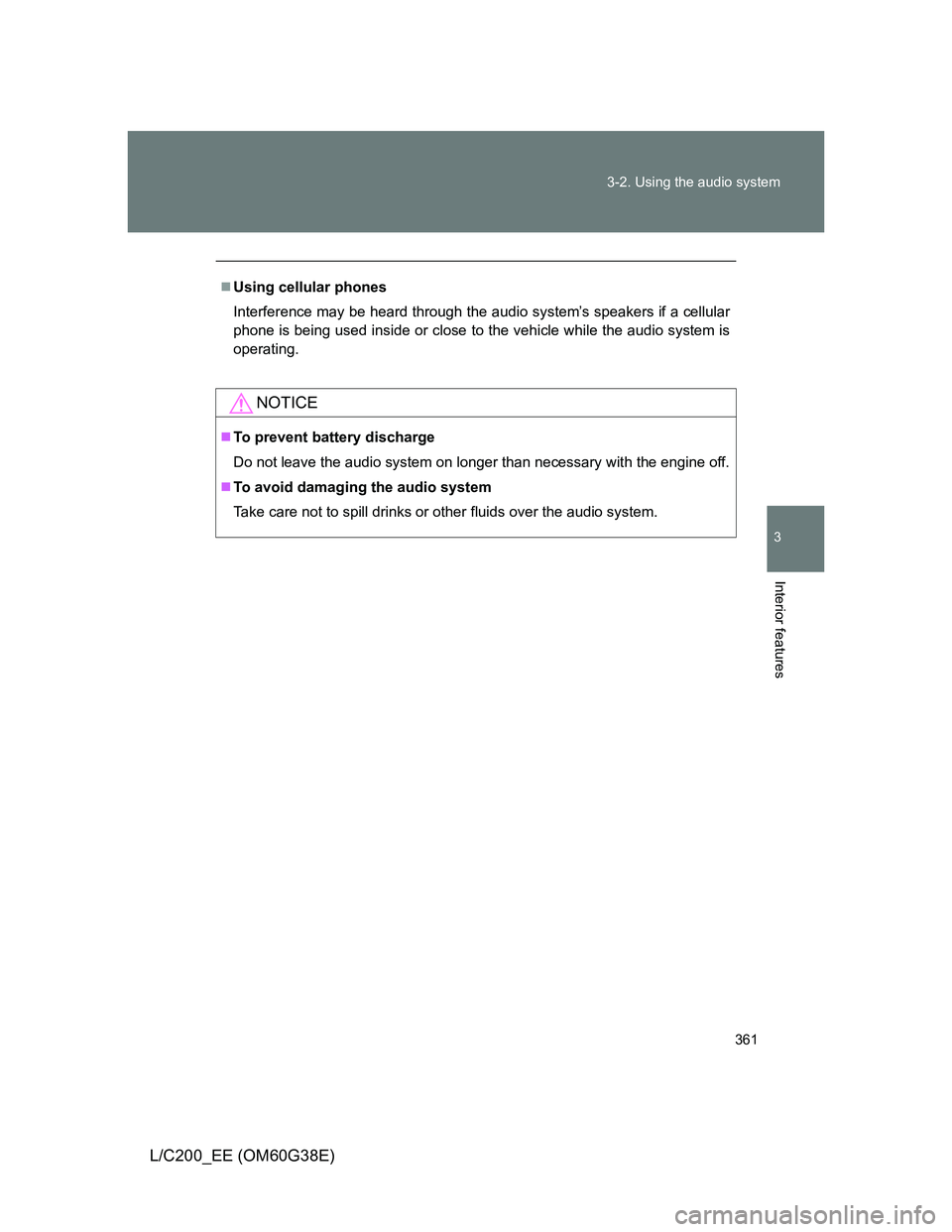

Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

362
3-2. Using the audio system
L/C200_EE (OM60G38E)

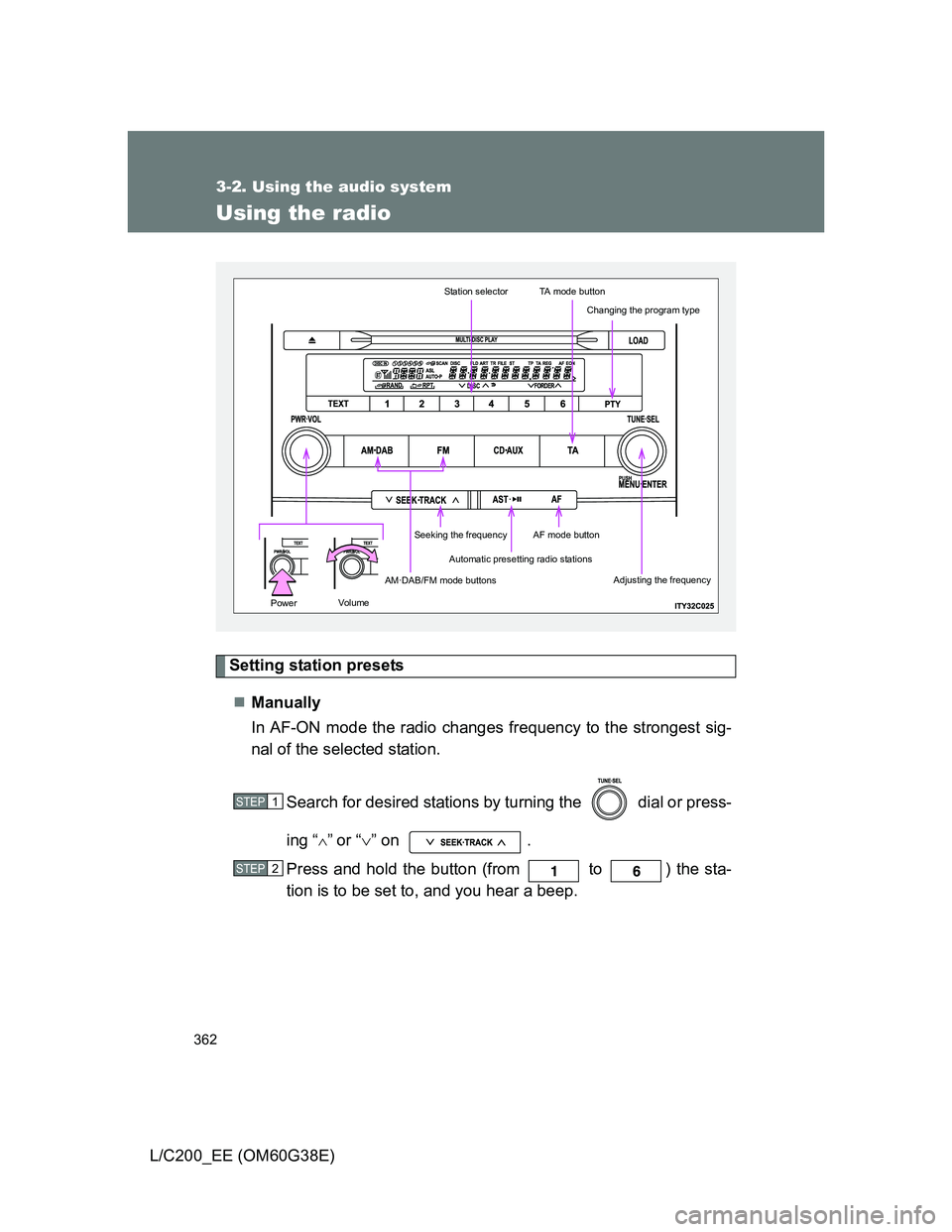

Using the radio
Setting station presets
Manually
In AF-ON mode the radio changes frequency to the strongest sig-
nal of the selected station.
Search for desired stations by turning the dial or press-
ing “
”or “” on .
Press and hold the button (from to ) the sta-
tion is to be set to, and you hear a beep.

Automatic presetting radio stations
Station selectorTA mode button
AM·DAB/FM mode buttons
Seeking the frequencyAF mode button
Changing the program type
Adjusting the frequency
Volu mePower
STEP1
STEP2

363 3-2. Using the audio system
3
Interior features

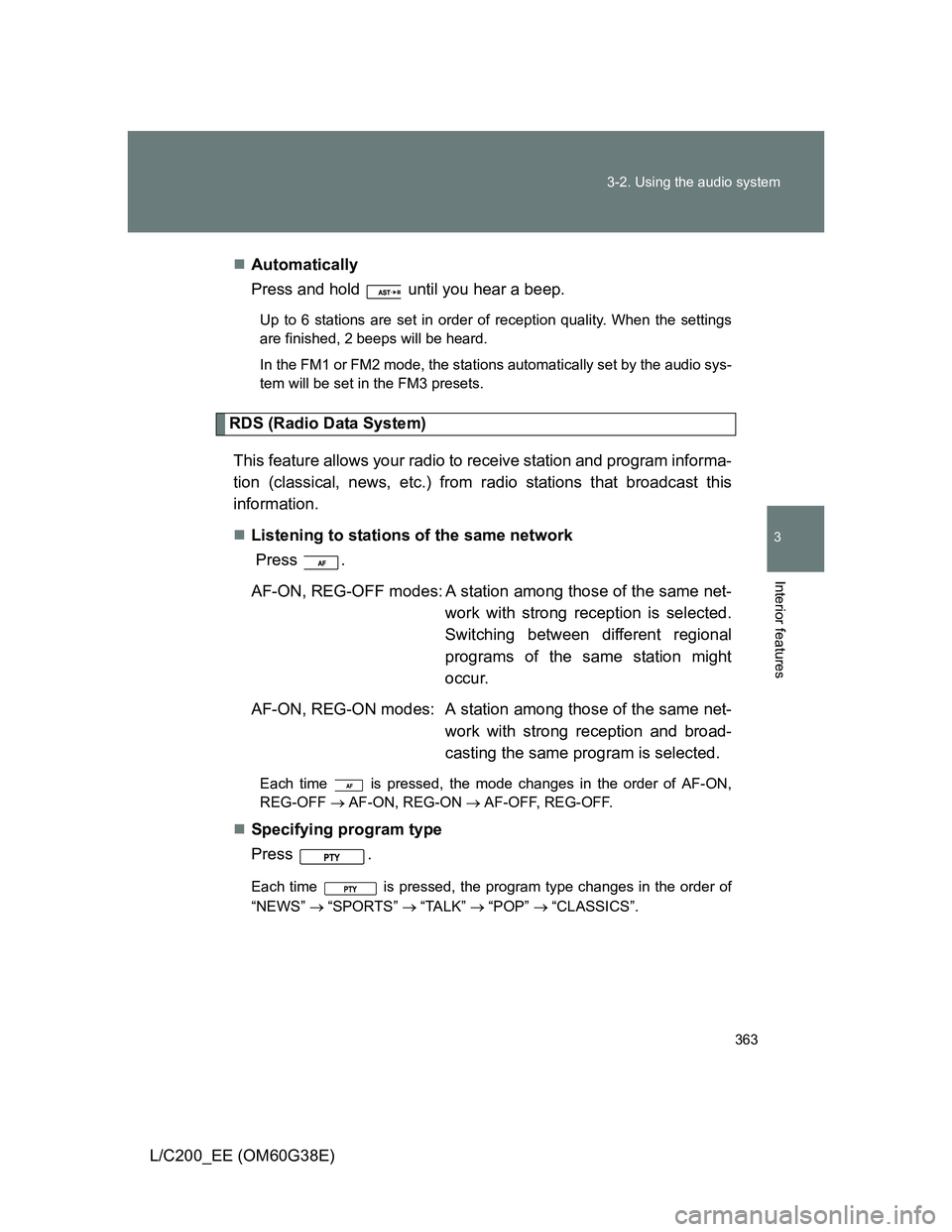

L/C200_EE (OM60G38E)Automatically
Press and hold until you hear a beep.
Up to 6 stations are set in order of reception quality. When the settings
are finished, 2 beeps will be heard.
In the FM1 or FM2 mode, the stations automatically set by the audio sys-
tem will be set in the FM3 presets.
RDS (Radio Data System)
This feature allows your radio to receive station and program informa-
tion (classical, news, etc.) from radio stations that broadcast this
information.
Listening to stations of the same network
Press .
AF-ON, REG-OFF modes: A station among those of the same net-
work with strong reception is selected.
Switching between different regional
programs of the same station might
occur.
AF-ON, REG-ON modes: A station among those of the same net-
work with strong reception and broad-
casting the same program is selected.
Each time is pressed, the mode changes in the order of AF-ON,
REG-OFF AF-ON, REG-ON AF-OFF, REG-OFF.
Specifying program type
Press .
Each time is pressed, the program type changes in the order of
“NEWS” “SPORTS” “TALK” “POP” “CLASSICS”.

364 3-2. Using the audio system

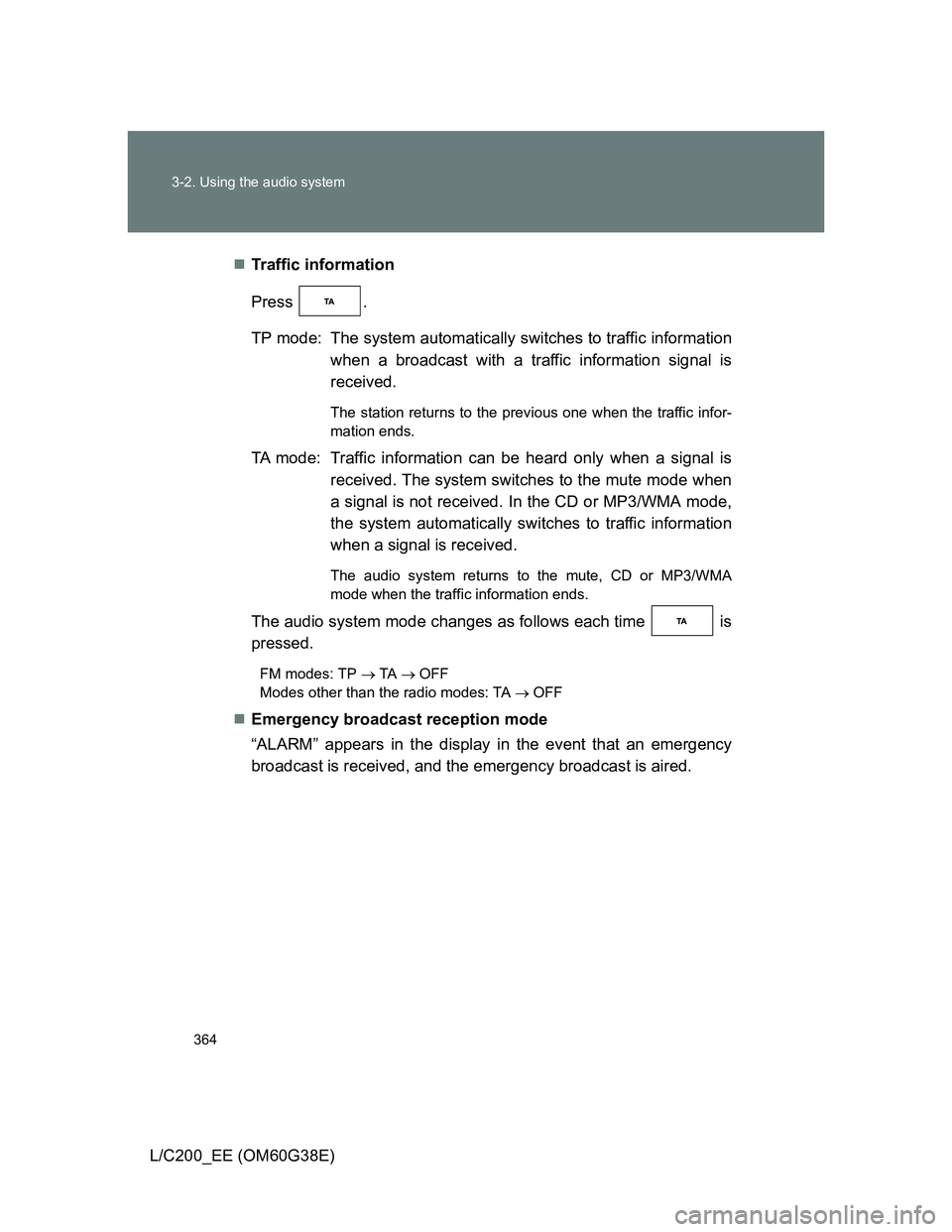

L/C200_EE (OM60G38E)Traffic information
Press .
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In the CD or MP3/WMA mode,
the system automatically switches to traffic information
when a signal is received.
The audio system returns to the mute, CD or MP3/WMA
mode when the traffic information ends.
The audio system mode changes as follows each time is
pressed.
FM modes: TP TA OFF
Modes other than the radio modes: TA OFF
Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

365 3-2. Using the audio system
3
Interior features
L/C200_EE (OM60G38E)

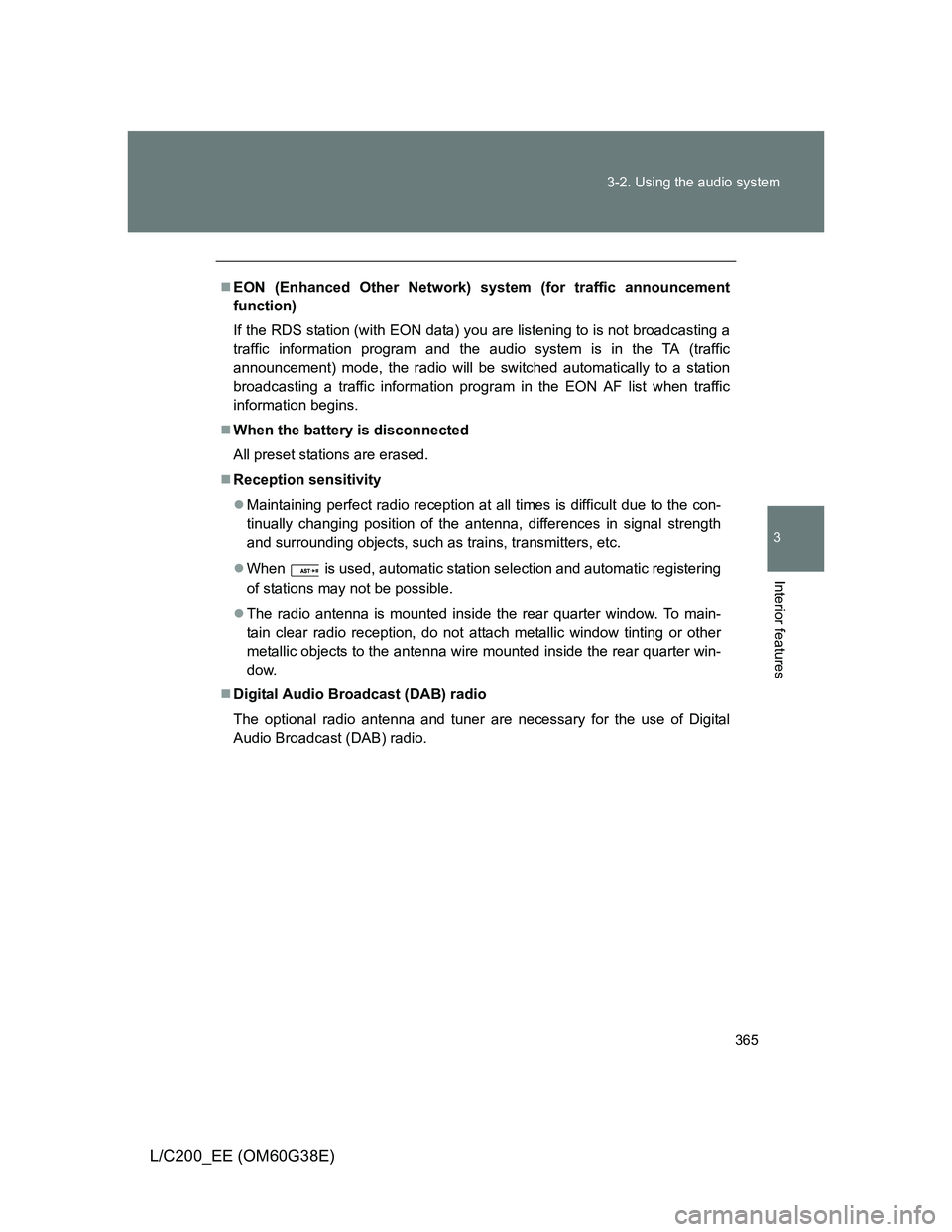

EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
All preset stations are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
When is used, automatic station selection and automatic registering
of stations may not be possible.
The radio antenna is mounted inside the rear quarter window. To main-
tain clear radio reception, do not attach metallic window tinting or other
metallic objects to the antenna wire mounted inside the rear quarter win-
dow.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.

366
3-2. Using the audio system
L/C200_EE (OM60G38E)

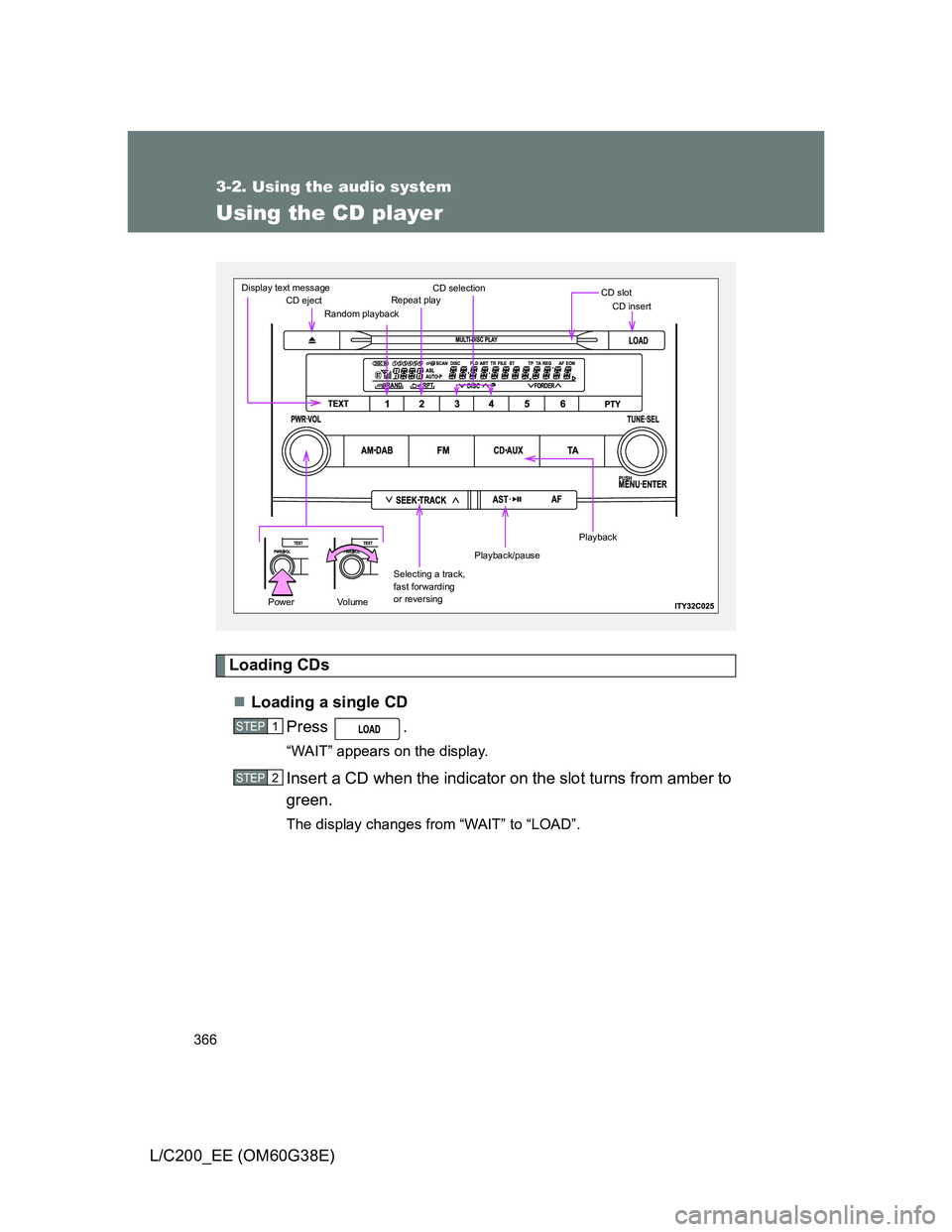

Using the CD player
Loading CDs
Loading a single CD
Press .
“WAIT” appears on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.

CD ejectRandom playbackRepeat playCD selectionCD slotCD insert
Selecting a track,
fast forwarding
or reversing
Playback/pause
Display text message
PowerVo l u m e
Playback
STEP1
STEP2

367 3-2. Using the audio system
3
Interior features

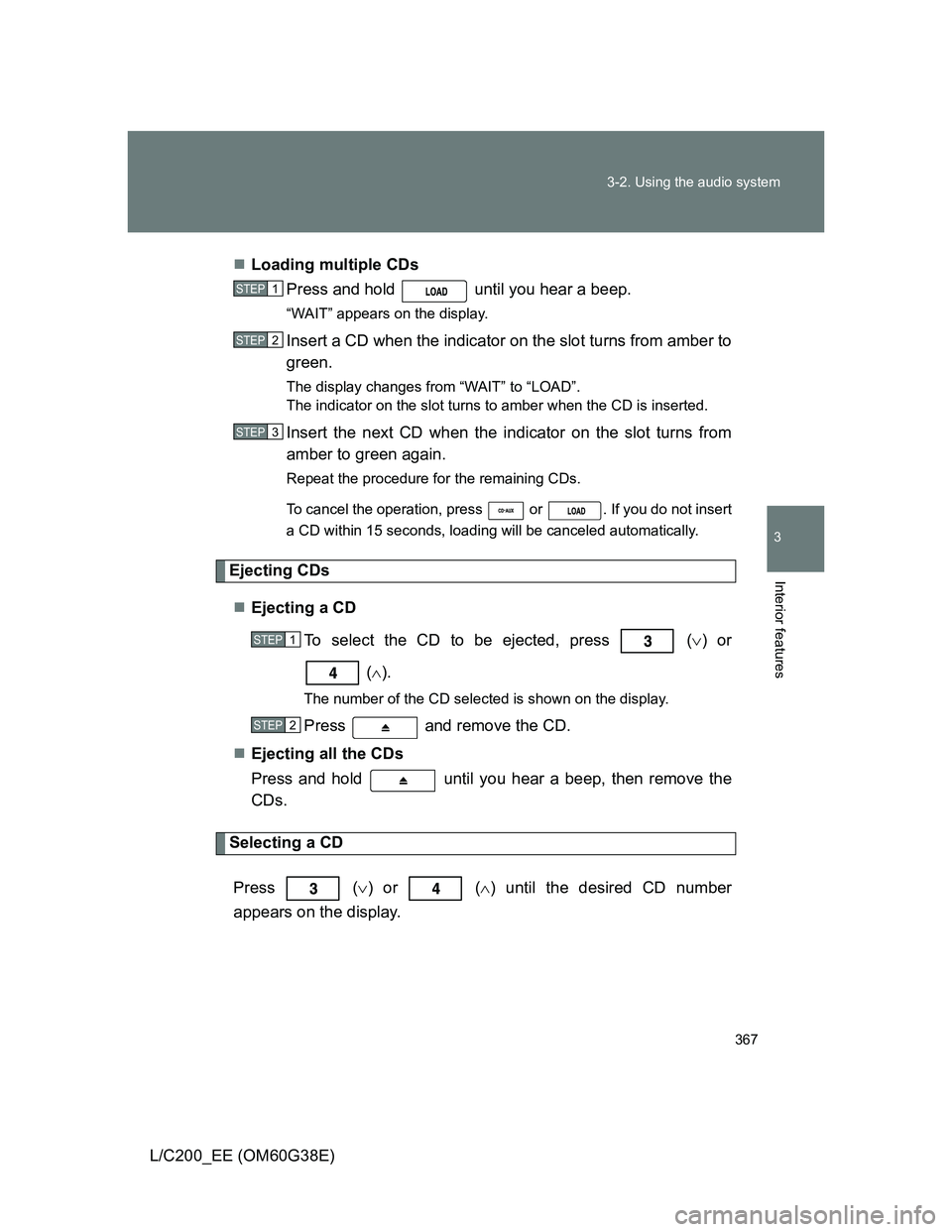

L/C200_EE (OM60G38E)Loading multiple CDs
Press and hold until you hear a beep.
“WAIT” appears on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press or . If you do not insert
a CD within 15 seconds, loading will be canceled automatically.
Ejecting CDs
Ejecting a CD
To select the CD to be ejected, press
() or
().
The number of the CD selected is shown on the display.
Press and remove the CD.
Ejecting all the CDs
Press and hold until you hear a beep, then remove the
CDs.
Selecting a CD
Press
() or () until the desired CD number
appears on the display.
STEP1
STEP2
STEP3
STEP1
STEP2

368 3-2. Using the audio system
L/C200_EE (OM60G38E)

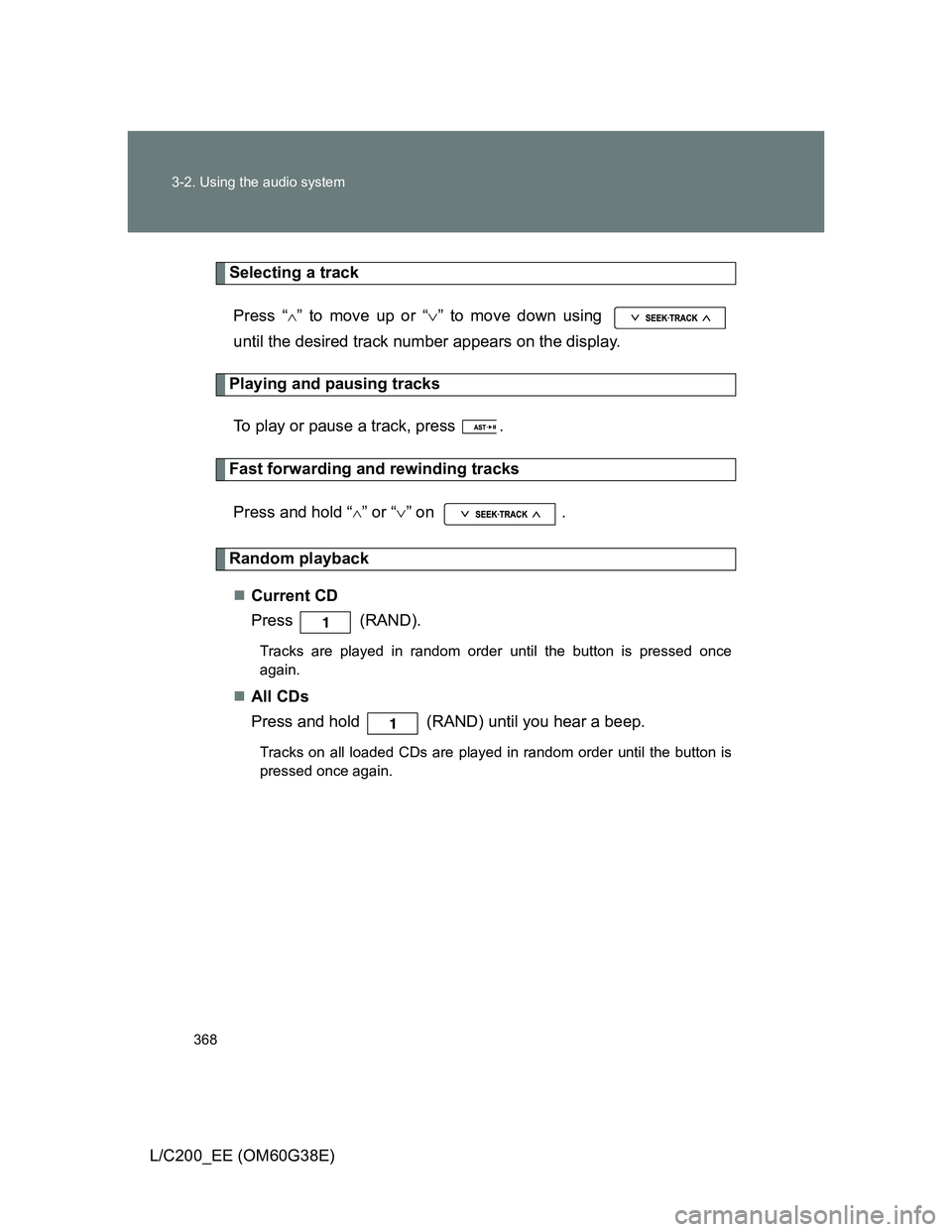

Selecting a track
Press “
” to move up or “” to move down using
until the desired track number appears on the display.
Playing and pausing tracks
To play or pause a track, press .
Fast forwarding and rewinding tracks
Press and hold “
” or “” on .
Random playback
Current CD
Press (RAND).
Tracks are played in random order until the button is pressed once
again.
All CDs
Press and hold (RAND) until you hear a beep.
Tracks on all loaded CDs are played in random order until the button is
pressed once again.

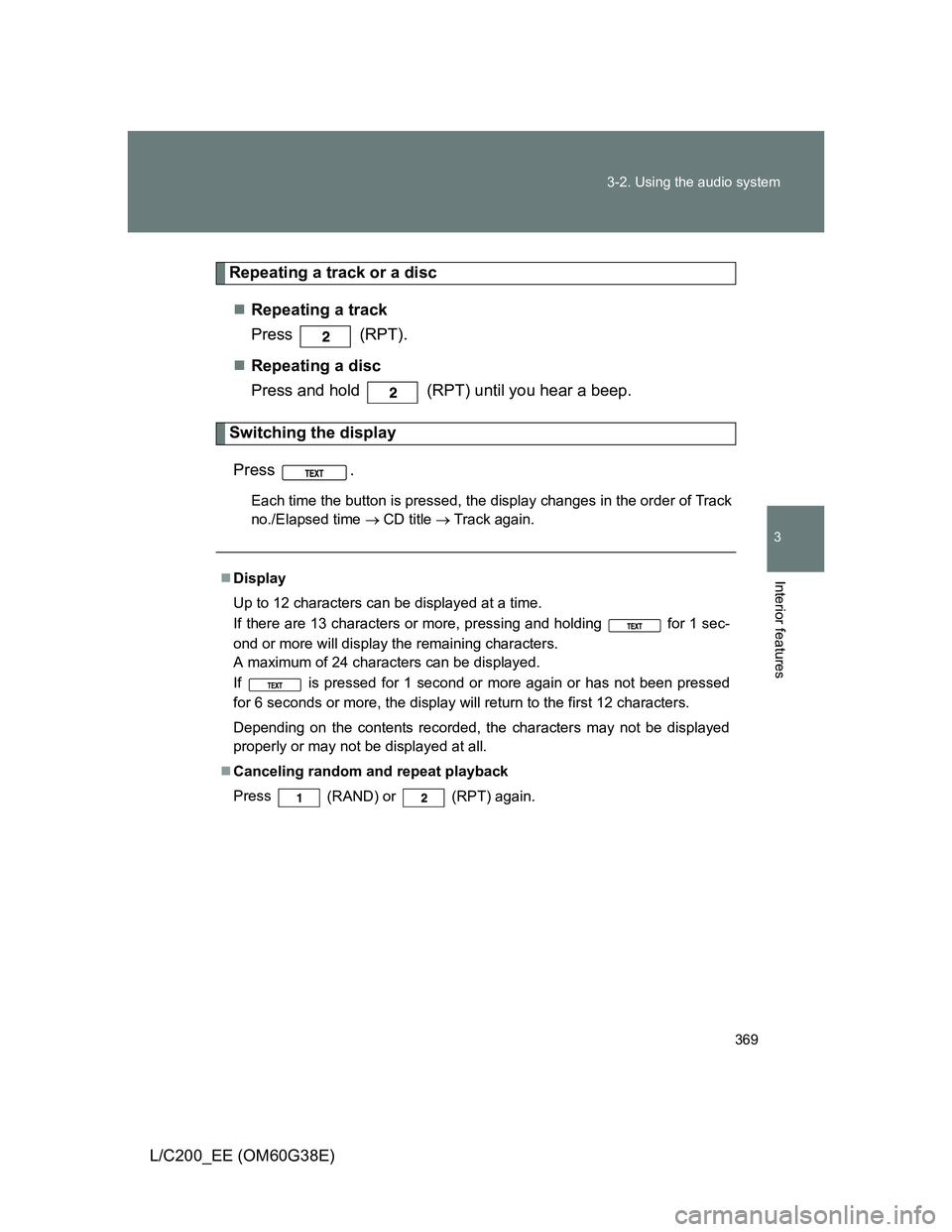

369 3-2. Using the audio system
3
Interior features
L/C200_EE (OM60G38E)
Repeating a track or a disc
Repeating a track
Press (RPT).
Repeating a disc
Press and hold (RPT) until you hear a beep.
Switching the display
Press .
Each time the button is pressed, the display changes in the order of Track
no./Elapsed time CD title Track again.
Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 sec-
ond or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed
for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Canceling random and repeat playback
Press
(RAND) or (RPT) again.

370 3-2. Using the audio system
L/C200_EE (OM60G38E)

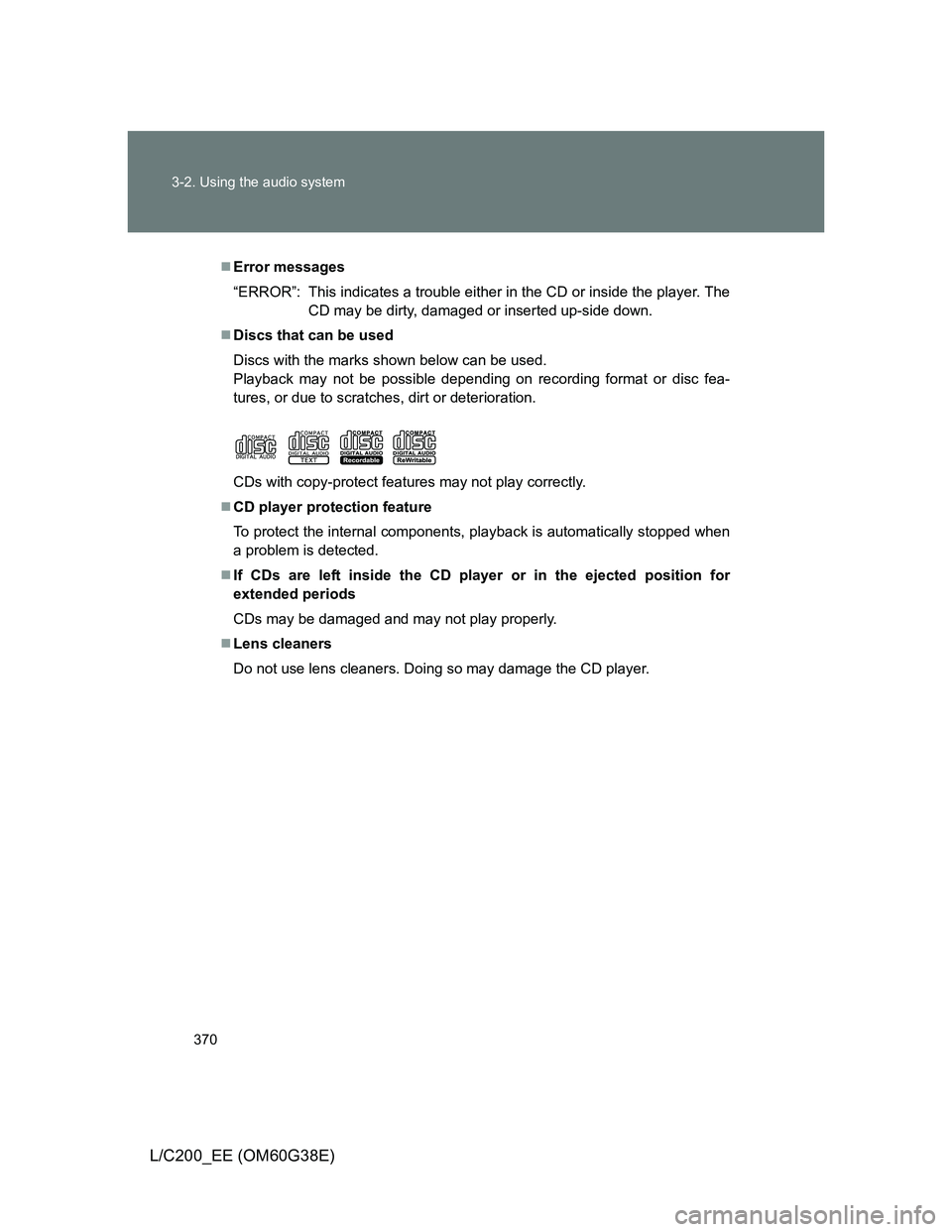

Error messages
“ERROR”: This indicates a trouble either in the CD or inside the player. The
CD may be dirty, damaged or inserted up-side down.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
