TOYOTA LAND CRUISER 2012 Owners Manual

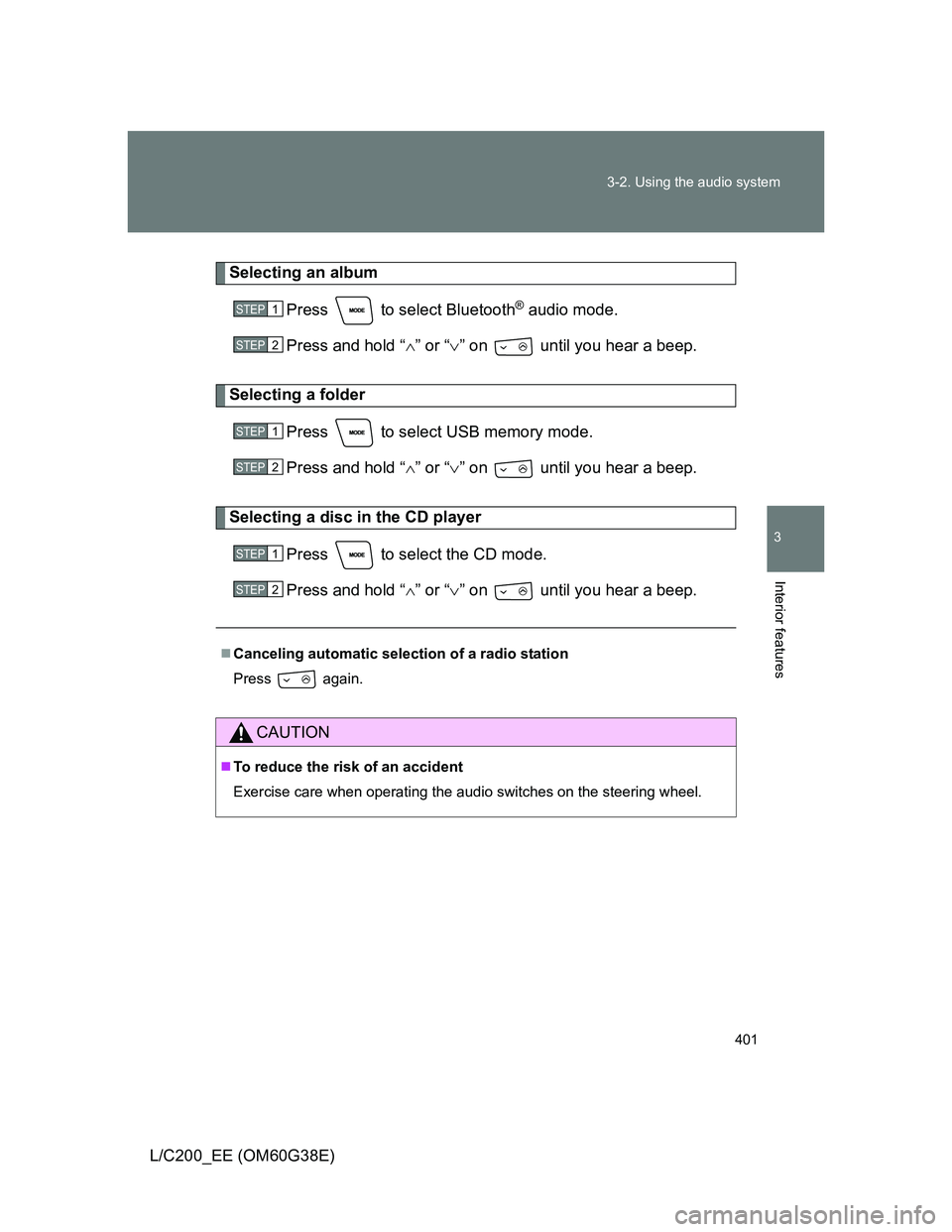

401 3-2. Using the audio system
3
Interior features
L/C200_EE (OM60G38E)
Selecting an album
Press to select Bluetooth
® audio mode.
Press and hold “” or “” on until you hear a beep.
Selecting a folder
Press to select USB memory mode.
Press and hold “” or “” on until you hear a beep.
Selecting a disc in the CD player
Press to select the CD mode.
Press and hold “” or “” on until you hear a beep.
Canceling automatic selection of a radio station
Press again.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

402
L/C200_EE (OM60G38E)

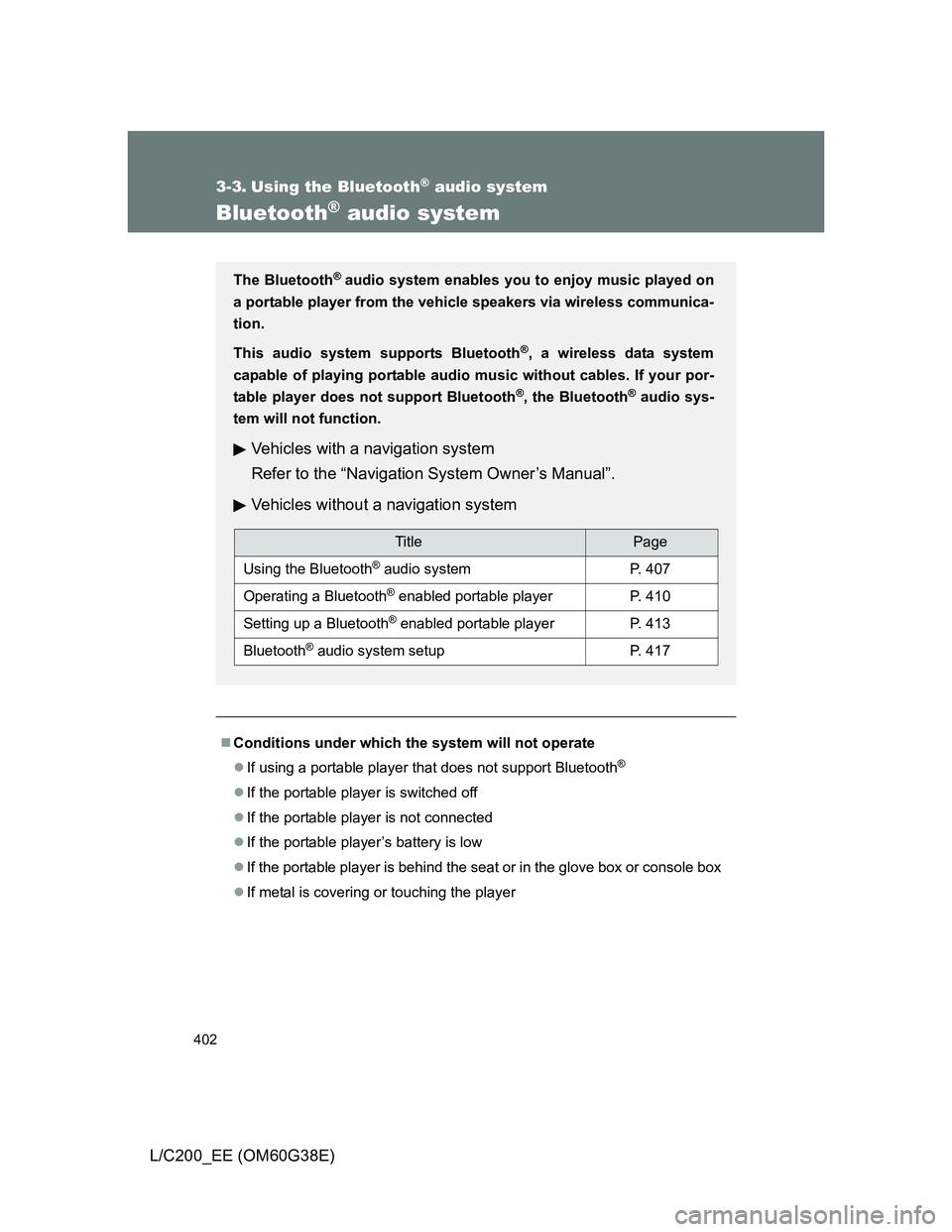

3-3. Using the Bluetooth® audio system
Bluetooth® audio system
Conditions under which the system will not operate
If using a portable player that does not support Bluetooth
®
If the portable player is switched off
If the portable player is not connected
If the portable player’s battery is low
If the portable player is behind the seat or in the glove box or console box
If metal is covering or touching the player
The Bluetooth® audio system enables you to enjoy music played on
a portable player from the vehicle speakers via wireless communica-
tion.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
TitlePage
Using the Bluetooth® audio systemP. 407
Operating a Bluetooth® enabled portable playerP. 410
Setting up a Bluetooth® enabled portable playerP. 413
Bluetooth® audio system setupP. 417

403 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

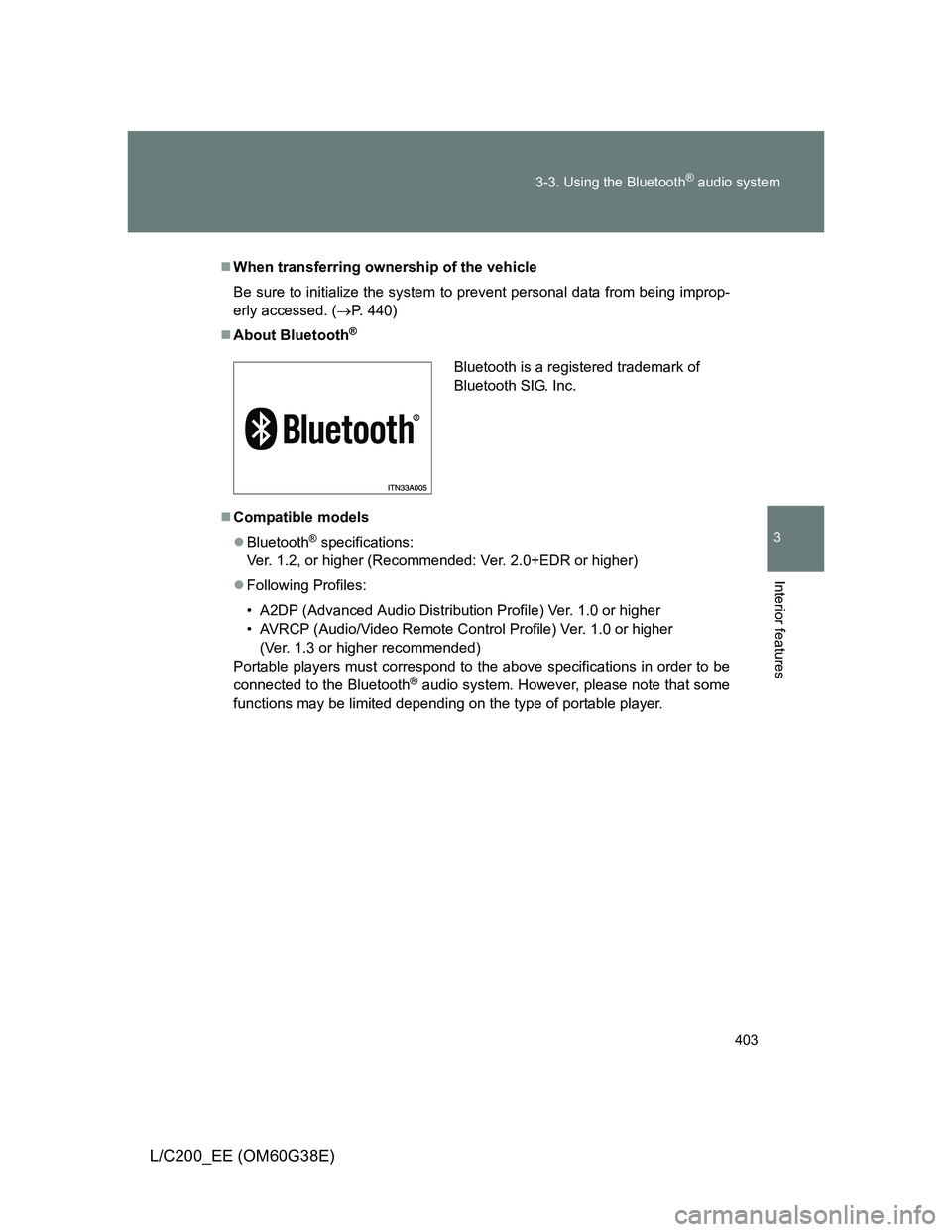

When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. (P. 440)
About Bluetooth
®
Compatible models
Bluetooth
® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Ver. 1.3 or higher recommended)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

404 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)

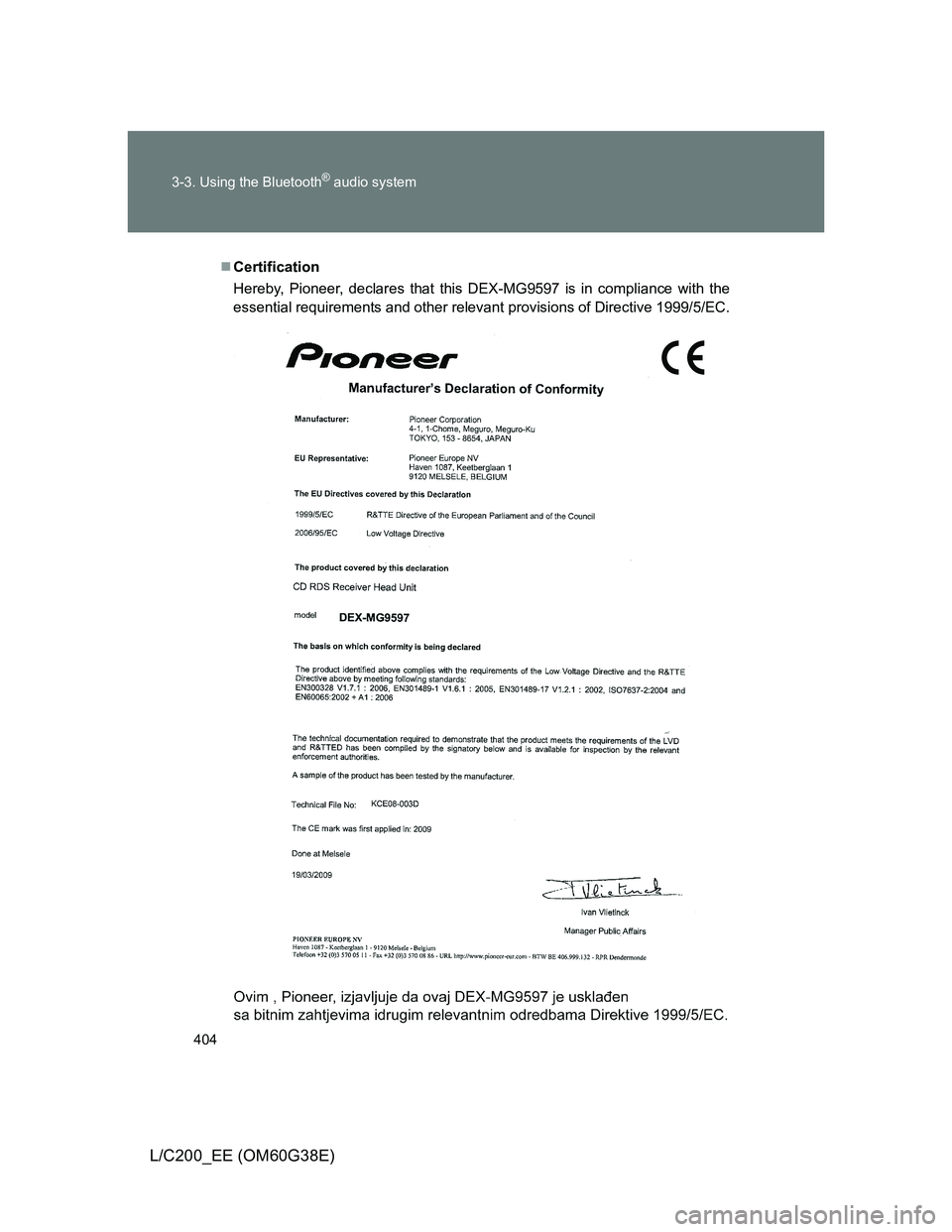

Certification
Hereby, Pioneer, declares that this DEX-MG9597 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.

405 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

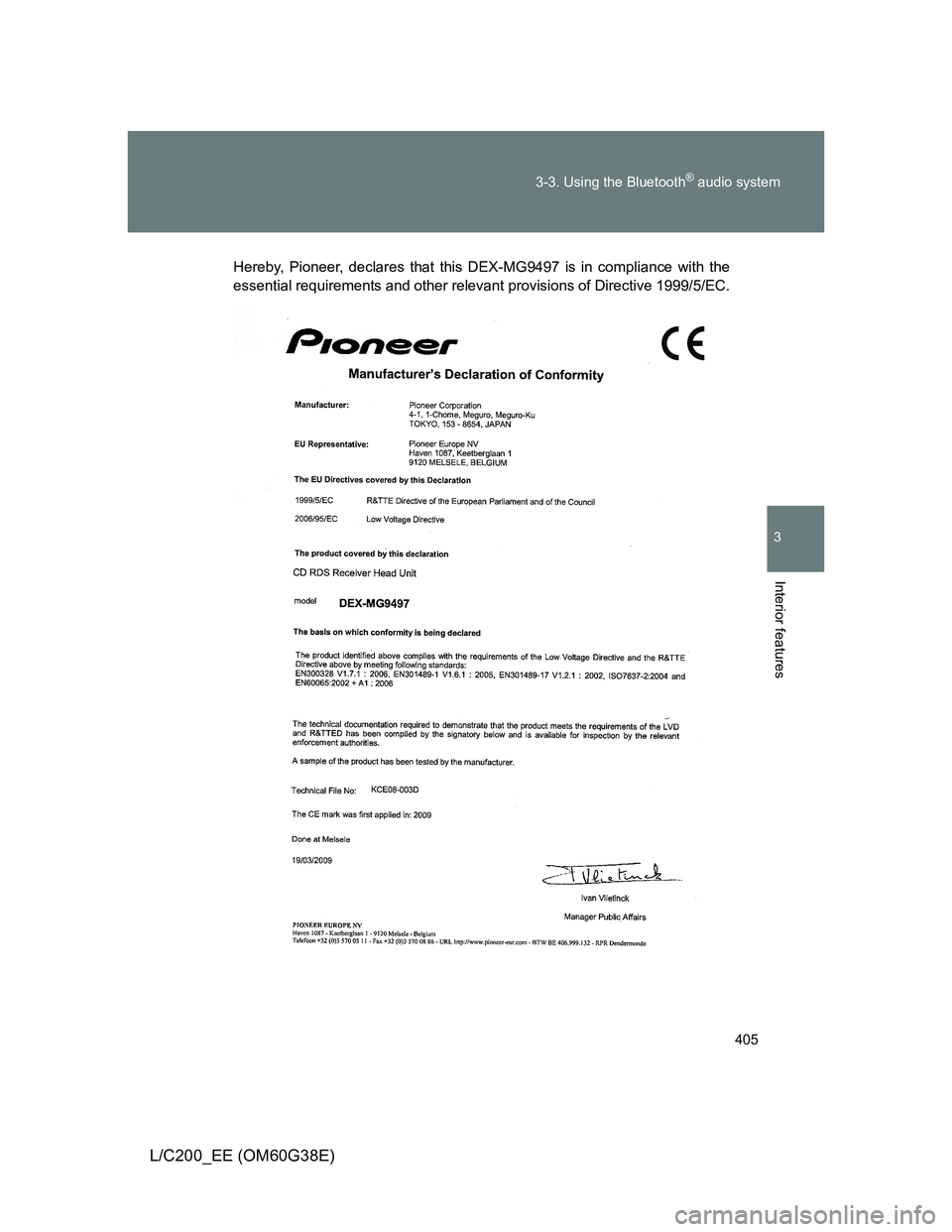

Hereby, Pioneer, declares that this DEX-MG9497 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.

406 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)

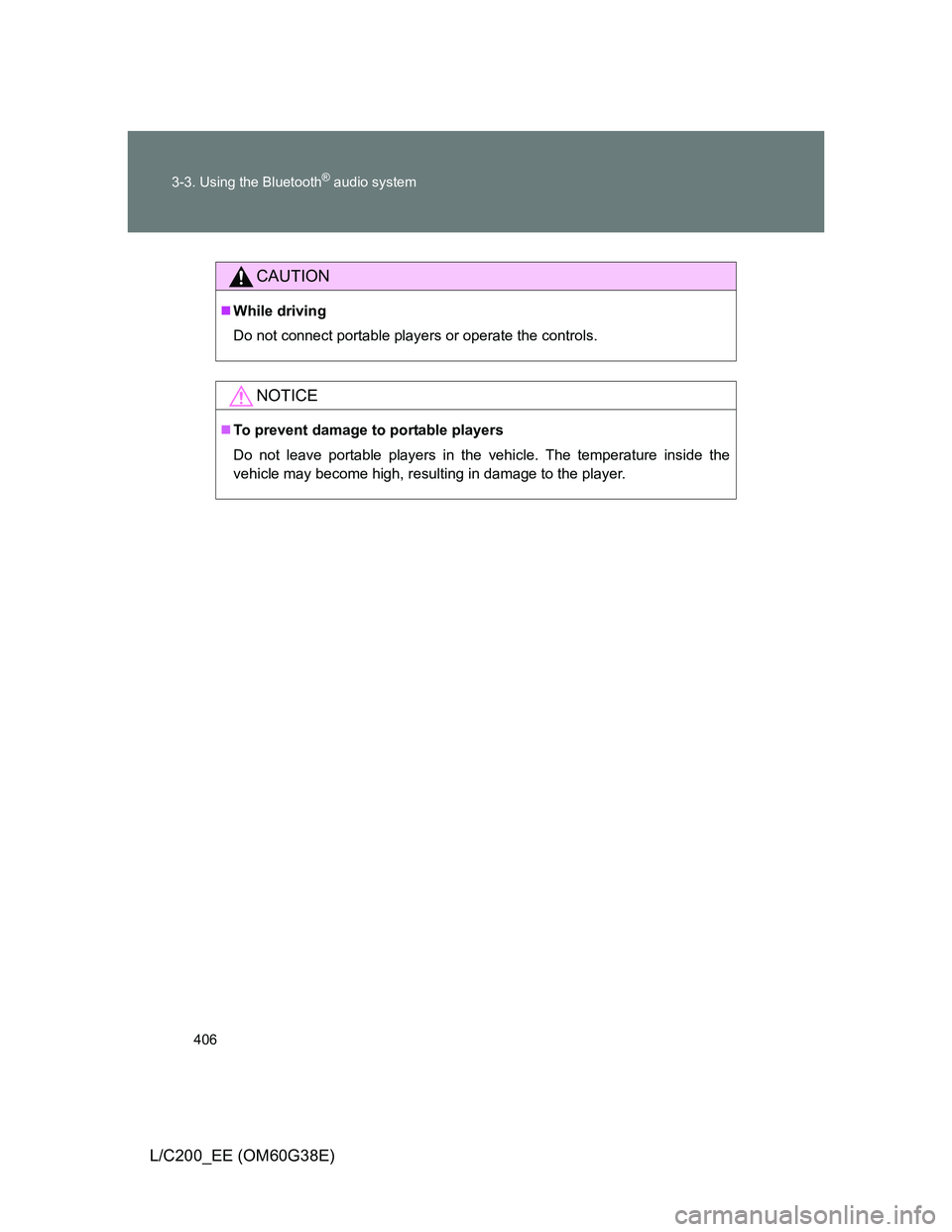

CAUTION
While driving
Do not connect portable players or operate the controls.
NOTICE
To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.

407
3-3. Using the Bluetooth® audio system
3
Interior features
L/C200_EE (OM60G38E)

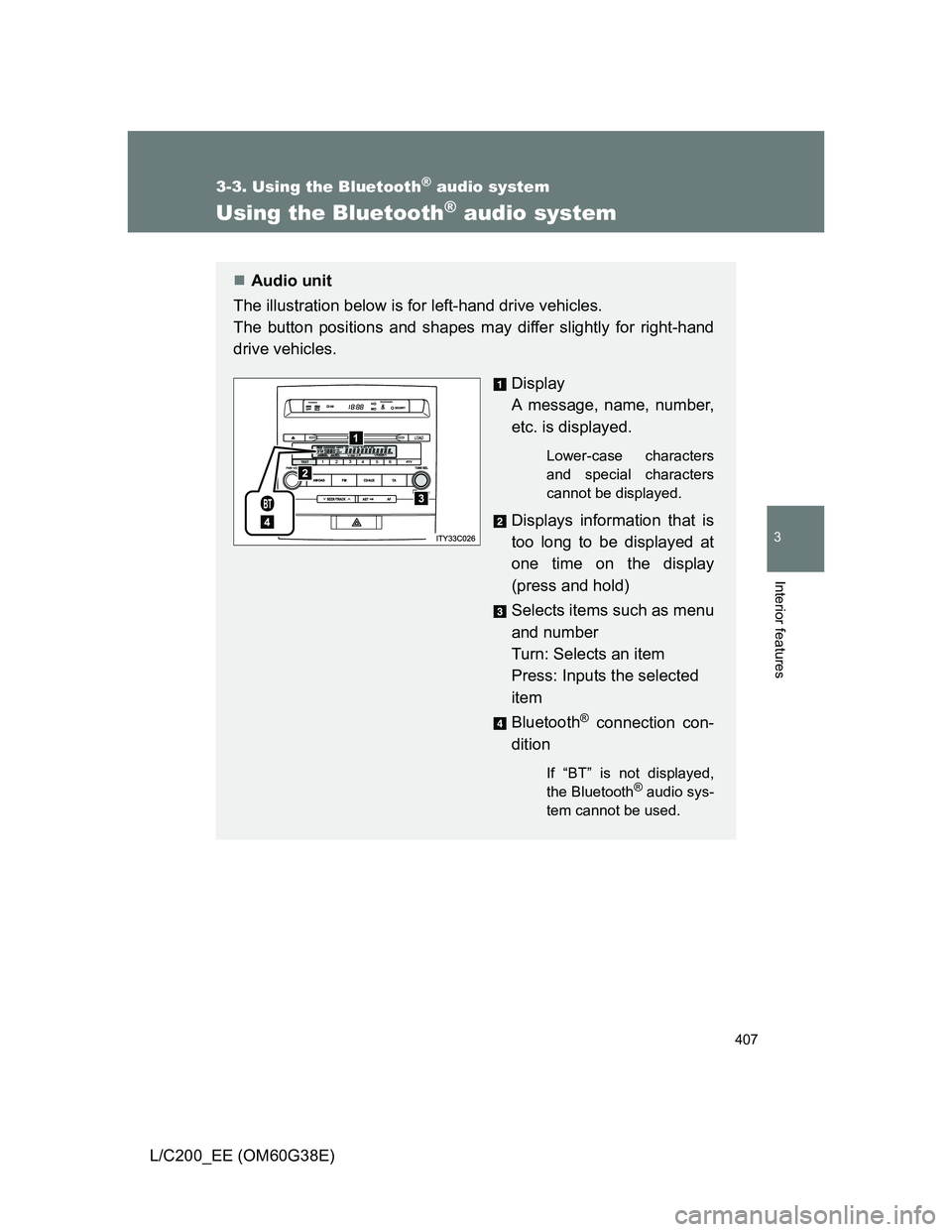

Using the Bluetooth® audio system
Audio unit
The illustration below is for left-hand drive vehicles.
The button positions and shapes may differ slightly for right-hand
drive vehicles.
Display
A message, name, number,
etc. is displayed.
Lower-case characters
and special characters
cannot be displayed.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed,
the Bluetooth® audio sys-
tem cannot be used.

408 3-3. Using the Bluetooth
® audio system
L/C200_EE (OM60G38E)

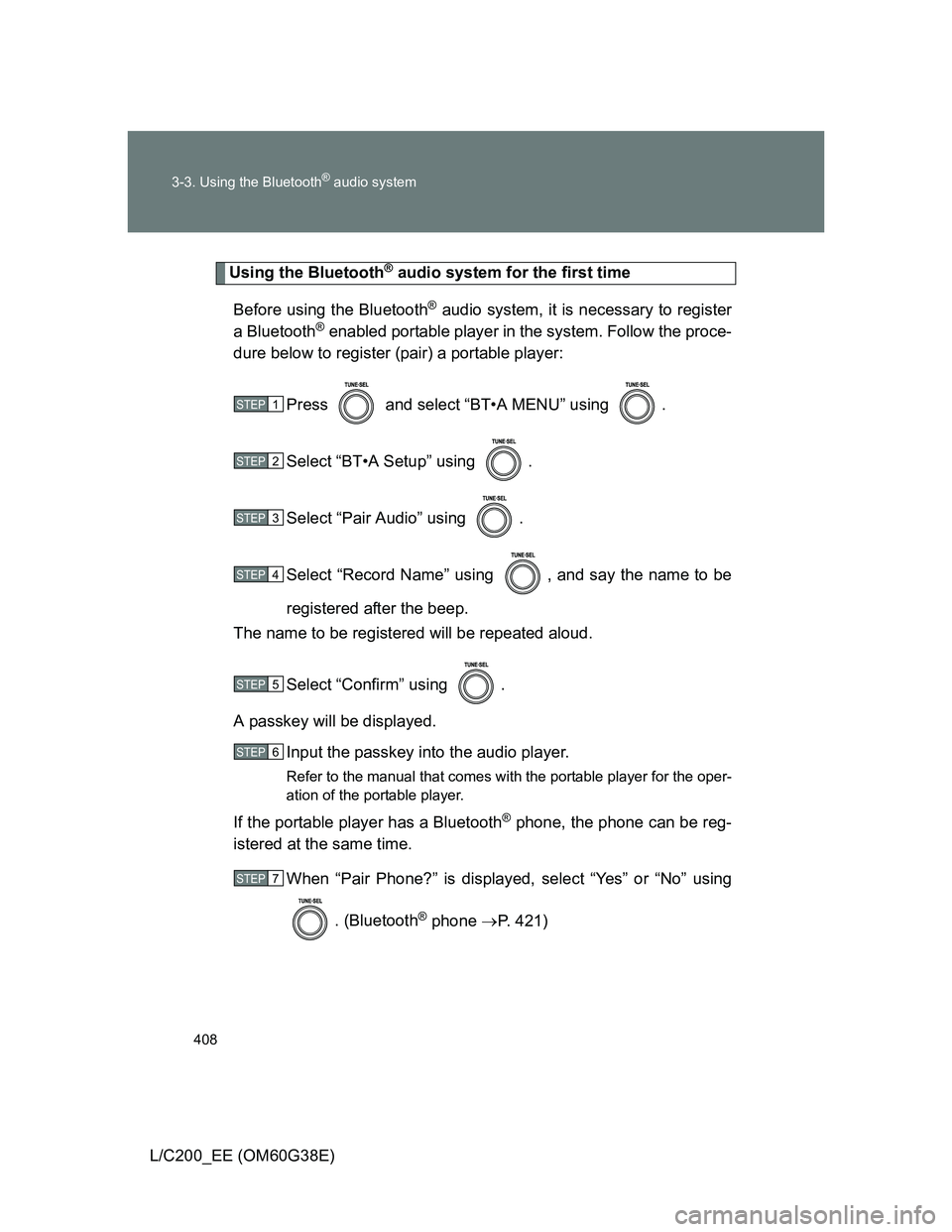

Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register
a Bluetooth
® enabled portable player in the system. Follow the proce-
dure below to register (pair) a portable player:
Press and select “BT•A MENU” using .
Select “BT•A Setup” using .
Select “Pair Audio” using .
Select “Record Name” using , and say the name to be
registered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the audio player.
Refer to the manual that comes with the portable player for the oper-
ation of the portable player.
If the portable player has a Bluetooth® phone, the phone can be reg-
istered at the same time.
When “Pair Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone P. 421)
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7

409 3-3. Using the Bluetooth
® audio system
3
Interior features
L/C200_EE (OM60G38E)

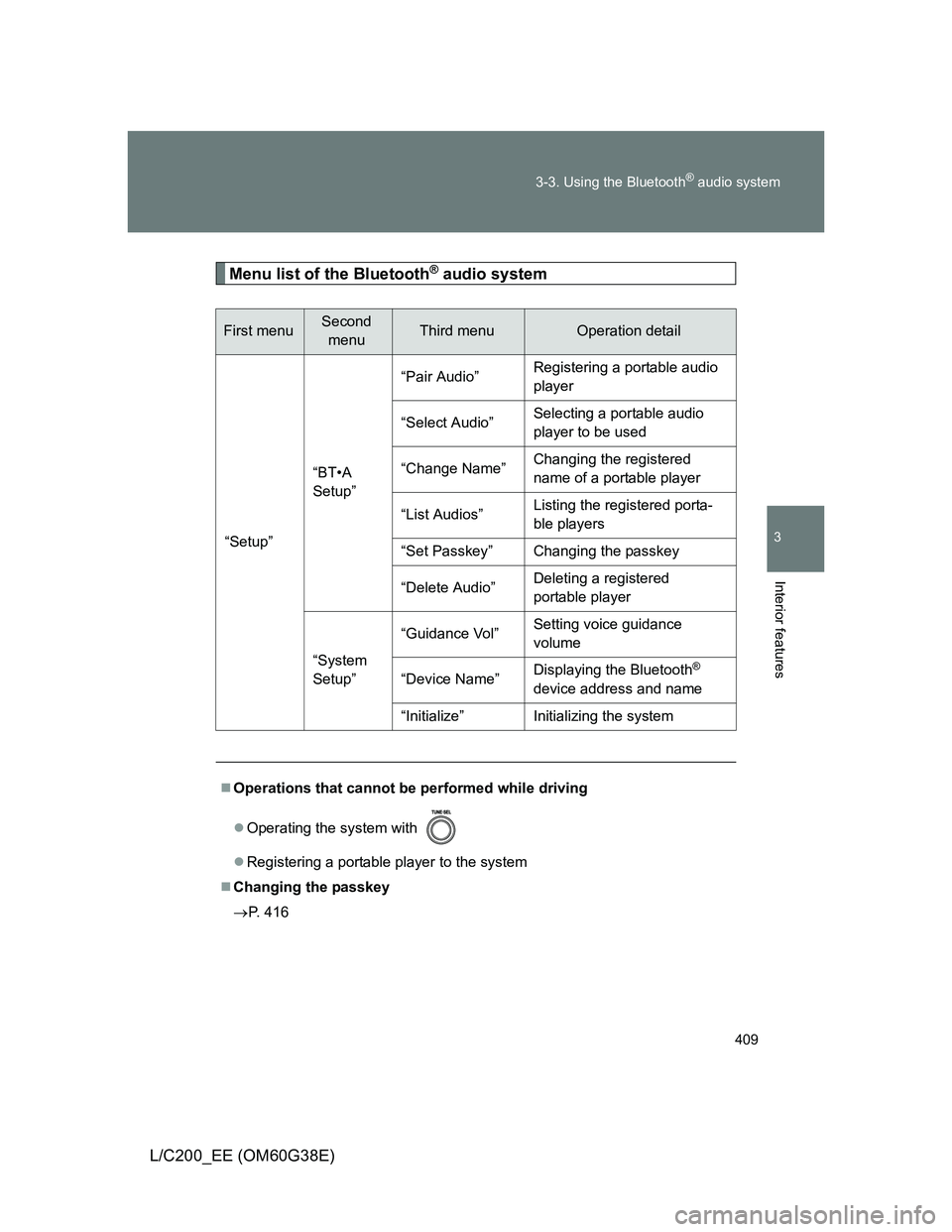

Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”“BT•A
Setup”“Pair Audio”Registering a portable audio
player
“Select Audio”Selecting a portable audio
player to be used
“Change Name”Changing the registered
name of a portable player
“List Audios”Listing the registered porta-
ble players
“Set Passkey” Changing the passkey
“Delete Audio”Deleting a registered
portable player
“System
Setup”“Guidance Vol”Setting voice guidance
volume
“Device Name”Displaying the Bluetooth
®
device address and name
“Initialize” Initializing the system
Operations that cannot be performed while driving
Operating the system with
Registering a portable player to the system
Changing the passkey
P. 416

410
3-3. Using the Bluetooth® audio system
L/C200_EE (OM60G38E)

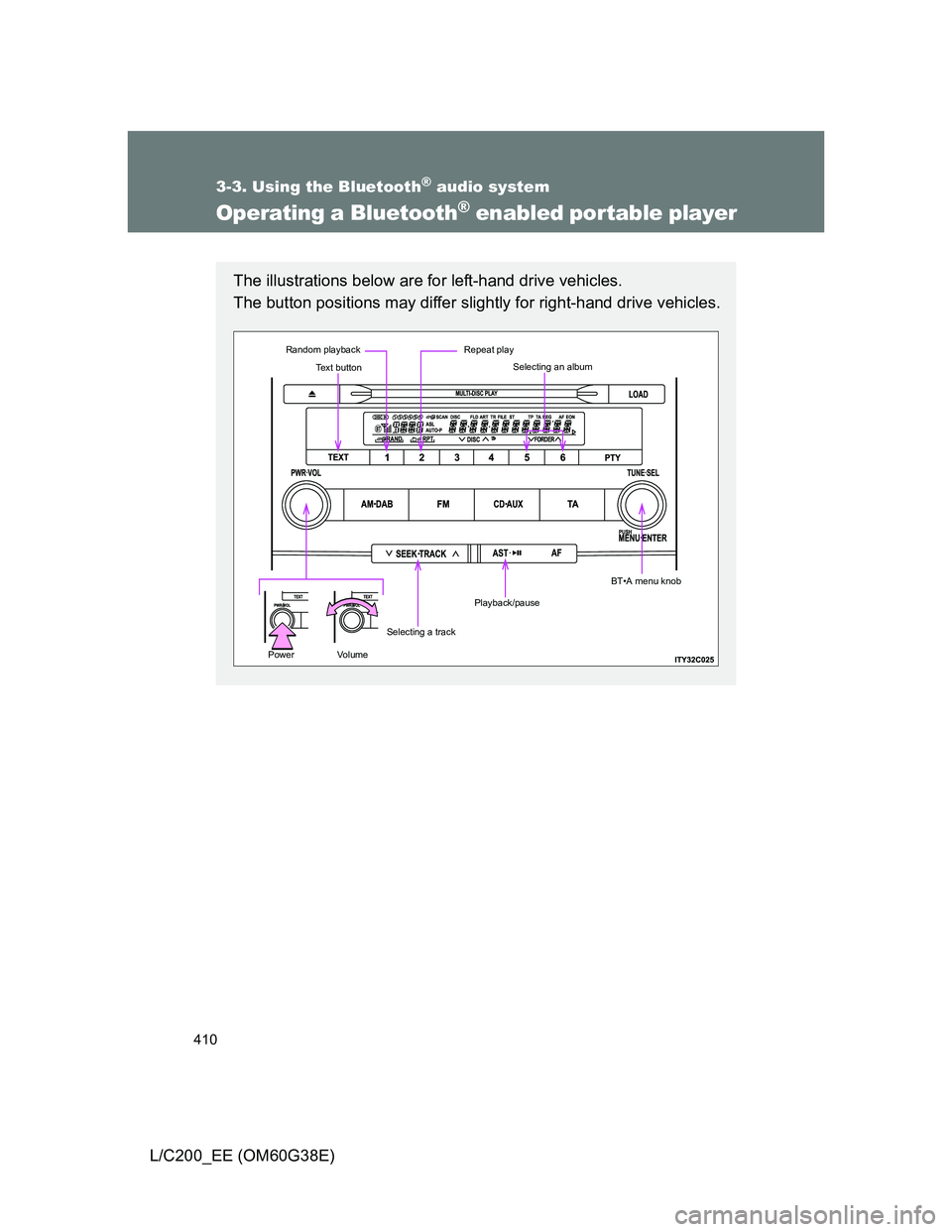

Operating a Bluetooth® enabled por table player
The illustrations below are for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehicles.

Text button
Repeat play
Selecting a track
Playback/pause
Random playback
PowerVo l u m e
Selecting an album
BT•A menu knob
