TOYOTA LAND CRUISER 2012 Owners Manual

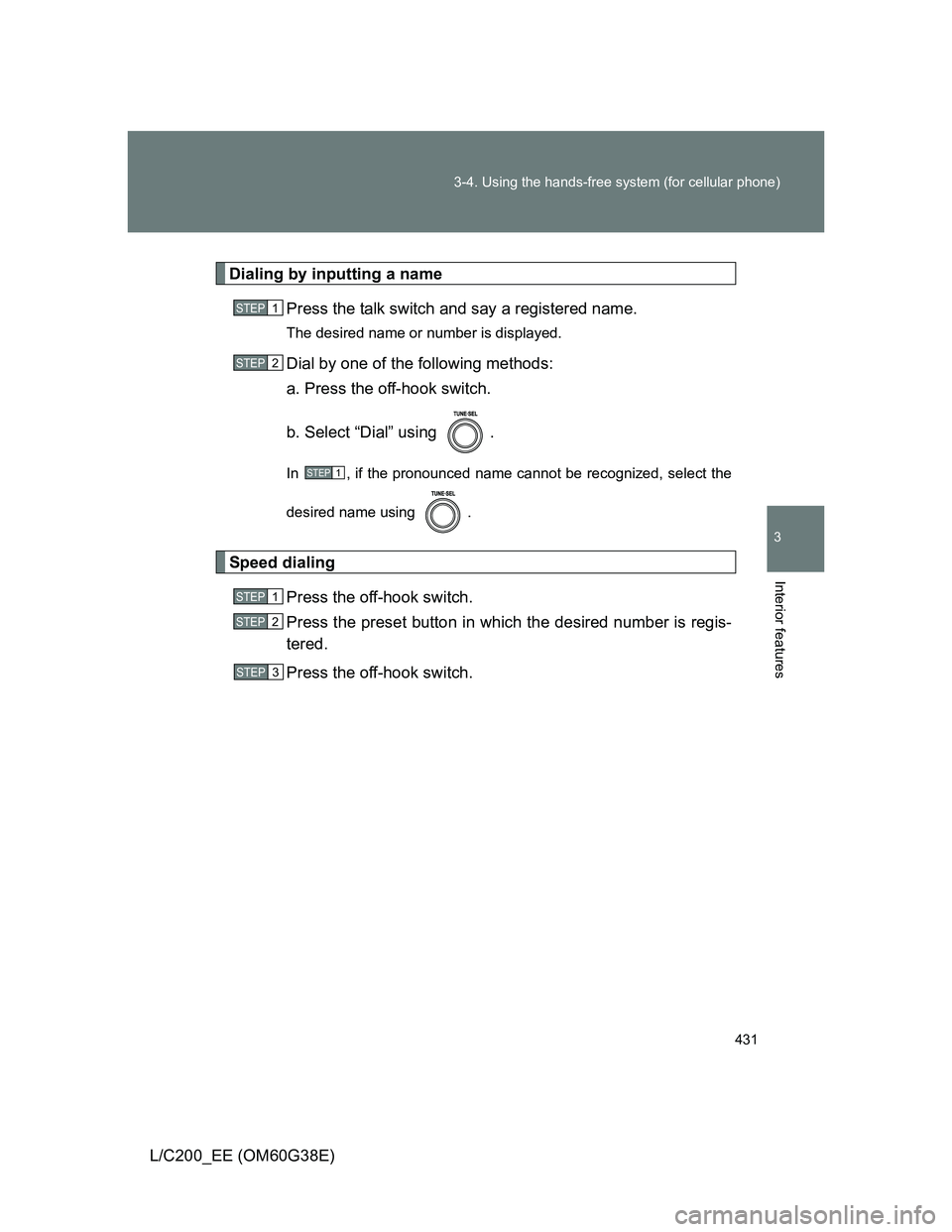

431 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)
Dialing by inputting a name
Press the talk switch and say a registered name.
The desired name or number is displayed.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Select “Dial” using .
In , if the pronounced name cannot be recognized, select the
desired name using .
Speed dialing
Press the off-hook switch.
Press the preset button in which the desired number is regis-
tered.
Press the off-hook switch.
STEP1
STEP2
STEP1
STEP1
STEP2
STEP3

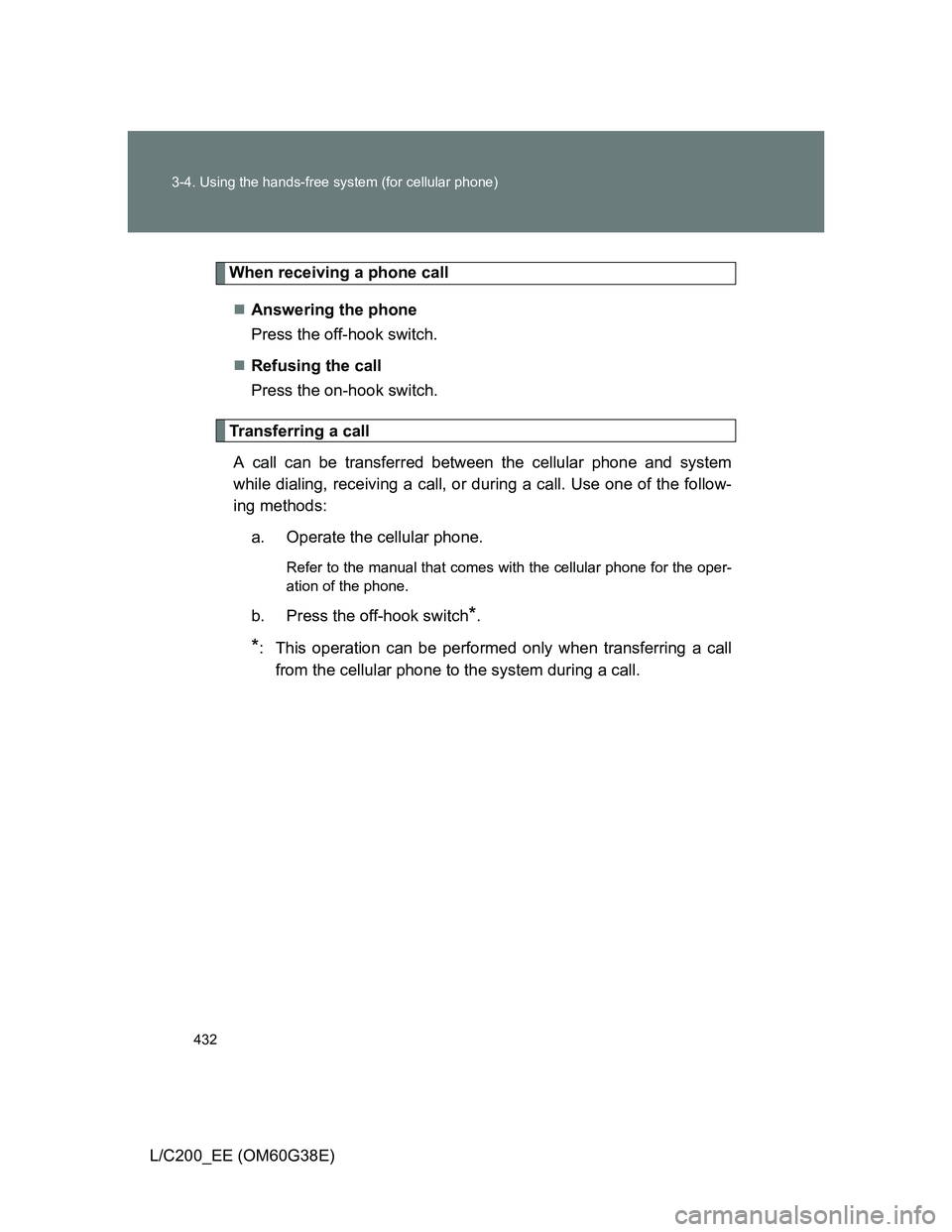

432 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)
When receiving a phone call
Answering the phone
Press the off-hook switch.
Refusing the call
Press the on-hook switch.
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press the off-hook switch*.
*: This operation can be performed only when transferring a call
from the cellular phone to the system during a call.

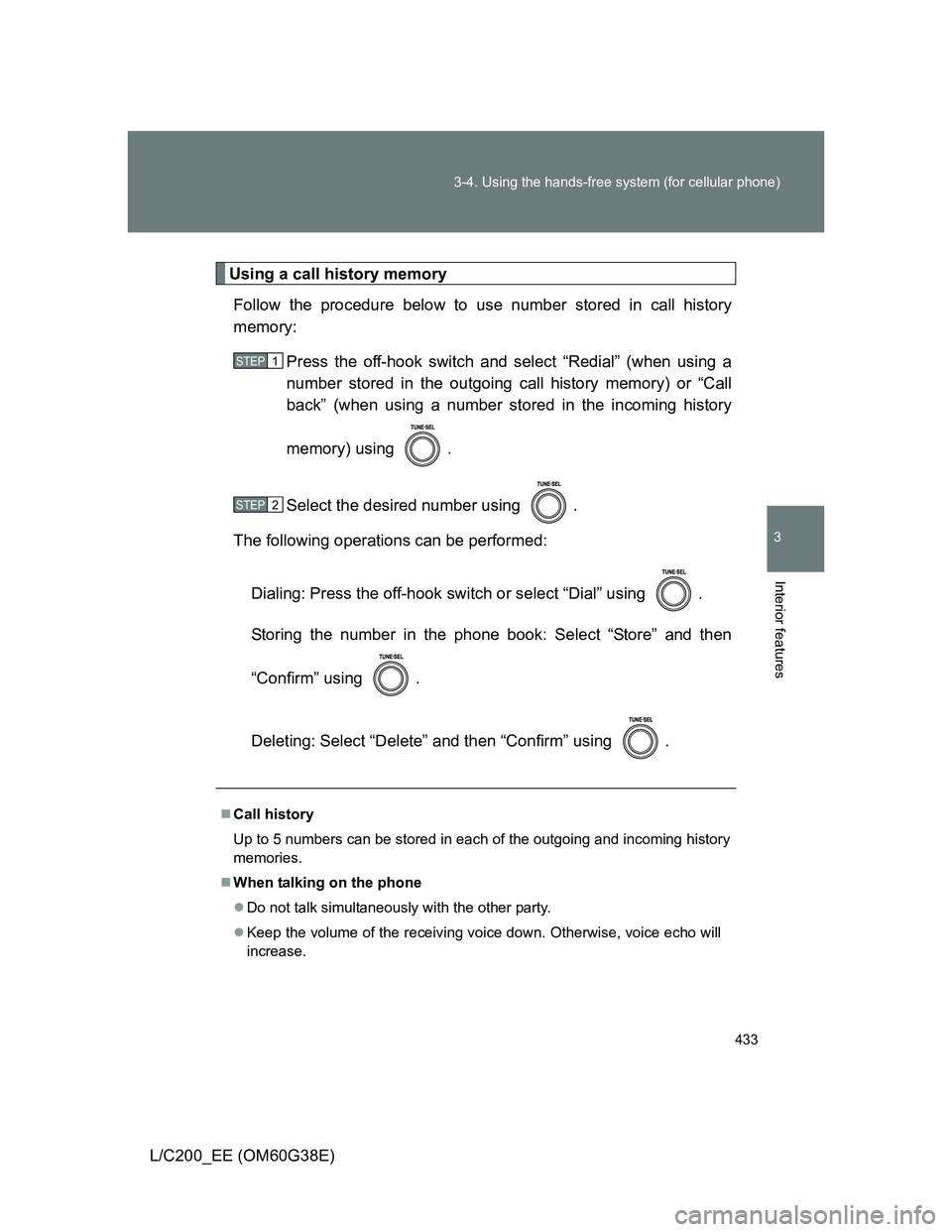

433 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)
Using a call history memory
Follow the procedure below to use number stored in call history
memory:
Press the off-hook switch and select “Redial” (when using a
number stored in the outgoing call history memory) or “Call
back” (when using a number stored in the incoming history
memory) using .
Select the desired number using .
The following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” using .
Storing the number in the phone book: Select “Store” and then
“Confirm” using .
Deleting: Select “Delete” and then “Confirm” using .
Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
When talking on the phone
Do not talk simultaneously with the other party.
Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.
STEP1
STEP2

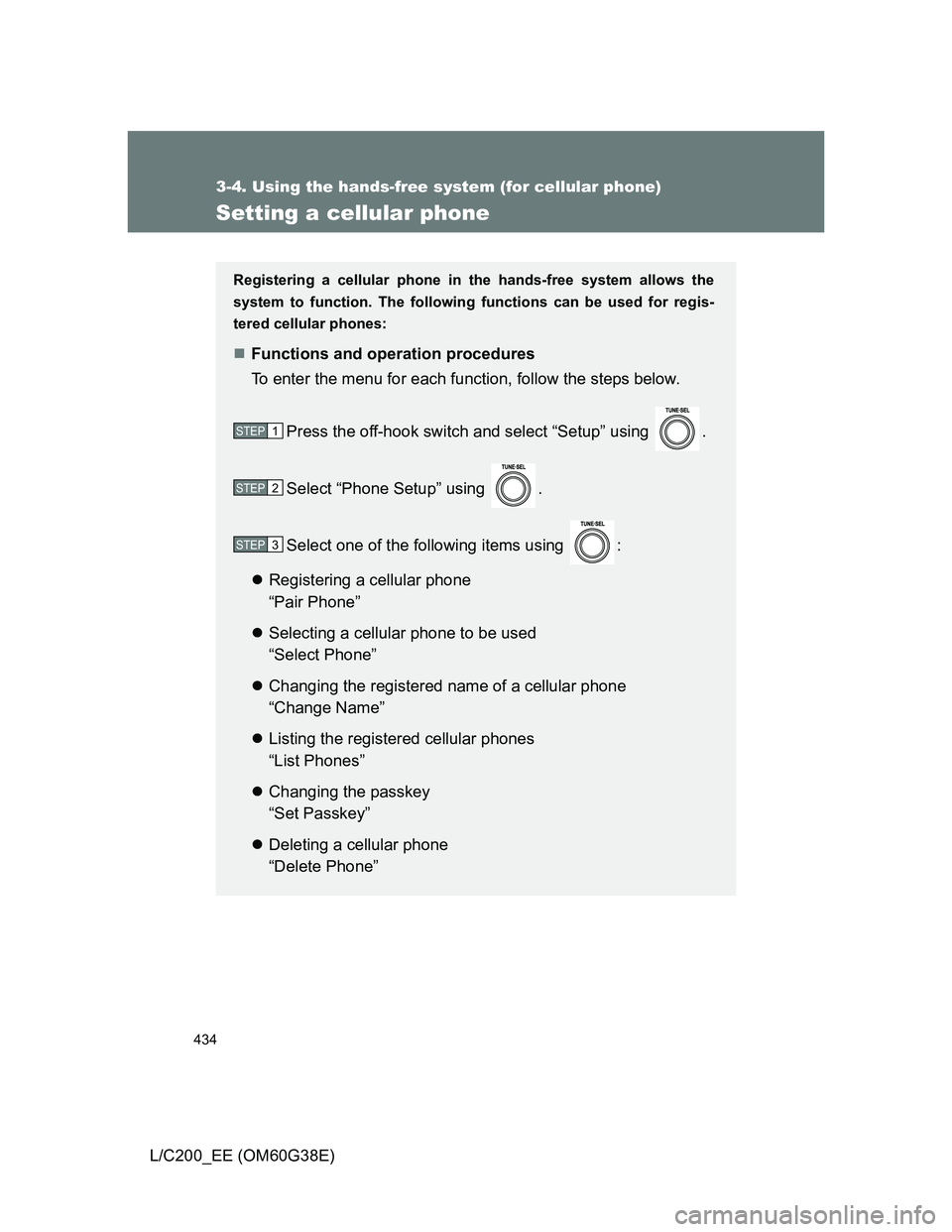

434
3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)
Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following functions can be used for regis-
tered cellular phones:
Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using .
Select “Phone Setup” using .
Select one of the following items using :
Registering a cellular phone
“Pair Phone”
Selecting a cellular phone to be used
“Select Phone”
Changing the registered name of a cellular phone
“Change Name”
Listing the registered cellular phones
“List Phones”
Changing the passkey
“Set Passkey”
Deleting a cellular phone
“Delete Phone”
STEP1
STEP2
STEP3

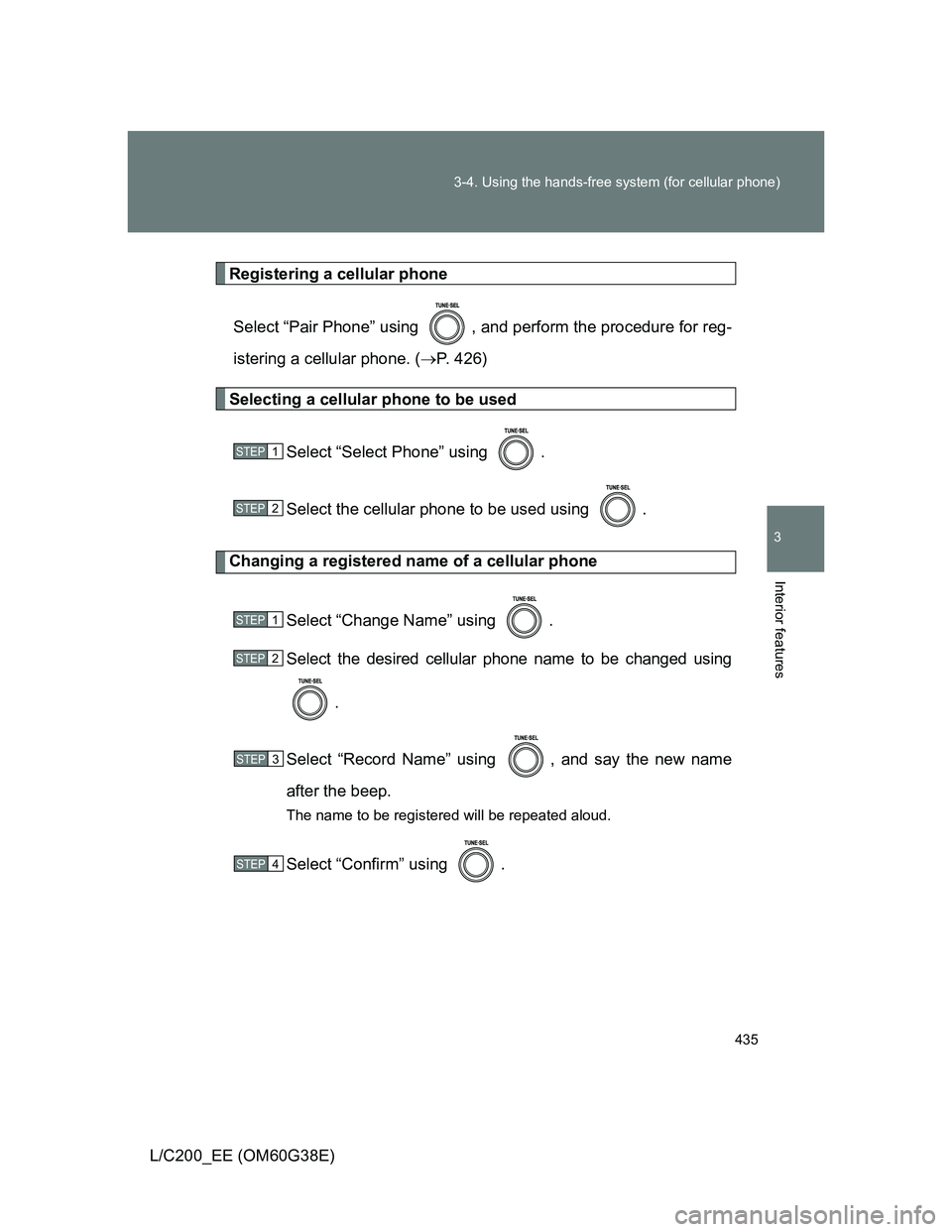

435 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)
Registering a cellular phone
Select “Pair Phone” using , and perform the procedure for reg-
istering a cellular phone. (P. 426)
Selecting a cellular phone to be used
Select “Select Phone” using .
Select the cellular phone to be used using .
Changing a registered name of a cellular phone
Select “Change Name” using .
Select the desired cellular phone name to be changed using
.
Select “Record Name” using , and say the new name
after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4

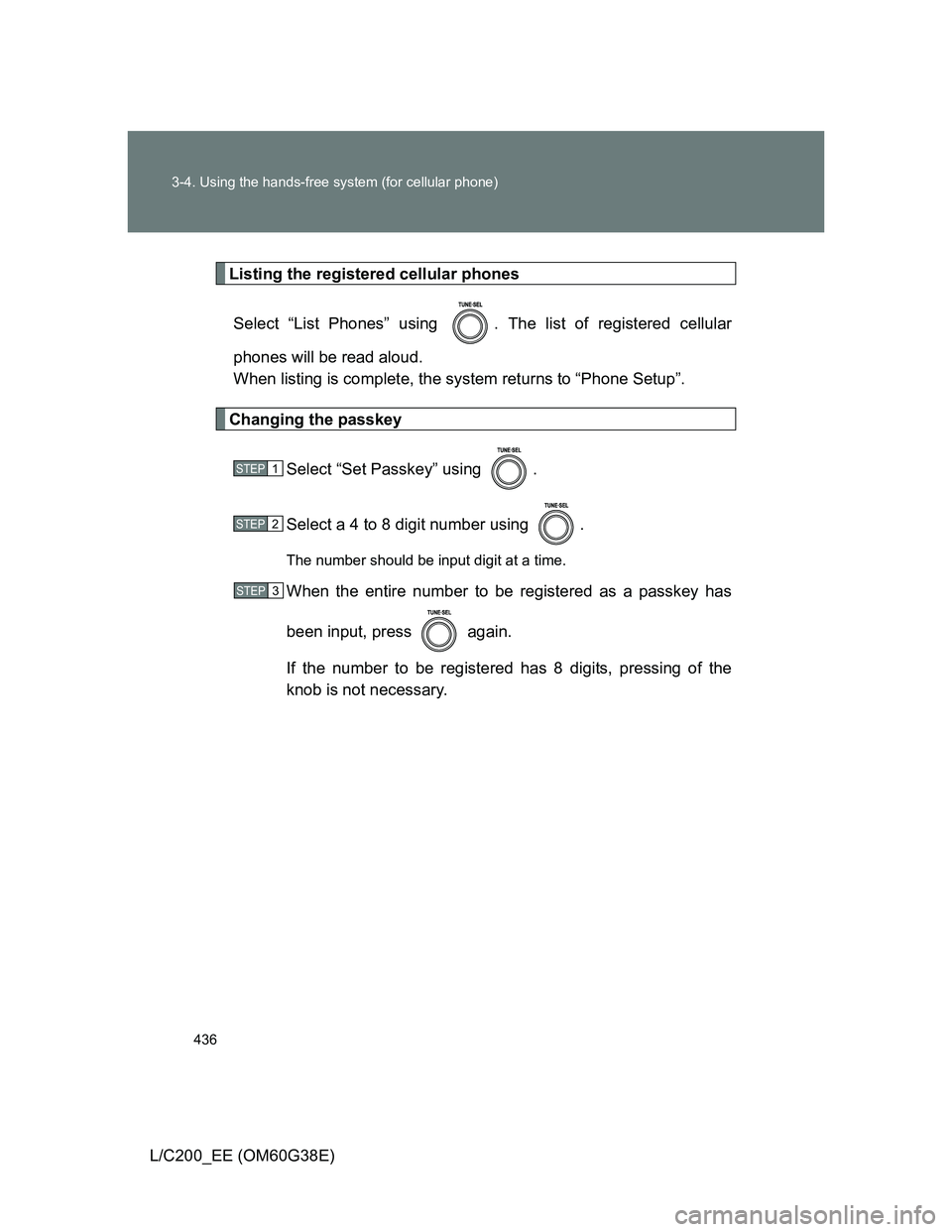

436 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)
Listing the registered cellular phones
Select “List Phones” using . The list of registered cellular
phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Changing the passkey
Select “Set Passkey” using .
Select a 4 to 8 digit number using .
The number should be input digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing of the
knob is not necessary.
STEP1
STEP2
STEP3

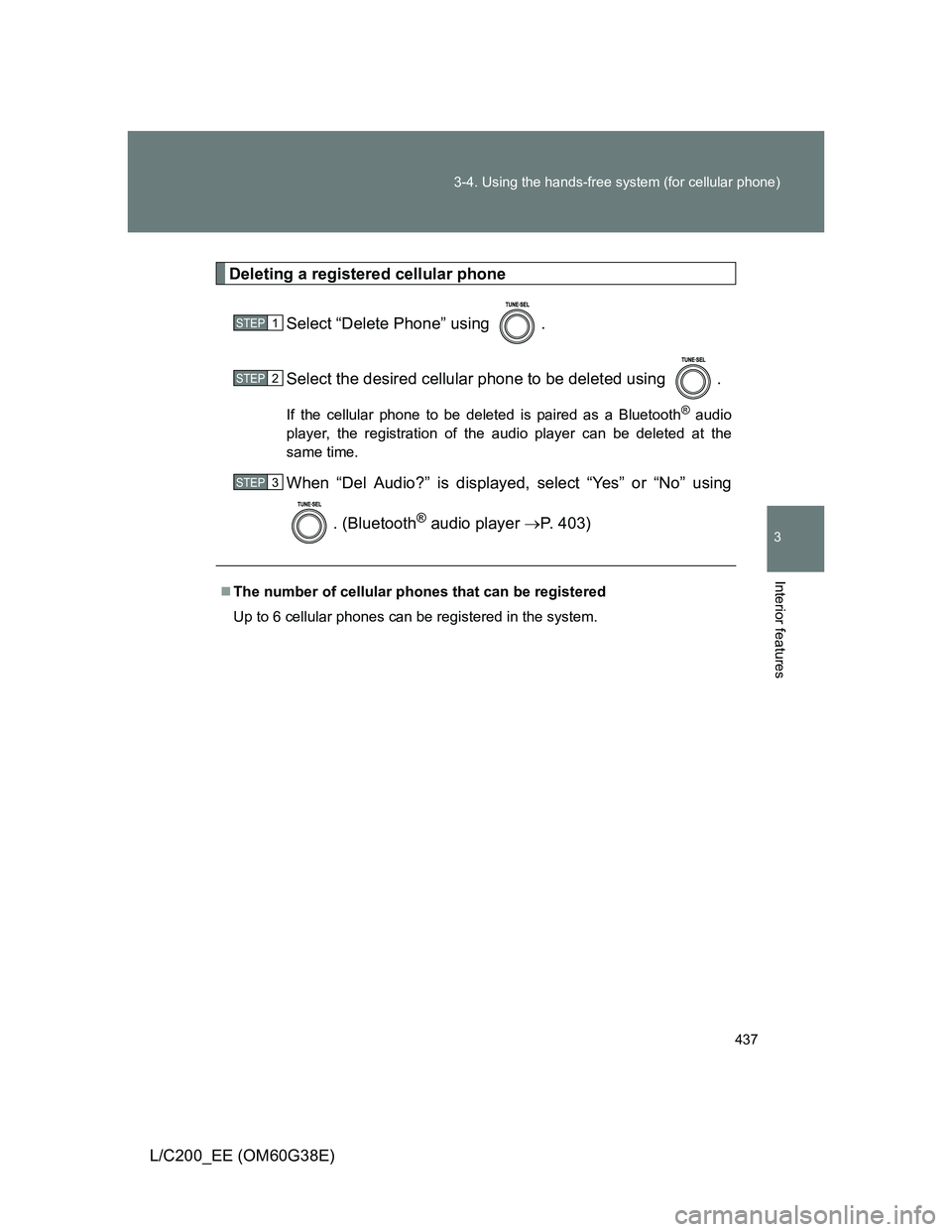

437 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)
Deleting a registered cellular phone
Select “Delete Phone” using .
Select the desired cellular phone to be deleted using .
If the cellular phone to be deleted is paired as a Bluetooth® audio
player, the registration of the audio player can be deleted at the
same time.
When “Del Audio?” is displayed, select “Yes” or “No” using
. (Bluetooth
® audio player P. 403)
The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP3

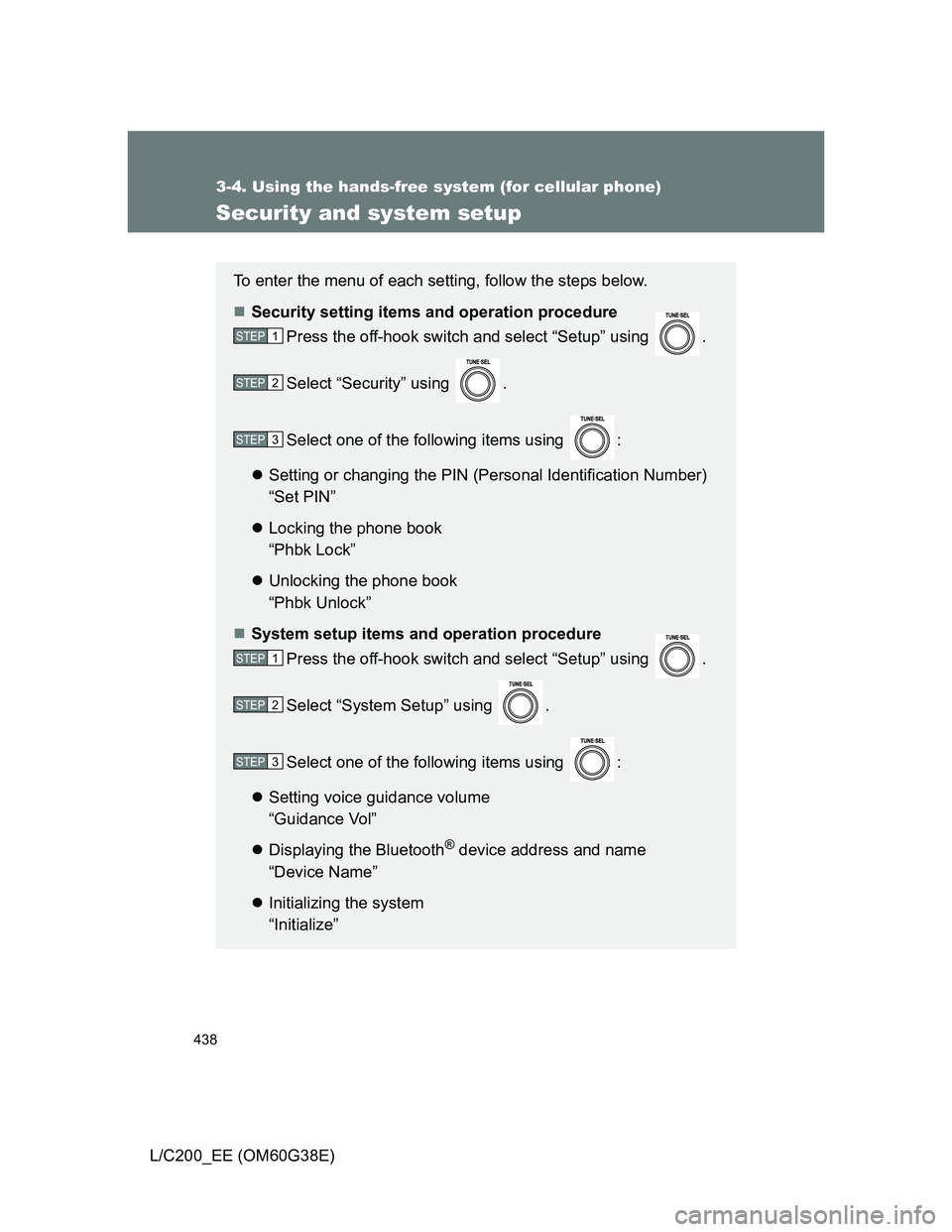

438
3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)
Security and system setup
To enter the menu of each setting, follow the steps below.
Security setting items and operation procedure
Press the off-hook switch and select “Setup” using .
Select “Security” using .
Select one of the following items using :
Setting or changing the PIN (Personal Identification Number)
“Set PIN”
Locking the phone book
“Phbk Lock”
Unlocking the phone book
“Phbk Unlock”
System setup items and operation procedure
Press the off-hook switch and select “Setup” using .
Select “System Setup” using .
Select one of the following items using :
Setting voice guidance volume
“Guidance Vol”
Displaying the Bluetooth
® device address and name
“Device Name”
Initializing the system
“Initialize”
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

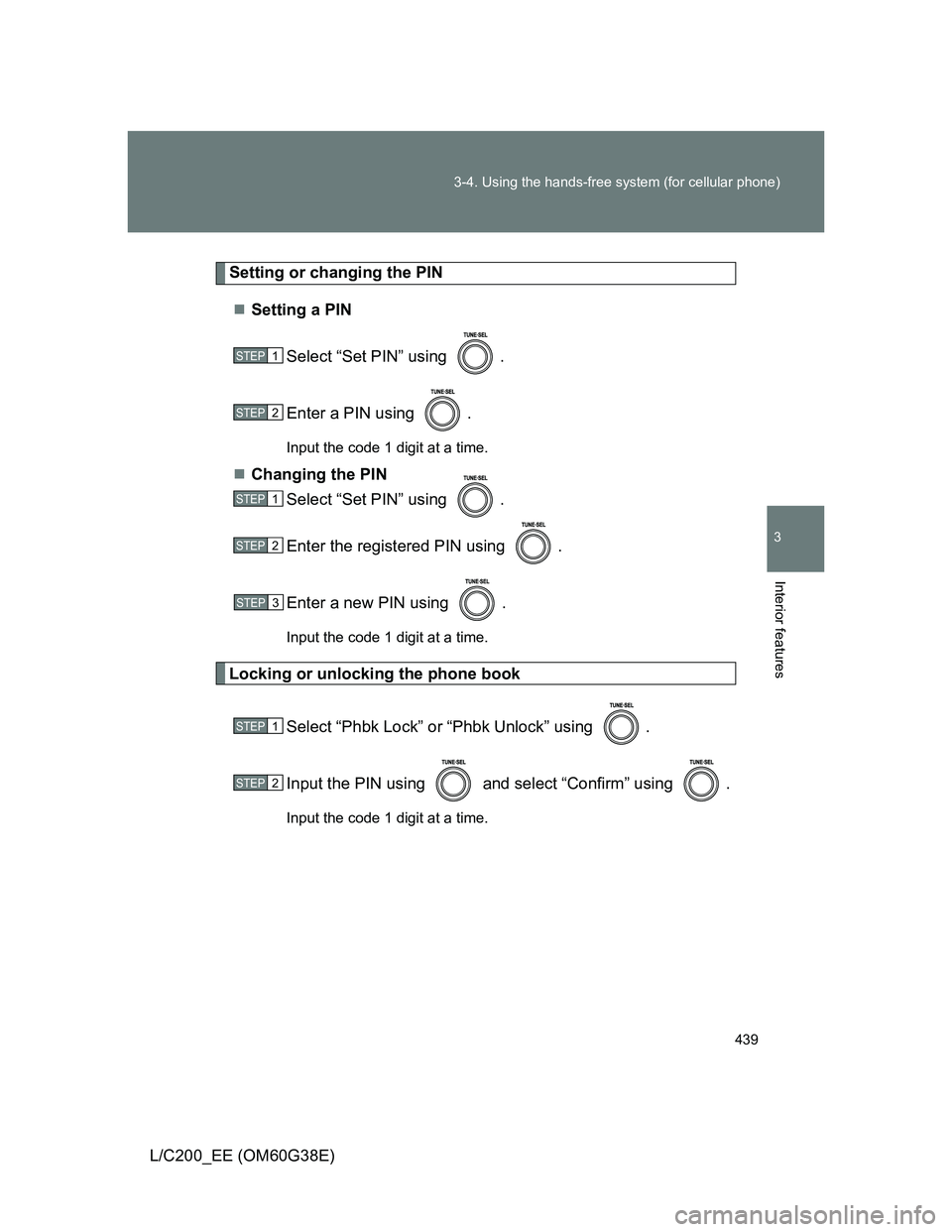

439 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)
Setting or changing the PIN
Setting a PIN
Select “Set PIN” using .
Enter a PIN using .
Input the code 1 digit at a time.
Changing the PIN
Select “Set PIN” using .
Enter the registered PIN using .
Enter a new PIN using .
Input the code 1 digit at a time.
Locking or unlocking the phone book
Select “Phbk Lock” or “Phbk Unlock” using .
Input the PIN using and select “Confirm” using .
Input the code 1 digit at a time.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2

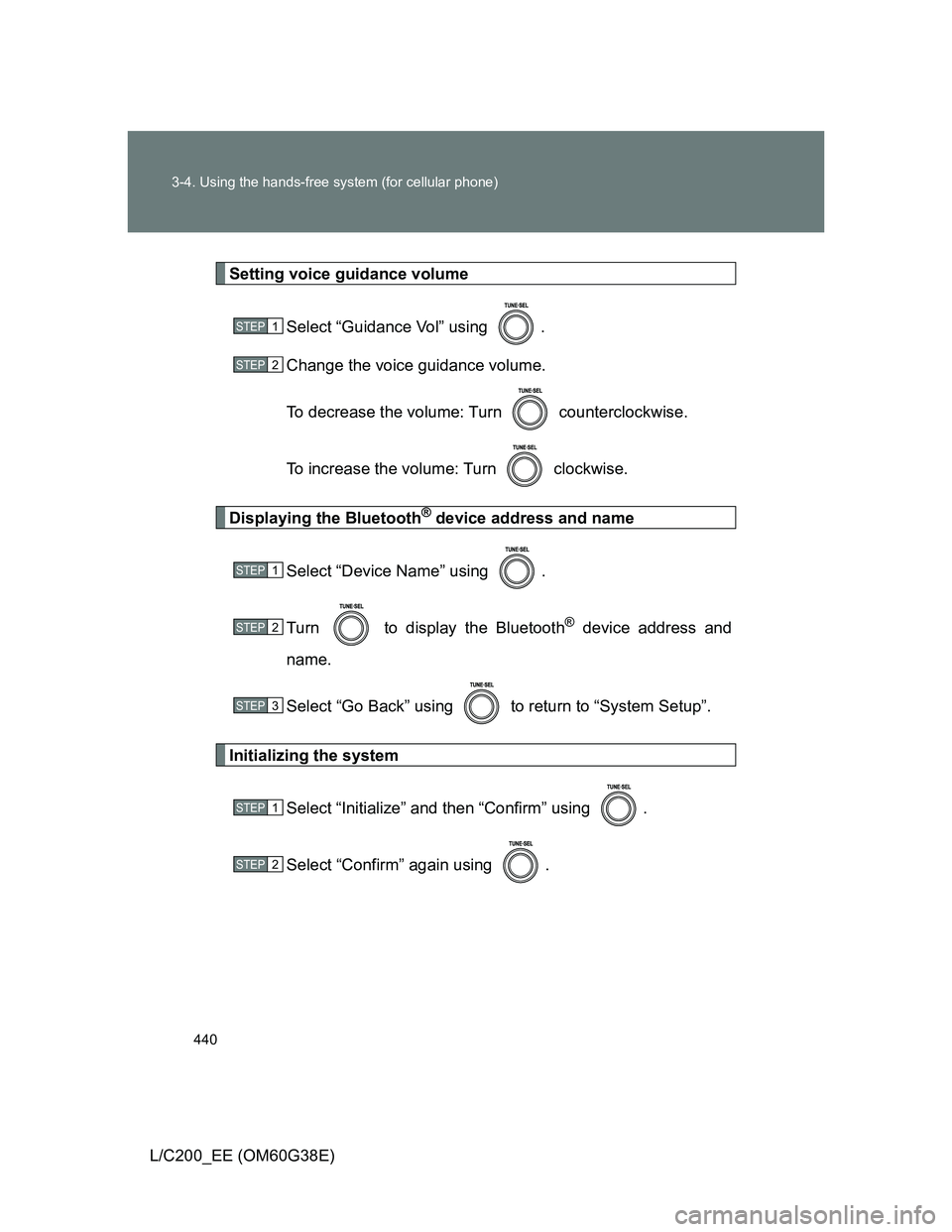

440 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)
Setting voice guidance volume
Select “Guidance Vol” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and
name.
Select “Go Back” using to return to “System Setup”.
Initializing the system
Select “Initialize” and then “Confirm” using .
Select “Confirm” again using .
STEP1
STEP2
STEP1
STEP2
STEP3
STEP1
STEP2
