TOYOTA LAND CRUISER 2012 Owners Manual

421 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

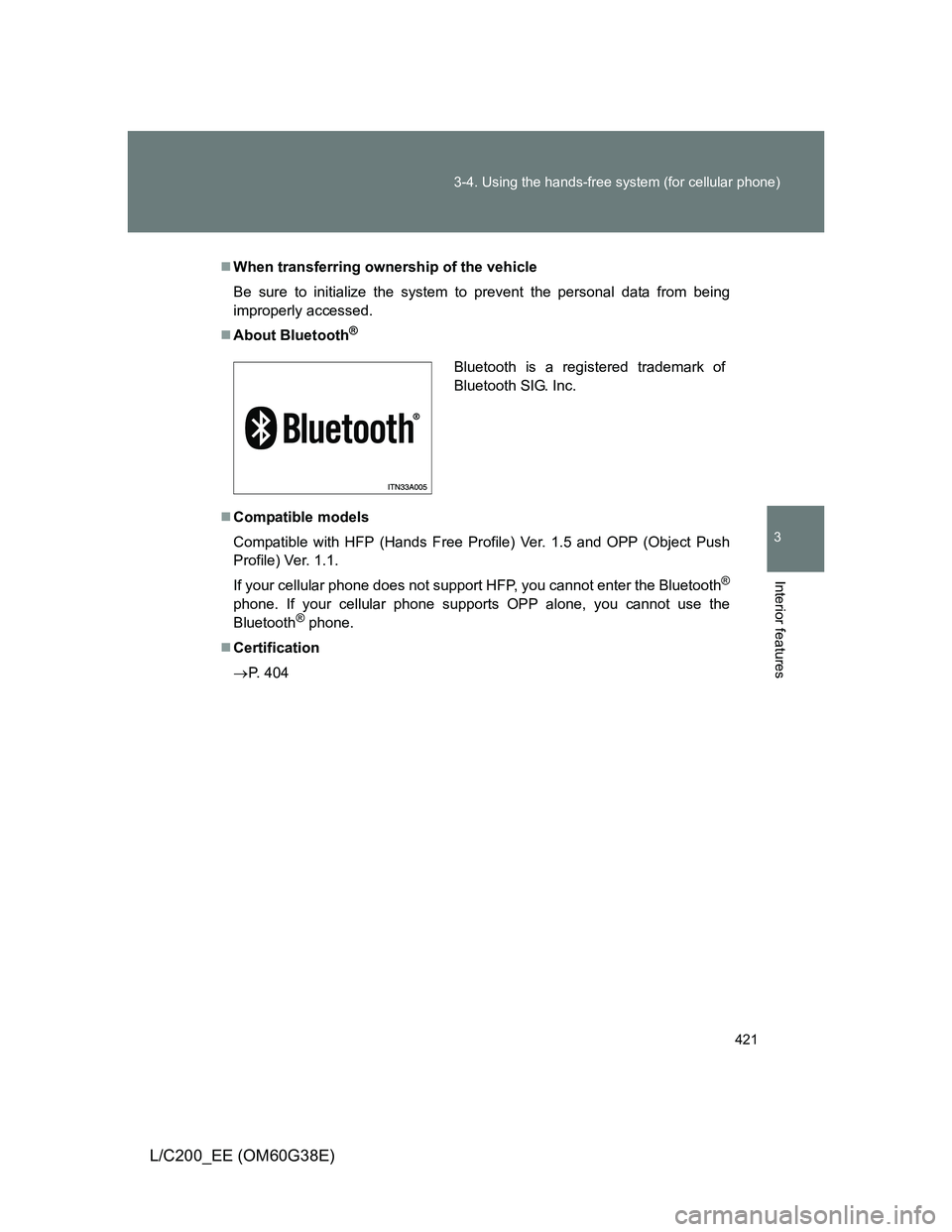

When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.
About Bluetooth
®
Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.5 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone. If your cellular phone supports OPP alone, you cannot use the
Bluetooth® phone.
Certification
P. 404
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

422 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

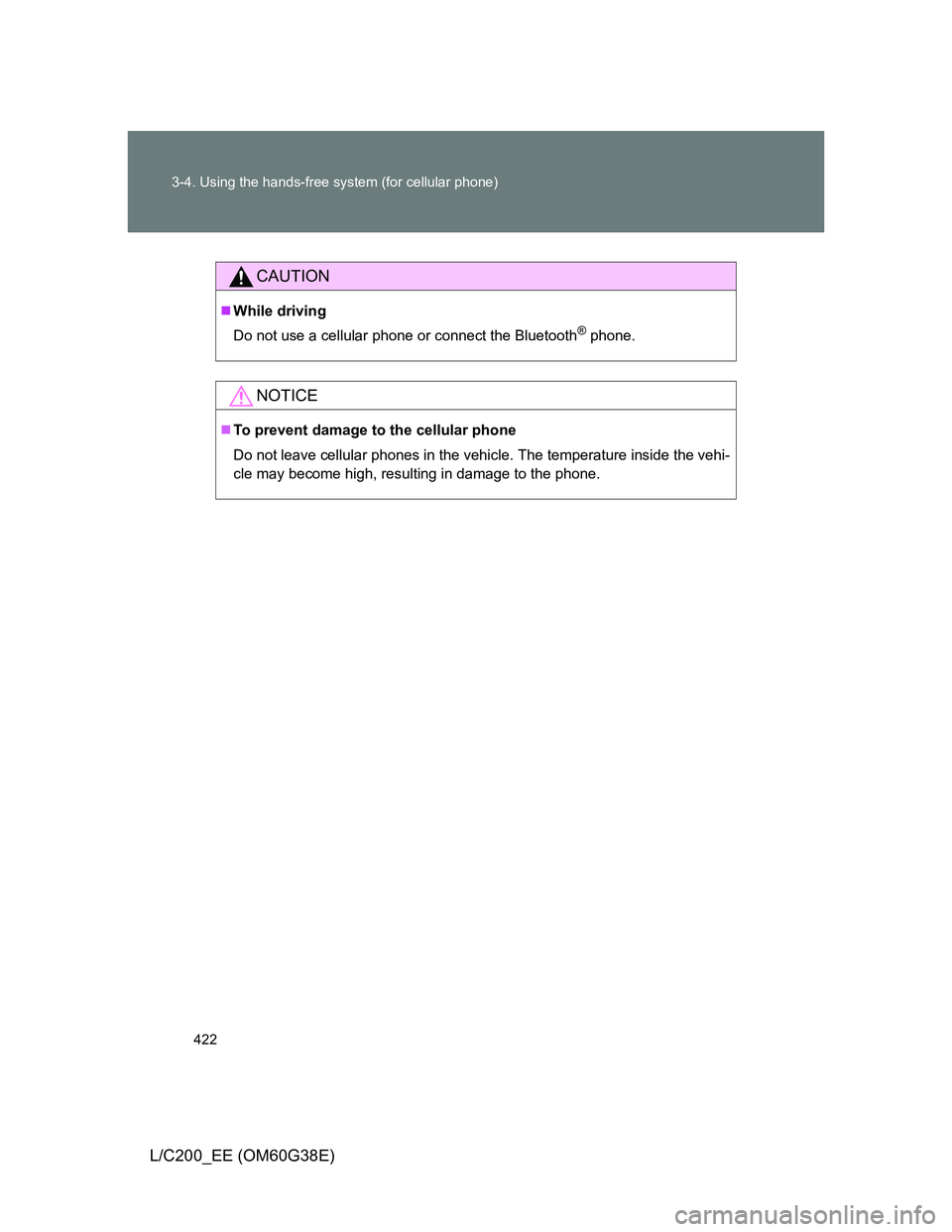

CAUTION
While driving
Do not use a cellular phone or connect the Bluetooth
® phone.
NOTICE
To prevent damage to the cellular phone
Do not leave cellular phones in the vehicle. The temperature inside the vehi-
cle may become high, resulting in damage to the phone.

423
3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

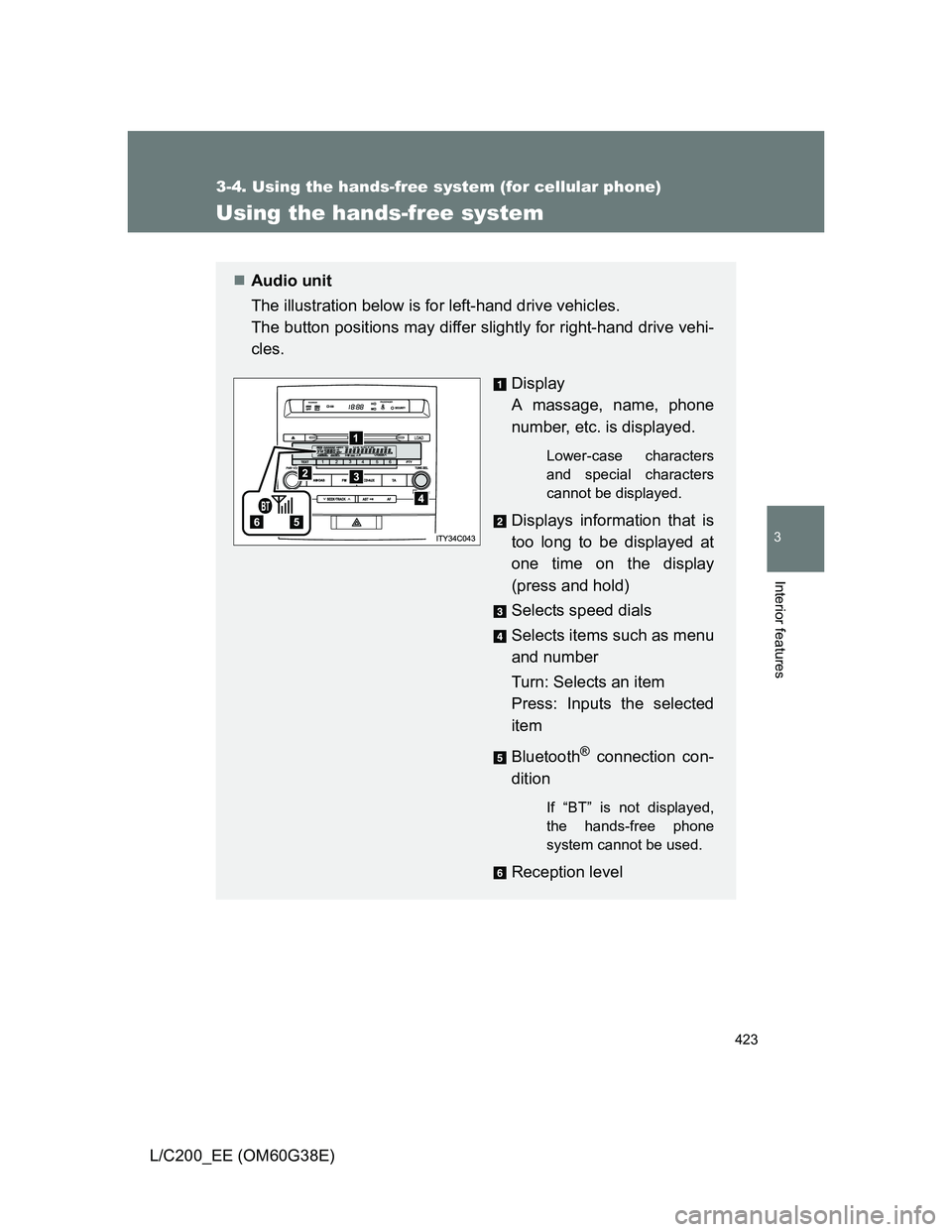

Using the hands-free system
Audio unit
The illustration below is for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehi-
cles.
Display
A massage, name, phone
number, etc. is displayed.
Lower-case characters
and special characters
cannot be displayed.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects speed dials
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed,
the hands-free phone
system cannot be used.
Reception level

424 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

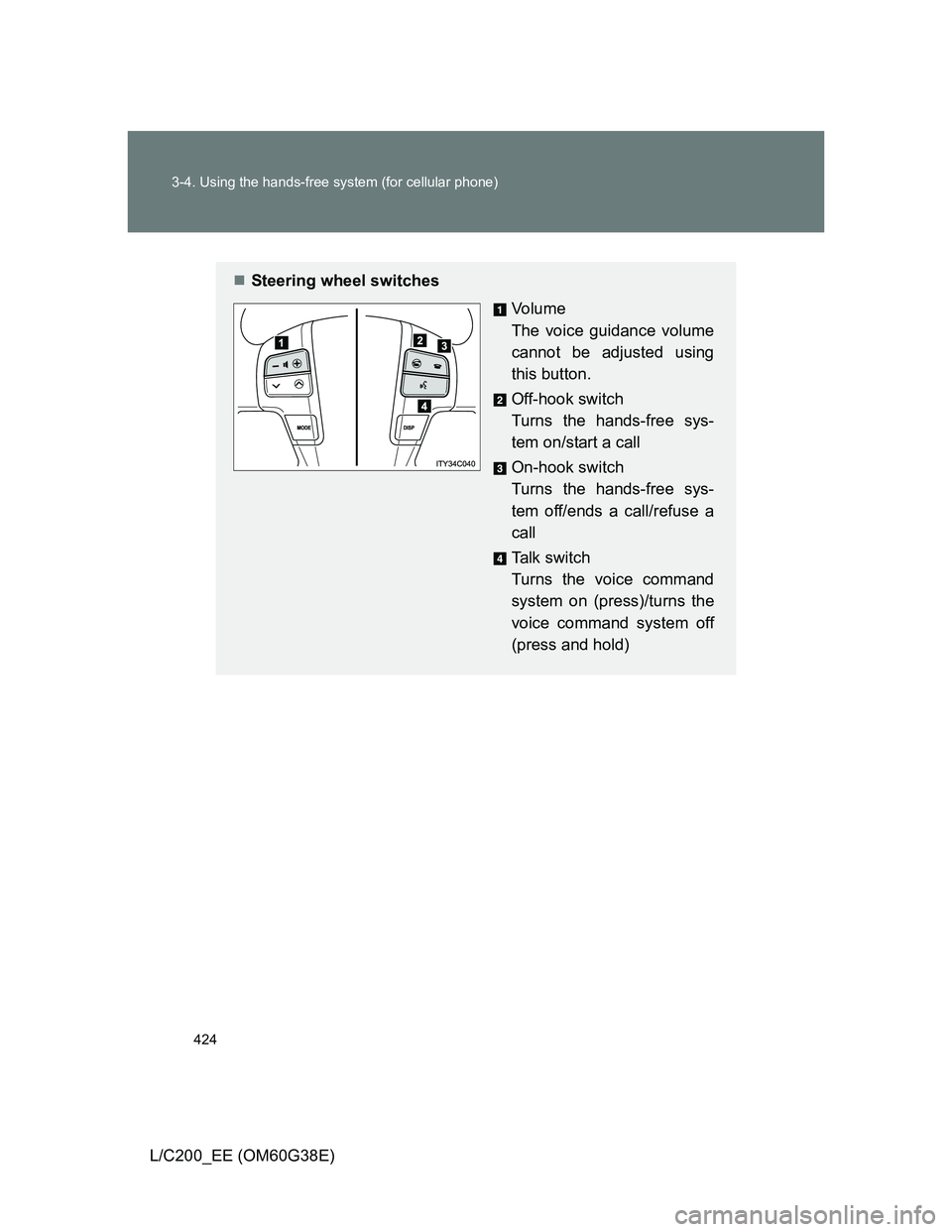

Steering wheel switches
Vo l u m e
The voice guidance volume
cannot be adjusted using
this button.
Off-hook switch
Turns the hands-free sys-
tem on/start a call
On-hook switch
Turns the hands-free sys-
tem off/ends a call/refuse a
call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)

425 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

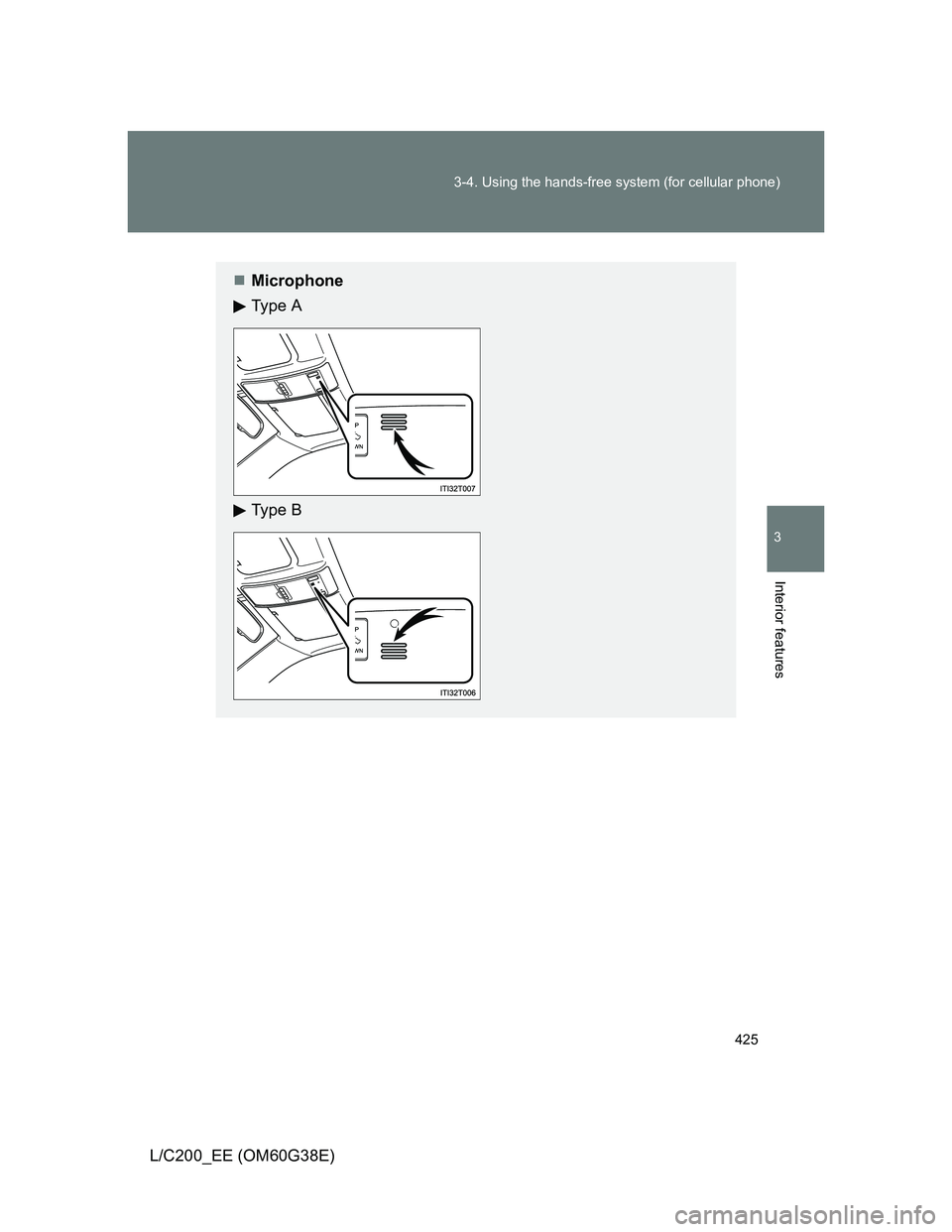

Microphone
Ty p e A
Ty p e B

426 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

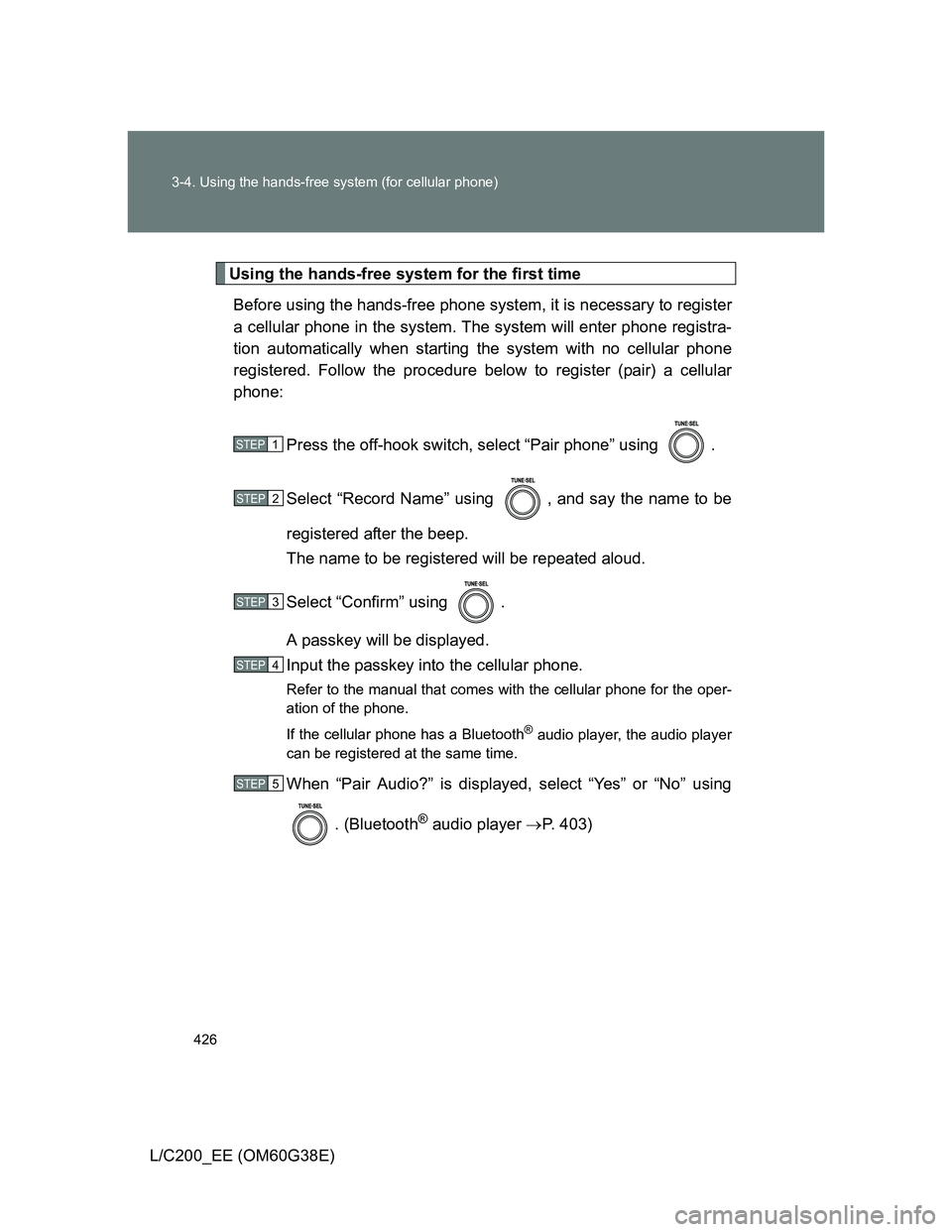

Using the hands-free system for the first time
Before using the hands-free phone system, it is necessary to register
a cellular phone in the system. The system will enter phone registra-
tion automatically when starting the system with no cellular phone
registered. Follow the procedure below to register (pair) a cellular
phone:
Press the off-hook switch, select “Pair phone” using .
Select “Record Name” using , and say the name to be
registered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
If the cellular phone has a Bluetooth
® audio player, the audio player
can be registered at the same time.
When “Pair Audio?” is displayed, select “Yes” or “No” using
. (Bluetooth
® audio player P. 403)
STEP1
STEP2
STEP3
STEP4
STEP5

427 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

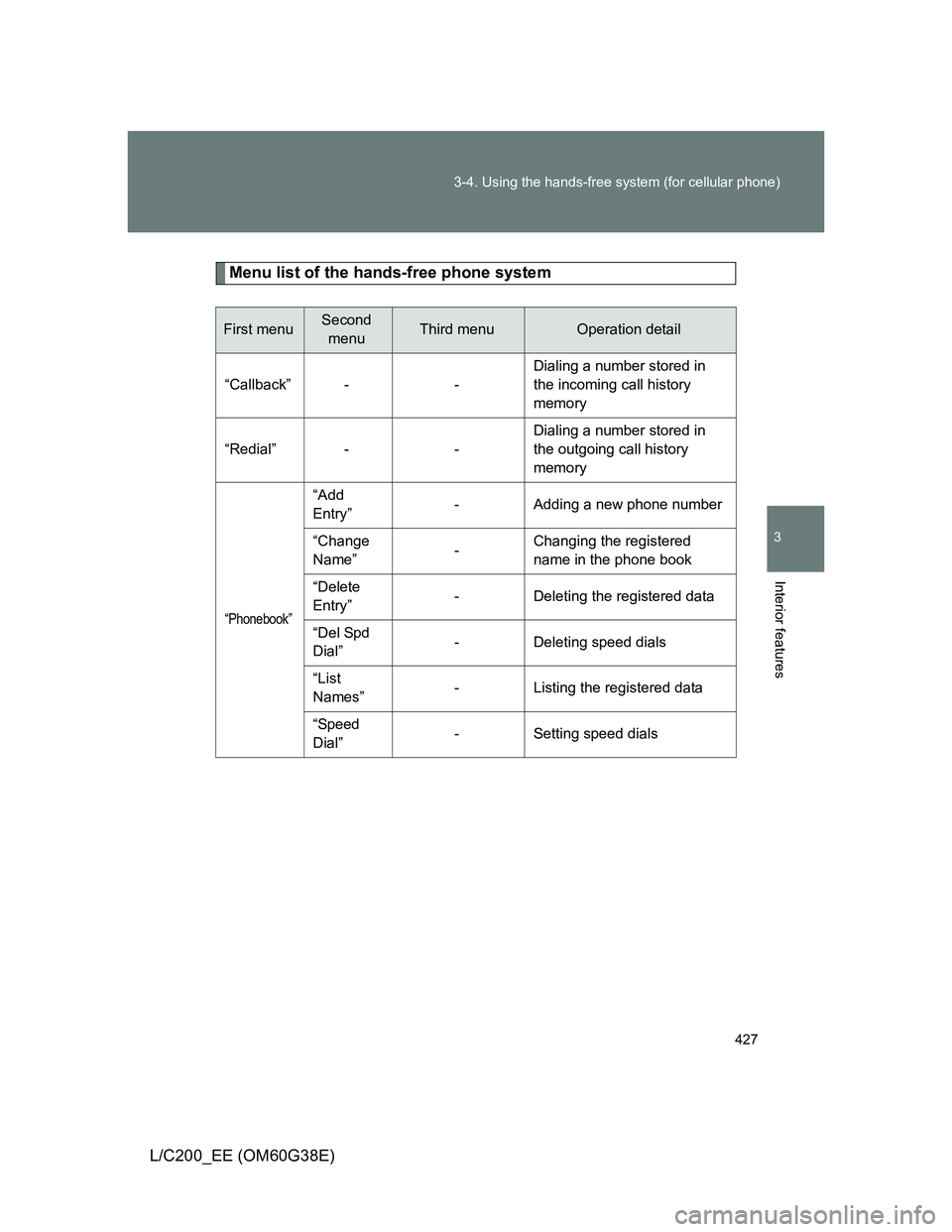

Menu list of the hands-free phone system
First menuSecond
menuThird menuOperation detail
“Callback” - -Dialing a number stored in
the incoming call history
memory
“Redial” - -Dialing a number stored in
the outgoing call history
memory
“Phonebook”
“Add
Entry”- Adding a new phone number
“Change
Name”-Changing the registered
name in the phone book
“Delete
Entry”- Deleting the registered data
“Del Spd
Dial”- Deleting speed dials
“List
Names”- Listing the registered data
“Speed
Dial”- Setting speed dials

428 3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

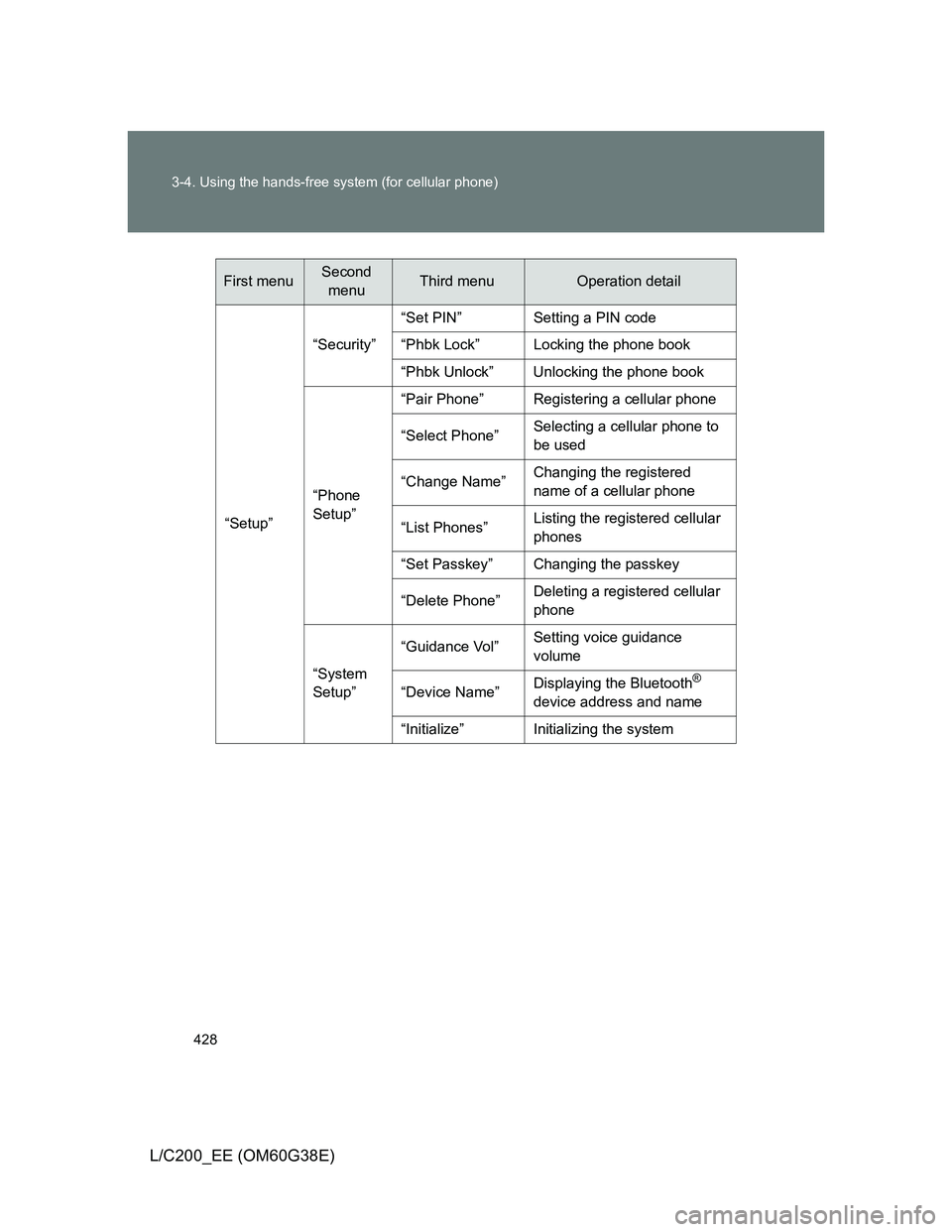

“Setup”“Security”“Set PIN” Setting a PIN code
“Phbk Lock” Locking the phone book
“Phbk Unlock” Unlocking the phone book
“Phone
Setup”“Pair Phone” Registering a cellular phone
“Select Phone”Selecting a cellular phone to
be used
“Change Name”Changing the registered
name of a cellular phone
“List Phones”Listing the registered cellular
phones
“Set Passkey” Changing the passkey
“Delete Phone”Deleting a registered cellular
phone
“System
Setup”“Guidance Vol”Setting voice guidance
volume
“Device Name”Displaying the Bluetooth
®
device address and name
“Initialize” Initializing the system
First menuSecond
menuThird menuOperation detail

429 3-4. Using the hands-free system (for cellular phone)
3
Interior features
L/C200_EE (OM60G38E)

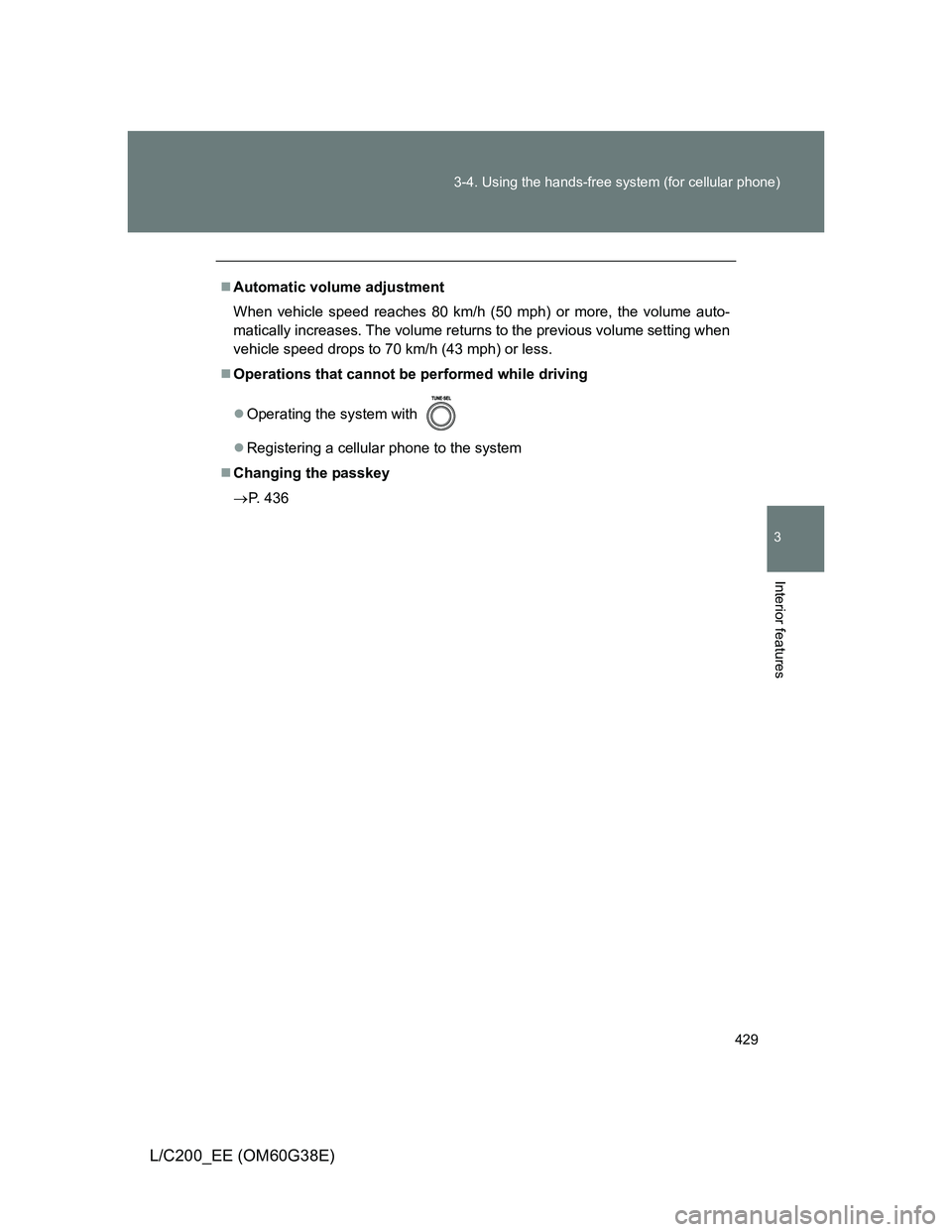

Automatic volume adjustment
When vehicle speed reaches 80 km/h (50 mph) or more, the volume auto-
matically increases. The volume returns to the previous volume setting when
vehicle speed drops to 70 km/h (43 mph) or less.
Operations that cannot be performed while driving
Operating the system with
Registering a cellular phone to the system
Changing the passkey
P. 436

430
3-4. Using the hands-free system (for cellular phone)
L/C200_EE (OM60G38E)

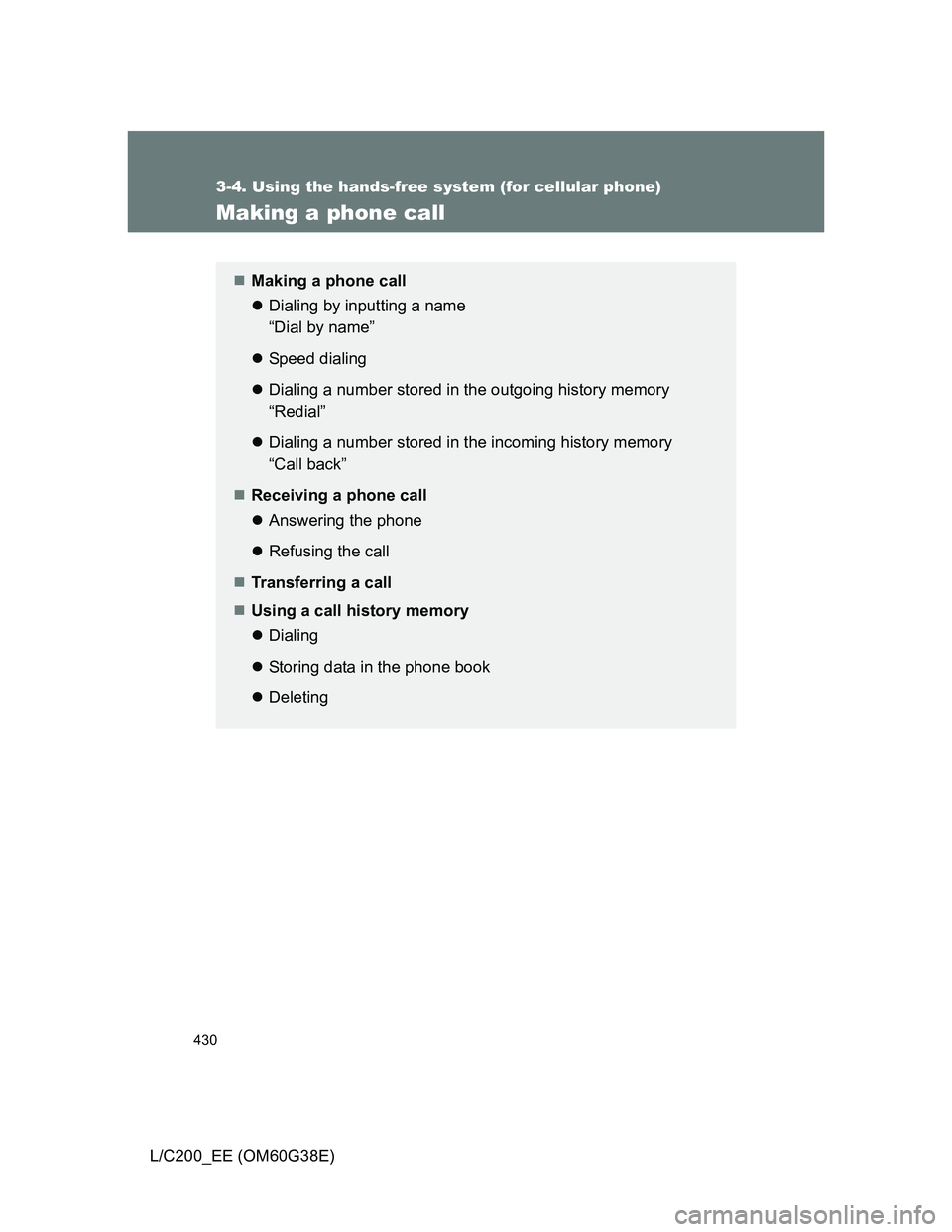

Making a phone call
Making a phone call
Dialing by inputting a name
“Dial by name”
Speed dialing
Dialing a number stored in the outgoing history memory
“Redial”
Dialing a number stored in the incoming history memory
“Call back”
Receiving a phone call
Answering the phone
Refusing the call
Transferring a call
Using a call history memory
Dialing
Storing data in the phone book
Deleting
