TOYOTA LAND CRUISER 2012 Owners Manual

661 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

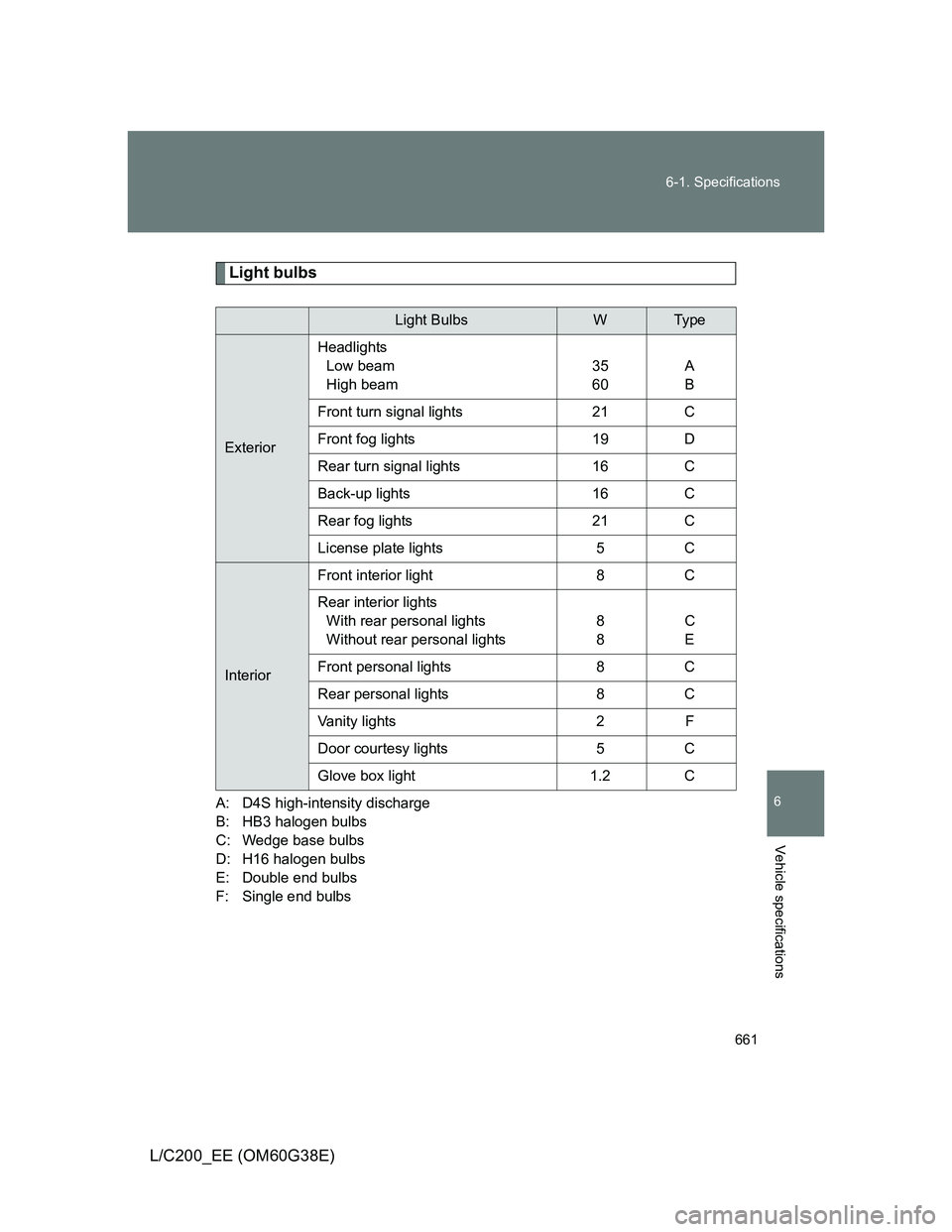

Light bulbs
A: D4S high-intensity discharge
B: HB3 halogen bulbs
C: Wedge base bulbs
D: H16 halogen bulbs
E: Double end bulbs
F: Single end bulbs
Light BulbsWTy p e
ExteriorHeadlights
Low beam
High beam35
60A
B
Front turn signal lights 21 C
Front fog lights 19 D
Rear turn signal lights 16 C
Back-up lights 16 C
Rear fog lights 21 C
License plate lights 5 C
InteriorFront interior light 8 C
Rear interior lights
With rear personal lights
Without rear personal lights8
8C
E
Front personal lights 8 C
Rear personal lights 8 C
Vanity lights 2 F
Door courtesy lights 5 C
Glove box light 1.2 C

662
6-1. Specifications
L/C200_EE (OM60G38E)

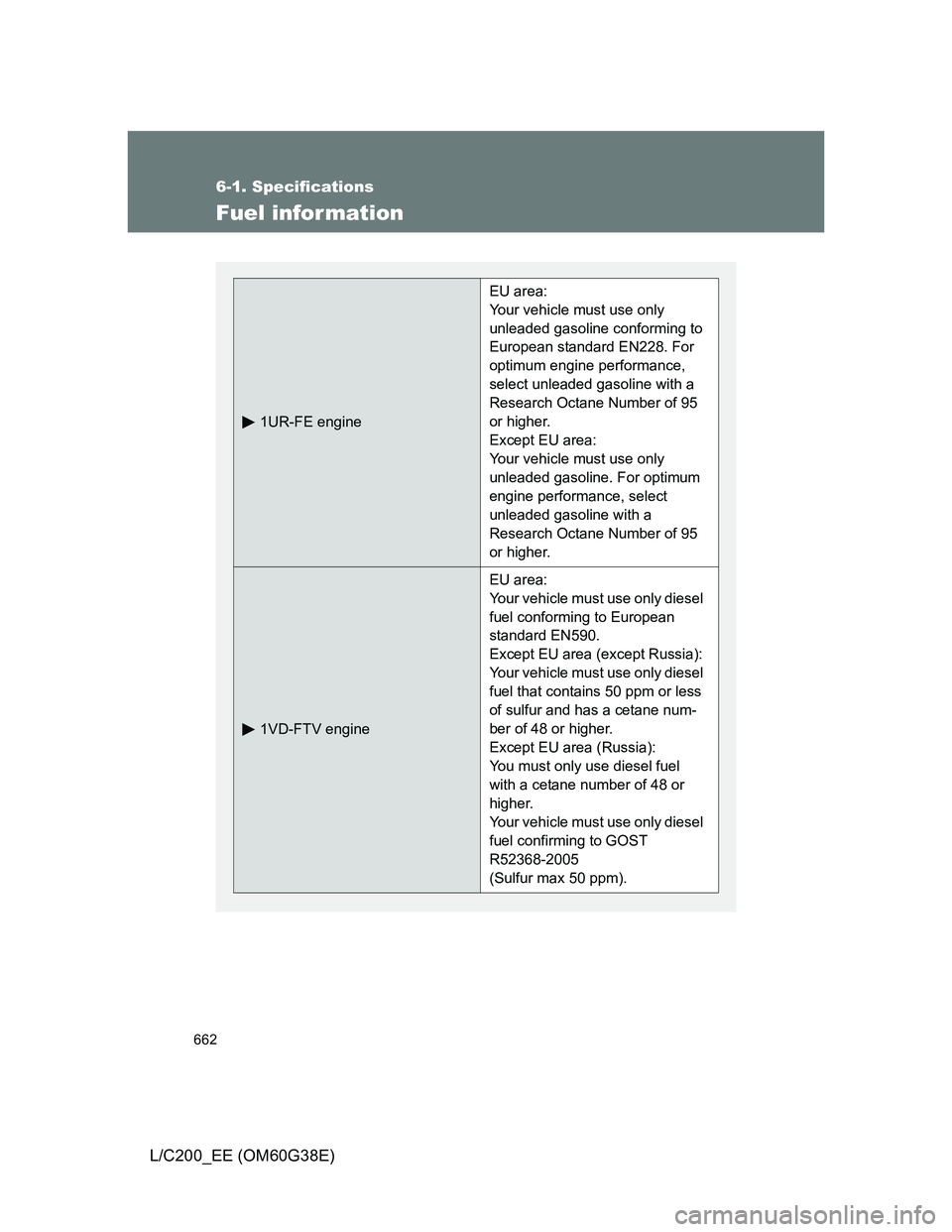

Fuel infor mation
1UR-FE engine
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline. For optimum
engine performance, select
unleaded gasoline with a
Research Octane Number of 95
or higher.
1VD-FTV engine
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Except EU area (except Russia):
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur and has a cetane num-
ber of 48 or higher.
Except EU area (Russia):
You must only use diesel fuel
with a cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel confirming to GOST
R52368-2005
(Sulfur max 50 ppm).

663 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

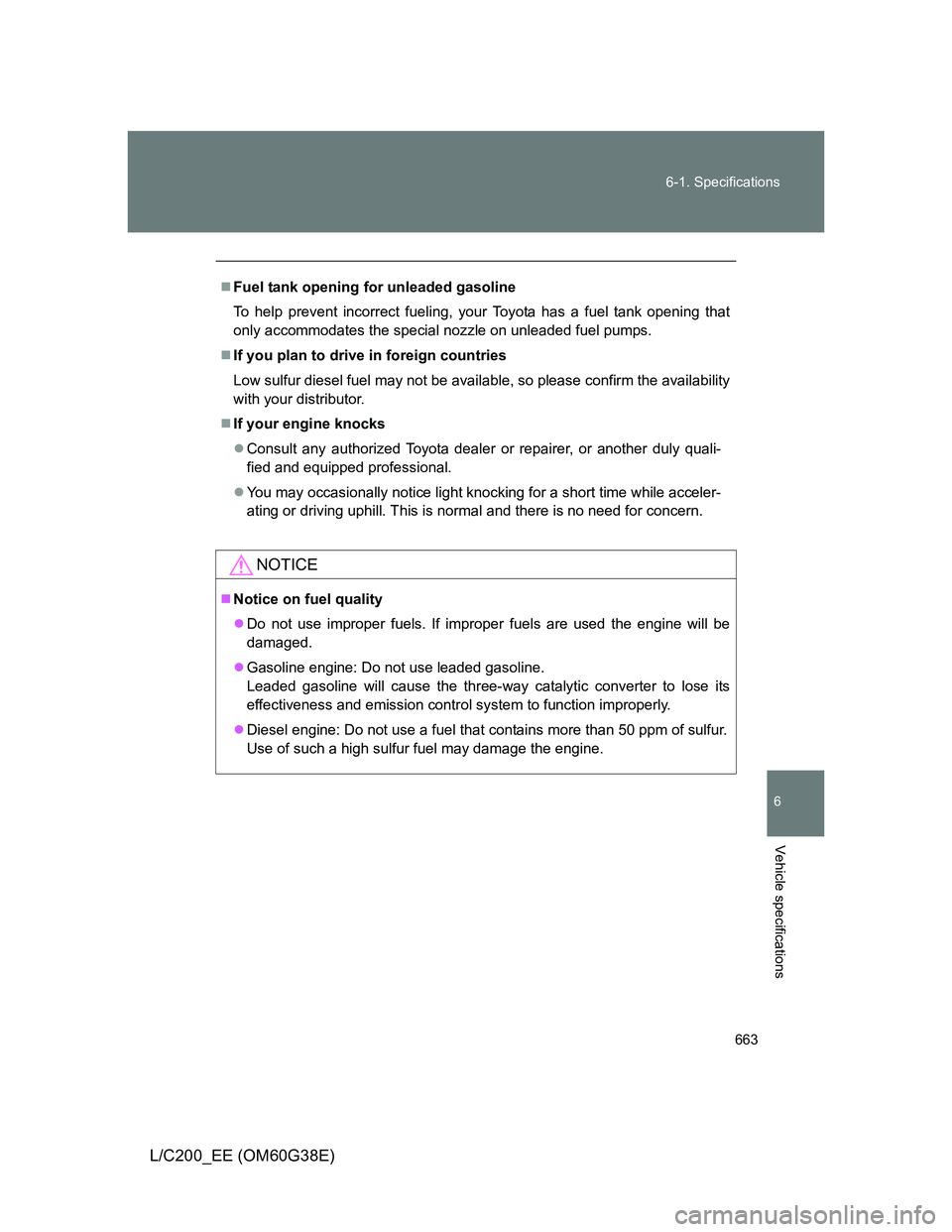

Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.

664 6-1. Specifications
L/C200_EE (OM60G38E)

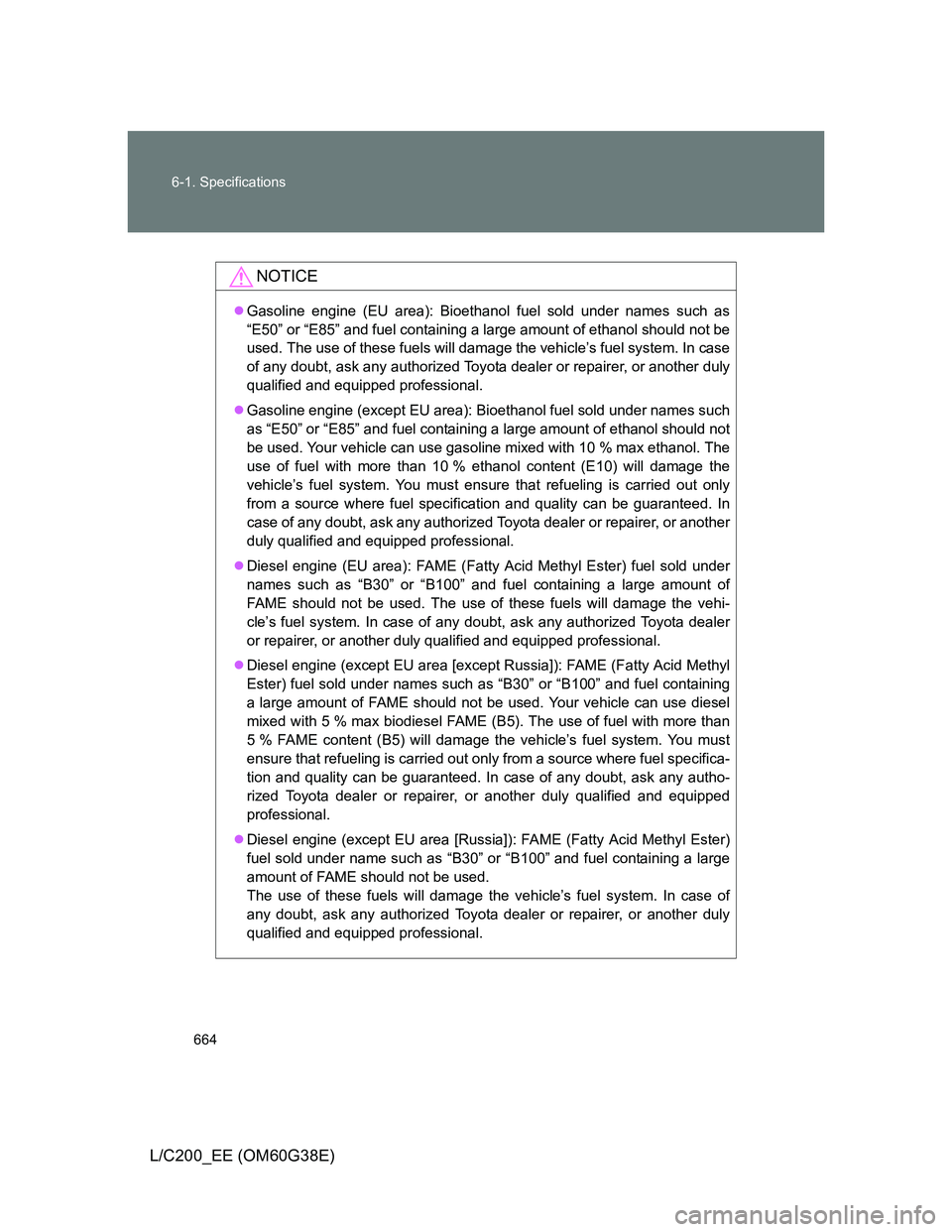

NOTICE
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10 % max ethanol. The
use of fuel with more than 10 % ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle’s fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area [except Russia]): FAME (Fatty Acid Methyl
Ester) fuel sold under names such as “B30” or “B100” and fuel containing
a large amount of FAME should not be used. Your vehicle can use diesel
mixed with 5 % max biodiesel FAME (B5). The use of fuel with more than
5 % FAME content (B5) will damage the vehicle’s fuel system. You must
ensure that refueling is carried out only from a source where fuel specifica-
tion and quality can be guaranteed. In case of any doubt, ask any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Diesel engine (except EU area [Russia]): FAME (Fatty Acid Methyl Ester)
fuel sold under name such as “B30” or “B100” and fuel containing a large
amount of FAME should not be used.
The use of these fuels will damage the vehicle’s fuel system. In case of
any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.

665
6
Vehicle specifications
L/C200_EE (OM60G38E)
6-2. Customization

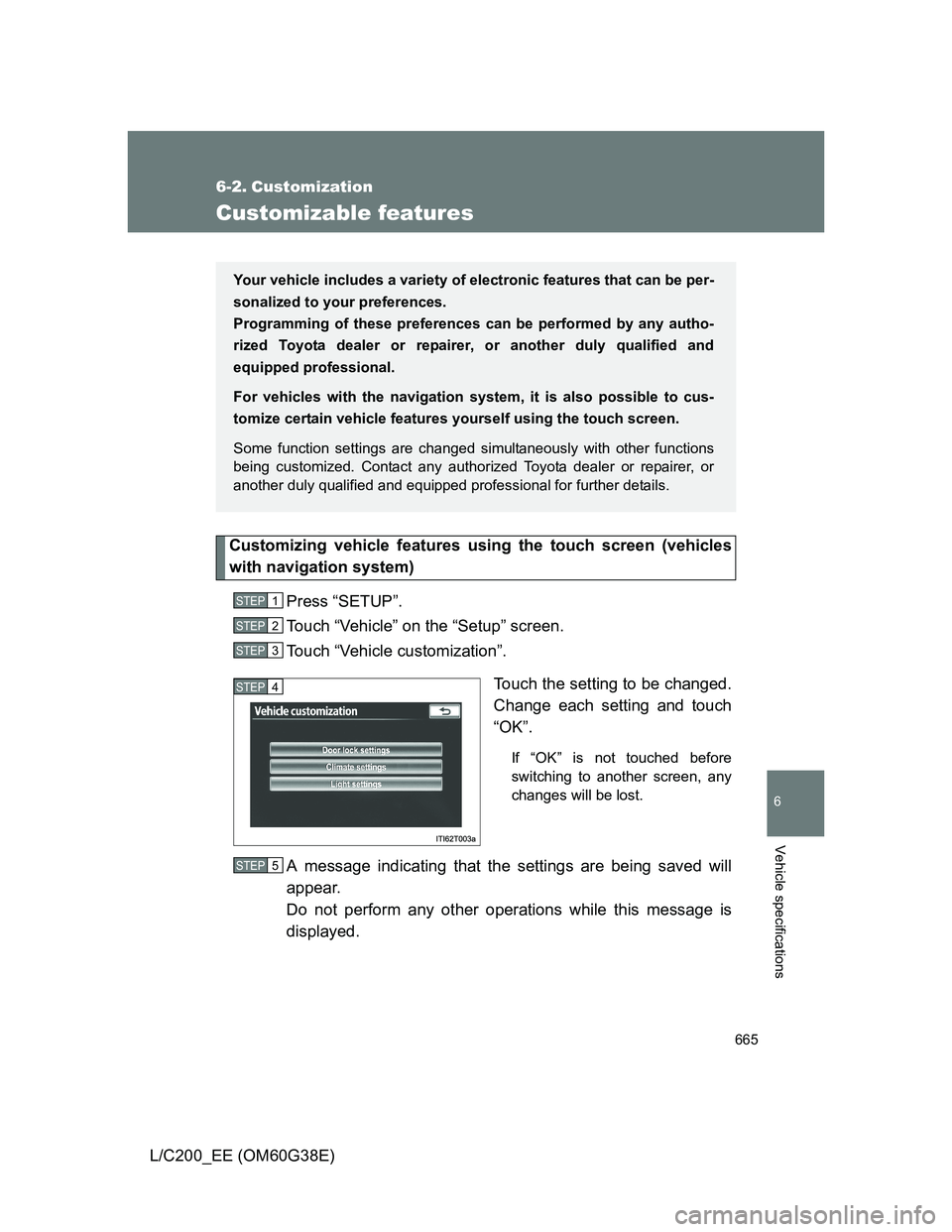

Customizable features
Customizing vehicle features using the touch screen (vehicles
with navigation system)
Press “SETUP”.
Touch “Vehicle” on the “Setup” screen.
Touch “Vehicle customization”.
Touch the setting to be changed.
Change each setting and touch
“OK”.
If “OK” is not touched before
switching to another screen, any
changes will be lost.
A message indicating that the settings are being saved will
appear.
Do not perform any other operations while this message is
displayed.
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences.
Programming of these preferences can be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
For vehicles with the navigation system, it is also possible to cus-
tomize certain vehicle features yourself using the touch screen.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for further details.
STEP1
STEP2
STEP3
STEP4
STEP5

666 6-2. Customization
L/C200_EE (OM60G38E)

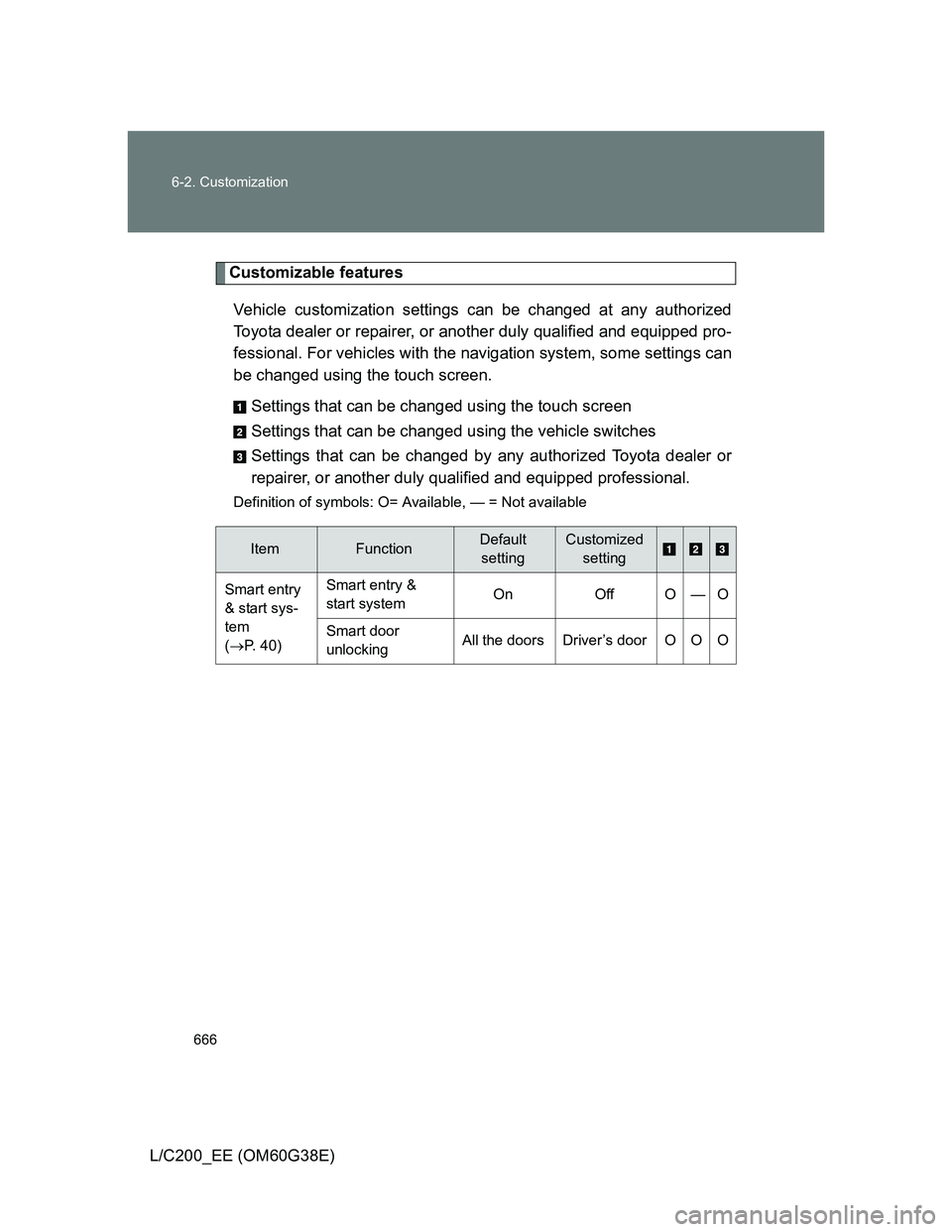

Customizable features
Vehicle customization settings can be changed at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional. For vehicles with the navigation system, some settings can
be changed using the touch screen.
Settings that can be changed using the touch screen
Settings that can be changed using the vehicle switches
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Definition of symbols: O= Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart entry
& start sys-
tem
(P. 40)Smart entry &
start systemOn Off O — O
Smart door
unlockingAll the doors Driver’s door O O O

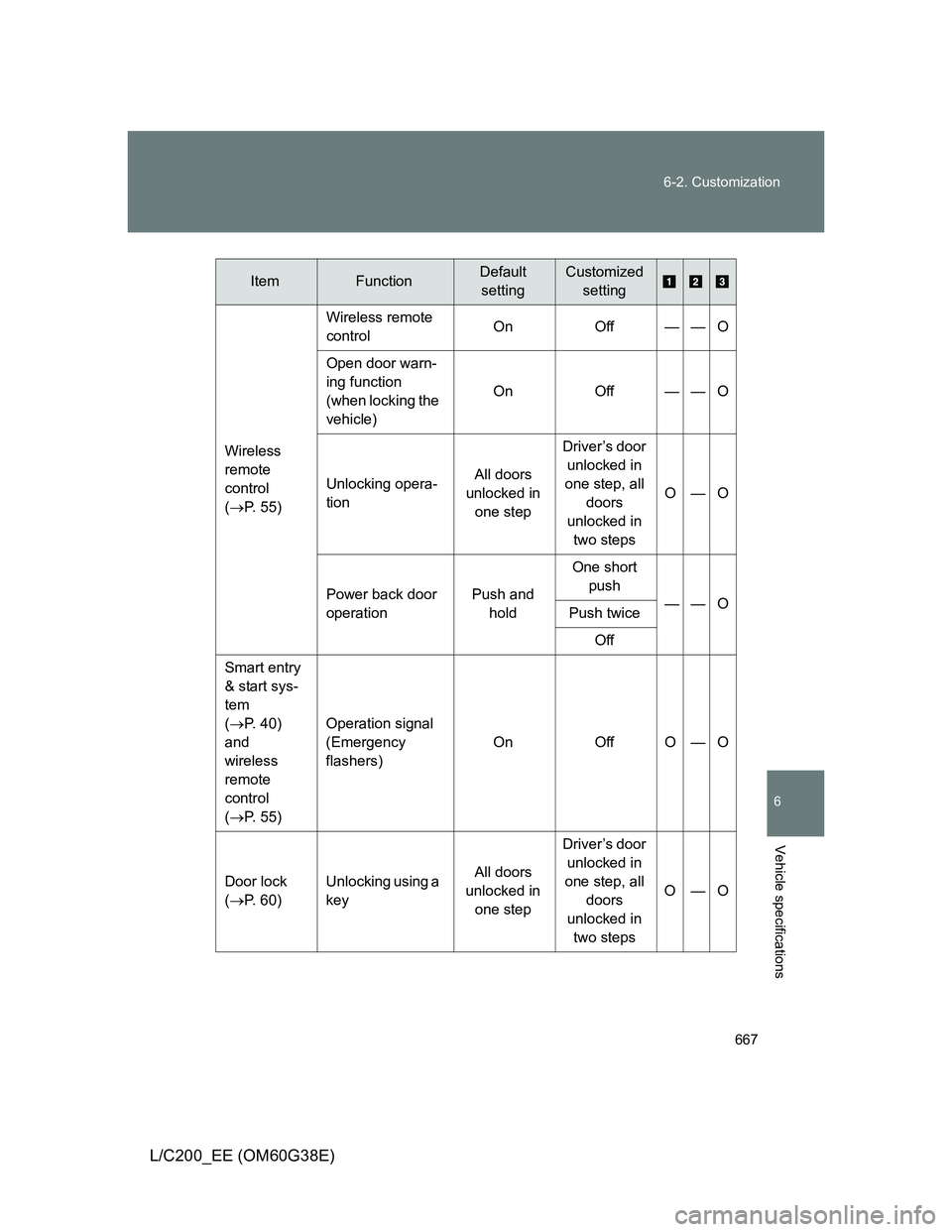

667 6-2. Customization
6
Vehicle specifications
L/C200_EE (OM60G38E)
Wireless
remote
control
(P. 55)Wireless remote
controlOn Off — — O
Open door warn-
ing function
(when locking the
vehicle)On Off — — O
Unlocking opera-
tionAll doors
unlocked in
one stepDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsO—O
Power back door
operationPush and
holdOne short
push
——O
Push twice
Off
Smart entry
& start sys-
tem
(P. 40)
and
wireless
remote
control
(P. 55) Operation signal
(Emergency
flashers)On Off O — O
Door lock
(P. 60)Unlocking using a
keyAll doors
unlocked in
one stepDriver’s door
unlocked in
one step, all
doors
unlocked in
two stepsO—O
ItemFunctionDefault
settingCustomized
setting

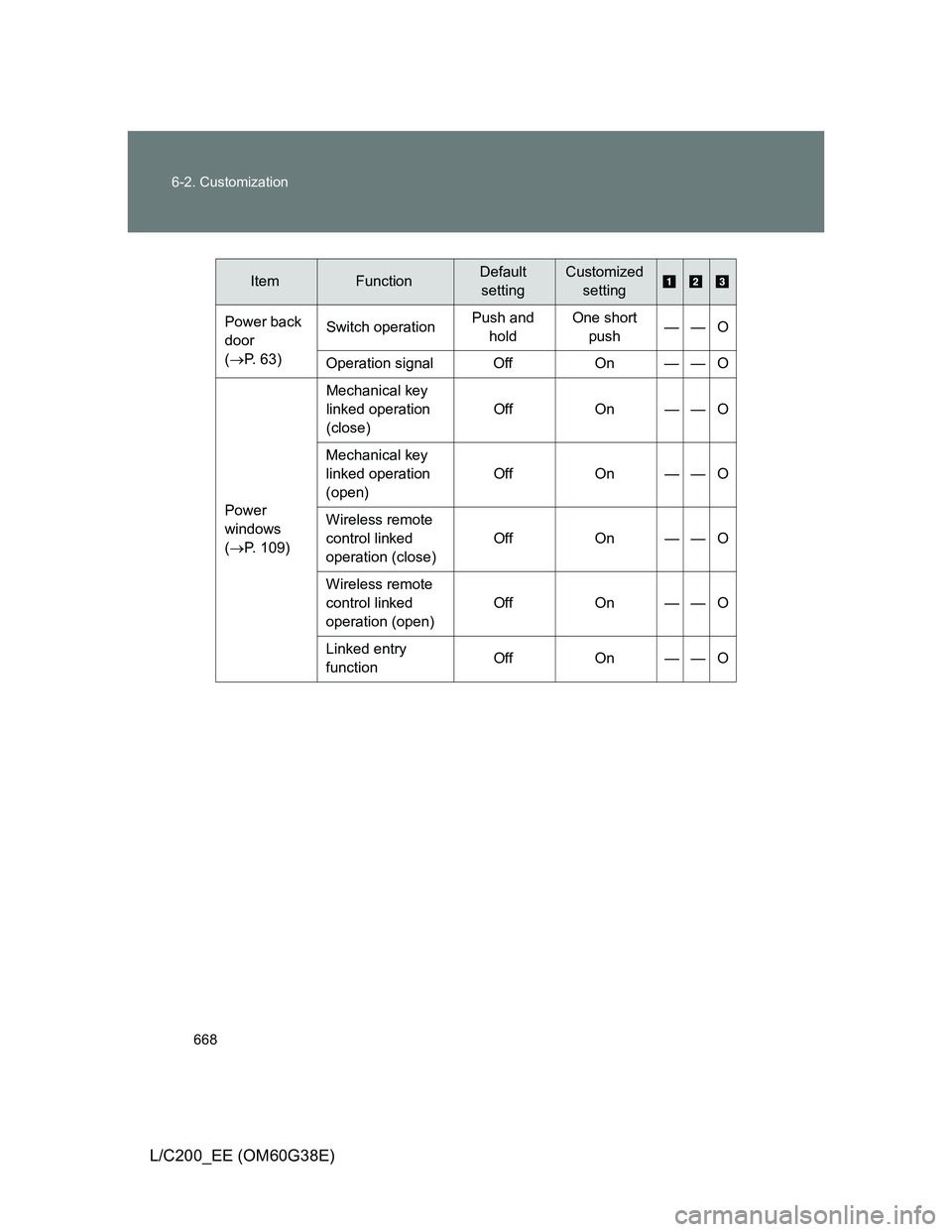

668 6-2. Customization
L/C200_EE (OM60G38E)
Power back
door
(P. 63)Switch operationPush and
holdOne short
push——O
Operation signal Off On — — O
Power
windows
(P. 109)Mechanical key
linked operation
(close)Off On — — O
Mechanical key
linked operation
(open)Off On — — O
Wireless remote
control linked
operation (close)Off On — — O
Wireless remote
control linked
operation (open)Off On — — O
Linked entry
functionOff On — — O
ItemFunctionDefault
settingCustomized
setting

669 6-2. Customization
6
Vehicle specifications
L/C200_EE (OM60G38E)

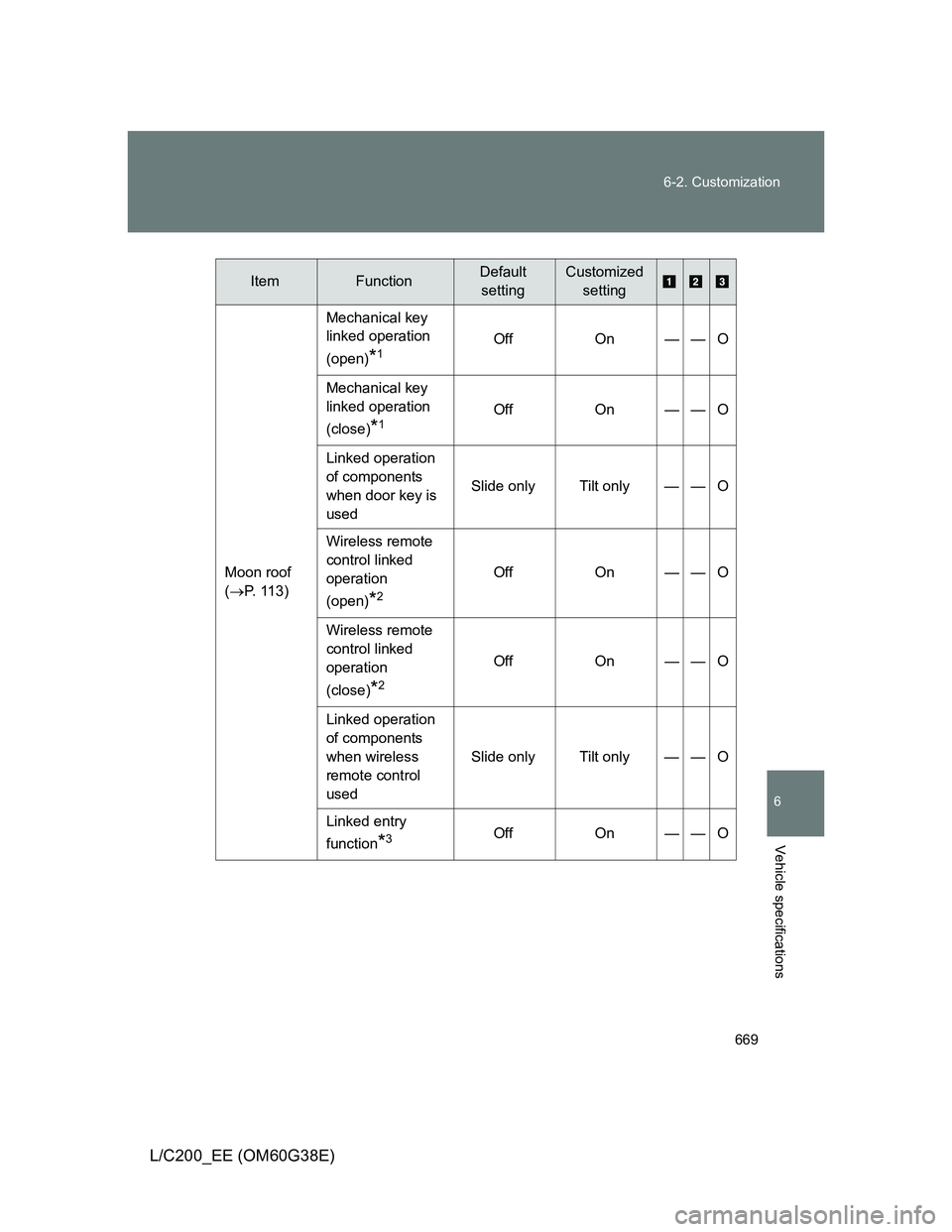

Moon roof
(P. 113)Mechanical key
linked operation
(open)
*1Off On — — O
Mechanical key
linked operation
(close)
*1Off On — — O
Linked operation
of components
when door key is
usedSlide only Tilt only — — O
Wireless remote
control linked
operation
(open)
*2
Off On — — O
Wireless remote
control linked
operation
(close)
*2
Off On — — O
Linked operation
of components
when wireless
remote control
usedSlide only Tilt only — — O
Linked entry
function
*3Off On — — O
ItemFunctionDefault
settingCustomized
setting

670 6-2. Customization
L/C200_EE (OM60G38E)
ItemFunctionDefault
settingCustomized
setting

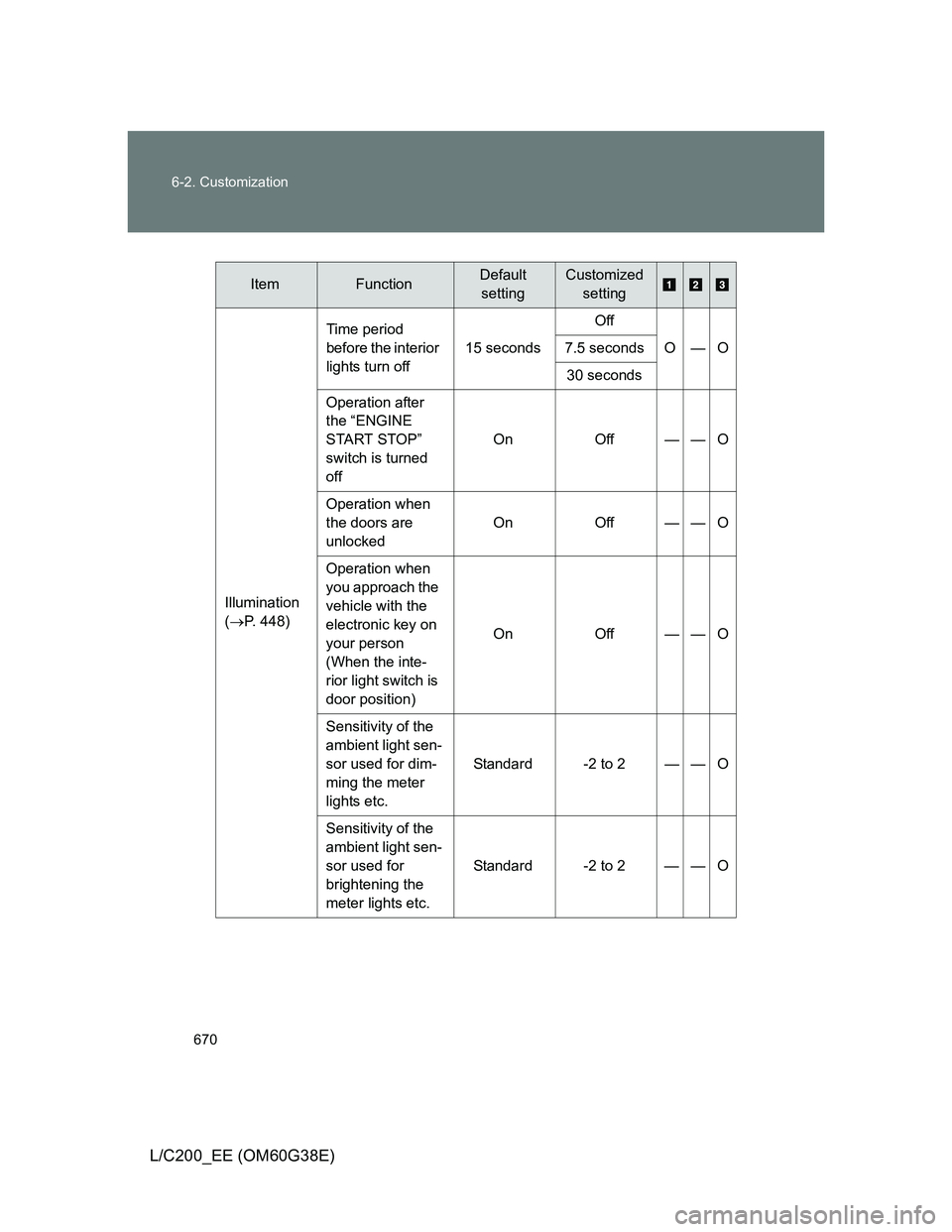

Illumination
(P. 448)Time period
before the interior
lights turn off15 secondsOff
O—O 7.5 seconds
30 seconds
Operation after
the “ENGINE
START STOP”
switch is turned
offOn Off — — O
Operation when
the doors are
unlockedOn Off — — O
Operation when
you approach the
vehicle with the
electronic key on
your person
(When the inte-
rior light switch is
door position)On Off — — O
Sensitivity of the
ambient light sen-
sor used for dim-
ming the meter
lights etc.Standard -2 to 2 — — O
Sensitivity of the
ambient light sen-
sor used for
brightening the
meter lights etc.Standard -2 to 2 — — O
