5
621 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

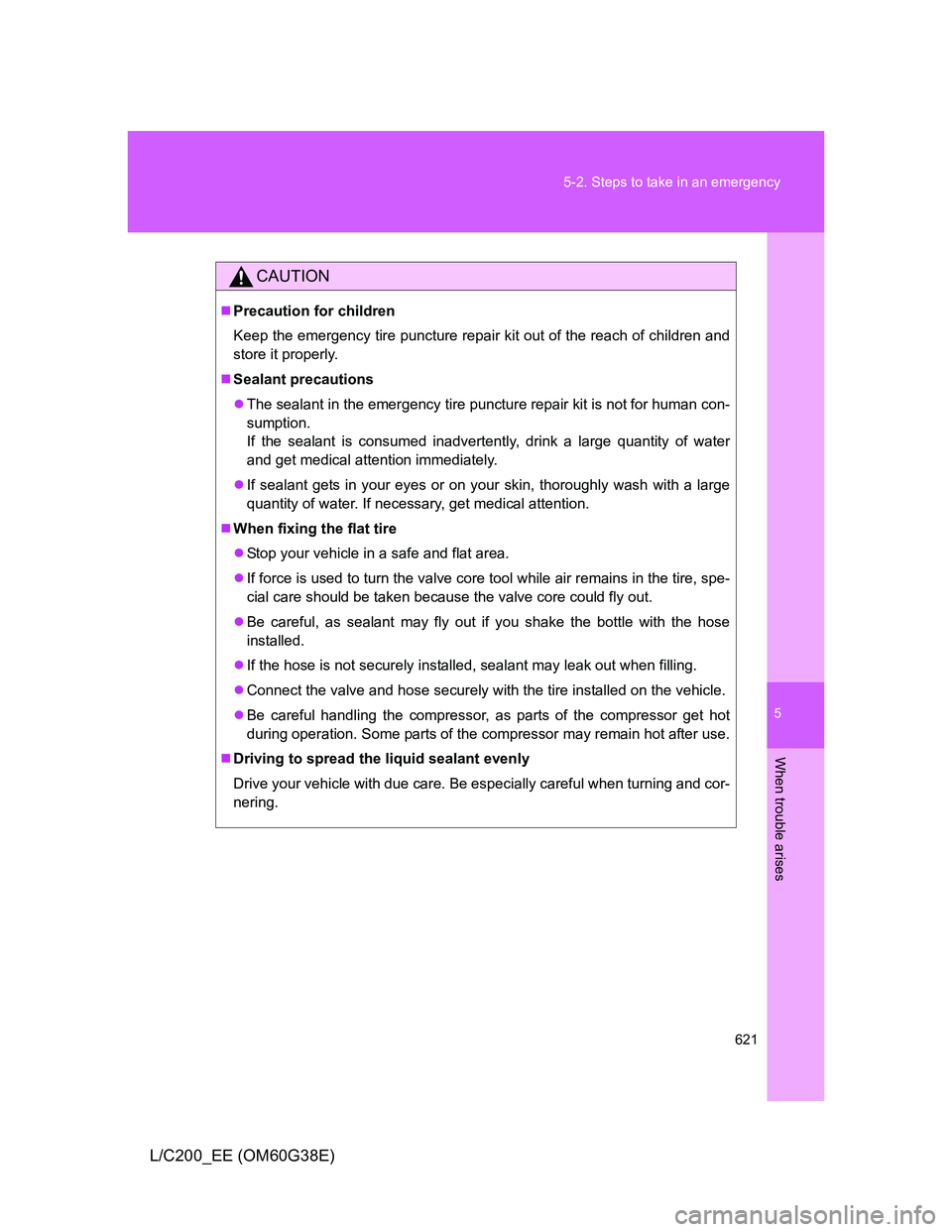

CAUTION
Precaution for children
Keep the emergency tire puncture repair kit out of the reach of children and
store it properly.
Sealant precautions
The sealant in the emergency tire puncture repair kit is not for human con-
sumption.
If the sealant is consumed inadvertently, drink a large quantity of water
and get medical attention immediately.
If sealant gets in your eyes or on your skin, thoroughly wash with a large
quantity of water. If necessary, get medical attention.
When fixing the flat tire
Stop your vehicle in a safe and flat area.
If force is used to turn the valve core tool while air remains in the tire, spe-
cial care should be taken because the valve core could fly out.
Be careful, as sealant may fly out if you shake the bottle with the hose
installed.
If the hose is not securely installed, sealant may leak out when filling.
Connect the valve and hose securely with the tire installed on the vehicle.
Be careful handling the compressor, as parts of the compressor get hot
during operation. Some parts of the compressor may remain hot after use.
Driving to spread the liquid sealant evenly
Drive your vehicle with due care. Be especially careful when turning and cor-
nering.

622 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

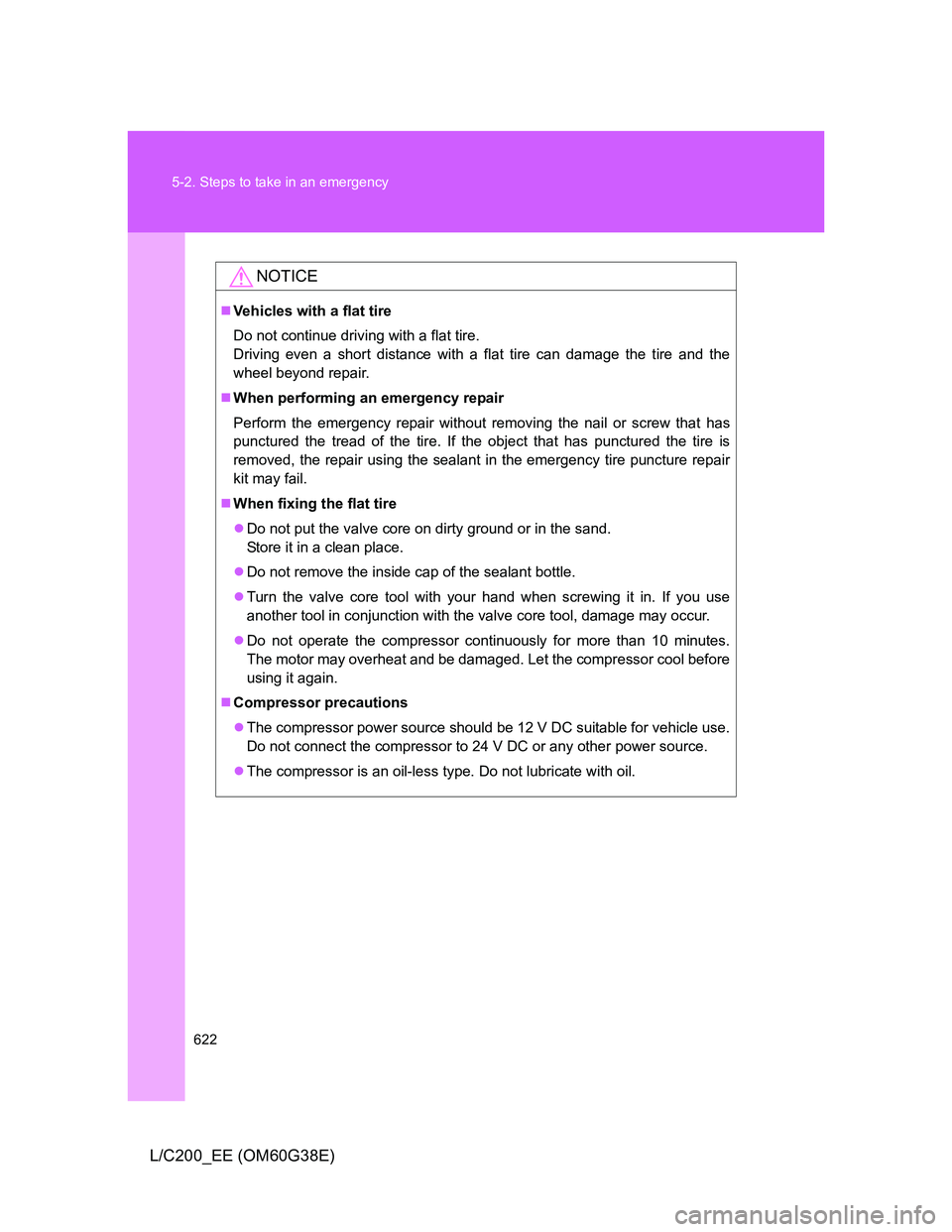

NOTICE
Vehicles with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When performing an emergency repair
Perform the emergency repair without removing the nail or screw that has
punctured the tread of the tire. If the object that has punctured the tire is
removed, the repair using the sealant in the emergency tire puncture repair
kit may fail.
When fixing the flat tire
Do not put the valve core on dirty ground or in the sand.
Store it in a clean place.
Do not remove the inside cap of the sealant bottle.
Turn the valve core tool with your hand when screwing it in. If you use
another tool in conjunction with the valve core tool, damage may occur.
Do not operate the compressor continuously for more than 10 minutes.
The motor may overheat and be damaged. Let the compressor cool before
using it again.
Compressor precautions
The compressor power source should be 12 V DC suitable for vehicle use.
Do not connect the compressor to 24 V DC or any other power source.
The compressor is an oil-less type. Do not lubricate with oil.

5
623
5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

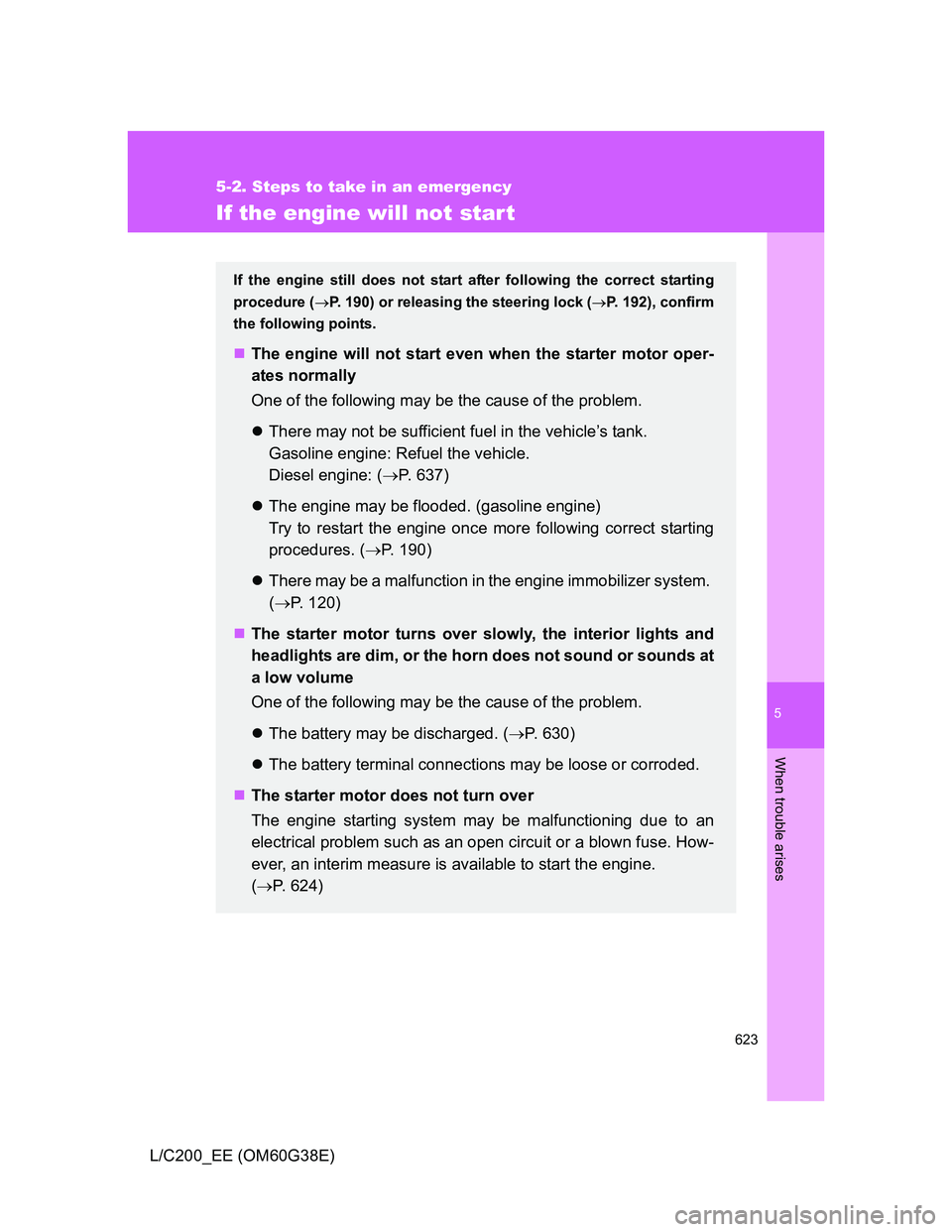

If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 190) or releasing the steering lock (P. 192), confirm
the following points.
The engine will not start even when the starter motor oper-
ates normally
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 637)
The engine may be flooded. (gasoline engine)
Try to restart the engine once more following correct starting
procedures. (P. 190)
There may be a malfunction in the engine immobilizer system.
(P. 120)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 630)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 624)

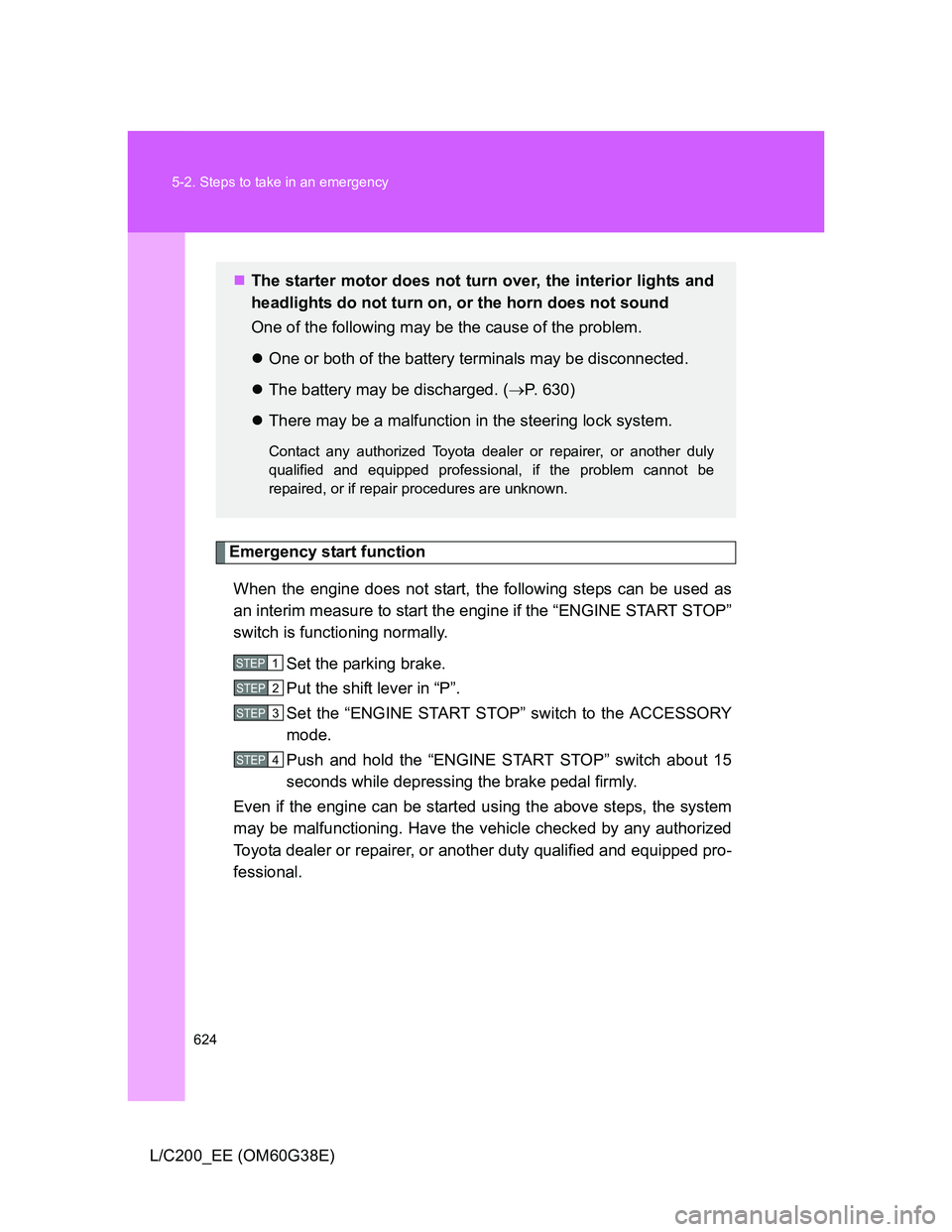

624 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Emergency start function
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Put the shift lever in “P”.
Set the “ENGINE START STOP” switch to the ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any authorized
Toyota dealer or repairer, or another duty qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 630)
There may be a malfunction in the steering lock system.
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4

5
625
5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

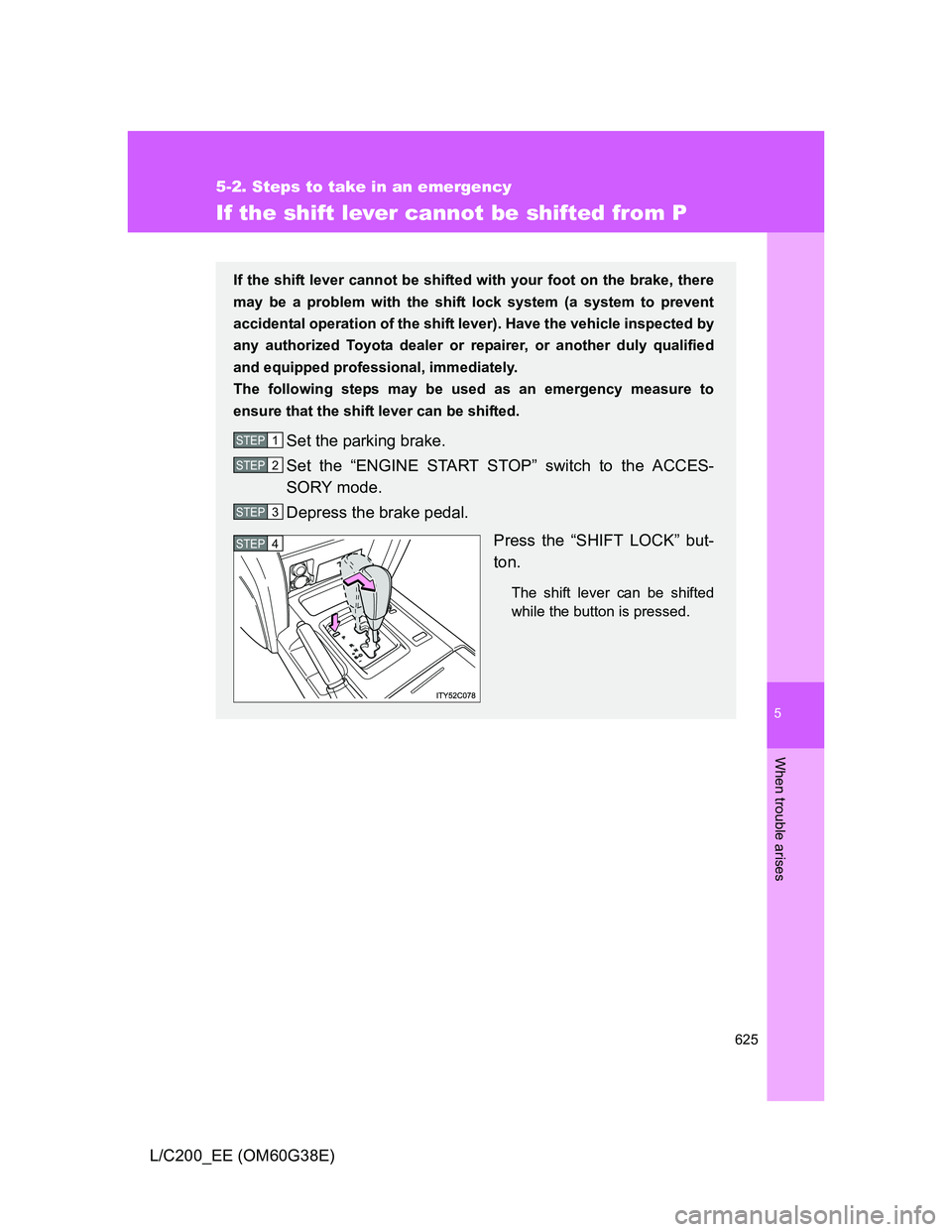

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Set the “ENGINE START STOP” switch to the ACCES-
SORY mode.
Depress the brake pedal.
Press the “SHIFT LOCK” but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

626
5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

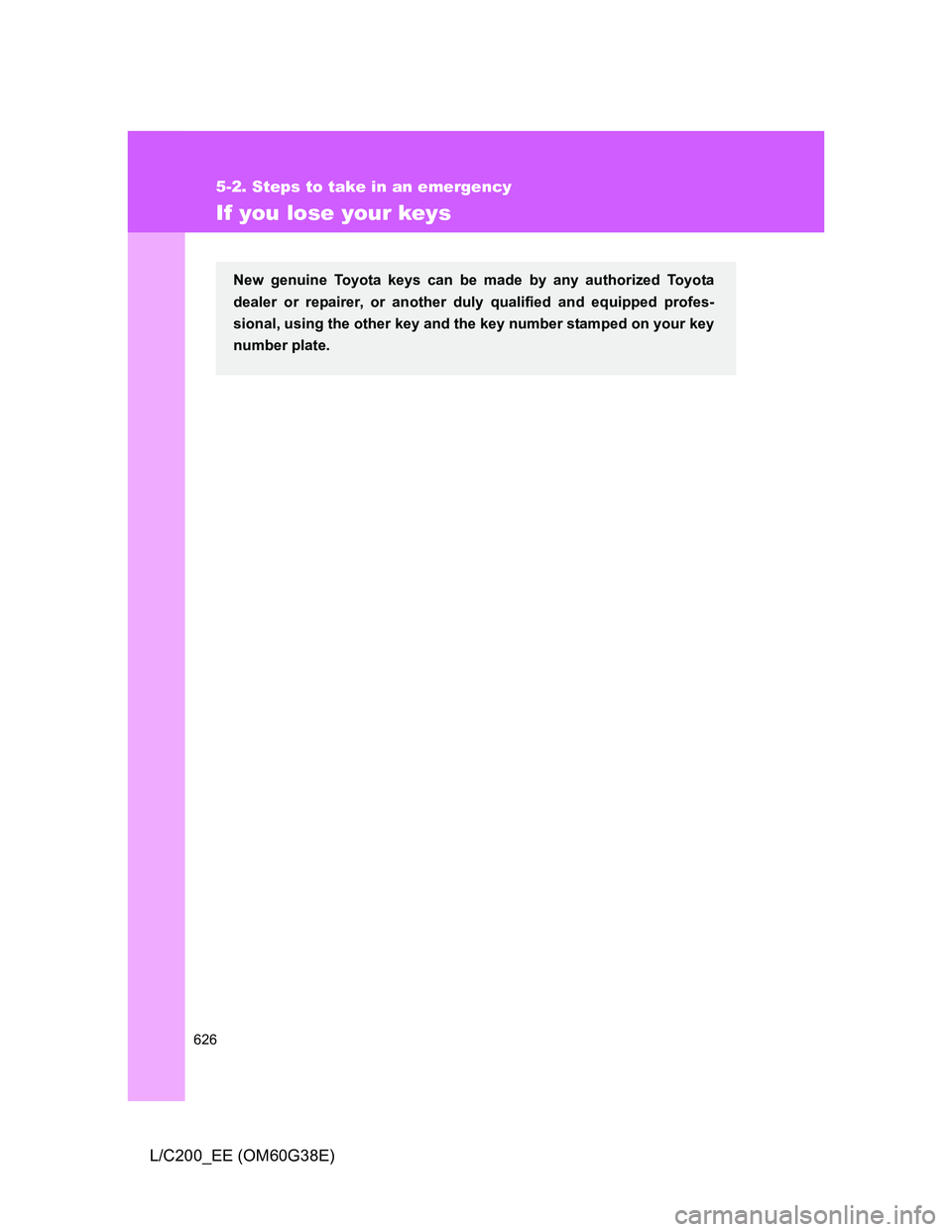

If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional, using the other key and the key number stamped on your key
number plate.

5
627
5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

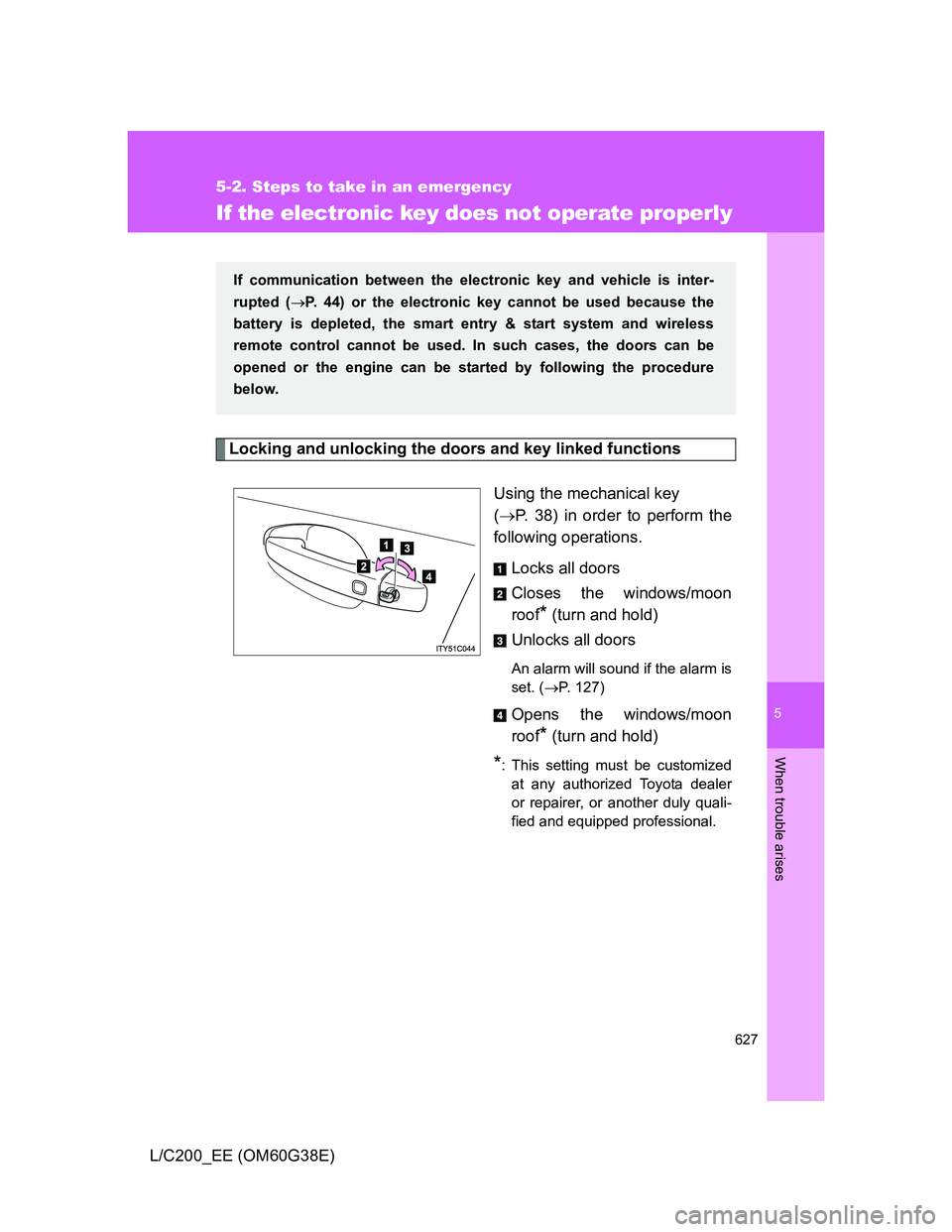

If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Using the mechanical key
(P. 38) in order to perform the
following operations.
Locks all doors
Closes the windows/moon
roof
* (turn and hold)
Unlocks all doors
An alarm will sound if the alarm is
set. (P. 127)
Opens the windows/moon
roof
* (turn and hold)
*: This setting must be customized
at any authorized Toyota dealer
or repairer, or another duly quali-
fied and equipped professional.
If communication between the electronic key and vehicle is inter-
rupted (P. 44) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened or the engine can be started by following the procedure
below.

628 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)
Changing “ENGINE START STOP” switch modes and starting the
engine
Shift the shift lever to “P” and apply the brakes.
Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (P. 191)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
In the event that the “ENGINE START STOP” switch still cannot be
operated, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
STEP1
STEP2
STEP3

5
629 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)

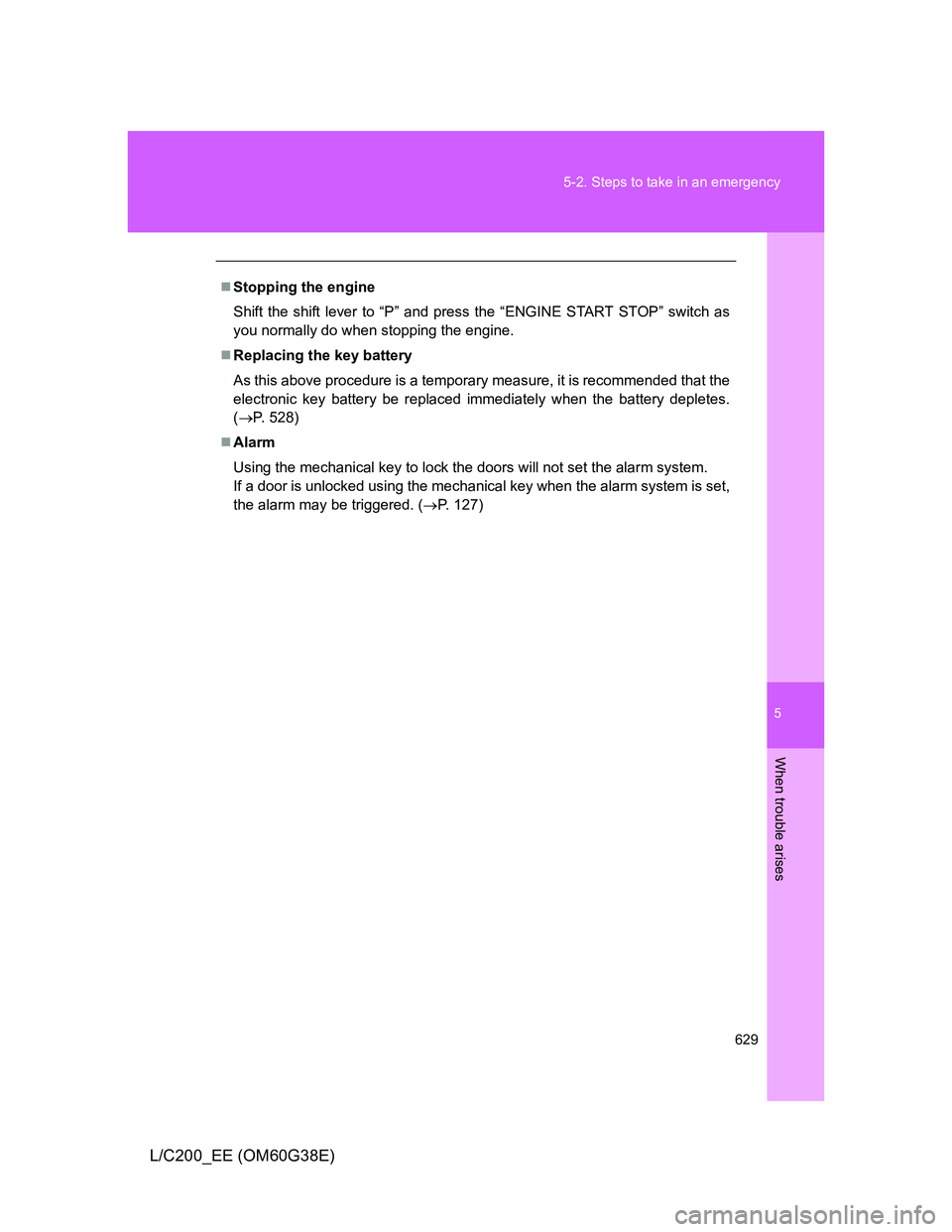

Stopping the engine
Shift the shift lever to “P” and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 528)
Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (P. 127)

630
5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

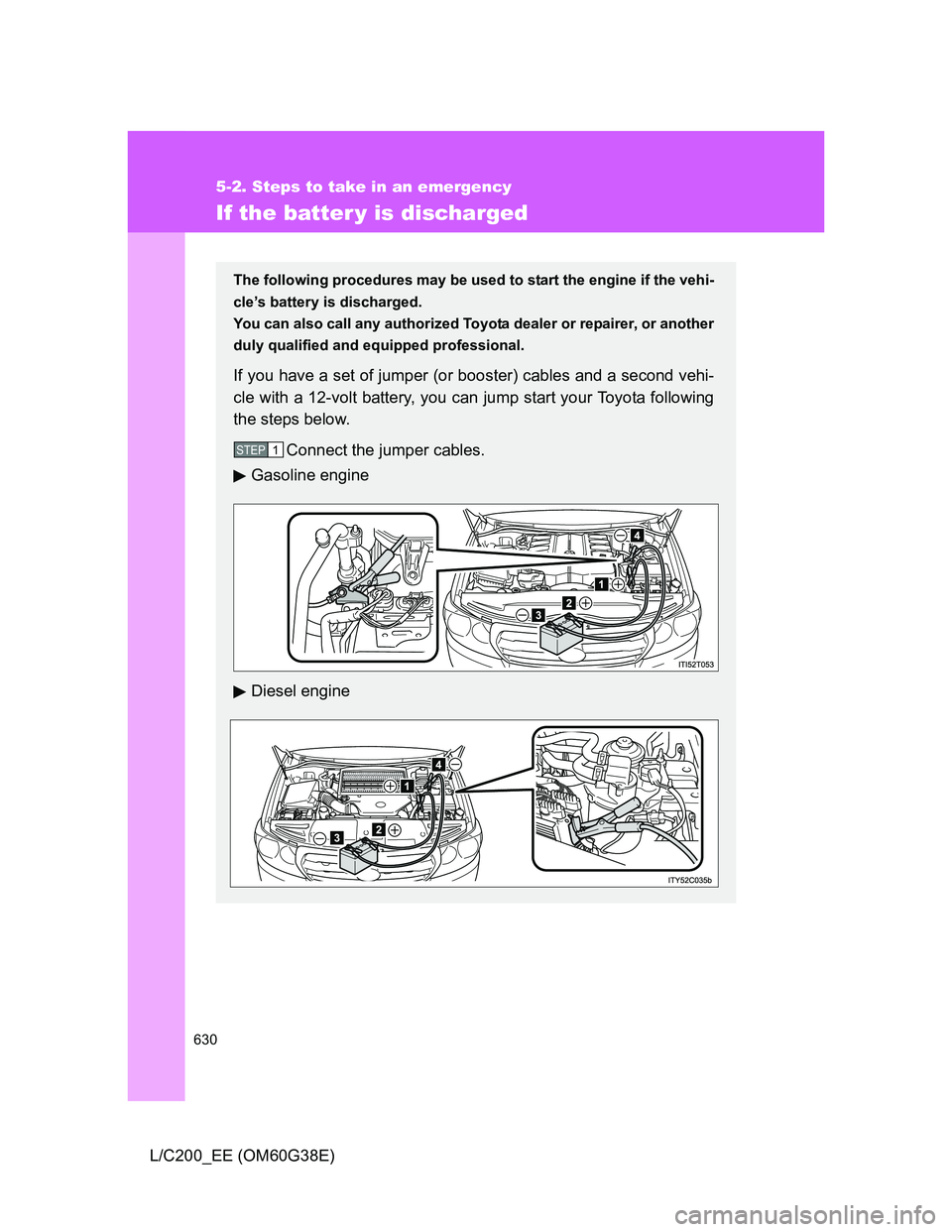

If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your Toyota following
the steps below.
Connect the jumper cables.
Gasoline engine
Diesel engine
STEP1
