TOYOTA LAND CRUISER 2012 Owners Manual

651 6-1. Specifications
6
Vehicle specifications

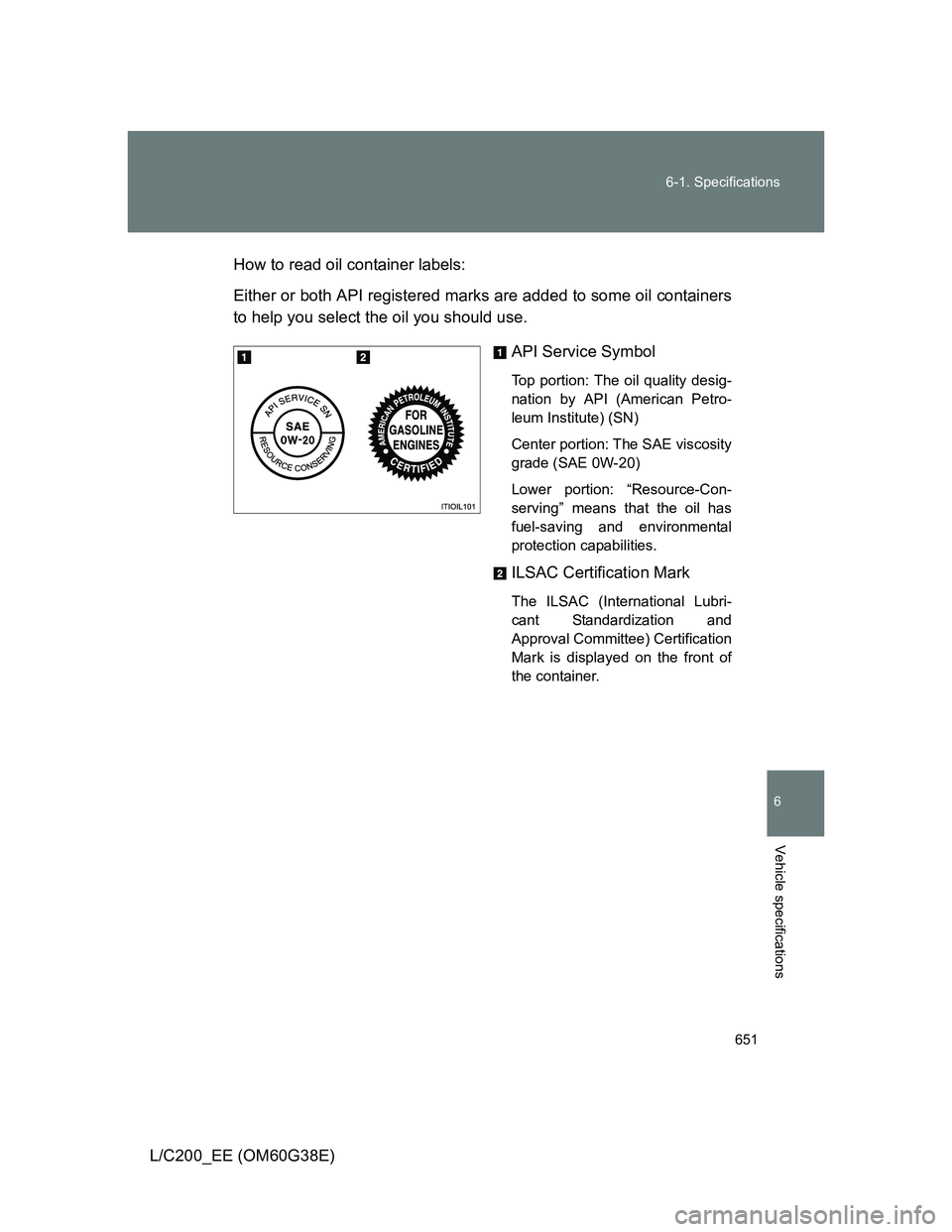

L/C200_EE (OM60G38E)How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

652 6-1. Specifications

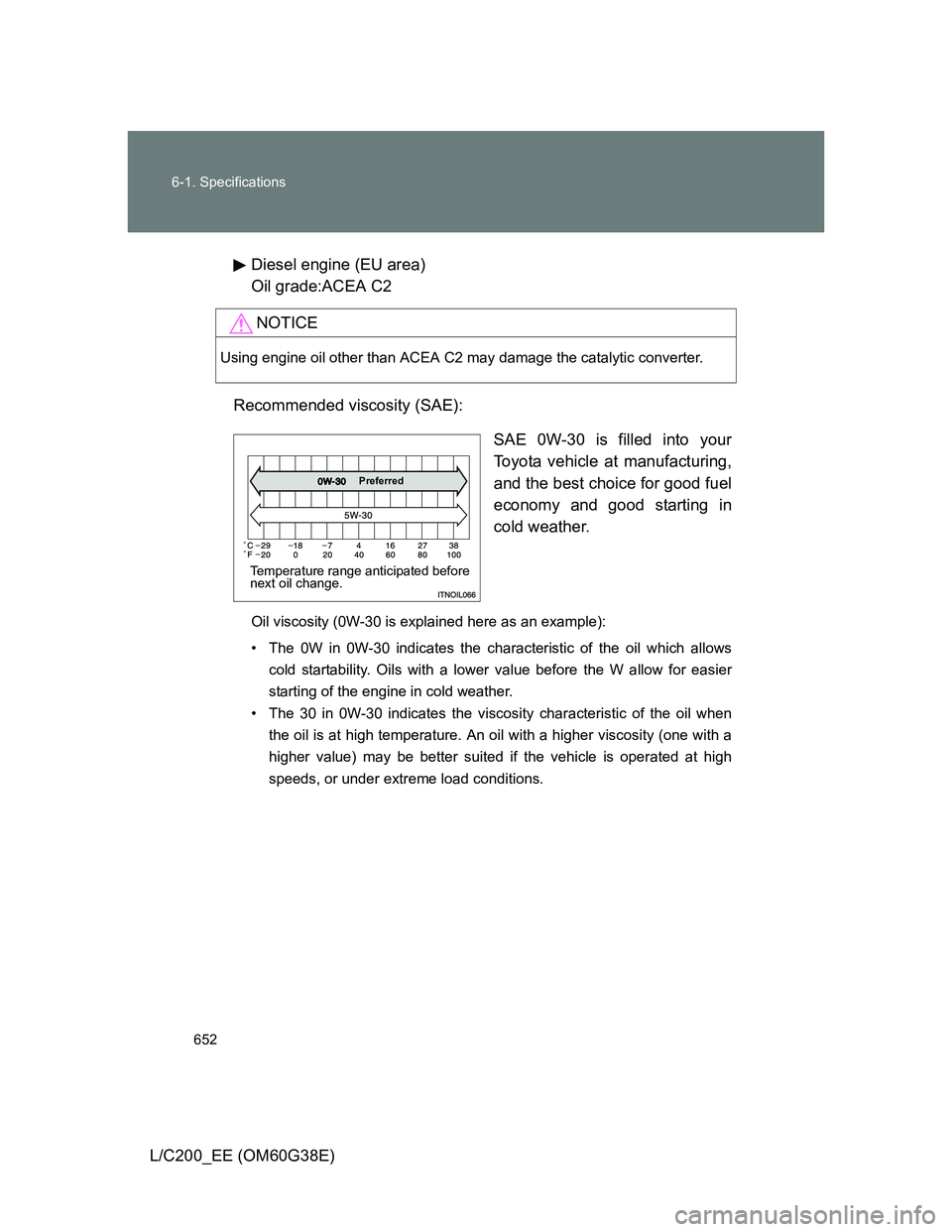

L/C200_EE (OM60G38E)Diesel engine (EU area)
Oil grade:ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred

653 6-1. Specifications
6
Vehicle specifications

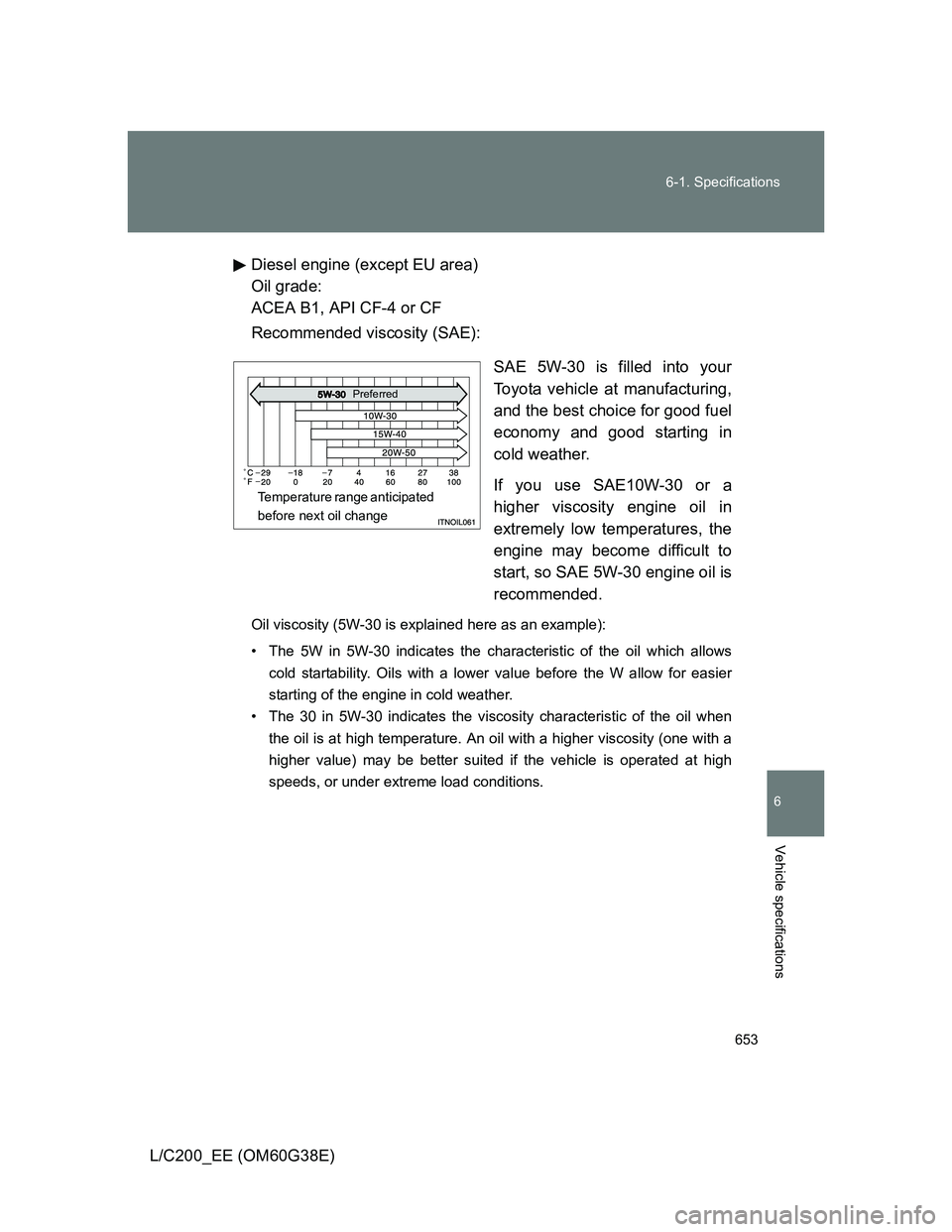

L/C200_EE (OM60G38E)Diesel engine (except EU area)
Oil grade:
ACEA B1, API CF-4 or CF
Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Preferred
Temperature range anticipated
before next oil change

654 6-1. Specifications
L/C200_EE (OM60G38E)

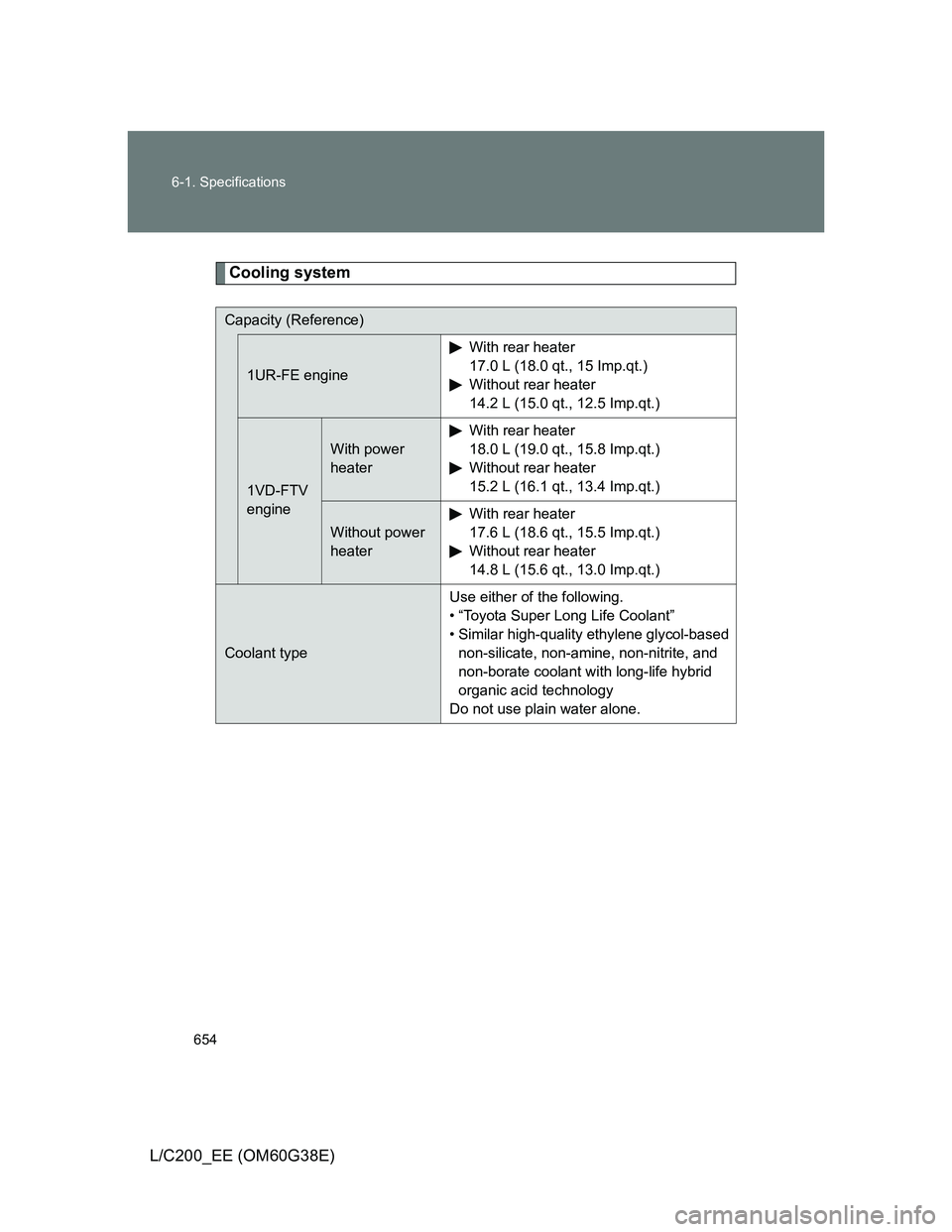

Cooling system
Capacity (Reference)
1UR-FE engineWith rear heater
17.0 L (18.0 qt., 15 Imp.qt.)
Without rear heater
14.2 L (15.0 qt., 12.5 Imp.qt.)
1VD-FTV
engine
With power
heaterWith rear heater
18.0 L (19.0 qt., 15.8 Imp.qt.)
Without rear heater
15.2 L (16.1 qt., 13.4 Imp.qt.)
Without power
heaterWith rear heater
17.6 L (18.6 qt., 15.5 Imp.qt.)
Without rear heater
14.8 L (15.6 qt., 13.0 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

655 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

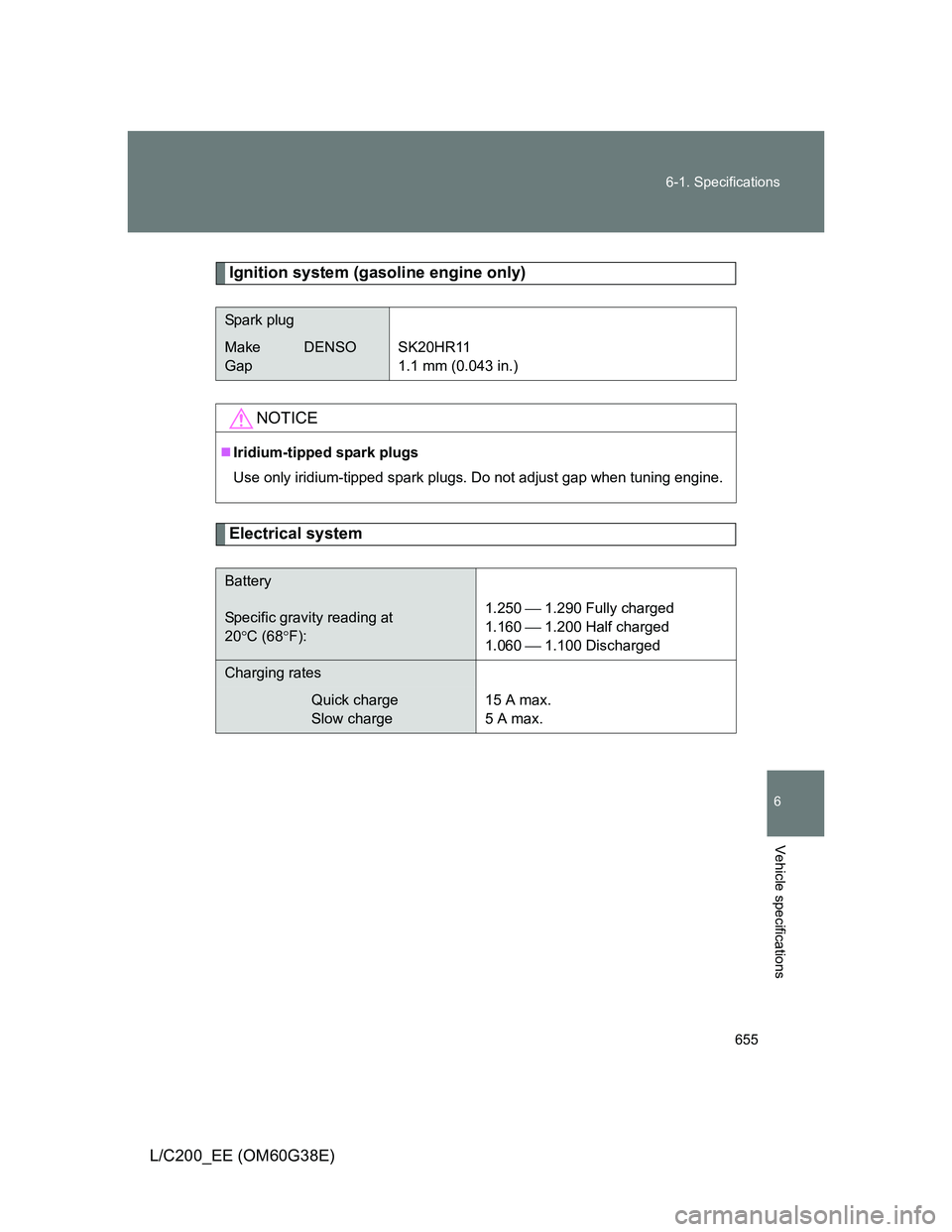

Ignition system (gasoline engine only)
Electrical system
Spark plug
Make DENSO
GapSK20HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Specific gravity reading at
20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.

656 6-1. Specifications
L/C200_EE (OM60G38E)

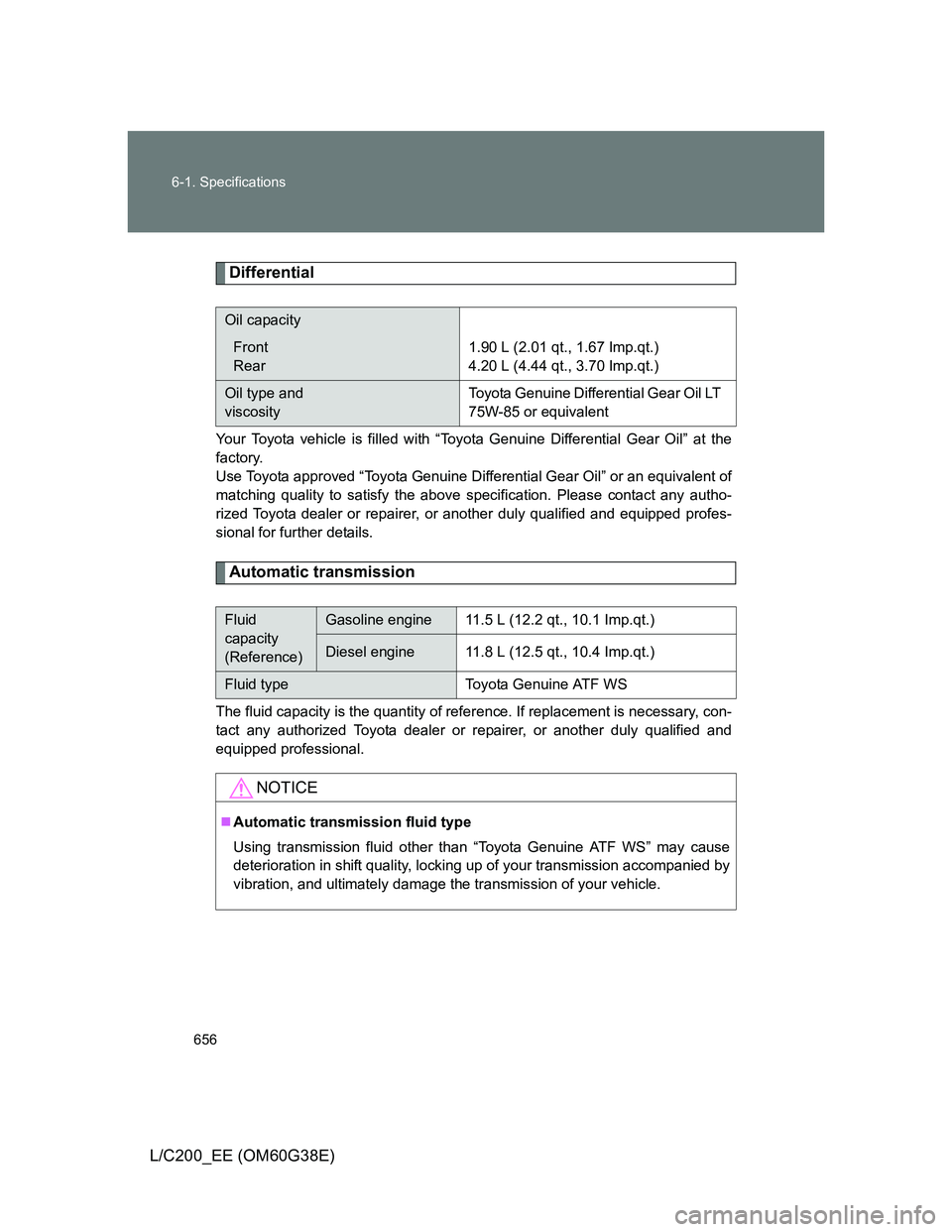

Differential
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional for further details.
Automatic transmission
The fluid capacity is the quantity of reference. If replacement is necessary, con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Oil capacity
Front
Rear1.90 L (2.01 qt., 1.67 Imp.qt.)
4.20 L (4.44 qt., 3.70 Imp.qt.)
Oil type and
viscosityToyota Genuine Differential Gear Oil LT
75W-85 or equivalent
Fluid
capacity
(Reference)Gasoline engine11.5 L (12.2 qt., 10.1 Imp.qt.)
Diesel engine11.8 L (12.5 qt., 10.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

657 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

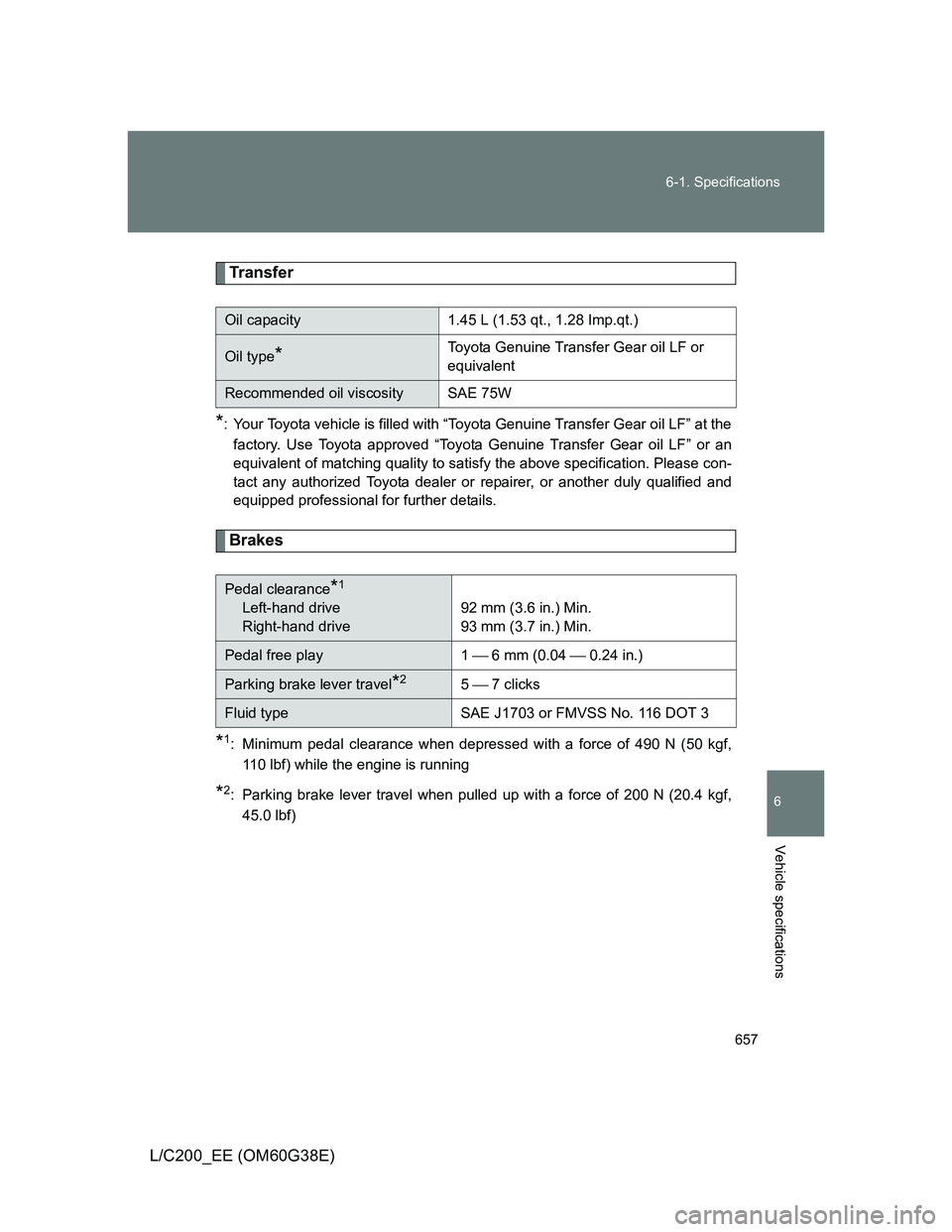

Transfer
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the
factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Oil capacity1.45 L (1.53 qt., 1.28 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or
equivalent
Recommended oil viscositySAE 75W
Pedal clearance*1
Left-hand drive
Right-hand drive92 mm (3.6 in.) Min.
93 mm (3.7 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*25  7 clicks
Fluid type SAE J1703 or FMVSS No. 116 DOT 3

658 6-1. Specifications
L/C200_EE (OM60G38E)

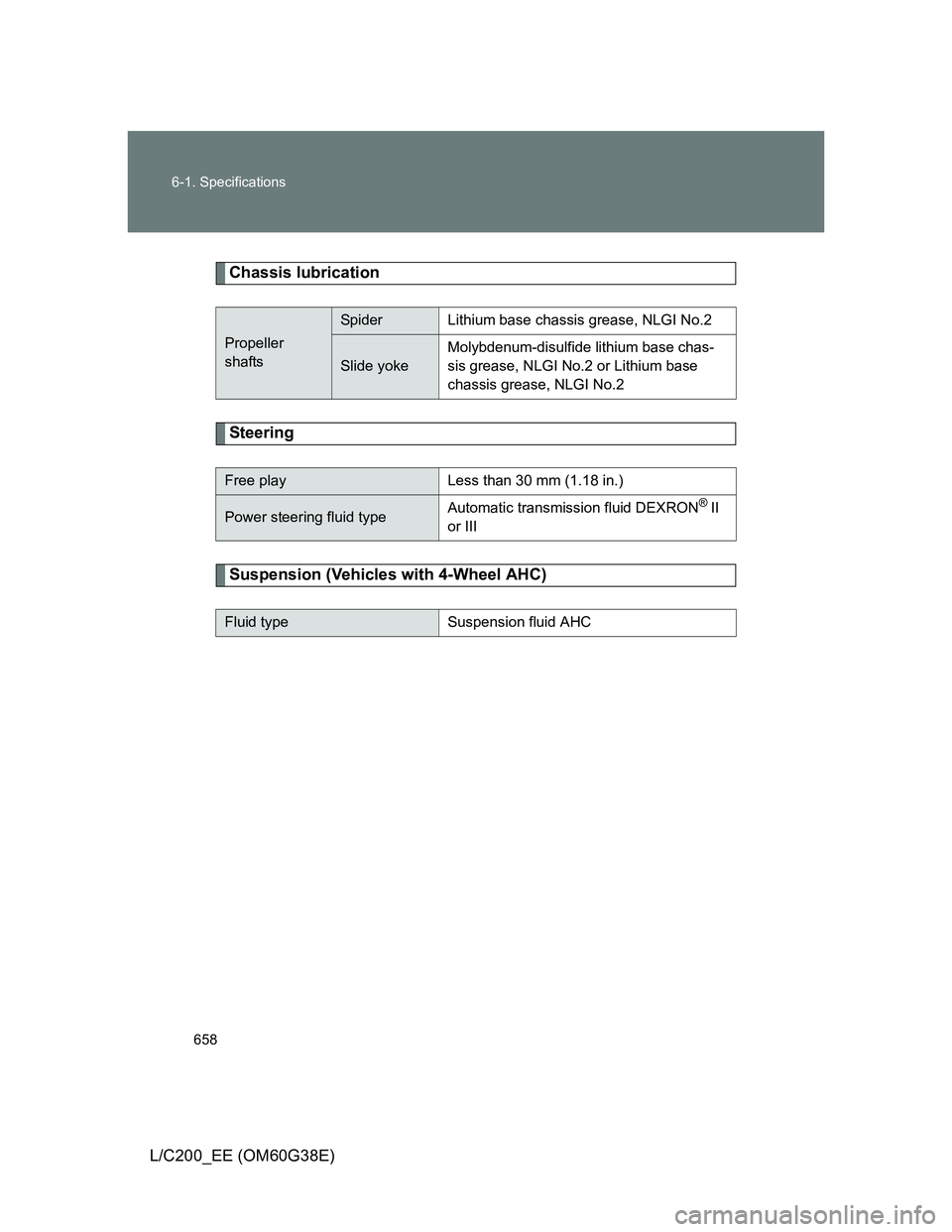

Chassis lubrication
Steering
Suspension (Vehicles with 4-Wheel AHC)
Propeller
shafts
SpiderLithium base chassis grease, NLGI No.2
Slide yoke
Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or Lithium base
chassis grease, NLGI No.2
Free playLess than 30 mm (1.18 in.)
Power steering fluid typeAutomatic transmission fluid DEXRON® II
or III
Fluid typeSuspension fluid AHC

659 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

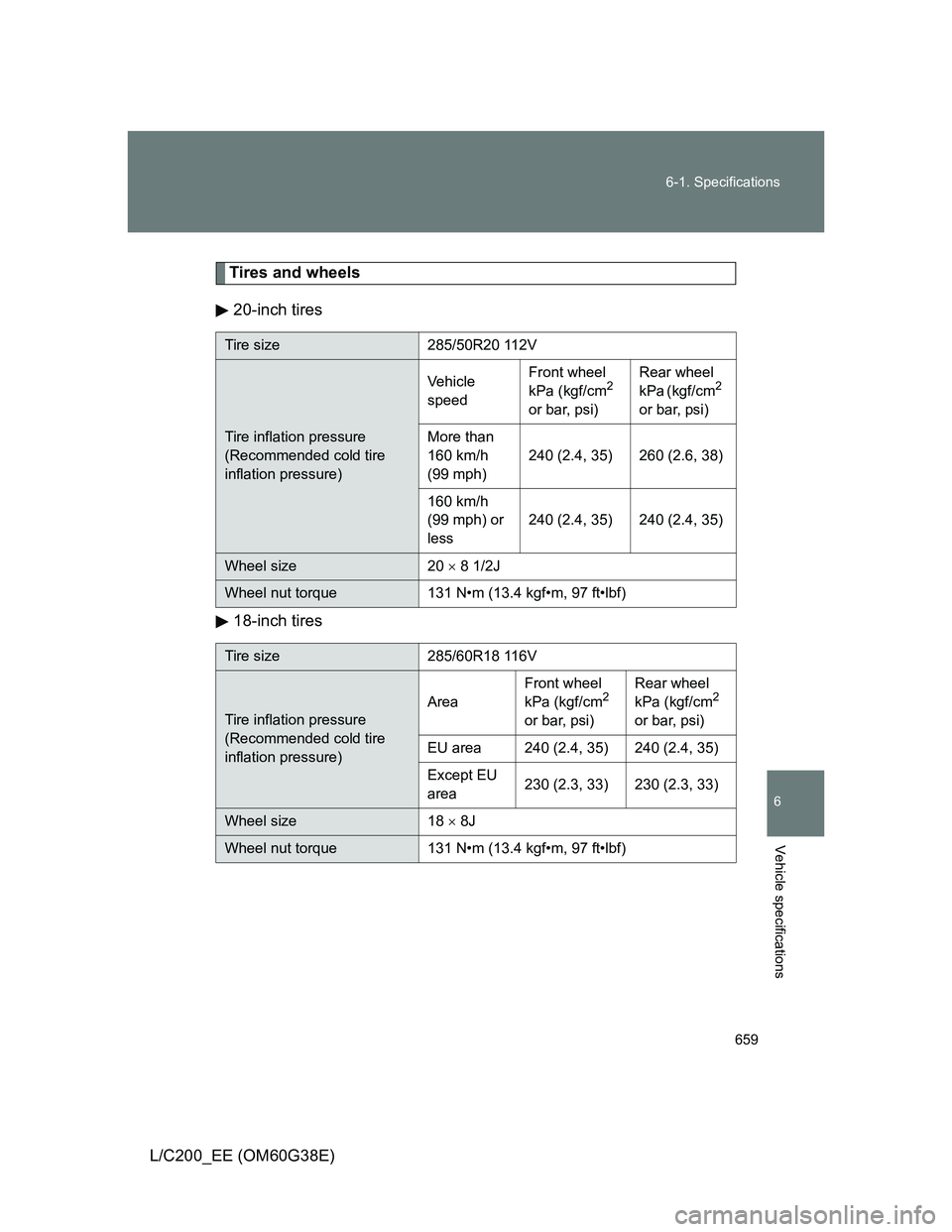

Tires and wheels
20-inch tires
18-inch tires
Tire size 285/50R20 112V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)240 (2.4, 35) 260 (2.6, 38)
160 km/h
(99 mph) or
less240 (2.4, 35) 240 (2.4, 35)
Wheel size 20  8 1/2J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)
Tire size 285/60R18 116V
Tire inflation pressure
(Recommended cold tire
inflation pressure)AreaFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
EU area 240 (2.4, 35) 240 (2.4, 35)
Except EU
area230 (2.3, 33) 230 (2.3, 33)
Wheel size 18  8J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)

660 6-1. Specifications

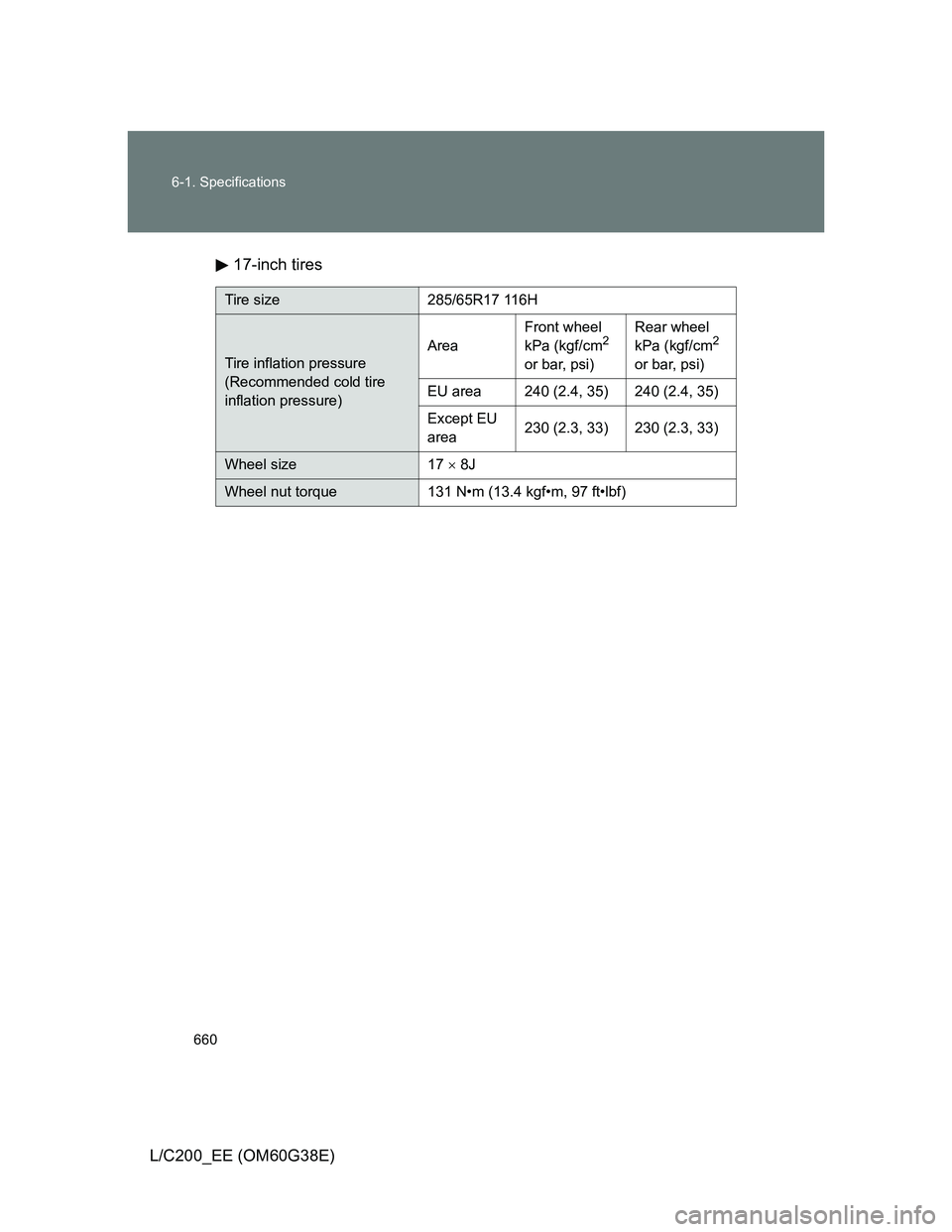

L/C200_EE (OM60G38E)17-inch tires
Tire size 285/65R17 116H
Tire inflation pressure
(Recommended cold tire
inflation pressure)AreaFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
EU area 240 (2.4, 35) 240 (2.4, 35)
Except EU
area230 (2.3, 33) 230 (2.3, 33)
Wheel size 17  8J
Wheel nut torque 131 N•m (13.4 kgf•m, 97 ft•lbf)
