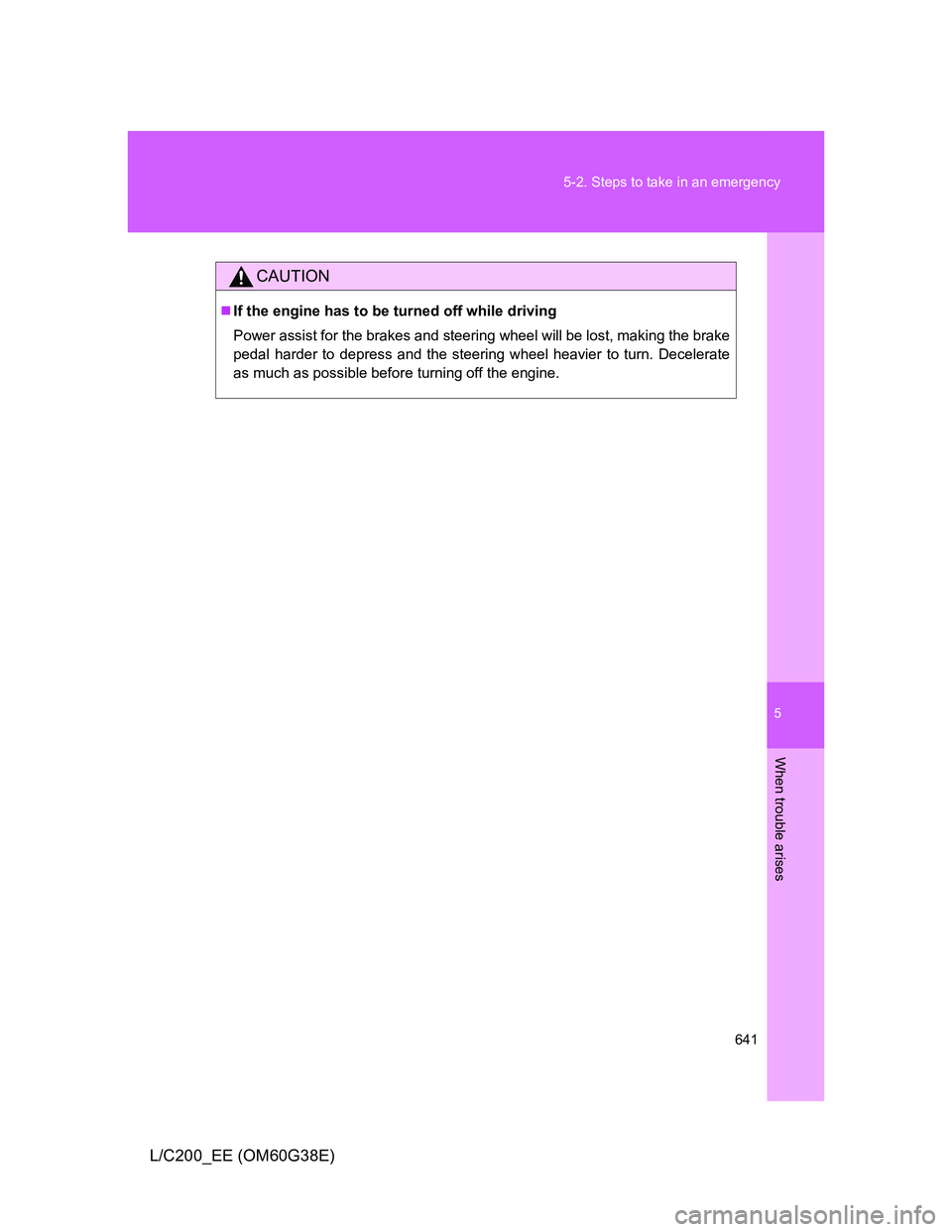

641 5-2. Steps to take in an emergency
When trouble arises
L/C200_EE (OM60G38E)
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake
pedal harder to depress and the steering wheel heavier to turn. Decelerate
as much as possible before turning off the engine.

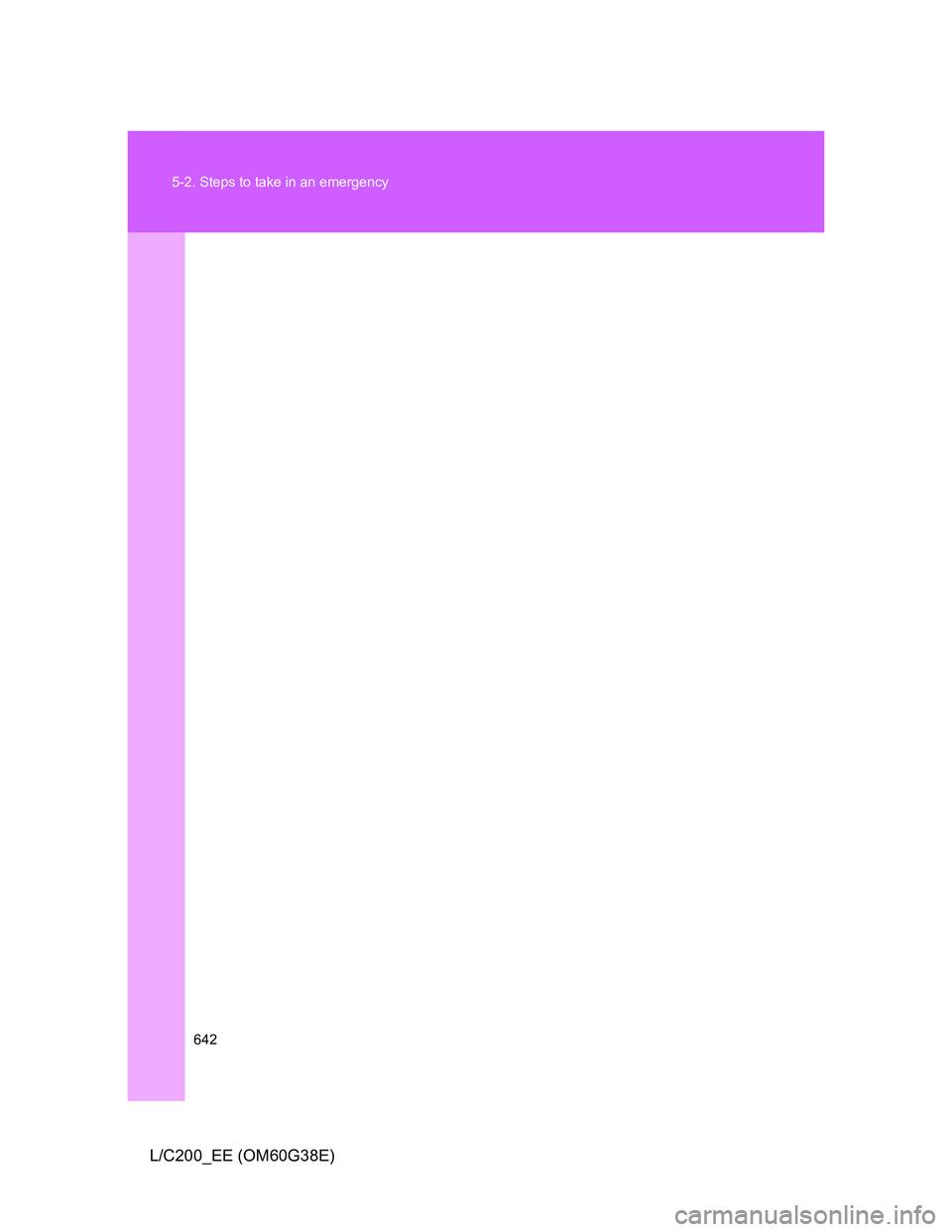

642 5-2. Steps to take in an emergency
L/C200_EE (OM60G38E)

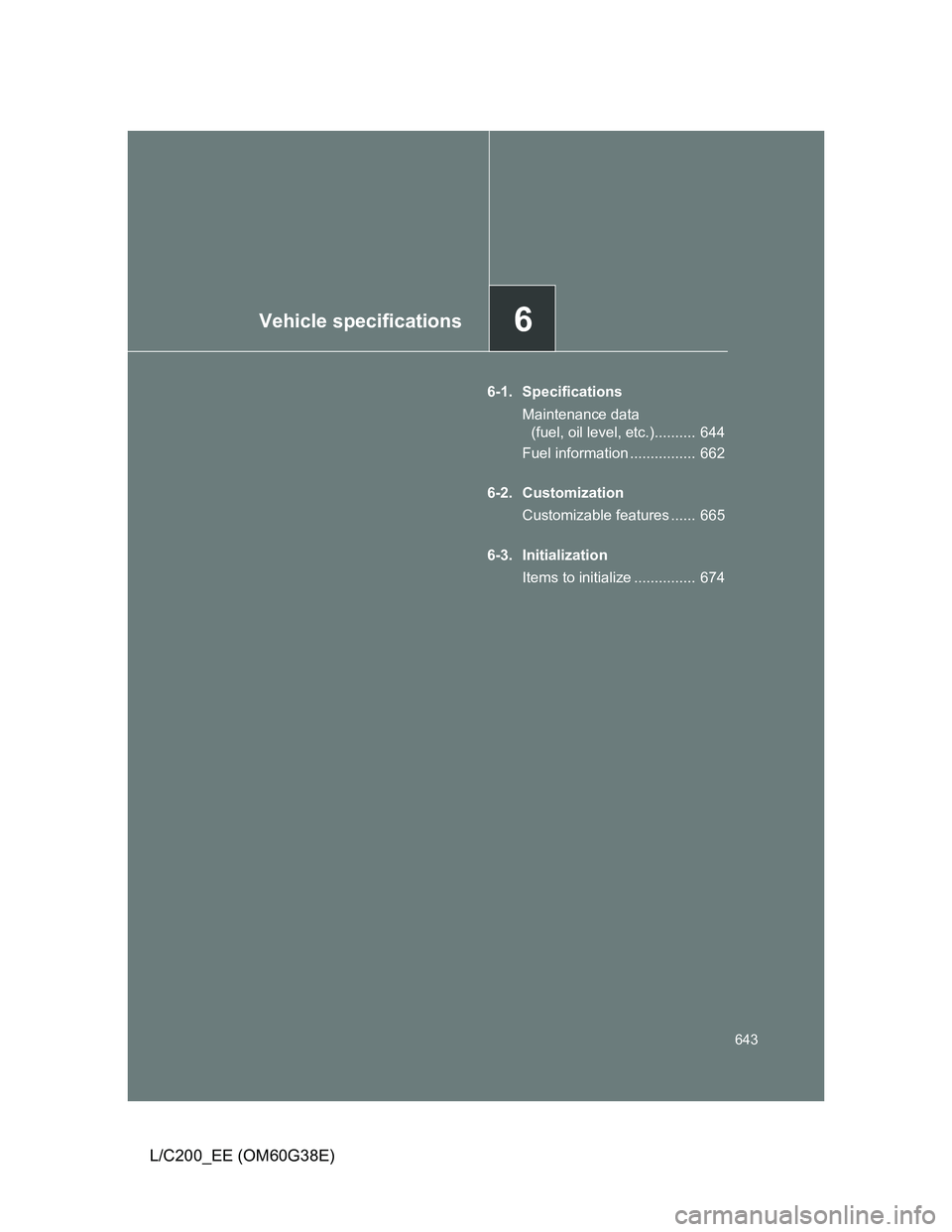

6Vehicle specifications
643
L/C200_EE (OM60G38E)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 644
Fuel information ................ 662
6-2. Customization
Customizable features ...... 665
6-3. Initialization
Items to initialize ............... 674

644
L/C200_EE (OM60G38E)
6-1. Specifications

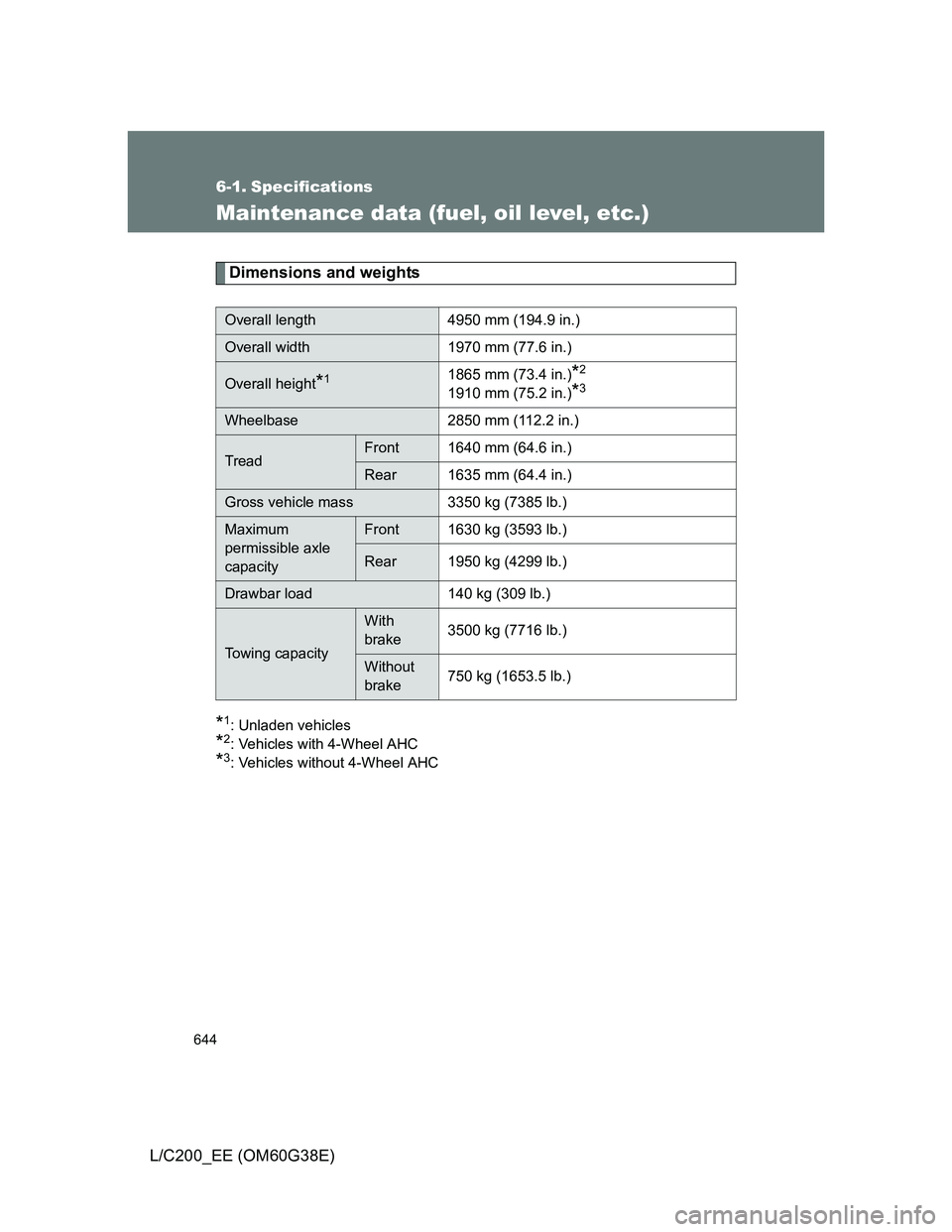

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: Vehicles with 4-Wheel AHC
*3: Vehicles without 4-Wheel AHC
Overall length 4950 mm (194.9 in.)
Overall width 1970 mm (77.6 in.)
Overall height*11865 mm (73.4 in.)*2
1910 mm (75.2 in.)*3
Wheelbase 2850 mm (112.2 in.)
TreadFront 1640 mm (64.6 in.)
Rear 1635 mm (64.4 in.)
Gross vehicle mass 3350 kg (7385 lb.)
Maximum
permissible axle
capacityFront 1630 kg (3593 lb.)
Rear 1950 kg (4299 lb.)
Drawbar load 140 kg (309 lb.)
Towing capacity
With
brake3500 kg (7716 lb.)
Without
brake750 kg (1653.5 lb.)

645 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

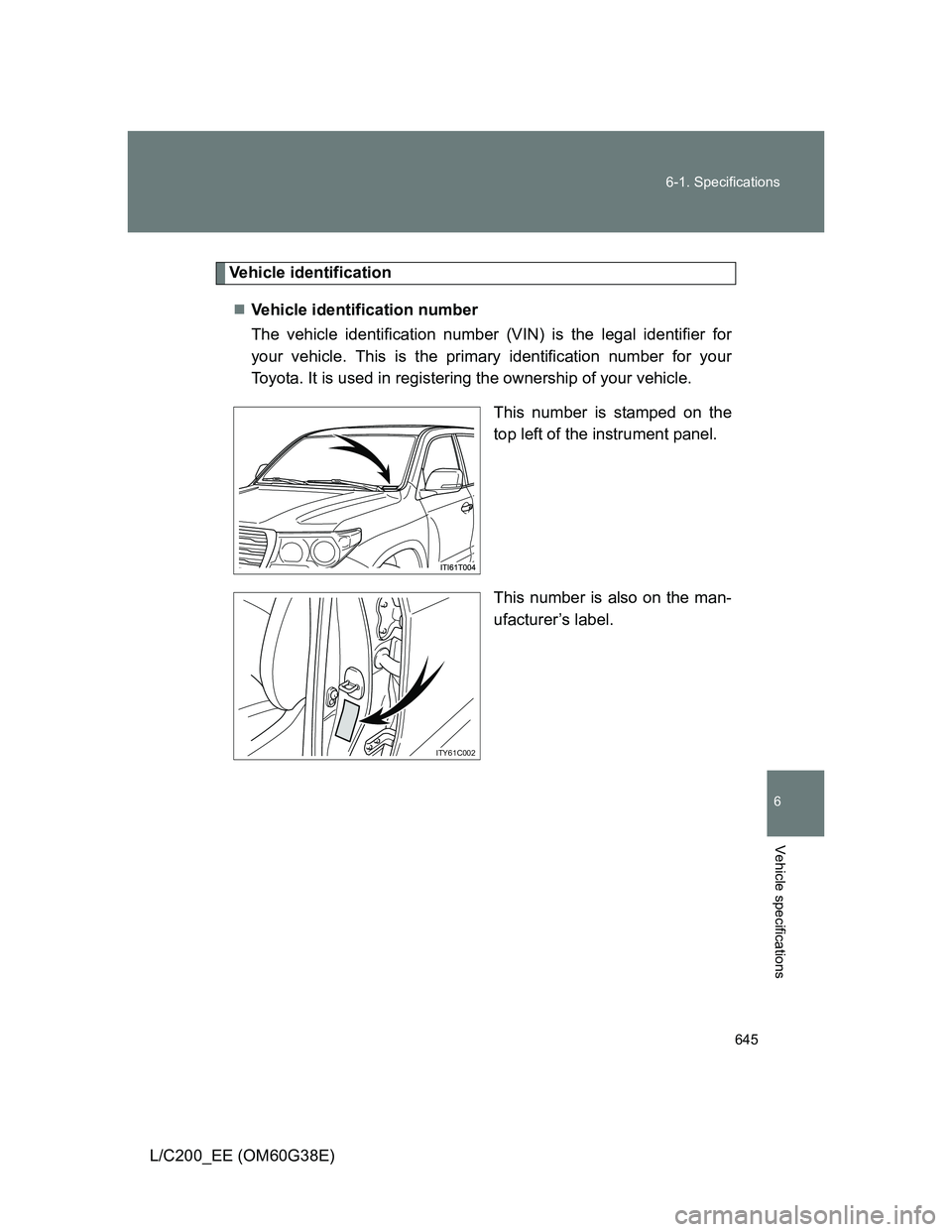

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the man-
ufacturer’s label.
ITY61C002

646 6-1. Specifications

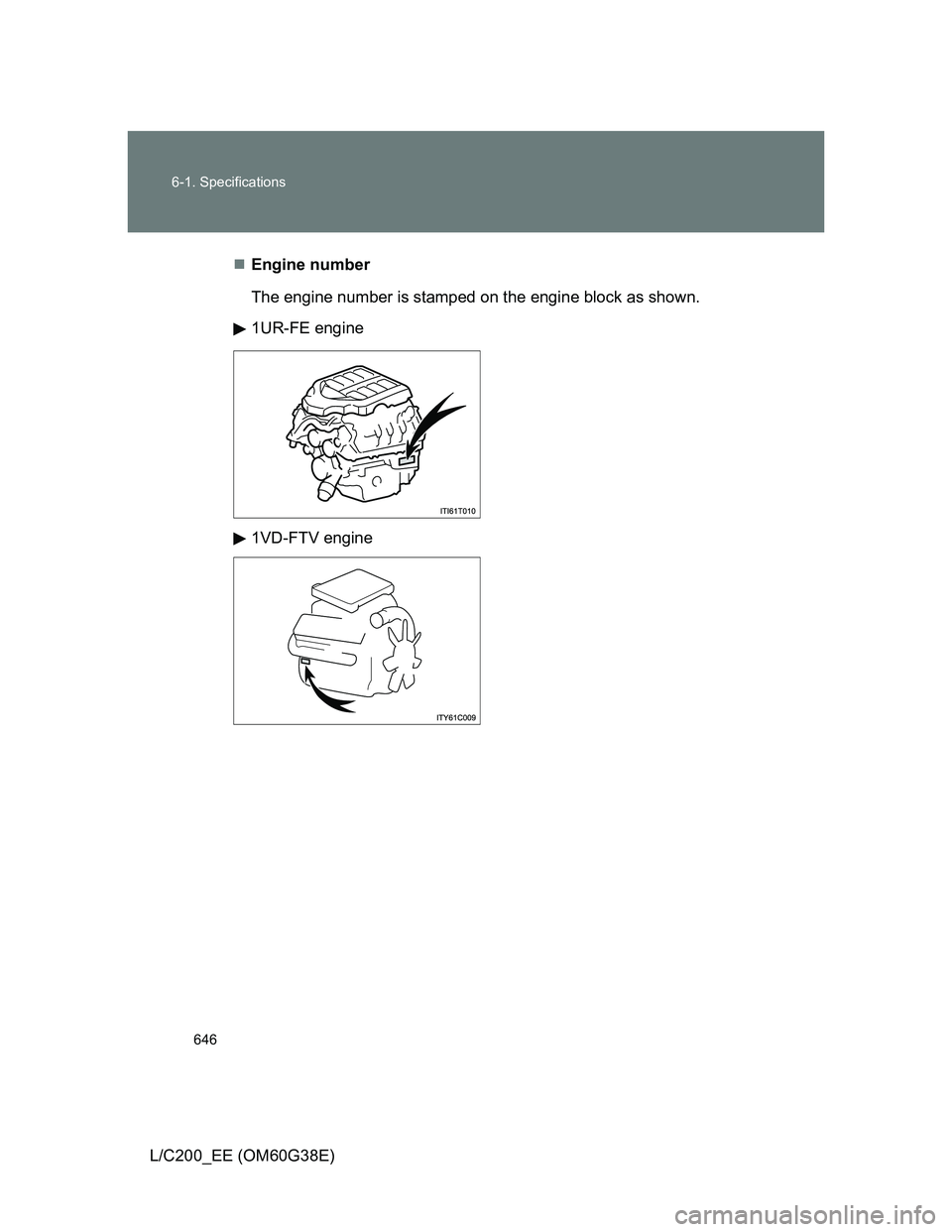

L/C200_EE (OM60G38E)Engine number
The engine number is stamped on the engine block as shown.
1UR-FE engine
1VD-FTV engine

647 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

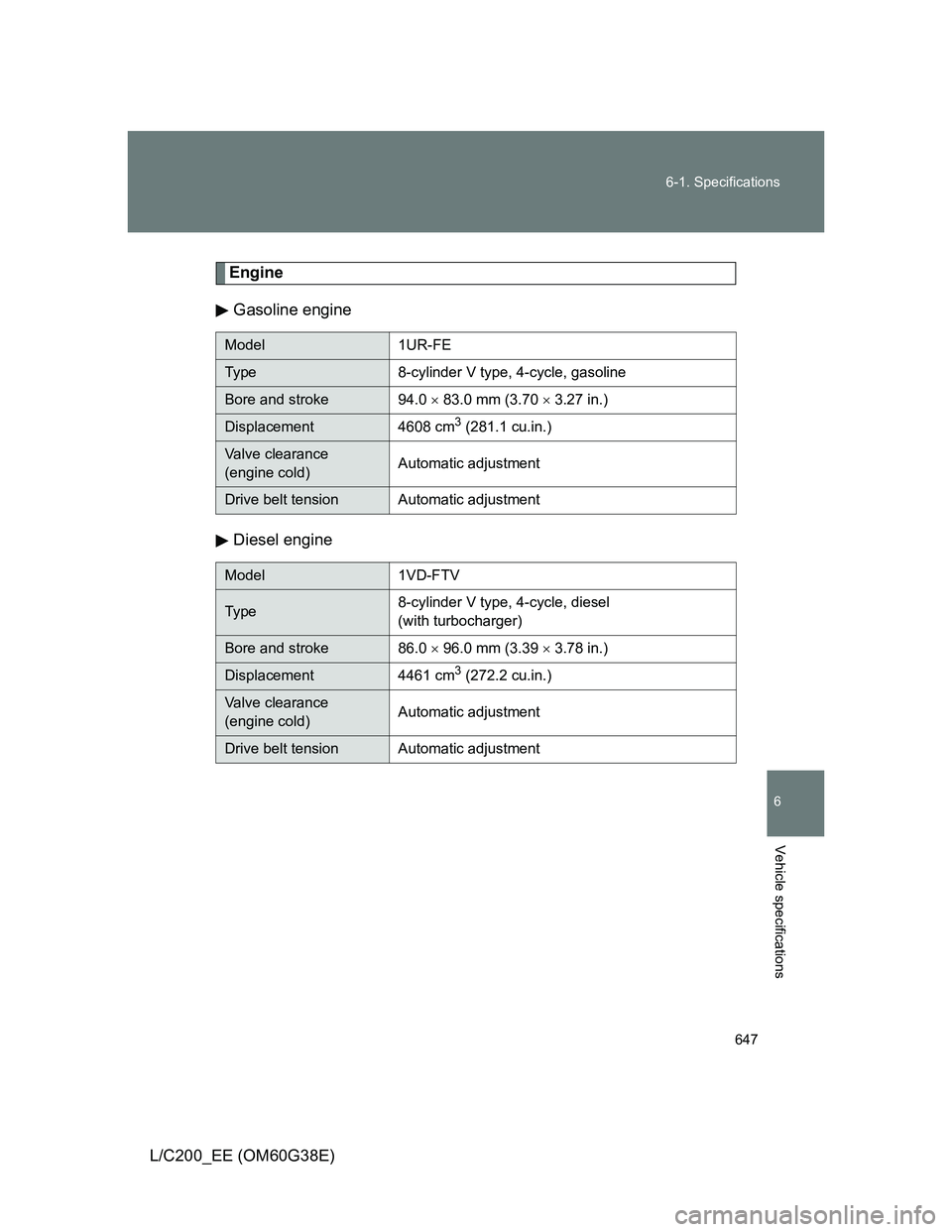

Engine
Gasoline engine
Diesel engine
Model 1UR-FE
Type 8-cylinder V type, 4-cycle, gasoline
Bore and stroke 94.0  83.0 mm (3.70  3.27 in.)
Displacement 4608 cm3 (281.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Model 1VD-FTV
Ty p e8-cylinder V type, 4-cycle, diesel
(with turbocharger)
Bore and stroke 86.0  96.0 mm (3.39  3.78 in.)
Displacement 4461 cm3 (272.2 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment

648 6-1. Specifications
L/C200_EE (OM60G38E)

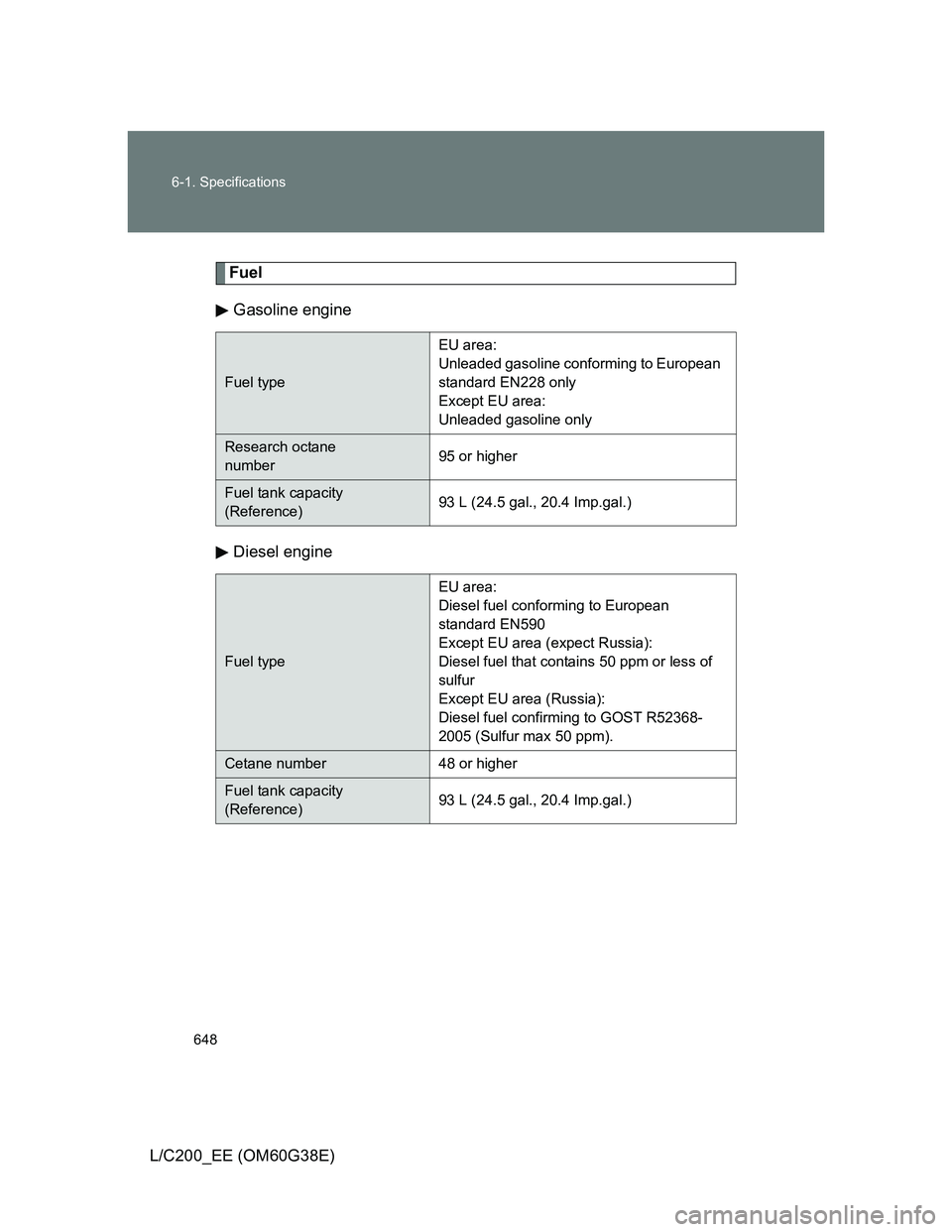

Fuel
Gasoline engine
Diesel engine
Fuel typeEU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(Reference)93 L (24.5 gal., 20.4 Imp.gal.)
Fuel typeEU area:
Diesel fuel conforming to European
standard EN590
Except EU area (expect Russia):
Diesel fuel that contains 50 ppm or less of
sulfur
Except EU area (Russia):
Diesel fuel confirming to GOST R52368-
2005 (Sulfur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference)93 L (24.5 gal., 20.4 Imp.gal.)

649 6-1. Specifications
6
Vehicle specifications
L/C200_EE (OM60G38E)

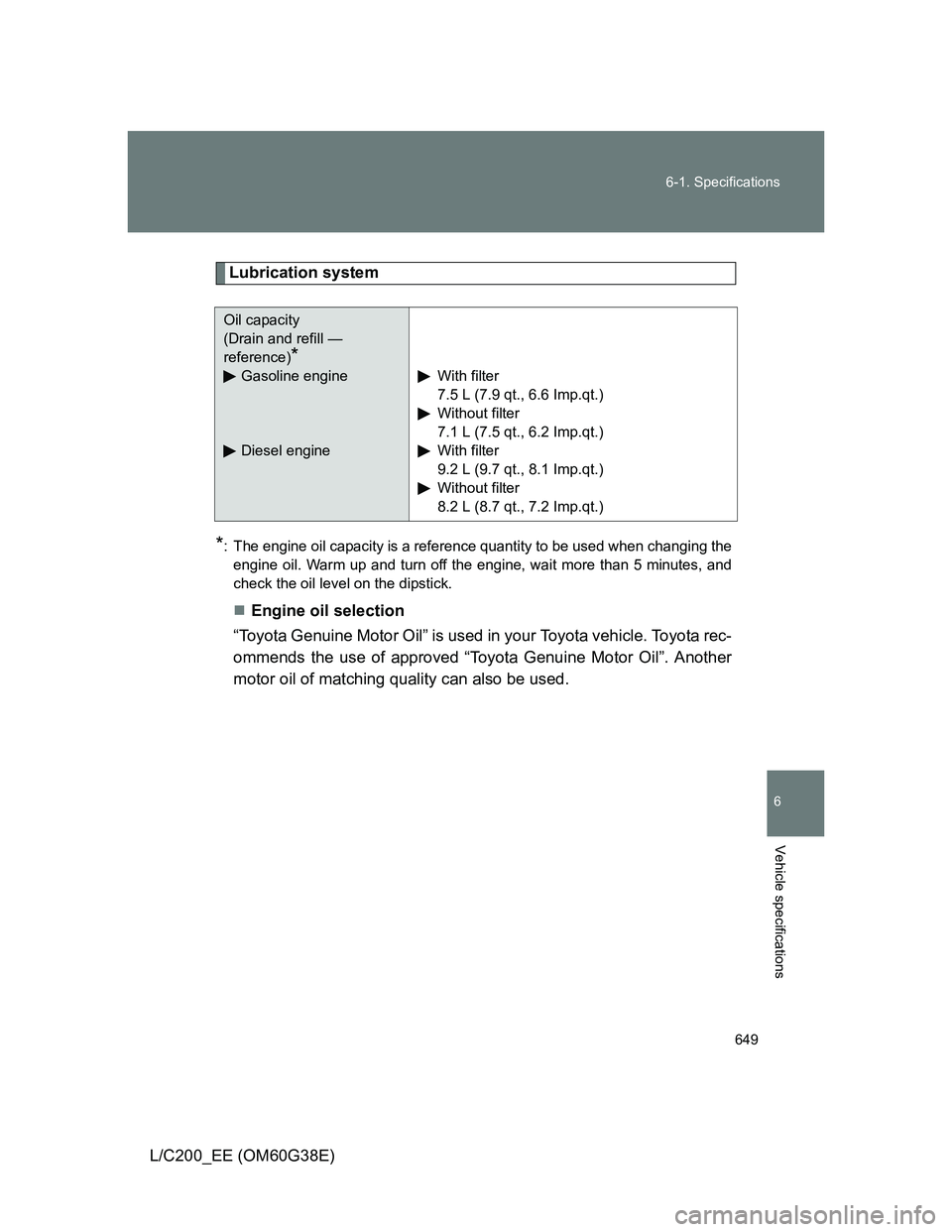

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil capacity
(Drain and refill —
reference)
*
Gasoline engine
Diesel engineWith filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
Without filter
7.1 L (7.5 qt., 6.2 Imp.qt.)
With filter
9.2 L (9.7 qt., 8.1 Imp.qt.)
Without filter
8.2 L (8.7 qt., 7.2 Imp.qt.)

650 6-1. Specifications

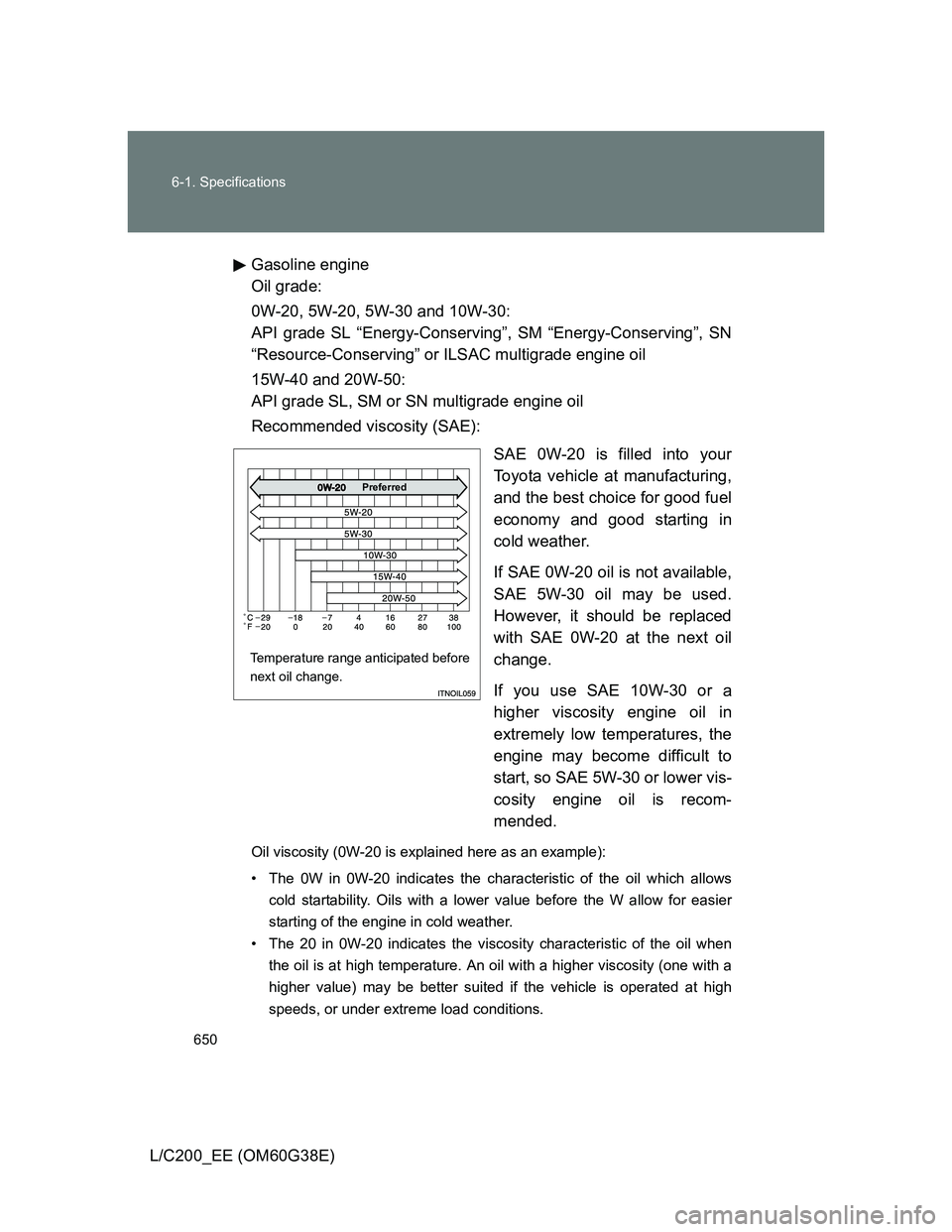

L/C200_EE (OM60G38E)Gasoline engine
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred
