TOYOTA MIRAI 2020 Owners Manual (in English)

3617-2. Maintenance
MIRAI_OM_USA_OM62073U
7
Maintenance and care

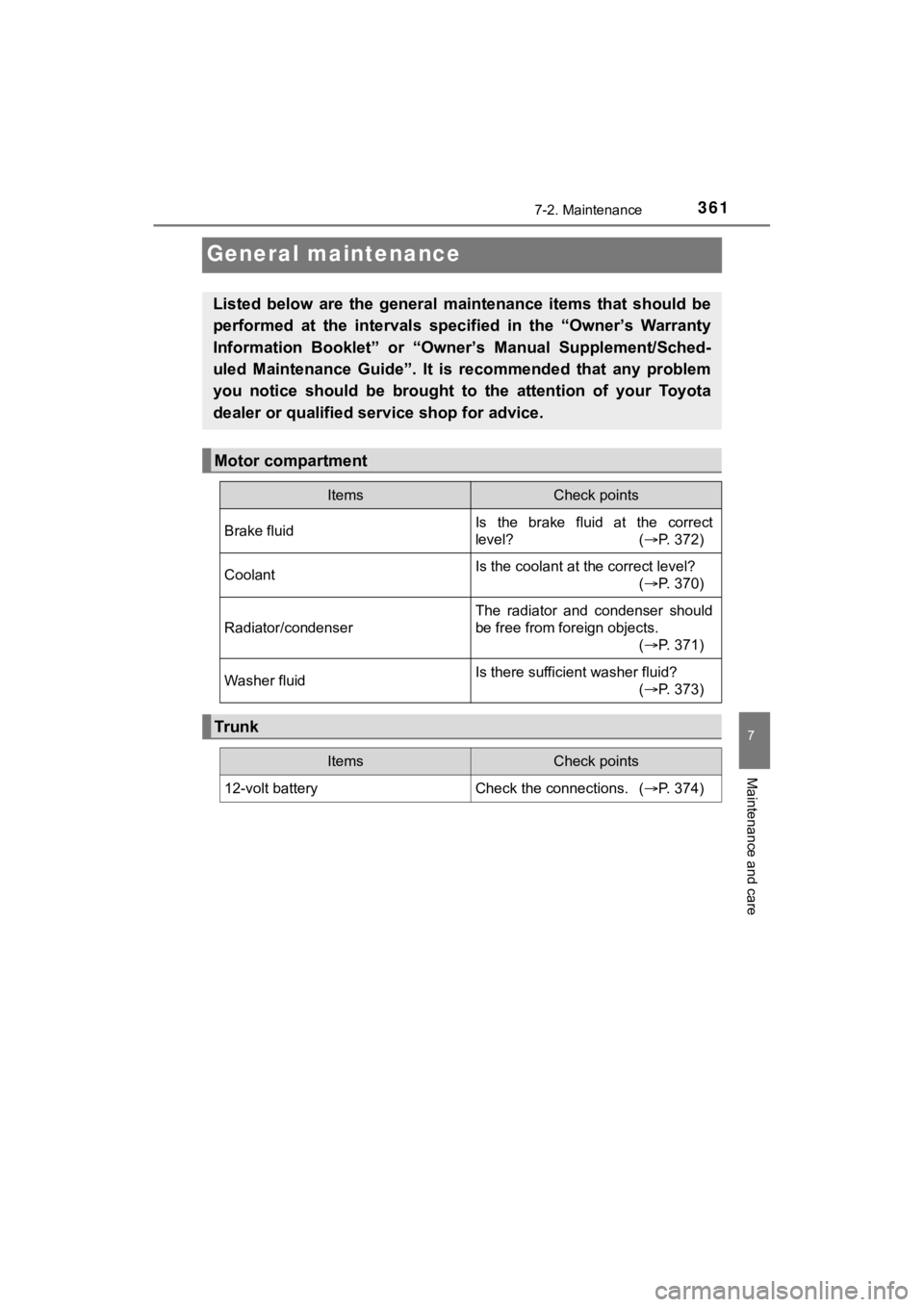

General maintenance
Listed below are the general maintenance items that should be
performed at the intervals specified in the “Owner’s Warranty
Information Booklet” or “Own er’s Manual Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you notice should be brought to the attention of your Toyota
dealer or qualified s ervice shop for advice.
Motor compartment
ItemsCheck points
Brake fluidIs the brake fluid at the correct
level? ( P. 372)
CoolantIs the coolant at the correct level?
(P. 370)
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
(P. 371)
Washer fluidIs there sufficient washer fluid?
(P. 373)
Tr u nk
ItemsCheck points
12-volt battery Check the connections. (P. 374)

3627-2. Maintenance
MIRAI_OM_USA_OM62073U

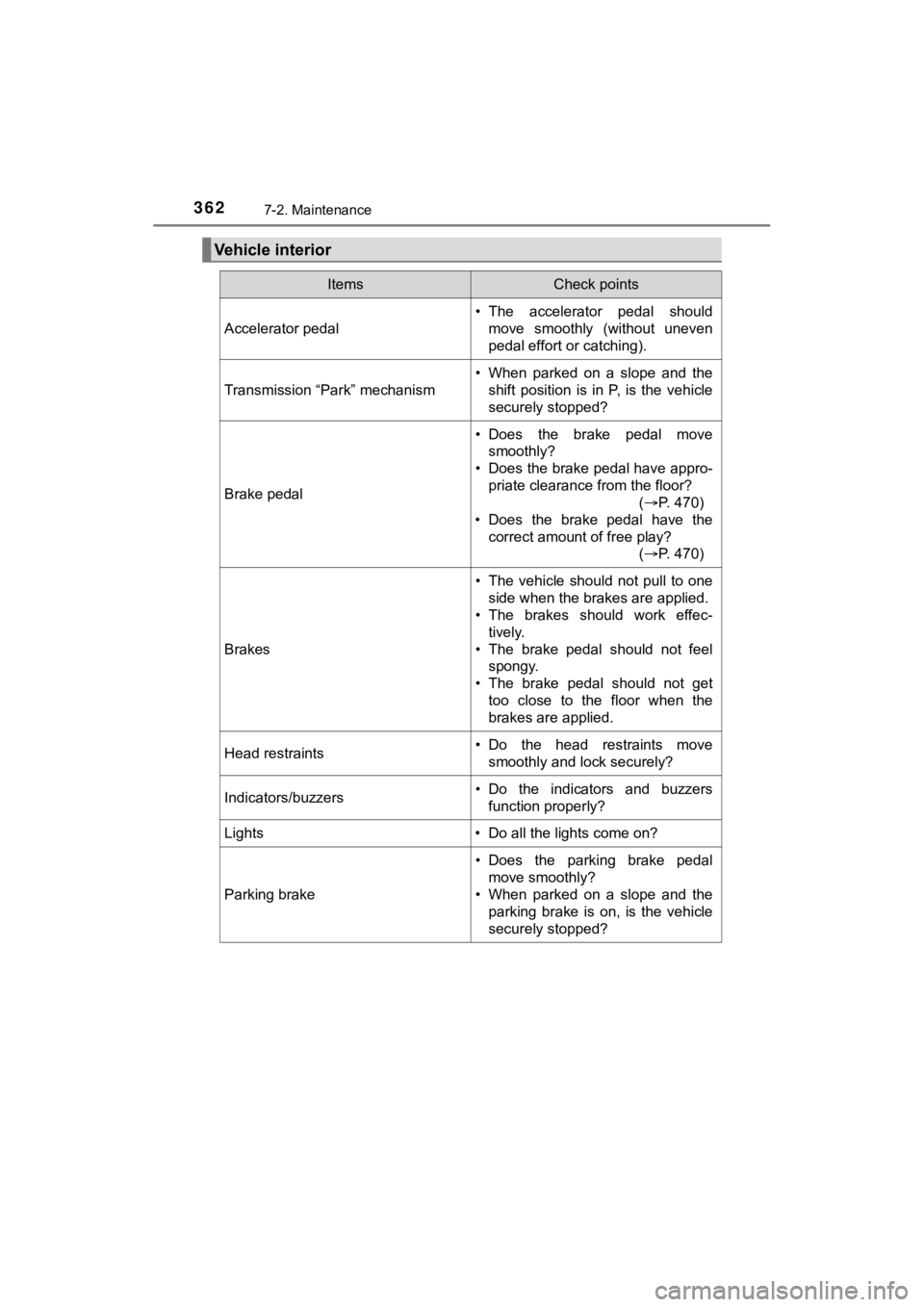

Vehicle interior
ItemsCheck points
Accelerator pedal
• The accelerator pedal shouldmove smoothly (without uneven
pedal effort or catching).
Transmission “Park” mechanism
• When parked on a slope and the
shift position is in P, is the vehicle
securely stopped?
Brake pedal
• Does the brake pedal movesmoothly?
• Does the brake pedal have appro-
priate clearance from the floor? (P. 470)
• Does the brake pedal have the
correct amount of free play? (P. 470)
Brakes
• The vehicle should not pull to one
side when the brakes are applied.
• The brakes should work effec-
tively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the
brakes are applied.
Head restraints• Do the head restraints move
smoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzersfunction properly?
Lights • Do all the lights come on?
Parking brake
• Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is on, is the vehicle
securely stopped?

3637-2. Maintenance
MIRAI_OM_USA_OM62073U
7
Maintenance and care

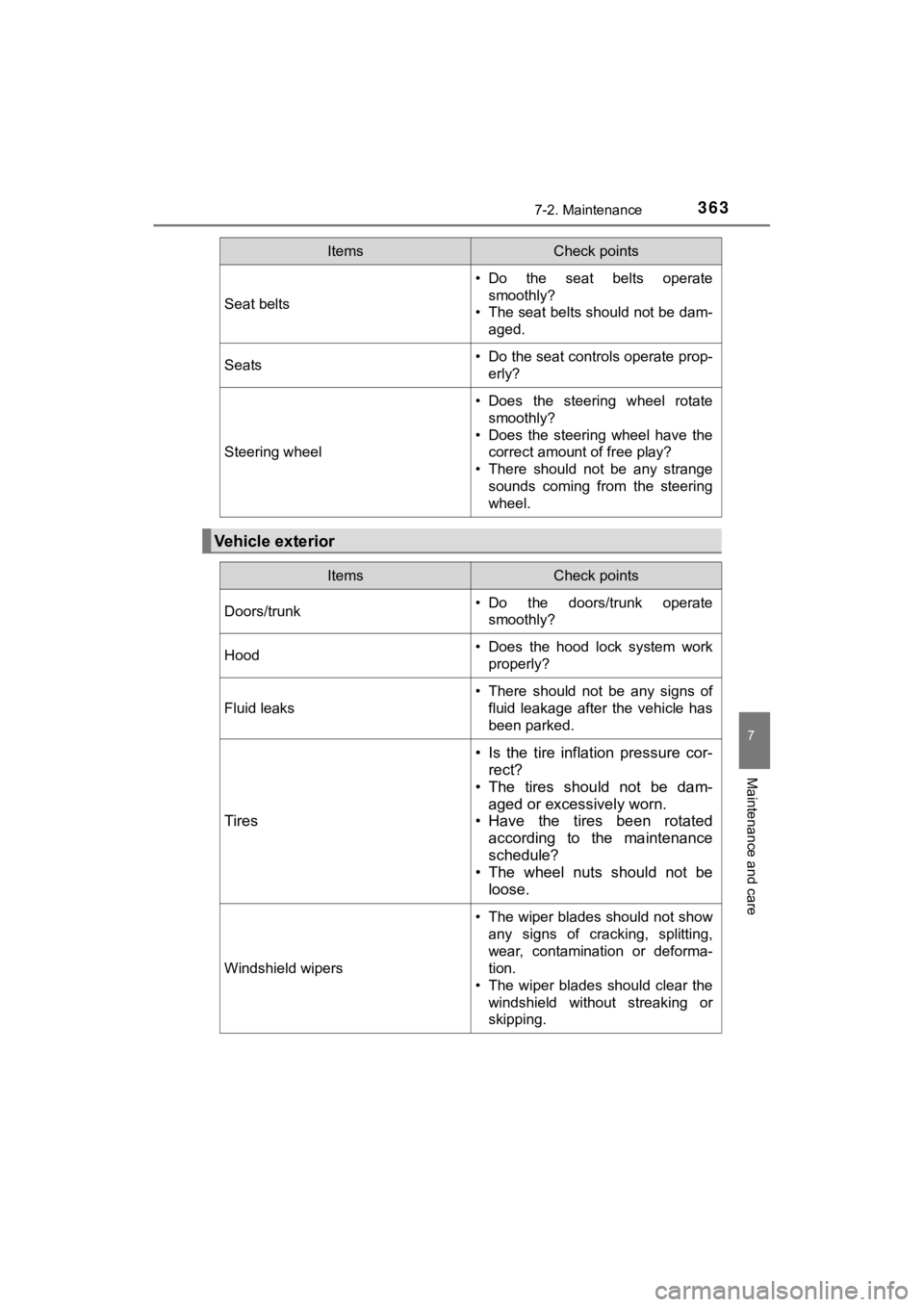

Seat belts
• Do the seat belts operatesmoothly?
• The seat belts should not be dam-
aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotatesmoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be any strange sounds coming from the steering
wheel.
Vehicle exterior
ItemsCheck points
ItemsCheck points
Doors/trunk• Do the doors/trunk operatesmoothly?
Hood• Does the hood lock system workproperly?
Fluid leaks
• There should not be any signs of
fluid leakage after the vehicle has
been parked.
Tires
• Is the tire inflation pressure cor-rect?
• The tires should not be dam- aged or excessively worn.
• Have the tires been rotated
according to the maintenance
schedule?
• The wheel nuts should not be
loose.
Windshield wipers
• The wiper blades should not show
any signs of cracking, splitting,
wear, contamination or deforma-
tion.
• The wiper blades should clear the windshield without streaking or
skipping.

3647-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U

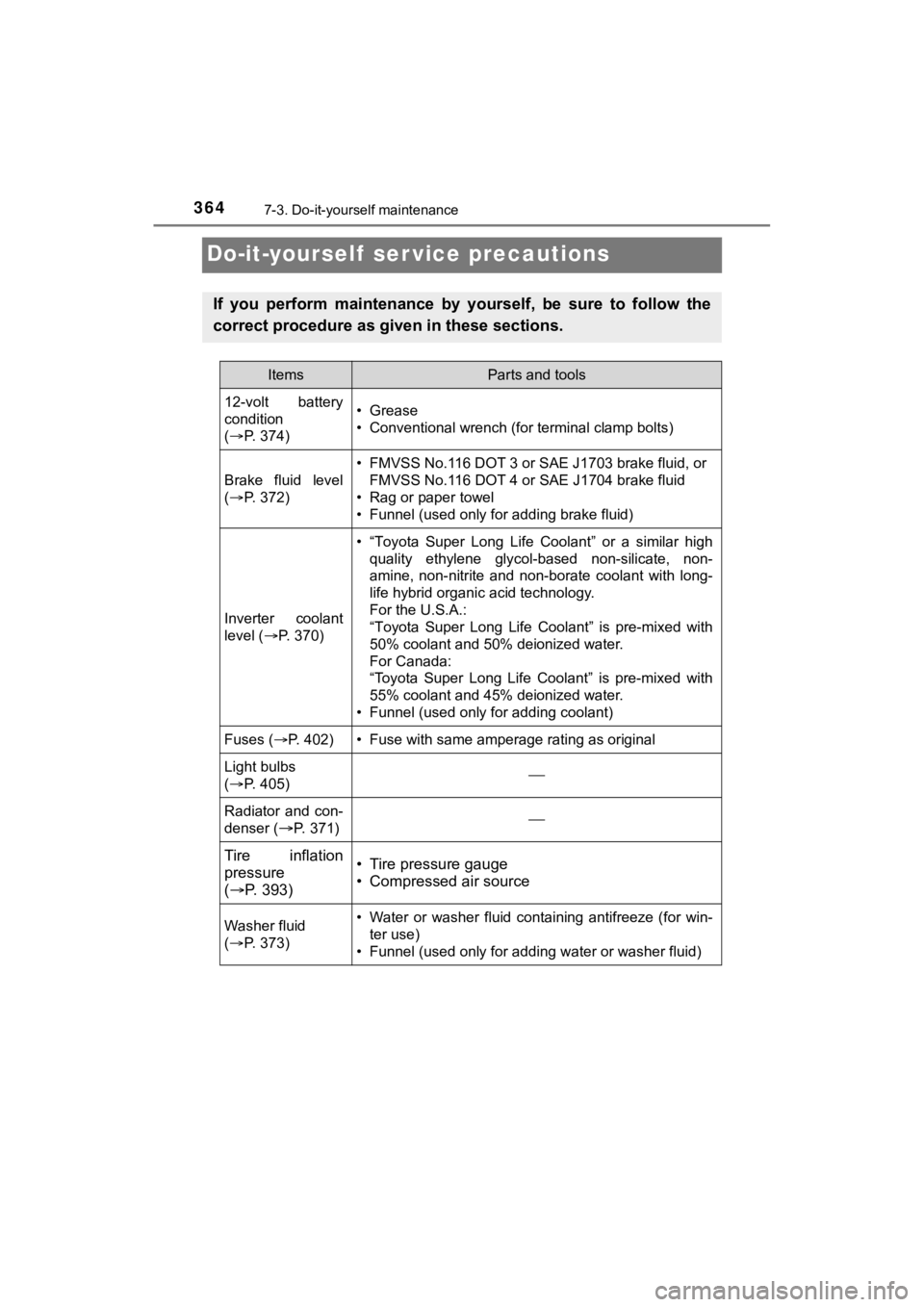

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
(  P. 3 7 4 )•Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
( P. 3 7 2 )
• FMVSS No.116 DOT 3 or SAE J1703 brake fluid, or
FMVSS No.116 DOT 4 or SAE J1704 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Inverter coolant
level ( P. 370)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology.
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Fuses ( P. 402)• Fuse with same amperage rating as original
Light bulbs
( P. 4 0 5 )
Radiator and con-
denser (
P. 371)
Tire inflation
pressure
( P. 393)• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 3 7 3 )• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

3657-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
7
Maintenance and care
WARNING
The motor compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the motor compartment
● Be careful not to touch the high-voltage parts or hydrogen-rela ted parts.
● Make sure that the “READY” indicator is off.
● Keep hands, clothing and tools away from the moving fans.
● Be careful not to touch the motor, inverter, radiator, etc., ri ght after driving
as they may be hot. Coolant and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and r ags, in the
motor compartment.
● Do not smoke, cause sparks or expose an open flame to the 12-volt bat-
tery. 12-volt battery fumes are flammable.
● Be extremely cautious when working on the 12-volt battery. It c ontains poi-
sonous and corrosive sulfuric acid.
● Never touch, disassemble, remove or replace the high-voltage parts,
cables and their connectors. It can cause severe burns or electric shock
that may result in death or serious injury.
■ When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. ( P. 371)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.,
from getting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive motor wear
due to dirt in the air.

3667-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Release the lock from the inside of the vehicle to open the hood.
1
2
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehic le is in motion
and cause an accident, which may result in death or serious inj ury.

3677-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
7
Maintenance and care
Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

3687-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
WARNING
■When raising your vehicle
Make sure to observe the following precautions to reduce the po ssibility of
death or serious injury:
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack wi ll damage
the vehicle and may cause the vehicle to fall off the floor jac k.
● Do not jack up on the hydrogen tanks nor the rear suspension.
Rear suspension
Hydrogen tanks
Front

3697-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
7
Maintenance and care
Motor compartment
Washer fluid tank (P. 373)
Brake fluid reservoir ( P. 372)
Inverter coolant reservoir ( P. 370)
Fuse box ( P. 402)
Fuel cell stack coolant radiator
( P. 371) Inverter coolant radiator
( P. 371)
Condenser ( P. 371)
Electric cooling fans
Fuel cell stack coolant reser-
voir ( P. 370)
Fuel cell stack coolant sub
radiator ( P. 371)

3707-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62073U
The coolant level is satisfactory if it is between the “FULL” a nd “LOW”
lines on the reservoir when the fuel cell system is cold.
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, contact your Toyota
dealer.
The coolant level is satisfact ory if it is between the “FULL” a nd “LOW”
lines on the reservoir when the fuel cell system is cold.
Inverter coolan t reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■ Inverter coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-bora te coolant with
long-life hybrid organic acid technology.
For the U.S.A.: “Toyota Super Long Life Coolant” is a mixture o f 50% coolant and
50% deionized water. (Minimum temperature: -31
F [-35C])
For Canada: “Toyota Super Long Life Coolant” is a mixture of 55 % coolant and
45% deionized water. (Minimum temperature: -44
F [-42C])
For more details about inverter coolant, contact your Toyota dealer.
Fuel cell stack coolant
NOTICE
■ Fuel cell stack coolant
An exclusive coolant for the fuel cell system is filled in the fuel cell stack
coolant reservoir. Do not use any substitute. It may damage you r vehicle.
Inverter coolant
