TOYOTA MIRAI 2020 (in English) Owner's Manual

19
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

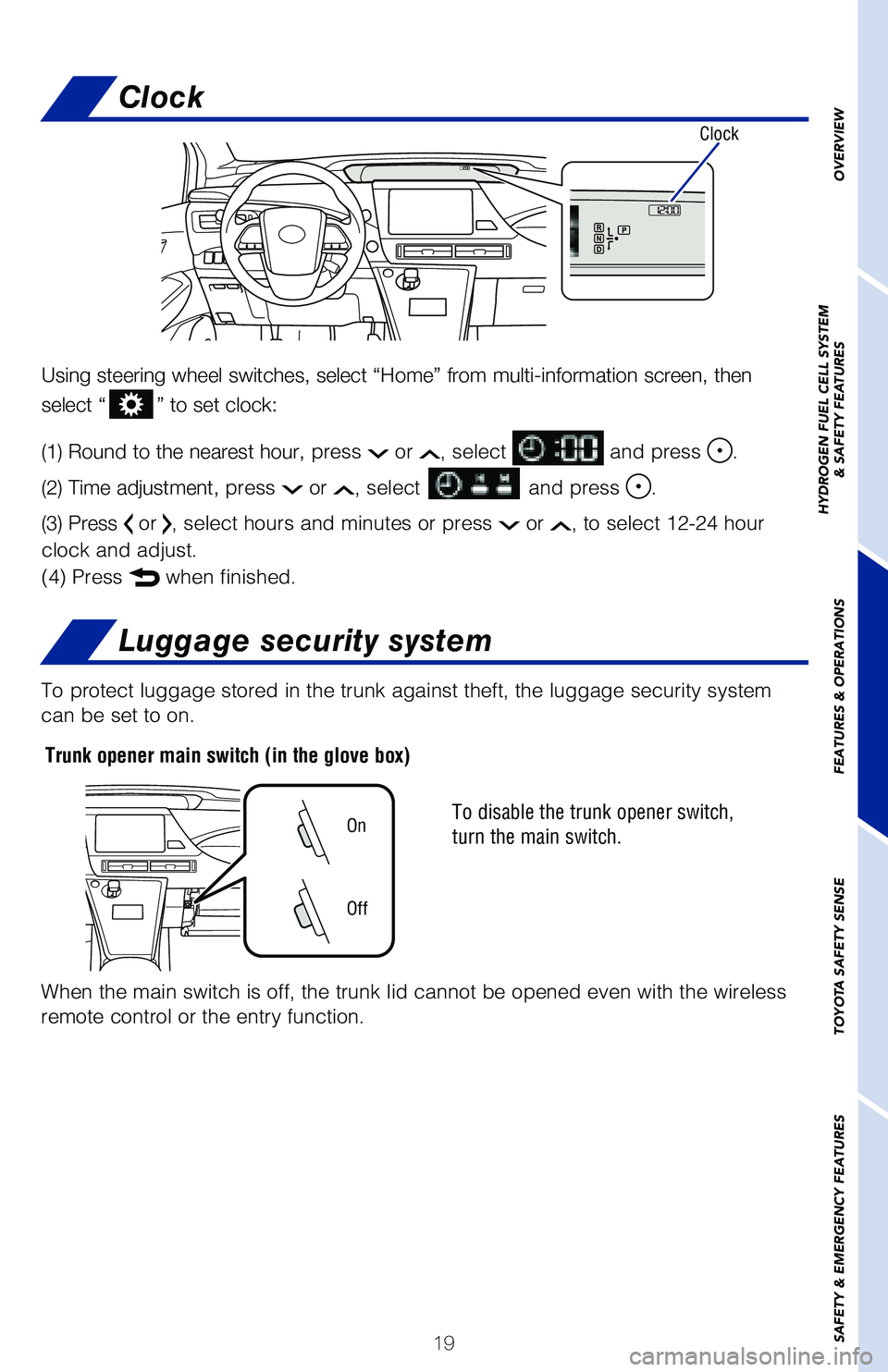

Clock
Using steering wheel switches, select “Home” from multi-informatio\
n screen, then
select “
” to set clock:
(1) Round to the nearest hour, press
or , select and press .
(2) Time adjustment, press
or , select and press .
(3) Press
or , select hours and minutes or press or , to select 12-24 hour
clock and adjust.
(4) Press
when finished.
Luggage security system
To disable the trunk opener switch,
turn the main switch.
To protect luggage stored in the trunk against theft, the luggage securi\
ty system
can be set to on.
When the main switch is off, the trunk lid cannot be opened even with th\
e wireless
remote control or the entry function.
On
Off
Trunk opener main switch (in the glove box)
Clock

20

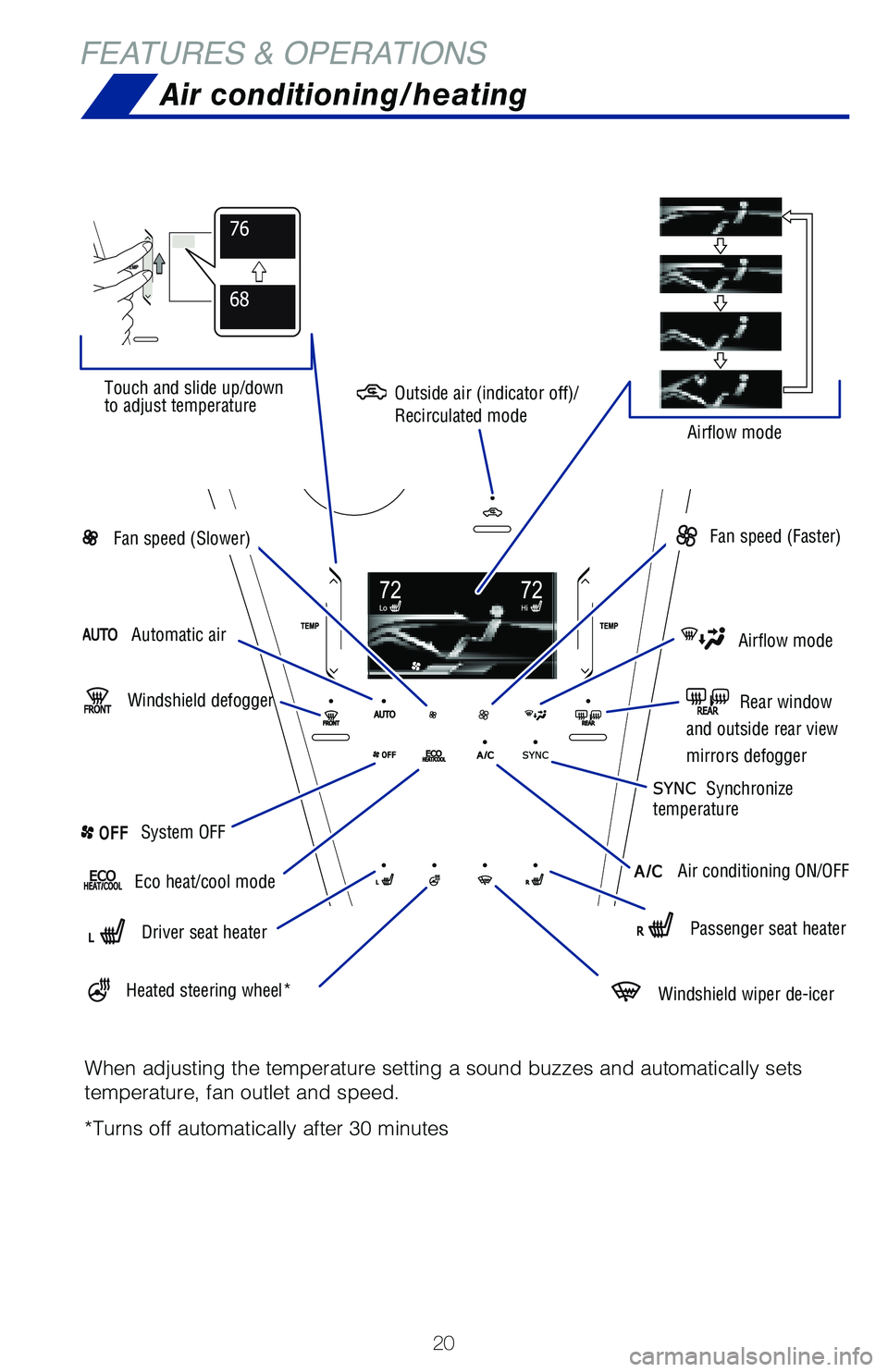

FEATURES & OPERATIONSAir conditioning/heating
Touch and slide up/down
to adjust temperature
Airflow mode
When adjusting the temperature setting a sound buzzes and automatically sets
temperature, fan outlet and speed.
*Turns off automatically after 30 minutes
Automatic air
Fan speed (Slower) Fan speed (Faster)
Airflow mode
Rear window
and outside rear view
mirrors defogger
System OFF
Air conditioning ON/OFF
Synchronize
temperature
Driver seat heater
Heated steering wheel* Windshield wiper de-icer
Passenger seat heater
Eco heat/cool mode
Windshield defogger Outside air (indicator off)/
Recirculated mode

21
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

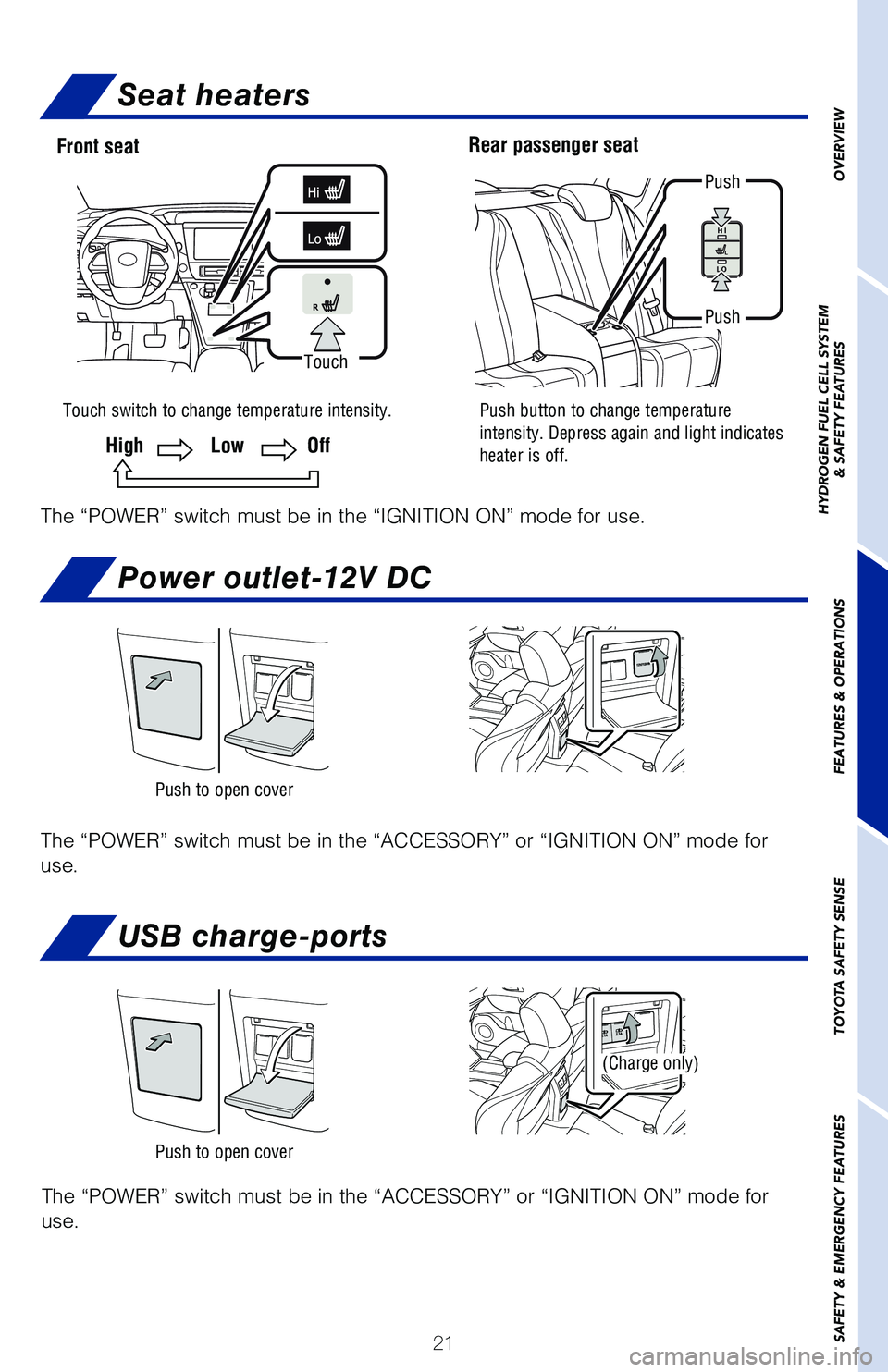

Power outlet-12V DC
USB charge-ports
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.
Push to open cover
Push to open cover
(Charge only)
Rear passenger seat
Touch switch to change temperature intensity. Push button to change temperature
intensity. Depress again and light indicates
heater is off.
Push
Push
Front seat
Touch
HighLowOff
Seat heaters
The “POWER” switch must be in the “IGNITION ON” mode for use\
.
The “POWER” switch must be in the “ACCESSORY” or “IGNITION ON” mode for
use.

22

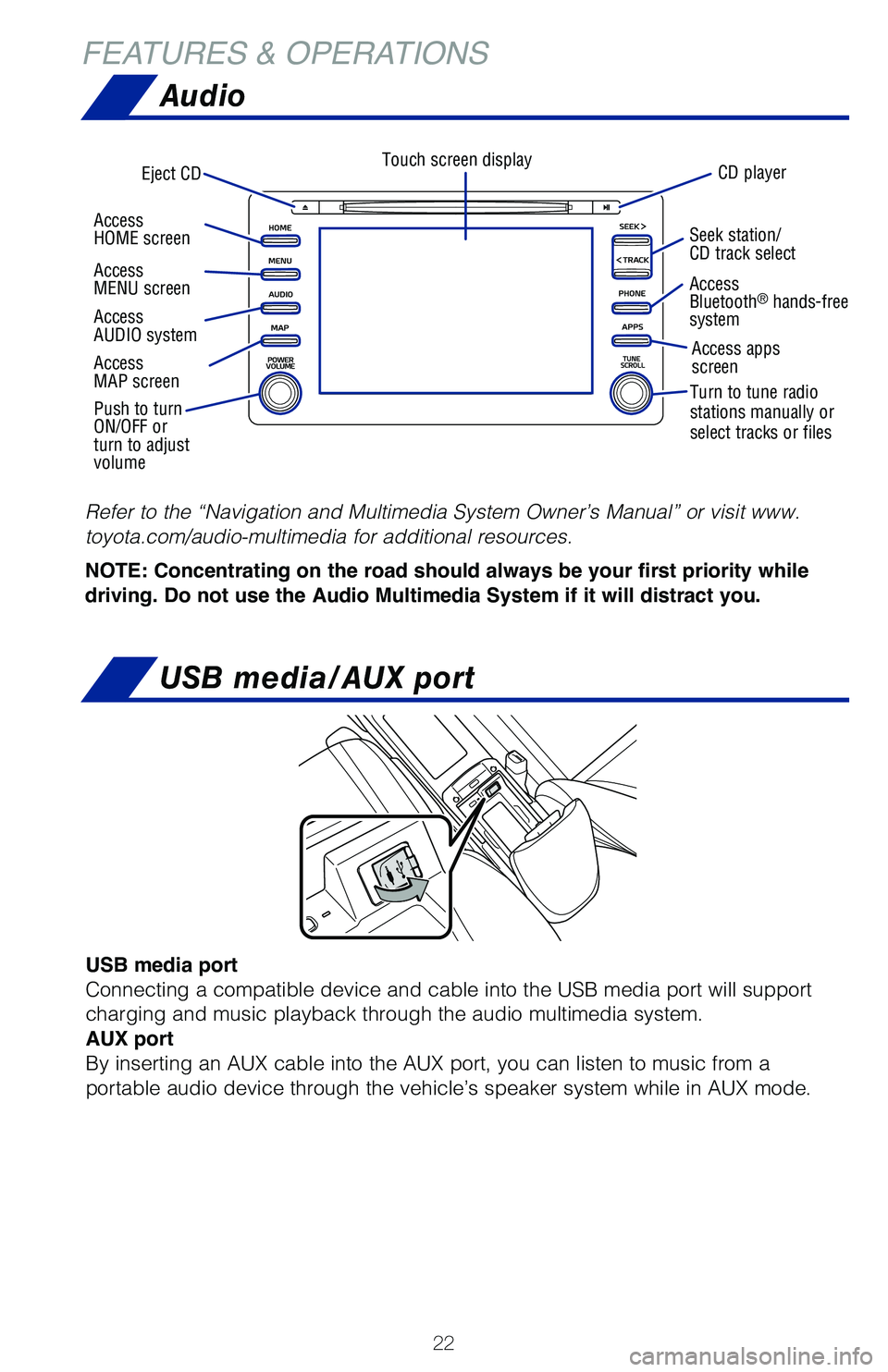

FEATURES & OPERATIONSAudio
USB media/AUX port
Eject CD CD playerTouch screen display
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit www.
toyota.com/audio-multimedia for additional resources.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Push to turn
ON/OFF or
turn to adjust
volume
Access
HOME screen
Access
AUDIO system
Access
MAP screen Access
MENU screen
Seek station/
CD track select
Turn to tune radio
stations manually or
select tracks or files
Access
Bluetooth
® hands-free
system
Access apps
screen
USB media port
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music fro\
m a
portable audio device through the vehicle’s speaker system while in A\
UX mode.

23

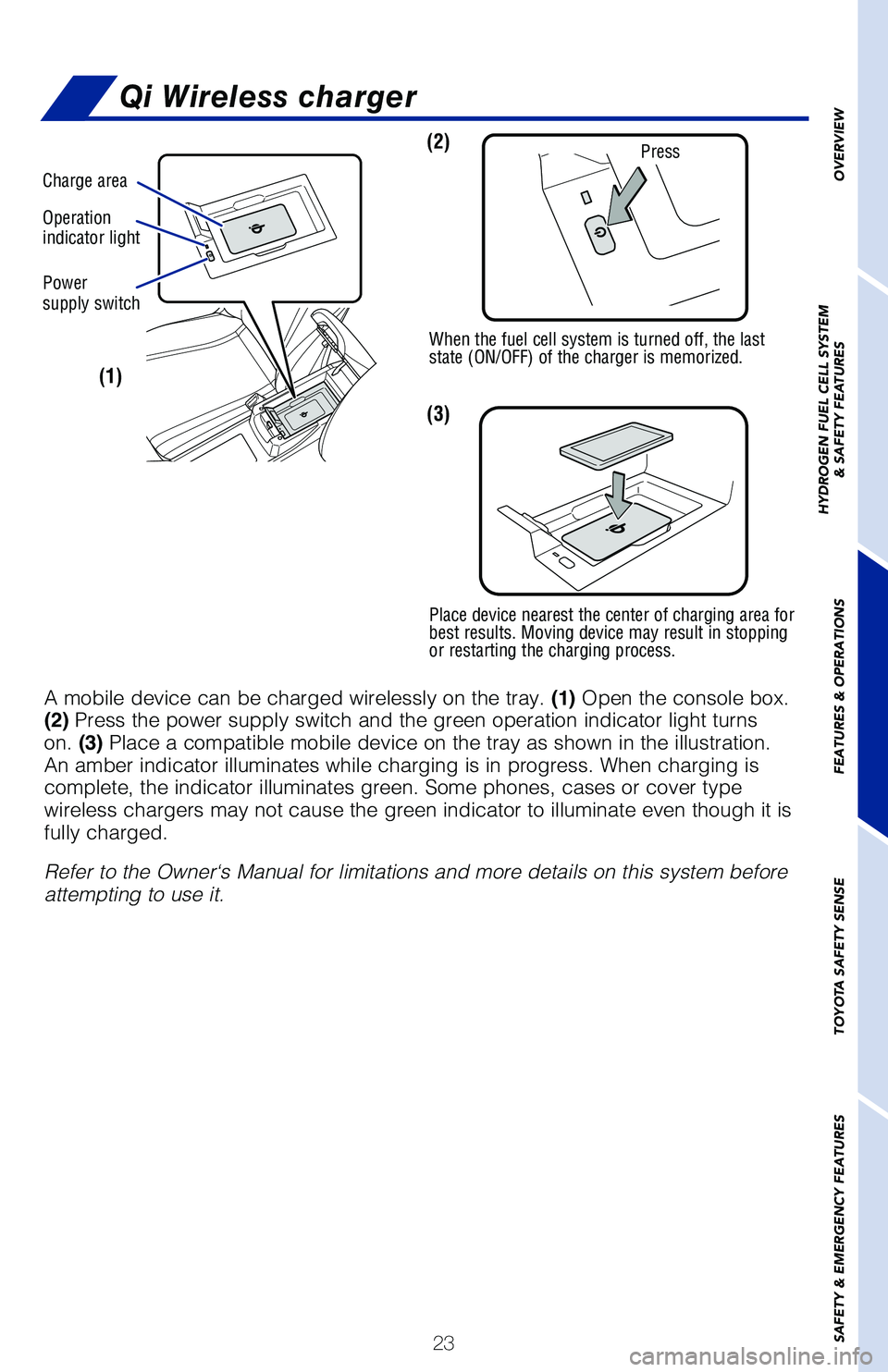

Qi Wireless charger
(1)
Operation
indicator light
Power
supply switch
Charge area
When the fuel cell system is turned off, the last
state (ON/OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
(2)
(3)
A mobile device can be charged wirelessly on the tray. (1)Open the console box.
(2) Press the power supply switch and the green operation indicator light tu\
rns
on. (3) Place a compatible mobile device on the tray as shown in the illustrati\
on.
An amber indicator illuminates while charging is in progress. When charg\
ing is
complete, the indicator illuminates green. Some phones, cases or cover t\
ype
wireless chargers may not cause the green indicator to illuminate even t\
hough it is
fully charged.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Press
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

24
FEATURES & OPERATIONS

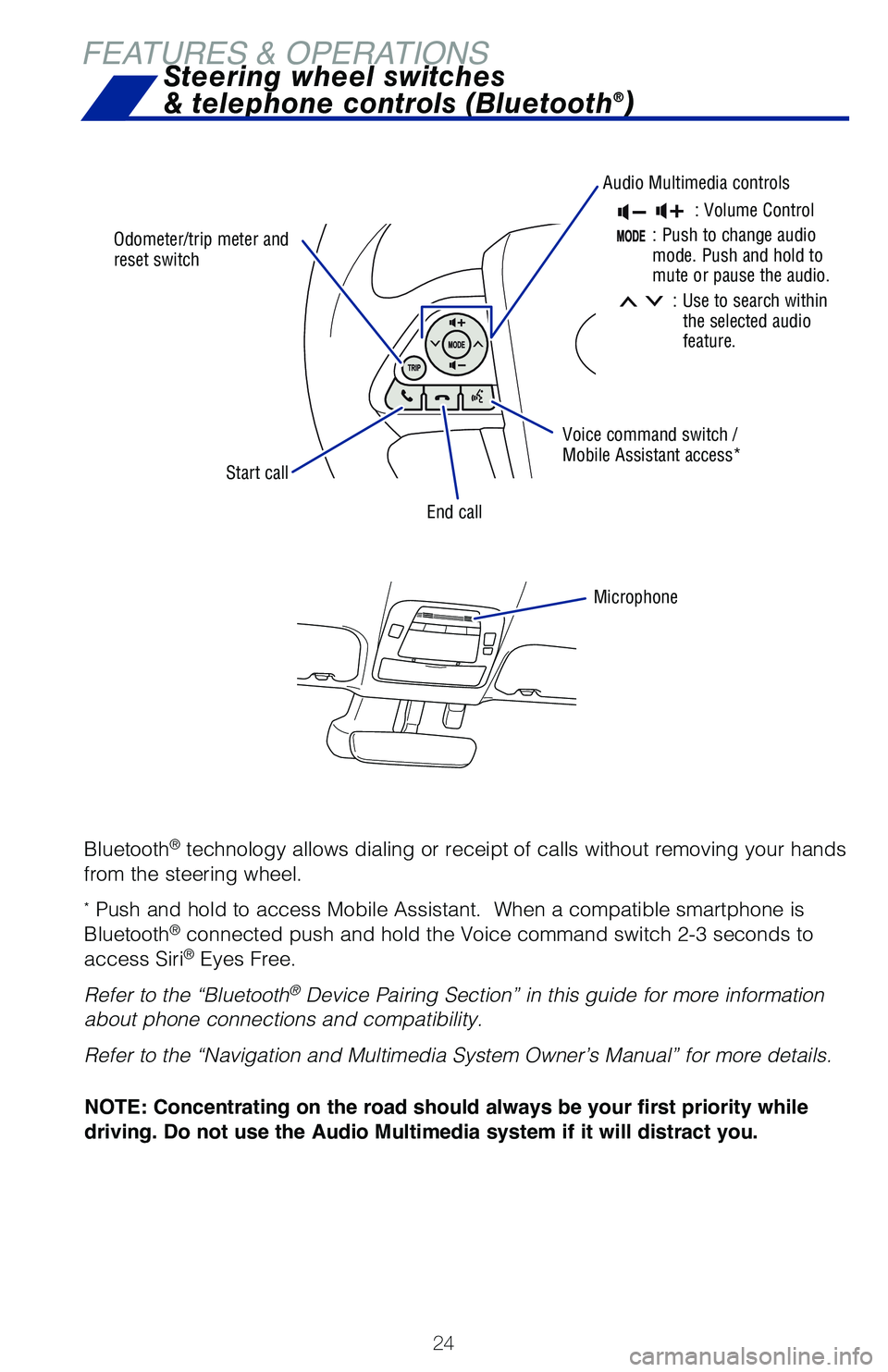

Odometer/trip meter and
reset switch
Audio Multimedia controls
Voice command switch /
Mobile Assistant access*
End call
Microphone
Start call
Steering wheel switches
& telephone controls (Bluetooth®)
: Volume Control
:Push to change audio
mode. Push and hold to
mute or pause the audio.
: Use to search within
the selected audio
feature.
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
* Push and hold to access Mobile Assistant. When a compatible smartphone\
is
Bluetooth® connected push and hold the Voice command switch 2-3 seconds to
access Siri® Eyes Free.
Refer to the “Bluetooth
® Device Pairing Section” in this guide for more information
about phone connections and compatibility.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia system if it will distract you.

25

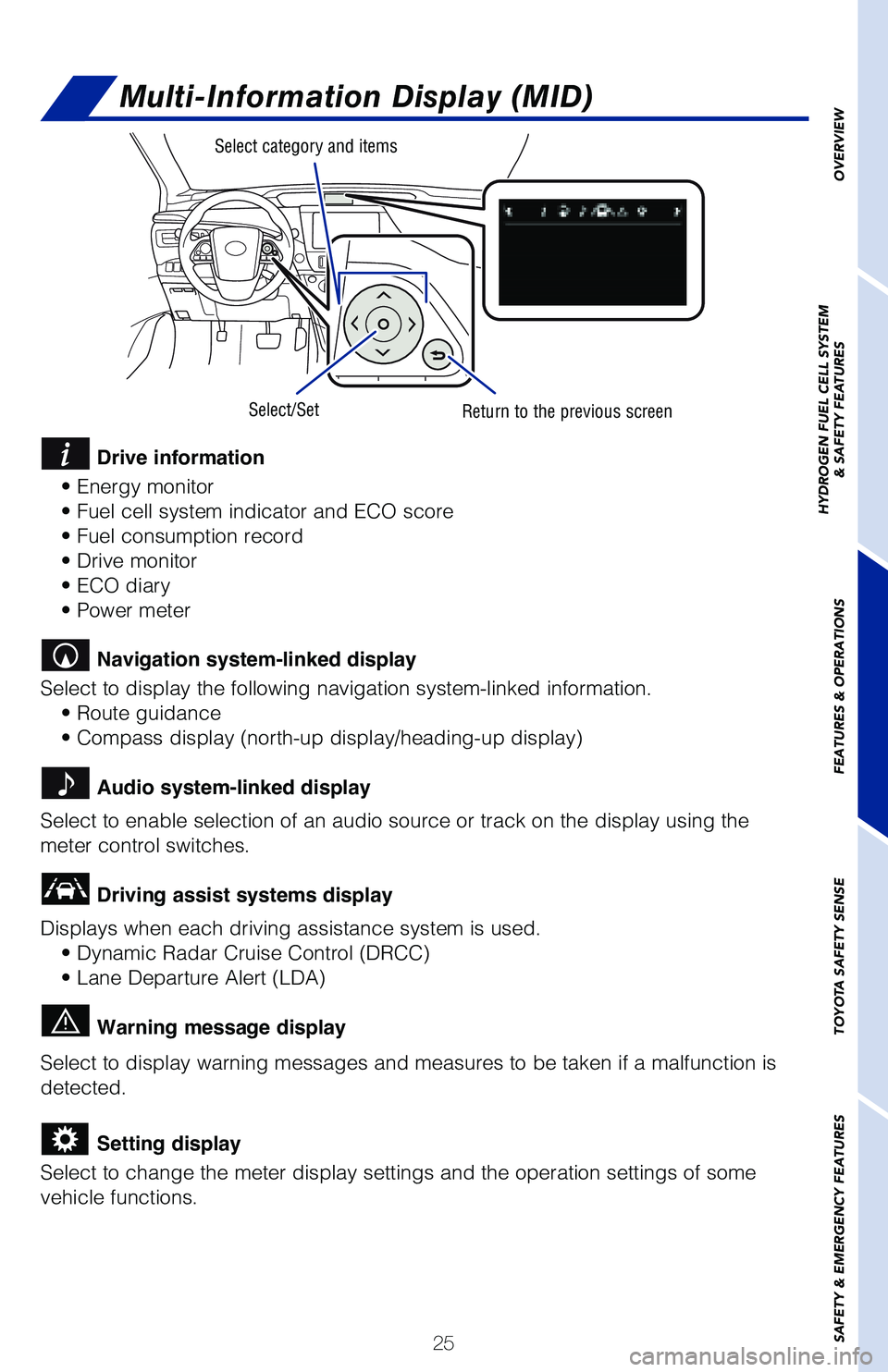

Multi-Information Display (MID)
Select category and items
Select/SetReturn to the previous screen
Drive information
• Energy monitor
• Fuel cell system indicator and ECO score
• Fuel consumption record
• Drive monitor
• ECO diary
• Power meter
Navigation system-linked display
Select to display the following navigation system-linked information. • Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display us\
ing the
meter control switches.
Driving assist systems display
Displays when each driving assistance system is used. • Dynamic Radar Cruise Control (DRCC)
• Lane Departure Alert (LDA)
Warning message display
Select to display warning messages and measures to be taken if a malfunc\
tion is
detected.
Setting display
Select to change the meter display settings and the operation settings o\
f some
vehicle functions.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

26

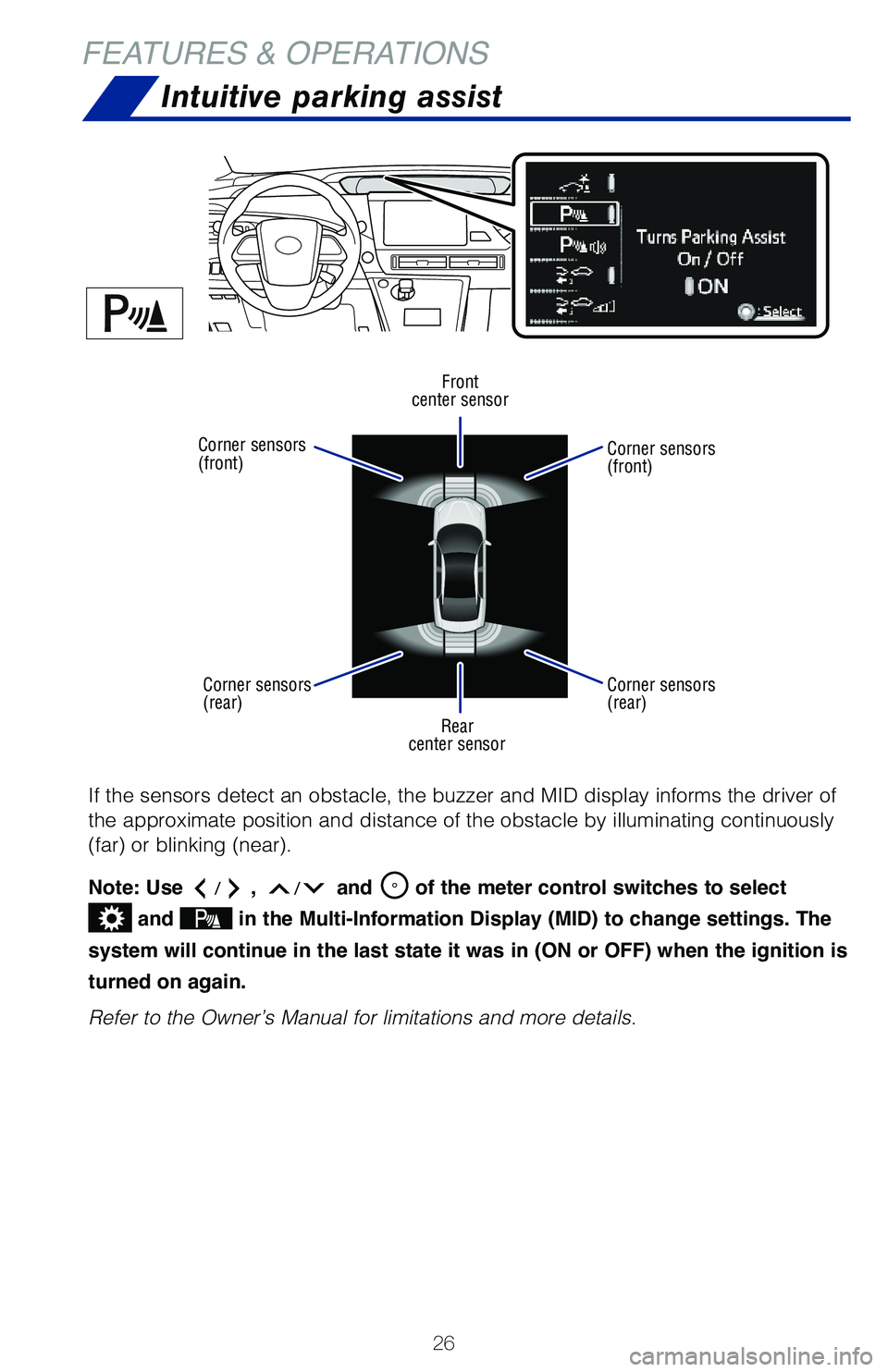

FEATURES & OPERATIONSIntuitive parking assist
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
(far) or blinking (near).
Note: Use
, and of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the ignition is
turned on again.
Refer to the Owner’s Manual for limitations and more details.
Front
center sensor
Rear
center sensor
Corner sensors
(front)
Corner sensors
(front)
Corner sensors
(rear) Corner sensors
(rear)

27

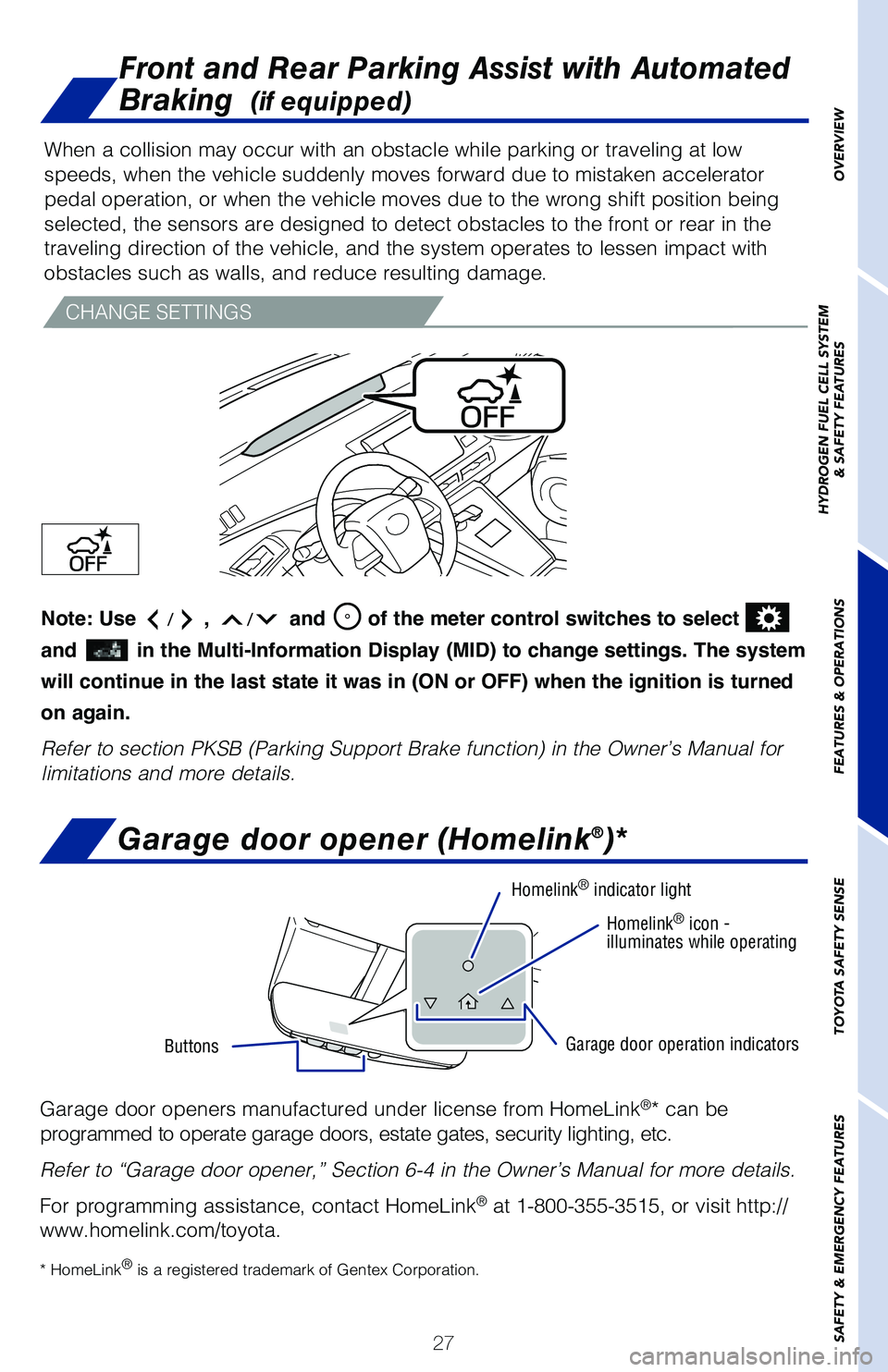

Garage door opener (Homelink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manua\
l for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit http://
www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Homelink®indicator light
Homelink®icon -
illuminates while operating
Garage door operation indicatorsButtons
Front and Rear Parking Assist with Automated
Braking
(if equipped)
When a collision may occur with an obstacle while parking or traveling a\
t low
speeds, when the vehicle suddenly moves forward due to mistaken accelera\
tor
pedal operation, or when the vehicle moves due to the wrong shift positi\
on being
selected, the sensors are designed to detect obstacles to the front or r\
ear in the
traveling direction of the vehicle, and the system operates to lessen im\
pact with
obstacles such as walls, and reduce resulting damage.
CHANGE SETTINGS
Note: Use, and of the meter control switches to select
and in the Multi-Information Display (MID) to change settings. The system
will continue in the last state it was in (ON or OFF) when the ignition is turned
on again.
Refer to section PKSB (Parking Support Brake function) in the Owner’\
s Manual for
limitations and more details.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

28

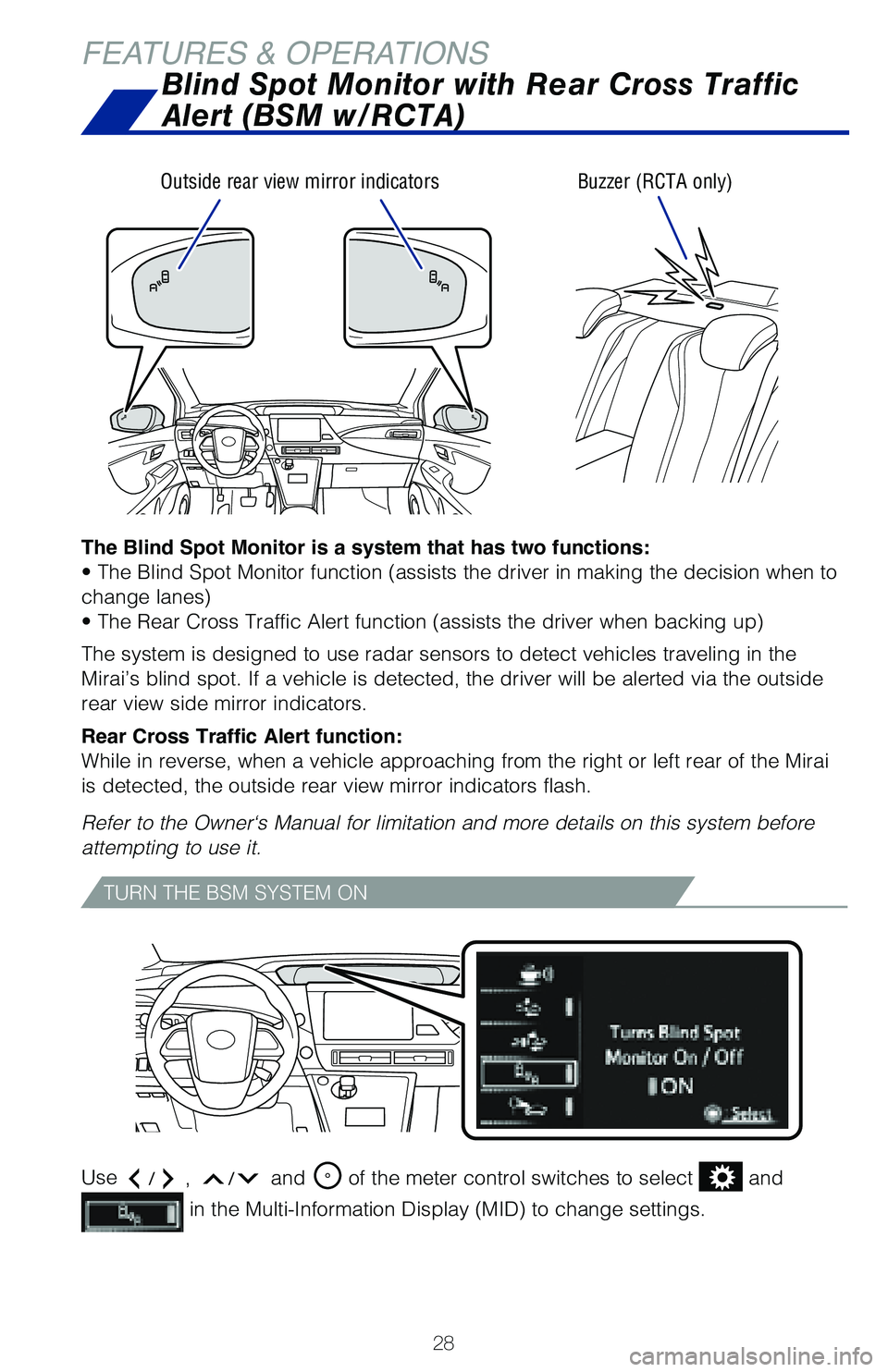

FEATURES & OPERATIONSBlind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when to
change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Mirai’s blind spot. If a vehicle is detected, the driver will be aler\
ted via the outside
rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the Mirai
is detected, the outside rear view mirror indicators flash.
Refer to the Owner‘s Manual for limitation and more details on this s\
ystem before
attempting to use it.
Use
, and of the meter control switches to select and
in the Multi-Information Display (MID) to change settings.
Outside rear view mirror indicators
Buzzer (RCTA only)
TURN THE BSM SYSTEM ON
