TOYOTA PRIUS PRIME 2023 Owners Manual

5217-3. Do-it-yourself maintenance
7
Maintenance and care

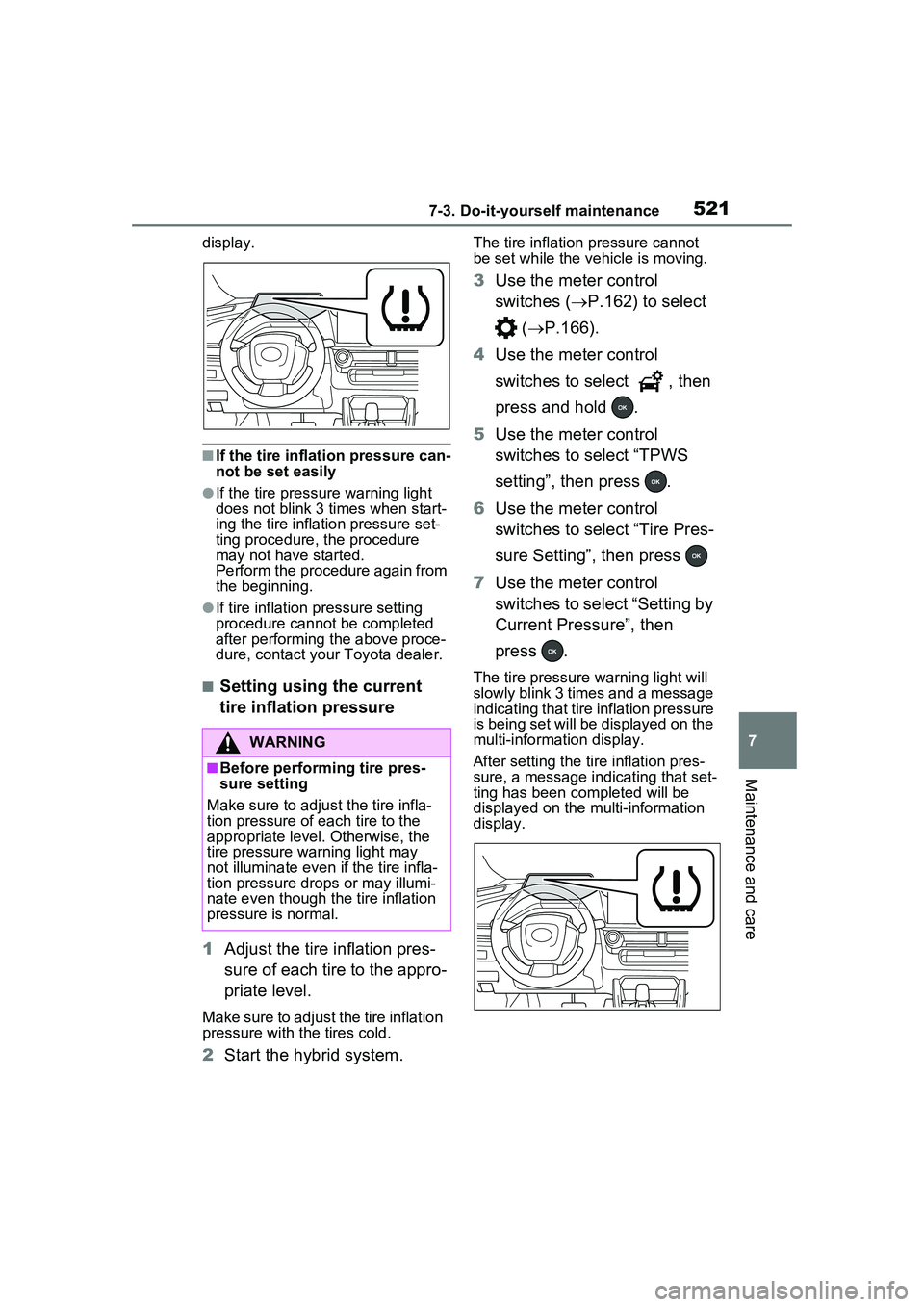

display.
■If the tire inflation pressure can-
not be set easily
●If the tire pressure warning light
does not blink 3 times when start-
ing the tire inflation pressure set-
ting procedure, the procedure
may not have started.
Perform the procedure again from
the beginning.
●If tire inflation pressure setting
procedure cannot be completed
after performing the above proce-
dure, contact your Toyota dealer.
■Setting using the current
tire inflation pressure
1 Adjust the tire inflation pres-
sure of each tire to the appro-
priate level.
Make sure to adjust the tire inflation
pressure with the tires cold.
2Start the hybrid system.
The tire inflation pressure cannot
be set while the vehicle is moving.
3Use the meter control
switches ( P.162) to select
( P.166).
4 Use the meter control
switches to select , then
press and hold .
5 Use the meter control
switches to select “TPWS
setting”, then press .
6 Use the meter control
switches to select “Tire Pres-
sure Setting”, then press
7 Use the meter control
switches to select “Setting by
Current Pressure”, then
press .
The tire pressure warning light will
slowly blink 3 times and a message
indicating that tire inflation pressure
is being set will be displayed on the
multi-informat ion display.
After setting the tire inflation pres-
sure, a message indicating that set-
ting has been co mpleted will be
displayed on the multi-information
display.
WARNING
■Before performing tire pres-
sure setting
Make sure to adjust the tire infla-
tion pressure of each tire to the
appropriate level. Otherwise, the
tire pressure warning light may
not illuminate even if the tire infla-
tion pressure drops or may illumi-
nate even though the tire inflation
pressure is normal.

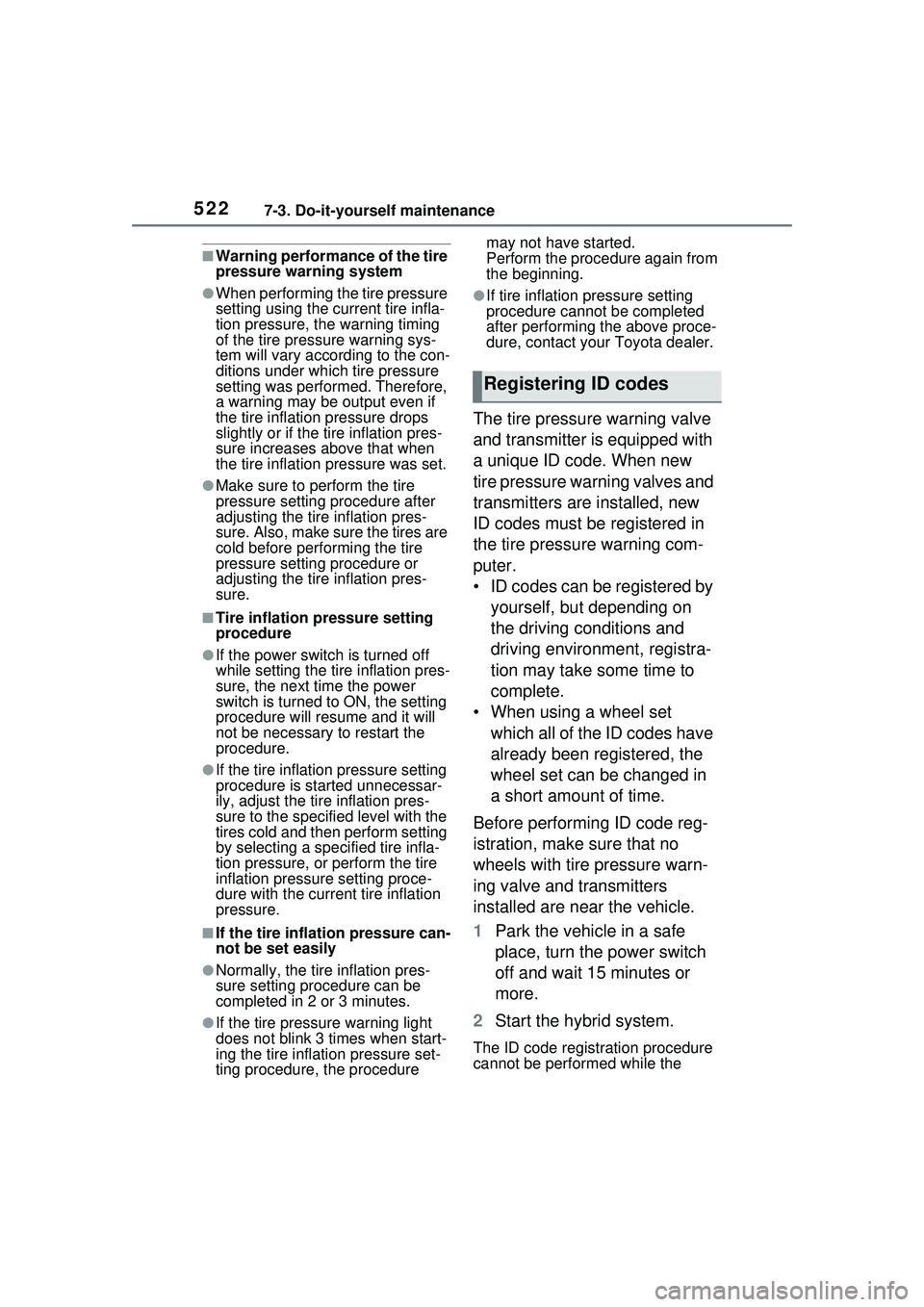

5227-3. Do-it-yourself maintenance
■Warning performance of the tire
pressure warning system
●When performing the tire pressure
setting using the current tire infla-
tion pressure, the warning timing
of the tire pressure warning sys-
tem will vary according to the con-
ditions under which tire pressure
setting was performed. Therefore,
a warning may be output even if
the tire inflation pressure drops
slightly or if the tire inflation pres-
sure increases above that when
the tire inflation pressure was set.
●Make sure to perform the tire
pressure setting procedure after
adjusting the tire inflation pres-
sure. Also, make su re the tires are
cold before performing the tire
pressure setting procedure or
adjusting the tire inflation pres-
sure.
■Tire inflation pressure setting
procedure
●If the power switch is turned off
while setting the tire inflation pres-
sure, the next time the power
switch is turned to ON, the setting
procedure will resume and it will
not be necessary to restart the
procedure.
●If the tire inflation pressure setting
procedure is started unnecessar-
ily, adjust the tire inflation pres-
sure to the specified level with the
tires cold and then perform setting
by selecting a specified tire infla-
tion pressure, or perform the tire
inflation pressure setting proce-
dure with the current tire inflation
pressure.
■If the tire inflation pressure can-
not be set easily
●Normally, the tire inflation pres-
sure setting procedure can be
completed in 2 or 3 minutes.
●If the tire pressure warning light
does not blink 3 times when start-
ing the tire inflation pressure set-
ting procedure, the procedure may not have started.
Perform the procedure again from
the beginning.
●If tire inflation
pressure setting
procedure cannot be completed
after performing the above proce-
dure, contact your Toyota dealer.
The tire pressure warning valve
and transmitter is equipped with
a unique ID code. When new
tire pressure warning valves and
transmitters are installed, new
ID codes must be registered in
the tire pressure warning com-
puter.
• ID codes can be registered by
yourself, but depending on
the driving conditions and
driving environment, registra-
tion may take some time to
complete.
• When using a wheel set which all of the ID codes have
already been registered, the
wheel set can be changed in
a short amount of time.
Before performing ID code reg-
istration, make sure that no
wheels with tire pressure warn-
ing valve and transmitters
installed are near the vehicle.
1 Park the vehicle in a safe
place, turn the power switch
off and wait 15 minutes or
more.
2 Start the hybrid system.
The ID code registration procedure
cannot be performed while the
Registering ID codes

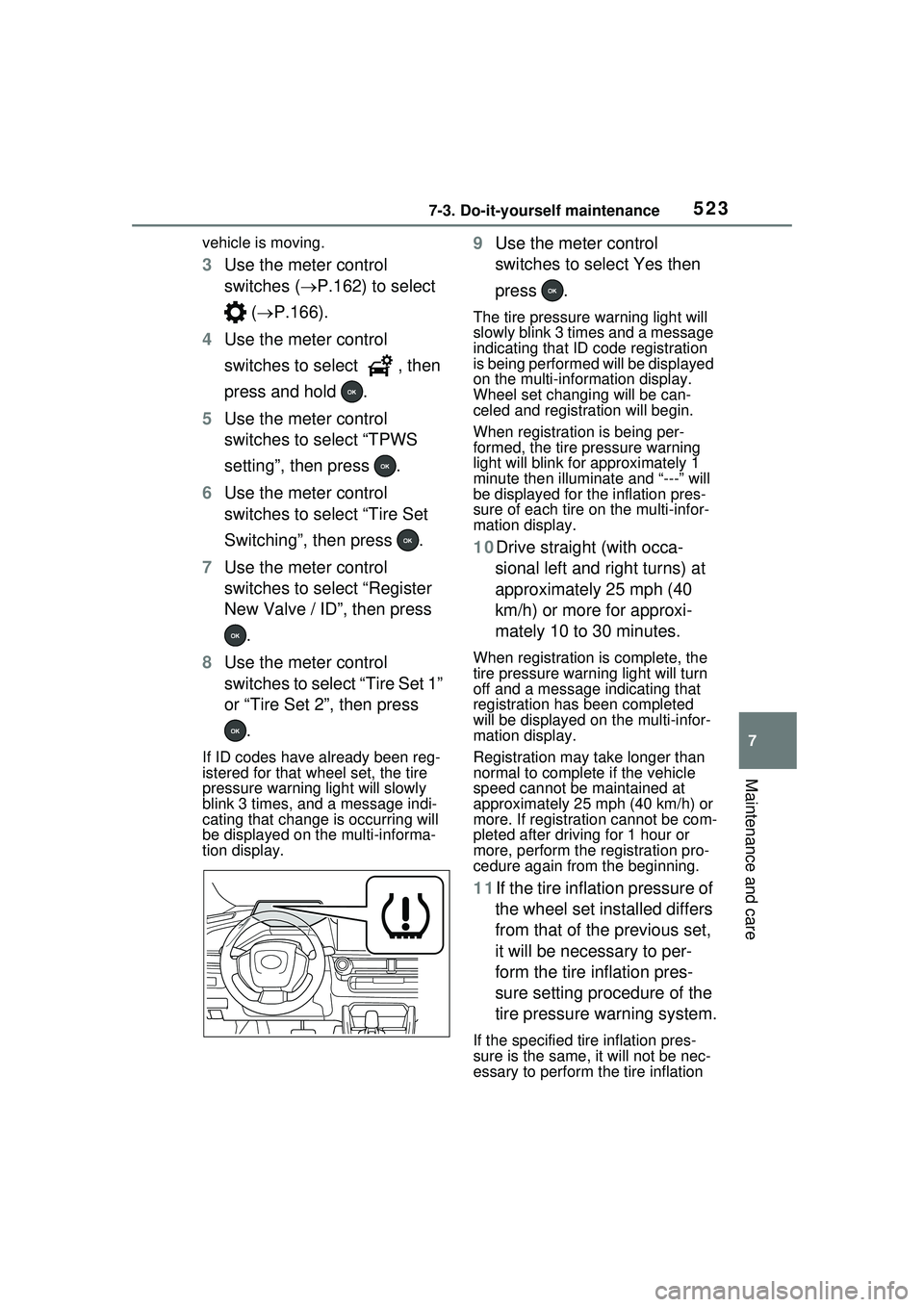

5237-3. Do-it-yourself maintenance
7
Maintenance and care
vehicle is moving.
3Use the meter control
switches ( P.162) to select
(  P.166).
4 Use the meter control
switches to select , then
press and hold .
5 Use the meter control
switches to select “TPWS
setting”, then press .
6 Use the meter control
switches to select “Tire Set
Switching”, then press .
7 Use the meter control
switches to select “Register
New Valve / ID”, then press
.
8 Use the meter control
switches to select “Tire Set 1”
or “Tire Set 2”, then press
.
If ID codes have already been reg-
istered for that wh eel set, the tire
pressure warning light will slowly
blink 3 times, and a message indi-
cating that change is occurring will
be displayed on the multi-informa-
tion display.
9 Use the meter control
switches to select Yes then
press .
The tire pressure warning light will
slowly blink 3 times and a message
indicating that ID code registration
is being performed will be displayed
on the multi-information display.
Wheel set changing will be can-
celed and registration will begin.
When registration is being per-
formed, the tire pressure warning
light will blink for approximately 1
minute then illuminate and “---” will
be displayed for the inflation pres-
sure of each tire on the multi-infor-
mation display.
10Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.
When registration is complete, the
tire pressure warn ing light will turn
off and a message indicating that
registration has been completed
will be displayed on the multi-infor-
mation display.
Registration may take longer than
normal to complete if the vehicle
speed cannot be maintained at
approximately 25 mph (40 km/h) or
more. If registration cannot be com-
pleted after driving for 1 hour or
more, perform the registration pro-
cedure again from the beginning.
11If the tire inflation pressure of
the wheel set installed differs
from that of the previous set,
it will be necessary to per-
form the tire inflation pres-
sure setting procedure of the
tire pressure warning system.
If the specified tire inflation pres-
sure is the same, it will not be nec-
essary to perform the tire inflation

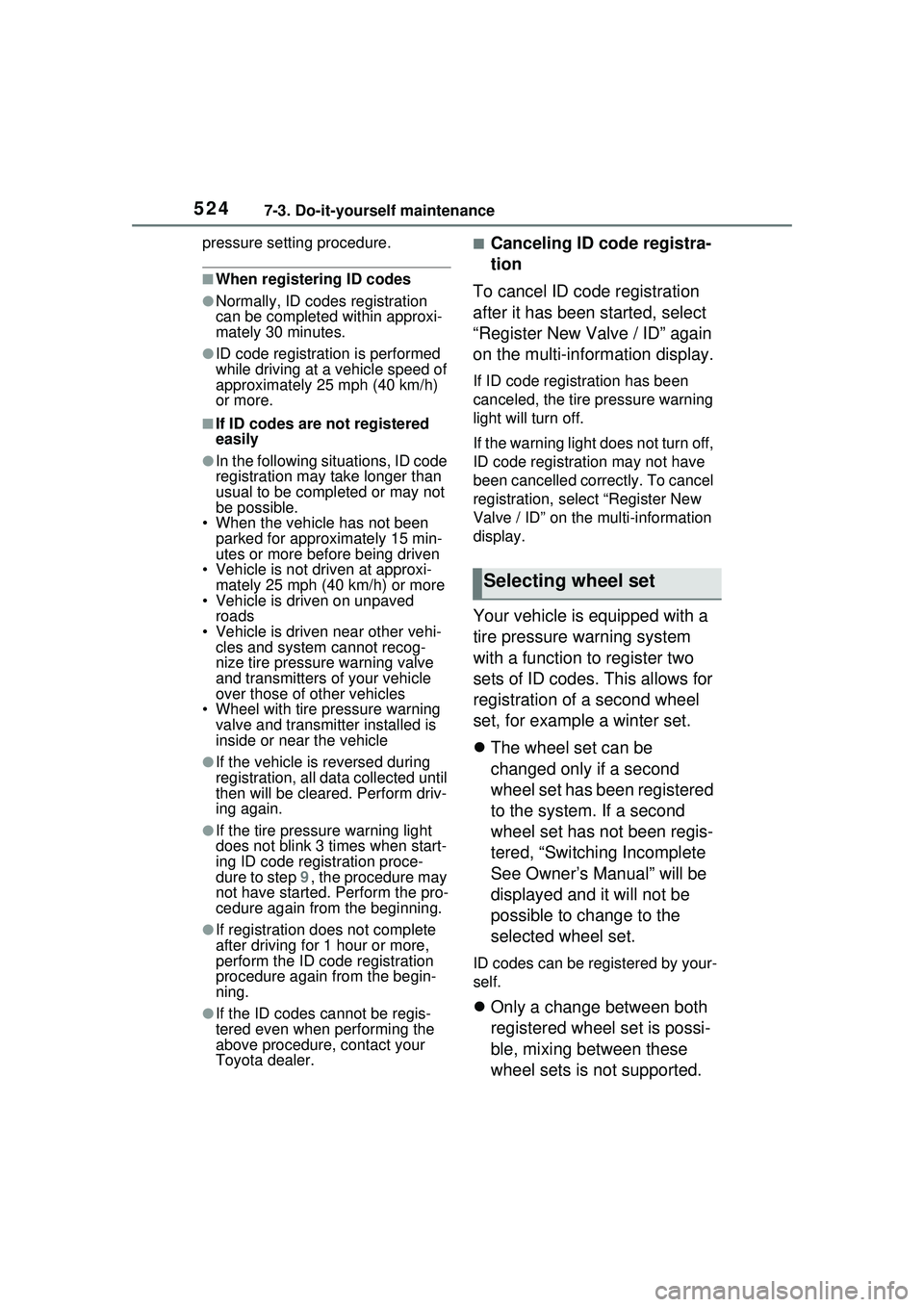

5247-3. Do-it-yourself maintenance
pressure setting procedure.
■When registering ID codes
●Normally, ID codes registration
can be completed within approxi-
mately 30 minutes.
●ID code registration is performed
while driving at a vehicle speed of
approximately 25 mph (40 km/h)
or more.
■If ID codes are not registered
easily
●In the following situations, ID code
registration may take longer than
usual to be completed or may not
be possible.
• When the vehicle has not been
parked for approximately 15 min-
utes or more before being driven
• Vehicle is not driven at approxi-
mately 25 mph (40 km/h) or more
• Vehicle is driven on unpaved roads
• Vehicle is driven near other vehi- cles and system cannot recog-
nize tire pressure warning valve
and transmitters of your vehicle
over those of other vehicles
• Wheel with tire pressure warning
valve and transmitter installed is
inside or near the vehicle
●If the vehicle is reversed during
registration, all da ta collected until
then will be cleared. Perform driv-
ing again.
●If the tire pressure warning light
does not blink 3 times when start-
ing ID code registration proce-
dure to step 9, the procedure may
not have started. Perform the pro-
cedure again from the beginning.
●If registration does not complete
after driving for 1 hour or more,
perform the ID code registration
procedure again from the begin-
ning.
●If the ID codes cannot be regis-
tered even when performing the
above procedure, contact your
Toyota dealer.
■Canceling ID code registra-
tion
To cancel ID code registration
after it has been started, select
“Register New Valve / ID” again
on the multi-information display.
If ID code registration has been
canceled, the tire pressure warning
light will turn off.
If the warning light does not turn off,
ID code registration may not have
been cancelled correctly. To cancel
registration, select “Register New
Valve / ID” on the multi-information
display.
Your vehicle is equipped with a
tire pressure warning system
with a function to register two
sets of ID codes. This allows for
registration of a second wheel
set, for example a winter set.
 The wheel set can be
changed only if a second
wheel set has been registered
to the system. If a second
wheel set has not been regis-
tered, “Switching Incomplete
See Owner’s Manual” will be
displayed and it will not be
possible to change to the
selected wheel set.
ID codes can be registered by your-
self.
Only a change between both
registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.
Selecting wheel set

5257-3. Do-it-yourself maintenance
7
Maintenance and care

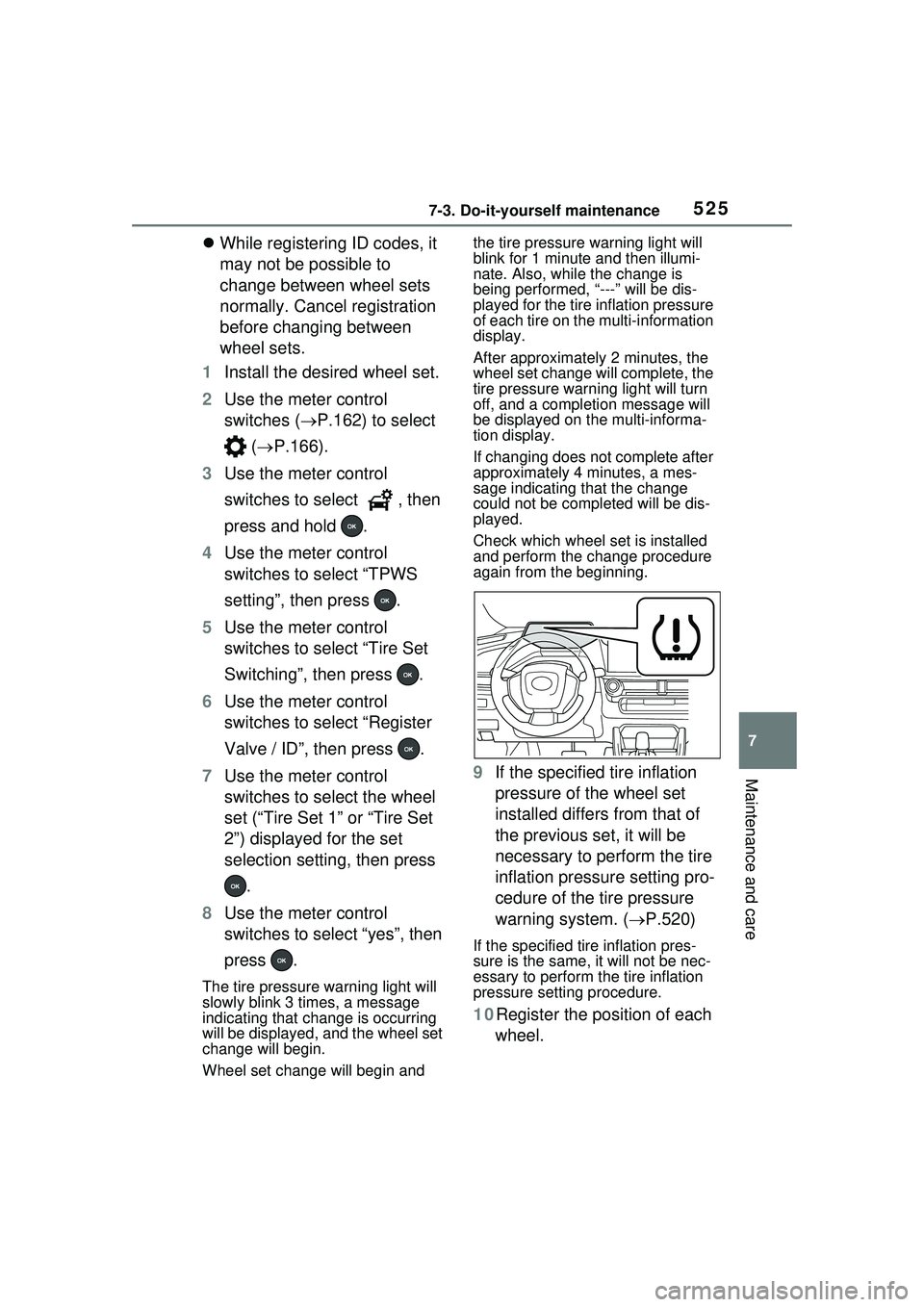

While registering ID codes, it
may not be possible to
change between wheel sets
normally. Cancel registration
before changing between
wheel sets.
1 Install the desired wheel set.
2 Use the meter control
switches ( P.162) to select
(  P.166).
3 Use the meter control
switches to select , then
press and hold .
4 Use the meter control
switches to select “TPWS
setting”, then press .
5 Use the meter control
switches to select “Tire Set
Switching”, then press .
6 Use the meter control
switches to select “Register
Valve / ID”, then press .
7 Use the meter control
switches to select the wheel
set (“Tire Set 1” or “Tire Set
2”) displayed for the set
selection setting, then press
.
8 Use the meter control
switches to select “yes”, then
press .
The tire pressure warning light will
slowly blink 3 times, a message
indicating that change is occurring
will be displayed, and the wheel set
change will begin.
Wheel set change will begin and the tire pressure warning light will
blink for 1 minute and then illumi-
nate. Also, while the change is
being performed, “---” will be dis-
played for the tire inflation pressure
of each tire on the multi-information
display.
After approximately 2 minutes, the
wheel set change will complete, the
tire pressure warn
ing light will turn
off, and a completion message will
be displayed on the multi-informa-
tion display.
If changing does not complete after
approximately 4 minutes, a mes-
sage indicating that the change
could not be completed will be dis-
played.
Check which wheel set is installed
and perform the change procedure
again from the beginning.
9 If the specified tire inflation
pressure of the wheel set
installed differs from that of
the previous set, it will be
necessary to perform the tire
inflation pressure setting pro-
cedure of the tire pressure
warning system. ( P.520)
If the specified tire inflation pres-
sure is the same, it will not be nec-
essary to perform the tire inflation
pressure setting procedure.
10Register the position of each
wheel.

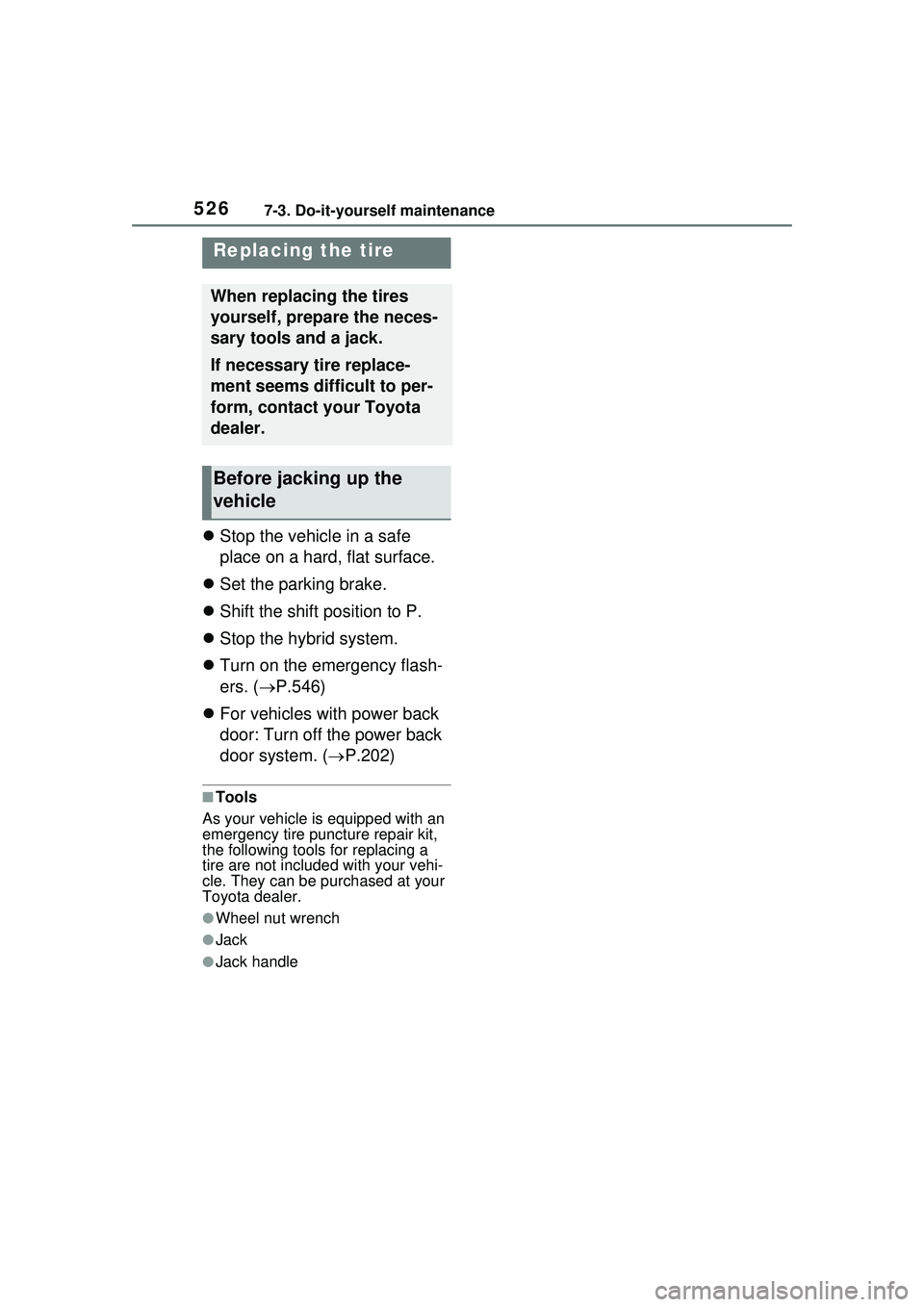

5267-3. Do-it-yourself maintenance
Stop the vehicle in a safe
place on a hard, flat surface.
 Set the parking brake.
 Shift the shift position to P.
 Stop the hybrid system.
 Turn on the emergency flash-
ers. ( P.546)
 For vehicles with power back
door: Turn off the power back
door system. ( P.202)
■Tools
As your vehicle is equipped with an
emergency tire puncture repair kit,
the following tools for replacing a
tire are not included with your vehi-
cle. They can be purchased at your
Toyota dealer.
●Wheel nut wrench
●Jack
●Jack handle
Replacing the tire
When replacing the tires
yourself, prepare the neces-
sary tools and a jack.
If necessary tire replace-
ment seems difficult to per-
form, contact your Toyota
dealer.
Before jacking up the
vehicle

5277-3. Do-it-yourself maintenance
7
Maintenance and care

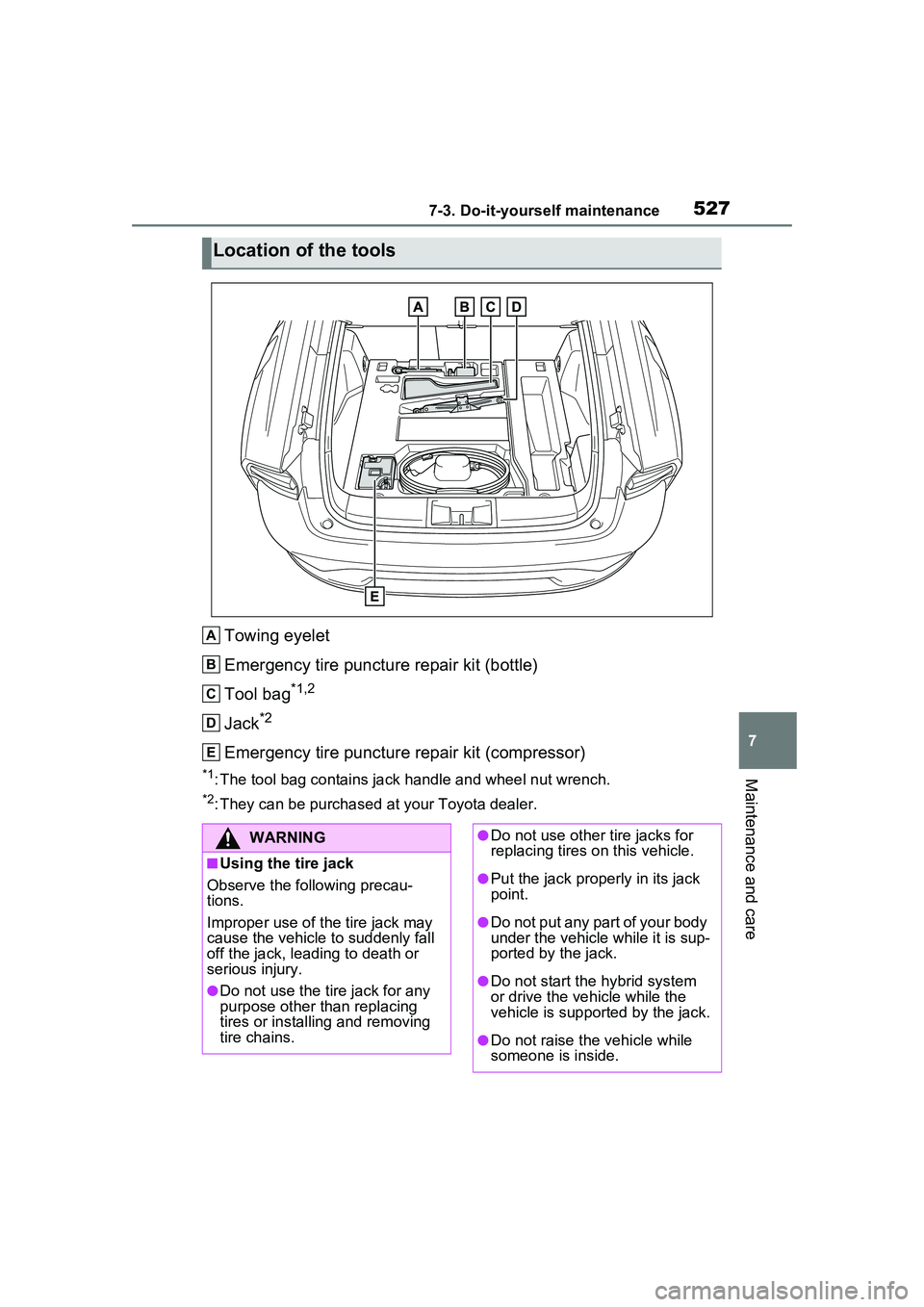

Towing eyelet
Emergency tire puncture repair kit (bottle)
Tool bag
*1,2
Jack*2
Emergency tire puncture repair kit (compressor)
*1: The tool bag contains jack handle and wheel nut wrench.
*2: They can be purchased at your Toyota dealer.
Location of the tools
A
B
C
D
E
WARNING
■Using the tire jack
Observe the following precau-
tions.
Improper use of the tire jack may
cause the vehicle to suddenly fall
off the jack, leading to death or
serious injury.
●Do not use the tire jack for any
purpose other than replacing
tires or installing and removing
tire chains.
●Do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack
point.
●Do not put any part of your body
under the vehicle while it is sup-
ported by the jack.
●Do not start the hybrid system
or drive the vehicle while the
vehicle is supported by the jack.
●Do not raise the vehicle while
someone is inside.

5287-3. Do-it-yourself maintenance

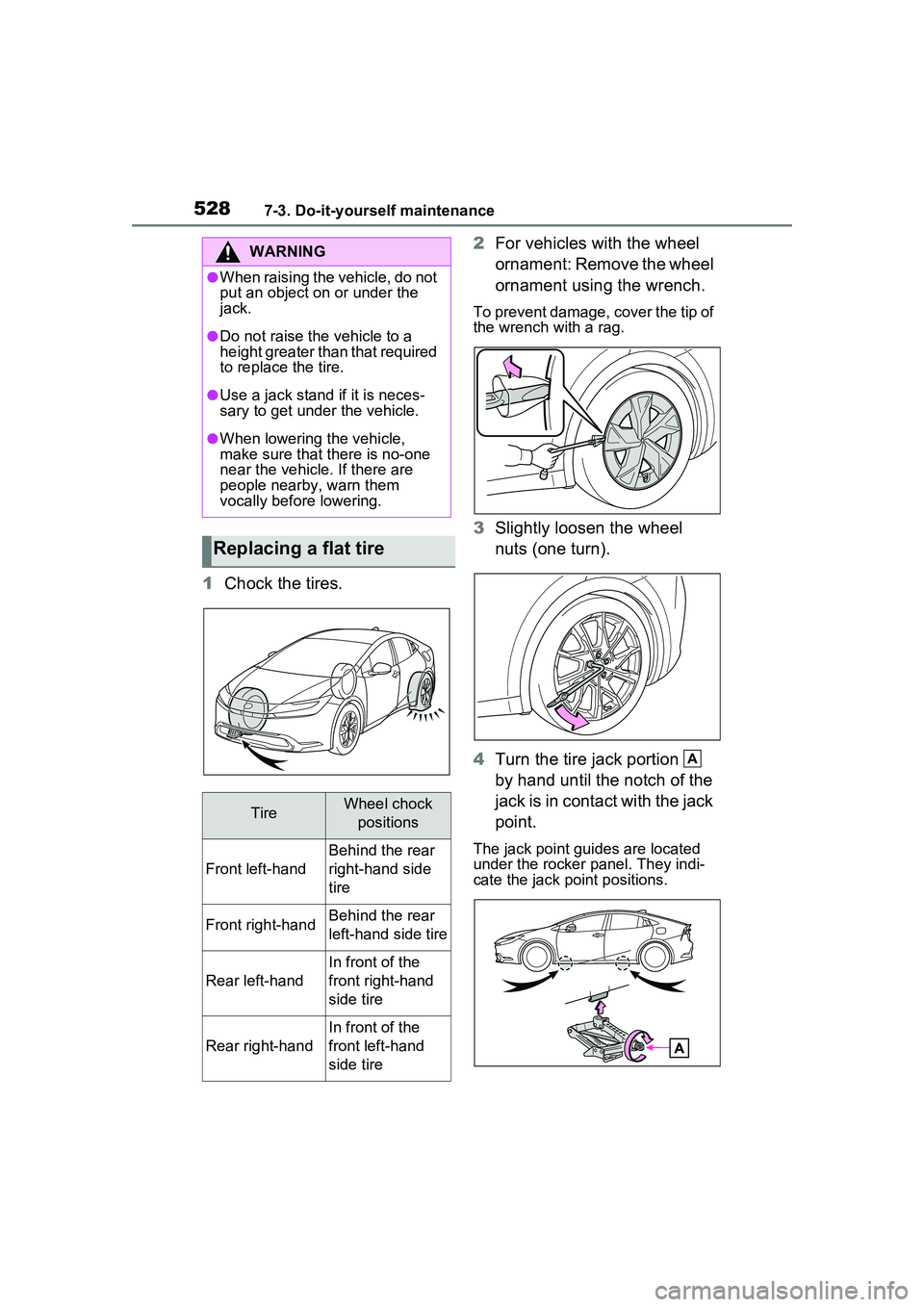

1Chock the tires. 2
For vehicles with the wheel
ornament: Remove the wheel
ornament using the wrench.
To prevent damage, cover the tip of
the wrench with a rag.
3Slightly loosen the wheel
nuts (one turn).
4 Turn the tire jack portion
by hand until the notch of the
jack is in contact with the jack
point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
WARNING
●When raising the vehicle, do not
put an object on or under the
jack.
●Do not raise the vehicle to a
height greater than that required
to replace the tire.
●Use a jack stand if it is neces-
sary to get under the vehicle.
●When lowering the vehicle,
make sure that there is no-one
near the vehicle. If there are
people nearby, warn them
vocally before lowering.
Replacing a flat tire
TireWheel chock
positions
Front left-hand
Behind the rear
right-hand side
tire
Front right-handBehind the rear
left-hand side tire
Rear left-hand
In front of the
front right-hand
side tire
Rear right-hand
In front of the
front left-hand
side tire
A

5297-3. Do-it-yourself maintenance
7
Maintenance and care

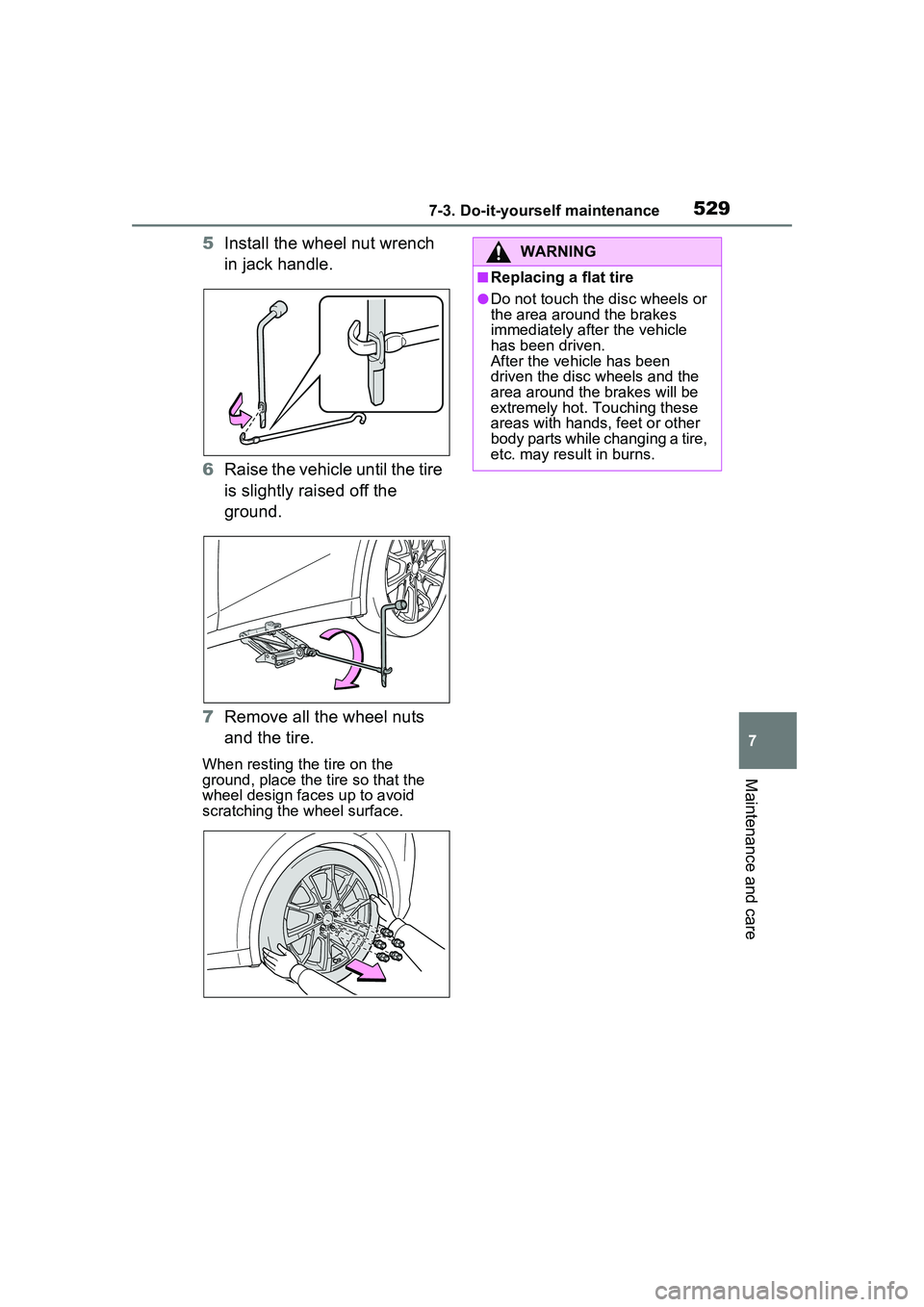

5Install the wheel nut wrench
in jack handle.
6 Raise the vehicle until the tire
is slightly raised off the
ground.
7 Remove all the wheel nuts
and the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or
the area around the brakes
immediately after the vehicle
has been driven.
After the vehicle has been
driven the disc wheels and the
area around the brakes will be
extremely hot. Touching these
areas with hands, feet or other
body parts while changing a tire,
etc. may result in burns.

5307-3. Do-it-yourself maintenance

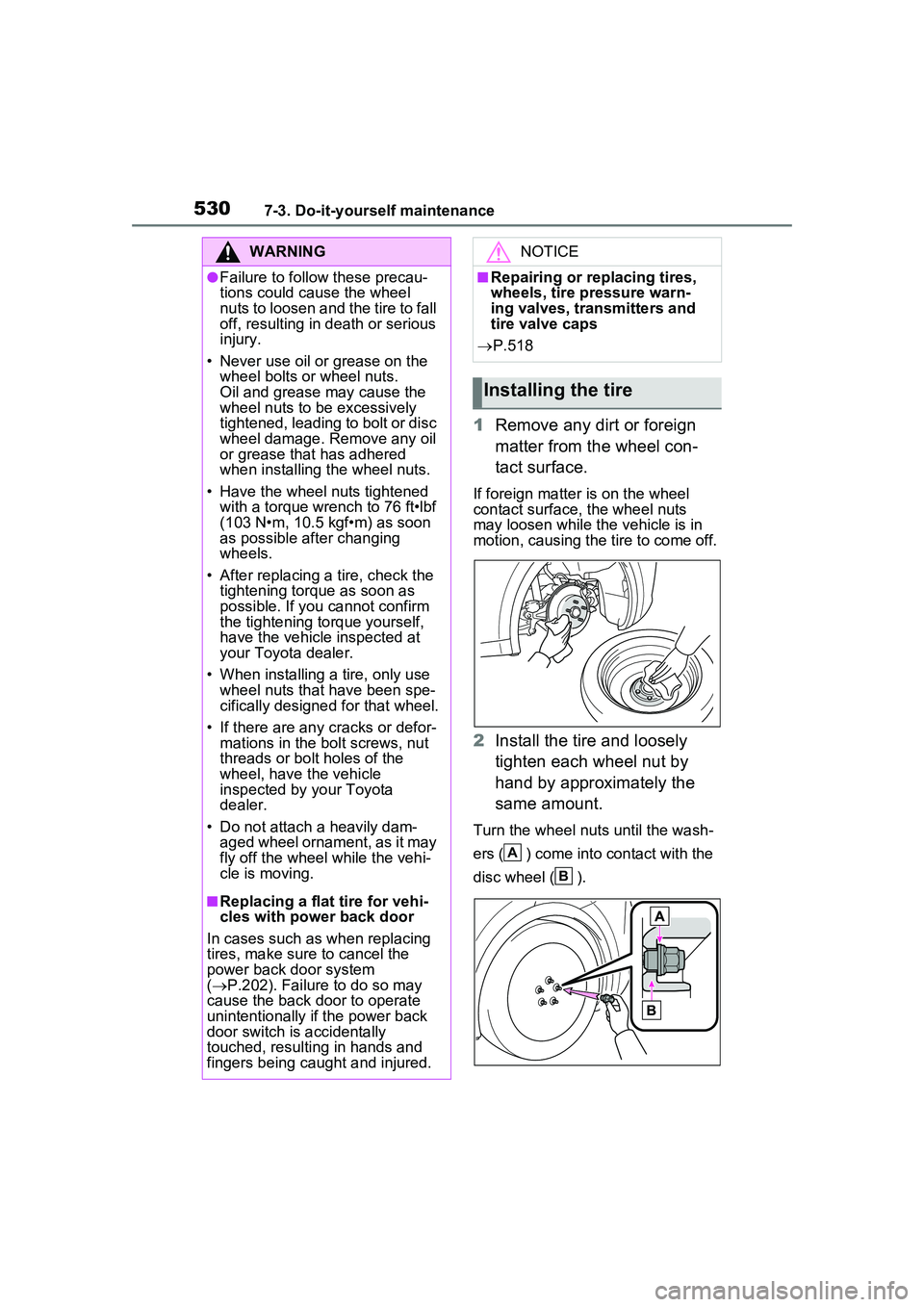

1Remove any dirt or foreign
matter from the wheel con-
tact surface.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while th e vehicle is in
motion, causing the tire to come off.
2 Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.
Turn the wheel nuts until the wash-
ers ( ) come into contact with the
disc wheel ( ).
WARNING
●Failure to follow these precau-
tions could cause the wheel
nuts to loosen and the tire to fall
off, resulting in death or serious
injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the
wheel nuts to be excessively
tightened, leading to bolt or disc
wheel damage. Remove any oil
or grease that has adhered
when installing the wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N•m, 10.5 kgf•m) as soon
as possible after changing
wheels.
• After replacing a tire, check the tightening torque as soon as
possible. If you cannot confirm
the tightening torque yourself,
have the vehicle inspected at
your Toyota dealer.
• When installing a tire, only use wheel nuts that have been spe-
cifically designed for that wheel.
• If there are any cracks or defor- mations in the bolt screws, nut
threads or bolt holes of the
wheel, have the vehicle
inspected by your Toyota
dealer.
• Do not attach a heavily dam- aged wheel ornament, as it may
fly off the wheel while the vehi-
cle is moving.
■Replacing a flat tire for vehi-
cles with power back door
In cases such as when replacing
tires, make sure to cancel the
power back door system
(  P.202). Failure to do so may
cause the back door to operate
unintentionally if the power back
door switch is accidentally
touched, resulting in hands and
fingers being caught and injured.
NOTICE
■Repairing or replacing tires,
wheels, tire pressure warn-
ing valves, transmitters and
tire valve caps
 P.518
Installing the tire
A
B
