TOYOTA PRIUS V 2013 Accessories, Audio & Navigation (in English)

371
2. ADVANCED PARKING GUIDANCE SYSTEM
9
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
PERIPHERAL MONITORING SYSTEM
Objects appear to be closer than they
actually are.There is a margin of error between the
set target parking position and guide
lines on the screen, and the actual dis-
tance/course on the road.
WHEN THE GRADE BEHIND
THE VEHICLE SLOPES DOWN
SHARPLYWHEN ANY PART OF THE
VEHICLE SAGS DUE TO THE
NUMBER OF PASSENGERS OR
THE DISTRIBUTION OF THE
LOAD

372
2. ADVANCED PARKING GUIDANCE SYSTEM
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
The estimated path guide lines are dis-
played according to flat surfaces (such as
the road). It is not possible to determine
the position of three-dimensional objects
(such as vehicles) using the estimated
path guide lines.
In the case shown above, the truck ap-
pears to be outside of the estimated
path guide lines and the vehicle does
not look as if it will hit the truck. Howev-
er, the width of the truck extends out
from the truck in a line, and this line may
actually be on the estimated path guide
lines.
In reality if you back up as guided by the
estimated path guide lines, the vehicle
may hit the truck.
Similarly, when the estimated path guide
lines pass near any object(s) or obsta-
cle(s), be sure to check the area behind
and around the vehicle visually.WHEN A THREE-DIMENSIONAL
OBJECT IS NEARBY
The guide on the screen targets a flat-
surfaced object (road etc).
When a three-dimensional object which
juts out (an obstacle such as a truck bed)
is nearby, observe the following precau-
tions, being careful not to collide with the
object.
ESTIMATED PATH GUIDANCE
MODE
The width
of the truck

373
2. ADVANCED PARKING GUIDANCE SYSTEM
9
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
PERIPHERAL MONITORING SYSTEM
The distance that appears on the screen
between three-dimensional objects (such
as vehicles) and flat surfaces (such as the
road) and the actual distance differ as fol-
lows.
The distance that appears on the screen
between three-dimensional objects (such
as vehicles) and flat surfaces (such as the
road) differs from the actual distance as
follows.
• In reality, = < ( and are
equally far away; is farther than
and ). However, on the screen, the sit-
uation appears to be < < .
• On the screen, it appears that a truck is parked approximately 3 ft. (1 m) away.
However, in reality if you back up to point
, you will hit the truck.
DISTANCE GUIDE LINE
Approx.
3 ft. (1 m)
SENSOR
Parking spaces are detected by the
sensors on both ends of the front
bumper, thus making parking position
identification easier.

374
2. ADVANCED PARKING GUIDANCE SYSTEM
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
SENSOR DETECTION RANGE
WHEN IN PERPENDICULAR
PARKING ASSIST MODE
SENSOR DETECTION RANGE
WHEN IN PARALLEL PARKING
ASSIST MODE
CAUTION
●A sensor may not operate properly in the
following situations:
• There is ice, snow or mud on the sen-
sor. (When it is removed, the normal
operation will return.)
• The sensor is frozen. (When the sen- sor warms up, it will return to normal.)
At low temperatures in particular, sen-
sors that are frozen may not detect a
parked vehicle.
• The sensor is covered in any way.
• When the vehicle is tilted.
• In extreme hot or cold weather.
• When driving on bumpy roads, slopes, gravelled roads or grass.
• Devices issuing ultrasonic waves are operated around your vehicle, such as
a horn from another vehicle, motorcy-
cle engine, air braking sound from
heavy-duty vehicles.
• When rain or water is splashed over the vehicle.
• When a radio antenna or fender pole is mounted on your vehicle.
• The sensor approaches too close to a parked vehicle.
• The bumper or sensor receives a strong impact.
● Do not attach any accessories within the
detection range of the sensors.

375
2. ADVANCED PARKING GUIDANCE SYSTEM
9
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
PERIPHERAL MONITORING SYSTEM
When the vehicle is stopped, turn the
steering wheel all the way to the left,
then all the way to the right. (It does not
matter in which direction-right or left-you
turn first.)
When the screen returns to the original
display, correction is complete.
INITIALIZING THE SYSTEM
Make sure to initialize the system in the
following situations.
The 12-volt battery is disconnected and
reconnected.
 The system initialization in progress
screen is displayed when the shift posi-
tion is moved to the “R” (due to low bat-
tery etc.).
HOW TO CORRECT
NOTICE
●If the above screen remains, have the
vehicle inspected at your Toyota dealer.
INFORMATION
● The help screen appears when is
touched. Make a correction using the
following method in accordance with the
display.
When the screen returns to the original
display, correction is complete.
If the above screen remains, have the
vehicle inspected at your Toyota dealer.

376
2. ADVANCED PARKING GUIDANCE SYSTEM
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

377
1
2
3
4
5
6
7
8
9
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15

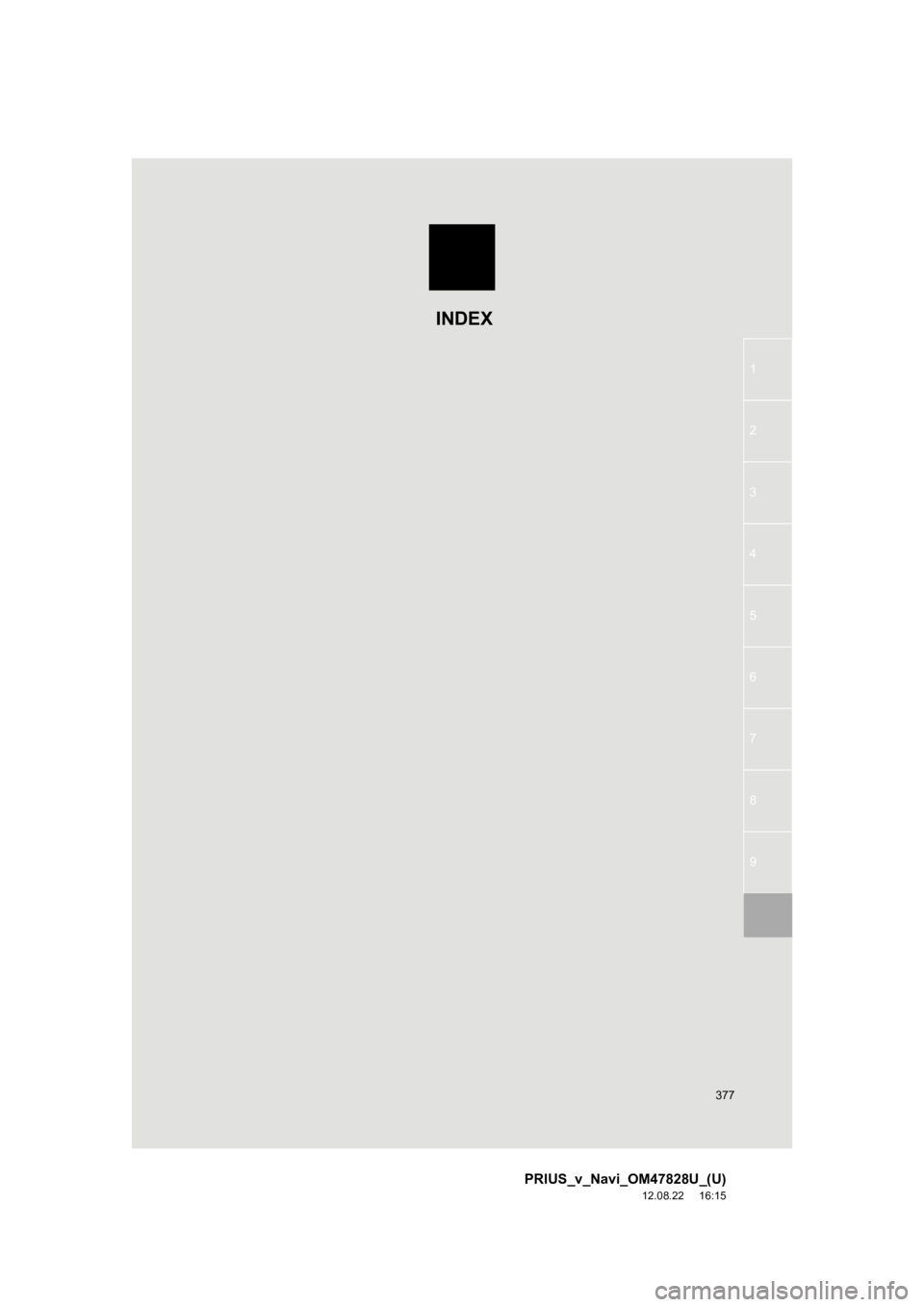

INDEX

378
ALPHABETICAL INDEX
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
A
Adding destinations................................... 85
Address book .......................................... 101
Address book entries .............................. 101
Advanced parking guidance system ....... 322Advanced parking guidance system camera .......... ...................... 369
Area displayed on screen .................... 368
Differences between the display and the actual road .......................... 370
Driving precautions.............................. 366
Easy set function ................................. 331
Example of how to use the system when parallel parking ....................... 365
Example of how to use the system when parking (Perpendicular
parking) ............................................ 360
If a message appears on the screen ................................... 310
Initializing the system .......................... 375
Introduction.......................................... 322
Maneuvering when parking ................. 324
Manual guide line display mode .......... 360
Operating procedure ................... 333, 345
Parallel parking assist mode ............... 344
Parking assist mode (Perpendicular parking) ................... 330
Pre-support function .................... 330, 344
Pre-support switch............................... 323
Sensor ................................................. 373
Tips for setting the target parking position ............. 340, 352
Usage precautions .............................. 366
What to do when this sort of message is displayed ...................... 355
When a red frame is displayed in the assist mode ............................ 359
When a three-dimensional object is nearby .......................................... 372
AM........................................................... 199
Apps ........................................................ 304 Audio .......................................................190
Audio language code ..............................227
Audio settings..........................................264
HD Radio™ system sett ings................264
iPod settings ........................................265
Audio/video remote controls (Steering switches) ..............................252
Audio/video system .................................190
Audio/video system operating hints ........254
Caring for your DVD player and disc............................................256
CD-R and CD-RW discs ......................260
iPod .....................................................255
MP3/WMA files ....................................258
Radio reception ...................................254
Terms ..................................................260
USB memory .......................................256
Automatic Sound Levelizer (ASL) ...........195
AUX port..................................................198
B
Basic function ............................................26
Bluetooth®...............................................130
Bluetooth® audio .....................................242
Connecting a Bluetooth® audio
player ...............................................245
Playing Bluetooth
® audio.....................247
Bluetooth® phone ....................................137
Bluetooth® phone message function.......152
Checking messages ............................152
New message notification....................154
Replying (Quick reply) .........................153
Bluetooth
® settings .................................177
Detailed Bluetooth® settings................184
Registered devices ..............................177
Selecting a Bluetooth
® phone .............181
Selecting portable player .....................183
Brightness .........................................31, 224
ALPHABETICAL INDEX

379
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
C
Call on the Bluetooth® phone ................. 141
By call history ...................................... 143
By dial ................................................. 141
By phonebook ..................................... 141
By POI call .......................................... 147
By speed dial....................................... 143
By voice recognition ............................ 145
Calling using an SMS/MMS message .......................................... 147
CD........................................................... 213
CLOSE button......................................... 190
Color ................................................. 47, 224
Command list .......................................... 277
Contrast ............................................ 31, 224
Current position calibration ..................... 117
Current position display ............................ 33
D
Deleting destinations ................................ 86
Deleting personal data .............................. 51
Deleting previous destinations ................ 110
Deleting set destinations........................... 72
DEST button ............................................. 10
“Destination” screen.................................. 20
Destination search .................................... 56
By “Address” ......................................... 58
By “Address Book” ................................ 68
By “Coordinates” ................................... 72
By “Emergency” .................................... 68
By home ................................................ 57
By “Intersection & Freeway” .................. 69
By “Map”................................................ 71
By “Point of Interest” ............................. 61
By preset destinations ........................... 57
By “Previous Destinations” .................... 67
Selecting the search area ..................... 56
Detailed navigation settings .................... 112
Detour setting ........................................... 87 Dial .................................................. 141, 145
Distance and time to destination ............... 84
DSP control ............................................. 195
DVD ........................................................ 213
DVD player.............................................. 213
DVD options ........................................ 222
DVD player and DVD video disc information ....................................... 231
Ejecting a disc ..................................... 213
If the player malfunctions .................... 230
Inserting a disc .................................... 213
Operating a DVD disc.......................... 219
Playing a disc ...................................... 214
Playing a DVD disc.............................. 220
Playing an audio disc .......................... 214
Playing an MP3/WMA disc .................. 216
E
Emergency ................................................ 68
Entune..................................................... 304
Expanded voice commands .................... 276
F
FM ........................................................... 199
Fuel consumption.................................... 282
Function index........................................... 18
G
General settings ........................................ 43
GPS (Global Positioning System) ..... 10, 126
H
HD Radio™ ............................................. 202
Heading-up screen.................................... 41
Home ...................................... 12, 17, 57, 97

380
ALPHABETICAL INDEX
PRIUS_v_Navi_OM47828U_(U)
12.08.22 16:15
I
INFO/APPS (INFO) button ........................ 10
Information .............................................. 282
“Information” screen .................................. 24
Inputting letters and numbers ................... 28
Internet radio broadcast .......................... 212
iPod ......................................................... 238Connecting iPod .................................. 238
Playing iPod ........................................ 238
K
Keyboard layout ........................................ 47
L
Language .................................................. 46
Limitations of the navigation system ....... 126
List screen operation................................. 28
M
MAP .......................................................... 71
Map database information and updates......................................... 384
Map database version and coverage area ..................................... 283
Map icons.................................................. 42
Map scale.................................................. 41
MAP/VOICE button ................................... 10
MEDIA button.......................................... 190
MP3......................................................... 216
N
Natural speech information ..................... 274
Navigation system..................... ................ 56
North-up screen ........................................ 41
O
Operation flow: Guiding the route .............16
Orientation of the map...............................41
Overview button and guidance screen ......10
P
Pausing guidance......................................91
Peripheral monitoring syst em..................318
Phone ......................................................130
Phone (Hands-free system for cellular phone) .....................................132
About the phonebook in this system....134
Using the phone switch .......................133
Using the steering switches .................134
When selling or disposing of the vehicle ........................................135
PHONE button ........................................130
Phone settings ........................................155
Message settings.................................170
Phone display settings.........................174
Phone sound settings ..........................155
Phonebook ..........................................157
Phonebook ......................................141, 157
POI call....................................................147
POI icons...................................................92
Point of Interest .........................................61
Preset destinations..............................14, 57
Previous destinations ................................67
PWR VOL knob .......................................190
Q
Quick guide ...............................................10
Quick reference .........................20, 130, 190
