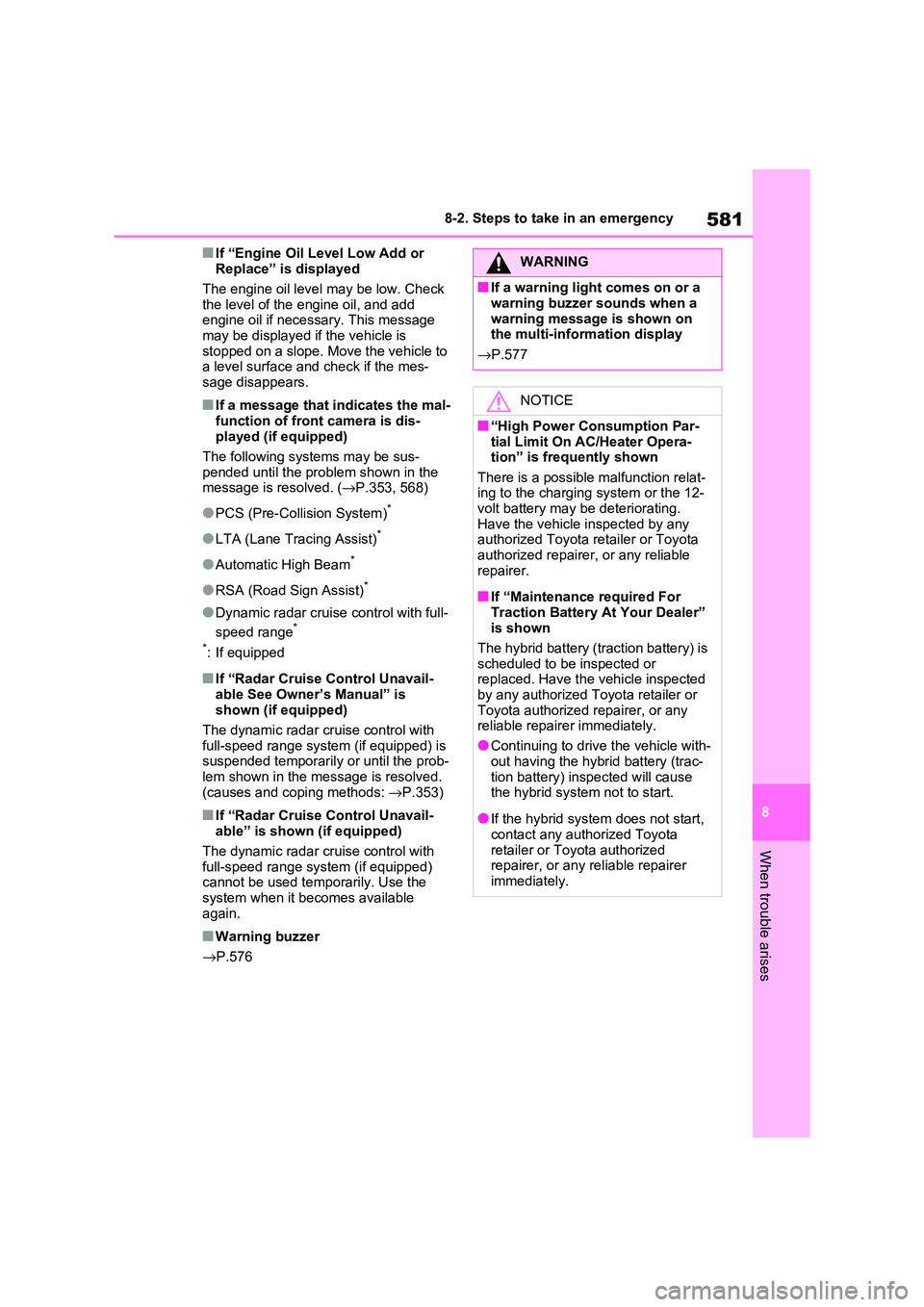

581
8
8-2. Steps to take in an emergency
When trouble arises
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check
the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is
stopped on a slope. Move the vehicle to
a level surface and check if the mes - sage disappears.
■If a message that indicates the mal -
function of fron t camera is dis-
played (if equipped)
The following systems may be sus -
pended until the prob lem shown in the
message is resolved. ( →P.353, 568)
●PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Automatic High Beam*
●RSA (Road Sign Assist)*
●Dynamic radar cruise control with full-
speed range*
*: If equipped
■If “Radar Cruise Control Unavail -
able See Owner ’s Manual” is
shown (if equipped)
The dynamic radar cru ise control with full-speed range system (if equipped) is
suspended temporarily or until the prob -
lem shown in the message is resolved. (causes and coping methods: →P.353)
■If “Radar Cruise Control Unavail-
able” is shown (if equipped)
The dynamic radar cru ise control with full-speed range system (if equipped)
cannot be used temporarily. Use the
system when it bec omes available again.
■Warning buzzer
→ P.576
WARNING
■If a warning light comes on or a
warning buzzer sounds when a
warning message is shown on the multi-information display
→ P.577
NOTICE
■“High Power Consumption Par- tial Limit On AC/Heater Opera -
tion” is frequently shown
There is a possible malfunction relat - ing to the chargin g system or the 12-
volt battery may b e deteriorating.
Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■If “Maintenance required For
Traction Battery A t Your Dealer” is shown
The hybrid battery (traction battery) is
scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer immediately.
●Continuing to drive the vehicle with -
out having the hybr id battery (trac-
tion battery) inspected will cause the hybrid system not to start.
●If the hybrid system does not start, contact any autho rized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer immediately.

651Alphabetical Index
When charging cannot be carried
out ............................................ 156
Charging port ................................ 105
If the charging port lid does not open
................................................. 121
Locking and unlocking ............... 121
Opening and closing .................. 106
Child-protector.............................. 209
Child restraint system .................... 50
Child restraint syst em installation
method....................................... 60
Fixed with a seat belt ................... 61
Fixed with an ISOFIX lower anchor -
age ............................................. 62
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 63
Child safety ..................................... 49
12-volt battery precautions. 507, 610
Airbag precautions ....................... 43
Back door precautions ............... 210
Charging precautions ................. 133
Heated steering wheel and seat
heater precautions ................... 462
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 296
Power window lock switch ......... 293
Power window precautions ........ 292
Rear door child-protectors ......... 209
Seat belt precautions ................... 35
Seat heater precautions ............. 462
Cleaning ................................ 488, 491
Aluminum wheels ....................... 488
DC/DC Converter air intake vent 536
Exterior....................................... 488
Front camera.............................. 345
Interior ........................................ 491
Radar sensor .......... ................... 345
Seat belts ................................... 491
Water-repellent coating .............. 489
Clock ..............................................179
Coat hooks .................................... 484
Condenser .....................................504
Console box .................................. 469
Consumption screen .................... 195
Coolant
Capacity .....................................622
Checking .................................... 503
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Cooling system .............................503
Engine overheating .................... 611
Hybrid system overh eating.........613
Cruise control
Cruise control .............................388
Dynamic radar cruise control with
full-speed range .......................376
Cup holders ...................................470
Current fuel consumption ............198
Current fuel economy................... 181
Curtain shield airbags .................... 39
Customizable features ................. 629
D
Daytime running light system ..... 332
Replacing light bulbs ..................548
DC/DC converter air intake vent .... 98
Cleaning .....................................536
Deck board .................................... 472
Deck under tray.............................473
Defogger
Outside rear view mirrors ........... 454
Rear window ..............................454
Windshield.................................. 453
Digital Rear-view Mirror ...............280
Dimensions ...................................618
Display
BSM (Blind Spot Monitor)........... 393
Consumption screen ..................195

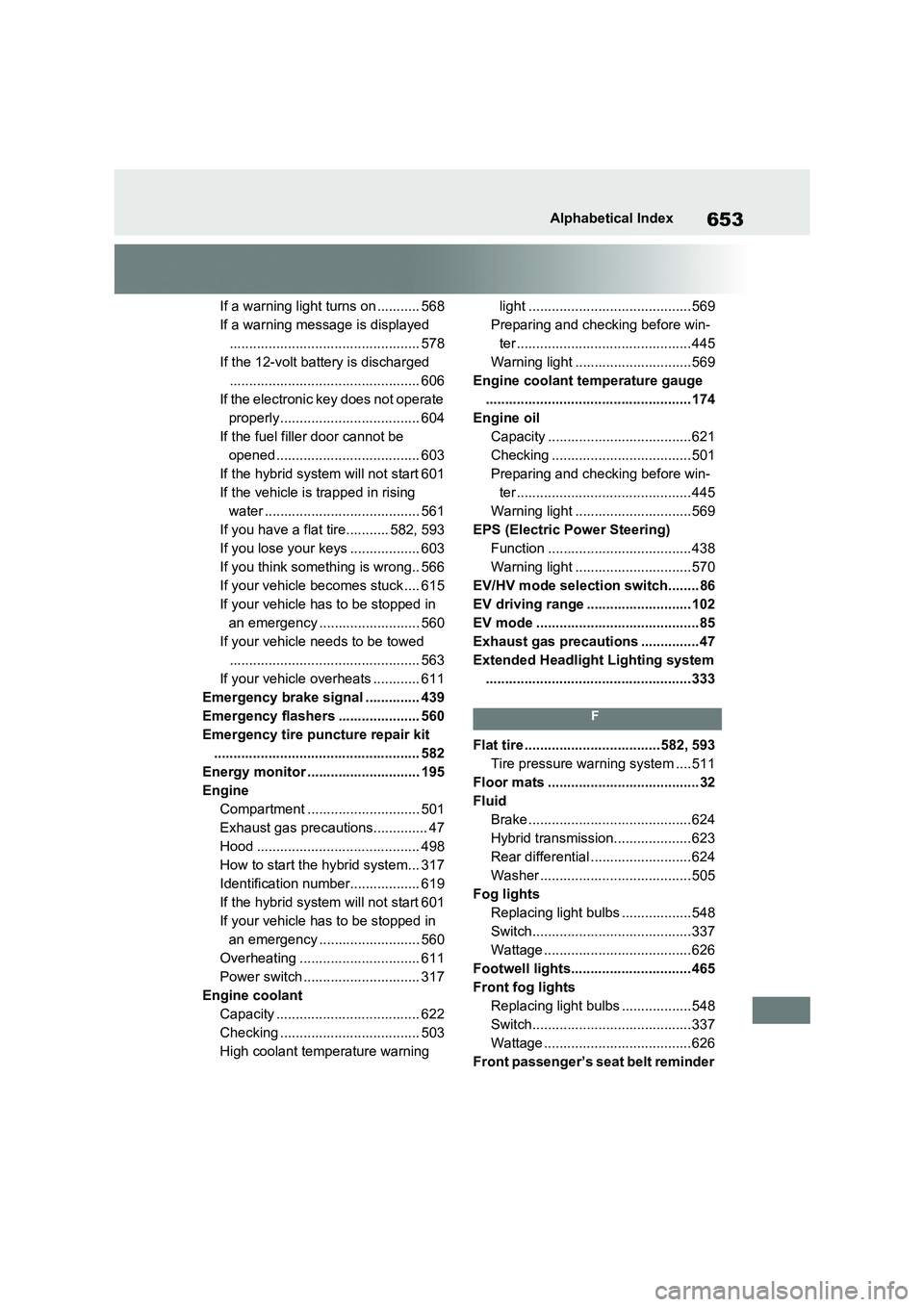

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder

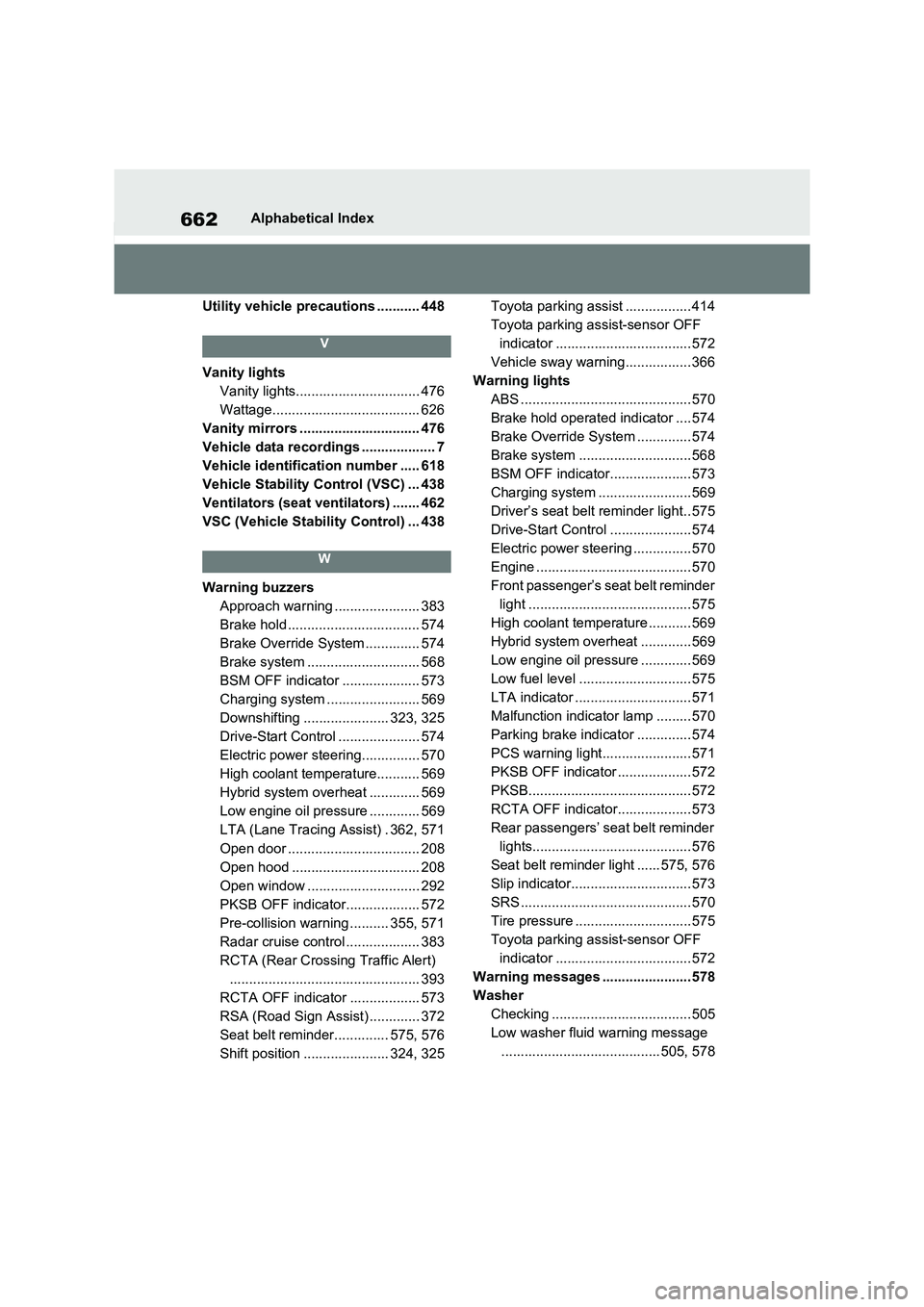

662Alphabetical Index
Utility vehicle precau tions ........... 448
V
Vanity lights
Vanity lights................................ 476
Wattage...................................... 626
Vanity mirrors ............................... 476
Vehicle data recordings ................... 7
Vehicle identification number ..... 618
Vehicle Stability C ontrol (VSC) ... 438
Ventilators (seat ve ntilators) ....... 462
VSC (Vehicle Stabi lity Control) ... 438
W
Warning buzzers
Approach warning ...................... 383
Brake hold .................................. 574
Brake Override System .............. 574
Brake system .......... ................... 568
BSM OFF indicator .................... 573
Charging system ........................ 569
Downshifting ...................... 323, 325
Drive-Start Control ..................... 574
Electric power steering............... 570
High coolant tempera ture........... 569
Hybrid system overh eat ............. 569
Low engine oil pressure ............. 569
LTA (Lane Tracing Assist) . 362, 571
Open door .................................. 208
Open hood ................................. 208
Open window ............................. 292
PKSB OFF indicator... ................ 572
Pre-collision warning .......... 355, 571
Radar cruise control ................... 383
RCTA (Rear Crossi ng Traffic Alert)
................................................. 393
RCTA OFF indicator .................. 573
RSA (Road Sign Assist) ............. 372
Seat belt reminder.. ............ 575, 576
Shift position ...................... 324, 325
Toyota parking assist ................. 414
Toyota parking a ssist-sensor OFF
indicator ...................................572
Vehicle sway warning................. 366
Warning lights
ABS ............................................570
Brake hold operate d indicator .... 574
Brake Override System .............. 574
Brake system ........... ..................568
BSM OFF indicator.....................573
Charging system ...... ..................569
Driver’s seat belt reminder light.. 575
Drive-Start Control .....................574
Electric power steering ...............570
Engine ........................................570
Front passenger’s seat belt reminder
light .......................................... 575
High coolant temperature ........... 569
Hybrid system overh eat .............569
Low engine oil pressure ............. 569
Low fuel level .............................575
LTA indicator ..............................571
Malfunction indicator lamp .........570
Parking brake indicator .............. 574
PCS warning light.......................571
PKSB OFF indicator . .................. 572
PKSB............ .............................. 572
RCTA OFF indicator................... 573
Rear passengers’ seat belt reminder
lights.........................................576
Seat belt reminder light ...... 575, 576
Slip indicator............................... 573
SRS ............................................570
Tire pressure ..............................575
Toyota parking a ssist-sensor OFF
indicator ...................................572
Warning messages .......................578
Washer
Checking .................................... 505
Low washer fluid warning message
.........................................505, 578
