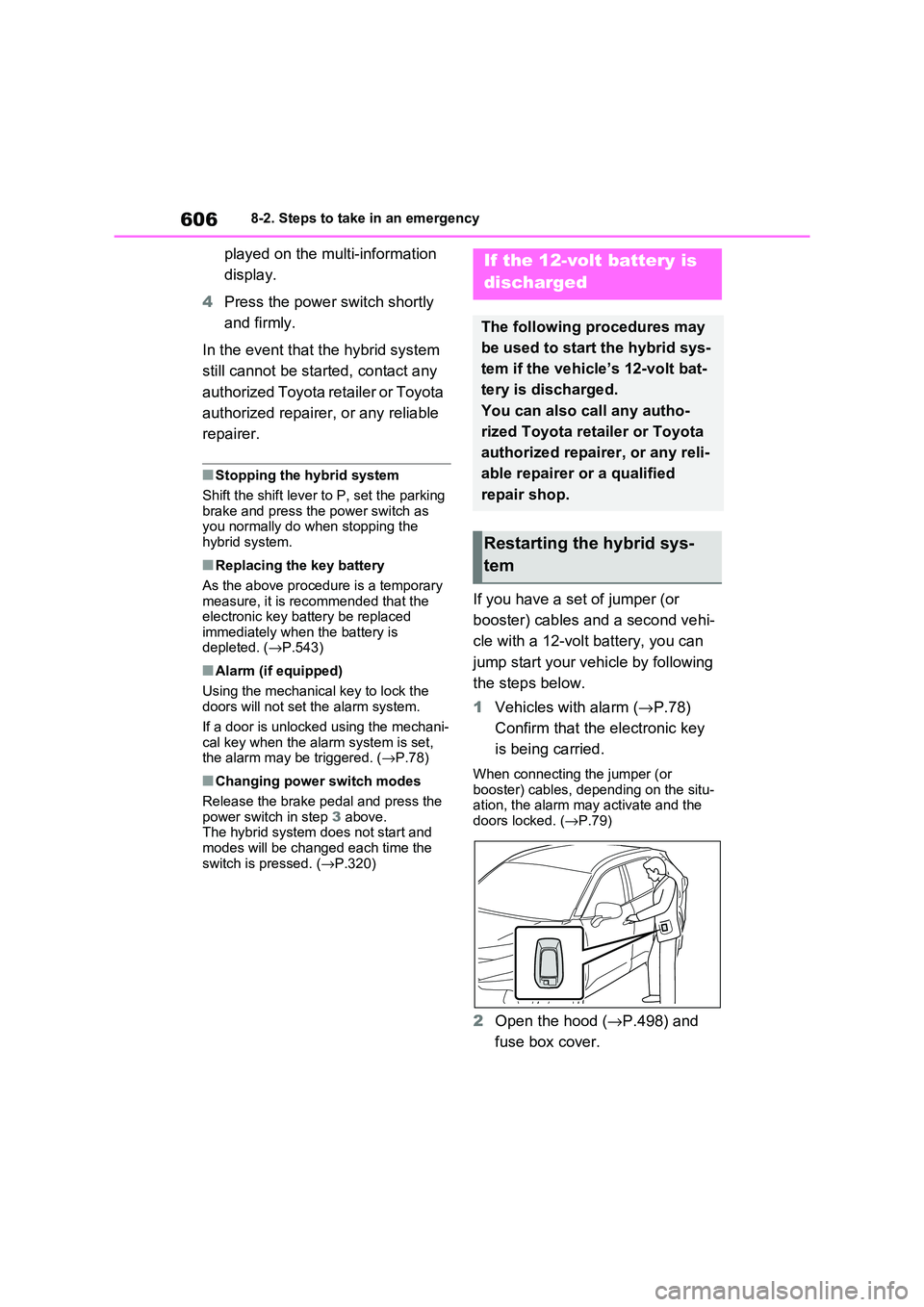

6068-2. Steps to take in an emergency
played on the multi-information
display.
4 Press the power switch shortly
and firmly.
In the event that the hybrid system
still cannot be st arted, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Stopping the hybrid system
Shift the shift lever to P, set the parking
brake and press the power switch as you normally do when stopping the
hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is rec ommended that the
electronic key battery be replaced
immediately when the battery is depleted. ( →P.543)
■Alarm (if equipped)
Using the mechanical key to lock the
doors will not set the alarm system.
If a door is unlocked using the mechani -
cal key when the al arm system is set,
the alarm may be triggered. ( →P.78)
■Changing power switch modes
Release the brake pedal and press the power switch in step 3 above.
The hybrid system does not start and
modes will be changed each time the switch is pressed. ( →P.320)
If you have a set of jumper (or
booster) cables an d a second vehi-
cle with a 12-volt battery, you can
jump start your vehicle by following
the steps below.
1 Vehicles with alarm (→P.78)
Confirm that the electronic key
is being carried.
When connecting the jumper (or booster) cables, depending on the situ -
ation, the alarm ma y activate and the
doors locked. ( →P.79)
2Open the hood (→P.498) and
fuse box cover.
If the 12-volt battery is
discharged
The following procedures may
be used to start the hybrid sys -
tem if the vehicle’s 12-volt bat -
tery is discharged.
You can also call any autho -
rized Toyota ret ailer or Toyota
authorized repairer, or any reli -
able repairer or a qualified
repair shop.
Restarting the hybrid sys -
tem

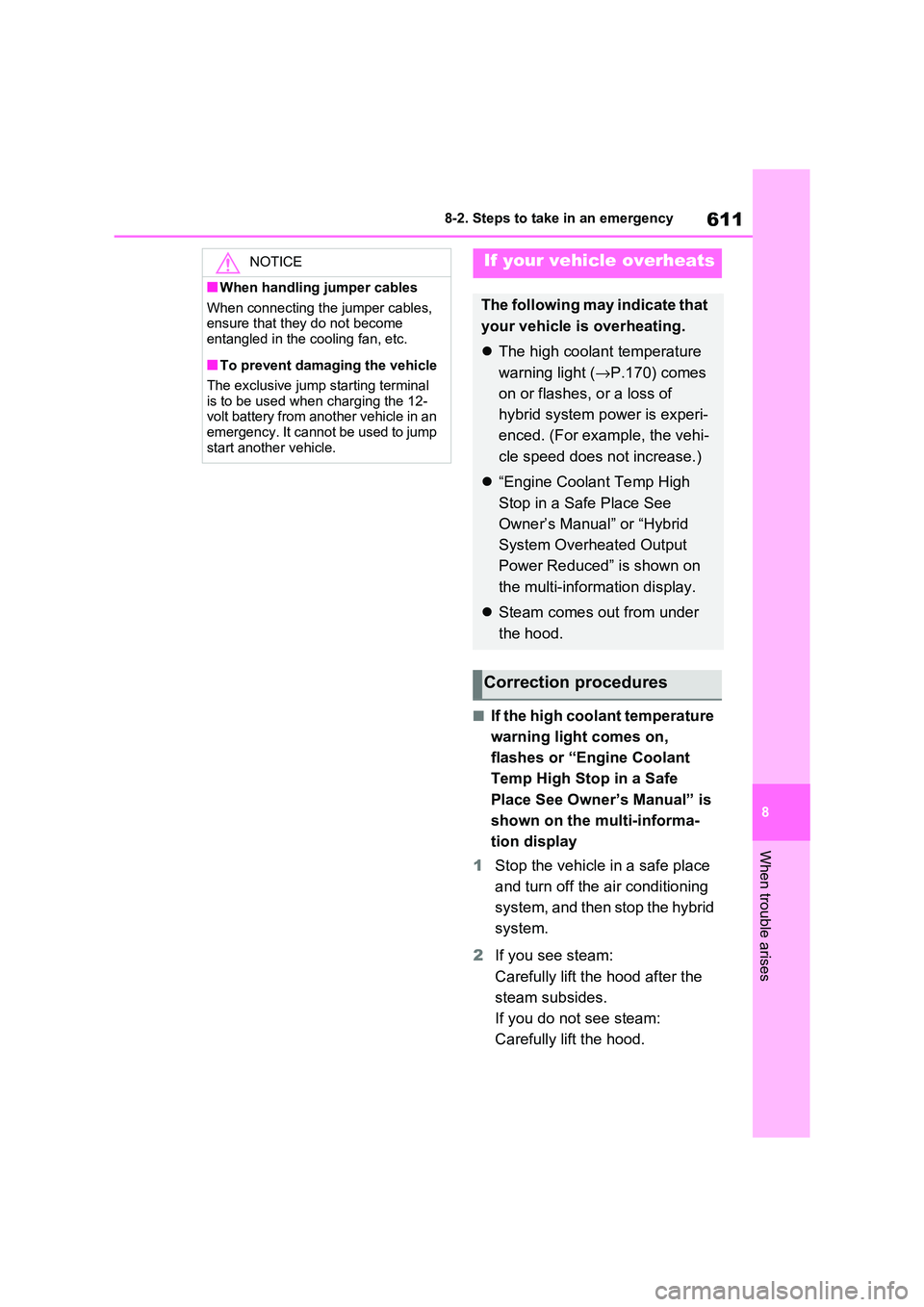

611
8
8-2. Steps to take in an emergency
When trouble arises
■If the high coolant temperature
warning light comes on,
flashes or “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual” is
shown on the multi-informa -
tion display
1 Stop the vehicle in a safe place
and turn off the air conditioning
system, and then stop the hybrid
system.
2 If you see steam:
Carefully lift th e hood after the
steam subsides.
If you do no t see steam:
Carefully lift the hood.
NOTICE
■When handling jumper cables
When connecting the jumper cables,
ensure that they do not become entangled in the cooling fan, etc.
■To prevent damaging the vehicle
The exclusive jump starting terminal
is to be used when charging the 12-
volt battery from another vehicle in an
emergency. It cannot be used to jump start another vehicle.
If your vehicle overheats
The following may indicate that
your vehicle is overheating.
 The high coolant temperature
warning light ( →P.170) comes
on or flashes, or a loss of
hybrid system power is experi -
enced. (For example, the vehi -
cle speed does not increase.)
 “Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown on
the multi-information display.
 Steam comes out from under
the hood.
Correction procedures

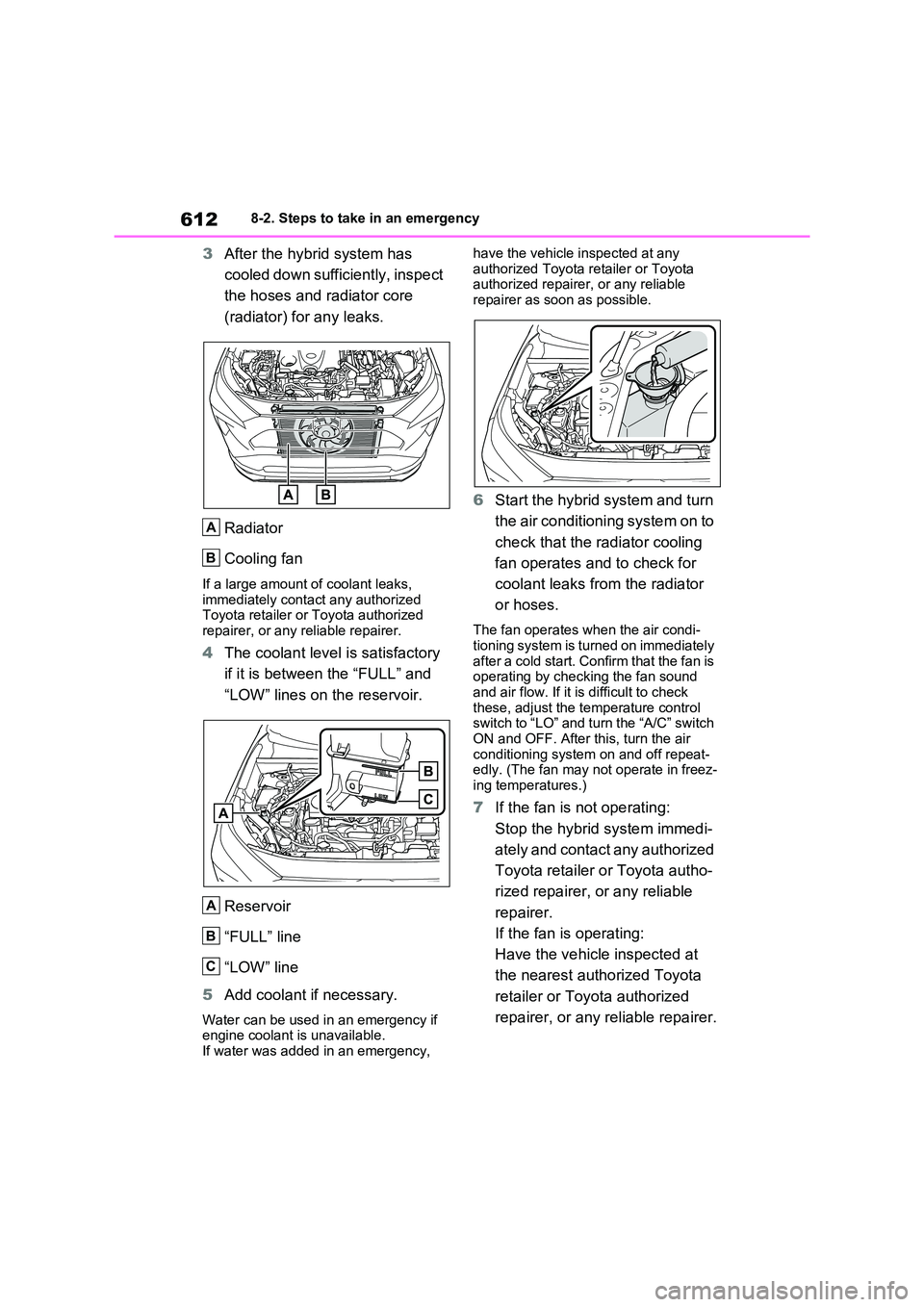

6128-2. Steps to take in an emergency
3After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contac t any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if
engine coolant is unavailable.
If water was added in an emergency,
have the vehicle i nspected at any
authorized Toyota r etailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
6 Start the hybrid system and turn
the air conditioning system on to
check that the radiator cooling
fan operates and to check for
coolant leaks from the radiator
or hoses.
The fan operates when the air condi -
tioning system is turned on immediately
after a cold start. Confirm that the fan is operating by check ing the fan sound
and air flow. If it is difficult to check
these, adjust the temperature control switch to “LO” and turn the “A/C” switch
ON and OFF. After t his, turn the air
conditioning system o n and off repeat- edly. (The fan may not operate in freez-
ing temperatures.)
7 If the fan is not operating:
Stop the hybrid system immedi -
ately and contact any authorized
Toyota retailer or Toyota autho -
rized repairer, or any reliable
repairer.
If the fan is operating:
Have the vehicle inspected at
the nearest authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
A
B
A
B
C

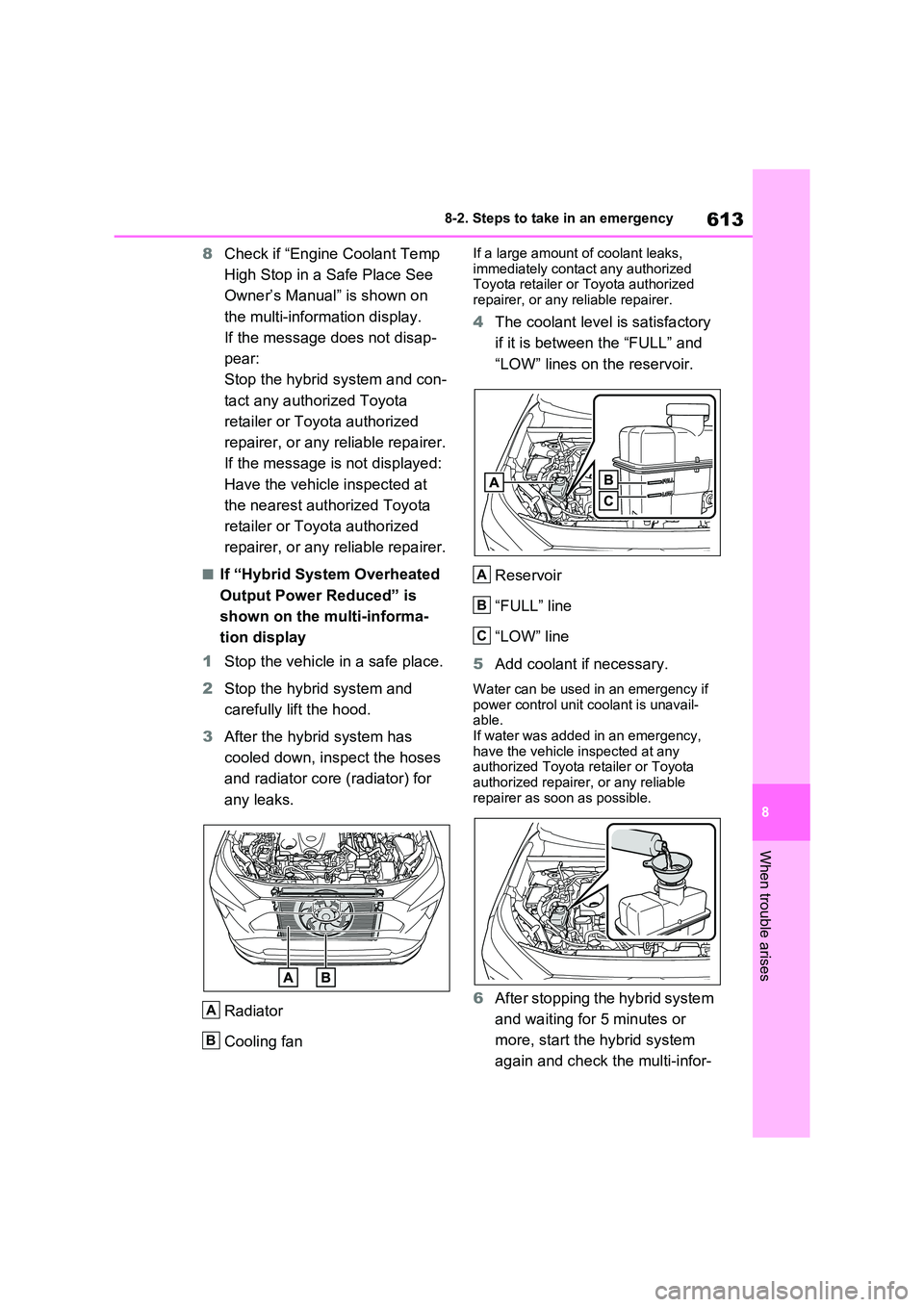

613
8
8-2. Steps to take in an emergency
When trouble arises
8 Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on
the multi-information display.
If the message does not disap -
pear:
Stop the hybrid system and con -
tact any authorized Toyota
retailer or Toyo ta authorized
repairer, or any reliable repairer.
If the message is not displayed:
Have the vehicle inspected at
the nearest authorized Toyota
retailer or Toyo ta authorized
repairer, or any reliable repairer.
■If “Hybrid System Overheated
Output Power Reduced” is
shown on the multi-informa -
tion display
1 Stop the vehicle in a safe place.
2 Stop the hybrid system and
carefully lift the hood.
3 After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fan
If a large amount o f coolant leaks,
immediately contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if
power control unit coolant is unavail- able.
If water was added in an emergency,
have the vehicle i nspected at any authorized Toyota r etailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
6 After stopping the hybrid system
and waiting for 5 minutes or
more, start the hybrid system
again and check th e multi-infor-
A
B
A
B
C

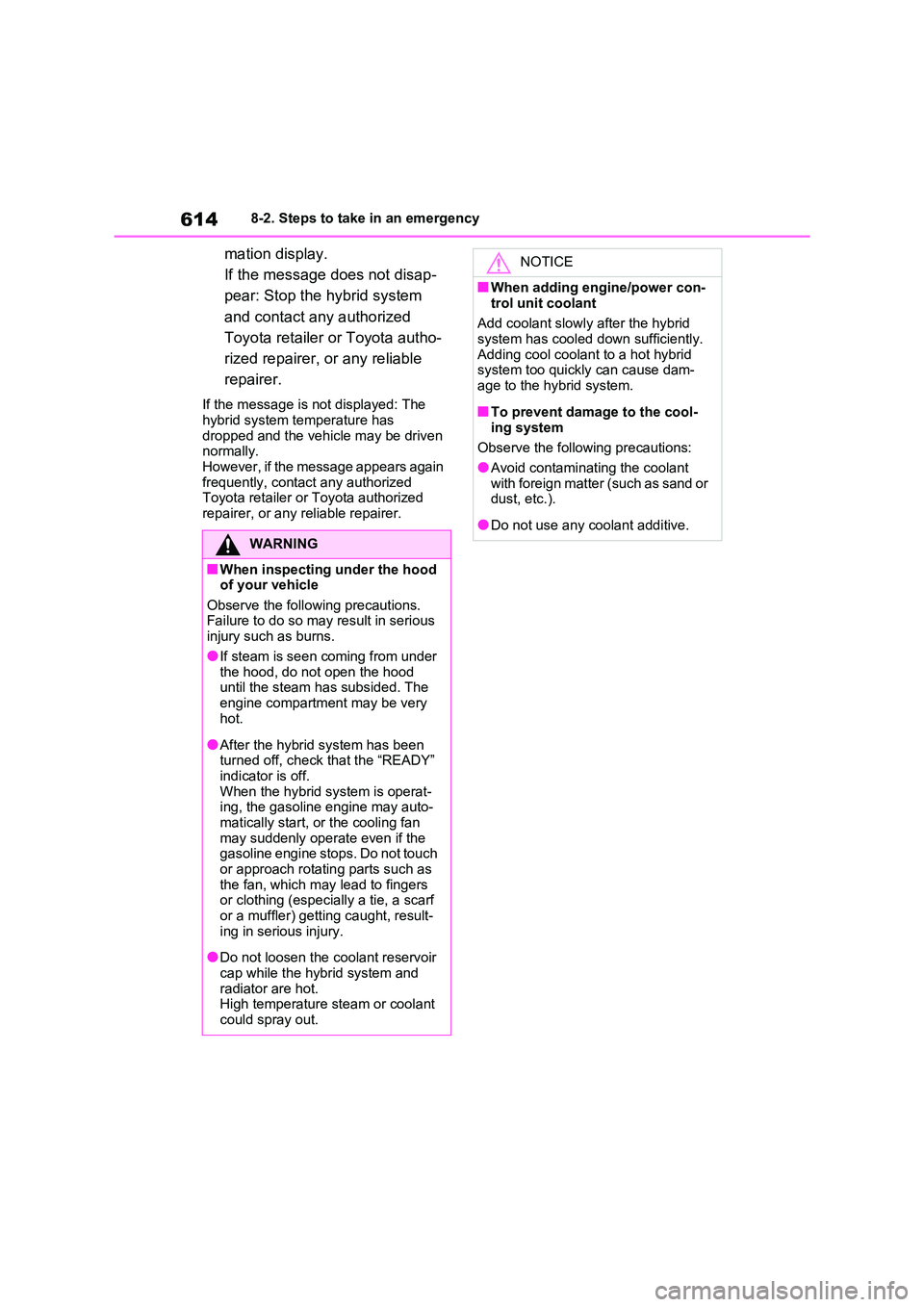

6148-2. Steps to take in an emergency
mation display.
If the message does not disap -
pear: Stop the hybrid system
and contact any authorized
Toyota retailer or Toyota autho -
rized repairer, or any reliable
repairer.
If the message is no t displayed: The
hybrid system temperature has dropped and the vehicle may be driven
normally.
However, if the message appears again frequently, contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under
the hood, do not open the hood until the steam has subsided. The
engine compartment may be very
hot.
●After the hybrid system has been
turned off, check that the “READY” indicator is off.
When the hybrid system is operat -
ing, the gasoline engine may auto - matically start, or the cooling fan
may suddenly operate even if the
gasoline engine stops. Do not touch or approach rotatin g parts such as
the fan, which may lead to fingers
or clothing (especia lly a tie, a scarf or a muffler) getting caught, result -
ing in serious injury.
●Do not loosen the c oolant reservoir
cap while t he hybrid system and
radiator are hot. High temperature steam or coolant
could spray out.
NOTICE
■When adding engine/power con -
trol unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid
system too quickly can cause dam- age to the hybrid system.
■To prevent damage to the cool -
ing system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or dust, etc.).
●Do not use any coolant additive.

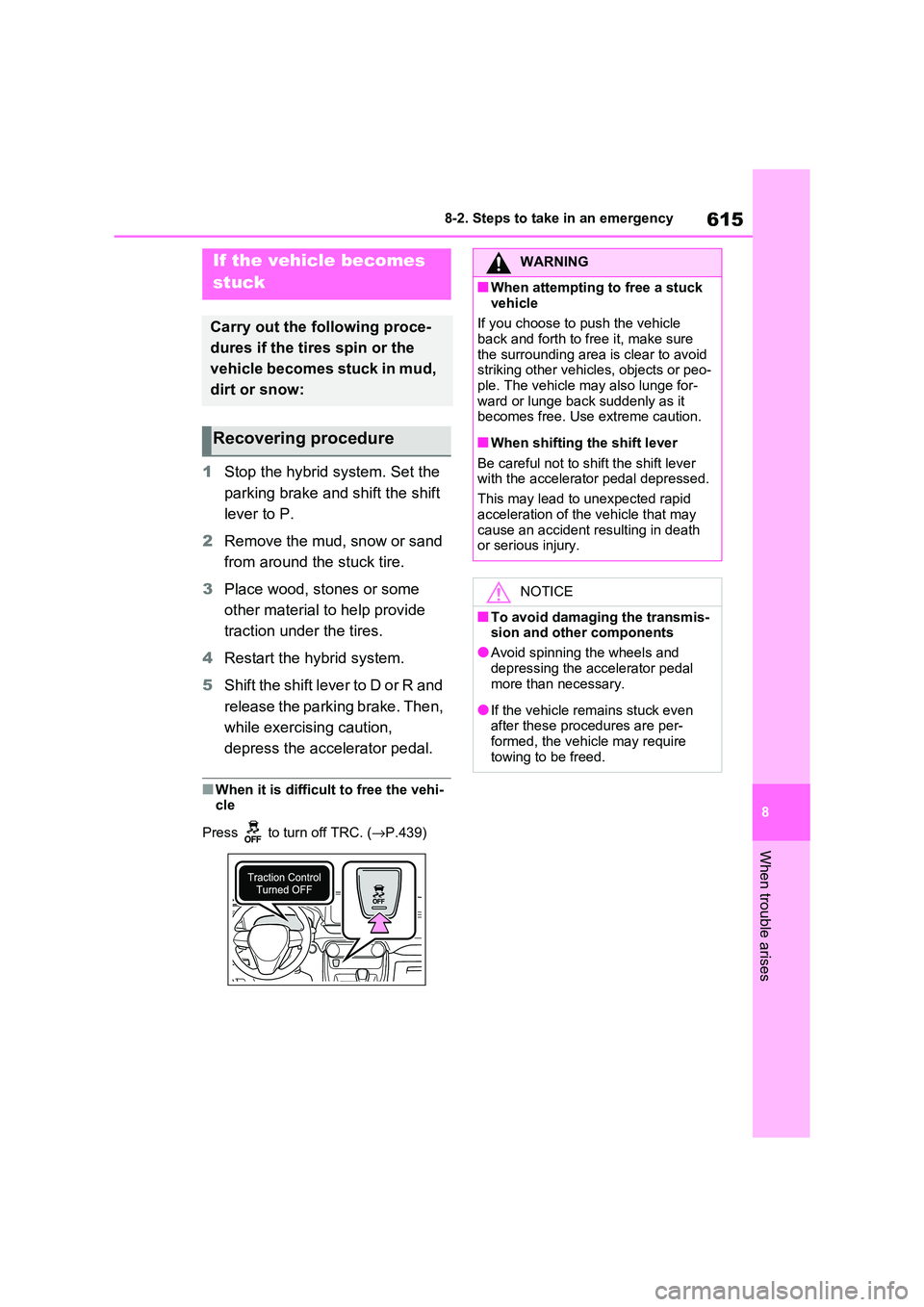

615
8
8-2. Steps to take in an emergency
When trouble arises
1 Stop the hybrid system. Set the
parking brake and shift the shift
lever to P.
2 Remove the mud, snow or sand
from around the stuck tire.
3 Place wood, stones or some
other material to help provide
traction under the tires.
4 Restart the hybrid system.
5 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi - cle
Press to turn off TRC. ( →P.439)
If the vehicle becomes
stuck
Carry out the following proce -
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck
vehicle
If you choose to push the vehicle back and forth to free it, make sure
the surrounding area is clear to avoid
striking other vehicles, objects or peo - ple. The vehicle may also lunge for -
ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to sh ift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid
acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmis - sion and other components
●Avoid spinning the wheels and
depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even
after these procedures are per - formed, the vehicle may require
towing to be freed.

641
9
9-2. Customization
Vehicle specifications
■Remote Air Conditioning System ( →P.460)
■Illumination (→P.465)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the d oor lock operates as follows.
• If the vehicle is started with all the doors locked, the speed linked door locking
function would not operate.
FunctionDefault
setting
Customized
setting
Operation using the “A/C” button
on the wireless remote control
Press and hold
(short)
Press once
––O
Press twice
Press and hold
(long)
Off
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold
(short)
Press and hold
(long)
Off
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
ABC
ABC

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder

654Alphabetical Index
light.............................................. 575
Front position lights
Light switch ................................ 332
Replacing light bulbs .................. 548
Front seat concentrated airflow
mode (S-FLOW) .......................... 457
Front seat heaters ........................ 462
Front seats .................................... 270
Adjustment ................................. 270
Cleaning ..................................... 491
Correct driving posture................. 33
Driving position memory ............ 273
Head restraints........ ................... 276
Memory recall function ............... 274
Seat heaters............................... 462
Seat position memory ................ 273
Seat ventilators .......................... 462
Front turn signal lights
Replacing light bulbs .................. 548
Turn signal lever ........................ 325
Wattage...................................... 626
Fuel
Capacity ................ ..................... 620
Fuel gauge ................................. 174
Gas station information .............. 664
Information ................................. 627
Refueling .................................... 342
Type ........................................... 620
Warning light .............................. 575
Fuel consumption information
Average fuel consumption ......... 198
Current fuel consumption ........... 198
Fuel filler door .............................. 343
If the fuel filler door cannot be
opened..................................... 603
Opener ....................................... 343
Refueling .................................... 342
Fuel gauge .................................... 174
Fuses ............................................. 545
G
Gas station information ...............664
Gauges...........................................174
Glove box ......................................469
GPF (Gasoline Part iculate Filter)
system ........... ..............................437
H
Headlight cleaner ..........................338
Headlights .....................................332
Automatic headlight leveling ...... 333
Automatic High Beam (AHB)...... 334
Extended Headlight Lighting system
.................................................333
Light switch ................................332
Replacing light bulbs ..................548
Head restraints..............................276
Head-up display ............................ 191
Heated steering wheel ..................462
Heated Windshield Defroster.......457
Heaters
Automatic air conditioning system
.................................................452
Heated steering wheel ...............462
Hybrid battery (traction battery).. 128
Outside rear view mirrors ........... 454
Seat heaters ............................... 462
High coolant temperature warning
light ..............................................569
High mounted stoplight
Replacing light bulbs ..................548
High voltage components .............. 94
Hill-start assist control ................. 438
Hood............................................... 498
Warning message ...................... 578
Hooks
Cargo hooks ............. .................. 472
Coat hooks ................................. 484
Retaining hooks (floor mat) .......... 32
Horn ............................................... 278

655Alphabetical Index
HV mode .......................................... 85
Hybrid battery ( traction battery)
Charging .................................... 135
Location ....................................... 94
Specification............................... 621
Hybrid battery ( traction battery)
charge mode ................................. 85
Hybrid system
ACCESSORY mode .................. 320
Acoustic Vehicle Alerting System 92
Brake Override System .............. 301
Drive-Start Control ..................... 301
Emergency shut off system.......... 98
Energy monitor/consumption screen
................................................. 195
High voltage components ............ 94
How to start the hybrid system... 317
Hybrid System Indicator ............. 174
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Ignition switch (power switch) .... 317
Overheating ............................... 611
Plug-in hybrid system precautions94
Plug-in hybrid vehicle driving tips. 99
Power (ignition) switch ............... 317
Regenerative brakin g ................... 90
Starting the hybrid system ......... 317
Hybrid System Indica tor .............. 174
Hybrid transmission ..................... 321
I
Identification
Engine ........................................ 619
Vehicle ....................................... 618
Ignition switch (pow er switch) .... 317
Auto power off function .............. 320
Changing the powe r switch modes
................................................. 320
If your vehicle has to be stopped in
an emergency .......................... 560
Starting the hybrid system..........317
Illuminated entry system.............. 466
Immobilizer system ........................ 76
Indicators....................................... 168
Initialization
Items to initialize......................... 643
Panoramic moon roof ................. 295
Power back door ........................218
Power windows ........ ..................291
Tire pressure war ning system ....523
Inside rear view mirror ......... 279, 280
Installing a child restraint system to
a front passenger seat ................. 52
Instrument cluster light control... 178
Interior lights ................................. 465
Switch.........................................465
Wattage ......................................626
Intrusion sensor.............................. 79
ISOFIX lower anchorages .............. 62
J
Jack
Positioning a floor jack ...............499
Vehicle-equipped jack ........ 583, 594
Jack handle ...........................583, 594
Jam protection function
Electronic sunshade ................... 295
Panoramic moon roof ................. 295
Power back door opener and closer
.................................................216
Power windows ........ ..................291
K
Keyless entry
Smart entry & star t system .........223
Wireless remote control .............203
Keys ............................................... 202
Battery-saving function...............224
Electronic key .............................202
If the electronic key does not operate
