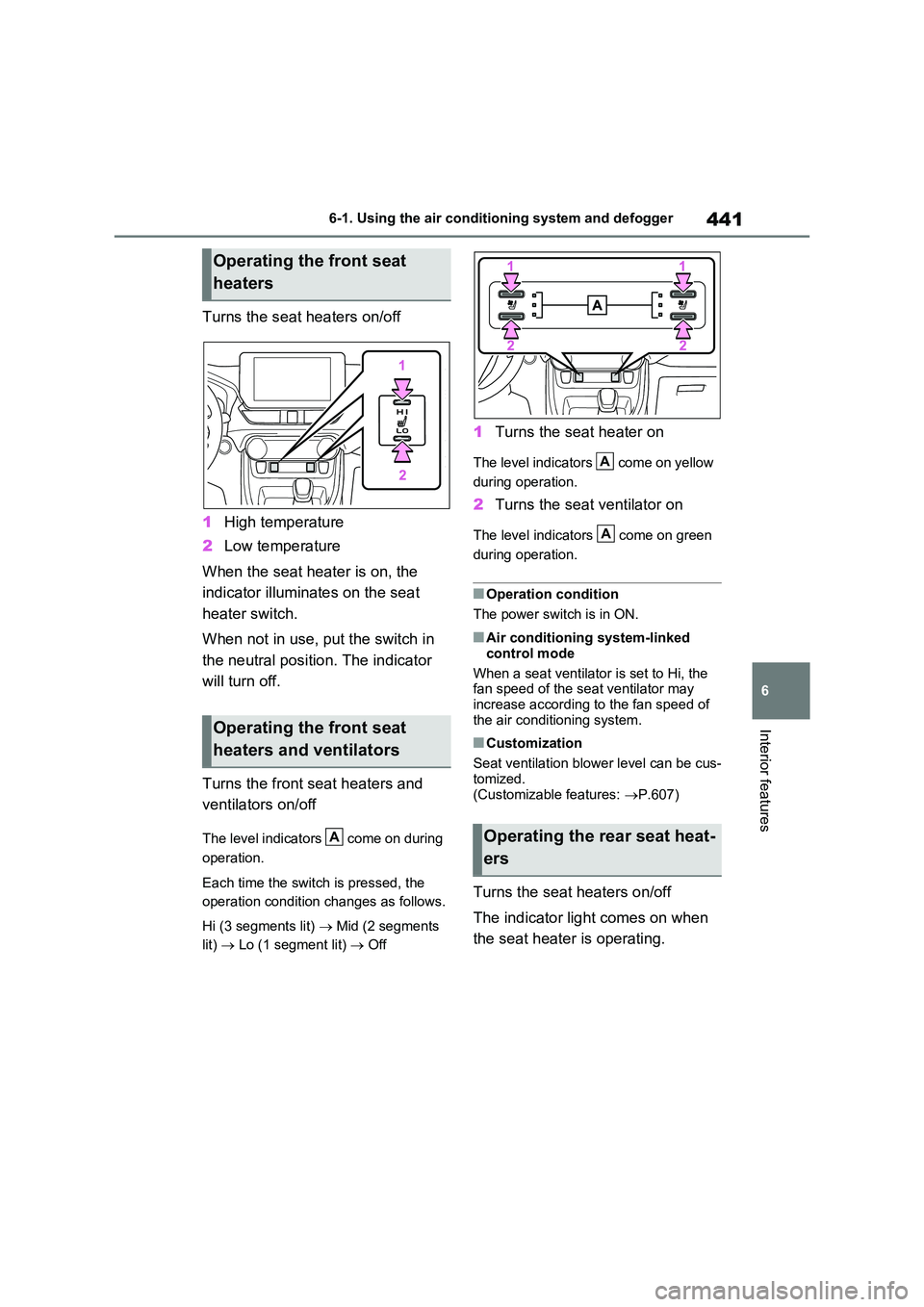

441
6
6-1. Using the air conditioning system and defogger
Interior features
Turns the seat heaters on/off
1 High temperature
2 Low temperature
When the seat heater is on, the
indicator illuminates on the seat
heater switch.
When not in use, put the switch in
the neutral position. The indicator
will turn off.
Turns the front seat heaters and
ventilators on/off
The level indicators come on during
operation.
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
1Turns the seat heater on
The level indicators come on yellow
during operation.
2 Turns the seat ventilator on
The level indicators come on green
during operation.
■Operation condition
The power switch is in ON.
■Air conditioning system-linked
control mode
When a seat ventilator is set to Hi, the fan speed of the seat ventilator may
increase according to the fan speed of the air conditioning system.
■Customization
Seat ventilation blower level can be cus-
tomized. (Customizable features: P.607)
Turns the seat heaters on/off
The indicator light comes on when
the seat heater is operating.
Operating the front seat
heaters
Operating the front seat
heaters and ventilators
AOperating the rear seat heat-
ers
A
A

4707-1. Maintenance and care
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the
vehicle, such as on the floor, on the rear seats, in the DC/DC Converter air intake vent, junction box or in
the luggage compartment. ( P.99) Doing so may cause the DC/DC Converter, electrical components,
etc. to malfunction or catch fire.
●Do not get any of the SRS compo-
nents or wiring in the vehicle interior wet. ( P.40) An electrical malfunction may
cause the airbags to deploy or not function properly, resulting in death or serious injury.
●Vehicles with wireless charger:Do not let the wireless charger
( P.456) get wet. Failure to do so may cause the charger to become hot and cause burns or could cause
electric shock resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish
cleaner. The instrument panel may reflect off the windshield, obstructing the driver’s view and leading to an
accident, resulting in death or serious injury.
NOTICE
■Cleaning detergents
●Do not use the following types of
detergent, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic sub- stances such as benzene or gaso-line, alkaline or acidic solutions,
dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
●Do not use a polish wax or polish cleaner. The instrument panel’s or other interior part’s painted surface
may be damaged.
■Preventing damage to leather
surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of
time. Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they may stick to the
leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact with electrical
components such as the audio sys- tem above or under the floor of the vehicle. Water may also cause the
body to rust.
■When cleaning the inside of the
windshield (vehicles with Toyota Safety Sense)
Do not allow glass cleaner to contact
the lens. Also, do not touch the lens. ( P.338)
■Cleaning the inside of the rear window
●Do not use a glass cleaner to clean
the rear window, as this may cause damage to the rear window defog-ger heater wires. Use a cloth damp-
ened with lukewarm water to gently wipe the window clean. Wipe the window in strokes running parallel
to the heater wires.

517
7
7-3. Do-it-yourself maintenance
Maintenance and care
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
 Headlights
 Front turn signal lights
 Daytime running lights
 Front position lights
 Front fog lights
 Side turn signal lights
 Tail lights
 Stop lights
 Rear fog light
 High mounted stoplight
 License plate lights
■LED lights
The lights other than the following lights each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer to have the light replaced.
●Rear turn signal lights
●Back-up lights
●Outer foot lights (if equipped)
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the light lens does not indi-cate a malfunction. Contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic com-
ponent, such as a lights, etc.
 P.515
■Rear turn signal lights
1 Open the back door and remove
the cover.
2 Remove the screws and remove
the light unit.
Remove the light unit by pulling it
directly backward from the rear of the
A
B
Replacing light bulb

617Alphabetical Index
out ............................................ 167
Charging port ................................ 106
If the charging port lid does not open
................................................. 121
Locking and unlocking ............... 121
Opening and closing .................. 107
Child-protector.............................. 239
Child restraint system .................... 50
Child restraint system installation
method....................................... 60
Fixed with a seat belt ................... 61
Fixed with an ISOFIX lower anchor-
age ............................................. 63
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 64
Child safety ..................................... 49
12-volt battery precautions. 485, 577
Airbag precautions ....................... 44
Back door precautions ............... 240
Charging precautions ................. 132
Heated steering wheel and seat
heater precautions ................... 440
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 284
Power window lock switch ......... 281
Power window precautions ........ 280
Rear door child-protectors ......... 239
Seat belt precautions ................... 35
Seat heater precautions ............. 440
Cleaning ................................ 466, 469
Aluminum wheels ....................... 466
DC/DC Converter air intake vent 504
Exterior....................................... 466
Front camera.............................. 339
Interior ........................................ 469
Radar sensor ............................. 339
Seat belts ................................... 469
Water-repellent coating .............. 467Clock ......................................192, 193
Coat hooks .................................... 463
Condenser ..................................... 482
Console box .................................. 446
Consumption screen .................... 226
Convenience Services (Suggestion
function) ...................... 209, 221, 596
Coolant
Capacity ..................................... 588
Checking .................................... 481
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Cooling system .............................481
Engine overheating .................... 578
Hybrid system overheating......... 580
Cruise control
Cruise control .............................381
Dynamic radar cruise control with
full-speed range .......................368
Cup holders ...................................447
Current fuel economy... 201, 213, 216
Curtain shield airbags ....................39
Customizable features ................. 594
D
Daytime running light system ..... 326
Replacing light bulbs ..................516
DC/DC converter air intake vent .... 99
Cleaning ..................................... 504
Deck board .................................... 449
Deck under tray.............................450
Defogger
Outside rear view mirrors ........... 432
Rear window .............................. 432
Windshield.................................. 431
Digital Rear-view Mirror ............... 268
Dimensions ...................................584
Display
BSM (Blind Spot Monitor)........... 387
Consumption screen ..................226

619Alphabetical Index
Operation ................................... 282
Emergency, in case of
If a warning buzzer sounds ........ 534
If a warning light turns on ........... 534
If a warning message is displayed
................................................. 544
If the 12-volt battery is discharged
................................................. 573
If the electronic key does not operate
properly.................................... 571
If the fuel filler door cannot be
opened..................................... 570
If the hybrid system will not start 568
If the vehicle is submerged or water
on the road is rising ................. 527
If you have a flat tire........... 548, 559
If you lose your keys .................. 570
If you think something is wrong.. 532
If your vehicle becomes stuck .... 582
If your vehicle has to be stopped in
an emergency .......................... 526
If your vehicle needs to be towed
................................................. 529
If your vehicle overheats ............ 578
Emergency brake signal .............. 416
Emergency flashers ..................... 526
Emergency tire puncture repair kit
..................................................... 548
Energy monitor ............................. 226
Engine
Compartment ............................. 479
Exhaust gas precautions.............. 47
Hood .......................................... 476
How to start the hybrid system... 310
Identification number.................. 585
If the hybrid system will not start 568
If your vehicle has to be stopped in
an emergency .......................... 526
Overheating ............................... 578
Power switch .............................. 310
Engine coolantCapacity ..................................... 588
Checking .................................... 481
High coolant temperature warning
light .......................................... 535
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
Engine coolant temperature 187, 193
Engine oil
Capacity ..................................... 587
Checking .................................... 479
Preparing and checking before win-
ter ............................................. 422
Warning light .............................. 535
EPS (Electric Power Steering)
Function ..................................... 416
Warning light .............................. 536
EV/HV mode selection switch........ 86
EV driving range ........................... 103
EV mode ..........................................85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 327
F
Flat tire ................................... 548, 559
Tire pressure warning system .... 488
Floor mats ....................................... 32
Fluid
Brake .......................................... 590
Hybrid transmission.................... 589
Rear differential .......................... 589
Washer ....................................... 483
Fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Footwell lights............................... 443
Front fog lights
Replacing light bulbs ..................516
Switch......................................... 331
Front passenger’s seat belt reminder

622Alphabetical Index
Replacing the battery ................. 511
Warning buzzer .......................... 253
Wireless remote control key....... 233
Knee airbags ................................... 39
L
Lane Tracing Assist (LTA) ........... 353
Operation ................................... 353
Warning messages .................... 363
Language (multi-information dis-
play) ............................. 208, 217, 596
Lever
Auxiliary catch lever ................... 476
Hood lock release lever ............. 476
Shift lever ................................... 315
Tilt and telescopic steering lock
release lever ............................ 266
Turn signal lever ........................ 319
Wiper lever ......................... 332, 334
License plate lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Light bulbs
Replacing ................................... 516
Wattage...................................... 591
Lights
Automatic High Beam system .... 328
Emergency flasher switch .......... 526
Extended Headlight Lighting system
................................................. 327
Fog light switch .......................... 331
Front interior lights ..................... 444
Headlight switch ......................... 326
Illuminated entry system ............ 443
Interior lights .............................. 444
Luggage compartment light 242, 245
Personal lights ........................... 444
Rear interior light........................ 444
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Vanity lights................................ 453Wattage ...................................... 591
Lock steering column................... 311
LTA (Lane Tracing Assist) ........... 353
Operation ...................................353
Warning messages .................... 363
Luggage compartment light 242, 245
Luggage cover .............................. 450
M
Maintenance
Do-it-yourself maintenance ........ 474
Maintenance data.......................584
Maintenance requirements......... 472
Malfunction indicator lamp .......... 536
Menu icons .................................... 200
Meter
“ODO TRIP” switch ............ 191, 199
Clock .................................. 192, 193
Head-up display ......................... 222
Hybrid System Indicator ..... 190, 196
Indicators.................................... 180
Meter control switches ....... 200, 212
Meters ................................187, 193
Multi-information display ....199, 211
Settings ...................... 206, 217, 596
Units ................................... 208, 220
Warning lights .................... 534, 544
Warning messages .................... 209
Meter control switches ......... 200, 212
Mirrors
Digital Rear-view Mirror.............. 268
Inside rear view mirror................ 267
Outside rear view mirror defoggers
................................................. 432
Outside rear view mirrors ........... 277
Vanity mirrors .............................453
Multi-information display ..... 199, 211
Audio system-linked display204, 216
BSM (Blind Spot Monitor)........... 387
Changing the display..........200, 212
Convenience Services (Suggestion

623Alphabetical Index
function) ................... 209, 221, 596
Display contents................. 199, 211
Driving information display . 201, 212
Driving support system information
display ............................. 204, 216
Dynamic radar cruise control with
full-speed range ....................... 368
Energy monitor........................... 226
Hybrid System Indicator ..... 190, 596
Language ........................... 208, 596
LTA (Lane-Tracing Assist) ......... 359
Menu icons................................. 200
Meter control switches ....... 200, 212
Navigation system-linked display
......................................... 204, 216
Parking Support Brake function . 405
PCS (Pre-Collision System) ....... 343
Pop-up display ................... 208, 595
RSA (Road Sign Assist) ............. 364
Settings .............................. 206, 217
Toyota parking assist-sensor ..... 395
Units ................................... 208, 220
Vehicle information display 204, 216
Warning message display .......... 209
Warning messages .................... 544
“My Room Mode” ......................... 164
N
Navigation system-linked display
............................................. 204, 216
Normal mode ................................ 411
O
Odometer .............................. 187, 199
“ODO TRIP” switch ............ 191, 199
Odometer and trip meter display
“ODO TRIP” switch ............ 187, 199
Display items...................... 187, 199
“ODO TRIP” switch .............. 191, 199
OilEngine oil ...................................587
Opener
Back door ...........................242, 244
Fuel filler door ............................ 337
Hood........................................... 476
Outer foot lights
Replacing light bulbs ..................516
Wattage ...................................... 591
Outside rear view mirrors ............277
Adjusting and folding ..................277
BSM (Blind Spot Monitor)........... 386
Outside rear view mirror defoggers
................................................. 432
Outside temperature............. 187, 193
Outside temperature display190, 198
Overheating ...................................578
P
Paddle shift switches ................... 317
Panoramic moon roof
Jam protection function .............. 283
Operation ...................................282
Warning message ...................... 284
Parking assist sensors (Toyota park-
ing assist-sensor) .......................395
Parking brake
Operation ...................................320
Parking brake engaged warning
buzzer ...................................... 322
Warning light .............................. 540
Warning message ...................... 322
Parking Support Brake (PKSB) ... 403
Indicator ..................................... 184
Parking Support Brake function
(rear-crossing vehicles)............410
Parking Support Brake function
(static objects) .......................... 407
Warning light .............................. 538
PCS (Pre-Collision System)
Enabling/disabling the pre-collision
system...................................... 346

624Alphabetical Index
Function ..................................... 343
Warning light .............................. 537
Warning message .............. 341, 547
Personal lights .............................. 444
Switch ........................................ 444
PKSB (Parking Support Brake) ... 403
Indicator ..................................... 184
Parking Support Brake function
(rear-crossing vehicles) ........... 410
Parking Support Brake function
(static objects) ......................... 407
Warning light .............................. 538
Plug-in hybrid system .................... 84
AUTO EV/HV mode switch .......... 86
AUTO EV/HV mode ..................... 85
Driving tips ................................. 100
EV driving range ........................ 103
EV mode ...................................... 85
EV/HV mode selection switch ...... 86
Features ....................................... 84
How to charge ............................ 135
HV mode ...................................... 85
Hybrid battery (traction battery)
charge mode .............................. 85
Power back door switch ...... 243, 244
Power control unit coolant .......... 481
Capacity ..................................... 588
Checking .................................... 482
Preparing and checking before win-
ter ............................................ 422
Radiator ..................................... 482
Power outlets ................................ 453
Power sources .............................. 124
Power steering (Electric Power
Steering system) ........................ 416
Warning light .............................. 536
Power switch ................................ 310
Auto power off function .............. 313
Changing the power switch modes
................................................. 313
If your vehicle has to be stopped in an emergency .......................... 526
Starting the hybrid system.......... 310
Power windows
Catch protection function ........... 279
Door lock linked window operation
................................................. 280
Jam protection function .............. 279
Operation ...................................279
Window lock switch .................... 281
Pre-Collision System (PCS)
Enabling/disabling the pre-collision
system...................................... 346
Function ..................................... 343
Warning light .............................. 537
Warning message .............. 341, 547
Predictive efficient drive ................ 93
R
Radar cruise control
Dynamic radar cruise control with
full-speed range .......................368
Radiator ......................................... 482
RCTA (Rear Crossing Traffic Alert)
RCTA Function................... 386, 391
Warning message ...................... 388
Rear Crossing Traffic Alert (RCTA)
..................................................... 386
Rear fog light
Replacing light bulbs ..................516
Switch......................................... 331
Rear passengers’ seat belt reminder
light ..............................................542
Rear seat........................................259
Folding down the rear seatbacks260
Head restraints ........................... 264
Seat heaters ............................... 441
Rear turn signal lights
Replacing light bulbs ..................516
Turn signal lever......................... 319
Wattage ...................................... 591
Rear view mirror

625Alphabetical Index
Digital Rear-view Mirror ............. 268
Inside rear view mirror ............... 267
Outside rear view mirrors ........... 277
Rear window defogger ................. 432
Rear window wiper ....................... 334
Refueling ....................................... 336
Capacity ..................................... 586
Fuel types .................................. 586
If the fuel filler door cannot be
opened..................................... 570
Opening the fuel tank cap .......... 336
Regenerative braking ..................... 90
Remote Air Conditioning System 438
Replacing
Electronic key battery................. 511
Fuses ......................................... 513
Light bulbs.................................. 516
Tires ........................................... 559
Wiper insert ................................ 508
Road accident cautions ................. 97
Road Sign Assist .......................... 364
RSA (Road Sign Assist) ............... 364
S
Seat belt reminder light........ 541, 542
Seat belts ........................................ 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint system installation 61
Cleaning and maintaining the seat
belt ........................................... 469
Emergency Locking Retractor (ELR)
................................................... 37
How to wear your seat belt .......... 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer . 541, 542
Seat belt pretensioners ................ 37
SRS warning light ...................... 536Seat heaters .................................. 440
Seat position memory ..................261
Seats
Adjustment precautions...... 258, 259
Adjustment ......................... 258, 259
Armrest....................................... 462
Cleaning ..................................... 469
Driving position memory............. 261
Folding down the rear seatbacks260
Head restraint.............................264
Properly sitting in the seat ............ 33
Seat heaters ............................... 440
Seat position memory ................ 261
Seat ventilators .......................... 440
Seat ventilators .............................440
Secondary Collision Brake .......... 416
Sensor
Automatic headlight system ....... 326
Automatic High Beam system .... 328
BSM (Blind Spot Monitor)........... 388
Digital Rear-view Mirror.............. 271
Front camera .............................. 338
Humidity sensor ......................... 437
Inside rear view mirror................ 267
Intrusion sensor and tilt sensor .... 80
LTA (Lane Tracing Assist).......... 353
Parking Support Brake function
(rear-crossing vehicles)............388
Parking Support Brake function
(static objects) .......................... 395
Radar sensor.............................. 338
Rain-sensing windshield wipers .333
RCTA ......................................... 388
Tilt sensor.....................................80
Toyota parking assist-sensor ..... 395
Toyota Safety Sense ..................338
Service plug .................................... 95
Shift lever ...................................... 315
If the shift lever cannot be shifted
from P ...................................... 316
Shift lock system .......................... 316

626Alphabetical Index
Side airbags .................................... 39
Side doors ..................................... 235
Side mirrors .................................. 277
Adjustment ................................. 277
BSM (Blind Spot Monitor) .......... 387
Folding ....................................... 278
Outside rear view mirror defoggers
................................................. 432
Side turn signal lights
Replacing light bulbs .................. 516
Turn signal lever ........................ 319
Side windows ................................ 279
Smart entry & start system .......... 253
Antenna location ................ 241, 253
Entry functions ........................... 235
Starting the hybrid system ......... 310
Warning message ...................... 544
Snow tires ..................................... 422
Spare tire
Storage location ......................... 560
Spark plug ..................................... 589
Specifications ............................... 584
Speed limiter ................................. 384
Speedometer ......................... 187, 193
Sport mode ................................... 411
SRS airbags .................................... 39
Steering lock
Column lock release .................. 311
Steering lock system warning mes-
sage ......................................... 311
Steering wheel
Adjustment ................................. 266
Heated steering wheel ............... 440
Meter control switches ....... 200, 212
Stop lights
Replacing light bulbs .................. 516
Storage feature ............................. 445
Storage precautions ..................... 446
Stuck
If the vehicle becomes stuck ...... 582
Sunshade ...................................... 282Sun visors ..................................... 453
Switches
“ODO TRIP” switch ............ 191, 199
AUTO EV/HV mode switch .......... 86
Automatic High Beam switch ..... 328
Brake hold switch .......................323
Cruise control .............................382
Digital Rear-view Mirror control
switches ...................................268
Door lock switch ......................... 238
Driving mode select switch......... 411
Driving position memory switches
................................................. 261
Dynamic radar cruise control with
full-speed range .......................369
Electronic sunshade switch ........ 282
Emergency flashers switch ........ 526
EV/HV mode selection switch ...... 86
Fog light switch .......................... 331
Fuel filler door opener switch ..... 337
Heated steering wheel ............... 440
Ignition switch (power switch) .... 310
Intrusion sensor and tilt sensor can-
cel switch ................................... 80
Light switch ................................ 326
LTA switch.................................. 358
Meter control switches ....... 200, 212
Outside rear view mirror switches
................................................. 277
Paddle shift switches..........317, 318
Panoramic moon roof switches .. 282
Parking brake switch ..................320
Power back door switch ..... 243, 244
Power switch .............................. 310
Power window switch ................. 279
Rear window and outside rear view
mirror defoggers switch............432
Rear window wiper and washer
switch ....................................... 334
Seat heater switches ..................441
Seat ventilators switches............441
